Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by ciclo »

They are splices (not visible) inside the original wiring, so you have to do a search in the Elsawin with the terms B528, B320 to know exactly all the places/connectors-terminals that reach all the wires that attached to such junctions .
Then you choice the original terminal/wire that make it easier for you to do a new splice or crimp the new terminal/wire.

For example, in the 6R the T73b/17 LIN (B528) is also in the T28 door connector, which is an easier place than the white BCM connector (T73b) to splice a new wire that comes from the MFSW.

In many models of contact terminals it is possible to crimp two wires at the same time (it is contemplated in the crimping guides), except for those of small size such as MQS, etc, if the cable thickness is too large for these small terminals, the two wires would not enter through the connector slot.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

For the power cable I plan to use a terminal like this and get power from the fuse that is assigned for MFSW.

https://rover.ebay.com/rover/0/0/0?mpre ... 4106825810

Now the slot is already populated, and I think it is a more practical way, than soldering down there.

For the MQS pins side, I was thinking to buy the connector pins and make my own cables with the factory theackness. But then I saw how expensive are the crimp tools for those and I can't justify the cost for 2 cables.

Although I cannot tell the cable gage for the pre terminated 000 979 009 E cables in Ali express, I believe it is going to be OK for MFSW use.

Sent from my MI 5 using Tapatalk
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

000 979 009 E turns out to be 0.5 thickness cable, so it would be ok for both power and LIN
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

exantas wrote: Wed Aug 28, 2019 2:45 pm I have a Skoda 5J with the ugly Green IC with code

Code: Select all

HW: 5J0 920 810 E
   Component: KOMBI         H15 0206
with

And I want to change to a maxidot White one. So I bought the following USED IC

Code: Select all

HW: 5J0 920 841 E
   Component: KOMBI         H04 0305
and production date of the instrument cluster 09.11.11

I bring the instrument in "vergin mode" - zero km and zero attached keys and try to adapt on my car.

I transfer the VIN/ID, CS and PIN (Power class is not available on the old green cluster) from the old cluster to the "new" one .

I add my existing keys to the new cluster, but the instrument show a message "no key in range".

I do the process all over again but this time I try with a new blank TP24 ID48 Megamos Chip Glass. The TP24 chip is added, but I get the same message on from the IC "no key in range". I scan the chip again and it shows that now is TP23 (I have done the process twice and both times the same result)

Old cluster eeprom is 24C32 but the "new" one is 24C64. Menu functionality with trip button looks 100% functioning. Indication lamps and gages look functioning (oc I can't test Rev and speedo).

I am on a dead end and out of ideas at the moment.
Is there something that someone can propose or the project is a lost cause ?

Thank you for your time
Cluster swap was successful in the end.
You can swap 5J0 920 810 E cluster to a 5J0 920 841 E one.

For VIN: TMBJN25J5Bxxxxxxx you don't need to get new TP24 ID48 Megamos Chips and you don't need to do any HW changes. Only transfer the immo data from old cluster to the new one.

Cluster was upgraded to 0709 firmware.
Last edited by exantas on Wed Nov 27, 2019 9:18 pm, edited 1 time in total.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

I am planning to retrofit Cruise Control in my car and I need to upgrade my 6R7937086F BCM

Is there an advantage/disadvantage to go for a 7H0937090D BCM instead of 6R7937087P if I can find them in similar price?

I don't have any plans for auto lights or direct TPMS.

I only want to do CC and MFSW retrofit.

Code: Select all

Chassis Type: 5J-SK25 (6N0)
Scan: 01 03 08 09 15 17 19 25 44 56

VIN: TMBJN25J5Bxxxxxxx   Mileage: 86190km-53555miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB)       Labels:. 03F-906-070-CBZ.clb
   Part No SW: 03F 906 070 N    HW: 03F 906 070 N
   Component: SIMOS10.20H02 9854
   Revision: --------    Serial number:
   Coding: 001100D6200400080000
   Shop #: WSC 13765 031 00052
   ASAM Dataset: EV_ECM12TFS02103F906070N 003009
   ROD: EV_ECM12TFS_003_VW25.rod
   VCID: 2D5130447C88F4224E-8078

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 6R0-907-37x-ABS82.clb
   Part No SW: 6R0 907 379 S    HW: 6R0 907 379 AB
   Component: ABS8.2 front  H03 0001
   Revision: --------
   Coding: 400100DB007500BB022C00E200D200000000
   Shop #: WSC 39901 003 1048576
   VCID: 4E9357C81D4EEF3A17-801A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels: 6R0-820-045-9AP.clb
   Part No SW: 5J0 820 045 B    HW: 5J0 820 045 B
   Component: Climatic       12 0670
   Revision: 0003S 12
   VCID: 2447D5602742356A91-8070

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 6R0-937-08x-09.clb
   Part No SW: 6R7 937 086 F    HW: 6R7 937 086 B
   Component: PQ25 BCM      H10 0017
   Revision: -3------    Serial number: 1002430401
   Coding: 64980B3808010000003000003E0A08C00040400F600000000000
   Shop #: WSC 39901 003 1048576
   VCID: 46836FE8F13E277AAF-8012

   Subsystem 1 - Part No SW: 6R0 959 801 M    HW: 6R0 959 801 M  Labels: 6R0-959-801.CLB
   Component: J386__TSG_FT  002 3210
   Serial number: --------------------
   Coding: 020000

   Subsystem 2 - Part No SW: 6R0 959 802 P    HW: 6R0 959 802 P  Labels: 6R0-959-802.CLB
   Component: J387__TSG_BT  002 3210
   Serial number: --------------------
   Coding: 020000

   Subsystem 3 - Part No SW: 6R0 959 811 D    HW: 6R0 959 811 D
   Component: J388__TSG_HL  002 3210
   Serial number: --------------------
   Coding: 020000

   Subsystem 4 - Part No SW: 6R0 959 812 D    HW: 6R0 959 812 D
   Component: J389__TSG_HR  002 3210
   Serial number: --------------------
   Coding: 020000

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 K    HW: 6R0 959 655 K
   Component: VW10AirbagT20 H09 0020
   Revision: --------    Serial number: 003GX0076M12
   Coding: 003230
   Shop #: WSC 13765 790 00052
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250.rod
   VCID: 4A9B5BD8ED26C31A4B-801E

   Crash sensor for side airbag: driver side:
   Serial number: 3495RRB405N6THNCD8IT

   Crash sensor for side airbag: front passenger side:
   Serial number: 3505RRB405L6THNCNHEY

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 5J0 920 810 E    HW: 5J0 920 810 E
   Component: KOMBI         H15 0206
   Serial number: 00000000000000
   Coding: 110A00
   Shop #: WSC 13765 031 00052
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04052
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
   VCID: 285FC150536AD10ABD-807C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
   Part No SW: 6N0 909 901     HW: 6R7 937 086 B
   Component: GW-K-CAN TP20 0017
   Revision: -3------
   Coding: 232200
   Shop #: WSC 39901 003 1048576
   VCID: 70EFE930A33AD9CA25-8024

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H15 0206
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03006
   ROD: EV_Immo_UDS_VDD_RM09.rod
   VCID: 6ADBFB588DE6231A6B-803E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 6Q0-423-156.clb
   Part No: 6R0 423 156 B
   Component: LenkhilfeTRW        V277
   Coding: 10140
   Shop #: WSC 13765
   VCID: 2F6D2A4CEA8486327C-807A

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels:. 5M0-035-1xx-56.clb
   Part No SW: 5J0 035 152 A    HW: 5J0 035 152 A
   Component: Radio         H08 0006
   Revision: R0000000    Serial number: SKZAZ6K0423616
   Coding: 050002000006
   Shop #: WSC 13765 790 00052
   VCID: 204FD970335A294AF5-8074

No fault code found.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

Happy new year everyone, best of luck for 2020.

@ciclo what size is the crimp slots that you use to crimp the metal pins in the fuse box under the steering column?

1-24: Junior power timer
25-60: Standard power timer

I am taking about the dimensions you can see on the PA-09 and PA-21 pliers from your last post regarding the CC Emulator.
User avatar
ciclo
Bling Bling Diamond Member
Posts: 6632
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R Rline/G7.5/Touareg Rline'19/T-Cr'20
Location: Earth ♥, Spain ☼
Contact:

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by ciclo »

Same to you, Happy New Year!

You must test what are the most appropriate measurements of the crimp grooves/slots, there are several possible dimensions, and possibilities, depending on the wire thickness to crimp, contact terminal, and manufacturer.
The contact terminal should be held lightly (without excessive force/tension) inside the crimp tool groove/slot.
It requires some skill, experience to make a good crimp (manually).

For the JPT I use the PA-21.
For SPT I use another type of crimp tool, bigger and power, similar to those sold on Aliexpress.

Good tools do not guarantee a good crimp.
I have many crimping tools, by size, cost and quality.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

Thank you for the answer Fernando.

For the MFSW retrofit I plan to take power from the fuse assigned from the factory for this use. Since the slot is already populated, I plan to replicate the solution that Skoda CC retrofit kit does and create a "bridge"
using pins like these
https://www.ebay.com/itm/1-PIN-Male-Fem ... 4106825810

Fabia 5J gets a cigarette lighter socket in truck area as an option and oc I want to retrofit it :P
My idea for this is on the fuse that the cigarette lighter in the console is using, snip the existing terminal and have two cables come from a new terminal.
https://www.ebay.com/itm/10PCS-Vw-N-907 ... 2749.l2649

One cable is going to be the existing cable that goes to the console and second is going to be the new cable that I will pull to trunk area
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

My car came from factory without ESP, so I have ABS8.2 and slip ring without steering angle position sensor.

If I upgrade the slip ring to one for ESP car (provided I installed the extra wires needed) will it work without errors if I don't upgrade the to an ESP pump?

I am interested to retrofit static cornering lights function through the existing fog lights.

Sent from my MI 5 using Tapatalk

exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

This week I started few (or many) long planned changes in my Fabia.

I am starting from the easy one.

The trunk light for estate variant of the car is the same size and connector type as the footwell lights in VW Passat and Golf, Skoda Superb.

So I went to Ali express and baught a pair of lights that come with a fixed board that has an array of 18 led lights.

They are not original but they produce way more light vs the original foot lights that have a single led light.

Original VW footwell light

Ali express footwell light VS original Fabia festoon trunk light.



Change is plug and play and new lamp is producing way more light.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

Next it is time for BSM upgrade

My car came with 6R7937086B, but I always wanted to retrofit CC . So last summer I bought from forum user Vasileios his old BCM 6R7937087H from an automatic gearbox Fabia vRS.

Old BCM

New BCM

For the process I used
1. A flathead screw driver (to unclip the old BCM)
2. Obdeleven
  • a.Get backup of old BCM long coding
    b.Get backup of Gateway long coding
    c. Use old coding on the new BCM
    d. Set old long coding on Gateway (which changed after installing new BCM)
    e. Adapt existing keyfobs so I can lock/unlock the car.

3. Beach sezlong (I opened the drivers door and set it next to the car. This way my back was in the car and my legs on the chair, so I could access the BCM with my back on the car floor. This way you can work longer on this position without need to remove the drivers car seat)

So far I was able to install new BCM , set old long coding from old BCM and Gateway and adapt the keyfobs.

Issues/faults:

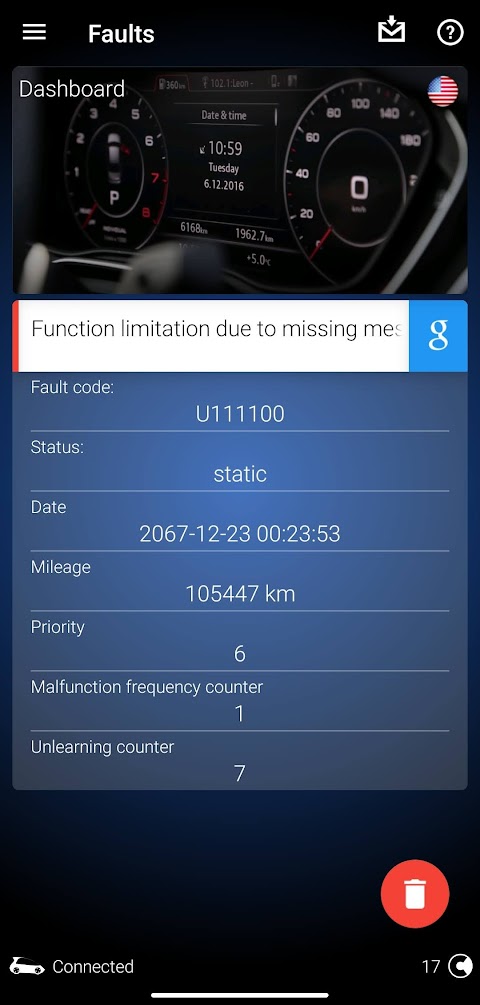

On IC I'm getting a fault code that didn't have before the Bcm change
On BCM I get one fault code for backup lightbulb check
On Gateway I am getting 5 fault codes:

My car doesn't have these modules and I have not found a way to change the installation list using Obdeleven so far.

Visible change with new BCM
1.Now IC show safe lock message after removing key from ignition. The car always had this functionality but never showed this message before.

https://www.youtube.com/Bq0NCFRVoyQ

2. The gear shift indicator on the IC is not working any more. There is no indication about the current gear or recommendation to select specific gear :(
Last edited by exantas on Tue Oct 26, 2021 11:56 pm, edited 1 time in total.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

Update

I got my hands on a VCDS cable and I updated the gateway list.
I removed all the modules that my car didn't have (especially the module for the automatic gearbox) and all fault codes went away and the gear shift indication appeared back on the IC.

In general you can change the gateway list options with obdeleven, but it looks like that feature is buggy on Android phones and didn't show up for me.
On Iphone seams to work better.
Last edited by exantas on Wed Oct 27, 2021 12:03 am, edited 1 time in total.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

Today I gutted my car for good.
Screenshot 2021-10-27 002433.jpg
Screenshot 2021-10-27 002433.jpg (153.03 KiB) Viewed 255 times
IC out, airbag, steering wheel, slip ring and stalks out also.
I made myself the cables for Mfsw and G85 retrofit.
Screenshot 2021-10-27 001949.jpg
Screenshot 2021-10-27 001949.jpg (387.82 KiB) Viewed 255 times
I have also acquired CC retrofit wire harness, original Skoda spare part and got the wires fitted on the same time.
Screenshot 2021-10-27 002159.jpg
Screenshot 2021-10-27 002159.jpg (95.73 KiB) Viewed 255 times
For G85 I got Canbus signal from IC harness.
Screenshot 2021-10-27 002550.jpg
Screenshot 2021-10-27 002550.jpg (101.64 KiB) Viewed 255 times
I got power from the according fuses SB 4 and SB 22. Ground I set on the nut that exist on the steering column.
For Mfsw I got power from SB 22. Lin signal I got from A pillar T28 wire harness. Elsa win was stating that cable for LIN was supposed to be white-gray.
In my car there is no such a cable. After lifting the car insulation that covers T28 I saw pin 5 that the cable in my car is yellow-gray.

I split apart T73b on BCM module and checked for continuity between pin 17 (white-gray) and yellow-gray cable and got the bip from my multimeter. So I am good with that.

When it comes to CC I have set all cables in T41a connector, but I have trouble with fuse box. I don't know how to unlock the fuse box so I can insert new pin in slot SB5.

Any one knows what lock I need to remove and how for slot SB5? The box seams to have 3 tabs.
One purple one the top and one purple and one blue on the side.

I have zero clue how to open the top one.
Last edited by exantas on Wed Oct 27, 2021 1:27 am, edited 2 times in total.
exantas
Bronze Member
Posts: 146
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Exantas Skoda Fabia 5J 1.2 TSI

Post by exantas »

Since I was stuck with fusebox, I started putting back the interior.

I replaced the indicator stalk with a brand new unit that has the lever with the CC buttons, but not the trip computer ones.
I got a used slipring with the steering angle sensor from Vasileios Fabia VRs
For steering wheel I went with a refurbished MFSW. New leather parts with used buttons from what I can tell.
Last was the "sad" part.
I had order new airbag cable that has provisioning for the steering buttons.

My car came with this airbag
And I had ordered 3T0 971 584A cable
Screenshot 2021-10-26 233416.jpg
Screenshot 2021-10-26 233416.jpg (83.27 KiB) Viewed 261 times
That didn't work though:
1. Pins that go on the airbag are the wrong size and wont fit the airbag pins
2. Also the blue cable is too short: If I set one of the blue pins on the airbag (90 degree pin with black cable originally), the other blue pin doesn't reach to the other pin like you see in the original cable.

So I went to local Skoda dealer and order the wrong cable again :P
I ordered 5JA 971 584 which turns out to be completely wrong for my application
Screenshot 2021-10-26 235034.jpg
Screenshot 2021-10-26 235034.jpg (265 KiB) Viewed 261 times
That cable is for Skoda Fabia 5J but for "03.10.2011>>", i.e. cars with the new style of steering wheel and airbag.
Now that I knew what was the correct cable for my application I went once more to local Skoda dealer and ordered
3T0 971 584
Unfortunately by the time new cable arrived, I had to go away and couldn't install it on the car and test it.

So currently the car looks this way
Looking smart with all this new buttons that don't work :D and without the trip computer buttons to change the change the IC menu :/

From all this work I had 3 things that improved:
1.New steering wheel feeling. Feels way better compared to the original plastic one.
2. Indicator stalk is brand new and feels so much better compared to the original one that had 100k on it. When the indicator stalk returns to original position is noticeably quieter.
3. I got my hands on a NOS gearshift boot from a pre facelift 5J and installed that. So all areas that you touch every day have brand new materials

MFSW buttons and CC has to wait until next time I have access on the car.
Until then I hope I will have figured out how to unlock the fuse box locking tabs.
Post Reply
