Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by ciclo » Sun Oct 27, 2019 1:24 am

Yes, I understand what you wrote previously.
First let's see what happens with another J745 unit.

VASILEIOS1972
Bronze Member
Posts: 145
Joined: Tue Feb 12, 2019 2:53 pm
Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
Location: Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by VASILEIOS1972 » Sun Oct 27, 2019 4:41 pm

exantas wrote:
Sat Oct 26, 2019 2:27 pm
Idea. If the changes that you guys made in the wiring don't make it incompatible, why don't you try to test J745 with the 087 BCM you had in the car before?
The autoscans Valiseios posted had 087. If the new wiring can work with old BCM you could do an extra test to the J745 module.

It won't be a permanent solution since 087 doesn't cover all functions you want,but you have it already in hand anyway.
For example if you have the same abs unit as the autoscans you posted, you copy the codings they have just for testing

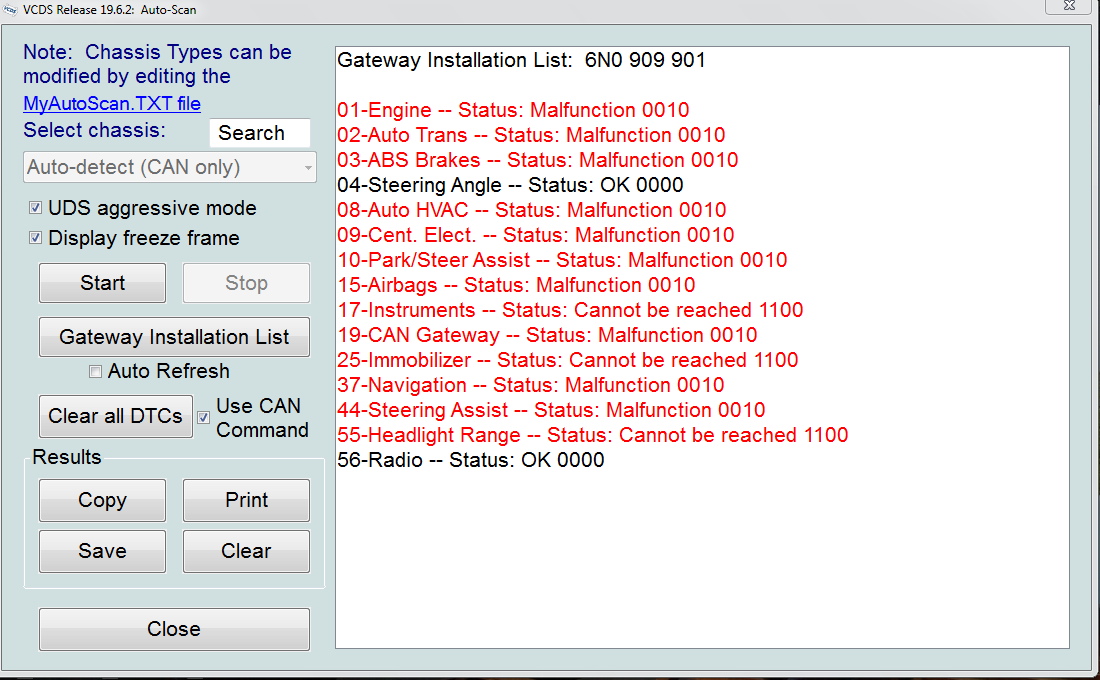

Hello Theodore and Fernando , the test became a disaster , bcm high could not communicate with J745 , look above


I am starting to believe that the problem may be in false module , who knows , will see

Best regards
Vasilis

User avatar
ciclo
Bling Bling Diamond Member
Posts: 5295
Joined: Sun Feb 24, 2013 10:20 am
Drives: Polo 6R '13 / Golf MK7.5 '19
Location: Earth ♥, Spain ☼
Contact:

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by ciclo » Sun Oct 27, 2019 5:06 pm

You should have connected the Instrument Cluster to the powertrain CAN lines (as factory) to do this test, then Clear all DTC's (many faults will remain, but IC will be reached) and verify if the current J745 unit is recognized once enabled in the GW of factory 6R7 BCM High.
I guess in any case it would not be recognized either.

Tips:
... however, do not modify the electrical installation, be patient, install the new-used J745 unit when you recieve it and cross your fingers so that it is the current J745 unit that is causing problems.
Check all the wiring for the J745 unit again before installing the new-used J745 unit, among all the possibilities of fault this is one that has a large percentage so that the system does not work.

VASILEIOS1972
Bronze Member
Posts: 145
Joined: Tue Feb 12, 2019 2:53 pm
Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
Location: Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by VASILEIOS1972 » Wed Oct 30, 2019 3:04 pm

Hello my friends, new try with 2nd afs module with unsuccessful result , auto scan above:

Wednesday,30,October,2019,16:46:36:38567
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 19.6.2.0
Data version: 20190930 DS308.0
www.Ross-Tech.com

Workshop Code: 123 12345 012345

VIN: TMBEP25J2C30XXXXX License Plate:
Mileage: 67030km-41650mi Repair Order: 2nd afs module test



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 5J-SK25 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 37 44 55 56

VIN: TMBEP25J2C30XXXXX Mileage: 67030km-41650miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: Cannot be reached 1100
56-Radio -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CAVE) Labels:. 03C-907-309-V1.clb
Part No SW: 03C 906 027 CE HW: 03C 906 027 CE
Component: 1.4l R4 TSI H15 9971
Revision: L2H15--- Serial number:
Coding: 00250012002400000000
Shop #: WSC 53850 001 1048576
ASAM Dataset: EV_ECM14TSI01103C906027CE 001013
ROD: EV_ECM14TSI01103C906027CE.rod
VCID: 66C3ED1499F16A7F3D-8032

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 060 A HW: 0AM 927 769 D
Component: GSG DSG AG7 431 6563
Revision: 00043014 Serial number: TFK01108310139
Coding: 0000020
Shop #: WSC 53850 001 1048576
VCID: 285FA32C9B65BC0FCF-807C

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP82.clb
Part No SW: 6R0 907 379 AL HW: 6R0 907 379 AF
Component: ESP8.2i front H05 0001
Revision: --------
Coding: 410148DB437300B3822712E9C2D200411700
Shop #: WSC 13765 790 00049
VCID: 081FC3ACBFA59C0FEF-805C

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 25021504650800
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3A574E161D2BFD5-802A

2 Faults Found:
332644 - Databus
U1121 00 [008] - Missing Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 65
Mileage: 0 km
Date: 2000.00.00
Time: 00:00:00

Voltage terminal 15: 12.00 V
Voltage terminal 30: 12.15 V
Terminal 15 status: On
Entprellzeit: 5000 ms

1140738 - Steering angle sensor
B1168 54 [008] - Missing Calibration / Basic Setting
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 64

Voltage terminal 15: 12.10 V
Voltage terminal 30: 12.35 V
Terminal 15 status: On


-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6Q0-907-044.lbl
Part No SW: 5J0 907 044 C HW: 5J0 907 044 C
Component: Climatronic H08 0103
Revision: K0000000
VCID: 2A5B592445698E1FD9-807E

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 122170091
Coding: 7A980B3848010000013806B03EEB9BC052C0621F60002041200400020000
Shop #: WSC 12345 123 12345
VCID: 2B555C204A93971722-807E

Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 230714 05 54 0403
Coding: 0230AD

Subsystem 2 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3211
Serial number: --------------------
Coding: 020000

Subsystem 3 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3211
Serial number: --------------------
Coding: 020000

Subsystem 4 - Part No SW: 3T0 959 537 E HW: 3T0 959 537 E
Component: E221__MFL-URO H07 0012
Serial number: 2164426
Coding: 810000

Subsystem 5 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3211
Serial number: --------------------
Coding: 020000

Subsystem 6 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3211
Serial number: --------------------
Coding: 020000

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 S HW: 7N0 919 475
Component: PARKHILFE 8K H06 0210
Revision: -------- Serial number: 28261530202208
Coding: 108101
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_VW75XParkAssis8K 001011
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 428B1184D519765FF1-8016

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagT20 H09 0020
Revision: -------- Serial number: 003GX00UUUCP
Coding: 003230
Shop #: WSC 13765 790 00049
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B39A4ED29AE1F39-801E

Crash sensor for side airbag: driver side:
Serial number: 3495RRB40590NHDIJH62

Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40590NHDIAOG2

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5J0 920 841 F HW: 5J0 920 841 F
Component: KOMBI H04 0305
Serial number: 00000000000000
Coding: 120C01
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04113
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 2D5152387C8799273C-8078

1 Fault Found:
13639168 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 34
Mileage: 67032 km
Date: 2019.10.30
Time: 16:41:55


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 032204
Shop #: WSC 12345 123 12345
VCID: 68DFE32C9BE57C0F0F-803C

1 Fault Found:
01771 - Control Module for Headlight Range (J431)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 34
Mileage: 67032 km
Time Indication: 0
Date: 2014.03.22
Time: 16:42:08


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0305
Serial number: 00000000000000
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADB99248DE94E1F19-803E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J794) Labels:| 1K0-035-27x-37.clb
Part No SW: 5JA 035 193 E HW: 5JA 035 193 E
Component: RNS315-EU H85 0501
Serial number: SKZAZ2R0659899
Coding: 040000110400000000000000
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_RNS315EUV2UDS 001705
ROD: EV_RNS315EUV2UDS.rod
VCID: 3A7B6964BDC93E9FA9-806E

Data medium:
Subsystem 1 - Part No: 3AA 919 866
Component: EUR_W_V11 0073

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 6Q0-423-156.clb
Part No: 6R0 423 156 B
Component: LenkhilfeTRW V277
Coding: 11241
Shop #: WSC 13765
VCID: 2F6D4830EA8BEB370E-807A

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range
Cannot be reached

End-------------------------(Elapsed Time: 03:03)--------------------------


Best regards
Vasilis

User avatar
ciclo
Bling Bling Diamond Member
Posts: 5295
Joined: Sun Feb 24, 2013 10:20 am
Drives: Polo 6R '13 / Golf MK7.5 '19
Location: Earth ♥, Spain ☼
Contact:

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by ciclo » Wed Oct 30, 2019 3:26 pm

Once the tests have been completed, go to a SK dealer, some type of parameterization in some of the units involved (specific units of your SK Fabia VRS) may be necessary.
I have run out of ideas to try to run the DCLs in your VRS. I wish it had worked, but it hasn't been that way. :|

VASILEIOS1972
Bronze Member
Posts: 145
Joined: Tue Feb 12, 2019 2:53 pm
Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
Location: Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by VASILEIOS1972 » Wed Oct 30, 2019 3:34 pm

ciclo wrote:
Wed Oct 30, 2019 3:26 pm
Once the tests have been completed, go to a SK dealer, some type of parameterization in some of the units involved (specific units of your SK Fabia VRS) may be necessary.
I have run out of ideas to try to run the DCLs in your VRS. I wish it had worked, but it hasn't been that way. :|
Thank you Fernando for all the help that you gave me!!!!
Tell me please is it possible to have something wrong in wiring harness ? (diagrams)

Best regards
Vasilis

User avatar
ciclo
Bling Bling Diamond Member
Posts: 5295
Joined: Sun Feb 24, 2013 10:20 am
Drives: Polo 6R '13 / Golf MK7.5 '19
Location: Earth ♥, Spain ☼
Contact:

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by ciclo » Wed Oct 30, 2019 3:40 pm

No, due to the checks we did and what is shown in Autoscan.

exantas
Getting There!
Posts: 80
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by exantas » Sat Nov 09, 2019 9:17 am

Regarding the interior light switch Vasileios retrofitted from a VW car, doesn't the ambient light sensor in the instrument cluster control the interior brightness in the car?

Or that sensor controls the IC brightness and the radio screen only?

Sent from my MI 5 using Tapatalk


User avatar
ciclo
Bling Bling Diamond Member
Posts: 5295
Joined: Sun Feb 24, 2013 10:20 am
Drives: Polo 6R '13 / Golf MK7.5 '19
Location: Earth ♥, Spain ☼
Contact:

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by ciclo » Sat Nov 09, 2019 11:22 am

In 6R.
With the light switch in the position '0':
- the IC sensor only the IC.
- the radio sensor only the radio screen.

With the light switch in any position other than '0':
- the dimmer switch, all at the same time, IC, radio screen, lights of switches.

I guess that in Vasilis's Fabia it will be the same as 6R.

exantas
Getting There!
Posts: 80
Joined: Sun Jan 06, 2019 5:14 pm
Drives: Skoda Fabia 5J 1.2 TSI
Location: Iceland / Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by exantas » Sat Nov 09, 2019 4:45 pm

I am wondering if the car doesn't have the dimmer switch and the light switch is on a position other than 0.

Will the light sensor on the IC continue control the interior lights? Or in that case the interior lights get on a fixed brightness?

Sent from my MI 5 using Tapatalk


User avatar
ciclo
Bling Bling Diamond Member
Posts: 5295
Joined: Sun Feb 24, 2013 10:20 am
Drives: Polo 6R '13 / Golf MK7.5 '19
Location: Earth ♥, Spain ☼
Contact:

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by ciclo » Sat Nov 09, 2019 5:52 pm

fixed

VASILEIOS1972
Bronze Member
Posts: 145
Joined: Tue Feb 12, 2019 2:53 pm
Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
Location: Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by VASILEIOS1972 » Sun Nov 10, 2019 7:40 pm

exantas wrote:
Sat Nov 09, 2019 9:17 am
Regarding the interior light switch Vasileios retrofitted from a VW car, doesn't the ambient light sensor in the instrument cluster control the interior brightness in the car?

Or that sensor controls the IC brightness and the radio screen only?

Hello Theodore i think that this is something that happens both

Sent from my MI 5 using Tapatalk

VASILEIOS1972
Bronze Member
Posts: 145
Joined: Tue Feb 12, 2019 2:53 pm
Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
Location: Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by VASILEIOS1972 » Sun Nov 10, 2019 7:43 pm

ciclo wrote:
Sat Nov 09, 2019 11:22 am
In 6R.
With the light switch in the position '0':
- the IC sensor only the IC.
- the radio sensor only the radio screen.

With the light switch in any position other than '0':
- the dimmer switch, all at the same time, IC, radio screen, lights of switches.

I guess that in Vasilis's Fabia it will be the same as 6R.
Yes Fernando it is the same

VASILEIOS1972
Bronze Member
Posts: 145
Joined: Tue Feb 12, 2019 2:53 pm
Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
Location: Greece

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by VASILEIOS1972 » Sun Nov 10, 2019 8:16 pm

ciclo wrote:
Wed Oct 30, 2019 3:26 pm
Once the tests have been completed, go to a SK dealer, some type of parameterization in some of the units involved (specific units of your SK Fabia VRS) may be necessary.
I have run out of ideas to try to run the DCLs in your VRS. I wish it had worked, but it hasn't been that way. :|
Skoda dealer do not know anything about parameterization , it sounds chinese for him...................

User avatar
ciclo
Bling Bling Diamond Member
Posts: 5295
Joined: Sun Feb 24, 2013 10:20 am
Drives: Polo 6R '13 / Golf MK7.5 '19
Location: Earth ♥, Spain ☼
Contact:

Re: Skoda Fabia VRS 2012. Auto lights retrofit OEM

Post by ciclo » Mon Nov 11, 2019 3:32 am

During this time, since the last autoscan you post, I have continued to investigate the faults detected in the IC, GW and 55 (not reached) in your last autoscan.
By doing google searches (copying and pasting the faults in the search) you will see that there are similar problems in different VW models, mainly due to new installations. In some threads of different forums the faults in IC, GW and 55 were solved when they correctly installed the wires.

I imagine, I suppose, that you did the complete electrical installation ??
I mean all the wires for the Dimmer-HRRegulator switch, fusebox, the J745 unit, the new BCM/GW, and the new headlights.

Based on what I learned in the searches I did, I can only recommend that you check the entire electrical installation again. :|
- use the multimeter to check all the wires involved one by one, either to check continuity or voltage.

Post Reply
