6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

Hello Fernando,

I have attached the pics you requested below.

About my 6R
It's a 1.2 TSI + DSG 105bhp CBZB MY 2018 RHD IND 6R

Upgrades I've planned.
  • BCM MAX
  • OE 6C LED Headlights with AFS and Automatic lights
  • 6R Maxidot cluster with a 6C housing
  • OE TPMS

Requested Information

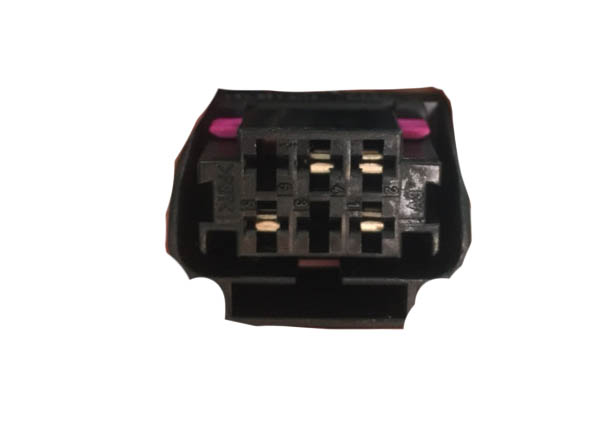

-Relay Holder

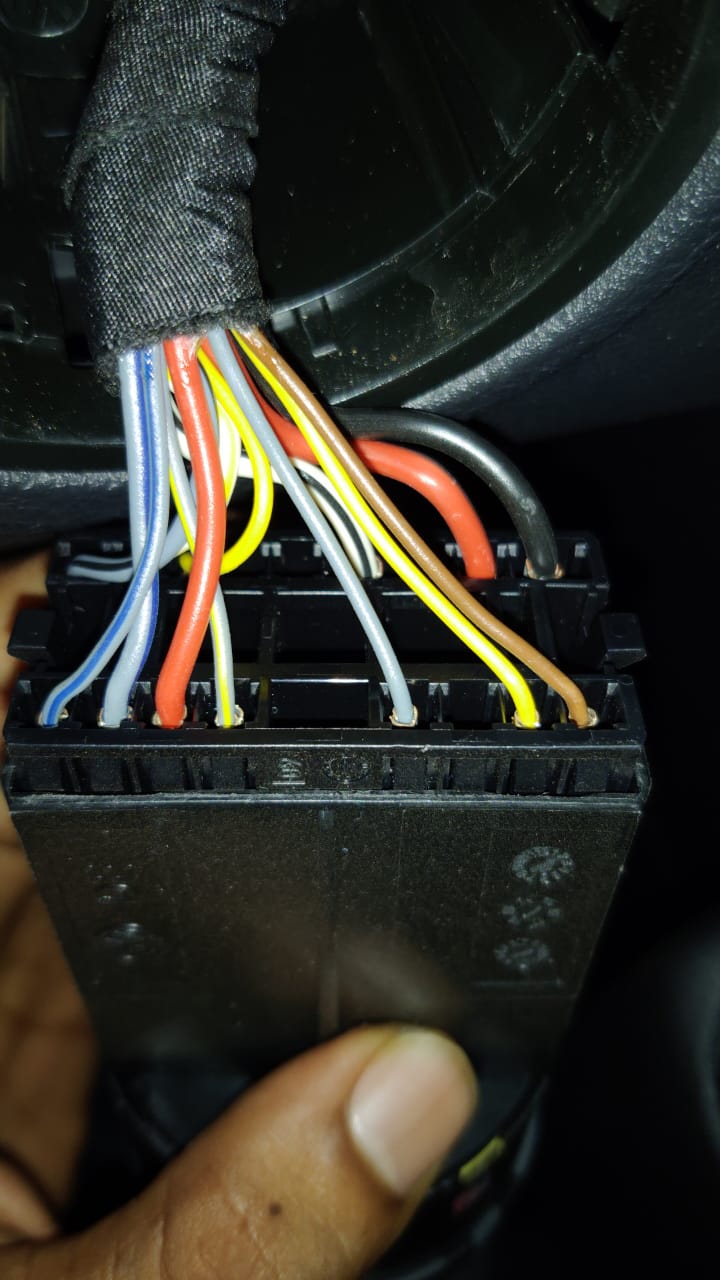

-Lights switch connector wires (both sides), T17

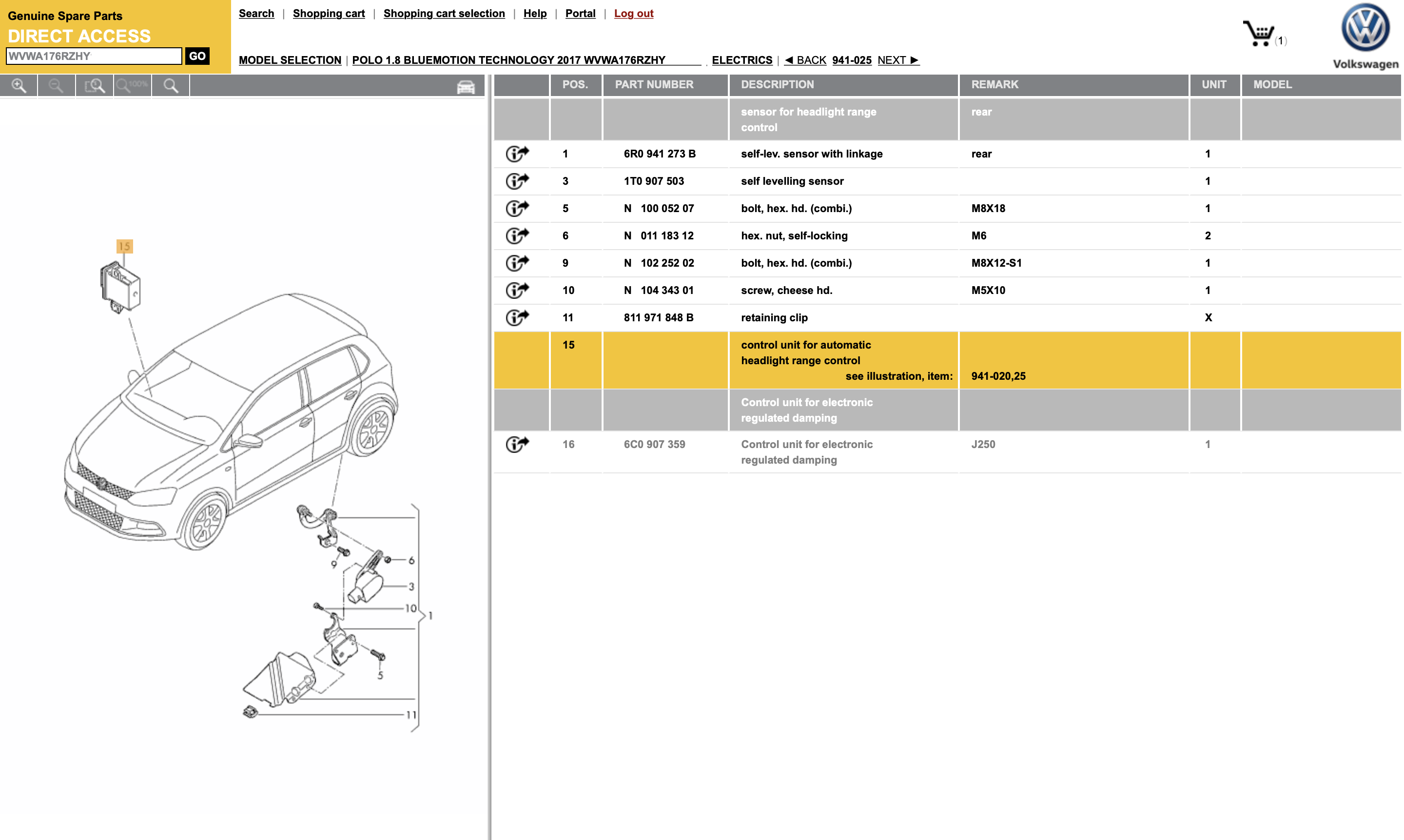

-Dimmer connector, T6

My 6R just comes with a headlight level adjuster without the dimmer.

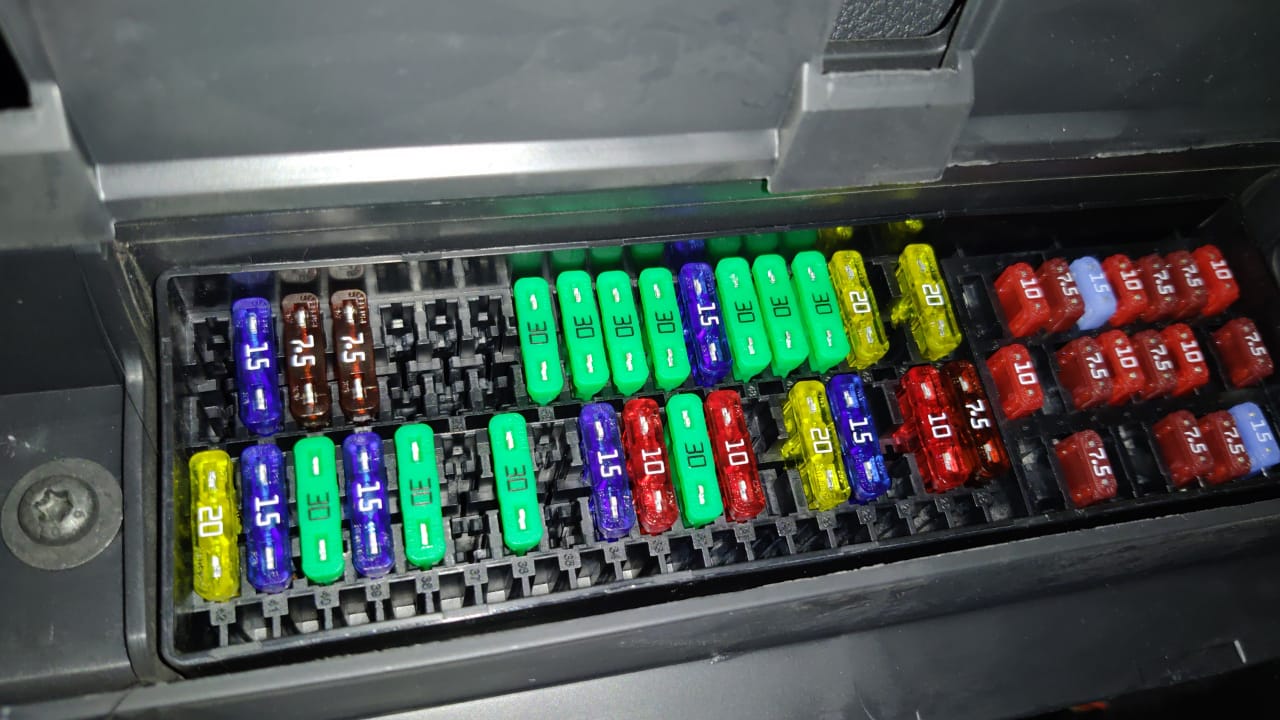

-Fuse box

-New BCM

I plan on using this BCM part no: 7E0937090E Z00. (Would really appreciate if you can help sourcing it)

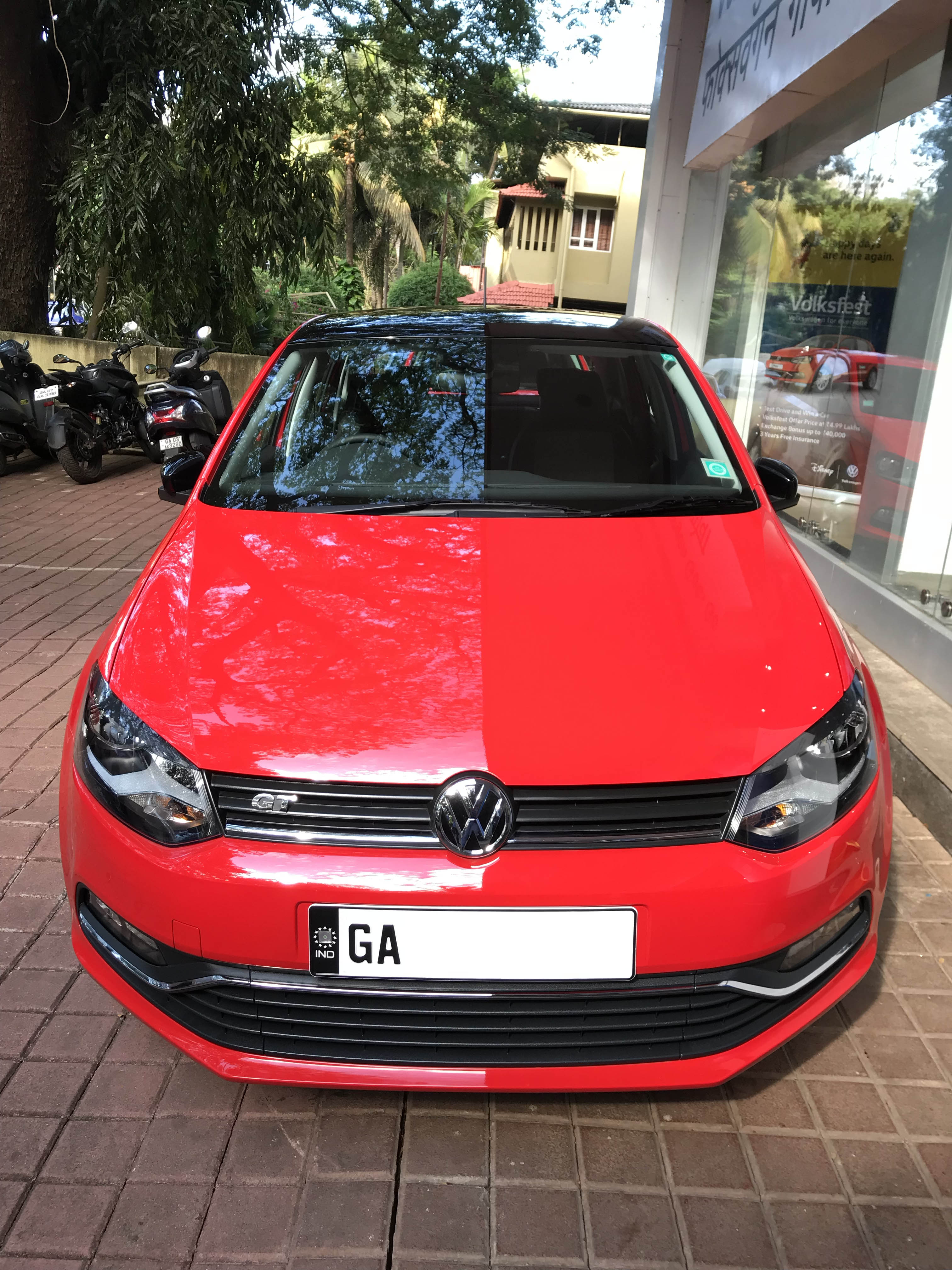

-Front of my 6R

-VCDS Autoscan

Code: Select all

Monday,02,December,2019,15:59:26:00001
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 17.8.0.1 (x64)
Data version: 20170721 DS276.2
www.Ross-Tech.com


VIN: MEXH18605JT******   License Plate:
Mileage: 9600km-5965mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 60-VW25 (6RU)
Scan: 01 02 03 08 09 15 17 19 25 44 56

VIN: MEXH18605JT******   Mileage: 9600km-5965miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB)       Labels:. 03F-906-070-CBZ.clb
   Part No SW: 03F 906 070 KC    HW: 03F 907 309 AJ
   Component: SIMOS10.22AH10 6270
   Revision: --H10---    Serial number:
   Coding: 00250056232400080000
   Shop #: WSC 00000 000 08192
   ASAM Dataset: EV_ECM12TFS02103F906070KC 004006
   ROD: EV_ECM12TFS02103F906070FP.rod
   VCID: 6DD0F128BC91FF2E51-8038

No fault code found.
Readiness: 0110 0101

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 0AM-927-769.clb
   Part No SW: 0AM 300 041 D    HW: 0AM 927 769 F
   Component: GSG DQ200G2_PQ  050 2602
   Revision: 00005008    Serial number: CU501806045548
   Coding: 0000020
   Shop #: WSC 01357 011 00200
   VCID: 2A5A3A3485FF2816F4-807E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: None
   Part No SW: 6R0 907 379 CB    HW: 6R0 907 379 AS
   Component: ESP9.0i front H04 0003
   Serial number: --------------
   Coding: 62DD2463422703C3461D246B4258C0800908
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
   ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
   VCID: 000EB89C9B0302468A-8054

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6R0 907 044 Q    HW: 6R0 907 044 Q
   Component: Climatronic   H12 0615
   Revision: V0000000
   VCID: 41887D98D889CB4EC5-8014

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 6R0-937-08x-09.clb
   Part No SW: 6RU 937 087 R    HW: 6RU 937 087 R
   Component: BCM IM H+4    H42 0452
   Revision: BZ042001    Serial number: 6800 216180341
   Coding: 3AB02BF848A30000013800007E2B969000C0600F608E0100220000000A00
   Shop #: WSC 124697 483 00190
   VCID: 71E8ED58A8A91BCE75-8024

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 310518 05  50  0106
   Coding: 0368DD

   Subsystem 2 - Part No SW: 6R0 959 802 EF    HW: 6R0 959 802 EF  Labels: 6R0-959-802.CLB
   Component: J386__TSG_FT  023 2551
   Serial number: 13102848180603140115
   Coding: 350000

   Subsystem 3 - Part No SW: 6R0 959 801 ED    HW: 6R0 959 801 ED  Labels: 6R0-959-801.CLB
   Component: J387__TSG_BT  023 2551
   Serial number: 13102849180605060920
   Coding: 040000

   Subsystem 4 - Part No SW:  13 102 849 18    HW: 131 028 491 80
   Component: RLS 310518 05  50  6050
   Serial number: ? 131028491806050609
   Coding: 303932

   Subsystem 5 - Part No SW: 6R0 959 811 S    HW: 6R0 959 811 S
   Component: J388__TSG_HL  022 1552
   Serial number: 13102728180624054113
   Coding: 000000

   Subsystem 6 - Part No SW: 6R0 959 812 S    HW: 6R0 959 812 S
   Component: J389__TSG_HR  022 1552
   Serial number: 13102729180613042210
   Coding: 000000

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 J    HW: 6R0 959 655 J
   Component: VW10AirbagU06 H10 0020
   Revision: --------    Serial number: 003GW01FBEMS
   Coding: 003036
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250_VW25.rod
   VCID: 499865B8E8B9030E1D-801C

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb
   Part No SW: 6RF 920 861 D    HW: 6RF 920 861 D
   Component: KOMBI         H02 5006
   Serial number: 00000000000000
   Coding: 1108000000
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05729
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
   VCID: 4C965CACE7CB162626-8018

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: None
   Part No SW: 6RU 909 901     HW: 6RU 937 087 R
   Component: GW-K-CAN TP20 H42 0452
   Revision: BZ042001
   Coding: 002300
   Shop #: WSC 124697 483 00190
   VCID: 1938F5F81099B38E6D-804C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H02 5006
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6ADAFA348D7FE81634-803E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500)       Labels:| 1Sx-909-144-44.clb
   Part No SW: 1S2 909 144 P    HW: 1S2 909 144 P
   Component: EPS_ECU       H61 1702
   Coding: 0001000000000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_SteerAssisNSK 014008
   ROD: EV_SteerAssisNSK_014_VW12.rod
   VCID: 41887D98D089CB4EC5-8014

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels: None
   Part No SW: 6RF 035 187 C    HW: 6RF 035 187 C
   Component: Radio         557 5516
   Revision: --------    Serial number: VWZ7Z2S7103220
   Coding: 0E00040000000F
   Shop #: WSC 01234 785 00200
   VCID: 499865B8E0B9030E1D-801C

No fault code found.

End-------------------------(Elapsed Time: 02:19)--------------------------
User avatar
ciclo
Bling Bling Diamond Member
Posts: 5913
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R Rline/G7.5/Touareg Rline'19/T-Cr'20
Location: Earth β™₯, Spain ☼
Contact:

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by ciclo »

Hello leroylobo.
Thanks for the information, just perfect!πŸ‘Œ


I collect the information, study it, and manufacture your 'B' wiring looms.
I hope to have them finished before the end of the week, as soon as possible.

Contact firegrafik, he will help you get the BCM you want. You should tell him that you want to install LED headlights on a 6R (not Vento/Sedan) in case he/they can help you with the BCM parameterization. (with AFS unit too).
In the firegrafik thread of the Russian forum, Drive2.ru, there is detailed information about the LED headlights installation.


In the VCDS Autoscan I see that you have an MFSW installed that does not belong to the PQ25.
Do you know the reference number of the multifunction buttons? Or do you know the VW model to which your steering wheel belongs?
Thanks.
User avatar
iichel
Bling Bling Diamond Member
Posts: 4034
Joined: Fri Nov 14, 2014 2:14 pm
Drives: Polo 6R 1.2 TDI
Location: The Netherlands

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by iichel »

The 6R maxidot cluster (GTI, blue GT) will not fit into the 6C housing, perhaps you can have a look at the Seat Toledo cluster, that should fit in the 6C housing with some adaptations to the housing and PCB.
User avatar
leroylobo
New
Posts: 14
Joined: Wed Aug 29, 2018 3:55 am
Drives: GT TSI
Location: Goa, India

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

ciclo wrote: ↑Tue Dec 03, 2019 8:32 am Hello leroylobo.
Thanks for the information, just perfect!πŸ‘Œ


I collect the information, study it, and manufacture your 'B' wiring looms.
I hope to have them finished before the end of the week, as soon as possible.

Contact firegrafik, he will help you get the BCM you want. You should tell him that you want to install LED headlights on a 6R (not Vento/Sedan) in case he/they can help you with the BCM parameterization. (with AFS unit too).
In the firegrafik thread of the Russian forum, Drive2.ru, there is detailed information about the LED headlights installation.


In the VCDS Autoscan I see that you have an MFSW installed that does not belong to the PQ25.
Do you know the reference number of the multifunction buttons? Or do you know the VW model to which your steering wheel belongs?
Thanks.
Hello Fernando,

Thank you so much! 😊

Yes I pinged firegrafik, he said he will get back with the details. BTW doesn't the 7E0937090E Z00 come with AFS support from factory which can be enabled by coding?

Coming to the MFSW I had installed a custom carbon fibre MK7 Golf R steering which unfortunately came with ACC buttons which didn't work with my MID cluster. So now I ordered 6C0 959 442 C buttons. While I wait for them to arrive I've installed my stock MFSW and have attached an updated VCDS scan for the same below.

Code: Select all

Tuesday,03,December,2019,19:27:04:00001
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 17.8.0.1 (x64)
Data version: 20170721 DS276.2
www.Ross-Tech.com


VIN: MEXH18605JT******   License Plate:
Mileage: 9625km-5980mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 60-VW25 (6RU)
Scan: 01 02 03 08 09 15 17 19 25 44 56

VIN: MEXH18605JT******   Mileage: 9625km-5980miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB)       Labels:. 03F-906-070-CBZ.clb
   Part No SW: 03F 906 070 KC    HW: 03F 907 309 AJ
   Component: SIMOS10.22AH10 6270
   Revision: --H10---    Serial number:
   Coding: 00250056232400080000
   Shop #: WSC 00000 000 08192
   ASAM Dataset: EV_ECM12TFS02103F906070KC 004006
   ROD: EV_ECM12TFS02103F906070FP.rod
   VCID: 6DD0F128BC91FF2E51-8038

No fault code found.
Readiness: 0010 0101

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 0AM-927-769.clb
   Part No SW: 0AM 300 041 D    HW: 0AM 927 769 F
   Component: GSG DQ200G2_PQ  050 2602
   Revision: 00005008    Serial number: CU501806045548
   Coding: 0000020
   Shop #: WSC 01357 011 00200
   VCID: 2A5A3A3485FF2816F4-807E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: None
   Part No SW: 6R0 907 379 CB    HW: 6R0 907 379 AS
   Component: ESP9.0i front H04 0003
   Serial number: --------------
   Coding: 62DD2463422703C3461D246B4258C0800908
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
   ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
   VCID: 000EB89C9B0302468A-8054

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6R0 907 044 Q    HW: 6R0 907 044 Q
   Component: Climatronic   H12 0615
   Revision: V0000000
   VCID: 41887D98D889CB4EC5-8014

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 6R0-937-08x-09.clb
   Part No SW: 6RU 937 087 R    HW: 6RU 937 087 R
   Component: BCM IM H+4    H42 0452
   Revision: BZ042001    Serial number: 6800 216180341
   Coding: 3AB02BF848A30000013800007E2B969000C0600F608E0100220000000A00
   Shop #: WSC 124697 483 00190
   VCID: 71E8ED58A8A91BCE75-8024

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 310518 05  50  0106
   Coding: 0368DD

   Subsystem 2 - Part No SW: 6R0 959 802 EF    HW: 6R0 959 802 EF  Labels: 6R0-959-802.CLB
   Component: J386__TSG_FT  023 2551
   Serial number: 13102848180603140115
   Coding: 350000

   Subsystem 3 - Part No SW: 6R0 959 801 ED    HW: 6R0 959 801 ED  Labels: 6R0-959-801.CLB
   Component: J387__TSG_BT  023 2551
   Serial number: 13102849180605060920
   Coding: 040000

   Subsystem 4 - Part No SW: 6C0 959 442     HW: 6C0 959 442
   Component: E221__MFL-TAT  H06 0023
   Serial number: 1661802035800216AB2B
   Coding: 240000

   Subsystem 5 - Part No SW: 6R0 959 811 S    HW: 6R0 959 811 S
   Component: J388__TSG_HL  022 1552
   Serial number: 13102728180624054113
   Coding: 000000

   Subsystem 6 - Part No SW: 6R0 959 812 S    HW: 6R0 959 812 S
   Component: J389__TSG_HR  022 1552
   Serial number: 13102729180613042210
   Coding: 000000

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 J    HW: 6R0 959 655 J
   Component: VW10AirbagU06 H10 0020
   Revision: --------    Serial number: 003GW01FBEMS
   Coding: 003036
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250_VW25.rod
   VCID: 499865B8E8B9030E1D-801C

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb
   Part No SW: 6RF 920 861 D    HW: 6RF 920 861 D
   Component: KOMBI         H02 5006
   Serial number: 00000000000000
   Coding: 1108000000
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05729
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
   VCID: 4C965CACE7CB162626-8018

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: None
   Part No SW: 6RU 909 901     HW: 6RU 937 087 R
   Component: GW-K-CAN TP20 H42 0452
   Revision: BZ042001
   Coding: 002300
   Shop #: WSC 124697 483 00190
   VCID: 1938F5F81099B38E6D-804C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H02 5006
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6ADAFA348D7FE81634-803E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500)       Labels:| 1Sx-909-144-44.clb
   Part No SW: 1S2 909 144 P    HW: 1S2 909 144 P
   Component: EPS_ECU       H61 1702
   Coding: 0001000000000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_SteerAssisNSK 014008
   ROD: EV_SteerAssisNSK_014_VW12.rod
   VCID: 41887D98D089CB4EC5-8014

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels: None
   Part No SW: 6RF 035 187 C    HW: 6RF 035 187 C
   Component: Radio         557 5516
   Revision: --------    Serial number: VWZ7Z2S7103220
   Coding: 0E00040000000F
   Shop #: WSC 01234 785 00200
   VCID: 499865B8E0B9030E1D-801C

No fault code found.

End-------------------------(Elapsed Time: 02:26)--------------------------
Thank you
User avatar
leroylobo
New
Posts: 14
Joined: Wed Aug 29, 2018 3:55 am
Drives: GT TSI
Location: Goa, India

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

iichel wrote: ↑Tue Dec 03, 2019 1:17 pm The 6R maxidot cluster (GTI, blue GT) will not fit into the 6C housing, perhaps you can have a look at the Seat Toledo cluster, that should fit in the 6C housing with some adaptations to the housing and PCB.
Hello iichel,

I had consider the 6R maxidot cluster as it has a max speed pf 280km/h, I had no idea it wouldn't fit the 6C housing. Guess I'll have to settle for a max 240km/h Toledo Custer with a 6C housing.

BTW did the Toledo cluster come with a 280km/h max speed? πŸ˜…

Thank you
User avatar
ciclo
Bling Bling Diamond Member
Posts: 5913
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R Rline/G7.5/Touareg Rline'19/T-Cr'20
Location: Earth β™₯, Spain ☼
Contact:

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by ciclo »

leroylobo wrote: ↑Tue Dec 03, 2019 2:52 pm Hello Fernando,

Thank you so much! 😊

Yes I pinged firegrafik, he said he will get back with the details.
8)
leroylobo wrote: ↑Tue Dec 03, 2019 2:52 pm BTW doesn't the 7E0937090E Z00 come with AFS support from factory which can be enabled by coding?
Yes, but one thing is to code functions with VCDS and another is to parameterize/change the default values ​​for those functions.

firegrafik thread in Drive2.ru :arrow: https://www.drive2.ru/r/volkswagen/polo_sedan/986608/


For BCM:
Read here where it says:
PWM Value with POS / TFL lights and activited Pos-lights
In summary, the value/parameter must be 28 for LED headlights in case your BCM 7E0937090E has a value of 20 on that channel/assignment. This can be done with VCP as you have seen in the firegrafik thread.
Personal comment: I will check with my VCP what is the default value for this channel in my BCM 7E0937090E (6R bixenon), maybe I will modify it to a higher value ... :lol:

For AFS unit:
Read here :arrow: https://www.drive2.ru/l/519838378447864355/
Caution: I do not know if the parameterization (TinyQ) for the AFS unit with VCP is valid for both the VW Polo Sedan/Vento and also for Polo 6R (yours). Keep in mind that the leveling sensors are different. Before parameterizing, someone with 6R (not Sedan/Vento) and LED headlights with AFS unit should clarify if this parameterization is correct for 6R (not Sedan/Vento) and current AFS units.
Sedan 6R0907357C Z0F , 5Q0907357 Z0K
Vento/Polo 6R0907357C Z09 (ESP), 6R0907357C Z0E (ABS, etc)
leroylobo wrote: ↑Tue Dec 03, 2019 2:52 pm Coming to the MFSW I had installed a custom carbon fibre MK7 Golf R steering which unfortunately came with ACC buttons which didn't work with my MID cluster. So now I ordered 6C0 959 442 C buttons. While I wait for them to arrive I've installed my stock MFSW and have attached an updated VCDS scan for the same below.
With the 6C0 959 442 C buttons you will have similar circumstances. They will not be recognized as MFL in the autoscan, and the CCS will not work using the buttons. Rest of buttons will work.
Well, the buttons can be recognized in autoscan by changing the MFSW LIN assignment, but still your ECU software will not recognize the CCS buttons.
Your ECU software only for CCS stalks... 'in OEM way'.

Thanks for the new autoscan.

---
BTW, your wiring looms are made at 90%, tomorrow I have to receive a part to end them, I thought I had it but I don't have it. :)
I will contact you by private message when I take the images of the looms and make the installation guide.

I beg your patience because I am making two 6R wiring looms process at the same time (also for dcgumis, made to 99%).
User avatar
leroylobo
New
Posts: 14
Joined: Wed Aug 29, 2018 3:55 am
Drives: GT TSI
Location: Goa, India

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

ciclo wrote: ↑Wed Dec 04, 2019 4:40 pm
leroylobo wrote: ↑Tue Dec 03, 2019 2:52 pm Hello Fernando,

Thank you so much! 😊

Yes I pinged firegrafik, he said he will get back with the details.
8)
leroylobo wrote: ↑Tue Dec 03, 2019 2:52 pm BTW doesn't the 7E0937090E Z00 come with AFS support from factory which can be enabled by coding?
Yes, but one thing is to code functions with VCDS and another is to parameterize/change the default values ​​for those functions.

firegrafik thread in Drive2.ru :arrow: https://www.drive2.ru/r/volkswagen/polo_sedan/986608/


For BCM:
Read here where it says:
PWM Value with POS / TFL lights and activited Pos-lights
In summary, the value/parameter must be 28 for LED headlights in case your BCM 7E0937090E has a value of 20 on that channel/assignment. This can be done with VCP as you have seen in the firegrafik thread.
Personal comment: I will check with my VCP what is the default value for this channel in my BCM 7E0937090E (6R bixenon), maybe I will modify it to a higher value ... :lol:

For AFS unit:
Read here :arrow: https://www.drive2.ru/l/519838378447864355/
Caution: I do not know if the parameterization (TinyQ) for the AFS unit with VCP is valid for both the VW Polo Sedan/Vento and also for Polo 6R (yours). Keep in mind that the leveling sensors are different. Before parameterizing, someone with 6R (not Sedan/Vento) and LED headlights with AFS unit should clarify if this parameterization is correct for 6R (not Sedan/Vento) and current AFS units.
Sedan 6R0907357C Z0F , 5Q0907357 Z0K
Vento/Polo 6R0907357C Z09 (ESP), 6R0907357C Z0E (ABS, etc)
leroylobo wrote: ↑Tue Dec 03, 2019 2:52 pm Coming to the MFSW I had installed a custom carbon fibre MK7 Golf R steering which unfortunately came with ACC buttons which didn't work with my MID cluster. So now I ordered 6C0 959 442 C buttons. While I wait for them to arrive I've installed my stock MFSW and have attached an updated VCDS scan for the same below.
With the 6C0 959 442 C buttons you will have similar circumstances. They will not be recognized as MFL in the autoscan, and the CCS will not work using the buttons. Rest of buttons will work.
Well, the buttons can be recognized in autoscan by changing the MFSW LIN assignment, but still your ECU software will not recognize the CCS buttons.
Your ECU software only for CCS stalks... 'in OEM way'.

Thanks for the new autoscan.

---
BTW, your wiring looms are made at 90%, tomorrow I have to receive a part to end them, I thought I had it but I don't have it. :)
I will contact you by private message when I take the images of the looms and make the installation guide.

I beg your patience because I am making two 6R wiring looms process at the same time (also for dcgumis, made to 99%).
Hi Fernando,

Wow that was fast! ⚑️ Thank you once again.

Coming to the BCM 7E0937090E once I source it, I can parametrize it using VCP right?
Firegrafik's seller has a BCM Max 7E0937090D, he said he can flash/parameterize 7E0937090E firmware on it. Will this work fine?

About the CCS on the MFSW, can it be enabled by flashing the ECU with a custom firmware?

Also wanted you to know my taillight connectors are that of a 6C so I can plug & play 6C taillights.

The AFS unit I guess I'll have to use 6R0907357C Z09 because of ESP. Still need to check which the 6C GTI uses.

And thank you for the links to the installation guides of OE LED headlights πŸ’―
User avatar
ciclo
Bling Bling Diamond Member
Posts: 5913
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R Rline/G7.5/Touareg Rline'19/T-Cr'20
Location: Earth β™₯, Spain ☼
Contact:

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by ciclo »

leroylobo wrote: ↑Thu Dec 05, 2019 11:37 am Hi Fernando,

Wow that was fast! ⚑️ Thank you once again.

Coming to the BCM 7E0937090E once I source it, I can parametrize it using VCP right? YES, original VCP.
Firegrafik's seller has a BCM Max 7E0937090D, he said he can flash/parameterize 7E0937090E firmware on it. Will this work fine?
Yes, it will work fine, as far as I know, no incident has been reported when flashing even a BCM 7E0 ... ... 'B' 81 HW with 'E' SW. (image below)

About the CCS on the MFSW, can it be enabled by flashing the ECU with a custom firmware?
If you manage to have such custom firmware, please let me know... :lol:

Also wanted you to know my taillight connectors are that of a 6C so I can plug & play 6C taillights.
Hmm... you will have to verify that the wires have the correct correspondence for each light.

The AFS unit I guess I'll have to use 6R0907357C Z09 because of ESP. Still need to check which the 6C GTI uses.

And thank you for the links to the installation guides of OE LED headlights πŸ’―

Reading my BCM :arrow: 7E0937090E with original VCP for the values mentioned above:


An example from B to E:
job completed successfully...βœ…
User avatar
leroylobo
New
Posts: 14
Joined: Wed Aug 29, 2018 3:55 am
Drives: GT TSI
Location: Goa, India

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

ciclo wrote: ↑Thu Dec 05, 2019 2:45 pm
leroylobo wrote: ↑Thu Dec 05, 2019 11:37 am Hi Fernando,

Wow that was fast! ⚑️ Thank you once again.

Coming to the BCM 7E0937090E once I source it, I can parametrize it using VCP right? YES, original VCP.
Firegrafik's seller has a BCM Max 7E0937090D, he said he can flash/parameterize 7E0937090E firmware on it. Will this work fine?
Yes, it will work fine, as far as I know, no incident has been reported when flashing even a BCM 7E0 ... ... 'B' 81 HW with 'E' SW. (image below)

About the CCS on the MFSW, can it be enabled by flashing the ECU with a custom firmware?
If you manage to have such custom firmware, please let me know... :lol:

Also wanted you to know my taillight connectors are that of a 6C so I can plug & play 6C taillights.
Hmm... you will have to verify that the wires have the correct correspondence for each light.

The AFS unit I guess I'll have to use 6R0907357C Z09 because of ESP. Still need to check which the 6C GTI uses.

And thank you for the links to the installation guides of OE LED headlights πŸ’―

Reading my BCM :arrow: 7E0937090E with original VCP for the values mentioned above:


An example from B to E:
job completed successfully...βœ…
Awesome! Need to get hold of an original VCP cable, btw can this be done by odis-e too?
User avatar
ciclo
Bling Bling Diamond Member
Posts: 5913
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R Rline/G7.5/Touareg Rline'19/T-Cr'20
Location: Earth β™₯, Spain ☼
Contact:

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by ciclo »

I don't know. I have not verified it, however with ODIS-E you can do almost everything, very recommended.
User avatar
ciclo
Bling Bling Diamond Member
Posts: 5913
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R Rline/G7.5/Touareg Rline'19/T-Cr'20
Location: Earth β™₯, Spain ☼
Contact:

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by ciclo »

Your wiring looms 'B': viewtopic.php?f=62&t=69223&start=90#p563667

:arrow: The installation guide, download the PDF document.

Soon I send you a PM for you to contact me by email, wait please. Thanks.
User avatar
leroylobo
New
Posts: 14
Joined: Wed Aug 29, 2018 3:55 am
Drives: GT TSI
Location: Goa, India

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

ciclo wrote: ↑Fri Dec 06, 2019 5:03 pm Your wiring looms 'B': viewtopic.php?f=62&t=69223&start=90#p563667

:arrow: The installation guide, download the PDF document.

Soon I send you a PM for you to contact me by email, wait please. Thanks.
MadπŸ”₯πŸ’―!!! Thank you so much Fernando, you're the best πŸ‘πŸ»πŸ’―πŸ˜Ž
User avatar
leroylobo
New
Posts: 14
Joined: Wed Aug 29, 2018 3:55 am
Drives: GT TSI
Location: Goa, India

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

I asked my friend who owns a 6C RHD GTI in India (CBU) for his VIN

Here's the AFS module part number according to his VIN 5Q0 907 357 Z0K

Screen Shot 2019-12-07 at 10.51.57.png


Also part number of Headlight Self Leveling sensor 6R0 941 273 B

Screen Shot 2019-12-07 at 10.42.12.png


Can you check if AFS module & Headlight Self Leveling sensor is compatible with BCM 7E0937090E Z00?

Thank you
User avatar
ciclo
Bling Bling Diamond Member
Posts: 5913
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R Rline/G7.5/Touareg Rline'19/T-Cr'20
Location: Earth β™₯, Spain ☼
Contact:

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by ciclo »

I could not tell you exactly, look for a Polo 6R IND (not 6C GTI) with factory LED headlights (team-bhp forum), in its Autoscan you will have the answer you are looking for.
The 7E0 BCM Max will be compatible as long as the parts, AFS unit and self leveling sensor, belong to the PQ25 platform, and the 6C GTI IND is not PQ25, it is PQ26.
User avatar
leroylobo
New
Posts: 14
Joined: Wed Aug 29, 2018 3:55 am
Drives: GT TSI
Location: Goa, India

Re: 6R GT TSI (RHD, IND) Retrofitting BCM MAX Adaptation + OE LED Headlight + AFS Upgrade

Post by leroylobo »

ciclo wrote: ↑Sat Dec 07, 2019 7:31 am I could not tell you exactly, look for a Polo 6R IND (not 6C GTI) with factory LED headlights (team-bhp forum), in its Autoscan you will have the answer you are looking for.
The 7E0 BCM Max will be compatible as long as the parts, AFS unit and self leveling sensor, belong to the PQ25 platform, and the 6C GTI IND is not PQ25, it is PQ26.
We don't get the Polo 6R IND with factory LED headlights, only he the Vento 6R (Polo sedan) comes with it from factory. I have the auto scan for that. Can I use the AFS unit and self leveling sensor from the Vento?

I have attached the auto scan of the Vento with factory fitted LED headlights below:

Code: Select all

Saturday,07,December,2019,09:23:19:00001
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 17.8.0.1
Data version: 20170721 DS276.2
www.Ross-Tech.com


VIN: MEXF17601HT******   License Plate:


Chassis Type: 60-VW25 (7E0)
Scan: 01 02 03 04 08 09 15 17 19 25 44 55 56 0B

VIN: MEXF17601HT******   Mileage: 48140km-29912miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CWXC)       Labels: None
   Part No SW: 03L 906 023 SA    HW: 03L 907 425 B
   Component: R4 1.5l TDI   H33 9977
   Revision: --H33---    Serial number:
   Coding: 00250116032500080000
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_ECM15TDI02103L906023SA 001002
   ROD: EV_ECM15TDI02103L906023RS.rod
   VCID: 77FCD340CECD45FEBB-8022

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 0AM-927-769.clb
   Part No SW: 0AM 300 041 B    HW: 0AM 927 769 F
   Component: GSG DQ200G2_PQ  052 2606
   Revision: 00005026    Serial number: CU501703075923
   Coding: 0000020
   Shop #: WSC 01357 011 00200
   VCID: 285EC03C9BF31A06E2-807C

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: None
   Part No SW: 6R0 907 379 CB    HW: 6R0 907 379 AS
   Component: ESP9.0i front H04 0003
   Serial number: --------------
   Coding: 62DD2C63422607C54617346D425AE0820908
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
   ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
   VCID: 000EB89C9B0302468A-8054

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 08031713470394
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X_VW25.rod
   VCID: 7EF2C664E1F774B6F8-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6R0 907 044 Q    HW: 6R0 907 044 Q
   Component: Climatronic   H12 0615
   Revision: V0000000
   VCID: 41887D98D889CB4EC5-8014

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 089 A    HW: 7E0 937 089
   Component: BCM PQ25 MMI4 H81 BCM PQ25 MMI4 H81 07440744
   Revision: BB081001    Serial number: 0972 080170328
   Coding: 3A984BFF48A30000013806007E4B16900080634F60CE1140230000000820
   Shop #: WSC 10011 123 12345
   VCID: 31682D5868295BCE35-8064

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 110317 04  42  0106
   Coding: 022800

   Subsystem 2 - Part No SW: 6R0 959 802 EF    HW: 6R0 959 802 EF  Labels: 6R0-959-802.CLB
   Component: J386__TSG_FT  023 2521
   Serial number: 13102848170228100508
   Coding: 150000

   Subsystem 3 - Part No SW: 6R0 959 801 ED    HW: 6R0 959 801 ED  Labels: 6R0-959-801.CLB
   Component: J387__TSG_BT  023 2521
   Serial number: 13102849170307172441
   Coding: 150000

   Subsystem 4 - Part No SW: 6C0 959 442     HW: 6C0 959 442
   Component: E221__MFL-TAT  H06 0023
   Serial number: 0721704045900423AB2B
   Coding: 240000

   Subsystem 5 - Part No SW: 6R0 959 811 S    HW: 6R0 959 811 S
   Component: J388__TSG_HL  022 1522
   Serial number: 13102728170316013225
   Coding: 000000

   Subsystem 6 - Part No SW: 6R0 959 812 S    HW: 6R0 959 812 S
   Component: J389__TSG_HR  1522
   Coding: 000000

No Faults Found
  or DTCs not supported by controller
  or a communication error occurred

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 J    HW: 6R0 959 655 J
   Component: VW10AirbagU06 H10 0020
   Revision: --------    Serial number: 003GW01A15C.
   Coding: 003036
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250_VW25.rod
   VCID: 499865B8E8B9030E1D-801C

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb
   Part No SW: 6RF 920 862 B    HW: 6RF 920 862 B
   Component: KOMBI         H01 0217
   Serial number: 00000000000000
   Coding: 110A000000
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05729
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
   VCID: 4B945FB0E2C5111E2F-801E

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 089
   Component: GW-K-CAN TP20 H81 0744
   Revision: BB081001
   Coding: 002300
   Shop #: WSC 10011 123 12345
   VCID: 68DE803C9B73DA0622-803C

1 Fault Found:
02873 - Control Module for Back-Up Camera (J772)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 48147 km
                    Time Indication: 0
                    Date: 2016.06.29
                    Time: 21:16:57


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H01 0217
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6ADAFA348D7FE81634-803E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500)       Labels:| 1Sx-909-144-44.clb
   Part No SW: 1S2 909 144 P    HW: 1S2 909 144 P
   Component: EPS_ECU       H61 1702
   Coding: 0001000000000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_SteerAssisNSK 014008
   ROD: EV_SteerAssisNSK_014_VW12.rod
   VCID: 41887D98D089CB4EC5-8014

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range (J431)       Labels:. 6R0-907-357.clb
   Part No SW: 6R0 907 357 C    HW: 6R0 907 357 B
   Component: AFS-ECU       005 0050
   Revision: --------    Serial number: --------------
   Coding: 0D0C000001000000
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
   ROD: EV_HeadlRegulVWLWRCC.rod
   VCID: 3A7A0A74BD5F989684-806E

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels: None
   Part No SW: 6RF 035 187 C    HW: 6RF 035 187 C
   Component: Radio         557 5516
   Revision: --------    Serial number: VWZ7Z2S7103220
   Coding: 0E00044000000A
   Shop #: WSC 01234 785 00200
   VCID: 499865B8E0B9030E1D-801C

No fault code found.

End-------------------------(Elapsed Time: 03:21)--------------------------
Post Reply
