The BCM how come with it 7H0937089H/Z0X
and he give me some wire and one of them I have to connect them to the BCM A62 and fuse 34 is it that one ?
Problem, LED's always off , Polo GTI 6R 2013
-
iichel
- Bling Bling Diamond Member
- Posts: 6407
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Problem, LED's always off , Polo GTI 6R 2013
If I deciphered your english well, then yes. Connect a wire from Fuse 34 to BCM connector A (black) pin 62
Re: Problem, LED's always off , Polo GTI 6R 2013
Sorry for my English but you deciphered it
Ok so my wire wasn't connected correctly
I'll verify it and tell you
Thinks a lot
Ok so my wire wasn't connected correctly
I'll verify it and tell you
Thinks a lot
Re: Problem, LED's always off , Polo GTI 6R 2013
So
I tried to connect it but the connector are very small so I broke it
I buy another one from eBay I'll receive on Friday and I'll retry
Tomorrow I'll take it to Volkswagen to configure the my key on the new BCM I hope he can connect it
I'll keep you in touch
( fill Free to correct my English it's better for me)
I tried to connect it but the connector are very small so I broke it
I buy another one from eBay I'll receive on Friday and I'll retry
Tomorrow I'll take it to Volkswagen to configure the my key on the new BCM I hope he can connect it
I'll keep you in touch
( fill Free to correct my English it's better for me)
Re: Problem, LED's always off , Polo GTI 6R 2013
I'm back with my English
Finally I find the problem,there are a special code with VCDS to activate headlight
Address 09, byte 16 change 66 to 67
Thanks a lot for your help
Finally I find the problem,there are a special code with VCDS to activate headlight
Address 09, byte 16 change 66 to 67
Thanks a lot for your help
-
iichel
- Bling Bling Diamond Member
- Posts: 6407
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Problem, LED's always off , Polo GTI 6R 2013
change byte 18 to 67
byte 11 bit 0 on
maybe, can you share an autoscan?
byte 11 bit 0 on
maybe, can you share an autoscan?
Re: Problem, LED's always off , Polo GTI 6R 2013
Hi ciclo I want to install the auto light by using the rain detector
Thanks
Thanks
-
ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Problem, LED's always off , Polo GTI 6R 2013
Hi mab6680 check your inbox, I have sent you two messages.
-
don kechick
- New
- Posts: 2
- Joined: Fri Mar 30, 2018 11:44 am
- Drives: Polo Sedan
- Location: Malaysia
Re: Problem, LED's always off , Polo GTI 6R 2013
Hi.. I got a same problem.. Can u teach me how to connect DRL directly to the battery and which cable.
I just bought wiring harness from china but seems its not working. Please help.. Thank you..
I just bought wiring harness from china but seems its not working. Please help.. Thank you..
- Attachments
-

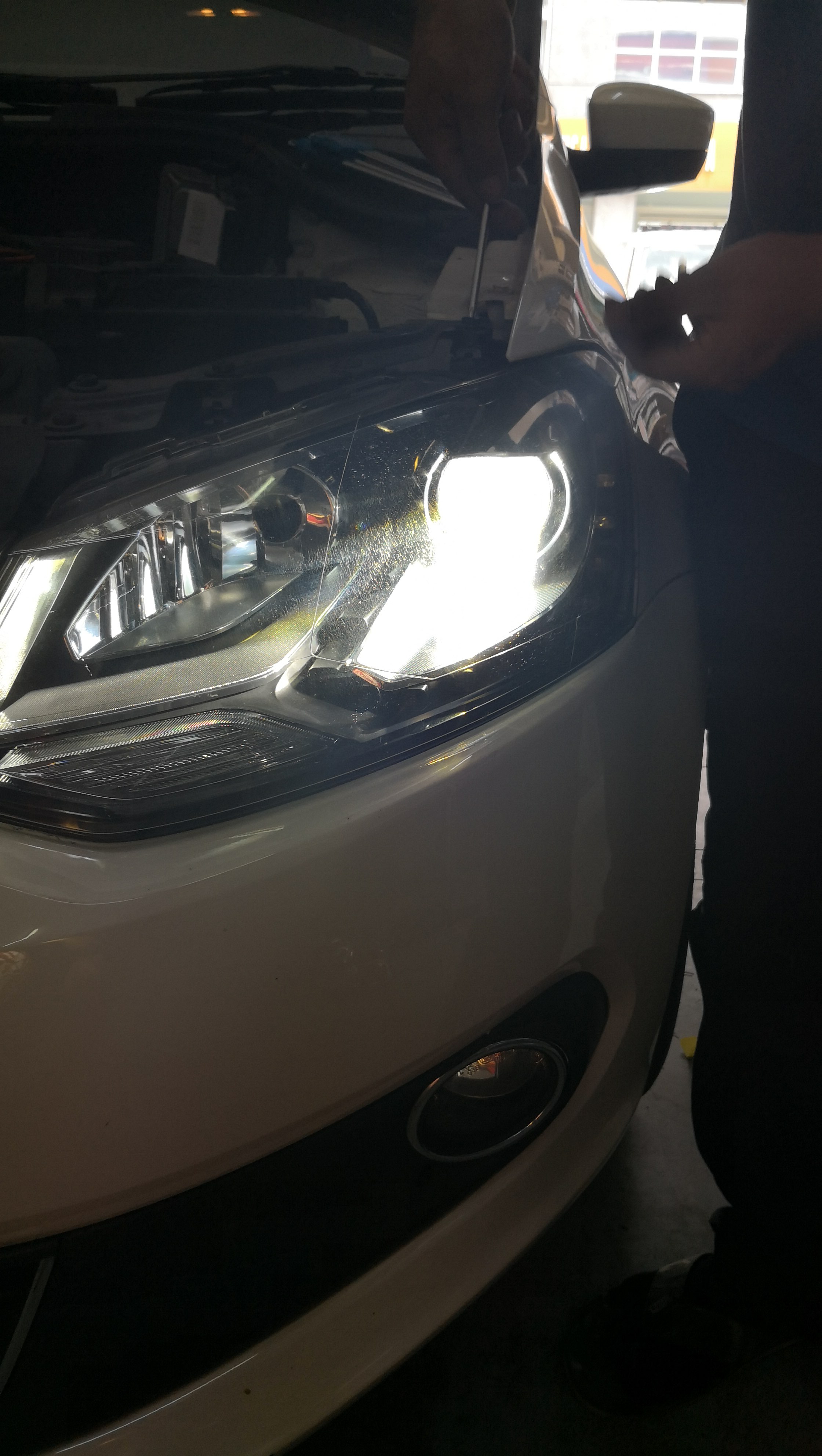

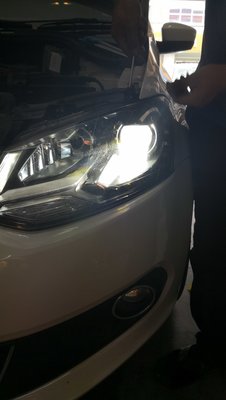

- Same problem
-
iichel
- Bling Bling Diamond Member
- Posts: 6407
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Problem, LED's always off , Polo GTI 6R 2013
need more info
- autoscan
- what wiring
- connected to what
thank you!
- autoscan
- what wiring
- connected to what
thank you!
Re: Problem, LED's always off , Polo GTI 6R 2013
Hi!
I am from Brazil! I have a Beetle 5C, and we have the same BCM and Harness from Polo. My BCM is a 7H0 937 090B. I did a lot conversions from halogen to oem xenon in many beetles using your wiring conversion from 10-14 pin, and all worked well. But, i am having trouble with my beetle, i changed the BCM from a 5C5 937 087. So i changed the wires from tacho can pins, and did ok. I had errors from 30a supply at the BCM, so i got wires at T73/A63 and T73/B68, then, i got rid of the errors, and the DRL/Parking Light got on. But, i am having troubles with high beam. I set byte 11 bit 0 on, byte 22 bit 4 on and byte 18 67. When i try to use the high beam, it works only when the low beam is on. Then, reading the forum, i tried to connect T73a/62 to SB34, but stills the same! Can you help me, please? Thanks a lot!!!
I am from Brazil! I have a Beetle 5C, and we have the same BCM and Harness from Polo. My BCM is a 7H0 937 090B. I did a lot conversions from halogen to oem xenon in many beetles using your wiring conversion from 10-14 pin, and all worked well. But, i am having trouble with my beetle, i changed the BCM from a 5C5 937 087. So i changed the wires from tacho can pins, and did ok. I had errors from 30a supply at the BCM, so i got wires at T73/A63 and T73/B68, then, i got rid of the errors, and the DRL/Parking Light got on. But, i am having troubles with high beam. I set byte 11 bit 0 on, byte 22 bit 4 on and byte 18 67. When i try to use the high beam, it works only when the low beam is on. Then, reading the forum, i tried to connect T73a/62 to SB34, but stills the same! Can you help me, please? Thanks a lot!!!
-
iichel
- Bling Bling Diamond Member
- Posts: 6407
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Problem, LED's always off , Polo GTI 6R 2013
Can you show me an autoscan please with your current configuration?
Re: Problem, LED's always off , Polo GTI 6R 2013
Hi!! Sorry about the Delay!! here is:
Thursday,26,March,2020,14:08:45:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 19.6.1.0
Data version: 20190529 DS308.0
www.Ross-Tech.com
VIN: 3VW4N6161DM630070 License Plate:
Mileage: 69220km-43011mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 16-VW32 (6N0)
Scan: 01 03 04 08 09 10 15 17 19 25 2E 37 44 47 56 B9
VIN: 3VW4N6161DM630070 Mileage: 69220km-43011miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: Malfunction 0010
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
47-Sound System -- Status: Malfunction 0010
56-Radio -- Status: OK 0000
B9-Aux. Display -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (CCZ) Labels:. 06J-907-115-CCZ.clb
Part No SW: 06J 906 027 CG HW: 06J 907 309 A
Component: MED17.5.2 05 4378
Revision: P3H07--- Serial number:
Coding: 0403000C18070160
Shop #: WSC 00066 000 00000
VCID: 72EB6FCF6DAF28DF9F-8026
No fault code found.
Readiness: 1010 0001
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 1K0-907-379-60EC1F.clb
Part No SW: 5C0 907 379 C HW: 5C0 907 379 C
Component: ESP MK60EC1 H31 0156
Revision: 00H31001
Coding: F43B60F8092500FA2F0B06EB90190041251C00
Shop #: WSC 00066 123 12345
VCID: 2E53BBBF79174C3F3B-807A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: 5C0-820-047.clb
Part No SW: 5C0 820 047 BC HW: 5C0 820 047 BC
Component: J301 Klimaanlage 0204
Revision: 2001111S Serial number: 00000001144519
Shop #: WSC 00066 000 00000
VCID: 62CB1F8FBD4FB85FEF-8036
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 090 B HW: 7H0 937 090
Component: BCM PQ25 Max4 H74 0712
Revision: B9074001 Serial number: 28013057140382
Coding: 7CB869B848810C0093A807016E2B86C50AC2670F60851CC0B200140B0000
Shop #: WSC 12345 608 20735
VCID: 2D51BCB37411372702-8078
Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 070315 05 54 0403
Coding: 003028
Subsystem 2 - Part No SW: 5C5 959 801 M HW: 5C5 959 801 M
Component: J386__TSG_FT 011 1032
Serial number: --------------------
Coding: 000000
Subsystem 3 - Part No SW: 5C5 959 802 P HW: 5C5 959 802 P
Component: J387__TSG_BT 011 1032
Serial number: --------------------
Coding: 000000
Subsystem 4 - Part No: 1K8 951 171
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 5 - Part No: 1K0 951 605 C
Component: LIN BACKUP HO H05 1501
Coding: 000000
Subsystem 6 - Part No: 1K8 951 171
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 7 - Part No SW: 5C0 959 442 HW: 5C0 959 442
Component: E221__MFL-YVJ H02 0103
Serial number: 00000000000000000000
Coding: E30000
1 Fault Found:
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 159
Mileage: 69228 km
Time Indication: 0
Date: 2014.08.17
Time: 13:59:37
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 1Q0-919-475.clb
Part No SW: 5C5 919 475 HW: 7E0 919 475 A
Component: PARKHILFE 8K H10 0005
Revision: -------- Serial number: 83491220500608
Coding: 108001
Shop #: WSC 00066 123 00126
ASAM Dataset: EV_EPHVA18VW3240000 001004
ROD: EV_EPHVA18VW3240000.rod
VCID: 70EF65C7ABA31ACF69-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 5C0 959 655 F HW: 5C0 959 655 F
Component: AirbagVW10 013 0613
Serial number: 003JQM00XVKP
Coding: 00004E44
Shop #: WSC 00066 000 00000
ASAM Dataset: EV_AirbaVW10SMEVW360 A01014
ROD: EV_AirbaVW10SMEVW360.rod
VCID: 356194D394417FE77A-8060
Crash sensor for side airbag: driver side:
Subsystem 1 - Part No SW: 5K0 959 354 HW: 5K0 959 354
Component: S.Sens.Fahr.V H02 ----
Serial number: 3572MSME2D40306EZZZZ
Crash sensor for side airbag: front passenger side:
Subsystem 2 - Part No SW: 5K0 959 354 HW: 5K0 959 354
Component: S.Sens.Beif.V H02 ----
Serial number: 3582MSME73573170ZZZR
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5C5 920 870 B HW: 5C5 920 870 B
Component: KOMBI H23 0103
Revision: X0023005 Serial number:
Coding: 350B01
Shop #: WSC 00066 123 00126
ASAM Dataset: EV_KombiUDSMM9RM10 A04712
ROD: EV_KombiUDSMM9RM10_A04_VW12.rod
VCID: 295948A348F92B07EE-807C
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 090
Component: GW-K-CAN TP20 H74 0712
Revision: B9074001
Coding: 402000
Shop #: WSC 12345 608 20735
VCID: 70EF65C7A3A31ACF69-8024
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5C5 920 870 B
Component: IMMO H23 0103
Revision: X0023005 Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_ImmoUDSMM9RM10 A01702
ROD: EV_ImmoUDSMM9RM10_VW12.rod
VCID: 6ADB77AF8D7FE01F27-803E
No fault code found.
-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650) Labels:. 5N0-035-342.lbl
Part No SW: 5N0 035 342 F HW: 5N0 035 342 F
Component: SG EXT.PLAYER H18 0530
Revision: A1001003 Serial number: 7663012112
Coding: 010100
Shop #: WSC 00066 000 00000
VCID: 2A5BB7AF45FF201FE7-807E
1 Fault Found:
03138 - Input AUX IN
009 - Open or Short to Ground
Freeze Frame:
Fault Status: 01101001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 158
Mileage: 69228 km
Time Indication: 0
Date: 2014.08.16
Time: 22:00:45
-------------------------------------------------------------------------------
Address 37: Navigation (J794) Labels:| 1K0-035-27x-37.clb
Part No SW: 3C8 035 278 B HW: 3C8 035 278 B
Component: RNS315-SAM H53 0320
Serial number: VWZAZ2M2375557
Coding: 040100010100000000001006
Shop #: WSC 01383 790 50316
ASAM Dataset: EV_RNS315SAMV2UDS 001705
ROD: EV_RNS315SAMV2UDS.rod
VCID: 295948A348F92B07EE-807C
Data medium:
Subsystem 1 - Part No: 3AA 919 866 C
Component: SAM_0037 0037
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 1K0-909-14x-GEN3.clb
Part No: 1K0 909 144 P
Component: EPS_ZFLS Kl. 69 3305
Revision: 00H22000
Shop #: WSC 02069 000 90108
VCID: 377D9EDB464D8DF768-8062
No fault code found.
-------------------------------------------------------------------------------
Address 47: Sound System (R12) Labels: 5K0-035-456.clb
Part No SW: 5C6 035 456 A HW: 5C6 035 456 A
Component: KonzernAmp10K H08 6815
Revision: -------- Serial number: EAA098A0147688
ASAM Dataset: EV_AudioVerst10KanalSTT3 S01001
ROD: EV_AudioVerst10KanalSTT3.rod
VCID: 2643439F59E7047FC3-8072
4 Faults Found:
9651987 - Double Bass Speaker 2; Front Left
B1347 13 [008] - Open Circuit
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 198
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
9652243 - Double Bass Speaker 2; Front Right
B1348 13 [008] - Open Circuit
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 198
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
9463315 - Rear Left Treble Speaker
B1066 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 158
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
9463827 - Rear Right Treble Speaker
B1068 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 158
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
-------------------------------------------------------------------------------
Address B9: Aux. Display (J285) Labels:* 5C5-919-527.clb
Part No SW: 5C5 919 527 E HW: 5C5 919 527 E
Component: ZUSATZANZEIGE H02 0102
Serial number: 00000000000000
Coding: 05
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Auxi_Disp_Unit_UDS_VDD 001010
ROD: EV_Auxi_Disp_Unit_UDS_VDD.rod
VCID: 3365AACB9A3561D754-8066
No fault code found.
End-------------------------(Elapsed Time: 03:48)--------------------------
Thursday,26,March,2020,14:08:45:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 19.6.1.0
Data version: 20190529 DS308.0
www.Ross-Tech.com
VIN: 3VW4N6161DM630070 License Plate:
Mileage: 69220km-43011mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 16-VW32 (6N0)
Scan: 01 03 04 08 09 10 15 17 19 25 2E 37 44 47 56 B9
VIN: 3VW4N6161DM630070 Mileage: 69220km-43011miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: Malfunction 0010
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
47-Sound System -- Status: Malfunction 0010
56-Radio -- Status: OK 0000
B9-Aux. Display -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (CCZ) Labels:. 06J-907-115-CCZ.clb
Part No SW: 06J 906 027 CG HW: 06J 907 309 A
Component: MED17.5.2 05 4378
Revision: P3H07--- Serial number:
Coding: 0403000C18070160
Shop #: WSC 00066 000 00000
VCID: 72EB6FCF6DAF28DF9F-8026
No fault code found.
Readiness: 1010 0001
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 1K0-907-379-60EC1F.clb
Part No SW: 5C0 907 379 C HW: 5C0 907 379 C
Component: ESP MK60EC1 H31 0156
Revision: 00H31001
Coding: F43B60F8092500FA2F0B06EB90190041251C00
Shop #: WSC 00066 123 12345
VCID: 2E53BBBF79174C3F3B-807A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: 5C0-820-047.clb
Part No SW: 5C0 820 047 BC HW: 5C0 820 047 BC
Component: J301 Klimaanlage 0204
Revision: 2001111S Serial number: 00000001144519
Shop #: WSC 00066 000 00000
VCID: 62CB1F8FBD4FB85FEF-8036
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 090 B HW: 7H0 937 090
Component: BCM PQ25 Max4 H74 0712
Revision: B9074001 Serial number: 28013057140382
Coding: 7CB869B848810C0093A807016E2B86C50AC2670F60851CC0B200140B0000
Shop #: WSC 12345 608 20735
VCID: 2D51BCB37411372702-8078
Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 070315 05 54 0403
Coding: 003028
Subsystem 2 - Part No SW: 5C5 959 801 M HW: 5C5 959 801 M
Component: J386__TSG_FT 011 1032
Serial number: --------------------
Coding: 000000
Subsystem 3 - Part No SW: 5C5 959 802 P HW: 5C5 959 802 P
Component: J387__TSG_BT 011 1032
Serial number: --------------------
Coding: 000000
Subsystem 4 - Part No: 1K8 951 171
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 5 - Part No: 1K0 951 605 C
Component: LIN BACKUP HO H05 1501
Coding: 000000
Subsystem 6 - Part No: 1K8 951 171
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 7 - Part No SW: 5C0 959 442 HW: 5C0 959 442
Component: E221__MFL-YVJ H02 0103
Serial number: 00000000000000000000
Coding: E30000
1 Fault Found:
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 159
Mileage: 69228 km
Time Indication: 0
Date: 2014.08.17
Time: 13:59:37
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 1Q0-919-475.clb
Part No SW: 5C5 919 475 HW: 7E0 919 475 A
Component: PARKHILFE 8K H10 0005
Revision: -------- Serial number: 83491220500608
Coding: 108001
Shop #: WSC 00066 123 00126
ASAM Dataset: EV_EPHVA18VW3240000 001004
ROD: EV_EPHVA18VW3240000.rod
VCID: 70EF65C7ABA31ACF69-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 5C0 959 655 F HW: 5C0 959 655 F
Component: AirbagVW10 013 0613
Serial number: 003JQM00XVKP
Coding: 00004E44
Shop #: WSC 00066 000 00000
ASAM Dataset: EV_AirbaVW10SMEVW360 A01014
ROD: EV_AirbaVW10SMEVW360.rod
VCID: 356194D394417FE77A-8060
Crash sensor for side airbag: driver side:
Subsystem 1 - Part No SW: 5K0 959 354 HW: 5K0 959 354
Component: S.Sens.Fahr.V H02 ----
Serial number: 3572MSME2D40306EZZZZ
Crash sensor for side airbag: front passenger side:
Subsystem 2 - Part No SW: 5K0 959 354 HW: 5K0 959 354
Component: S.Sens.Beif.V H02 ----
Serial number: 3582MSME73573170ZZZR
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5C5 920 870 B HW: 5C5 920 870 B
Component: KOMBI H23 0103
Revision: X0023005 Serial number:
Coding: 350B01
Shop #: WSC 00066 123 00126
ASAM Dataset: EV_KombiUDSMM9RM10 A04712
ROD: EV_KombiUDSMM9RM10_A04_VW12.rod
VCID: 295948A348F92B07EE-807C
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 090
Component: GW-K-CAN TP20 H74 0712
Revision: B9074001
Coding: 402000
Shop #: WSC 12345 608 20735
VCID: 70EF65C7A3A31ACF69-8024
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5C5 920 870 B
Component: IMMO H23 0103
Revision: X0023005 Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_ImmoUDSMM9RM10 A01702
ROD: EV_ImmoUDSMM9RM10_VW12.rod
VCID: 6ADB77AF8D7FE01F27-803E
No fault code found.
-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650) Labels:. 5N0-035-342.lbl
Part No SW: 5N0 035 342 F HW: 5N0 035 342 F
Component: SG EXT.PLAYER H18 0530
Revision: A1001003 Serial number: 7663012112
Coding: 010100
Shop #: WSC 00066 000 00000
VCID: 2A5BB7AF45FF201FE7-807E
1 Fault Found:
03138 - Input AUX IN
009 - Open or Short to Ground
Freeze Frame:
Fault Status: 01101001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 158
Mileage: 69228 km
Time Indication: 0
Date: 2014.08.16
Time: 22:00:45
-------------------------------------------------------------------------------
Address 37: Navigation (J794) Labels:| 1K0-035-27x-37.clb
Part No SW: 3C8 035 278 B HW: 3C8 035 278 B
Component: RNS315-SAM H53 0320
Serial number: VWZAZ2M2375557
Coding: 040100010100000000001006
Shop #: WSC 01383 790 50316
ASAM Dataset: EV_RNS315SAMV2UDS 001705
ROD: EV_RNS315SAMV2UDS.rod
VCID: 295948A348F92B07EE-807C
Data medium:
Subsystem 1 - Part No: 3AA 919 866 C
Component: SAM_0037 0037
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 1K0-909-14x-GEN3.clb
Part No: 1K0 909 144 P
Component: EPS_ZFLS Kl. 69 3305
Revision: 00H22000
Shop #: WSC 02069 000 90108
VCID: 377D9EDB464D8DF768-8062
No fault code found.
-------------------------------------------------------------------------------
Address 47: Sound System (R12) Labels: 5K0-035-456.clb
Part No SW: 5C6 035 456 A HW: 5C6 035 456 A
Component: KonzernAmp10K H08 6815
Revision: -------- Serial number: EAA098A0147688
ASAM Dataset: EV_AudioVerst10KanalSTT3 S01001
ROD: EV_AudioVerst10KanalSTT3.rod
VCID: 2643439F59E7047FC3-8072
4 Faults Found:
9651987 - Double Bass Speaker 2; Front Left
B1347 13 [008] - Open Circuit
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 198
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
9652243 - Double Bass Speaker 2; Front Right
B1348 13 [008] - Open Circuit
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 198
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
9463315 - Rear Left Treble Speaker
B1066 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 158
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
9463827 - Rear Right Treble Speaker
B1068 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 158
Mileage: 69228 km
Date: 2020.03.25
Time: 21:57:14
-------------------------------------------------------------------------------
Address B9: Aux. Display (J285) Labels:* 5C5-919-527.clb
Part No SW: 5C5 919 527 E HW: 5C5 919 527 E
Component: ZUSATZANZEIGE H02 0102
Serial number: 00000000000000
Coding: 05
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Auxi_Disp_Unit_UDS_VDD 001010
ROD: EV_Auxi_Disp_Unit_UDS_VDD.rod
VCID: 3365AACB9A3561D754-8066
No fault code found.
End-------------------------(Elapsed Time: 03:48)--------------------------
-
iichel
- Bling Bling Diamond Member
- Posts: 6407
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Problem, LED's always off , Polo GTI 6R 2013
This is interesting. I think your coding is correct. So is the wiring.
Can you check the voltage on T14/10 and T14/12 (headlight connectors) please? In position 0 (DRL) and position 1 (parking lights)
Can you check the voltage on T14/10 and T14/12 (headlight connectors) please? In position 0 (DRL) and position 1 (parking lights)
Re: Problem, LED's always off , Polo GTI 6R 2013
Ok. I will receive a new set of adapters at next week. then, I will build it, and tell you the results! Thanks a lot!!
