Polo 6R ABS CODING

[MayurS]

Hi Guys, Mayur Here from India. New to the forum.
Polo Highline Plus 1.0 TSI (6R) Engine code- DSHA, Transmission - Automatic Torque Converter
I am in the process of upgrading the brakes from stock 256mm to 288mm BBK. Need the ABS Long coding for the same.
Posting a full Auto Scan for the same. Also wanted to know if it's possible to do the long coding on OBD Eleven? as my VCDS stopped working since some time.


Wednesday,05,July,2023,09:54:46:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 21.3.0.0 (x64)
Data version: 20210226 DS325.0
www.Ross-Tech.com


VIN: MEXB21605MT125488 License Plate: MH15HM7709
Mileage: 40030km-24873mi Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 60-VW25 (6RU)
Scan: 01 02 03 04 08 09 15 17 19 25 36 44 56

VIN: MEXB21605MT125488 Mileage: 40030km-24873miles

01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
36-Seat Mem. Drvr -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-DSHA) Labels: None
Part No SW: 04C 906 026 CJ HW: 04C 907 309 AG
Component: R3 1.0l TFS H22 1621
Revision: WTH22---
Coding: 001A0012232410000000
Shop #: WSC 38343 005 1048576
ASAM Dataset: EV_ECM10TFS01104C906026CJ 002003
ROD: EV_ECM10TFS01104C906026CJ.rod
VCID: 6BD572AB8285F9D306-803E

1 Fault Found:
17165 - Databus
U1123 00 [040] - Received Error Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 62
Mileage: 0 km
Date: 2023.05.26
Time: 20:19:11

Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 49 °C
Intake air temperature: 47 °C
Ambient air pressure: 940 mbar
Voltage terminal 30: 12.340 V
Unlearning counter according OBD: 40
Acceleration: 0.000 m/s²
Cruise Control System (CCS): status-Bits 0-7: 1
Cruise_control_shutoff_conditions_irreversible-Bits 0-7: 0
Cruise_control_shutoff_conditions_irreversible-Bits 0-7: 0
Cruise control system: temporary deactivation-Bits 0-7: 255
Accelerator pedal travel: 0.00 %
Cruise control switch actuation-Bits 0-7: 0
Cruise control switch actuation-Bits 0-7: 32

Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans (J217) Labels: 09G-927-749-V2.clb
Part No SW: 09G 927 158 FB HW: 09G 927 158
Component: AISIN AG6 G3 202 3724
Coding: 0000000000000000010000000000000000000000
Shop #: WSC 01234 785 00200
ASAM Dataset: EV_TCMAQ250031 003021
ROD: EV_TCMAQ250031_003_VW23.rod
VCID: 78FF5DE7C3D3424BFB-802C

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP90.clb
Part No SW: 6R0 907 379 CB HW: 6R0 907 379 AS
Component: ESP9.0i front H04 0003
Serial number: --------------
Coding: 62DD2463422503C5461824714259C0800908
Shop #: WSC 01234 785 00200
ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
VCID: 000F35079B030A8BC3-8054

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 23112013470030
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7BB1-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6R0-907-044.clb
Part No SW: 6R0 907 044 Q HW: 6R0 907 044 Q
Component: Climatronic H12 0615
Revision: V0000000
VCID: 4189F003D889C3838C-8014

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 6R0-937-08x-09.clb
Part No SW: 6RU 937 087 S HW: 6RU 937 087 S
Component: BCM IM H+4 H43 0471
Revision: BZ043001 Serial number: 4201 035210301
Coding: 3AB02BFF08A30400013800006E2B169000C0600F608E0100220000000A00
Shop #: WSC 124697 483 00190
VCID: 72EB6FCFADAF281BC5-8026

Subsystem 1 - Part No: 5K7 955 559 C Labels: 5K7-955-559.CLB
Component: RLS 011020 05 50 0106
Coding: 0368DD

Subsystem 2 - Part No SW: 6R0 959 802 EF HW: 6R0 959 802 EF Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 023 2551
Serial number: 13102848201203141648
Coding: 000000

Subsystem 3 - Part No SW: 6R0 959 801 ED HW: 6R0 959 801 ED Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 023 2551
Serial number: 13202849201203164037
Coding: 000000

Subsystem 5 - Part No SW: 6R0 959 811 S HW: 6R0 959 811 S
Component: J388__TSG_HL 022 1552
Serial number: 13102728200918100441
Coding: 000000

Subsystem 6 - Part No SW: 6R0 959 812 S HW: 6R0 959 812 S
Component: J389__TSG_HR 022 1552
Serial number: 13102729200928071017
Coding: 000000

3 Faults Found:
03302 - Response Closing Status of Passenger's Door
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 3
Reset counter: 146
Mileage: 39909 km
Time Indication: 0
Date: 2023.07.01
Time: 01:06:00

00975 - Heated Rear Window (Z1)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 2
Reset counter: 64
Mileage: 38407 km
Time Indication: 0
Date: 2023.05.29
Time: 23:31:58

03020 - Local databus 2
012 - Electrical Fault in Circuit - Intermittent
Freeze Frame:
Fault Status: 00101100
Fault Priority: 2
Fault Frequency: 254
Reset counter: 153
Time Indication: 0


-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:. 6C0-959-655.clb
Part No SW: 6C0 959 655 Q HW: 6C0 959 655 Q
Component: Airbag VW12 001 0503
Revision: -------- Serial number: 003FZAKNULA
Coding: 880000000000000054000000008000000065
Shop #: WSC 01383 785 00200
ASAM Dataset: EV_AirbaVW12TS6VW25X 001001
ROD: EV_AirbaVW12TS6VW25X_VW25.rod
VCID: 4189F003D089C3838C-8014

No ASAM data for: "EV_AirbaVW12TS6VW25X" (VW25)
No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 6RF 920 861 F HW: 6RF 920 861 F
Component: KOMBI H01 5014
Serial number: 00000000000000
Coding: 1108000000
Shop #: WSC 01234 785 00200
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05735
ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
VCID: 4E93DB3F11D72CFB01-801A

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: None
Part No SW: 6RU 909 901 HW: 6RU 937 087 S
Component: GW-K-CAN TP20 H43 0471
Revision: BZ043001
Coding: 002300
Shop #: WSC 124697 483 00190
VCID: 193978631099BB4324-804C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H01 5014
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADB77AF8D7FE0DB7D-803E

No fault code found.

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr Labels: 3C0-959-760.lbl
Part No SW: 3C8 959 760 HW: 3C8 959 760
Component: J810 0801
Revision: 00002000 Serial number: 00000000000000
Coding: 0000001
Shop #: WSC 00000 000 00000
VCID: 72EB6FCF6DAF281BC5-8026

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 1Sx-909-144-44.clb
Part No SW: 1S2 909 144 P HW: 1S2 909 144 P
Component: EPS_ECU H61 1702
Coding: 0001000000000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_SteerAssisNSK 014008
ROD: EV_SteerAssisNSK_014_VW25.rod
VCID: 4189F003D089C3838C-8014

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 6RF 035 187 C HW: 6RF 035 187 C
Component: Radio 557 5536
Revision: -------- Serial number: VWZ7Z2V0102693
Coding: 0E00044000000F
Shop #: WSC 01234 785 00200
VCID: 4999E823E0B90BC354-801C

No fault code found.

End-------------------------(Elapsed Time: 02:49) --------------------------

Thanks In Advance

[iichel]

62DD4863422503C5461812714259C0800908

This should do the trick

[patil]

iichel your coding is for 288mm front disc and 232 mm rear disc. But here Polo never came with rear disc from factory.

So following will be correct coding for his new front 288 mm disc and 200mm stock rear drums.

62DD4463422503C5461822714259C0800908

[iichel]

ah yes fair enough i forgout about that

[MayurS]

iichel your coding is for 288mm front disc and 232 mm rear disc. But here Polo never came with rear disc from factory.

So following will be correct coding for his new front 288 mm disc and 200mm stock rear drums.

62DD4463422503C5461822714259C0800908

Thank You patil and IIchel for quick assistance.
One more question can i apply this long coding with OBDEleven? or VCDS is necessary?

[iichel]

Obd11 should be perfectly capable as well.

[Dom101]

Hi Iichell
I was wondering if you could help me. There is no saved abs coding data on my 2012 1.6l polo hatchback. I saw your post on how to generate a new code its lhd, 256mm front disc and 230 rear disc. Manual. Last 5 digits of vin are 36267.
So I would make that
21 02 28 c2 41 70 00 b8 84 27 14 e8 82 d8 00 42 10 00
I put in gaps to check it easier.
I'm not very technical and the rest of the thread suggested it may need tweeking and I don't know how to do that.
Is there an alternative code worth trying?
I'm in the UK if that makes a difference
Thanks for your time

[Dom101]

Sorry I meant rhd

[Dom101]

So 82 not 42 on the 15 byte

[iichel]

Is it a TDI?

[Dom101]

No it's a petrol engine

[iichel]

I don't have any reference scans on those engines. Could you share something like a VCDS scan?

[Dom101]

Possibly. I left the car with the mechanic and he says that's the coding was absent and he couldn't do anything. That's why I'm here. I'll try and get him to send me what he has in the morning

[Dom101]

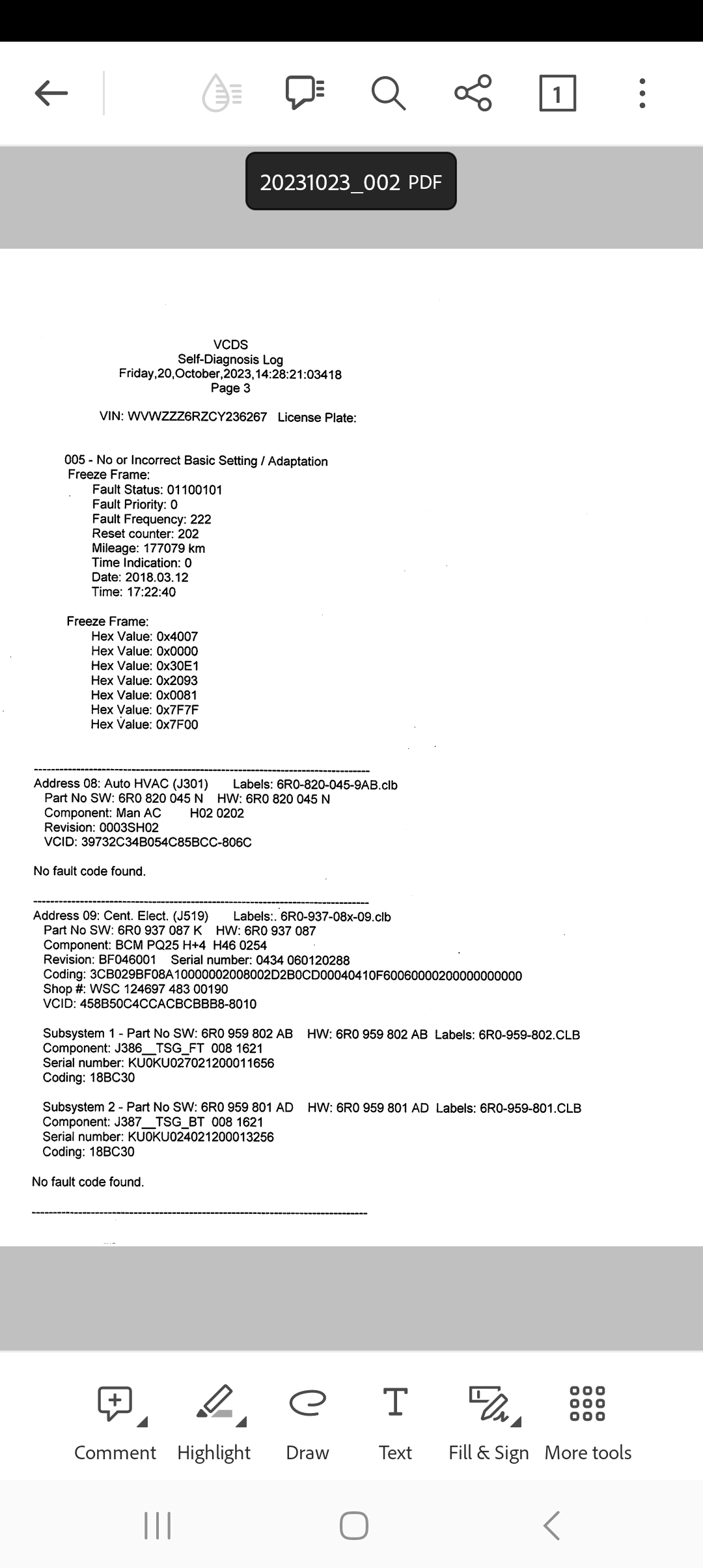

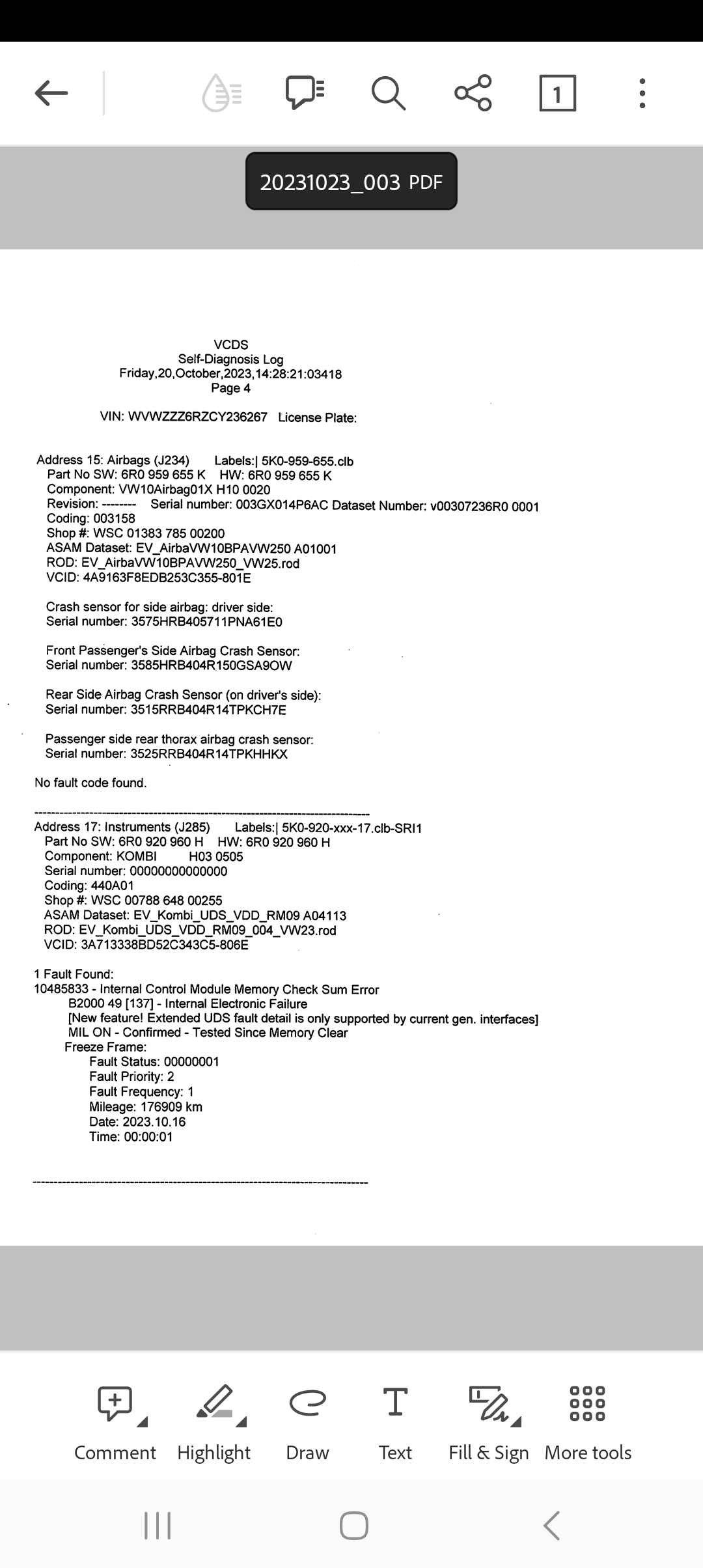

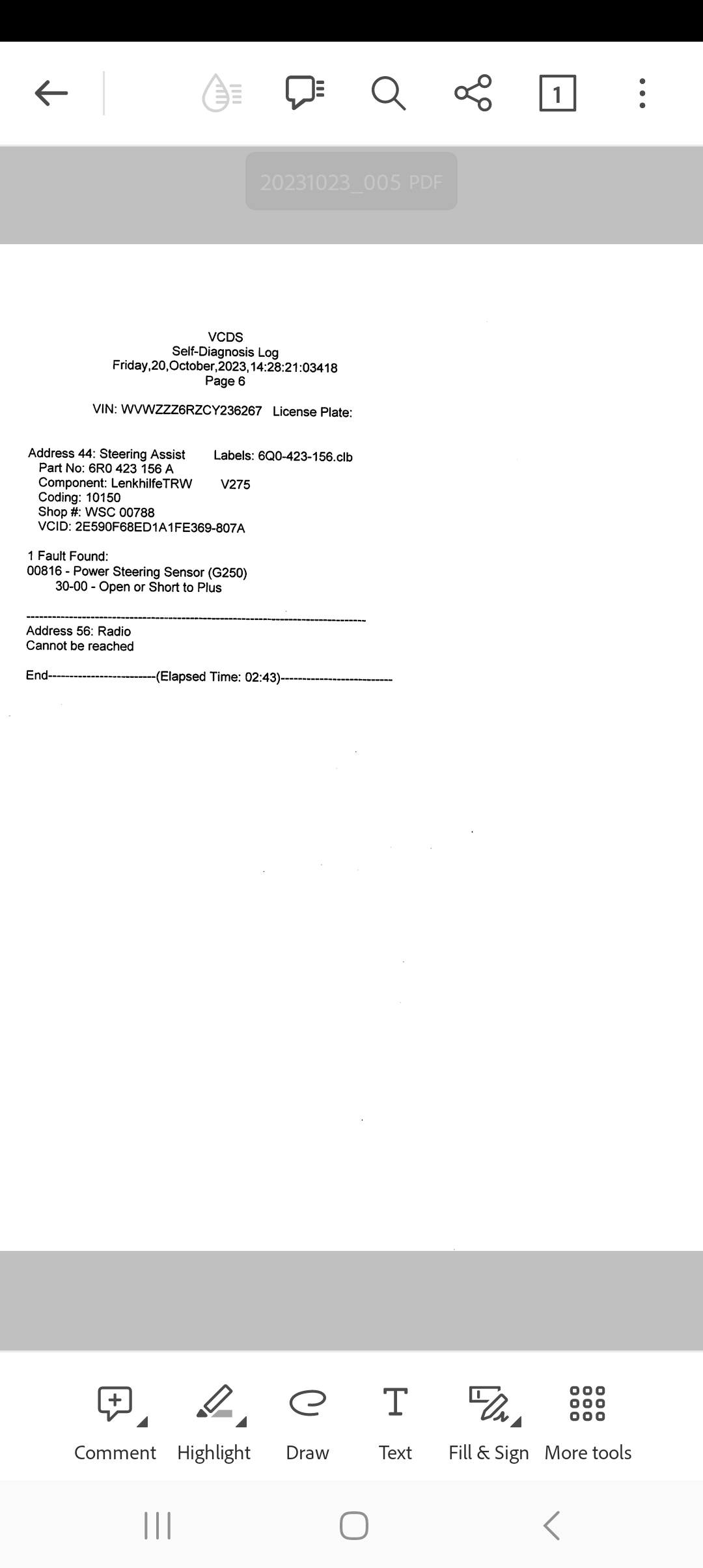

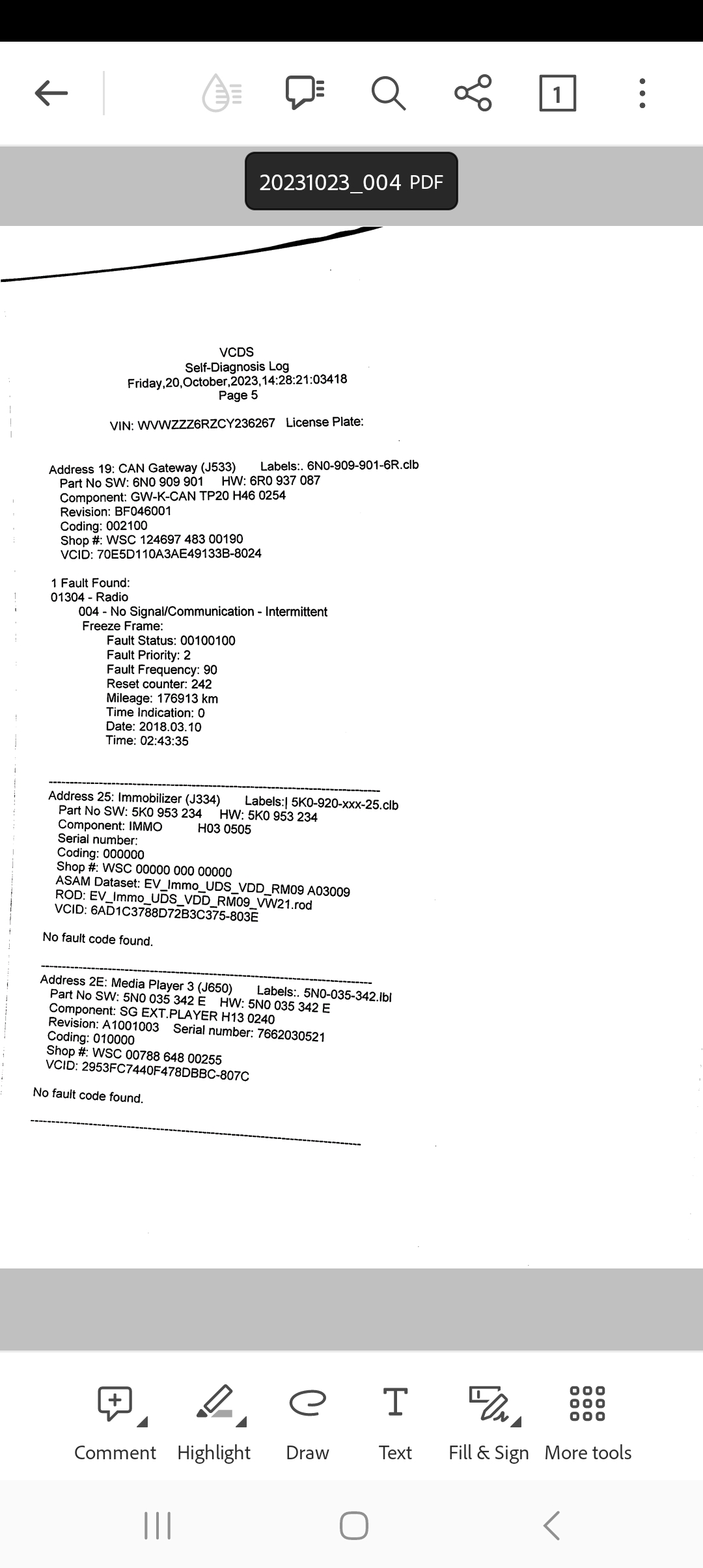

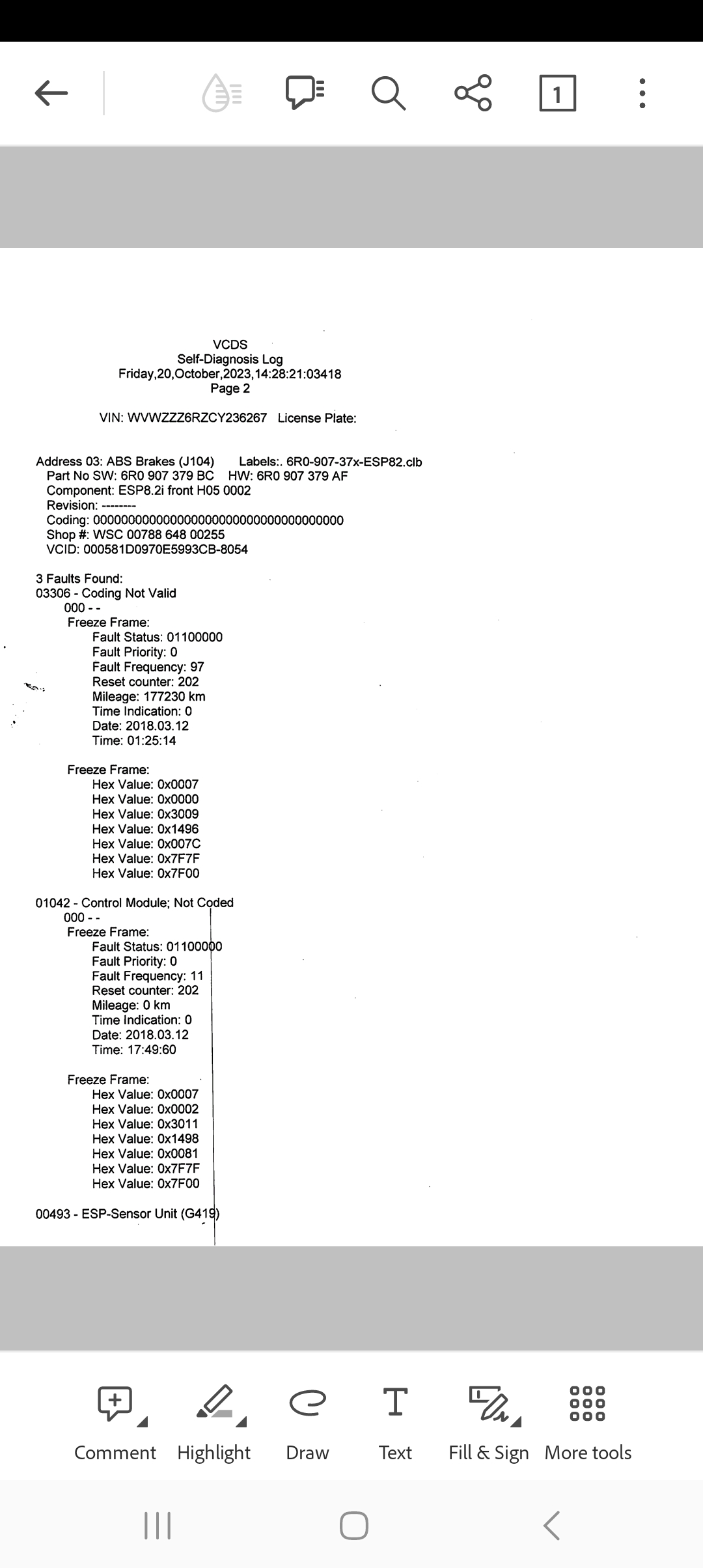

Hi
These are the vcds scans the mechanic took

[Dom101]

I was wrong about the brake disc sizes too. They are actually 256mm at the front and a 200mm drum at the rear. So to recap it is rhd, petrol, the last 5 digits of the vin are 36267.
I really appreciate your time. Thank you
