Just need a part number for these pipes, if anyone can help please.

Also need the two rubber hoses that attach to the top of them.

Are these the heater matrix pipes? I'll need your engine code and year to give you an accurate part number as there are a number of different versions

They're the pipes which connect to the heater matrix port in the firewall at the back of the engine bay.

Polo 9n3 BNV engine 2006 (I believe).

Thanks in advance!

I've glued the snapped bracket back together to give a better idea of what they should look like on a schematic, and also included a photo of the bracket with what I thought should be parts numbers on it, but VW can't seem to find anything with.

Ok, so the metal pipes are 6Q0 121 064N - £86.59 retail

Rubber hoses

return - 6Q0 121 073 AF - £9.67
feed - 6Q0 122 157 Q - £29.03

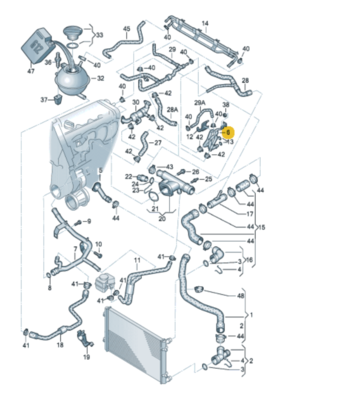

As you can see, the coolant pipe is number 6 highlighted, but its a cryptic image!

Hoses are 27 (return) and 28 (feed) respectively

£87 for that?! Holy catflaps!

Appreciate you digging those out for me though! Thank you!

Do you mind if I ask where you got that price from? My nearest dealership are wanting over £100 just for the metal pipe without the hoses.

Ah old prices - just updated my price list to the current and its £92.17 for the metal, £10.36 for the first and £30.91 for the second

Those prices come straight from ETKA - the same system the dealership uses. If they are quoting you over £100, then they are loading that price as you should pay no more than the retail figure

Ok, thanks for that!

I don't suppose you can see from that whether the pipes will come with new seals, or whether I'd have to order new ones, and what the separate part numbers would be can you?

No seals included - two of N 908 905 01 - 59p each

And if you want new spring clamps - N 906 870 01 - £5.54 each

You're a legend! Thank you!
