Let’s do a dyno run in a GTi
-
- Bronze Member
- Posts: 109
- Joined: Wed Apr 17, 2019 9:48 pm
- Drives: 2018 AW GTI
- Location: Nederland
Re: Let’s do a dyno run in a GTi
Hardly worth doing, it seems to me (272 HP/440 Nm)
- OomStu_ZA
- Gold Member
- Posts: 625
- Joined: Mon Apr 22, 2019 6:06 pm
- Drives: 2019 VW Polo GTi
- Location: Cape Town, South Africa
Re: Let’s do a dyno run in a GTi
Ja nee boet - ek woon in die Kaap , bietjie ver om te ry Blommies toe My number plate is just as garish:
viewtopic.php?f=71&t=70453&start=315#p556259
Re: Let’s do a dyno run in a GTi
Typical pre gpf push out 370nm Max, and gpf ones around 340nm Max.monkeyhanger wrote:GTIs built before Aug 18 didn't have them as standard. Although depending on where you are, you can do a delete without being in trouble with the law. Mine came without a d it feels somewhere between 5 and 10% more powerful than the wife"s 2019 model.
Both push out 200-210hp regardless.
Sent from my iPhone using Tapatalk
-
- Bronze Member
- Posts: 157
- Joined: Sat Feb 16, 2019 10:50 am
- Drives: GTi++/TT/TDi/190E
- Location: Vdbp.
Re: Let’s do a dyno run in a GTi
Would be nice to see some other dyno graphs... but so far just a lot of claims from different people and no graphs.
Even the tuners of different boxes, which claim x amount of horses under the bonnet have no graphs to prove it.
Shame...

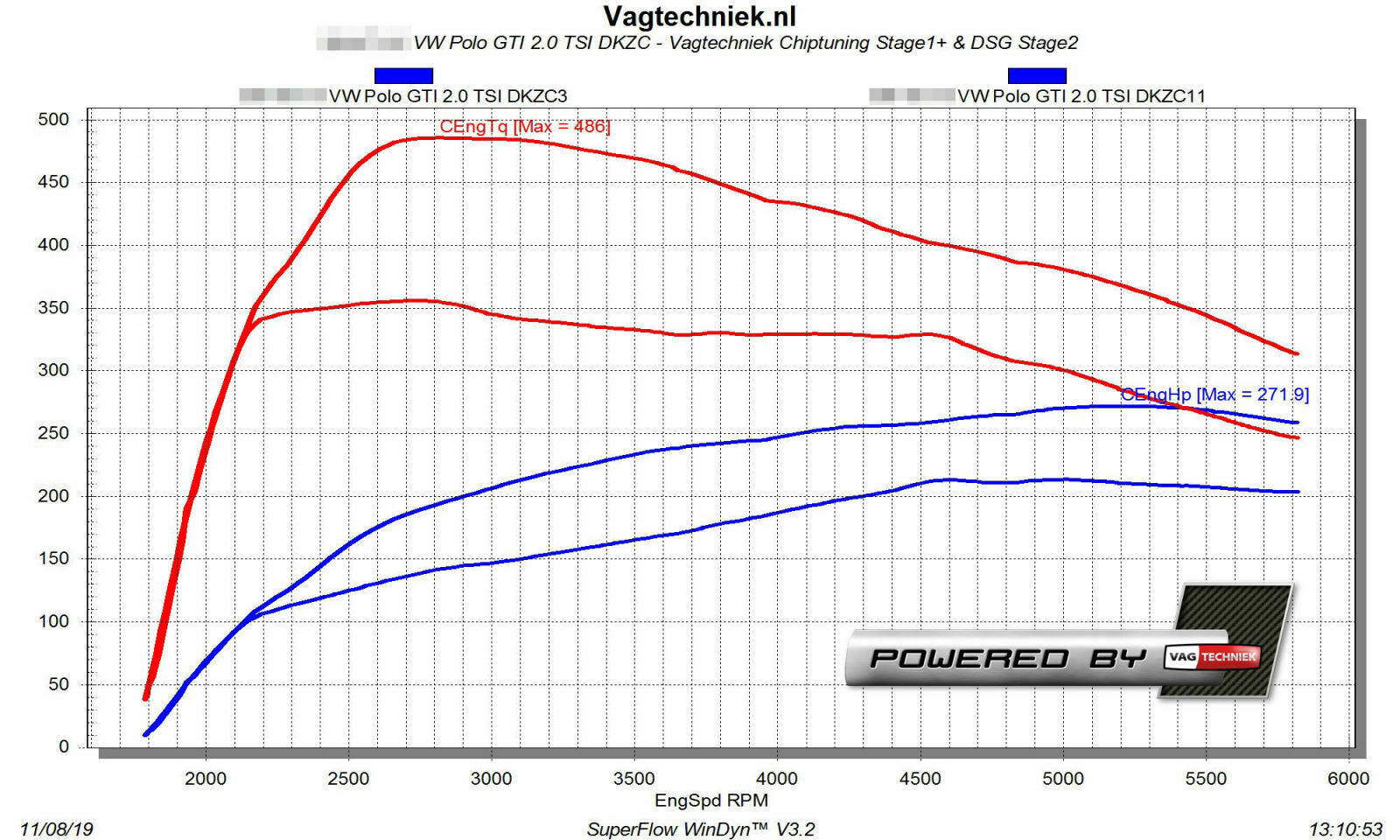

Here is another dyno graph of a different 2019 Polo GTi GPF. Stock standard and remap.
Re: Let’s do a dyno run in a GTi

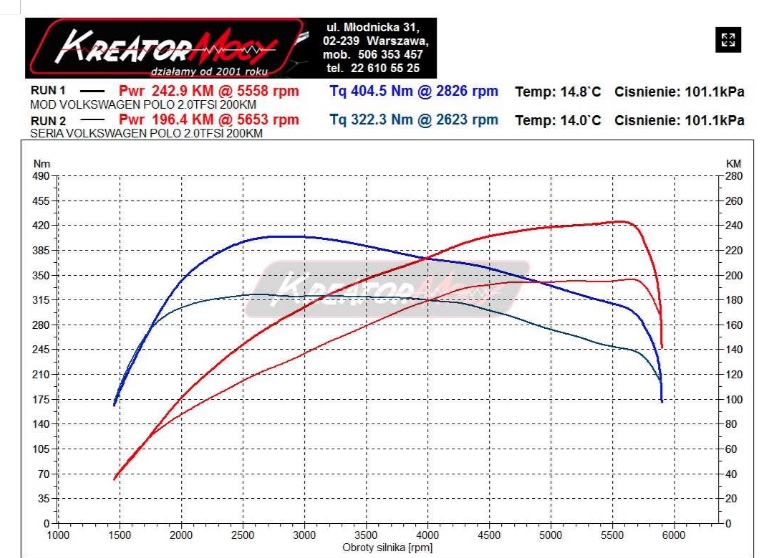

Gti GPF
Before and after remap.
Sent from my iPhone using Tapatalk
Before and after remap.
Sent from my iPhone using Tapatalk
-
- Bronze Member
- Posts: 109
- Joined: Wed Apr 17, 2019 9:48 pm
- Drives: 2018 AW GTI
- Location: Nederland
-
- Bling Bling Diamond Member
- Posts: 2643
- Joined: Fri Feb 23, 2018 9:58 pm
- Drives: Audi A4 Avant Quattro 40 TDI, Polo GTI+
- Location: Newcastle upon Tyne
Re: Let’s do a dyno run in a GTi
Is the RON98 fuel really significant? Everyone imagines that higher octane fuels are more energy rich and potent, when in reality they've got almost the same calorific content, but additives or substitutions make the fuel less volatile and so they can be compressed further without pinking. Cars set up for 97/98/99 can take advantage of this, with a higher compression ratio or a significantly higher level of fuelling per compression cycle.
The Polo is set up for RON95, as is the Golf GTI Performance (245). Only the CS, CSS, TCR and R are set up for 97/98/99 from the factory.
Do you now need Ron 98 because your map is overfuelling at the higher end, to the point that pinking would be inevitable on RON95 fuel?
Those are some pretty smooth dyno readings on the remap - like stock +35%. No choppy power stepping or early steep drops, smoother than stock on the power curve.
The Polo is set up for RON95, as is the Golf GTI Performance (245). Only the CS, CSS, TCR and R are set up for 97/98/99 from the factory.
Do you now need Ron 98 because your map is overfuelling at the higher end, to the point that pinking would be inevitable on RON95 fuel?
Those are some pretty smooth dyno readings on the remap - like stock +35%. No choppy power stepping or early steep drops, smoother than stock on the power curve.
-
- Bronze Member
- Posts: 109
- Joined: Wed Apr 17, 2019 9:48 pm
- Drives: 2018 AW GTI
- Location: Nederland
Re: Let’s do a dyno run in a GTi
It could have been mapped on 95 also of course. And the difference in power is not that exciting (some 5 to 10 HP). But remapped it also runs smoother on 98. In case of stock I would keep it on 95 I guess
-
- Bronze Member
- Posts: 109
- Joined: Wed Apr 17, 2019 9:48 pm
- Drives: 2018 AW GTI
- Location: Nederland
Re: Let’s do a dyno run in a GTi
The most substantial difference is that it keeps on going much longer. Indicative of this is a much better 100-200 result; 14,5 sec instead of 20+
-
- Bronze Member
- Posts: 109
- Joined: Wed Apr 17, 2019 9:48 pm
- Drives: 2018 AW GTI
- Location: Nederland
Re: Let’s do a dyno run in a GTi
As there is no like-button here, @monkeyhanger, thanks for the positive reaction. The company in question is very experienced in remapping VAG cars with an outstanding reputation. They know what they're doing. They are keen at keeping within safe limits.
-
- Bling Bling Diamond Member
- Posts: 2643
- Joined: Fri Feb 23, 2018 9:58 pm
- Drives: Audi A4 Avant Quattro 40 TDI, Polo GTI+
- Location: Newcastle upon Tyne
Re: Let’s do a dyno run in a GTi
That does look properly done. With VWs not being as reliable in the short term as they should be, I'll be waiting to remap mine or get a good box like a JB4 once the warranty is up (if it'll be a long term keeper). I'll probably only go stock +20% because most UK insurers won't entertain more than that, forcing you to go to specialist brokers which will probably cost an arm and a leg.Rosinfield wrote: ↑Thu Mar 12, 2020 4:40 pm As there is no like-button here, @monkeyhanger, thanks for the positive reaction. The company in question is very experienced in remapping VAG cars with an outstanding reputation. They know what they're doing. They are keen at keeping within safe limits.
-
- Bling Bling Diamond Member
- Posts: 2643
- Joined: Fri Feb 23, 2018 9:58 pm
- Drives: Audi A4 Avant Quattro 40 TDI, Polo GTI+
- Location: Newcastle upon Tyne
Re: Let’s do a dyno run in a GTi
Rosinfield: Forgot to ask, is yours with or without stock GPF? I'm guessing with, as stock torque is around 340Nm. Would really like to see a pre-WLTP GTI+ (without GPF), remapped to +40ps or thereabouts to see what mine would likely be doing.
-
- Bronze Member
- Posts: 109
- Joined: Wed Apr 17, 2019 9:48 pm
- Drives: 2018 AW GTI
- Location: Nederland
Re: Let’s do a dyno run in a GTi
It's without GPF fortunately
