I've managed to get the front dashcam installed on my gf's 65 plate GTi (6C) and now in the process of trying to get the rear one installed. And I'm looking at it and thinking...how the heck's this going to work?!
If the rear cam is installed at the top of the rear windscreen, then it's not too far from the rear edge of the roof trim above the rear windscreen when the boot is closed (approx 8-10cm). However, if the cable is routed to there, then when the boot is opened, it creates quite a sizeable gap between the cam and where the cable would exit from the trim (approx 28-30cm). This would necessitate a big loop of cable that would be needed to bridge the gap when the boot was opened - and this extra cable would be clearly visible when the boot was closed.

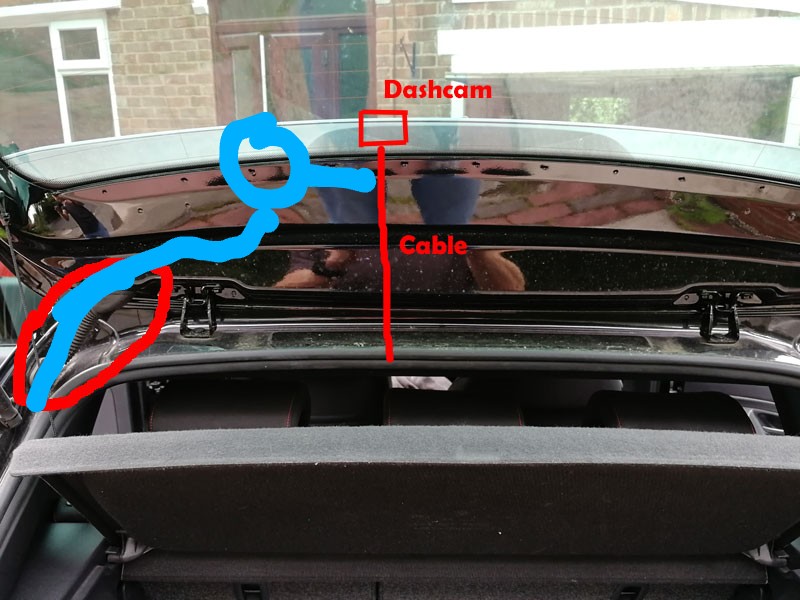

I've tried to show this in pic form in case my ramblings are unclear:
I was wondering if the cable could be threaded into the boot itself somehow (so that the point it exited the bodywork/trim was actually on the boot lid itself), but it looks like it's all metal and even if I managed to get it threaded in, there's no way for it to come out in order to attach it to the cam.
For those who have mounted a rear cam in their Polo, where did you route the cable? Do you have to put up with a big loop of cable while the boot is closed?
Where does the wire go for rear dash cam?
-
- New
- Posts: 12
- Joined: Thu May 31, 2018 10:13 am
- Drives: Black GTi 2016 (6c)
- Location: Manchester
-
- Platinum Member
- Posts: 1132
- Joined: Thu Feb 06, 2020 7:57 am
- Drives: Polo 6R 2010 1.6 TDI
- Location: budget build
Re: Where does the wire go for rear dash cam?
On the left side you have a rubber booth, forget one clip and fish it thru there
-
- New
- Posts: 12
- Joined: Thu May 31, 2018 10:13 am
- Drives: Black GTi 2016 (6c)
- Location: Manchester
Re: Where does the wire go for rear dash cam?
D'you mean the rubber tubing here:
If that's what you mean, I can see where the cable would go into it...but where could it come out? Presumably that tube carries the wires for the heated rear windscreen (which attach to it internally)? I can't see where the wire would come out in order to attach to the cam? Or would you have to bodge a hole in the end of the tube that's attached to the boot lid and then run the wire along the metal of the boot to the camera and hold it in place with sticky cable ties?
(Sorry if I'm being dense...it wouldn't be the first time! )
If that's what you mean, I can see where the cable would go into it...but where could it come out? Presumably that tube carries the wires for the heated rear windscreen (which attach to it internally)? I can't see where the wire would come out in order to attach to the cam? Or would you have to bodge a hole in the end of the tube that's attached to the boot lid and then run the wire along the metal of the boot to the camera and hold it in place with sticky cable ties?
(Sorry if I'm being dense...it wouldn't be the first time! )
-
- Platinum Member
- Posts: 1132
- Joined: Thu Feb 06, 2020 7:57 am
- Drives: Polo 6R 2010 1.6 TDI
- Location: budget build
Re: Where does the wire go for rear dash cam?
It carries wires for third brake light and i think a tube for windshield washer fluid.
I wouldnt damage the boot cause it might cause water leaking into the car. I would fish the wire thru the round metal hole that holds the plastic cover trim, then thru the rubber boot inside the cabin.
Just forget one of the clips that hold the plastic trim. It will be okay. And just take power from the cable of the reverse light, and ground it.
I wouldnt damage the boot cause it might cause water leaking into the car. I would fish the wire thru the round metal hole that holds the plastic cover trim, then thru the rubber boot inside the cabin.
Just forget one of the clips that hold the plastic trim. It will be okay. And just take power from the cable of the reverse light, and ground it.
-
- New
- Posts: 12
- Joined: Thu May 31, 2018 10:13 am
- Drives: Black GTi 2016 (6c)
- Location: Manchester
Re: Where does the wire go for rear dash cam?
The trouble is, there is no plastic trim on the boot itself...it's all solid metal. So what look like trim clips, or screw covers, are actually just dimples in the metal:
So short of drilling holes in the metal (which ain't happening!), I'm not quite sure where to go...?
So short of drilling holes in the metal (which ain't happening!), I'm not quite sure where to go...?
-
- Platinum Member
- Posts: 1132
- Joined: Thu Feb 06, 2020 7:57 am
- Drives: Polo 6R 2010 1.6 TDI
- Location: budget build
Re: Where does the wire go for rear dash cam?
Im sorry, it was mine mistake. Remove the trim below the glass, you know the plastic one. Then run the wire from there up, and folow the side of the glass and Bob is ur uncle. I think that wpuld look stealth enough.
