1. MKE Fatigue Detection

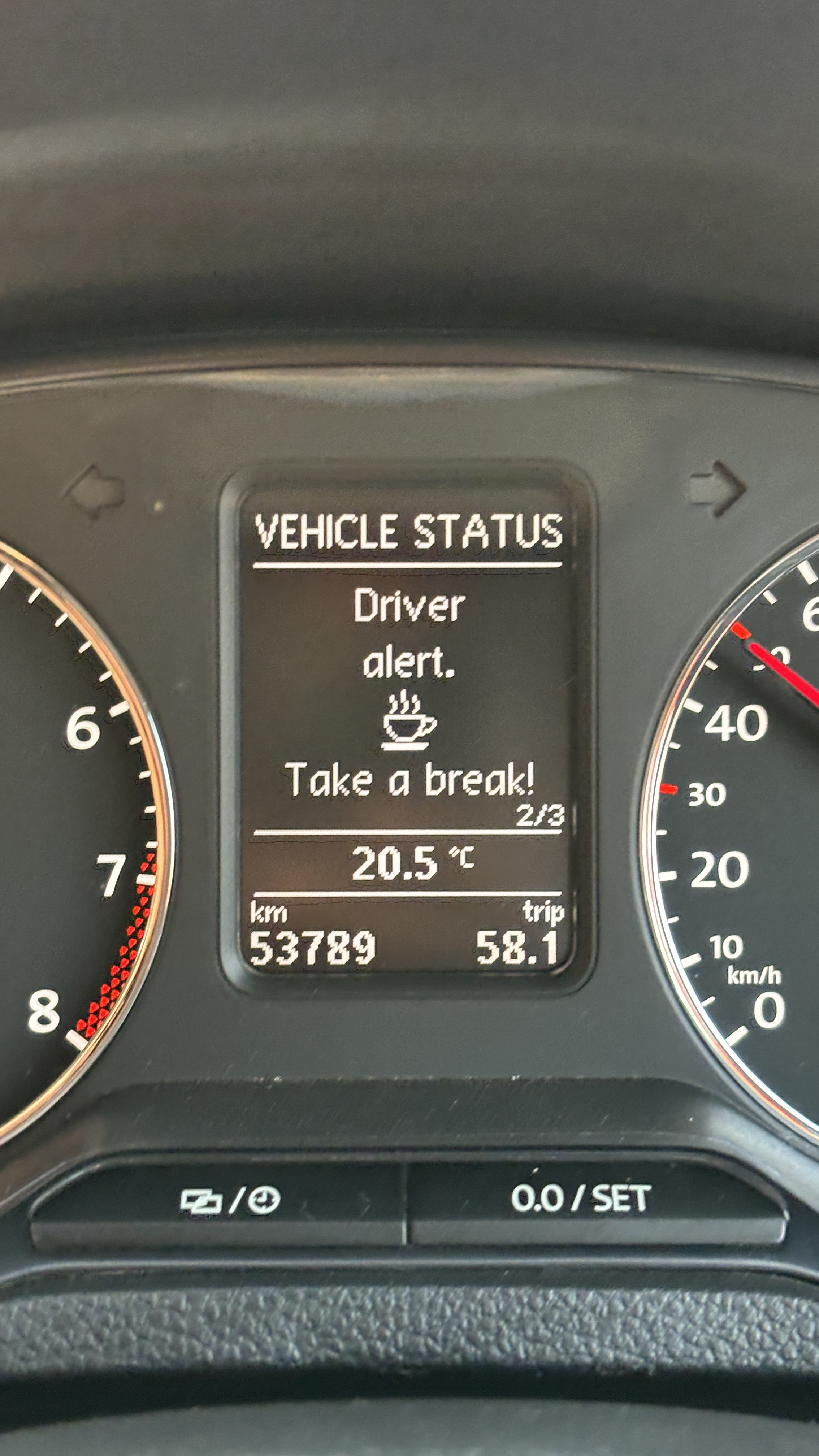

With ciclo's method I was able to activate this feature on my car with the help ODIS E. I must stay this is an useful feature while taking road trips.


2. Anti theft alarm system on Polo 6R
This anti theft alarm system is present on all polo 6R across the world. It is even present in Polo sold in India before 2014. Post 2014 Volkswagen has removed this feature from Polo 6R(Sold in INDIA) for cost cutting reasons.
Anyways I recently was able to source the necessary parts from the used market.

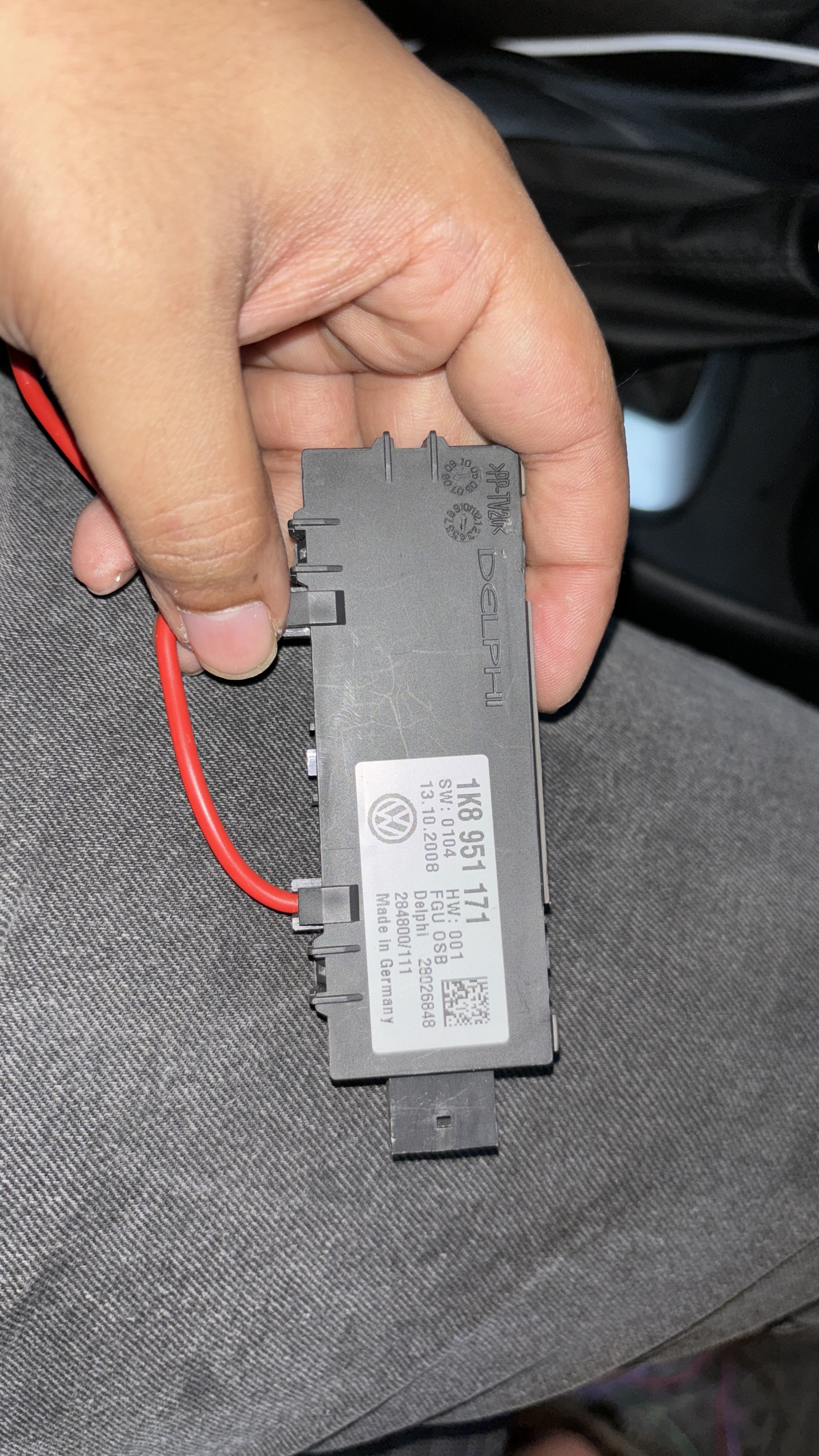

Inclination and Interior Monitoring Sensor. Part No: 1K8 951 171


Part No: 6Q0 962 109B

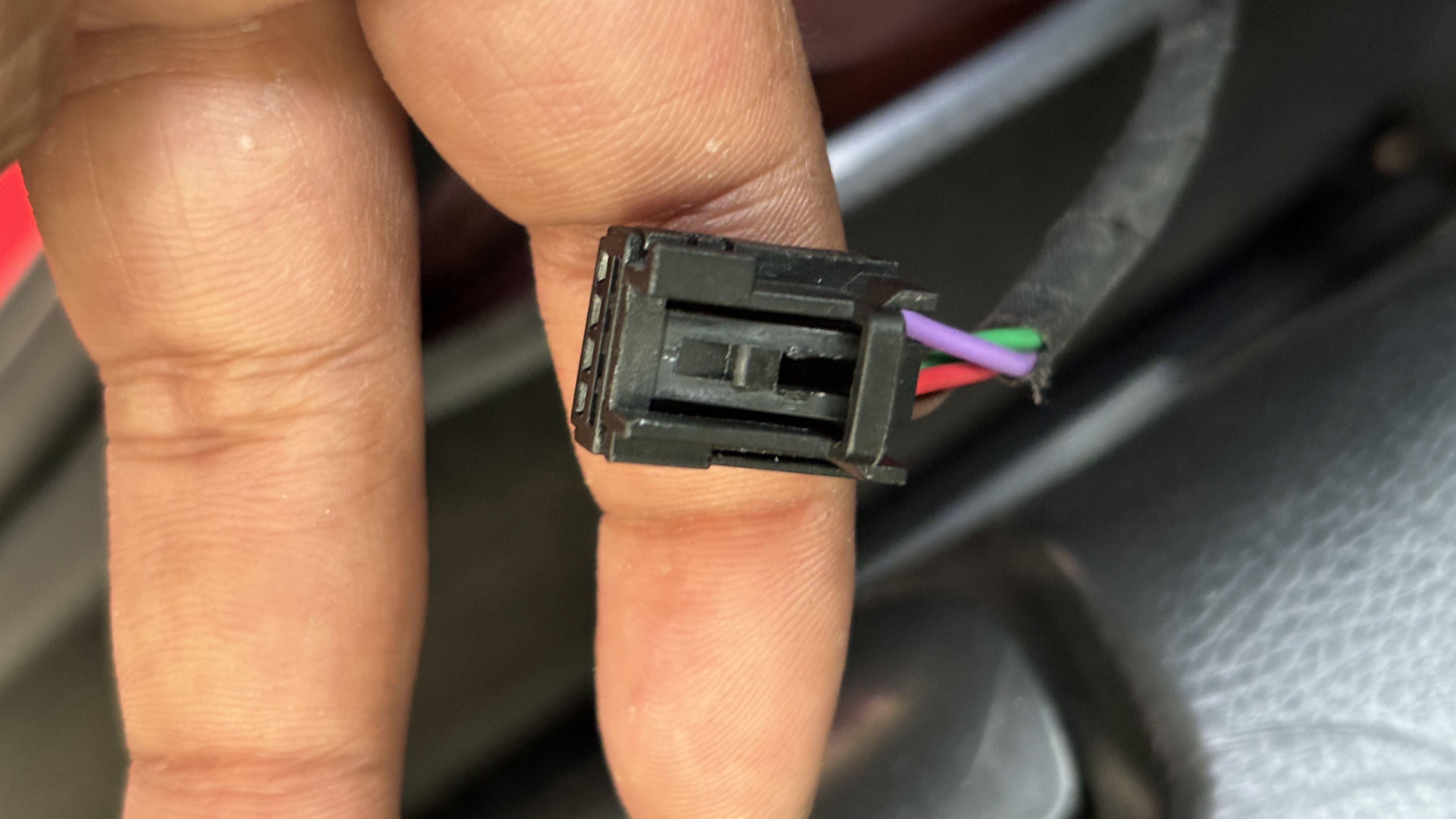

Connector for the sensor: 8E0 971 832


Connector for the switch:8k0 973 754

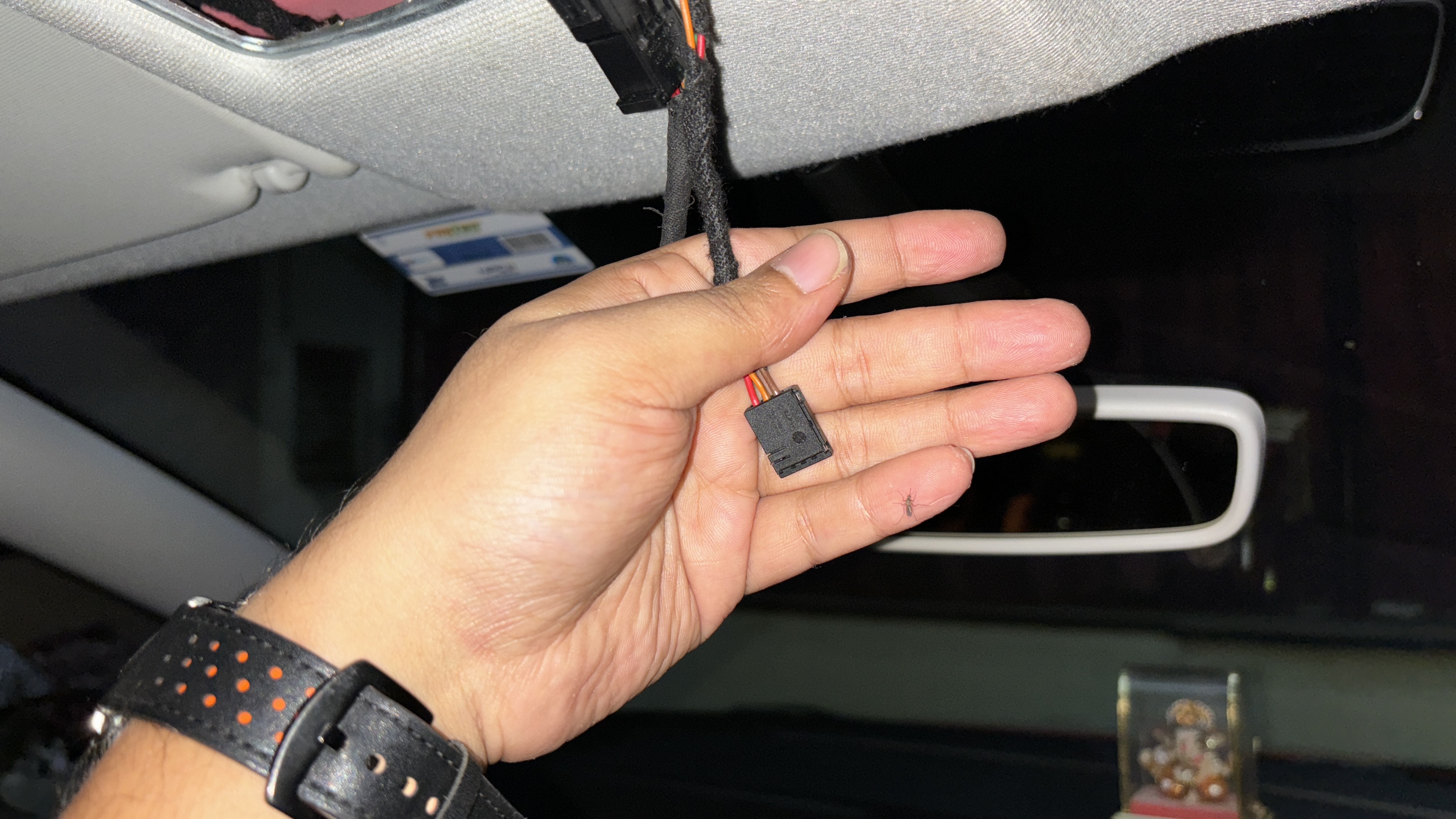

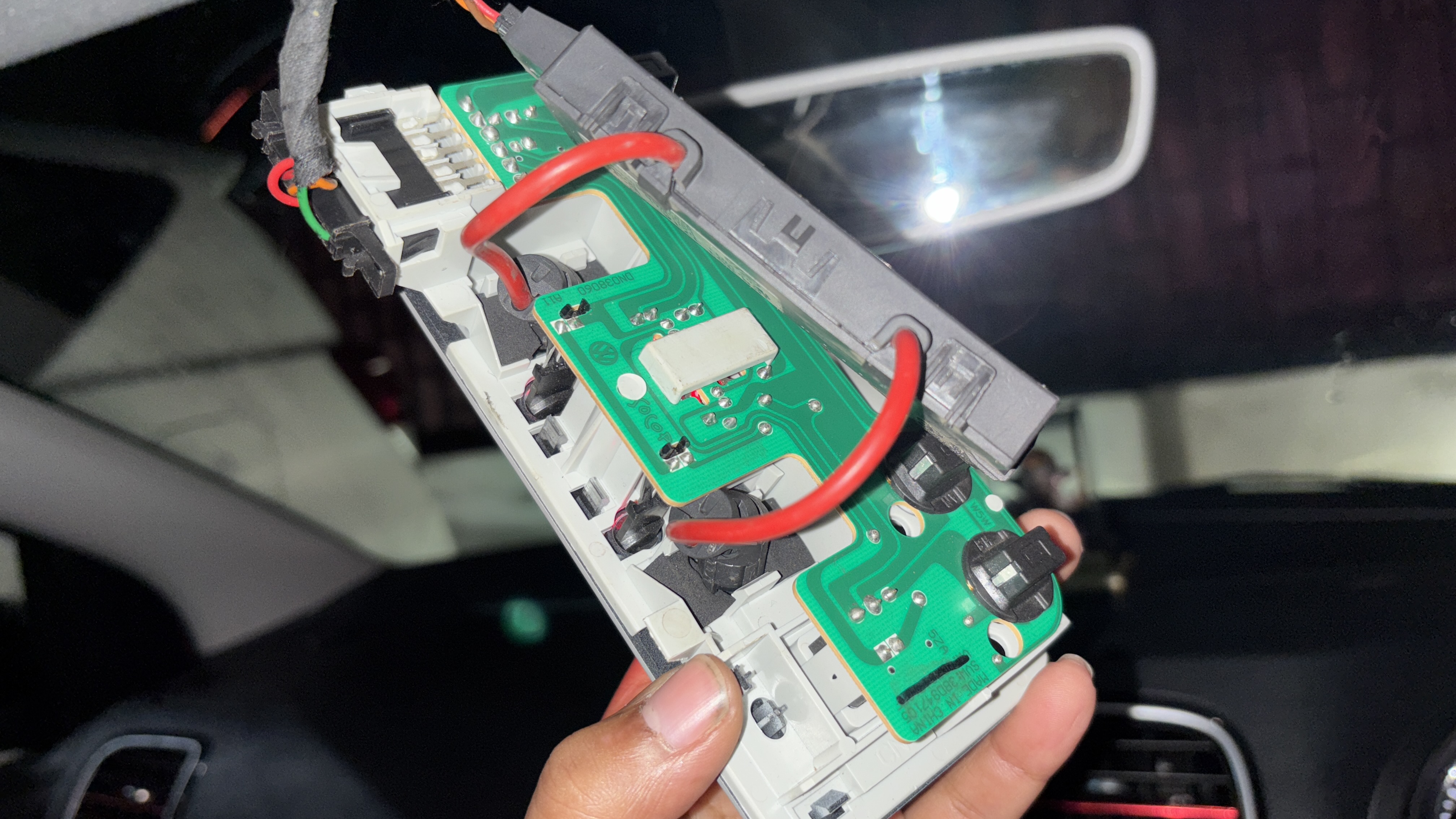

Since Polo sold in India does not have the bracket into the headliner, we have to insert the sensors in Cabin Light in the place where Bluetooth Mic are suppose to be installed.

superetka.com_elsa__marke=V&modelljahr_numerisch=2013&vtyp=6R1&mkb=CBZB&gkb=MGV&dir=slp&dokument_id=36229_Page_3.jpg (186.63 KiB) Viewed 3269 times

superetka.com_elsa__marke=V&modelljahr_numerisch=2013&vtyp=6R1&mkb=CBZB&gkb=MGV&dir=slp&dokument_id=36229_Page_2.jpg (207.21 KiB) Viewed 3269 times

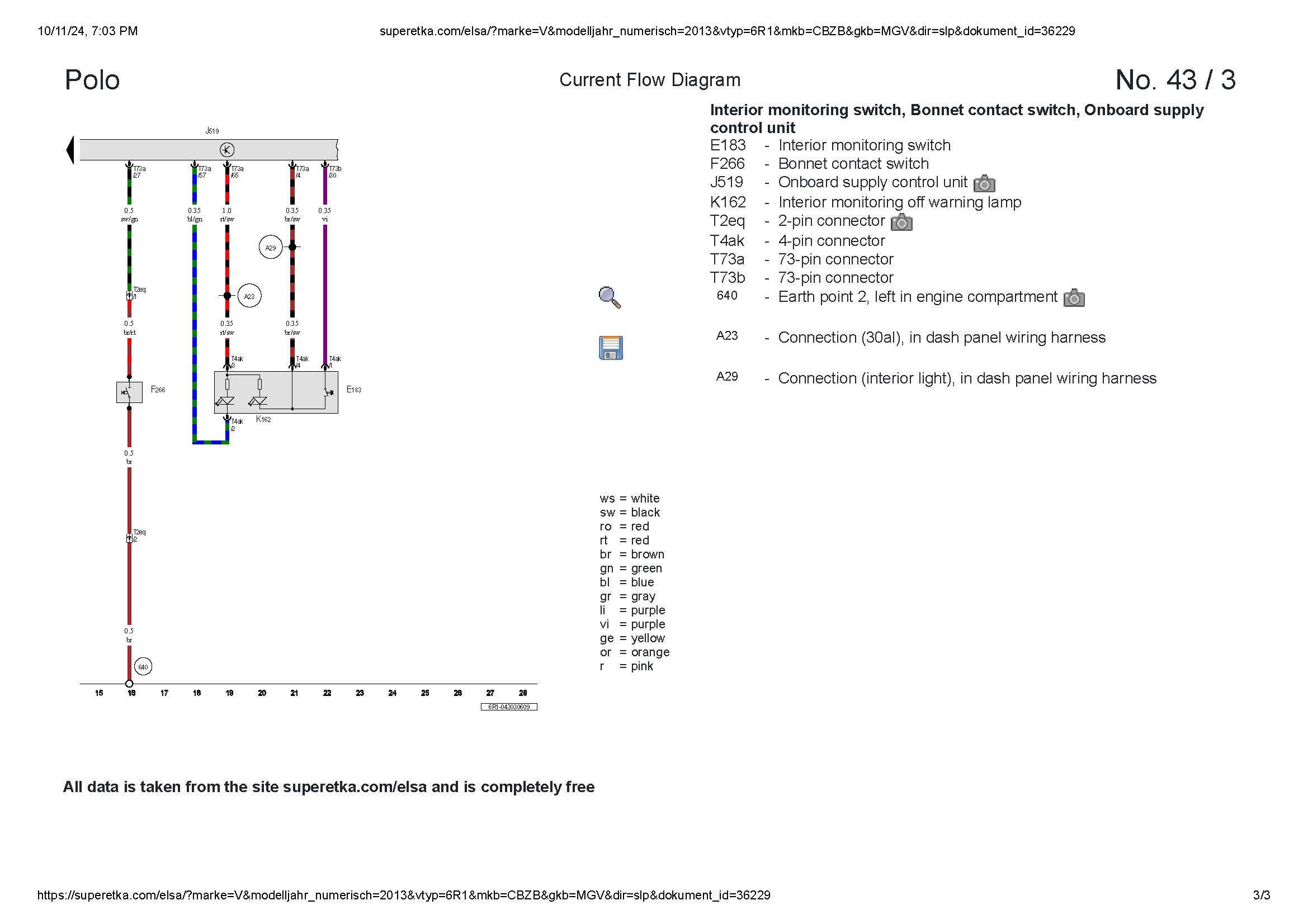

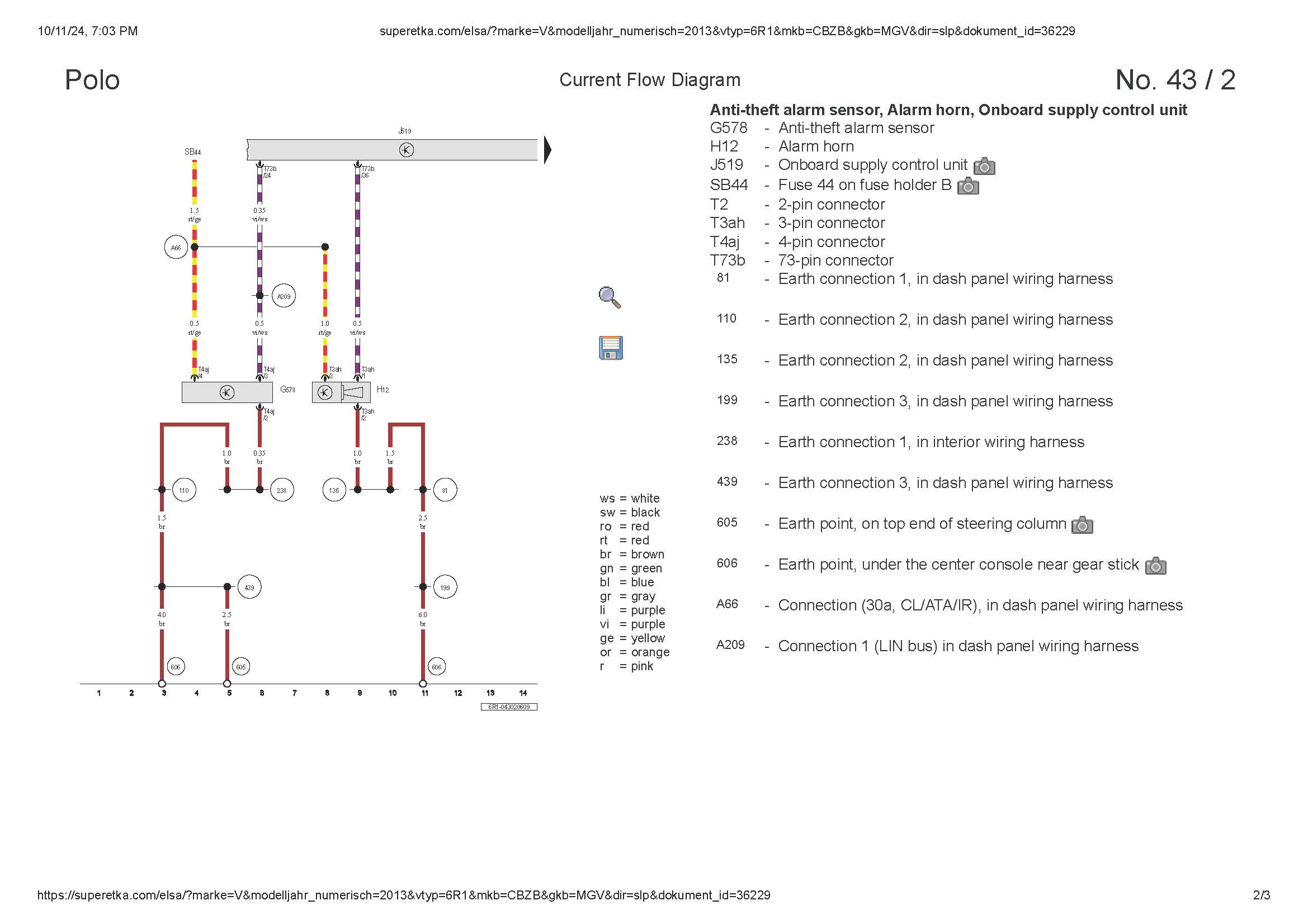

Wiring Diagrams for the above Retrofit


Coding and Adaptations:
Central Electronics 09

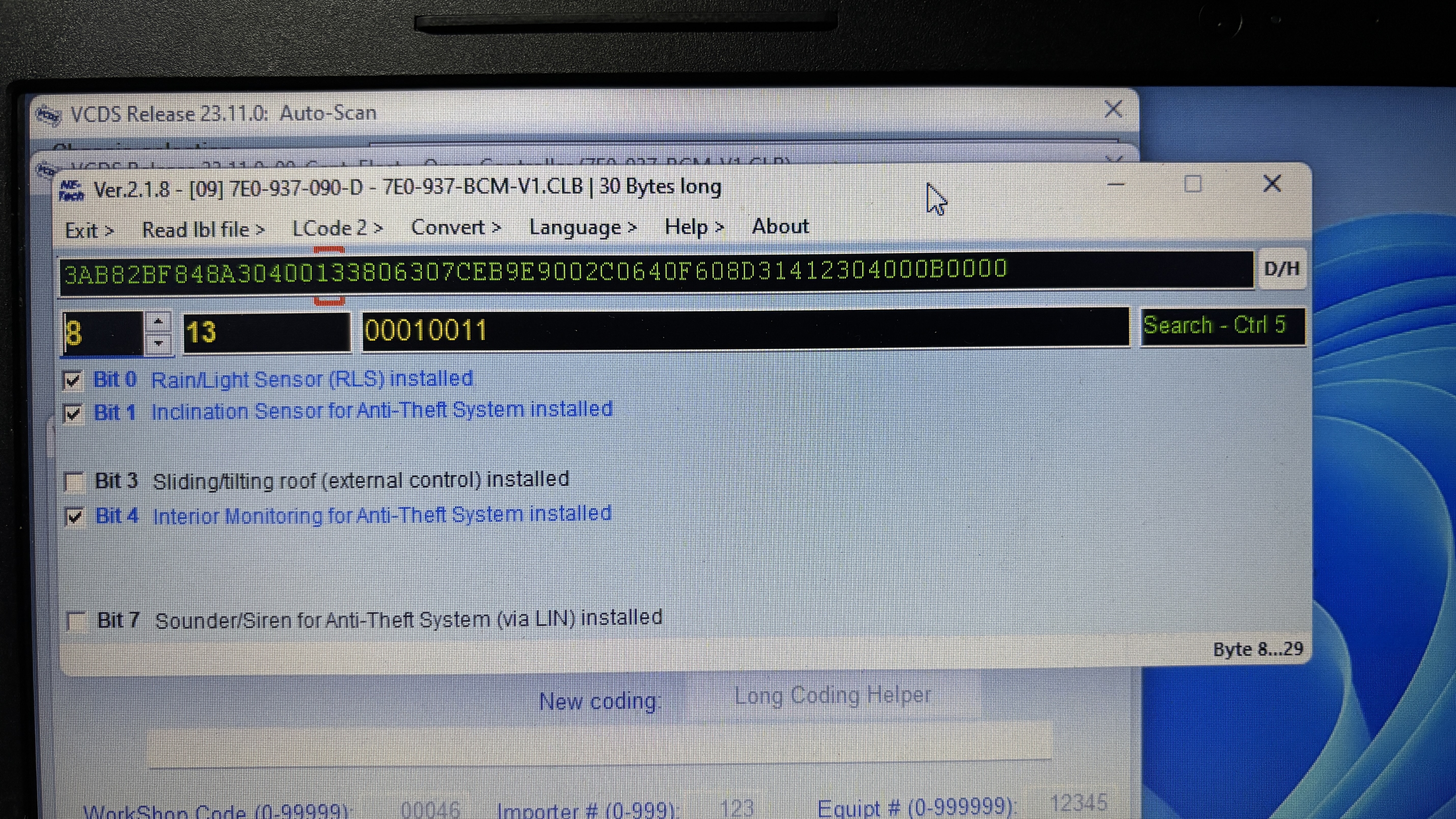

Long Coding
Byte 8 - Bit 1 - Inclination Sensor for Anti theft System Installed
Bit 4 - Interior Monitoring for Anti theft system installed



Yet to install the Anti theft alarm on my car. But this sensor works without the anti theft alarm too. It would activate the alarm in two situations. One if there is a movement inside the car after you have locked the car and the second if someone is trying to lift your car on jack. Obviously there is a way to disable it with the help of the switch.

[adityagttsi]

Hello,

1. 8K OPS Auto Detect

Finally decided to go with this retrofit considering the traffic conditions in Mumbai(place where I live). Simple installation but the only problem I faced was flashing the modules to proper SW along with a proper dataset, as I don't have access to VCP. Only VCDS and ODIS are present with me.

Parts/Tools required:
1. 1KD 919 472A/5Q0 919 294L.
2. PDC Button.
3. Front Sensors with seals and brackets.
4. OEM BEA000001 Tool for Cutting Out the Holes for PDC
5. VCDS/ODIS
6. Wiring Harness
7. Front Buzzer

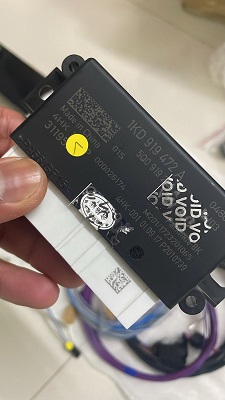

1KD 919 472A

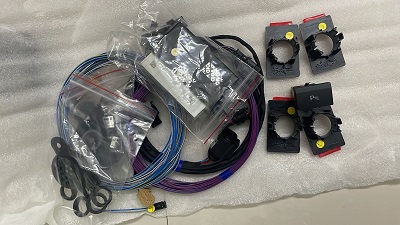

Wiring harness with Parking sensors, seals, brackets and PDC Button

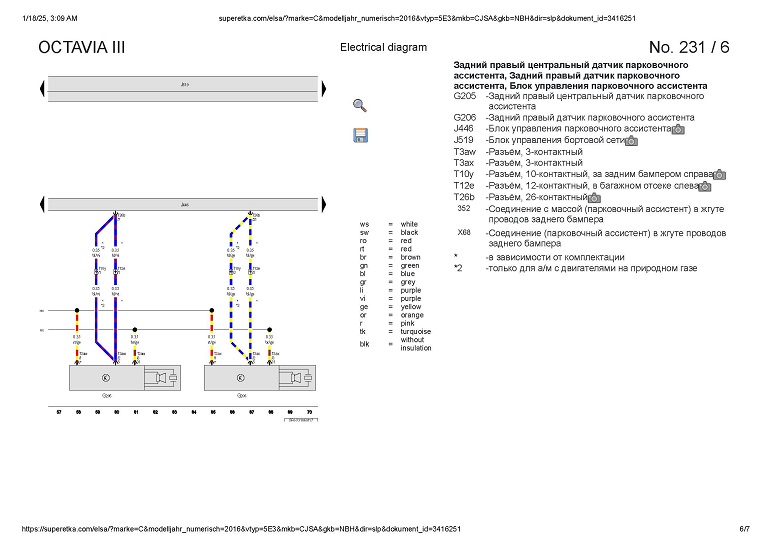

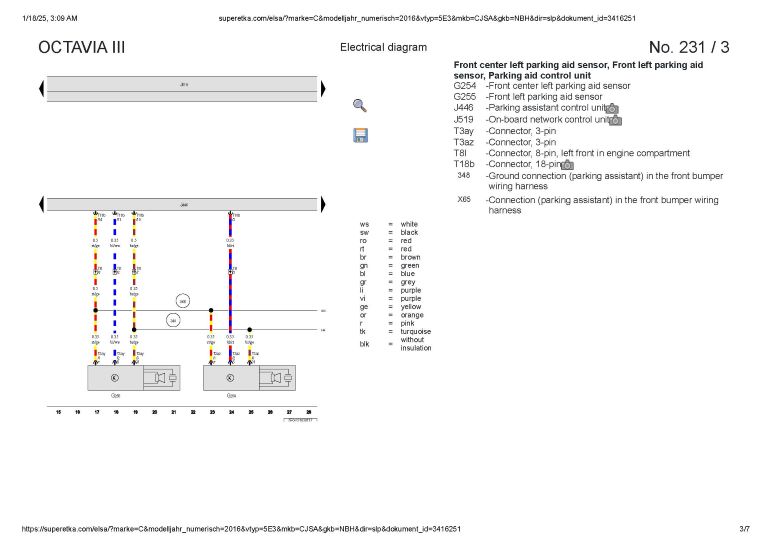

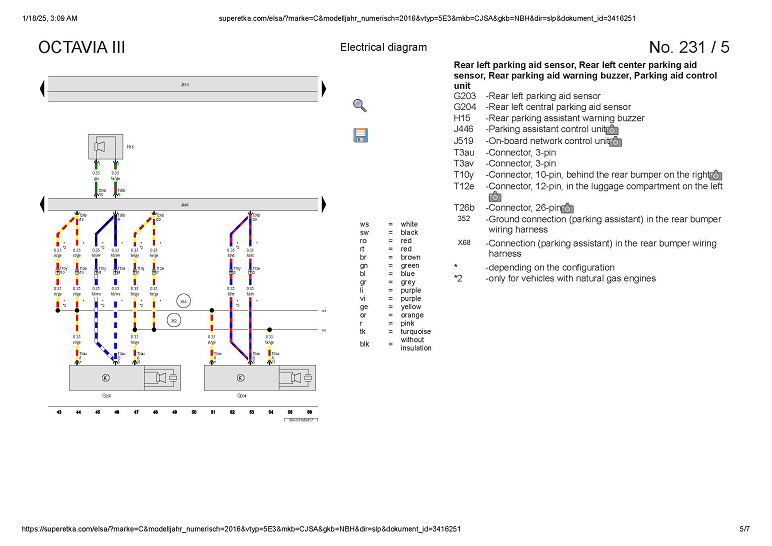

Wiring Diagram

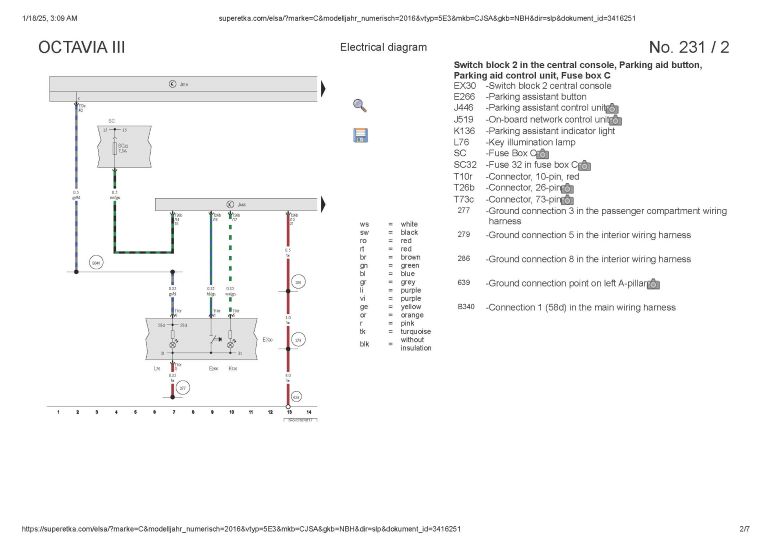

8K Ops Auto Detect for Polo 6R_Page_2.jpg (43.74 KiB) Viewed 2864 times

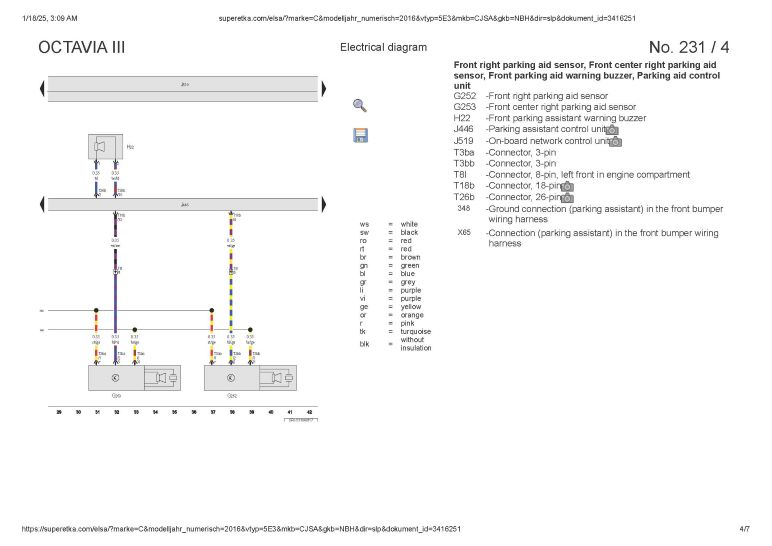

8K Ops Auto Detect for Polo 6R_Page_3.jpg (43.5 KiB) Viewed 2864 times

8K Ops Auto Detect for Polo 6R_Page_4.jpg (42.68 KiB) Viewed 2864 times

8K Ops Auto Detect for Polo 6R_Page_5.jpg (91.17 KiB) Viewed 2864 times

8K Ops Auto Detect for Polo 6R_Page_6.jpg (88.04 KiB) Viewed 2864 times

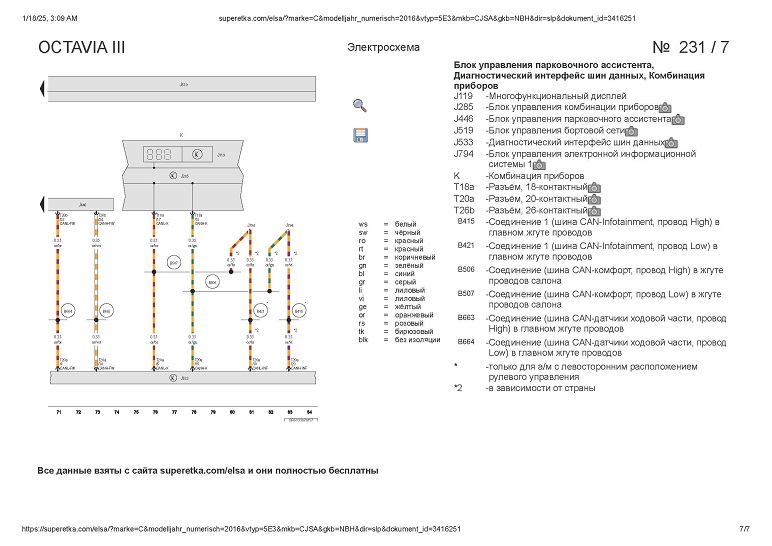

8K Ops Auto Detect for Polo 6R_Page_7.jpg (111.44 KiB) Viewed 2864 times

[adityagttsi]

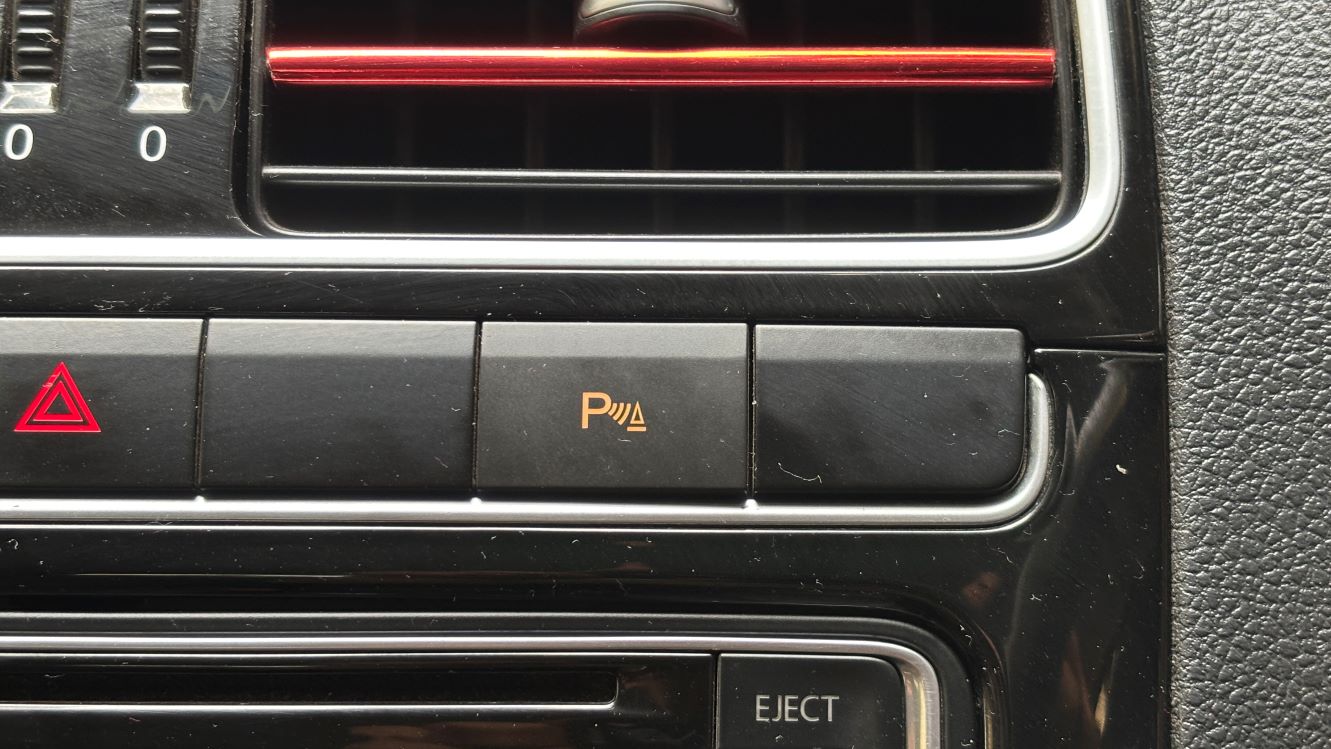

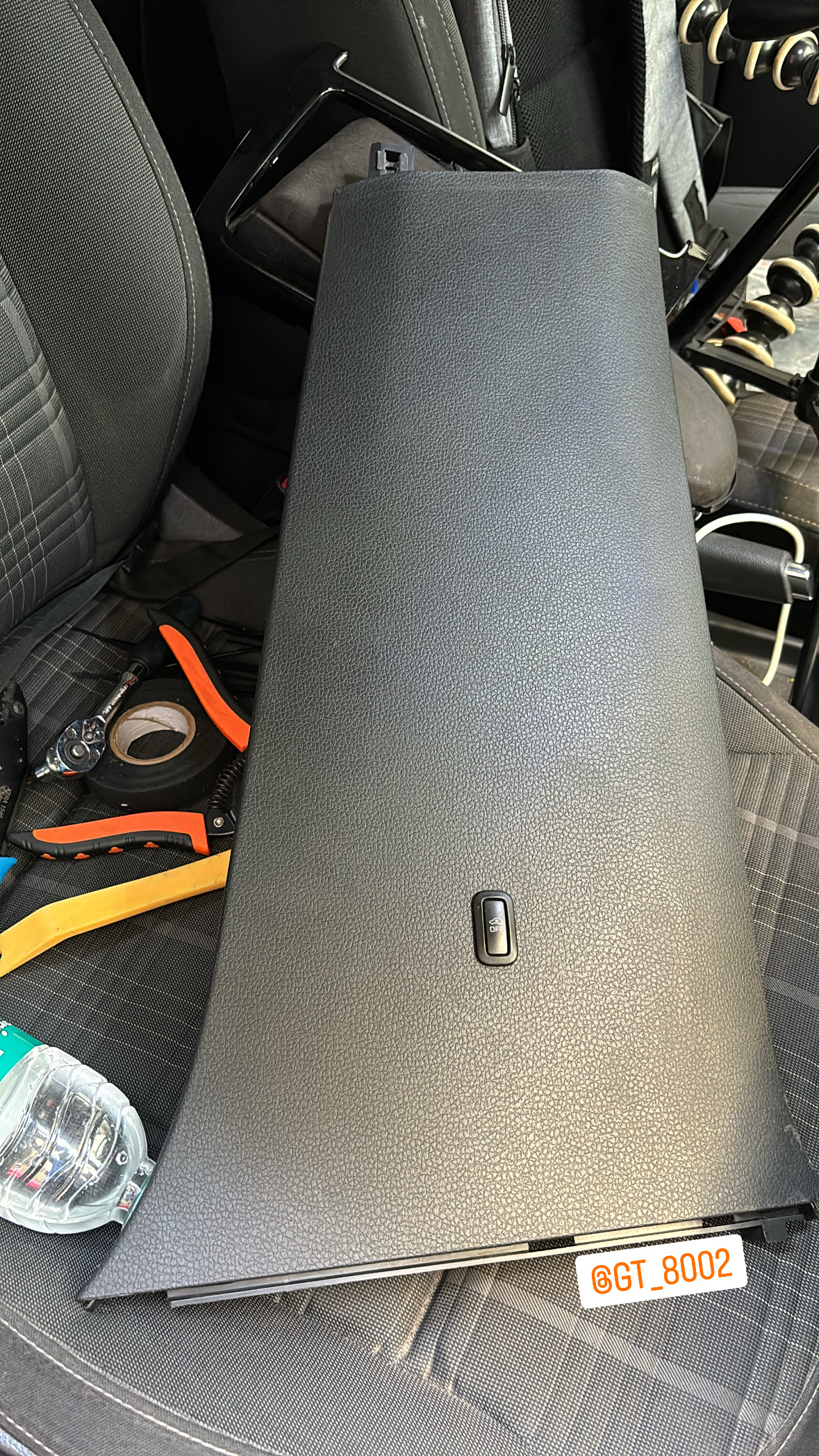

PDC Button


To install this remove the head unit, hvac, and unscrew 6 screws, pull the frame out and than you will be able to remove the center ac trim

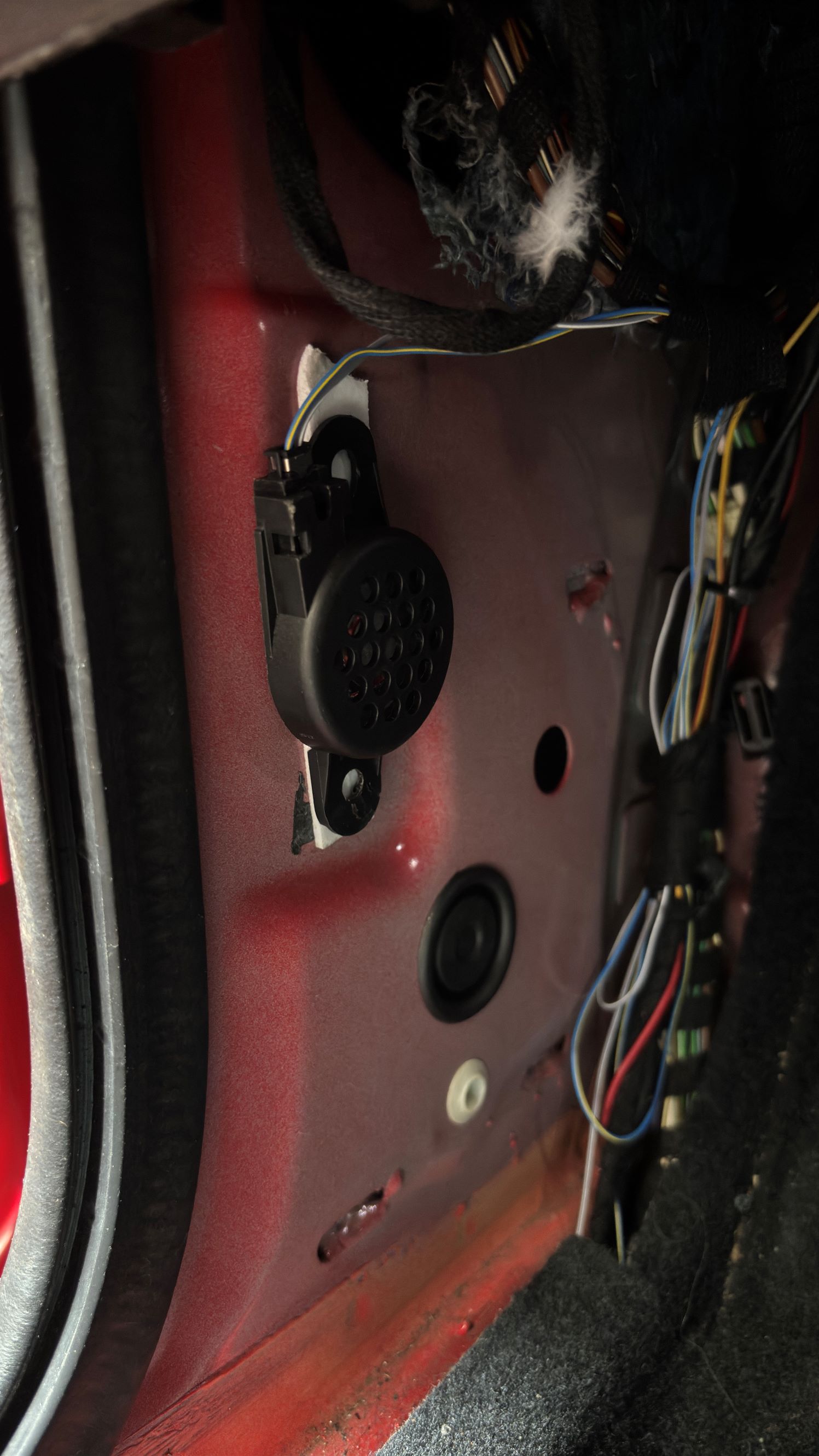

Front Buzzer Placement


Front Parking Sensors


When you connect everything and try to make it work, it won't work because the software is not suitable. In this case, flashing is needed.

Code: Select all

For 1KD 919 472A
Open ODIS E
Select Project VW37X
Flashing
Do it

For 5Q0 919 294L
Open ODIS E
Select Project AU37X
Flashing
Do it

For Parameters(Same for both modules)
Open ODIS E
Select Project VW46X
Dataset Writing
Do it

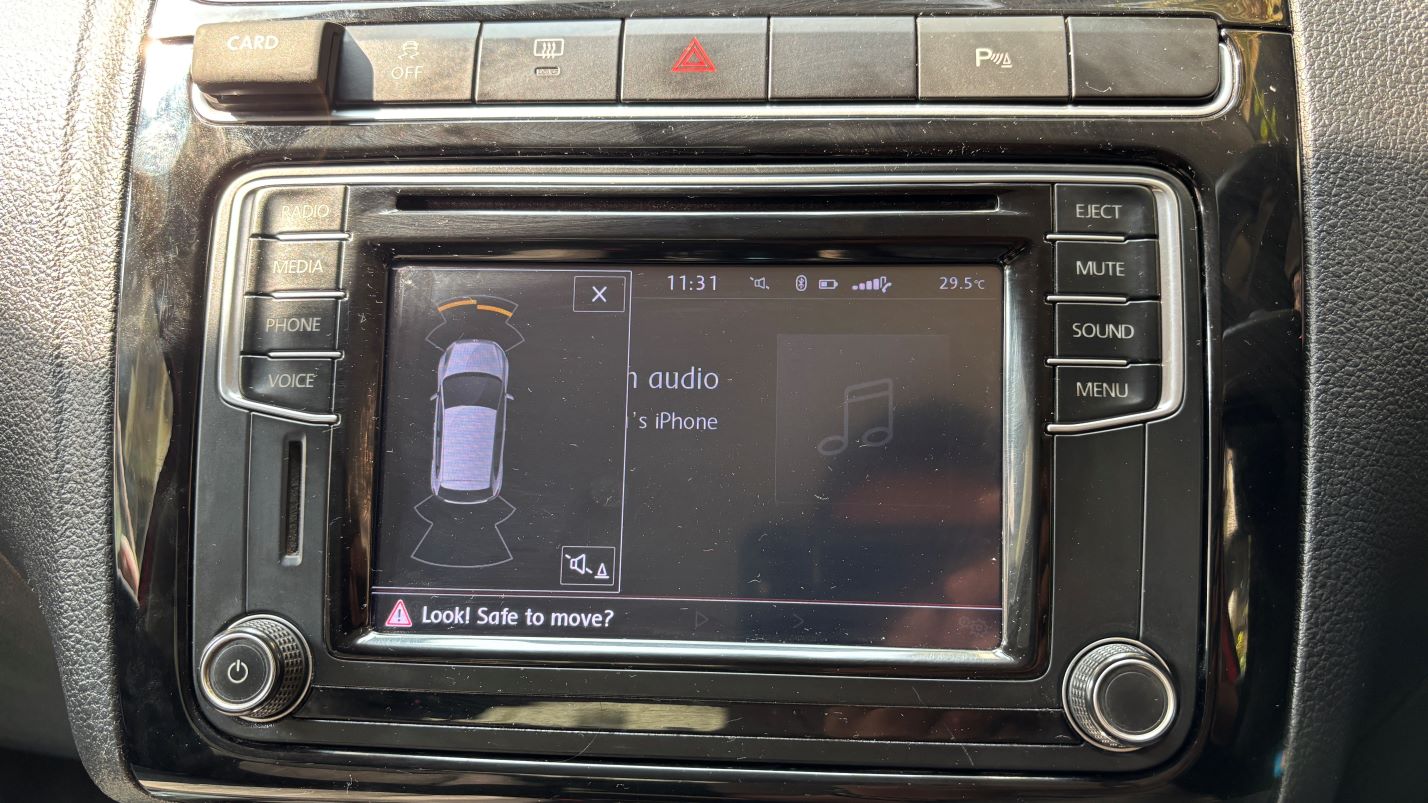

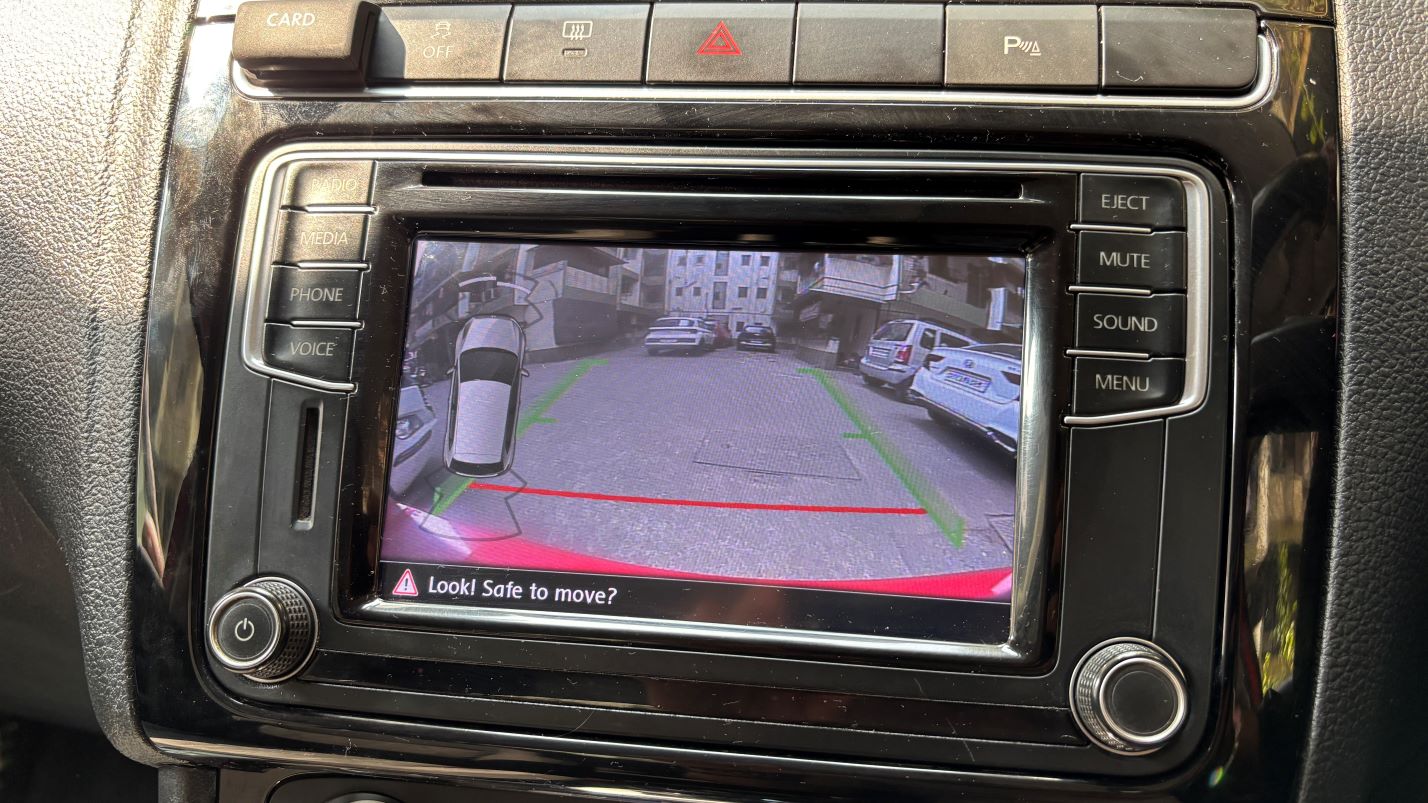

End Results:



Note: Auto Detect function works under the speeds of 15kmph

[ciclo]

Hi Aditya, are you optimizing the resources used for this installation? Is the buzzer stuck on with double-sided tape? I think you shouldn't give new ideas to the CEO or VW engineers... lately it seems that this pseudo job called CEO is already quite risky... soon we will be charged 60,000 euros/pounds/dollars for a roll of double-sided tape + four wheels, 'chiki-chiki' plastics, and a steering wheel.

In any case, having 8K is a great improvement in parking assistance, you will be glad you have it. Enjoy it!
