Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Negligence, is the right word for all the recklessness and irresponsibility committed in this electrical installation (like going back to the 20th century or worse).
No matter how much time I have wasted here due to these negligence, I did it all altruistically and with my best intentions, I am sure that many people will find this installation guide useful. I expected everything to end with a happy ending and it turned out to be a real disaster.
The latest images you post are creepy.
KamilPL, everything has easy solution, read the whole thread again, but this time I recommend that you pay close attention to everything you do, I will not answer any question that has already been answered or can be deduced from the diagrams.
Recommendations:
- Do not use the damn "Smart-phone" to view and manage the content of this thread. "Smart" phone is intimately linked to "Stupid" people, impossible to separate one from the other. Please, use a PC or laptop to manage the information for this electrical installation.
- Block the advertising that is generated in the text.
- Don't use that 'Electrician' ever again in your life.
Good Luck, it is in your hands, dexterity, intelligence, and in the use of suitable materials to manipulate automotive wires.
No matter how much time I have wasted here due to these negligence, I did it all altruistically and with my best intentions, I am sure that many people will find this installation guide useful. I expected everything to end with a happy ending and it turned out to be a real disaster.
The latest images you post are creepy.
KamilPL, everything has easy solution, read the whole thread again, but this time I recommend that you pay close attention to everything you do, I will not answer any question that has already been answered or can be deduced from the diagrams.
Recommendations:
- Do not use the damn "Smart-phone" to view and manage the content of this thread. "Smart" phone is intimately linked to "Stupid" people, impossible to separate one from the other. Please, use a PC or laptop to manage the information for this electrical installation.
- Block the advertising that is generated in the text.
- Don't use that 'Electrician' ever again in your life.
Good Luck, it is in your hands, dexterity, intelligence, and in the use of suitable materials to manipulate automotive wires.
-
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
I wasn't sure, I preferred to ask and do the right thing.
I know that we lost a lot of time looking for electrician errors ....
4. T17 / 5 <--> T17 / 16 Bridge ready
3. Have the cable in the light switch connect to it (T17 / 13) (bridge) or remove and insert a new one?
1.It is possible that the original harness does not have this cable to connect to T73b / 7 because I cannot locate it, Ori bridge T17 / 16 <--> T17 / 5 link to the photo from 08/15/21 viewtopic.php?p=584960#p584960
I'm sorry. Cyclo, I'm a peasant from the countryside who doesn't know anything about car electrics and it's black magic for me, but with your help I can manage it, I use a laptop and google translator to communicate with you: P
I know that we lost a lot of time looking for electrician errors ....
4. T17 / 5 <--> T17 / 16 Bridge ready
3. Have the cable in the light switch connect to it (T17 / 13) (bridge) or remove and insert a new one?
1.It is possible that the original harness does not have this cable to connect to T73b / 7 because I cannot locate it, Ori bridge T17 / 16 <--> T17 / 5 link to the photo from 08/15/21 viewtopic.php?p=584960#p584960
I'm sorry. Cyclo, I'm a peasant from the countryside who doesn't know anything about car electrics and it's black magic for me, but with your help I can manage it, I use a laptop and google translator to communicate with you: P
- Attachments
-

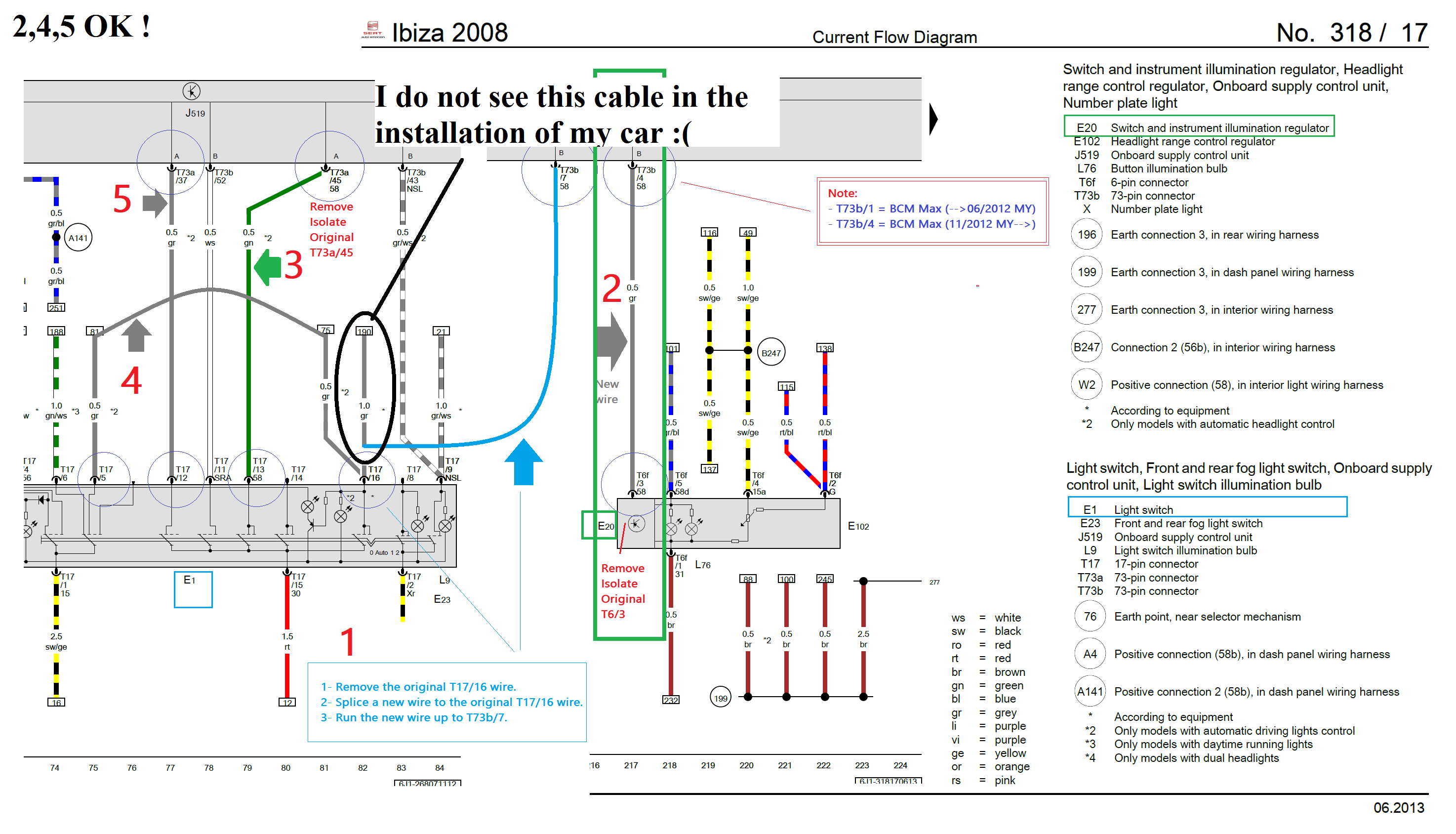

- I do not see this cable in the installation of my car :(
- HzHGkoI.png (469.2 KiB) Viewed 1441 times
-

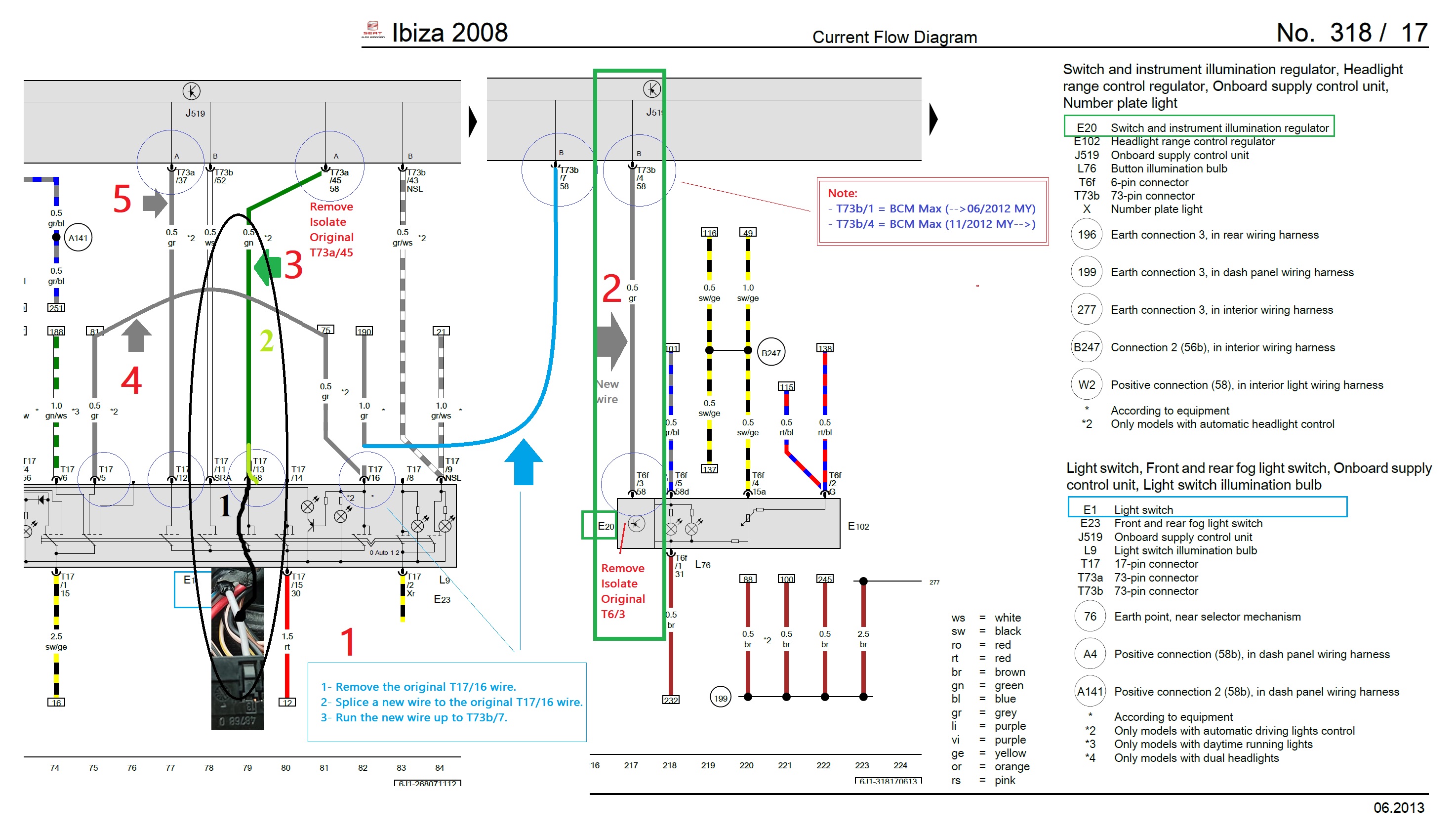

- 2.Remove the original T17 / 13 cable and insert the new T73a / 45 <--> T17 / 13 or 1.T73a / 45(new) bridge <--> T17 / 13 (original)
- 99999.jpg (893.51 KiB) Viewed 1443 times
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
In this case I will help you in everything you need.
I make you a proposal, what do you think if we do all this wire by wire? that is, choose a wire and until it is correctly installed, we do not go to the next one.
Is this good for you?
No matter how long it takes us, I am aware of your hard work as a peasant (priority number one), the little time you have available, the weather in Poland and other circumstances.
If you agree, choose one of the wires from the installation guide and I will guide you in detail.
-
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
I took time off on demand and I did not go to work today I hope we will be able to put it together today and check how it works
Since 5,4,2 are ready (OK) let's do -> T73b / 7
The bridge T17/16 -> T17/5
What cabling should I attach the cable to be in the BCM T73b/7, since it is not in the original harness?
viewtopic.php?p=584960#p584960
Since 5,4,2 are ready (OK) let's do -> T73b / 7
The bridge T17/16 -> T17/5
What cabling should I attach the cable to be in the BCM T73b/7, since it is not in the original harness?
viewtopic.php?p=584960#p584960
- Attachments
-

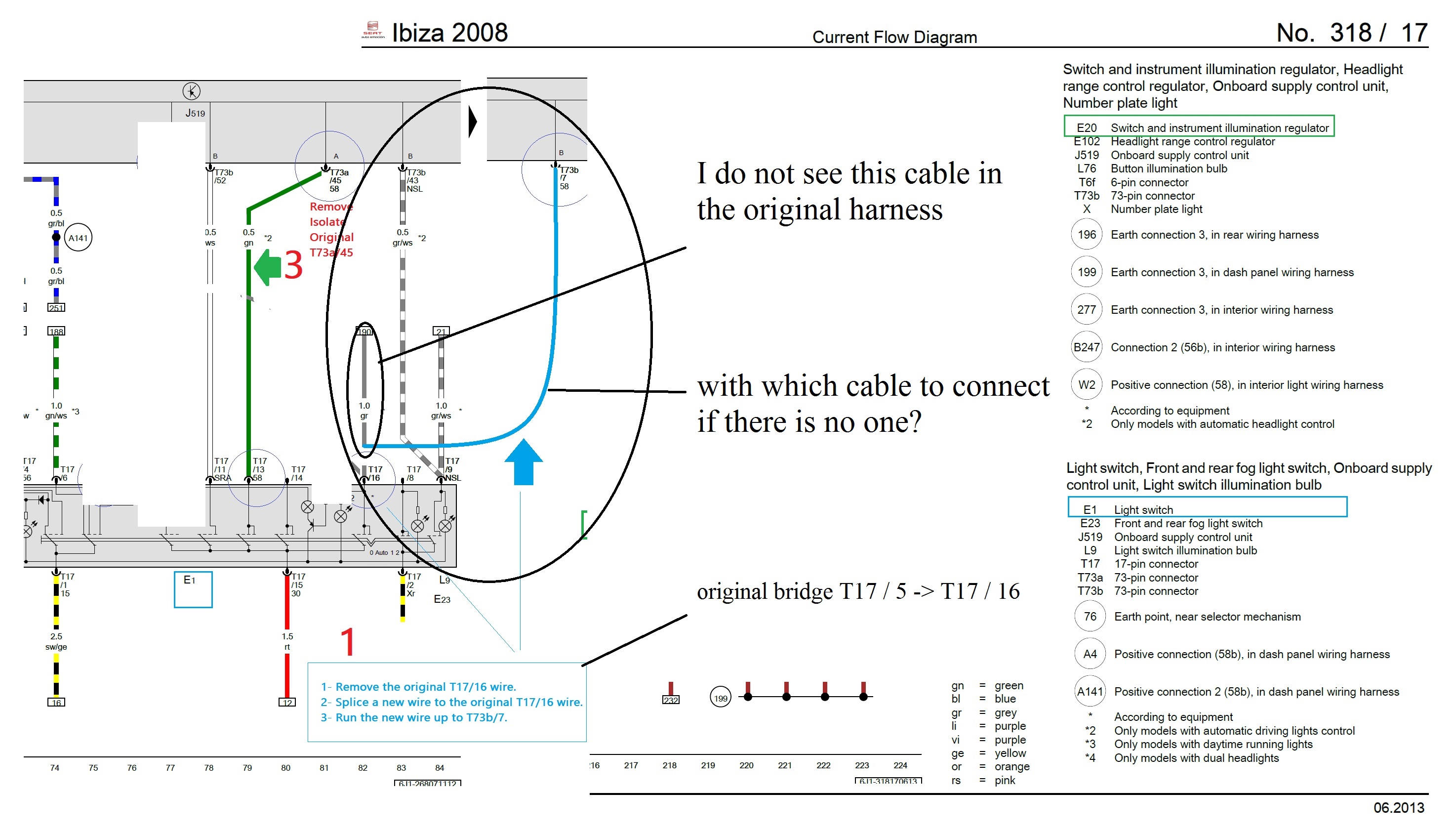

- with which cable to connect if there is no one?
- wqw.jpg (771.67 KiB) Viewed 1429 times
-

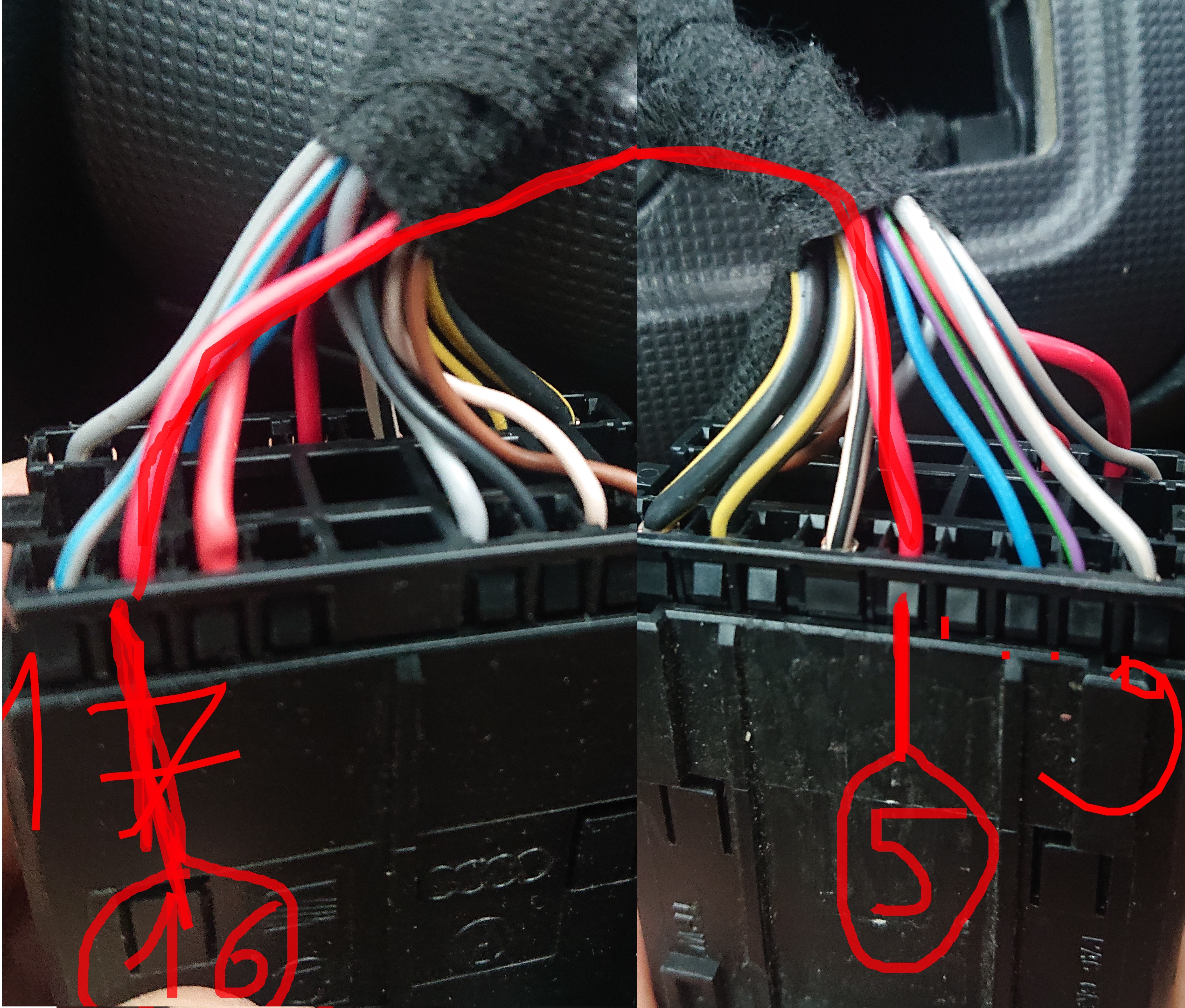

- Oryginal bridge T17/5-->T17/16
- Bez tytułu.jpg (4.49 MiB) Viewed 1429 times
-
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
I see another wiring error original purple / green T17 / 8 wire take it out and make a bridge to T17 / 9 right?
I will wait until it gets a little warmer, due to the fact that I do not have a heated garage, I do everything in front of the block, check if there is a cable in the bcm T73b / 43, if there is no cable T73b / 43 to T17 / 9, the bridge with the original cable and the T17 / 8 I will remove and will insulate
after solving these 2 problems, we will move on to the next, hopefully, last wire (problem)
I will wait until it gets a little warmer, due to the fact that I do not have a heated garage, I do everything in front of the block, check if there is a cable in the bcm T73b / 43, if there is no cable T73b / 43 to T17 / 9, the bridge with the original cable and the T17 / 8 I will remove and will insulate
after solving these 2 problems, we will move on to the next, hopefully, last wire (problem)
- Attachments
-

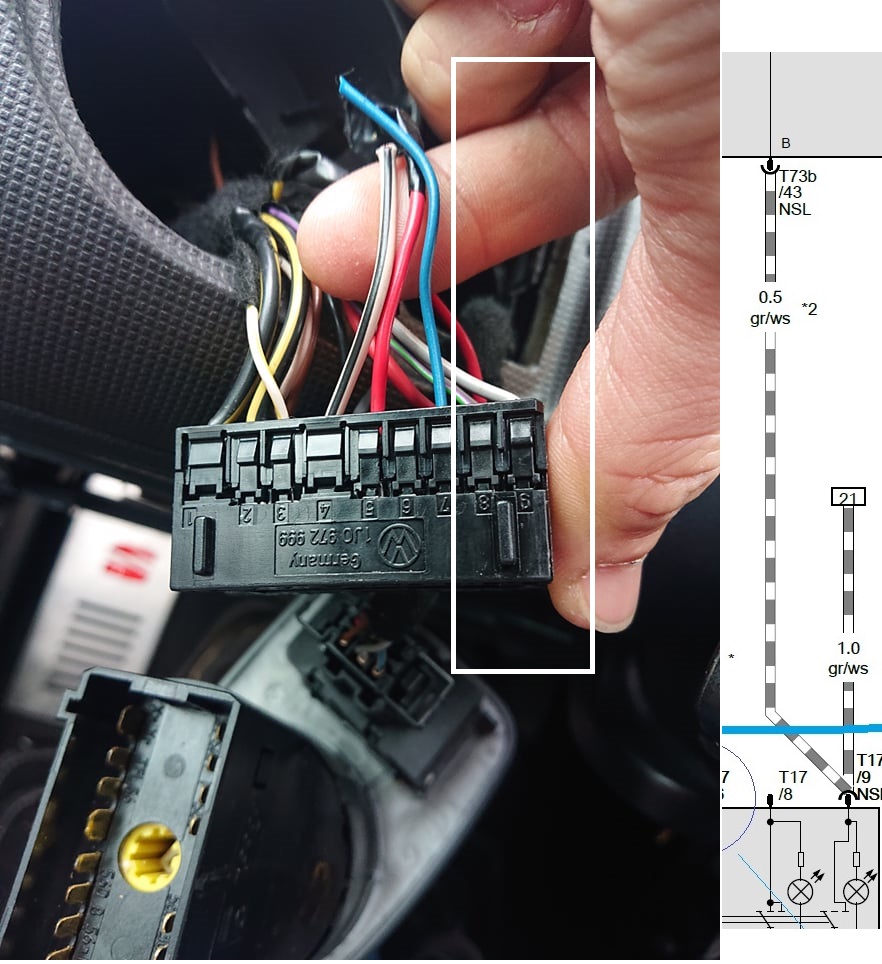

- 257602806_997489914440278_8126509699256973407_n(1).jpg (189.96 KiB) Viewed 1424 times
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Well, I have all the erWin diagrams for the Ibiza 6J manufactured in Spain-Barcelona (your Ibiza), and in none of them is it contemplated that the wire from T17/16 to T17/5 is RED color.KamilPL wrote: ↑Thu Nov 18, 2021 6:04 am I took time off on demand and I did not go to work today I hope we will be able to put it together today and check how it works
Since 5,4,2 are ready (OK) let's do -> T73b / 7
The bridge T17/16 -> T17/5
What cabling should I attach the cable to be in the BCM T73b/7, since it is not in the original harness?
viewtopic.php?p=584960#p584960
Taking into account that the diagrams may be wrong because we already have a lot of experience with these diagrams,
Are you completely sure that the RED wire from T17/16 to T17/5 in your Ibiza is an ORIGINAL wire?
I have an alternative solution for T73b/7, but I need your answer to my question.
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
At no point in this installation is anything said about the T17/8 wire, this wire should not be touched under any circumstances.KamilPL wrote: ↑Thu Nov 18, 2021 6:28 am I see another wiring error original purple / green T17 / 8 wire take it out and make a bridge to T17 / 9 right?
I will wait until it gets a little warmer, due to the fact that I do not have a heated garage, I do everything in front of the block, check if there is a cable in the bcm T73b / 43, if there is no cable T73b / 43 to T17 / 9, the bridge with the original cable and the T17 / 8 I will remove and will insulate
after solving these 2 problems, we will move on to the next, hopefully, last wire (problem)
This green/purple wire should remain intact, as it is from the factory. It is the activation signal for front fog lights.
-
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
ciclo wrote: ↑Thu Nov 18, 2021 7:59 amWell, I have all the erWin diagrams for the Ibiza 6J manufactured in Spain-Barcelona (your Ibiza), and in none of them is it contemplated that the wire from T17/16 to T17/5 is RED color.KamilPL wrote: ↑Thu Nov 18, 2021 6:04 am I took time off on demand and I did not go to work today I hope we will be able to put it together today and check how it works
Since 5,4,2 are ready (OK) let's do -> T73b / 7
The bridge T17/16 -> T17/5
What cabling should I attach the cable to be in the BCM T73b/7, since it is not in the original harness?
viewtopic.php?p=584960#p584960
Taking into account that the diagrams may be wrong because we already have a lot of experience with these diagrams,
Are you completely sure that the RED wire from T17/16 to T17/5 in your Ibiza is an ORIGINAL wire?
I have an alternative solution for T73b/7, but I need your answer to my question.
I do not know if this was the case in the original, I only have a photo from August 15, when I started to do with the car: P maybe the electrician added this bridge 17/5 -> 17/16 as he added front fog lamps
I'm going to the car soon, it will tear off the original insulation and check if the cable is still there, but I think it is not there
-
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Ok, I don't touch it.ciclo wrote: ↑Thu Nov 18, 2021 8:29 amAt no point in this installation is anything said about the T17/8 wire, this wire should not be touched under any circumstances.KamilPL wrote: ↑Thu Nov 18, 2021 6:28 am I see another wiring error original purple / green T17 / 8 wire take it out and make a bridge to T17 / 9 right?
I will wait until it gets a little warmer, due to the fact that I do not have a heated garage, I do everything in front of the block, check if there is a cable in the bcm T73b / 43, if there is no cable T73b / 43 to T17 / 9, the bridge with the original cable and the T17 / 8 I will remove and will insulate
after solving these 2 problems, we will move on to the next, hopefully, last wire (problem)
This green/purple wire should remain intact, as it is from the factory. It is the activation signal for front fog lights.
First let's do the T73b / 7, then let's do the T73a / 45 -> T17 / 13
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Alternative solution:KamilPL wrote: ↑Thu Nov 18, 2021 8:36 amciclo wrote: ↑Thu Nov 18, 2021 7:59 amWell, I have all the erWin diagrams for the Ibiza 6J manufactured in Spain-Barcelona (your Ibiza), and in none of them is it contemplated that the wire from T17/16 to T17/5 is RED color.KamilPL wrote: ↑Thu Nov 18, 2021 6:04 am I took time off on demand and I did not go to work today I hope we will be able to put it together today and check how it works
Since 5,4,2 are ready (OK) let's do -> T73b / 7
The bridge T17/16 -> T17/5
What cabling should I attach the cable to be in the BCM T73b/7, since it is not in the original harness?
viewtopic.php?p=584960#p584960
Taking into account that the diagrams may be wrong because we already have a lot of experience with these diagrams,
Are you completely sure that the RED wire from T17/16 to T17/5 in your Ibiza is an ORIGINAL wire?
I have an alternative solution for T73b/7, but I need your answer to my question.
I do not know if this was the case in the original, I only have a photo from August 15, when I started to do with the car: P maybe the electrician added this bridge 17/5 -> 17/16 as he added front fog lamps
I'm going to the car soon, it will tear off the original insulation and check if the cable is still there, but I think it is not there
T73b/7 is the supply signal for the license plate lights.
From the Dimmer an original wire was removed and isolated, the T6/3 wire (according my diagram for this installation).
Take this T6/3 isolated wire, strip the insulation, splice a new 0.5mm2 wire to this wire, and run the other end to T73b/7.
-
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
OK, I'm going to make cables for the car
Now explain to me exactly about the T17 / 13 -> T73a / 45
In the light switch I have the original T17 / 13 cable, bridge it with the new bcm T73a / 45 cable?
or remove the original wire from T17 / 13, insulate and add a new one from bcm (73a / 5) to the light switch (T17 / 13)?
Now explain to me exactly about the T17 / 13 -> T73a / 45
In the light switch I have the original T17 / 13 cable, bridge it with the new bcm T73a / 45 cable?
or remove the original wire from T17 / 13, insulate and add a new one from bcm (73a / 5) to the light switch (T17 / 13)?
- Attachments
-

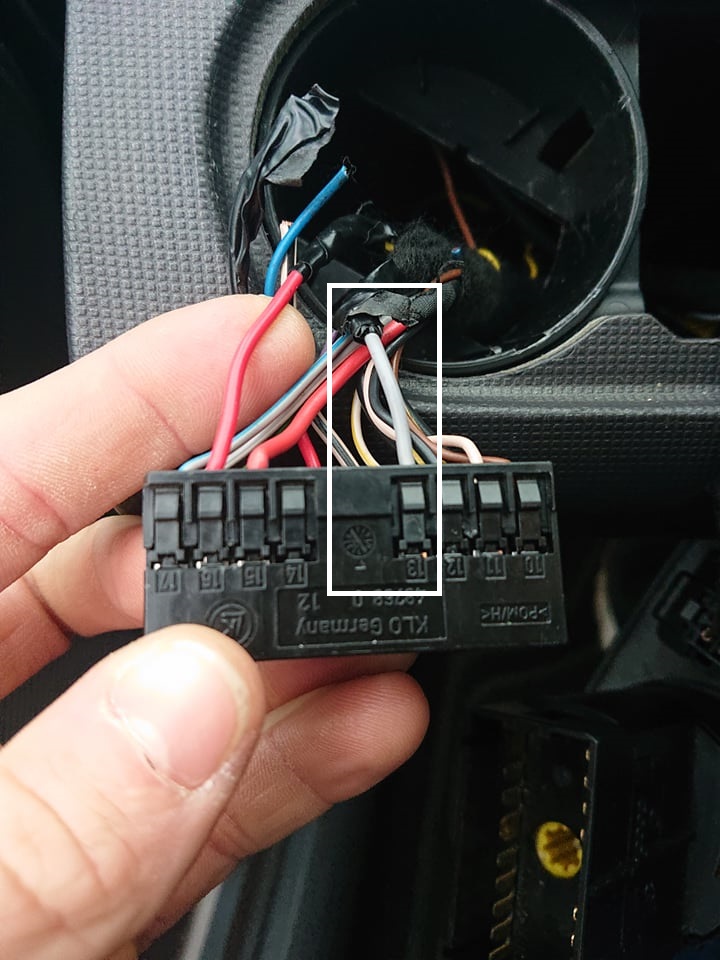

- T17/13 Original cable
- 1.jpg (151.49 KiB) Viewed 1381 times
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
T73a/45 is very important, it is the signal that activates the parking/side lights. (58 signal)KamilPL wrote: ↑Thu Nov 18, 2021 9:22 am OK, I'm going to make cables for the car
Now explain to me exactly about the T17 / 13 -> T73a / 45
In the light switch I have the original T17 / 13 cable, bridge it with the new bcm T73a / 45 cable?
or remove the original wire from T17 / 13, insulate and add a new one from bcm (73a / 5) to the light switch (T17 / 13)?
Make a NEW wire from T73a/45 to T17/13.
Isolate the original T17/13.
---
Depending on the model there are traps in this original wire that we dont need. (diode trick)
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Remove the Blue, and White/Black wires that are cut but still attached to the T17 connector.
High risk of short circuit if you don't remove them.
High risk of short circuit if you don't remove them.
-
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Ok, now everything is clear in the evening I will throw info on what encoding should I send you information?
- ciclo
- Bling Bling Diamond Member
- Posts: 7843
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
A full autoscan and comments, when best possible for you. Take it easy, don't be in a rush to finish it.
