BCM Max Transporter 2013

RobertVW · Post by **RobertVW** » Wed Mar 01, 2023 9:38 pm

Cool project.
I was always convinced that ELV checks the brand with the ECU(pretty sure yours is VW) so curious how SEAT KESSY is going to work with yours.

Post by **ciclo** » Thu Mar 02, 2023 5:37 am

Very interesting, please keep us informed of your progress on your projects. Thanks.

Shadow109 · Post by **Shadow109** » Thu Mar 02, 2023 10:36 am

RobertVW wrote: Wed Mar 01, 2023 9:38 pm Cool project.
I was always convinced that ELV checks the brand with the ECU(pretty sure yours is VW) so curious how SEAT KESSY is going to work with yours.

Thanks for the info, I will try to swap it to vw

Did you finish your kessy project?

RobertVW · Post by **RobertVW** » Thu Mar 02, 2023 10:43 am

Not yet Abdullah.
Yes stick to VW Kessy otherwise it will not work.
I think I am doing too many retrofits simultaneously

.
The biggest slow down for Kessy on a Transporter is door handles grafting.

Shadow109 · Post by **Shadow109** » Thu Mar 02, 2023 5:58 pm

I have an idea for the door handles, I will share it work out

Shadow109 · Post by **Shadow109** » Wed Apr 26, 2023 9:17 am

I have brought another elv from vw

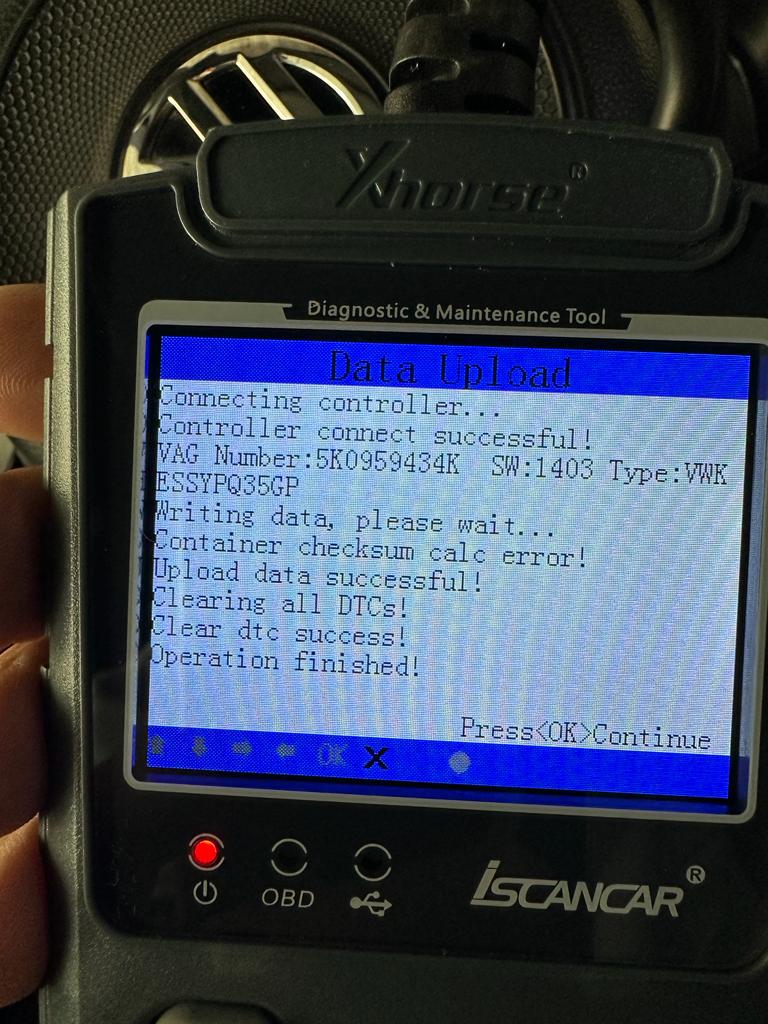

I have connected 30,31, and canbus for the elv and kessy unit on the car just to access coding, but still can’t access it

Any ideas?

RobertVW · Post by **RobertVW** » Wed Apr 26, 2023 11:04 am

Have you also connected positive supply to "15" and "S" pins?

Shadow109 · Post by **Shadow109** » Wed Apr 26, 2023 11:24 am

I didn’t modify my ignition switch

Shadow109 · Post by **Shadow109** » Fri Apr 28, 2023 8:07 pm

I have sorted out the wiring issue.

Code: Select all

Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 05 08 09 10 13 14 15 17 19 20 25 2B 37 3C 55 5F 61
          65 77 0B

VIN: WV1ZZZ7HZDH036544   Mileage: 279960km-173959miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: Malfunction 0010
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: Malfunction 0010
13-Auto Dist. Reg -- Status: OK 0000
14-Susp. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
37-Navigation -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
55-Headlight Range -- Status: Malfunction 0010
5F-Information Electr. -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAC)       Labels:. 03L-906-022-CAA.clb
   Part No SW: 03L 906 019 GH    HW: 03L 907 309 M
   Component: R4 2,0L EDC   H44 8437
   Revision: 26H44---    Serial number: 00000000000000 CVN: C7200230
   Coding: 01114012234400080000
   Shop #: WSC 01286 386 08256
   ASAM Dataset: EV_ECM20TDI01103L906019GH 003006
   ROD: EV_ECM20TDI01103L906019FM_003.rod
   VCID: F7A006CBCF485462BE1-80A2
   VINID: 9E606AAAA1D8A946000C6144105E5FB8A3

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 Q    HW: 7E0 907 379 N
   Component: ESC           H06 0133
   Revision: 00000000    Serial number: 62787000000113
   Coding: 307E4098256586840C7A027AA486616F78F555
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: C0D2AD17DA06D3DACFB-8094

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 11031913470358
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: FEAE13EFE072652AFD7-80AA

No fault code found.

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518)       Labels:| 5K0-959-434.clb
   Part No SW: 5K0 959 434 K    HW: 5K0 959 434
   Component: VWKESSYPQ35GP 093 1403
   Revision: 00093000    Serial number: 0467921560
   Coding: 132C0C
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_KESSYPQ35G A02717
   ROD: EV_KESSY_PQ35GP.rod
   VCID: BD2CD4E3ADF4BE32A4D-80E8

1 Fault Found:
65826 - No Basic Setting
          B2010 00 [009] - -
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 279886 km
                    Date: 2023.04.26
                    Time: 21:58:04


-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E5 907 047 BM    HW: 7E5 907 047 BM
   Component: Climatic-T5   H20 0505
   Revision: 00001010
   Coding: 0000000002
   Shop #: WSC 02736 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: FBA81AFBF3607002DA9-80AE

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 E    HW: 7E0 937 090 E
   Component: BCM PQ25 Max4 H84 0772
   Revision: B9084001    Serial number: 2502 306190145
   Coding: 2AB0393E4E37221281280EC17EEB9FDDF88C6600608D79C032A4003F0860
   Shop #: WSC 12345 123 12345
   VCID: AD0CE4A37D142EB214D-80F8

   Subsystem 1 - Part No: 5K7 955 559 B  Labels: 5K7-955-559.CLB
   Component: RLS 230916 03  37  0059
   Coding: 0228EE

   Subsystem 2 - Part No SW: 7E0 959 801     HW: 7E0 959 801   Labels: 7E0-959-80X-V1.CLB
   Component: J386__TSG_FT  002 3313
   Serial number: --------------------
   Coding: 000000

   Subsystem 3 - Part No SW: 7E0 959 802     HW: 7E0 959 802   Labels: 7E0-959-80X-V1.CLB
   Component: J387__TSG_BT  002 3313
   Serial number: --------------------
   Coding: 000000

   Subsystem 4 - Part No SW: 7E0 959 442 A    HW: 7E0 959 442 A  Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serial number: 39180000000570018056
   Coding: B4FFFF

1 Fault Found:
01134 - Alarm Horn (H12)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 183
                    Mileage: 279961 km
                    Time Indication: 0
                    Date: 2023.04.27
                    Time: 00:16:19


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 5Q0-919-294.clb
   Part No SW: 1K8 919 472 C    HW: 5Q0 919 294 A
   Component: PARKHILFE 8K  H03 0480
   Revision: --------    Serial number: 39331817601496
   Coding: 0041155001
   Shop #: WSC 21890 003 104857
   ASAM Dataset: EV_EPHVA18VW364GP00 001007
   ROD: EV_EPHVA18VW364GP00_VW32.rod
   VCID: B720C6CB8FC894627E1-80E2

1 Fault Found:
12718592 - Databus
          U1121 00 [009] - Missing Message
          [Steuergerät für Lenksäulenelektronik-J527/BCM - mZAS_1 - kein Signal/keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 183
                    Mileage: 279961 km
                    Date: 2023.04.27
                    Time: 00:16:17


-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 7N0-907-572.clb
   Part No SW: 7N0 907 572 C    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0211
   Serial number: 1909180453A6EF Dataset Number: ACC_MRRevo1 0001
   Coding: 00004000FE0779
   Shop #: WSC 01383 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001006
   VCID: B63ECBCF88C26D6A657-FFFE

No fault code found.

-------------------------------------------------------------------------------
Address 14: Susp. Elect. (J250)       Labels:. 3C0-907-376.clb
   Part No SW: 3C0 907 376     HW: 3C0 907 376
   Component: DAEMPFUNGS-SG H07 0069
   Revision: 00000000    Serial number: 12030906320002
   Coding: 030180
   Shop #: WSC 05314 123 12345
   VCID: E69E5B8F9862DDEA157-80B2

2 Faults Found:
01087 - Basic Setting Not Performed
            000 - - - MIL ON
             Freeze Frame:
                    Fault Status: 11100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 183
                    Mileage: 279961 km
                    Time Indication: 0
                    Date: 2023.04.27
                    Time: 00:16:14

             Freeze Frame:

00149 - End of Line Programming not Completed
            000 - - - MIL ON
             Freeze Frame:
                    Fault Status: 11100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 183
                    Mileage: 279961 km
                    Time Indication: 0
                    Date: 2023.04.27
                    Time: 00:16:14

             Freeze Frame:


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 D    HW: 7E0 959 655 D
   Component: VW10Airbag00G 008 0016
   Revision: --------    Serial number: 003PH0013MB$ Dataset Number: 7E0003V____ 0735
   Coding: 000000000000000000000000000000003047
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: B720C6CB8FC894627E1-80E2

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 980 S    HW: 7E0 920 980 S
   Component: KOMBI         H04 1109
   Serial number: 00000000000000
   Coding: 140E230B00
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: BB28DAFBB3E0B0029A9-80EE

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090 E
   Component: GW-K-CAN TP20 H84 0772
   Revision: B9084001
   Coding: 04220F
   Shop #: WSC 12345 123 12345
   VCID: E88255B79276CB9A27B-80BC

No fault code found.

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels:| 8S0-857-511.clb
   Part No SW: 7E0 857 511 G    HW: 7E0 857 511 E
   Component: FLA           H10 0003
   Revision: AA001001
   Coding: 010100E200000100000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_HighBeamAssisAU316 001004
   ROD: EV_HighBeamAssisAU316.rod
   VCID: AE0EE3AF709255AA2D7-80FA

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 1109
   Serial number:
   Coding: 000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: EA862FBF8CFAF98A31F-80BE

No fault code found.

-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764)       Labels:* 5K0-905-861.clb
   Part No SW: 5K0 905 861 C    HW: 5K0 905 861 C
   Component: ELV-PQ35      H21 0240
   Revision: 00000000    Serial number: 14000305204001
   Coding: 4100000000000000
   Shop #: WSC 00066 790 50316
   ASAM Dataset: EV_ELVMarquMPVW36X A01001
   ROD: EV_ELVMarquMPVW36X.rod
   VCID: B032FDD76AA6435A3FB-80E4

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached

-------------------------------------------------------------------------------
Address 3C: Lane Change (J1086)       Labels:| 5Q0-907-686.clb
   Part No SW: 5Q0 907 686 C    HW: 5Q0 907 686 C
   Component: HRE_Master    H12 0081
   Serial number: 0466413079 Dataset Number: V03935256RC 0001
   Coding: 03031102
   Shop #: WSC 09003 957 00200
   ASAM Dataset: EV_HREntryHella 001028
   ROD: EV_HREntryHella_VW37.rod
   VCID: BD2CD4E3ADF4BE32A4D-80E8

   Lane change assistance control module 2:
   Subsystem 1 - Part No SW: 5Q0 907 685 C    HW: 5Q0 907 685 C
   Component: HRE_Slave  H12 0081
   Serial number: 0465512829
   Coding: 030311

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range        Labels:
   VCID: D5ED82572C58DB3B48-FFFE


-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-STD2.clb
   Part No SW: 5C0 035 680 G    HW: 5C0 035 680 G
   Component: MU-S-ND-ER    H41 0478
   Serial number: VWZAZ2U1668085 Dataset Number: V03935240VJ 0001
   Coding: 0645000FBE00000011110001010D08001F0303D401200100CE
   Shop #: WSC 00046 123 12345
   ASAM Dataset: EV_MUStd4CTSAT 001022
   ROD: EV_MUStd4CTSAT_VW32.rod
   VCID: A51C1C83256416F2DCD-80F0

   Data carrier:
   Subsystem 1 - Part No SW: V03 825 254 AN    HW: -----------
   Component: MRM DL2 22/23  --- 1810
   Serial number: --------------------

3 Faults Found:
1555 - Check Software Version Management
          B201A 00 [009] - -
          [Check software version management]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 183
                    Mileage: 279961 km
                    Date: 2023.04.27
                    Time: 00:16:16

                    Voltage terminal 30: 12.4 V
                    Status_Software_Version_Management-module_name:

15360768 - Component Protection
          U1101 00 [009] - Active
          [Anti-theft protection - component protection active (0xEA6300)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 183
                    Mileage: 279961 km
                    Date: 2023.04.27
                    Time: 00:16:16

                    Voltage terminal 30: 12.4 V

0527 - Rear Left Bass Speaker
          B1065 13 [009] - Open Circuit
          [Tieftonlautsprecher Kanal 4: Unterbrechung (DC-Diagnose)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 183
                    Mileage: 279961 km
                    Date: 2023.04.27
                    Time: 00:16:17

                    Voltage terminal 30: 12.4 V


-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090 E
   Component: Batt.regelung H84 0772
   Serial number: 2502 306190145
   Coding: F0001800
   Shop #: WSC 12345 123 12345
   VCID: E88255B79276CB9A27B-80BC

No fault code found.

-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502)       Labels: 3AA-907-273.clb
   Part No SW: 3AA 907 273 F    HW: 5Q0 907 273
   Component: RDKBERU30     H04 0011
   Serial number: 30000000047437
   ASAM Dataset: EV_RDKBERU30 005005
   ROD: EV_RDKBERU30_005.rod
   VCID: B720C6CB8FC894627E1-80E2

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached

End----------(Elapsed Time: 04:10, VBatt start/end: 12.4V/12.4V)-----------

And I have adapted the ELV to my car :-

Code: Select all

Address 2B: Steer. Col. Lock
Control Module Part Number: 5K0 905 861 C
  Component and/or Version: ELV-PQ35      H21 0240
           Software Coding: 4100000000000000
            Work Shop Code: WSC 00066
                      VCID: B032FDD76AA6435A3FB-80E4

Advanced Identification/FAZIT
     Serial number: 14000305204001
     Identification: MD9-MSR
     Revision: 00000000
     Date: 06.11.14
     Manufacturer number: 0753
     Test stand number: 1257
Flash Status
     Programming Attempts(application): 0/0/0
     Successful Attempts(application): 0/0/0
     Programming Status: 00000000
     Flash Date: 00.01.01
Software
     UDS: 00.00.01
     UDS: 11.03.00
     LIN 2.0: 01.02.05
     CAN: 00.1E.01
     Unknown: 01.07.00
     Theft prot.: 01.02.11
     OSEK-OS: 00.1E.03
     Unknown: 00.0A.00
     Generic Net Mgt: 01.02.00
Misc.
     Hardware number: 5K0 905 861 C
     Workshop System Name: J764
     ASAM Dataset: EV_ELVMarquMPVW36X
     ASAM Dataset Revision: A01001
Car Info
     Chassis Number: WV1ZZZ7HZDH036544
VCDS Info:
       VCID: B032FDD76AA6435A3FB-80E4
       Labels: 5K0-905-861.clb
       ROD: EV_ELVMarquMPVW36X.rod

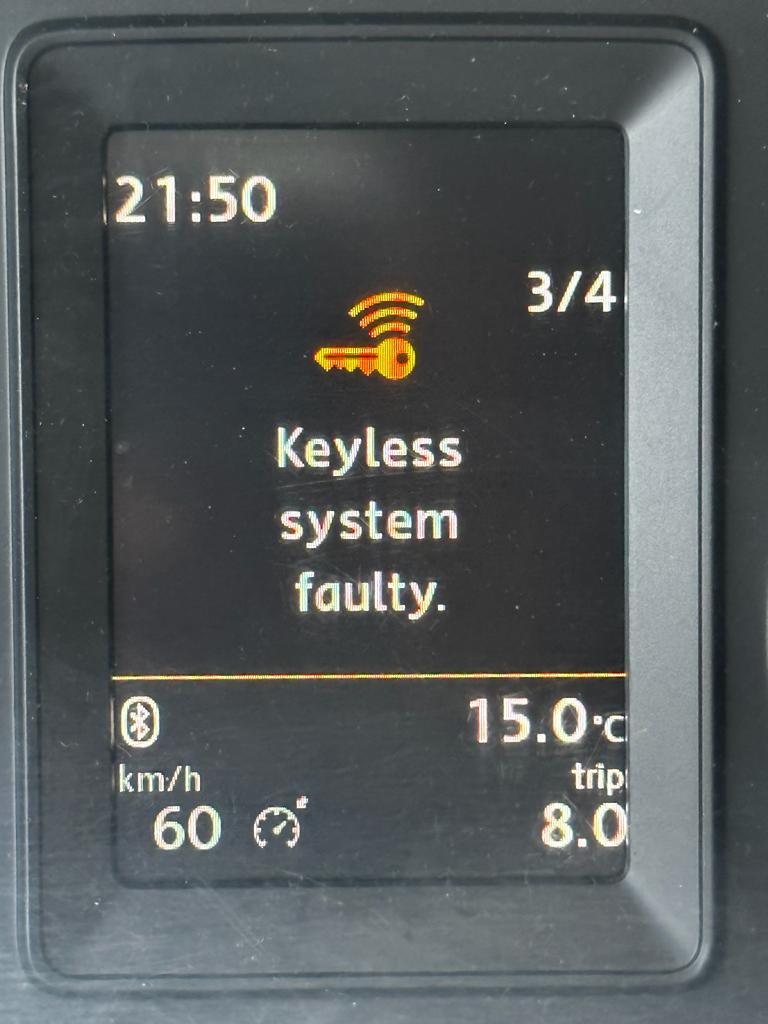

But when I tried to upload parameter data for kessy I always get checksum error for some reason

: WhatsApp Image 2023-04-28 at 10.02.00 PM.jpeg (132.28 KiB) Viewed 14404 times

I have also tried to use VCP, but I got the same error

Shadow109 · Post by **Shadow109** » Sat Apr 29, 2023 5:29 pm

Adapting kessy . . Done
Adapting ELV . . Done

Next step: removing ignition switch, and adding needed relays

Code: Select all

Saturday,29,April,2023,13:45:19:22797
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 23.3.1.0 (x64)  HEX-NET2 CB: 0.4631.5
Data version: 20230421 DS346.2
www.Ross-Tech.com


VIN: WV1ZZZ7HZDH036544   License Plate:


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 05 08 09 10 13 14 15 17 19 20 25 2B 37 3C 55 5F 61
          65 77 0B

VIN: WV1ZZZ7HZDH036544   Mileage: 280010km-173990miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
13-Auto Dist. Reg -- Status: OK 0000
14-Susp. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
37-Navigation -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
55-Headlight Range -- Status: Malfunction 0010
5F-Information Electr. -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAC)       Labels:. 03L-906-022-CAA.clb
   Part No SW: 03L 906 019 GH    HW: 03L 907 309 M
   Component: R4 2,0L EDC   H44 8437
   Revision: 26H44---    Serial number: 00000000000000 CVN: C7200230
   Coding: 01114012234400080000
   Shop #: WSC 01286 386 08256
   ASAM Dataset: EV_ECM20TDI01103L906019GH 003006
   ROD: EV_ECM20TDI01103L906019FM_003.rod
   VCID: F7A006CBCF485462BE1-80A2
   VINID: 9E606AAAA1D8A946000C6144105E5FB8A3

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 Q    HW: 7E0 907 379 N
   Component: ESC           H06 0133
   Revision: 00000000    Serial number: 62787000000113
   Coding: 307E4098256586840C7A027AA486616F78F555
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: C0D2AD17DA06D3DACFB-8094

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 11031913470358
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: FEAE13EFE072652AFD7-80AA

No fault code found.

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518)       Labels:| 5K0-959-434.clb
   Part No SW: 5K0 959 434 F    HW: 5K0 959 434
   Component: VWKESSYPQ35GP 093 1202
   Revision: 00093000    Serial number: 0467921560
   Coding: 132C0C
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_KESSYPQ35G A02717
   ROD: EV_KESSY_PQ35GP.rod
   VCID: B822C5F782D69B1A77B-80EC

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E5 907 047 BM    HW: 7E5 907 047 BM
   Component: Climatic-T5   H20 0505
   Revision: 00001010
   Coding: 0000000002
   Shop #: WSC 02736 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: FBA81AFBF3607002DA9-80AE

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 E    HW: 7E0 937 090 E
   Component: BCM PQ25 Max4 H84 0772
   Revision: B9084001    Serial number: 2502 306190145
   Coding: 2AB0393E4E37221201280EC17EEB9FDDF88C6600608D79C032A4003F0860
   Shop #: WSC 12345 123 12345
   VCID: AD0CE4A37D142EB214D-80F8

   Subsystem 1 - Part No: 5K7 955 559 B  Labels: 5K7-955-559.CLB
   Component: RLS 230916 03  37  0059
   Coding: 0228EE

   Subsystem 2 - Part No SW: 7E0 959 801     HW: 7E0 959 801   Labels: 7E0-959-80X-V1.CLB
   Component: J386__TSG_FT  002 3313
   Serial number: --------------------
   Coding: 000000

   Subsystem 3 - Part No SW: 7E0 959 802     HW: 7E0 959 802   Labels: 7E0-959-80X-V1.CLB
   Component: J387__TSG_BT  002 3313
   Serial number: --------------------
   Coding: 000000

   Subsystem 4 - Part No SW: 7E0 959 442 A    HW: 7E0 959 442 A  Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serial number: 39180000000570018056
   Coding: B4FFFF

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 5Q0-919-294.clb
   Part No SW: 1K8 919 472 C    HW: 5Q0 919 294 A
   Component: PARKHILFE 8K  H03 0480
   Revision: --------    Serial number: 39331817601496
   Coding: 0041155001
   Shop #: WSC 21890 003 104857
   ASAM Dataset: EV_EPHVA18VW364GP00 001007
   ROD: EV_EPHVA18VW364GP00_VW32.rod
   VCID: B720C6CB8FC894627E1-80E2

1 Fault Found:
12718592 - Databus
          U1121 00 [009] - Missing Message
          [Steuergerät für Lenksäulenelektronik-J527/BCM - mZAS_1 - kein Signal/keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Date: 2023.04.29
                    Time: 17:17:17


-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 7N0-907-572.clb
   Part No SW: 7N0 907 572 C    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0211
   Serial number: 1909180453A6EF Dataset Number: ACC_MRRevo1 0001
   Coding: 00004000FE0779
   Shop #: WSC 01383 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001006
   ROD: EV_ACCBEGVW361.rod
   VCID: B63ECBCF88C26D6A657-80E2

No fault code found.

-------------------------------------------------------------------------------
Address 14: Susp. Elect. (J250)       Labels:. 3C0-907-376.clb
   Part No SW: 3C0 907 376     HW: 3C0 907 376
   Component: DAEMPFUNGS-SG H07 0069
   Revision: 00000000    Serial number: 12030906320002
   Coding: 030180
   Shop #: WSC 05314 123 12345
   VCID: E69E5B8F9862DDEA157-80B2

2 Faults Found:
01087 - Basic Setting Not Performed
            000 - - - MIL ON
             Freeze Frame:
                    Fault Status: 11100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Time Indication: 0
                    Date: 2023.04.29
                    Time: 17:17:15

             Freeze Frame:

00149 - End of Line Programming not Completed
            000 - - - MIL ON
             Freeze Frame:
                    Fault Status: 11100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Time Indication: 0
                    Date: 2023.04.29
                    Time: 17:17:15

             Freeze Frame:


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 D    HW: 7E0 959 655 D
   Component: VW10Airbag00G 008 0016
   Revision: --------    Serial number: 003PH0013MB$ Dataset Number: 7E0003V____ 0735
   Coding: 000000000000000000000000000000003047
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: B720C6CB8FC894627E1-80E2

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 980 S    HW: 7E0 920 980 S
   Component: KOMBI         H04 1109
   Serial number: 00000000000000
   Coding: 140E230B00
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: BB28DAFBB3E0B0029A9-80EE

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090 E
   Component: GW-K-CAN TP20 H84 0772
   Revision: B9084001
   Coding: 04220F
   Shop #: WSC 12345 123 12345
   VCID: E88255B79276CB9A27B-80BC

No fault code found.

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels:| 8S0-857-511.clb
   Part No SW: 7E0 857 511 G    HW: 7E0 857 511 E
   Component: FLA           H10 0003
   Revision: AA001001
   Coding: 010100E200000100000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_HighBeamAssisAU316 001004
   ROD: EV_HighBeamAssisAU316.rod
   VCID: AE0EE3AF709255AA2D7-80FA

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 1109
   Serial number:
   Coding: 000007
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: EA862FBF8CFAF98A31F-80BE

No fault code found.

-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764)       Labels:* 5K0-905-861.clb
   Part No SW: 5K0 905 861 C    HW: 5K0 905 861 C
   Component: ELV-PQ35      H21 0240
   Revision: 00000000    Serial number: 14000305204001
   Coding: 4100000000000000
   Shop #: WSC 00066 790 50316
   ASAM Dataset: EV_ELVMarquMPVW36X A01001
   ROD: EV_ELVMarquMPVW36X.rod
   VCID: B032FDD76AA6435A3FB-80E4

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached

-------------------------------------------------------------------------------
Address 3C: Lane Change (J1086)       Labels:| 5Q0-907-686.clb
   Part No SW: 5Q0 907 686 C    HW: 5Q0 907 686 C
   Component: HRE_Master    H12 0081
   Serial number: 0466413079 Dataset Number: V03935256RC 0001
   Coding: 03031102
   Shop #: WSC 09003 957 00200
   ASAM Dataset: EV_HREntryHella 001028
   ROD: EV_HREntryHella_VW37.rod
   VCID: BD2CD4E3ADF4BE32A4D-80E8

   Lane change assistance control module 2:
   Subsystem 1 - Part No SW: 5Q0 907 685 C    HW: 5Q0 907 685 C
   Component: HRE_Slave  H12 0081
   Serial number: 0465512829
   Coding: 030311

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range (J431)       Labels:. 6R0-907-357.clb
   Part No SW: 6R0 907 357     HW: 6R0 907 357
   Component: LWR-ECU       H02 0070
   Revision: --------    Serial number: -------------- Dataset Number: V03600047E0 0004
   Coding: 0206000001000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_HeadlRegulVWLWRPt 001004
   ROD: EV_HeadlRegulVWLWRPt_VW25.rod
   VCID: F7A006CBCF485462BE1-80A2

2 Faults Found:
5275220 - Headlight
          C107E 54 [137] - Missing Calibration / Basic Setting
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Date: 2023.04.29
                    Time: 17:17:18

5256213 - Front Vehicle Height/Level Sensor
          C114D 15 [137] - Open or Short to Plus
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Date: 2023.04.29
                    Time: 17:17:17


-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-STD2.clb
   Part No SW: 5C0 035 680 G    HW: 5C0 035 680 G
   Component: MU-S-ND-ER    H41 0478
   Serial number: VWZAZ2U1668085 Dataset Number: V03935240VJ 0001
   Coding: 0645000FBE00000011110001010D08001F0303D401200100CE
   Shop #: WSC 00046 123 12345
   ASAM Dataset: EV_MUStd4CTSAT 001022
   ROD: EV_MUStd4CTSAT_VW32.rod
   VCID: A51C1C83256416F2DCD-80F0

   Data carrier:
   Subsystem 1 - Part No SW: V03 825 254 AN    HW: -----------
   Component: MRM DL2 22/23  --- 1810
   Serial number: --------------------

3 Faults Found:
1555 - Check Software Version Management
          B201A 00 [009] - -
          [Check software version management]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Date: 2023.04.29
                    Time: 17:17:17

                    Voltage terminal 30: 11.7 V
                    Status_Software_Version_Management-module_name:

15360768 - Component Protection
          U1101 00 [009] - Active
          [Anti-theft protection - component protection active (0xEA6300)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Date: 2023.04.29
                    Time: 17:17:17

                    Voltage terminal 30: 11.9 V

0527 - Rear Left Bass Speaker
          B1065 13 [009] - Open Circuit
          [Tieftonlautsprecher Kanal 4: Unterbrechung (DC-Diagnose)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 185
                    Mileage: 280011 km
                    Date: 2023.04.29
                    Time: 17:17:18

                    Voltage terminal 30: 11.9 V


-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090 E
   Component: Batt.regelung H84 0772
   Serial number: 2502 306190145
   Coding: F0001800
   Shop #: WSC 12345 123 12345
   VCID: E88255B79276CB9A27B-80BC

No fault code found.

-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502)       Labels: 3AA-907-273.clb
   Part No SW: 3AA 907 273 F    HW: 5Q0 907 273
   Component: RDKBERU30     H04 0011
   Serial number: 30000000047437
   ASAM Dataset: EV_RDKBERU30 005005
   ROD: EV_RDKBERU30_005.rod
   VCID: B720C6CB8FC894627E1-80E2

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached

End----(Elapsed Time: 01:58, VBatt start/end: 11.9V/11.9V. VIgn 11.9V)-----

: WhatsApp Image 2023-04-29 at 7.28.51 PM.jpeg (69.23 KiB) Viewed 14342 times

RobertVW · Post by **RobertVW** » Sat Apr 29, 2023 6:01 pm

Bravo Abdullah

Shadow109 · Post by **Shadow109** » Sun May 07, 2023 11:21 pm

I have removed ignition lock
Connected old D/3(15) & D/6(75) to new two terminals, connected 86 in the new terminals to J935/9 & 10
and connected D/4(S) to J764/7

I didn’t even got 15kl working, when I push the start button I can only hear the EPB relay clicking

Shadow109 · Post by **Shadow109** » Thu May 11, 2023 11:26 pm

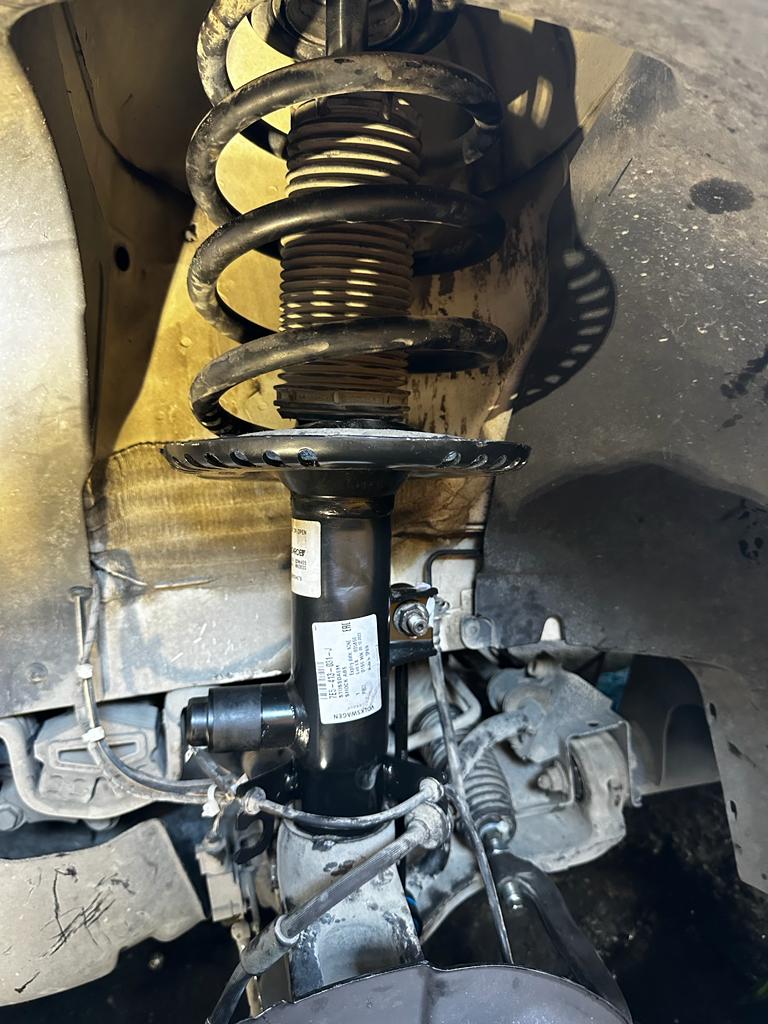

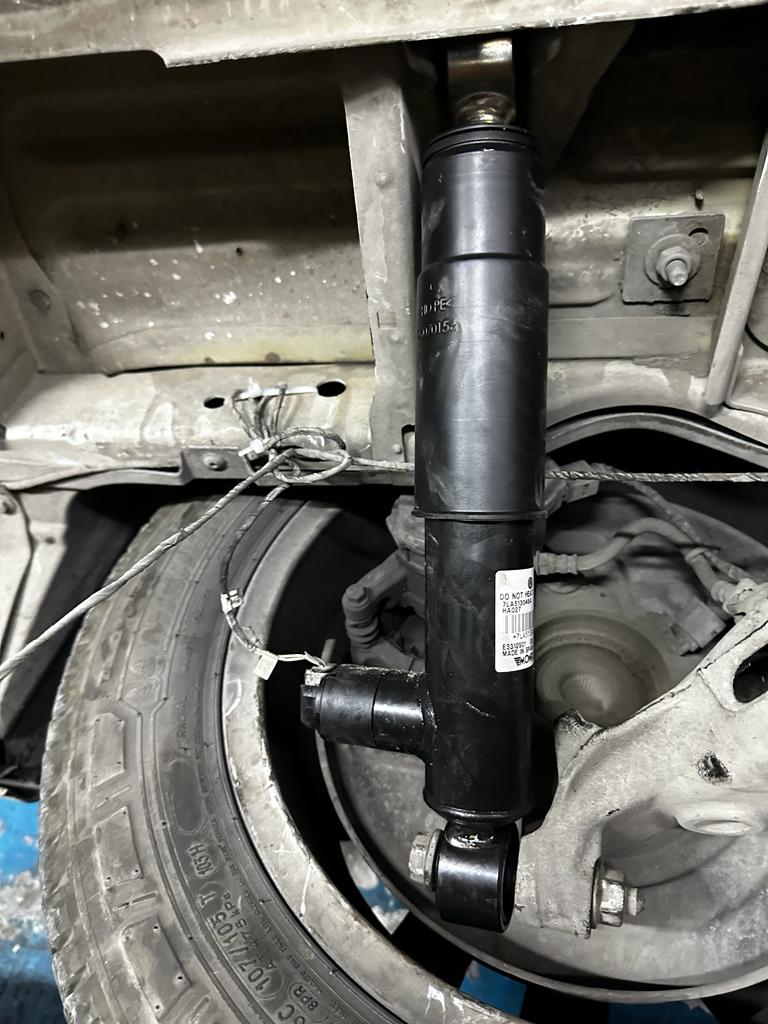

My new shock absorbers have arrived, but sadly, I couldn't make basic settings due to high level sensors value
So I guess I need to Fit a new springs too

: WhatsApp Image 2023-05-12 at 1.15.53 AM.jpeg (107.4 KiB) Viewed 14140 times

: WhatsApp Image 2023-05-12 at 1.15.53 AM (1).jpeg (117.81 KiB) Viewed 14140 times

Code: Select all

Address 14: Susp. Elect. (J250)       Labels:. 3C0-907-376.clb
   Part No SW: 3C0 907 376     HW: 3C0 907 376
   Component: DAEMPFUNGS-SG H07 0069
   Revision: 00000000    Serial number: 12030906320002
   Coding: 030180
   Shop #: WSC 05314 123 12345
   VCID: E69E5B8F9862DDEA157-80B2

1 Fault Found:
01087 - Basic Setting Not Performed
            000 - - - MIL ON
             Freeze Frame:
                    Fault Status: 11100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 221
                    Mileage: 281927 km
                    Time Indication: 0
                    Date: 2023.05.11
                    Time: 12:16:18

             Freeze Frame:

RobertVW · Post by **RobertVW** » Fri May 12, 2023 7:13 am

Have you jacked up all wheels simultaneously at that stage?

Shadow109 · Post by **Shadow109** » Fri May 12, 2023 7:24 am

Yes, but its not enough, it seems like the wheels need to go down more
I will lift it up again and take a picture of the measurements

UK-POLOS.NET - THE VW Polo Forum

BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013

Re: BCM Max Transporter 2013
