Amarok Oem Bixenon retrofit
Re: Amarok Oem Bixenon retrofit

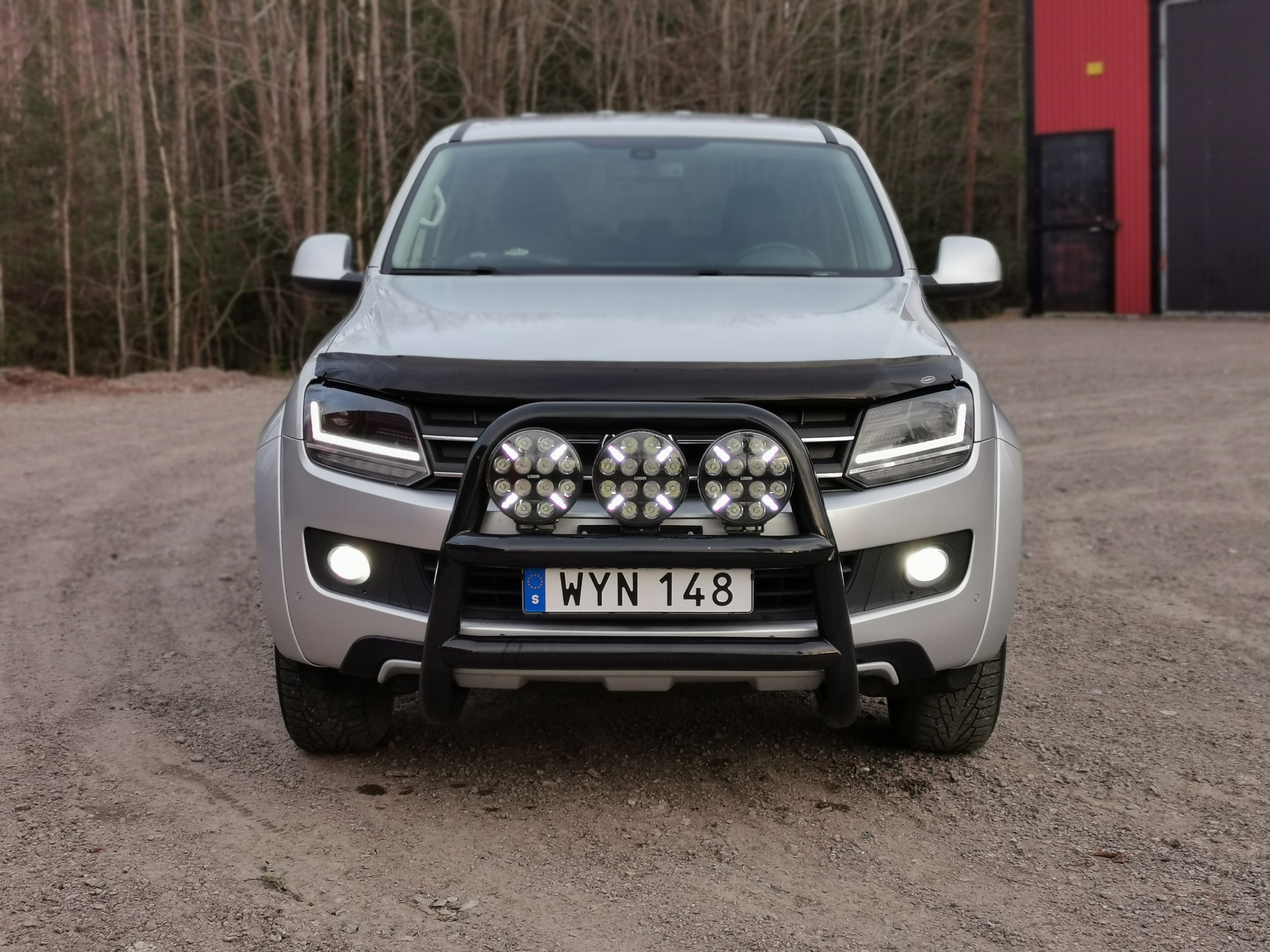

This is a free world... but why don't you just update to the new bi leds from Osram for the Amarok?
It's a cheaper update most times and waayyy better looking than OEM if you are asking me, fits ALL amarok with standard halogen fitted, plug and play!
But if you are chasing OEM Ciclo is the best coach you can find, he will reply when he has time be patient it's worth it
It's a cheaper update most times and waayyy better looking than OEM if you are asking me, fits ALL amarok with standard halogen fitted, plug and play!
But if you are chasing OEM Ciclo is the best coach you can find, he will reply when he has time be patient it's worth it
Re: Amarok Oem Bixenon retrofit
cause i wanted to change all the front bumper to look like the facelift model .its a big project ,but can be made .
-
ciclo
- Bling Bling Diamond Member
- Posts: 7842
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Amarok Oem Bixenon retrofit
Dkakavas wrote: ↑Wed Jan 22, 2020 8:55 pm Hey folks !I have read all the topics about swaping the xenon head lights on my vw amarok 2012 model .Yesterday i bought
2H1 941 016 AK, 2H1 941 015 AH lights and i wanted a bit of help from ciclo ,that is some what a genious on electrics about choosing the right bcm cause i dont want to make a mistake. So can you give me yours lights
Dkakavas wrote: ↑Wed Feb 26, 2020 4:04 pm Sorry for my delay .I thought you are not interested for my case .Thanks for your answer.I will give you some more specs:
Bcm is 6R7937087 H.
The fuse box 72 positions
The light switch 6Q0941531Q 17 PIN
I bought a new BCM 7E0937090B 0CY . it suport DRL ,parking sensors ,cruise control .It is for automatic gear box, mine is manual .I thinks its not an issue .(it will come in one week)
i bought also 6R0941531G APV switch .
now my only questions are :
1 will it work if i do all the steps you have writen above or i need something different ?
Your project is perfectly possible, the BCM is correct, in fact, any BCM Max is correct, there is no problem with any factory equipment. (gearbox, etc)
As I told you, the only thing to keep in mind is that it may be necessary to modify a couple of values with VCP so that the new LED side lights of the new headlights work correctly.
According to your VIN, your Amarok is a four doors, right? so the third step that Georgenis did, BCM feed/supply, is not the same in your case because for the georgenis fuse box we used the free fuse slots with +30 power that corresponded to the rear doors. Georgenis' Amarok has no rear doors.
The procedure to follow with 72-slot fuse box will be the same as described in this thread for the rest of steps.
To feed your new BCM you will have to extract the two +30 signals/wires directly from the Battery. This step is an identical/similar process as we did for T5.1
1- From the E-box to the new fuse holder (3 fuses) and from here to the BCM.(Note that the steps described for T5.1 are for BCM adaptation and automatic lights, in your case, due to the switch you have purchased, it seems that at the moment you do not want to install the automatic lights)
I will help you with the codings, etc ... but you should keep in mind that you have to make it easy for me, that is, post autoscans if you have problems and describe the problems in the best possible way.
The young boys of the 6R and other models always touch my balls
because on very few occasions they post the results of the help received, only those who are really satisfied with the work they did do.They also make many rookie mistakes by installing the cables from point A to point B ... oh my ...!
Please do not have a behavior like that of the 6R boys.
---
I totally agree. ... in the case of not wanting to install automatic lights (which implies BCM Max).
In fact, I would install those OSRAM BI-LED headlights if I owned an Amarok (I don't rule it out
), they are AWESOME and in my humble opinion much better than OEM headlights (super LEDs for DRLs/sidelights and especially those LEDs for turn signals).Yes, OSRAM is one of my favorite brands (for many reasons).
...
---
Patrik, thanks for knowing how to understand everything.
Re: Amarok Oem Bixenon retrofit
i
Last edited by Dkakavas on Fri Feb 28, 2020 3:55 pm, edited 1 time in total.
Re: Amarok Oem Bixenon retrofit
i think you will have no issues with me . i always be specific .also always post photos so others can see it . no problem with the coding as long you can tell me the steps
!
so :
yes its a 4 door car(so i will take power from the battery to emty fuses)
do i need Headlight Xenon Height Level Sensor for a proper swap ?

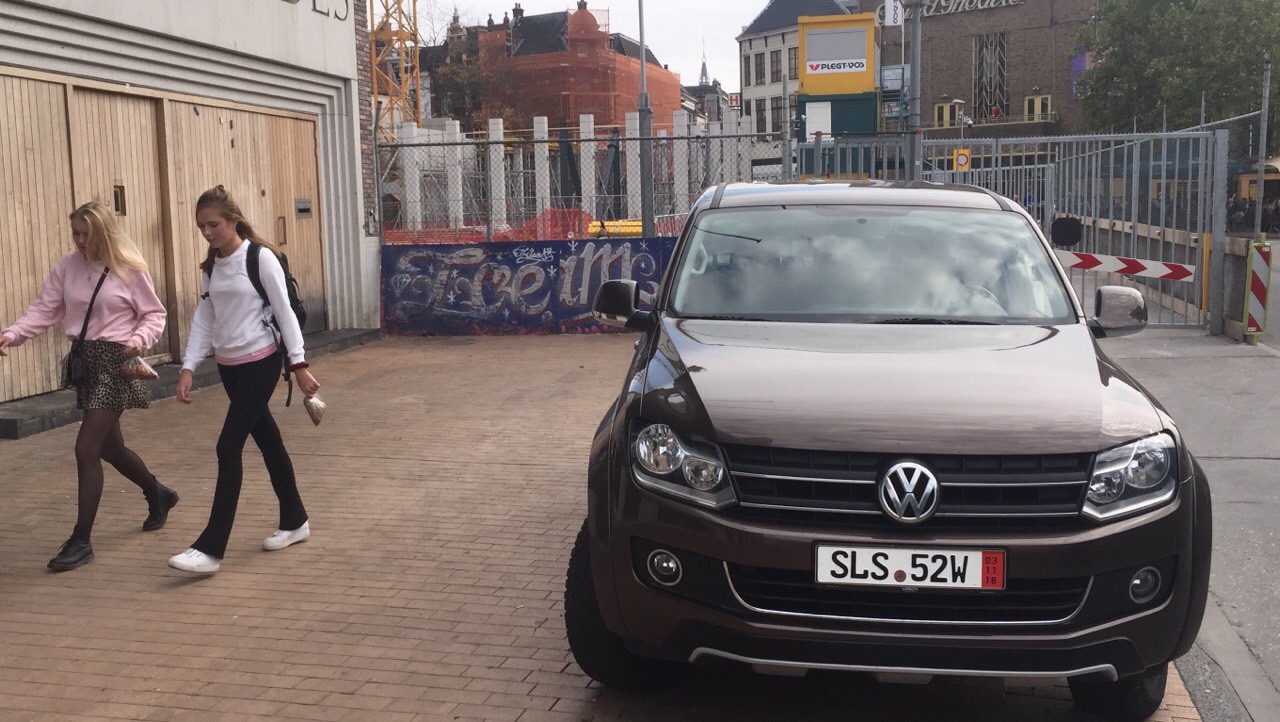

my car as you can see it had front static lights . now with the new ones i dont change something on the wiring . am i right ?
i choosed this light switch 6Q0941531Q cause you told georgenis its needed for his project. i can buy this switch( https://www.ebay.com/itm/AUTO-Headlight ... 0005.m1851)
it doesnt say that my car support it but i think it fits . can you check it please ,with your special knowlege ? I have to let you know , that the guy who sold me the bcm refered of the donor car and it didnt have auto lights.So can this bcm recognise auto switch?Or it doesnt matter .thanks in advance .
!so :
yes its a 4 door car(so i will take power from the battery to emty fuses)
do i need Headlight Xenon Height Level Sensor for a proper swap ?
my car as you can see it had front static lights . now with the new ones i dont change something on the wiring . am i right ?
i choosed this light switch 6Q0941531Q cause you told georgenis its needed for his project. i can buy this switch( https://www.ebay.com/itm/AUTO-Headlight ... 0005.m1851)
it doesnt say that my car support it but i think it fits . can you check it please ,with your special knowlege
? I have to let you know , that the guy who sold me the bcm refered of the donor car and it didnt have auto lights.So can this bcm recognise auto switch?Or it doesnt matter .thanks in advance .- Attachments
-
-
-
ciclo
- Bling Bling Diamond Member
- Posts: 7842
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Amarok Oem Bixenon retrofit
From the factory the Amarok bixenon headlights do not have an automatic headlight leveling system, therefore the answer is that you do not need to install a sensor for this system. Bixenon headlight height regulation remains manual with the manual headlight range control regulator.
You're right in regards to static cornering lights.
All BCM Max PQ25 support automatic lights with original electrical installations. (wires, switch 'AUTO', RLS, etc)
That AUTO switch or any that is not original have the problem that if you leave the right stalk in the Parking position (left or right) all parking lights come on, not those corresponding to the activated side. Also, the battery will drain completely if it stays this way for a long period of time (one night, for example).
Needless to say, the BCM does not recognize non-original Auto light switches. They will work, some of them even without diagnostic faults, but you have to take into account what I mentioned earlier.
...the best way to discredit or devalue a car is to implement deficiencies that are caused by non-original parts...
---
What are Parking lights? (ignition switch OFF)
If you have a driving license you should know, but the reality is that many do not know what they are, nor do they use them.
Look at the user manual, the symbol is a P''' on the right stalk.
They should not be confused with side lights function (ignition switch ACC/ON) or other names depending on geographical areas, they are the same bulbs or led modules for the different functions.
---
You're right in regards to static cornering lights.
All BCM Max PQ25 support automatic lights with original electrical installations. (wires, switch 'AUTO', RLS, etc)
That AUTO switch or any that is not original have the problem that if you leave the right stalk in the Parking position (left or right) all parking lights come on, not those corresponding to the activated side. Also, the battery will drain completely if it stays this way for a long period of time (one night, for example).
Needless to say, the BCM does not recognize non-original Auto light switches. They will work, some of them even without diagnostic faults, but you have to take into account what I mentioned earlier.
...the best way to discredit or devalue a car is to implement deficiencies that are caused by non-original parts...
---
What are Parking lights? (ignition switch OFF)
If you have a driving license you should know, but the reality is that many do not know what they are, nor do they use them.
Look at the user manual, the symbol is a P''' on the right stalk.
They should not be confused with side lights function (ignition switch ACC/ON) or other names depending on geographical areas, they are the same bulbs or led modules for the different functions.
---
-
Cornelgligor
- New
- Posts: 3
- Joined: Wed May 06, 2020 11:52 pm
- Drives: Polo
- Location: Sibiu
Re: Amarok Oem Bixenon retrofit
Hi.
I did the retrofit like you Said in this post and îs everything working fine except low beam. I Connected t17/7 to T73b/43 and connected sc29 input to t73a/2 and sc55 input to t73b/2.
I’m Doing the retrofit on Amarok 2011.
Thank you
I did the retrofit like you Said in this post and îs everything working fine except low beam. I Connected t17/7 to T73b/43 and connected sc29 input to t73a/2 and sc55 input to t73b/2.
I’m Doing the retrofit on Amarok 2011.
Thank you
-
iichel
- Bling Bling Diamond Member
- Posts: 6403
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Amarok Oem Bixenon retrofit
Hello and welcome. Can you please post an autoscan of the car in its current configuration?
-
Cornelgligor
- New
- Posts: 3
- Joined: Wed May 06, 2020 11:52 pm
- Drives: Polo
- Location: Sibiu
Re: Amarok Oem Bixenon retrofit
Hi.
I can’t submit the text Here, it says That it contains contacts and îs being seen as spam.
https://we.tl/t-pURjPjkdCy
I uploaded the autoscan Here. Thank you.
I can’t submit the text Here, it says That it contains contacts and îs being seen as spam.
https://we.tl/t-pURjPjkdCy
I uploaded the autoscan Here. Thank you.
-
iichel
- Bling Bling Diamond Member
- Posts: 6403
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Amarok Oem Bixenon retrofit
You can paste it as text
So... this looks like a mess. Can you tell me what has been done here, did you change the BCM? Add any wires?
Code: Select all
VCDS Version: Release 12.12.0 (x64)
Data version: 20130910
Thursday,07,May,2020,16:45:25:62939
Chassis Type: 2H (7E0)
Scan: 01 03 08 09 10 15 17 18 19 22 25 32 5F 61 69
VIN: WV1ZZZ2HZB8045761
01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: Cannot be reached 1100
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
32-Differential Locks -- Status: Malfunction 0010
56-Radio -- Status: Malfunction 0010
5F-Information Electr. -- Status: Cannot be reached 1100
61-Battery Regul. -- Status: Malfunction 0010
69-Trailer -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CDCA) Labels: 03L-906-022-CAA.clb
Part No SW: 03L 906 022 SM HW: 03L 907 309 K
Component: R4 2,0L EDC X38 7723
Revision: 26X38--- Serial number: 00000000000000
Coding: 01194012232600080000
Shop #: WSC 21862 034 00000
ASAM Dataset: EV_ECM20BTD01103L906022SM 002004
ROD: EV_ECM20BTD01103L906022SM.rod
VCID: 820BEC8315FA4A0E027-80D7
3 Faults Found:
4481 - Cruise Control Switch (E45)
P0568 00 [036] - Implausible Signal
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 157275 km
Date: 2104.14.27
Time: 00:27:26
4482 - Function Restriction due to Implausible Message(s)
U1112 00 [036] - -
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 157275 km
Date: 2104.14.27
Time: 00:27:26
4483 - Function Restriction due to Faults in Other Modules
U1113 00 [036] - -
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 2
Mileage: 157275 km
Date: 2104.14.27
Time: 00:27:30
Readiness: 0 0 0 0 0
-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 2H0-907-379.clb
Part No SW: 2H0 907 379 G HW: 2H0 907 379 D
Component: ESP MK25A XT H44 0106
Revision: 00H44001
Coding: C07324B69198039A24A989A96F5110
Shop #: WSC 07456 790 49164
VCID: 3467FA5B97CEB4BE40B-8061
3 Faults Found:
01314 - Engine Control Module
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 168
Mileage: 153324 km
Time Indication: 0
Date: 2039.14.00
Time: 11:23:50
Freeze Frame:
Count: 16384
Count: 1
Count: 8194
Count: 768
03716 - Regulation Function Disabled; Blocking Electronics Active
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 6
Fault Frequency: 3
Reset counter: 122
Mileage: 152673 km
Time Indication: 0
Date: 2038.14.24
Time: 00:52:04
Freeze Frame:
Count: 49152
Count: 4097
Count: 4175
Count: 1022
03095 - Diagnostic interface for databus (J533) implausible messa.:
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 6
Fault Frequency: 1
Reset counter: 7
Time Indication: 0
Freeze Frame:
Count: 16512
Count: 257
Count: 8257
Count: 1022
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 7E5-907-040.clb
Part No SW: 2H0 907 040 B HW: 2H0 907 040 B
Component: ClimatronicT5 H11 0202
Revision: 00002001
Coding: 0000000002
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis.rod
VCID: 204F060B3B36381EB43-8075
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: None
Part No SW: 7E0 937 089 HW: 7E0 937 089
Component: BCM PQ25 MMI4 H80 0733
Revision: BB080001 Serial number: 0772 272140014
Coding: 640000380C21000000300EC16C4984D42D80664E60021040000000020000
Shop #: WSC 54321 123 12345
VCID: F0EFB64B2356489EE43-80A5
Subsystem 1 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3321
Coding: 100000
Subsystem 2 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3321
Coding: 100000
Subsystem 3 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3321
Coding: 100000
Subsystem 4 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3321
Coding: 100000
1 Fault Found:
03433 - Terminal 30 for Backup Lights and Adaptive Lights
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 47
Mileage: 157275 km
Time Indication: 0
Date: 2040.14.27
Time: 00:06:07
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist
Cannot be reached
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels: 5K0-959-655.clb
Part No SW: 2H0 959 655 B HW: 2H0 959 655 B
Component: VW10Airbag00B H06 0013
Revision: -------- Serial number: 003HN0011VMC
Coding: 000000000000000000000000000000003042
Shop #: WSC 07446 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750_VN35.rod
VCID: 3365F9479AC0B386591-8066
Crash sensor for side airbag; driver side:
Serial number: 3495RRB40636T8MIAP13
Crash sensor for side airbag; passenger side:
Serial number: 3505RRB40636T8MI4OTG
Crash sensor for front airbag; driver side:
Serial number: 3555YRB405F042AE4P23
Crash sensor for front airbag; passenger side:
Serial number: 3565YRB4061007SABP3E
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: 5K0-920-xxx-17.clb
Part No SW: 2H0 920 863 A HW: 2H0 920 863 A
Component: KOMBI H04 0304
Serial number: 00000000000000
Coding: 150A00
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04086
ROD: EV_Kombi_UDS_VDD_RM09_SE35.rod
VCID: 275D1D175E18CF26F59-8072
No fault code found.
-------------------------------------------------------------------------------
Address 18: Aux. Heat Labels: None
Part No: 7E0 815 071 A
Component: J737__Standheizung 0404
Revision: 00085000 Serial number: 09019275D00000
Coding: 0021332
Shop #: WSC 40010 222 85424
VCID: 23450907E2202306A91-8076
2 Faults Found:
01413 - Dosing/Metering Pump (V54)
007 - Short to Ground
Freeze Frame:
Fault Status: 01100111
Fault Priority: 3
Fault Frequency: 7
Reset counter: 255
Mileage: 152673 km
Time Indication: 0
Date: 2038.14.24
Time: 12:57:18
Freeze Frame:
Start
Temperature: 19.0°C
Voltage: 13.74 V
Temperature: 3.5°C
02251 - Heater Unit Locked
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 152738 km
Time Indication: 0
Date: 2038.14.28
Time: 07:36:11
Freeze Frame:
Malfunction
Temperature: 52.0°C
Voltage: 14.14 V
Temperature: 3.0°C
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: None
Part No SW: 7E0 909 901 HW: 7E0 937 089
Component: GW-K-CAN TP20 H80 0733
Revision: BB080001
Coding: 742201
Shop #: WSC 54321 123 12345
VCID: E8DFDE2B1B86805EBC3-80BD
3 Faults Found:
03075 - Parallel Parking Assistance Control Module (J791)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 7
Mileage: 157275 km
Time Indication: 0
Date: 2040.14.27
Time: 00:04:04
03406 - Control Module for Battery Monitoring
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 5
Reset counter: 7
Mileage: 157275 km
Time Indication: 0
Date: 2040.14.27
Time: 00:01:01
03158 - Control Module for Information Electronics 1 (J794)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 7
Mileage: 157275 km
Time Indication: 0
Date: 2040.14.27
Time: 00:04:08
-------------------------------------------------------------------------------
Address 22: AWD Labels: None
Part No SW: 2H0 927 755 B HW: 2H0 927 755 B
Component: SG offroad VTG 0153
Revision: 00H06000 Serial number: T1IYC238033M6Z
Coding: 0000013
Shop #: WSC 131071 1023 2097151
VCID: 2F6DF537BEE897663D9-807A
1 Fault Found:
02046 - LED for Low Range in Control Head for Transfer Case
011 - Open Circuit - Intermittent - MIL ON
Freeze Frame:
Fault Status: 00000000
Fault Priority: 2
Fault Frequency: 48
Reset counter: 43
Mileage: 86 km
Time Indication: 2
Freeze Frame:
Raw, Index/Key Err.: 255 000 007
Pressure: 0.0 bar
Speed: 0.0 km/h
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels: 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0304
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03008
ROD: EV_Immo_UDS_VDD_RM09_VN35.rod
VCID: EADBA4230D8AB24EAA7-80BF
No fault code found.
-------------------------------------------------------------------------------
Address 32: Differential Locks
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr.
Cannot be reached
-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels: None
Part No SW: 7E0 907 534 HW: 7E0 937 089
Component: Batt.regelung H80 0733
Serial number: 0772 272140014
Coding: 33030873
Shop #: WSC 01608 111 28888
VCID: E8DFDE2B1B86805EBC3-80BD
2 Faults Found:
00458 - Control Module for Battery Monitoring (J367)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 7
Mileage: 157275 km
Time Indication: 0
Date: 2040.14.27
Time: 00:00:60
02252 - Generator
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 7
Mileage: 157275 km
Time Indication: 0
Date: 2040.14.27
Time: 00:01:01
-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels: 1K0-907-383-MY8.lbl
Part No SW: 1K0 907 383 F HW: 1K0 907 383 F
Component: Anhaenger H09 0100
Revision: 3A001001 Serial number: 00000143464994
Coding: 0100000100000000
Shop #: WSC 00000 000 00000
VCID: 306FF64B63D6889E243-8065
No fault code found.
End ---------------------------------------------------------------------
-
Cornelgligor
- New
- Posts: 3
- Joined: Wed May 06, 2020 11:52 pm
- Drives: Polo
- Location: Sibiu
Re: Amarok Oem Bixenon retrofit
Hi
I solved the case
Moved t17/7 to t73b/52 and it’s all working now
I solved the case
Moved t17/7 to t73b/52 and it’s all working now
Re: Amarok Oem Bixenon retrofit
Sorry to hijack the thread but was the facelift bumper swap straight forward? What parts did you need apart from the new bumper itself?
Thanks
Lewis
Thanks
Lewis
-
lindbeckmathias
- New
- Posts: 2
- Joined: Fri Oct 14, 2022 12:37 am
- Drives: Amarok
- Location: Curitiba
Re: Amarok Oem Bixenon retrofit
Hi, I recently registered on the forum. I would like to congratulate and thank you, through your explanation I was able to do the retrofit without any difficulty.
I'm from Brazil, I have an Amarok 2018, Here when using the DRL (here for daytime use only), it is not necessary to turn on the taillights and license plate light.
Can you tell me how to make it so that when the ignition is on, only the DRL works?
For current, turn on the DRL + taillights and the license plate light.
Thanks.
I'm from Brazil, I have an Amarok 2018, Here when using the DRL (here for daytime use only), it is not necessary to turn on the taillights and license plate light.
Can you tell me how to make it so that when the ignition is on, only the DRL works?
For current, turn on the DRL + taillights and the license plate light.
Thanks.
-
ciclo
- Bling Bling Diamond Member
- Posts: 7842
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Amarok Oem Bixenon retrofit
Hi.lindbeckmathias wrote: ↑Fri Oct 14, 2022 1:41 am Hi,..
Can you tell me how to make it so that when the ignition is on, only the DRL works?
Thanks.
For DRLs (front only) it depends on the model of light switch and BCM your Amarok has factory installed:
- 17-pin light switch + BCM High.
- 10-pin light switch + BCM Max.
---
17-pin light switch:
Take the new 1.0mm2 power/supply wire from pin/slot 3 of the light switch connector, protect the new installation with a 15A fuse. From the fuse run the two new wires to your two new DRL's lamps.
Note:
With BCM High, it is also possible to have DRLs (physically, not electronically) by using factory installed lamps as DRLs without having to install new DRLs lamps.
Low Beam, High Beam, Front Fog lights as DRLs (light switch 0 position):
- Connect the Pin 3 of light switch connector to the wires (pre fuse) of these lamps with two new wires.
They will work like DRLs with a lower voltage, and will continue to do their job as usual.
The 17-pin light switch must have a specific VW reference to limit that voltage in the 0 position. (I no longer remember the VW reference)
I seem to remember that in the first 6R models (PQ25) that used DRLs with low BCMs or no BCM Max, which in turn was started the widespread use of DRLs, there was also an interleaved diode to avoid unnecessary feeding with 'normal' light switches.
---
10-pin light switch: BCM Max, electronically operated DRLs.
DRLs would already be installed from the factory.
---
Perhaps some of your doubts will be clarified by visualizing the following diagrams for POLO 6R 'PQ25':
https://drive.google.com/drive/folders/ ... sp=sharing
Note:
5 is the way to use the lamps already installed from the factory.
-
lindbeckmathias
- New
- Posts: 2
- Joined: Fri Oct 14, 2022 12:37 am
- Drives: Amarok
- Location: Curitiba
Re: Amarok Oem Bixenon retrofit
Hi,
My light switch is 10-pin
My BCM is N° de Peça SW: 7E0 937 089 B HW: 7E0 937 089 B - BCM PQ25 MMI4 H82 0752
My Vehicle did not have the T10/10 headlight connector to T73b/5 BCM and T10/10 headlight connector to T73b/6 BCM, After installing the wires and putting the settings below, everything worked perfectly.
Byte11, bit0 needs to be a 1
Byte12, bit0 needs to be a 1
Byte22, bit4 needs to be a 1
Byte18, needs to have a hex value of 67
In this moment if Key light switch is OFF (Zero) and ignition turn on, the front DRL and the taillights and license plate light, working without errors or problems.
My doubt is, through VCDS, I can change code for to keep DRL ON and taillights OFF and license plate light OFF, com Key light switch is OFF (Zero) and ignition turn on?
Thanks for your attention, and below the LOG if necessary.
I would love to understand the logic of BCM coding, is there a manual where I can learn it?
LOG Actual:
-------------------------------------------------------------------------------
Endereço 09: Central elétrica (J519) Etiquetas:. PTT\7E0-937-BCM-V1.clb
N° de Peça SW: 7E0 937 089 B HW: 7E0 937 089 B
Componente: BCM PQ25 MMI4 H82 0752
Versão: BB082001 N° de Serie: 58217074182761
Codificação: 3C0002280CA11480123808C12D4B84C5F02067F060C3187C370040820803
Nº Oficina: WSC 00059 790 00055
VCID: 3261470A6D2F8814C6-8066
Subsistema 1 - N° de Peça SW: 6R0 959 801 CN HW: 6R0 959 801 CN Etiquetas: PTT\6R0-959-801.CLB
Componente: J386__TSG_FT 022 1323
N° de Serie: 13102705180112021504
Codificação: 000000
Subsistema 2 - N° de Peça SW: 6R0 959 802 CT HW: 6R0 959 802 CT Etiquetas: PTT\6R0-959-802.CLB
Componente: J387__TSG_BT 022 1323
N° de Serie: 13102704180116173742
Codificação: 000000
Subsistema 3 - N° de Peça: 5C0 951 171
Componente: Sensor, DWA 0 005 0502
Codificação: 000000
Subsistema 4 - N° de Peça: 5C0 951 171
Componente: Sensor, DWA 0 005 0502
Codificação: 000000
Subsistema 5 - N° de Peça SW: 2H0 959 442 HW: 2H0 959 442
Componente: E221__MFL-DC1 H01 0103
N° de Serie: 27140001987420114325
Codificação: A4FFFF
Subsistema 6 - N° de Peça SW: 6R0 959 811 P HW: 6R0 959 811 P
Componente: J388__TSG_HL 022 1323
N° de Serie: 13202709180108072802
Codificação: 000000
Subsistema 7 - N° de Peça SW: 6R0 959 812 P HW: 6R0 959 812 P
Componente: J389__TSG_HR 022 1323
N° de Serie: 13102708171219005237
Codificação: 000000
My light switch is 10-pin
My BCM is N° de Peça SW: 7E0 937 089 B HW: 7E0 937 089 B - BCM PQ25 MMI4 H82 0752
My Vehicle did not have the T10/10 headlight connector to T73b/5 BCM and T10/10 headlight connector to T73b/6 BCM, After installing the wires and putting the settings below, everything worked perfectly.
Byte11, bit0 needs to be a 1
Byte12, bit0 needs to be a 1
Byte22, bit4 needs to be a 1
Byte18, needs to have a hex value of 67
In this moment if Key light switch is OFF (Zero) and ignition turn on, the front DRL and the taillights and license plate light, working without errors or problems.
My doubt is, through VCDS, I can change code for to keep DRL ON and taillights OFF and license plate light OFF, com Key light switch is OFF (Zero) and ignition turn on?
Thanks for your attention, and below the LOG if necessary.
I would love to understand the logic of BCM coding, is there a manual where I can learn it?
LOG Actual:
-------------------------------------------------------------------------------
Endereço 09: Central elétrica (J519) Etiquetas:. PTT\7E0-937-BCM-V1.clb
N° de Peça SW: 7E0 937 089 B HW: 7E0 937 089 B
Componente: BCM PQ25 MMI4 H82 0752
Versão: BB082001 N° de Serie: 58217074182761
Codificação: 3C0002280CA11480123808C12D4B84C5F02067F060C3187C370040820803
Nº Oficina: WSC 00059 790 00055
VCID: 3261470A6D2F8814C6-8066
Subsistema 1 - N° de Peça SW: 6R0 959 801 CN HW: 6R0 959 801 CN Etiquetas: PTT\6R0-959-801.CLB
Componente: J386__TSG_FT 022 1323
N° de Serie: 13102705180112021504
Codificação: 000000
Subsistema 2 - N° de Peça SW: 6R0 959 802 CT HW: 6R0 959 802 CT Etiquetas: PTT\6R0-959-802.CLB
Componente: J387__TSG_BT 022 1323
N° de Serie: 13102704180116173742
Codificação: 000000
Subsistema 3 - N° de Peça: 5C0 951 171
Componente: Sensor, DWA 0 005 0502
Codificação: 000000
Subsistema 4 - N° de Peça: 5C0 951 171
Componente: Sensor, DWA 0 005 0502
Codificação: 000000
Subsistema 5 - N° de Peça SW: 2H0 959 442 HW: 2H0 959 442
Componente: E221__MFL-DC1 H01 0103
N° de Serie: 27140001987420114325
Codificação: A4FFFF
Subsistema 6 - N° de Peça SW: 6R0 959 811 P HW: 6R0 959 811 P
Componente: J388__TSG_HL 022 1323
N° de Serie: 13202709180108072802
Codificação: 000000
Subsistema 7 - N° de Peça SW: 6R0 959 812 P HW: 6R0 959 812 P
Componente: J389__TSG_HR 022 1323
N° de Serie: 13102708171219005237
Codificação: 000000
