I've made a topic about it, it's for the voltmeter. Thanks you so much for the guide on how to retrofit electric mirrors, works perfect!
:DRLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Hey ciclo,
I also need help and unfortunately can not contact you otherwise. I have already asked for help in the Seat Ibiza area but there is not much going on there.
I have retrofitted the rain / light sensor and also wanted to retrofit LH / CH.
I'm not sure if my cabling is correct and how to code correct.
Would be great if you could help me.
I also need help and unfortunately can not contact you otherwise. I have already asked for help in the Seat Ibiza area but there is not much going on there.
I have retrofitted the rain / light sensor and also wanted to retrofit LH / CH.
I'm not sure if my cabling is correct and how to code correct.
Would be great if you could help me.
-
ciclo
- Bling Bling Diamond Member
- Posts: 7842
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Hi Skyscript, I can help you with the BCM Max coding, I can not help you with configuring the cabling so that everything works correctly (I ended up exhausted explaining it thousands of times - forum, e-mail, PMs -, without success on many occasions).
I am truly sorry ... I repeat it, I am truly sorry.
You need the Elsawin to study and compare the necessary wiring for a BCM Max with respect to the original one that installs your Seat Ibiza.
If you ask specific questions, I will answer them.
I am truly sorry ... I repeat it, I am truly sorry.
You need the Elsawin to study and compare the necessary wiring for a BCM Max with respect to the original one that installs your Seat Ibiza.
If you ask specific questions, I will answer them.
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Hey
Thank you for your answer. No problem.
I do not want someone to do all the work for me. I want to understand it and learn from it.
I have already studied and compared the wiring with the help of Elsawin several times.
I'm pretty sure that my wiring is correct.
I have already explained in the Ibiza area what I did and described my current problems.
Should I do it here again?
greetings Skyscript
Thank you for your answer. No problem.
I do not want someone to do all the work for me. I want to understand it and learn from it.
I have already studied and compared the wiring with the help of Elsawin several times.
I'm pretty sure that my wiring is correct.
I have already explained in the Ibiza area what I did and described my current problems.
Should I do it here again?
greetings Skyscript
-
Jerryncg93
- New
- Posts: 24
- Joined: Mon Dec 03, 2018 8:57 am
- Drives: Volkswagen Vento 1.2 tsi
- Location: Kuala Lumpur, Malaysia
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Hi guys, need help.

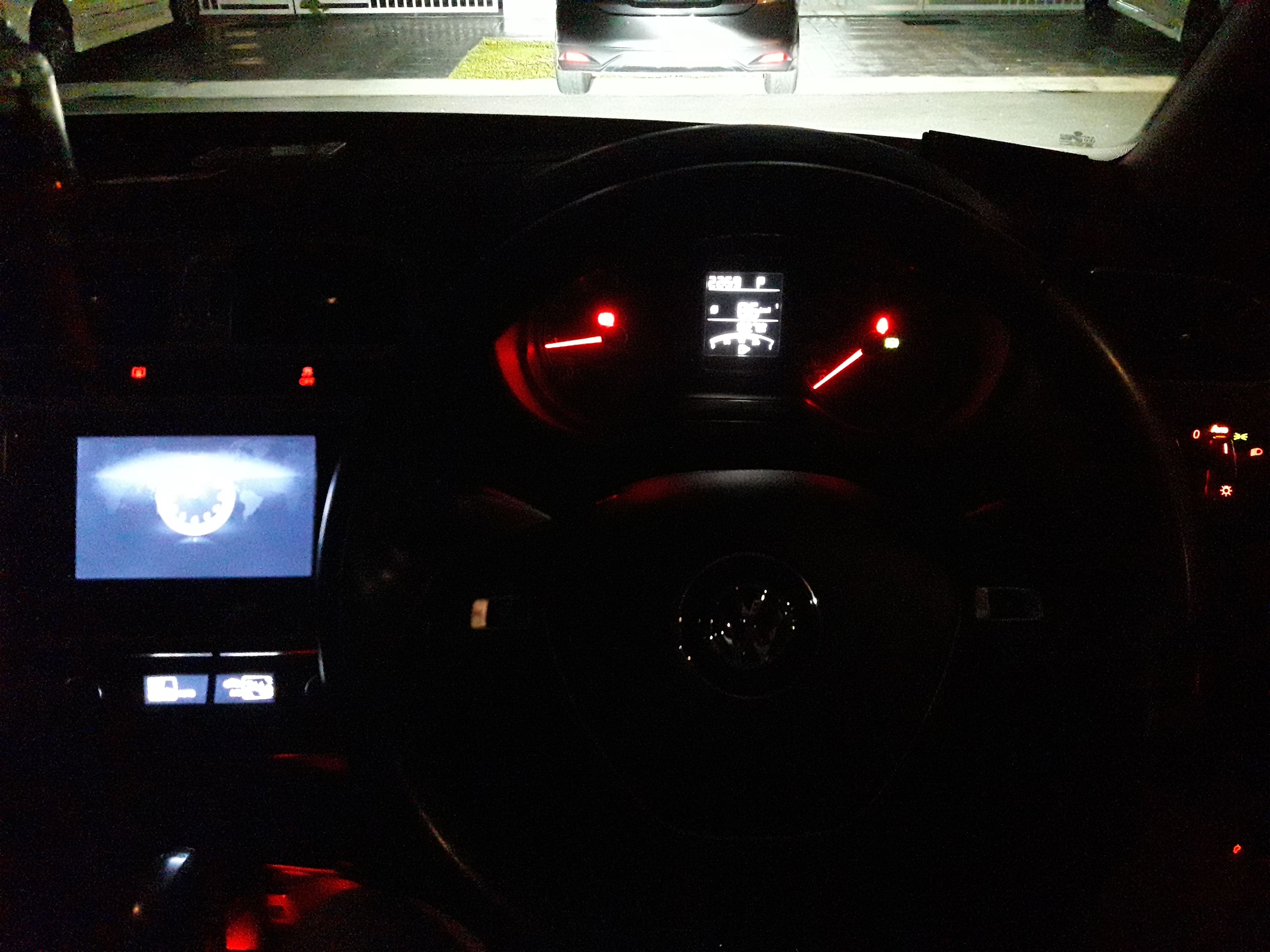

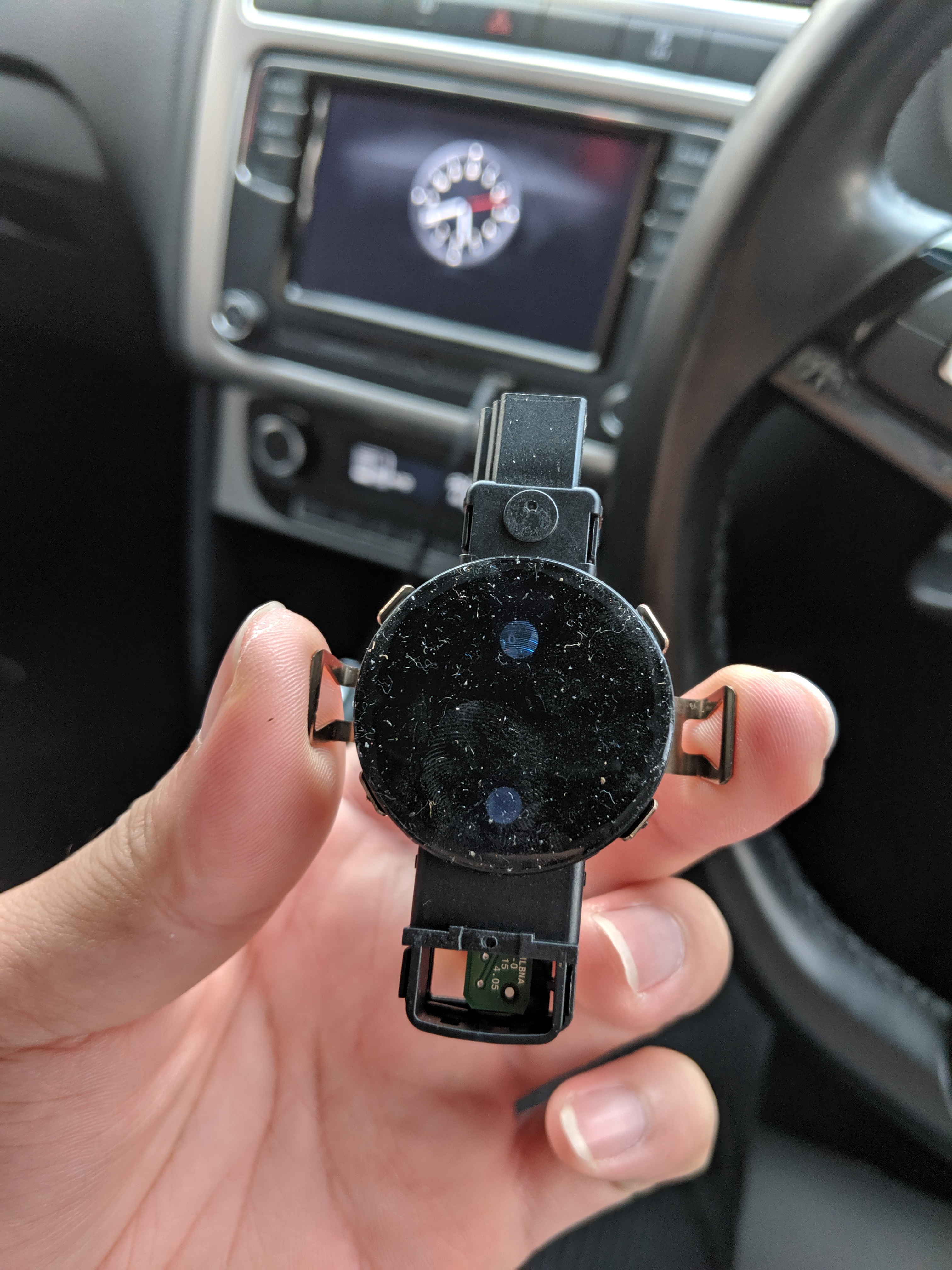

I have just installed the RLS on my car, everything is working except the auto headlight. Headlamp is working under AUTO mode, however all other ignition light on steering wheels and other places are not working. See photo below,

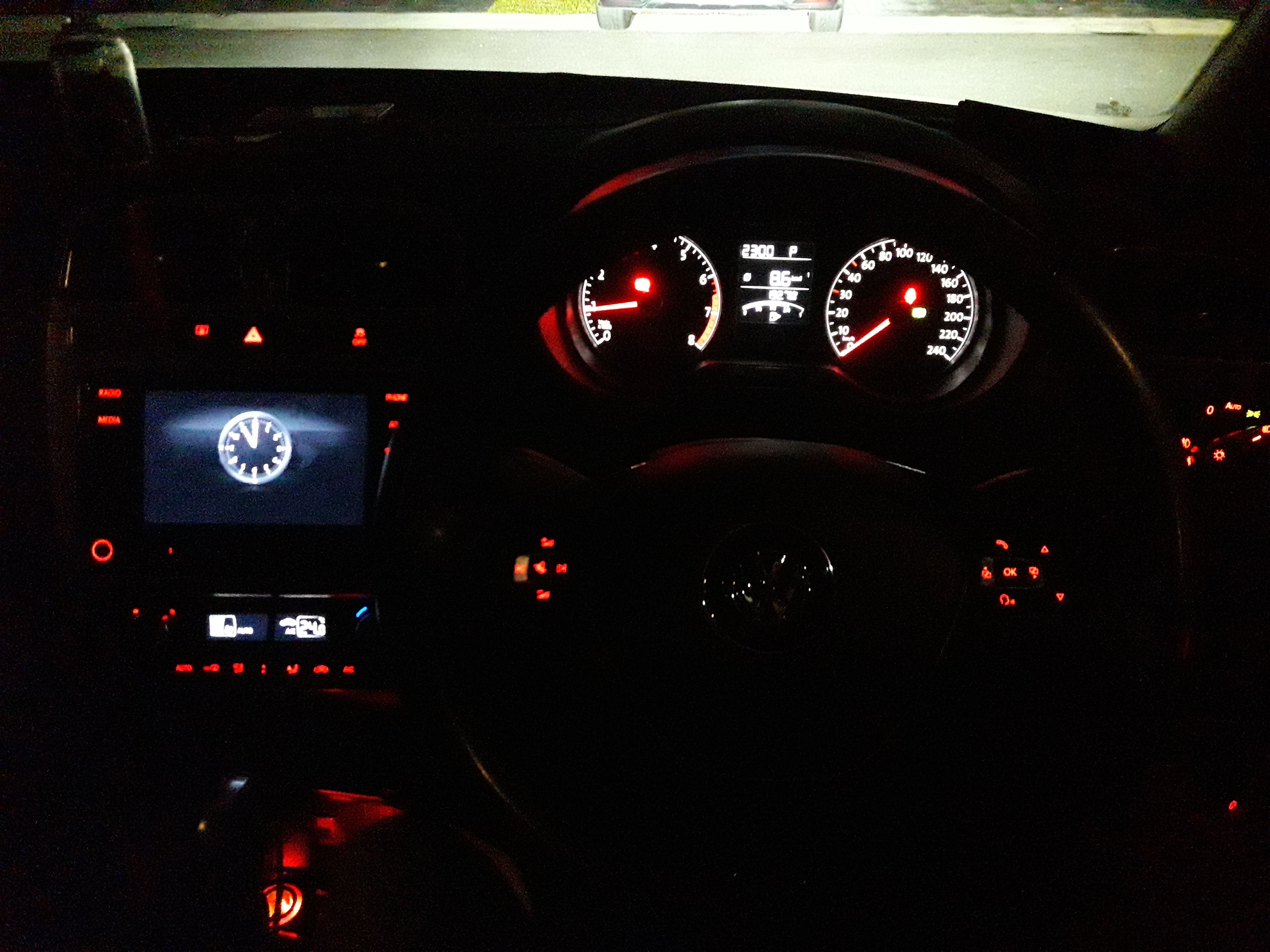

When using manual switch to turn on the lights, all lights are working fine.
Furthermore, I have did a scan through with VCDS, below is my report, please advice me what is wrong with my vehicle.
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: Malfunction 0010
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: Malfunction 0010
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB) Labels:. 03F-906-070-CBZ.clb
Part No SW: 03F 906 070 KC HW: 03F 907 309 AJ
Component: SIMOS10.22AH10 6270
Revision: --H10--- Serial number:
Coding: 00250056232400080000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_ECM12TFS02103F906070KC 004006
ROD: EV_ECM12TFS02103F906070FP.rod
VCID: 6DD1F044BC0834220E-8038
No fault code found.
Readiness: 0010 0101
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 065 T HW: 0AM 927 769 F
Component: GSG DQ200G2_PQ 052 2501
Revision: 00005026 Serial number: CU501610166993
Coding: 0000020
Shop #: WSC 83300 833 00019
VCID: 408F79F0131A094A95-8014
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP90.clb
Part No SW: 6R0 907 379 BN HW: 6R0 907 379 AS
Component: ESP9.0i front H03 0001
Serial number: --------------
Coding: 62DD2C63412307C0461A34728252E0800908
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
VCID: 0B159EDCA2DC9A12B0-805E
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 19101613471225
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3C708E16EBFBAA7-802A
3 Faults Found:
332644 - Databus
U1121 00 [008] - Missing Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Voltage terminal 15: 12.20 V
Voltage terminal 30: 5.00 V
Terminal 15 status: not coded/not installed
Entprellzeit: 5000 ms
332660 - Databus
U1121 00 [008] - Missing Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Voltage terminal 15: 12.30 V
Voltage terminal 30: 5.00 V
Terminal 15 status: not coded/not installed
117060 - Databus
U1121 00 [008] - Missing Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Voltage terminal 15: 12.30 V
Voltage terminal 30: 5.00 V
Terminal 15 status: not coded/not installed
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6R0-907-044.clb
Part No SW: 6R0 907 044 Q HW: 6R0 907 044 Q
Component: Climatronic H12 0615
Revision: V0000000
VCID: 41897CF4D81000429A-8014
3 Faults Found:
00457 - Control Module for Network (J519)
013 - Check DTC Memory - Intermittent
Freeze Frame:
Fault Status: 00101101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:06:53
00457 - Control Module for Network (J519)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:23:16
01299 - Diagnostic Interface for Data Bus (J533)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:23:16
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 089 A HW: 7E0 937 089
Component: BCM PQ25 MMI4 H81 0744
Revision: BB081001 Serial number: 0972 249160236
Coding: 3B904BBF48A12400133806007CEB969000C0604F60C53970210000000820
Shop #: WSC 83300 833 00019
VCID: 31692C3468B090C26A-8064

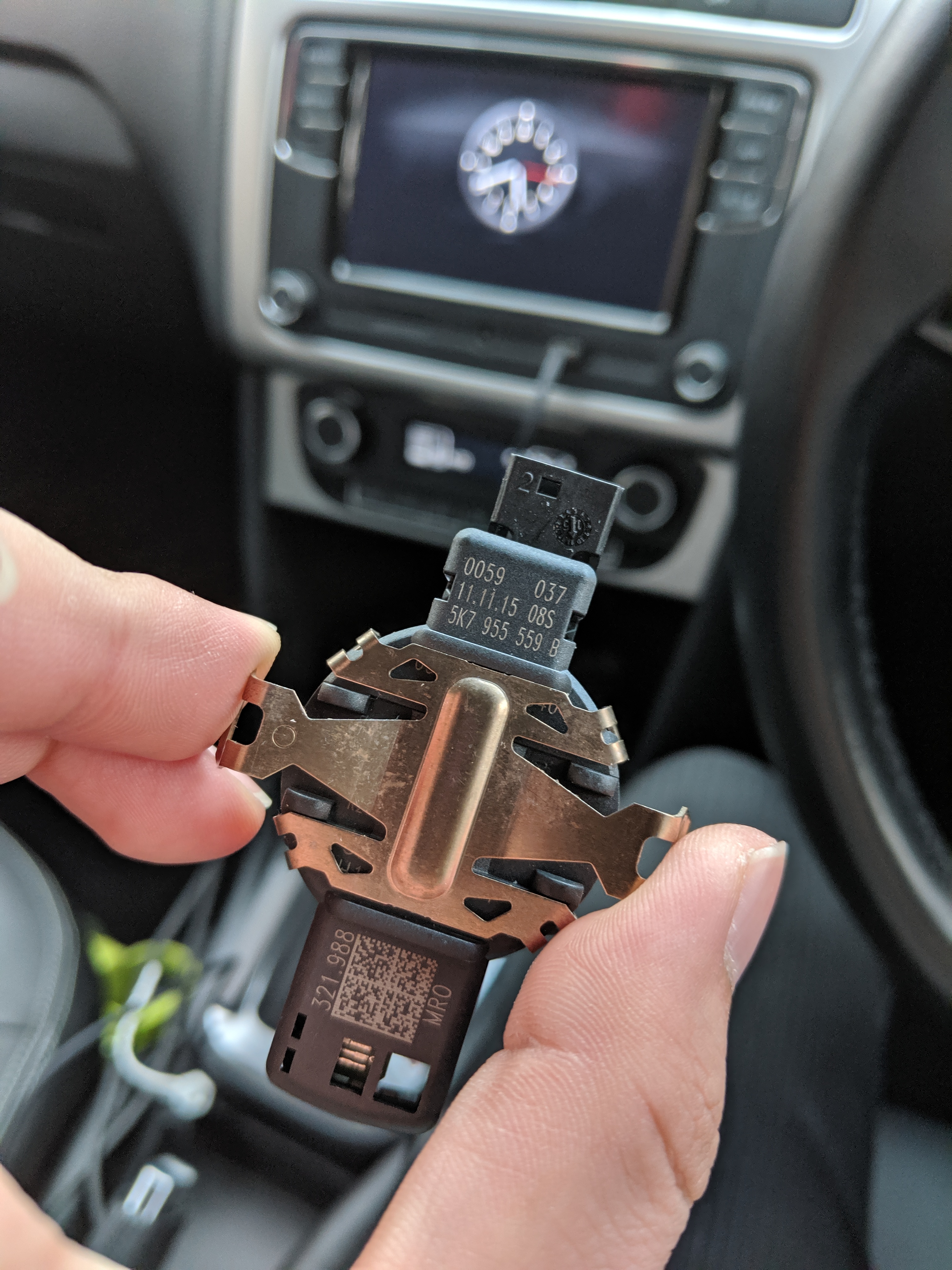

Subsystem 1 - Part No: 5K7 955 547
Component: RLHS 300518 0 50 0107
Coding: 030AAD
Subsystem 2 - Part No SW: 6R0 959 802 DF HW: 6R0 959 802 DF Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 022 1522
Serial number: 13102722161128150914
Coding: 000000
Subsystem 3 - Part No SW: 6R0 959 801 DD HW: 6R0 959 801 DD Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 022 1522
Serial number: 13102723161128100109
Coding: 000000
Subsystem 4 - Part No: 6RU 951 171
Component: Sensor, DWA 0 005 0502
Coding: 000000
Subsystem 5 - Part No: 6RU 951 171
Component: Sensor, DWA 0 005 0502
Coding: 000000
Subsystem 6 - Part No SW: 6C0 959 442 HW: 6C0 959 442
Component: E221__MFL-TAT H06 0023
Serial number: 3141607500501037AB2B
Coding: 240000
Subsystem 7 - Part No SW: 6R0 959 811 S HW: 6R0 959 811 S
Component: J388__TSG_HL 022 1522
Serial number: 13102728161128145629
Coding: 000000
Subsystem 8 - Part No SW: 6R0 959 812 S HW: 6R0 959 812 S
Component: J389__TSG_HR 022 1522
Serial number: 13102729161121011402
Coding: 000000
6 Faults Found:
00532 - Supply Voltage B+
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 2
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:26:45
03156 - Sensor for Anti-Theft System (G578)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:08:04
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 3
Reset counter: 255
Time Indication: 0
01800 - Light Switch (E1)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:44:47
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:08:00
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 40
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:08:00
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagU0E H10 0020
Revision: -------- Serial number: 003GX02BDKZ4
Coding: 003045
Shop #: WSC 83300 833 00007
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B5BD8ED26C31A4B-801E
Crash sensor for side airbag: driver side:
Serial number: 3495RRB40185735IJHJK
Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40185735IA9R3
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 6RF 920 861 B HW: 6RF 920 861 B
Component: KOMBI H01 0215
Serial number: 00000000000000
Coding: 140A000000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05729
ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
VCID: 4A9B5BD8ED26C31A4B-801E
1 Fault Found:
12605440 - Databus
U1201 00 [008] - No Communications
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Date: 2016.04.06
Time: 13:23:16
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 089
Component: GW-K-CAN TP20 H81 0744
Revision: BB081001
Coding: 002300
Shop #: WSC 83300 833 00019
VCID: 68DF81509BEA110A7D-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:26:45
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H01 0215
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADBFB588DE6231A6B-803E
1 Fault Found:
13762816 - Databus
U1201 00 [008] - No Communications
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Date: 2016.04.06
Time: 13:23:16
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 1Sx-909-144-44.clb
Part No SW: 1S2 909 144 P HW: 1S2 909 144 P
Component: EPS_ECU H61 1702
Coding: 0001000101000000
Shop #: WSC 83300 833 00009
ASAM Dataset: EV_SteerAssisNSK 014008
ROD: EV_SteerAssisNSK_014.rod
VCID: 41897CF4D01000429A-8014
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: --------------
Coding: 0D0E000001000000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: 3A7B0B18BDC6539ADB-806E
1 Fault Found:
5275220 - Headlight
C107E 54 [137] - Missing Calibration / Basic Setting
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 1
Reset counter: 61
Mileage: 30943 km
Date: 2016.04.06
Time: 22:50:18
-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 6RD 035 187 B HW: 6RD 035 187 B
Component: Radio 541 5515
Revision: -------- Serial number: VWZZZ4J6270757
Coding: 16000440040005
Shop #: WSC 12345 123 61029
VCID: 46836FE8F13E277AAF-8012
No fault code found.
End-------------------------(Elapsed Time: 03:06)--------------------------

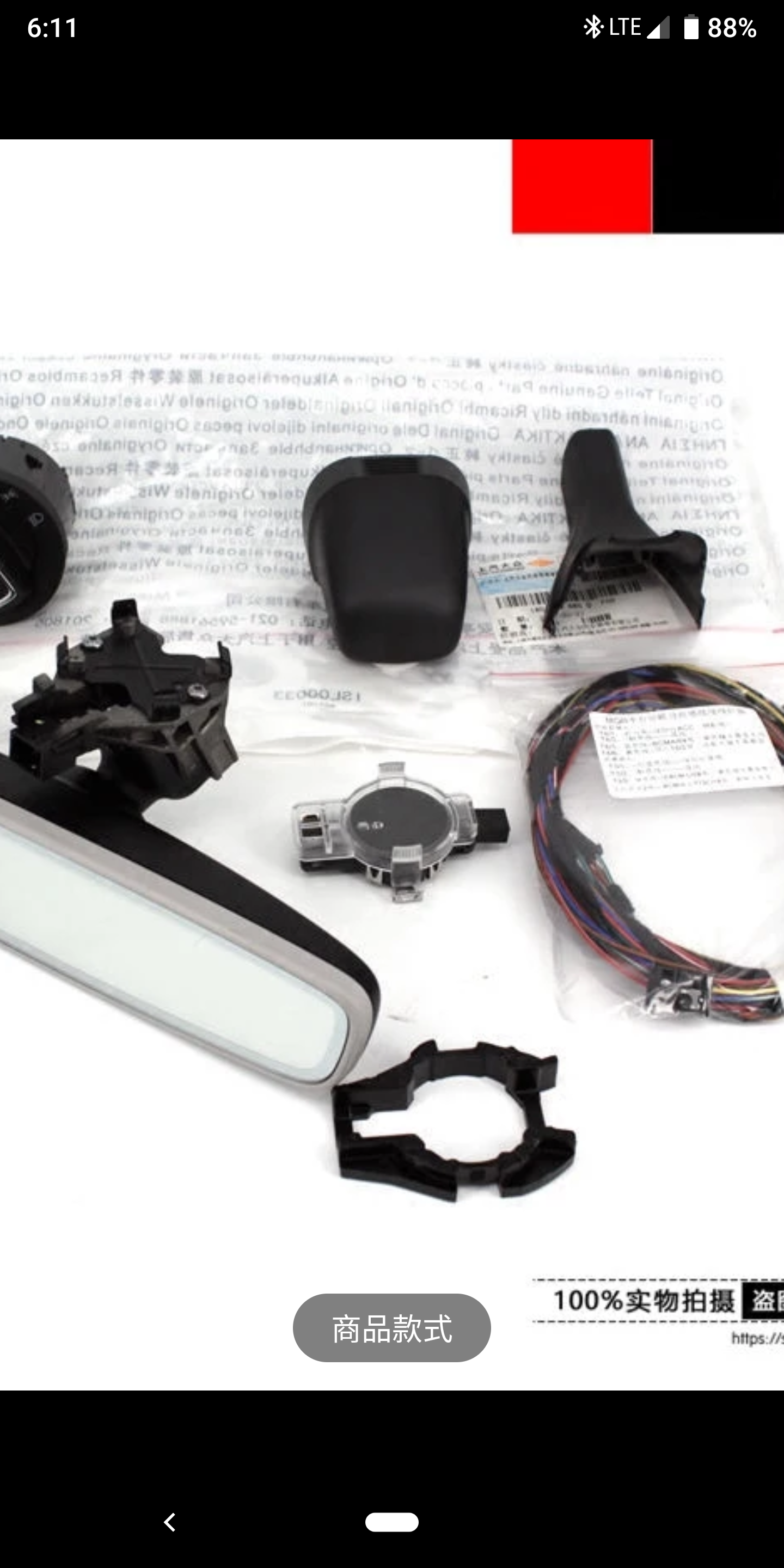

I have just installed the RLS on my car, everything is working except the auto headlight. Headlamp is working under AUTO mode, however all other ignition light on steering wheels and other places are not working. See photo below,
Furthermore, I have did a scan through with VCDS, below is my report, please advice me what is wrong with my vehicle.
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: Malfunction 0010
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: Malfunction 0010
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB) Labels:. 03F-906-070-CBZ.clb
Part No SW: 03F 906 070 KC HW: 03F 907 309 AJ
Component: SIMOS10.22AH10 6270
Revision: --H10--- Serial number:
Coding: 00250056232400080000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_ECM12TFS02103F906070KC 004006
ROD: EV_ECM12TFS02103F906070FP.rod
VCID: 6DD1F044BC0834220E-8038
No fault code found.
Readiness: 0010 0101
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 065 T HW: 0AM 927 769 F
Component: GSG DQ200G2_PQ 052 2501
Revision: 00005026 Serial number: CU501610166993
Coding: 0000020
Shop #: WSC 83300 833 00019
VCID: 408F79F0131A094A95-8014
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP90.clb
Part No SW: 6R0 907 379 BN HW: 6R0 907 379 AS
Component: ESP9.0i front H03 0001
Serial number: --------------
Coding: 62DD2C63412307C0461A34728252E0800908
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
VCID: 0B159EDCA2DC9A12B0-805E
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 19101613471225
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3C708E16EBFBAA7-802A
3 Faults Found:
332644 - Databus
U1121 00 [008] - Missing Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Voltage terminal 15: 12.20 V
Voltage terminal 30: 5.00 V
Terminal 15 status: not coded/not installed
Entprellzeit: 5000 ms
332660 - Databus
U1121 00 [008] - Missing Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Voltage terminal 15: 12.30 V
Voltage terminal 30: 5.00 V
Terminal 15 status: not coded/not installed
117060 - Databus
U1121 00 [008] - Missing Message
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Voltage terminal 15: 12.30 V
Voltage terminal 30: 5.00 V
Terminal 15 status: not coded/not installed
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6R0-907-044.clb
Part No SW: 6R0 907 044 Q HW: 6R0 907 044 Q
Component: Climatronic H12 0615
Revision: V0000000
VCID: 41897CF4D81000429A-8014
3 Faults Found:
00457 - Control Module for Network (J519)
013 - Check DTC Memory - Intermittent
Freeze Frame:
Fault Status: 00101101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:06:53
00457 - Control Module for Network (J519)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:23:16
01299 - Diagnostic Interface for Data Bus (J533)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:23:16
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 089 A HW: 7E0 937 089
Component: BCM PQ25 MMI4 H81 0744
Revision: BB081001 Serial number: 0972 249160236
Coding: 3B904BBF48A12400133806007CEB969000C0604F60C53970210000000820
Shop #: WSC 83300 833 00019
VCID: 31692C3468B090C26A-8064
Subsystem 1 - Part No: 5K7 955 547
Component: RLHS 300518 0 50 0107
Coding: 030AAD
Subsystem 2 - Part No SW: 6R0 959 802 DF HW: 6R0 959 802 DF Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 022 1522
Serial number: 13102722161128150914
Coding: 000000
Subsystem 3 - Part No SW: 6R0 959 801 DD HW: 6R0 959 801 DD Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 022 1522
Serial number: 13102723161128100109
Coding: 000000
Subsystem 4 - Part No: 6RU 951 171
Component: Sensor, DWA 0 005 0502
Coding: 000000
Subsystem 5 - Part No: 6RU 951 171
Component: Sensor, DWA 0 005 0502
Coding: 000000
Subsystem 6 - Part No SW: 6C0 959 442 HW: 6C0 959 442
Component: E221__MFL-TAT H06 0023
Serial number: 3141607500501037AB2B
Coding: 240000
Subsystem 7 - Part No SW: 6R0 959 811 S HW: 6R0 959 811 S
Component: J388__TSG_HL 022 1522
Serial number: 13102728161128145629
Coding: 000000
Subsystem 8 - Part No SW: 6R0 959 812 S HW: 6R0 959 812 S
Component: J389__TSG_HR 022 1522
Serial number: 13102729161121011402
Coding: 000000
6 Faults Found:
00532 - Supply Voltage B+
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 2
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:26:45
03156 - Sensor for Anti-Theft System (G578)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:08:04
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 3
Reset counter: 255
Time Indication: 0
01800 - Light Switch (E1)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:44:47
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:08:00
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 40
Reset counter: 99
Mileage: 30778 km
Time Indication: 0
Date: 2016.04.04
Time: 03:08:00
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagU0E H10 0020
Revision: -------- Serial number: 003GX02BDKZ4
Coding: 003045
Shop #: WSC 83300 833 00007
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B5BD8ED26C31A4B-801E
Crash sensor for side airbag: driver side:
Serial number: 3495RRB40185735IJHJK
Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40185735IA9R3
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 6RF 920 861 B HW: 6RF 920 861 B
Component: KOMBI H01 0215
Serial number: 00000000000000
Coding: 140A000000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05729
ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
VCID: 4A9B5BD8ED26C31A4B-801E
1 Fault Found:
12605440 - Databus
U1201 00 [008] - No Communications
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Date: 2016.04.06
Time: 13:23:16
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 089
Component: GW-K-CAN TP20 H81 0744
Revision: BB081001
Coding: 002300
Shop #: WSC 83300 833 00019
VCID: 68DF81509BEA110A7D-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 30912 km
Time Indication: 0
Date: 2016.04.06
Time: 13:26:45
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H01 0215
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADBFB588DE6231A6B-803E
1 Fault Found:
13762816 - Databus
U1201 00 [008] - No Communications
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 99
Mileage: 30912 km
Date: 2016.04.06
Time: 13:23:16
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 1Sx-909-144-44.clb
Part No SW: 1S2 909 144 P HW: 1S2 909 144 P
Component: EPS_ECU H61 1702
Coding: 0001000101000000
Shop #: WSC 83300 833 00009
ASAM Dataset: EV_SteerAssisNSK 014008
ROD: EV_SteerAssisNSK_014.rod
VCID: 41897CF4D01000429A-8014
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: --------------
Coding: 0D0E000001000000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: 3A7B0B18BDC6539ADB-806E
1 Fault Found:
5275220 - Headlight
C107E 54 [137] - Missing Calibration / Basic Setting
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 1
Reset counter: 61
Mileage: 30943 km
Date: 2016.04.06
Time: 22:50:18
-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 6RD 035 187 B HW: 6RD 035 187 B
Component: Radio 541 5515
Revision: -------- Serial number: VWZZZ4J6270757
Coding: 16000440040005
Shop #: WSC 12345 123 61029
VCID: 46836FE8F13E277AAF-8012
No fault code found.
End-------------------------(Elapsed Time: 03:06)--------------------------
-
iichel
- Bling Bling Diamond Member
- Posts: 6405
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Can you clear all errors and make a new scan? Paste the full scan please, with header/current mileage please.
What wiring harness do you have for the auto lights? Was the BCM 7E0 standard or retrofitted?
What wiring harness do you have for the auto lights? Was the BCM 7E0 standard or retrofitted?
-
ciclo
- Bling Bling Diamond Member
- Posts: 7842
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
It seems to be a VW Vento with LED headlights from the factory and therefore the BCM Max too.
Waiting for the answer to iichel's questions. (especially that of the wiring for Auto lights...)
Waiting for the answer to iichel's questions. (especially that of the wiring for Auto lights...)
-
Jerryncg93
- New
- Posts: 24
- Joined: Mon Dec 03, 2018 8:57 am
- Drives: Volkswagen Vento 1.2 tsi
- Location: Kuala Lumpur, Malaysia
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Hi, my car is VW Vento 1.2 tsi, with factory LED headlamp and BCM 089A.
Please find report as below,
Please find report as below,
Code: Select all
Thursday,20,June,2019,15:39:58:39370
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 18.9.0.2 (x64)
Data version: 20180927 DS296.0
www.Ross-Tech.com
VIN: PPVZZZ60ZHL000691 License Plate:
Chassis Type: 60-VW25 (7E0)
Scan: 01 02 03 04 08 09 15 17 19 25 44 55 56
VIN: PPVZZZ60ZHL000691 Mileage: 31190km-19380miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB) Labels:. 03F-906-070-CBZ.clb
Part No SW: 03F 906 070 KC HW: 03F 907 309 AJ
Component: SIMOS10.22AH10 6270
Revision: --H10--- Serial number:
Coding: 00250056232400080000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_ECM12TFS02103F906070KC 004006
ROD: EV_ECM12TFS02103F906070FP.rod
VCID: 6DD1F044BC0834220E-8038
No fault code found.
Readiness: 0110 0101
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 065 T HW: 0AM 927 769 F
Component: GSG DQ200G2_PQ 052 2501
Revision: 00005026 Serial number: CU501610166993
Coding: 0000020
Shop #: WSC 83300 833 00019
VCID: 408F79F0131A094A95-8014
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP90.clb
Part No SW: 6R0 907 379 BN HW: 6R0 907 379 AS
Component: ESP9.0i front H03 0001
Serial number: --------------
Coding: 62DD2C63412307C0461A34728252E0800908
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
VCID: 0B159EDCA2DC9A12B0-805E
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 19101613471225
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3C708E16EBFBAA7-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6R0-907-044.clb
Part No SW: 6R0 907 044 Q HW: 6R0 907 044 Q
Component: Climatronic H12 0615
Revision: V0000000
VCID: 41897CF4D81000429A-8014
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 089 A HW: 7E0 937 089
Component: BCM PQ25 MMI4 H81 0744
Revision: BB081001 Serial number: 0972 249160236
Coding: 3B904BBF08A12400133806007CEB969000C0604F60C53970210000000820
Shop #: WSC 83300 833 00019
VCID: 31692C3468B090C26A-8064
Subsystem 1 - Part No: 5K7 955 547
Component: RLHS 300518 0 50 0107
Coding: 030AAD
Subsystem 2 - Part No SW: 6R0 959 802 DF HW: 6R0 959 802 DF Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 022 1522
Serial number: 13102722161128150914
Coding: 000000
Subsystem 3 - Part No SW: 6R0 959 801 DD HW: 6R0 959 801 DD Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 022 1522
Serial number: 13102723161128100109
Coding: 000000
Subsystem 4 - Part No: 6RU 951 171
Component: Sensor, DWA 0 005 0502
Coding: 000000
Subsystem 5 - Part No: 6RU 951 171
Component: Sensor, DWA 0 005 0502
Coding: 000000
Subsystem 6 - Part No SW: 6C0 959 442 HW: 6C0 959 442
Component: E221__MFL-TAT H06 0023
Serial number: 3141607500501037AB2B
Coding: 240000
Subsystem 7 - Part No SW: 6R0 959 811 S HW: 6R0 959 811 S
Component: J388__TSG_HL 022 1522
Serial number: 13102728161128145629
Coding: 000000
Subsystem 8 - Part No SW: 6R0 959 812 S HW: 6R0 959 812 S
Component: J389__TSG_HR 022 1522
Serial number: 13102729161121011402
Coding: 000000
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 31190 km
Time Indication: 0
Date: 2016.04.08
Time: 15:36:41
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagU0E H10 0020
Revision: -------- Serial number: 003GX02BDKZ4
Coding: 003045
Shop #: WSC 83300 833 00007
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B5BD8ED26C31A4B-801E
Crash sensor for side airbag: driver side:
Serial number: 3495RRB40185735IJHJK
Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40185735IA9R3
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 6RF 920 861 B HW: 6RF 920 861 B
Component: KOMBI H01 0215
Serial number: 00000000000000
Coding: 140A000000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05729
ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
VCID: 4A9B5BD8ED26C31A4B-801E
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 089
Component: GW-K-CAN TP20 H81 0744
Revision: BB081001
Coding: 002300
Shop #: WSC 83300 833 00019
VCID: 68DF81509BEA110A7D-803C
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H01 0215
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADBFB588DE6231A6B-803E
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 1Sx-909-144-44.clb
Part No SW: 1S2 909 144 P HW: 1S2 909 144 P
Component: EPS_ECU H61 1702
Coding: 0001000101000000
Shop #: WSC 83300 833 00009
ASAM Dataset: EV_SteerAssisNSK 014008
ROD: EV_SteerAssisNSK_014.rod
VCID: 41897CF4D01000429A-8014
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: --------------
Coding: 0D0C000001000000
Shop #: WSC 83300 833 00019
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: 3A7B0B18BDC6539ADB-806E
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 6RD 035 187 B HW: 6RD 035 187 B
Component: Radio 541 5515
Revision: -------- Serial number: VWZZZ4J6270757
Coding: 16000440040005
Shop #: WSC 12345 123 61029
VCID: 46836FE8F13E277AAF-8012
No fault code found.
End-------------------------(Elapsed Time: 02:52)--------------------------
-
Jerryncg93
- New
- Posts: 24
- Joined: Mon Dec 03, 2018 8:57 am
- Drives: Volkswagen Vento 1.2 tsi
- Location: Kuala Lumpur, Malaysia
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Wiring for auto headlight and RLS as comment previously. The purple cable tap to pin 24 on BCM, red cable to fuse box, black to ground.
-
iichel
- Bling Bling Diamond Member
- Posts: 6405
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
Please tell about the wiring of the light switch. I believe you did the wiring for the RLS correctly.
Did your car have the 17 pin large connector for the headlight from factory? Or the small 10-pin?
Did you add any wiring to the BCM?
Is there a wire from T10/2 (light switch) to BCM T73a/37? (BCM black)
The coding for your automatic headlights seems to be just fine.
I'm not sure why your BCM is reporting an incorrect coding. Coding for the RLS seems to be fine, just as the any other devices on the LIN (doors, MFSW).
PS can you perhaps make a controller adaptation map of 09? Just to see what it looks like for factory LED headlights?
http://www.ross-tech.com/vcds/tour/cont ... ls-map.php
Did your car have the 17 pin large connector for the headlight from factory? Or the small 10-pin?
Did you add any wiring to the BCM?
Is there a wire from T10/2 (light switch) to BCM T73a/37? (BCM black)
The coding for your automatic headlights seems to be just fine.
I'm not sure why your BCM is reporting an incorrect coding. Coding for the RLS seems to be fine, just as the any other devices on the LIN (doors, MFSW).
PS can you perhaps make a controller adaptation map of 09? Just to see what it looks like for factory LED headlights?
http://www.ross-tech.com/vcds/tour/cont ... ls-map.php
-
Jerryncg93
- New
- Posts: 24
- Joined: Mon Dec 03, 2018 8:57 am
- Drives: Volkswagen Vento 1.2 tsi
- Location: Kuala Lumpur, Malaysia
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento

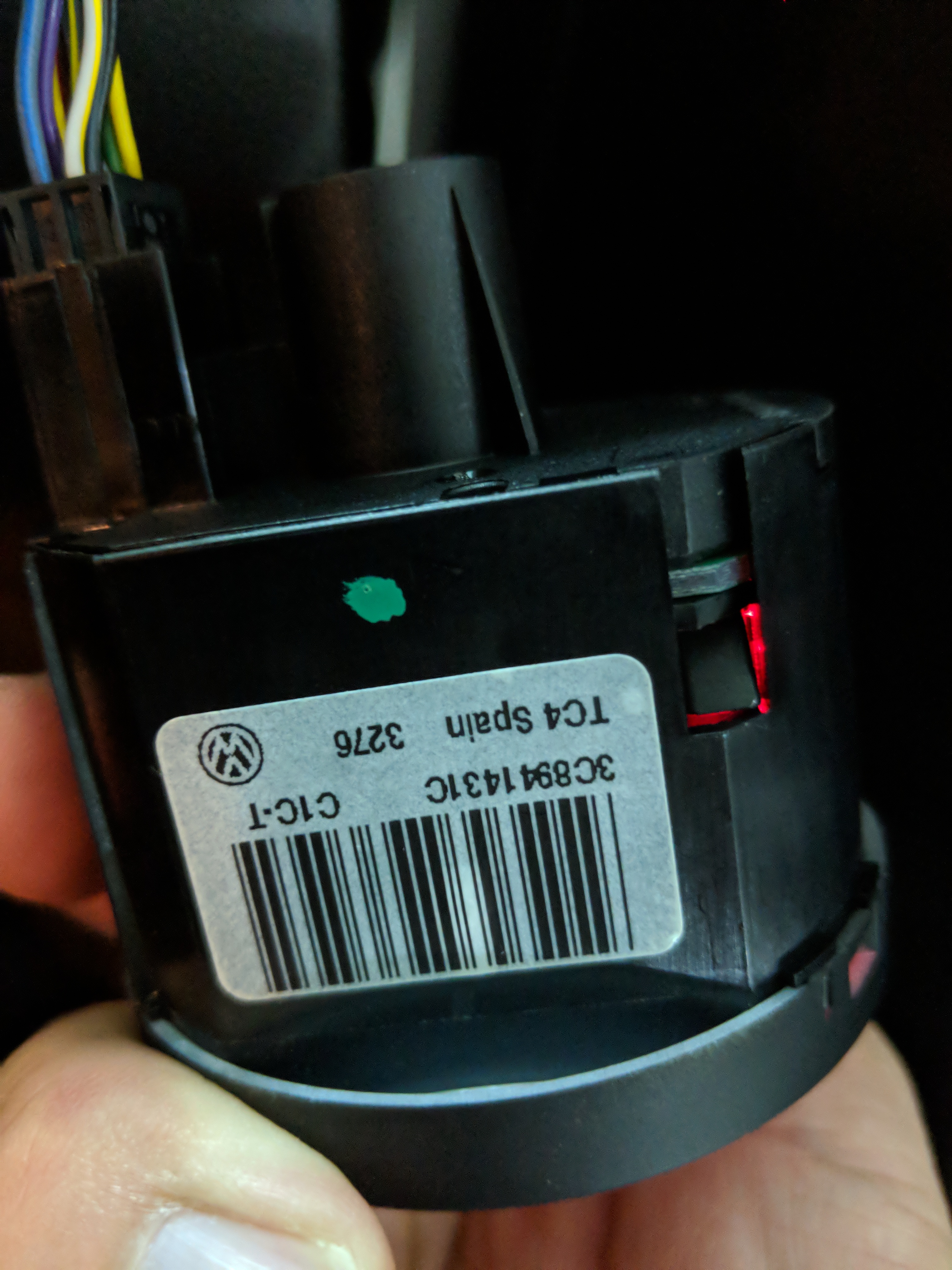

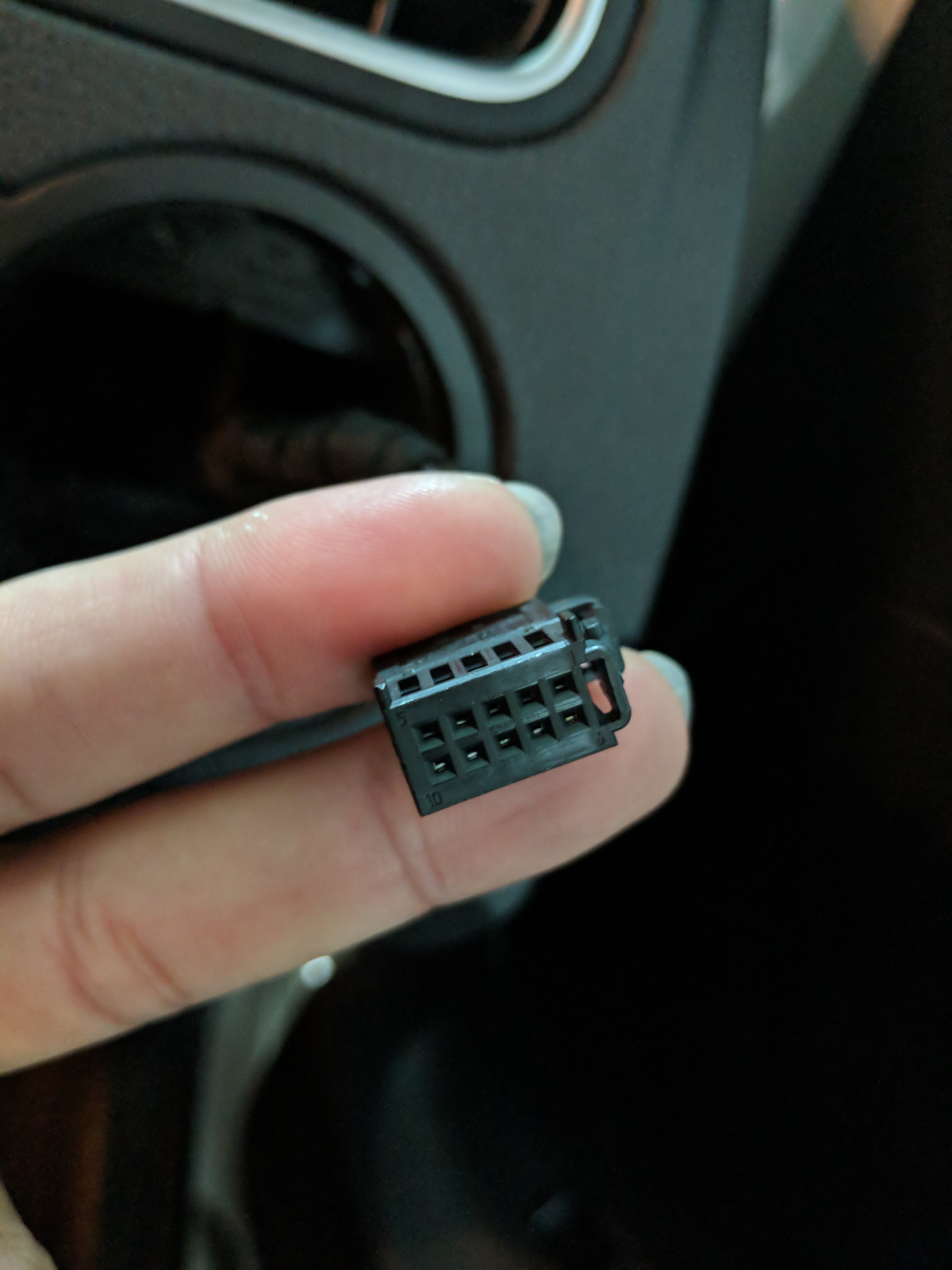

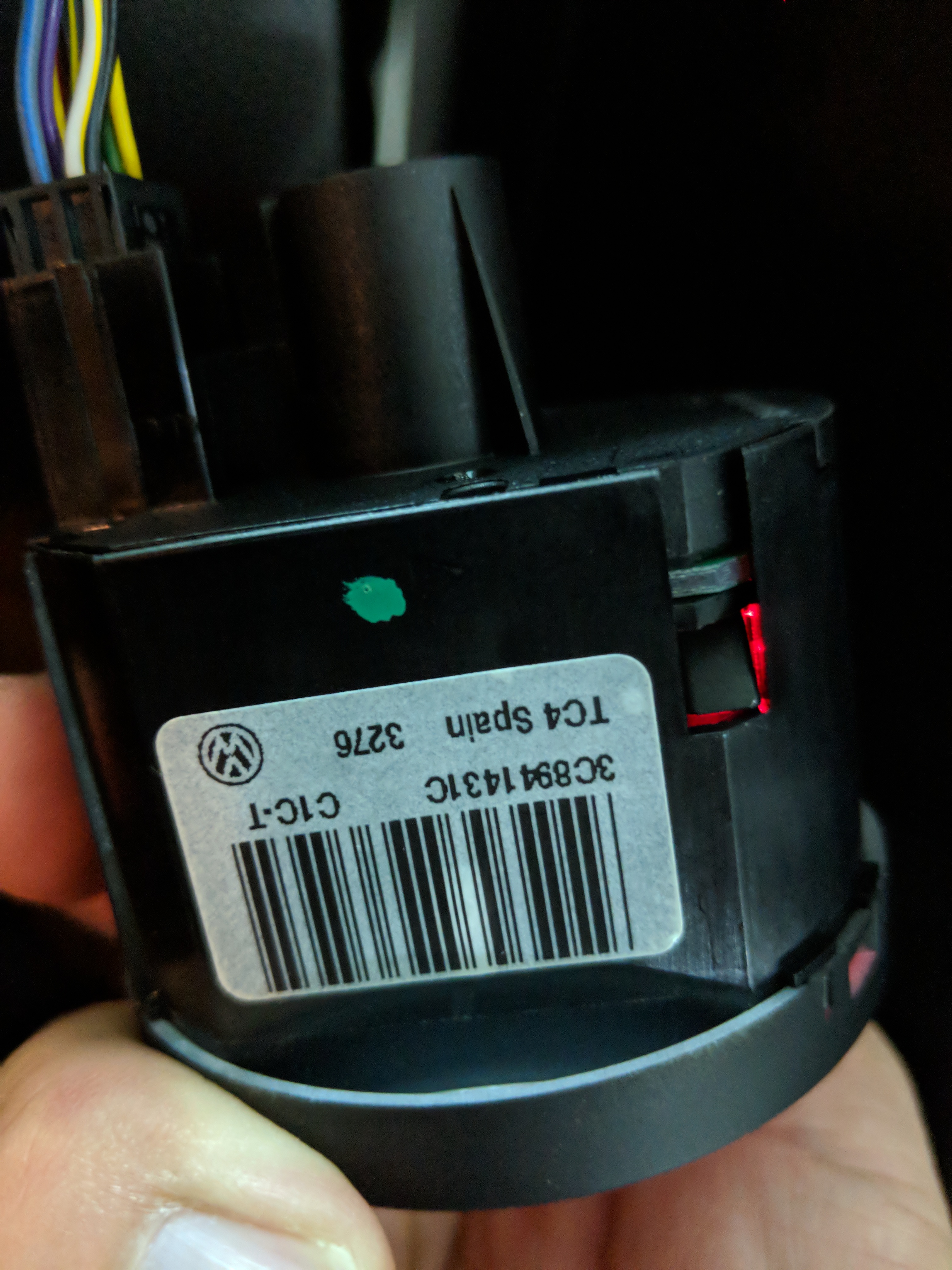

Light switch is 10 pins connector.
I'm not sure if there's wire connected to BCM black socket, dare not to touch hahaha.
Hmmm, ok, not too sure about the adaption map.
I'm not sure if there's wire connected to BCM black socket, dare not to touch hahaha.
-
ciclo
- Bling Bling Diamond Member
- Posts: 7842
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
It is magnificent the great ability that there is usually in these matters to hide the information ...
Please check that there is a wire in slot 2 of T10 light switch connector.
Please check that there is a wire in slot 2 of T10 light switch connector.
-
Jerryncg93
- New
- Posts: 24
- Joined: Mon Dec 03, 2018 8:57 am
- Drives: Volkswagen Vento 1.2 tsi
- Location: Kuala Lumpur, Malaysia
Re: RLS ,CH/LH , Auto lights , Rain sensing wiper & Auto dimming Rear view mirror on Vento
As the previous set of rls doesn't work very well, the seller has sent me another set of rls. This time it's 5k7 955 559b, but the sensor seems to be very dirty, may I know how can I clean it up?
What kind of glue should I use to paste the bracket to my windscreen? I'm planning to stick a black sticker with the shape of the cover then paste the bracket onto the sticker, dunno if it works?
What kind of glue should I use to paste the bracket to my windscreen? I'm planning to stick a black sticker with the shape of the cover then paste the bracket onto the sticker, dunno if it works?
- Attachments
-
- I've also purchased the rls bracket with the cover, and also rear view mirror holder
-
-
-
Jerryncg93
- New
- Posts: 24
- Joined: Mon Dec 03, 2018 8:57 am
- Drives: Volkswagen Vento 1.2 tsi
- Location: Kuala Lumpur, Malaysia
