Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)

[ciclo]

Myślę, że jest to wystarczająco zrozumiałe przy użyciu tłumacza google.







---
The first time I write in Polish. (sorry if it is not correct)

[KamilPL]

After all, as a student of the master, I still don't understand what you are talking about

Good Polish language, you could be a PL / EN translator

[ciclo]

It's really simple:

WRM = Window Regulator Motor. (door units managed by BCM)
SW = Software.

- Your WRMs don't have the proper SW.

- Forget the "rain closing" function, and the "automatic folding mirrors" function with remote/key fob.



Your WRMs: (Red = software)

Podsystem 2 - Oznaczenie elementu SW: 6R0 959 801 AK HW: 6R0 959 801 AK Plik etykiet: 6R0-959-801.CLB
Komponent: J386__TSG_FT 007 5110
Numer seryjny: --------------------
Kodowanie: 020000

Podsystem 3 - Oznaczenie elementu SW: 6R0 959 802 AR HW: 6R0 959 802 AR Plik etykiet: 6R0-959-802.CLB
Komponent: J387__TSG_BT 007 5110
Numer seryjny: --------------------
Kodowanie: 020000

The SW must be 8612 or higher.

[KamilPL]

The topic of Ibiza died by a bungler electrician ... Cyclo not everything works as it should and I do not know what the problem is, parking lights go out, not drl

[ciclo]

Warning:
I will do the new BCM coding based on the Autoscan with the original BCM 087, which seems more reasonable to me than the Autocan with 7H0 BCM (with some inappropriate changes).

Later you can modify what you think is convenient, but remember that the one I provide should be your starting point for the BCM Max 7H0.

My recommendation is that you do not touch the new BCM coding that I provide you during the installation process (as if you were a magician's apprentice ), otherwise, we will not be able to know what is happening in case of faults.

read my quote again ⬆
7C8829F88861010001200EF06EEB9EC85FC067FF608D30C1200000030000

That is, the next autoscan must be with all new wires installed and with this BCM coding. Good luck!

Please show us an Autoscan as indicated. Thanks.

[iichel]

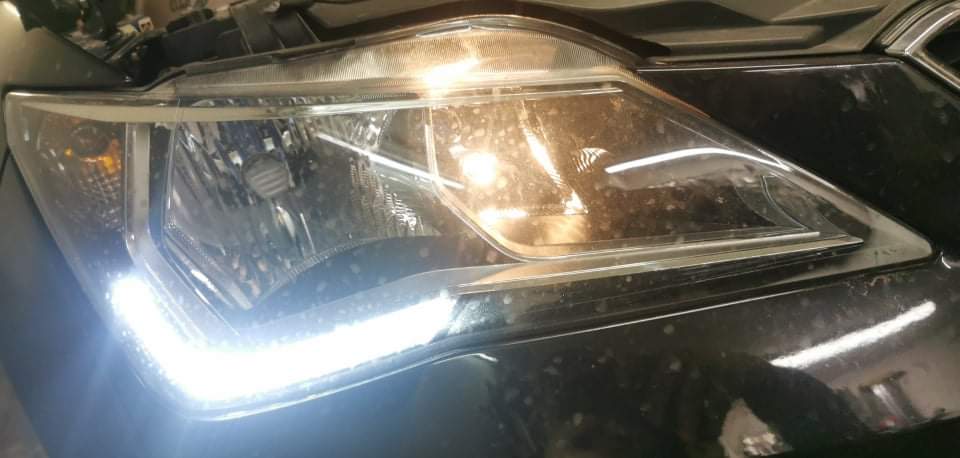

It almost looks like your parking light T10 light is connected to the PWM signal, since it's very dim with parking lights and full brightness with DRL.

[KamilPL]

Cyclo tomorrow an electrician will do / send me a car scan, it will be pasted immediately when I get it

no errors in the autoscan, why does it have to be reverse and rear fog under bcm control?

[KamilPL]

It almost looks like your parking light T10 light is connected to the PWM signal, since it's very dim with parking lights and full brightness with DRL.

Tomorrow I will throw in autoscan, but apparently no errors, any idea how to solve the problem with the DRL / parking lot?

[KamilPL]

Warning:
I will do the new BCM coding based on the Autoscan with the original BCM 087, which seems more reasonable to me than the Autocan with 7H0 BCM (with some inappropriate changes).

Later you can modify what you think is convenient, but remember that the one I provide should be your starting point for the BCM Max 7H0.

My recommendation is that you do not touch the new BCM coding that I provide you during the installation process (as if you were a magician's apprentice ), otherwise, we will not be able to know what is happening in case of faults.

read my quote again ⬆
7C8829F88861010001200EF06EEB9EC85FC067FF608D30C1200000030000

That is, the next autoscan must be with all new wires installed and with this BCM coding. Good luck!

Please show us an Autoscan as indicated. Thanks.

Code: Select all

VIN: VSSZZZ6JZDR026882   License Plate:


Chassis Type: 6J-SE25 (6N0)
Scan: 01 03 04 08 09 15 17 19 25 2E 44 4B 56 77

VIN: VSSZZZ6JZDR026882   Mileage: 164820km-102414miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
4B-Multifunc. Module -- Status: OK 0000
56-Radio -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine
Cannot be reached

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 6R0-907-37x-ESP82.clb
   Part No SW: 6R0 907 379 BC    HW: 6R0 907 379 AF
   Component: ESP8.2i front H05 0002
   Revision: --------
   Coding: 110224DB216F00B8882D24EA84D300401100
   Shop #: WSC 00200 935 12345
   VCID: 004CA1859702F18941-8054

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6J0 820 043 D    HW: 6J0 820 043 D
   Component: Climatronic   H08 0707
   Revision: S0000000
   VCID: 2502D0112CE0F4A112-8070

1 Fault Found:
00457 - Central Electronics Control Module / BCM (J519)
            013 - Check DTC Memory
             Freeze Frame:
                    Fault Status: 01101101
                    Fault Priority: 6
                    Fault Frequency: 2
                    Reset counter: 248
                    Mileage: 164828 km
                    Time Indication: 0
                    Date: 2016.04.01
                    Time: 21:30:45


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7H0-937-08x-09.clb
   Part No SW: 7H0 937 090     HW: 7H0 937 090
   Component: BCM PQ25 Max4 H72 0708
   Revision: B9072001    Serial number: 0531 063131236
   Coding: 7C8829F8C861010001200EF07EA80EC8F0C042FF608D2040200000000000
   Shop #: WSC 95400 259 24646
   VCID: 6B96E6298A8402D184-803E

   Subsystem 1 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 120315 05  54  0403
   Coding: 07302D

   Subsystem 2 - Part No SW: 6R0 959 801 AK    HW: 6R0 959 801 AK  Labels: 6R0-959-801.CLB
   Component: J386__TSG_FT  007 5110
   Serial number: --------------------
   Coding: 020000

   Subsystem 3 - Part No SW: 6R0 959 802 AR    HW: 6R0 959 802 AR  Labels: 6R0-959-802.CLB
   Component: J387__TSG_BT  007 5110
   Serial number: --------------------
   Coding: 020000

1 Fault Found:
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 3
                    Fault Frequency: 2
                    Reset counter: 248
                    Mileage: 164828 km
                    Time Indication: 0
                    Date: 2016.04.01
                    Time: 21:30:47


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 K    HW: 6R0 959 655 K
   Component: VW10AirbagA01 H10 0020
   Revision: --------    Serial number: 003GX016A6B0
   Coding: 003031
   Shop #: WSC 06401 785 00200
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250.rod
   VCID: 4AD843ADEDBEFBD9DF-801E

   Crash sensor for side airbag: driver side:
   Serial number: 3495RRB406316Q1G31E

   Front Passenger's Side Airbag Crash Sensor:
   Serial number: 3505RRB405117HSIJ13A

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 6J0 920 804 K    HW: 6J0 920 804 K
   Component: KOMBI         H03 0507
   Serial number: 00000000000000
   Coding: 110A00
   Shop #: WSC 12345 123 01234
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
   ROD: EV_Kombi_UDS_VDD_RM09_SK46.rod
   VCID: 32283B4D652E931987-8066

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
   Part No SW: 6N0 909 901     HW: 7H0 937 090
   Component: GW-K-CAN TP20 H72 0708
   Revision: B9072001
   Coding: 422000
   Shop #: WSC 95400 259 24646
   VCID: 70ACF145A3A2E109B1-8024

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer
Cannot be reached

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650)       Labels:. 5N0-035-342.lbl
   Part No SW: 6J0 035 342 E    HW: 6J0 035 342 E
   Component: SG EXT.PLAYER H13 0240
   Revision: A1001003    Serial number: 7662260740
   Coding: 020000
   Shop #: WSC 64564 324 38760
   VCID: 2600D71D51E6FFB91B-8072

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 6Q0-423-156.clb
   Part No: 6R0 423 156 B
   Component: LenkhilfeTRW        V277
   Coding: 11211
   Shop #: WSC 06402
   VCID: 2F2E3239EA1CBEF1E8-807A

No fault code found.

-------------------------------------------------------------------------------
Address 4B: Multifunc. Module        Labels: 6J0-959-441.clb
   Part No: 6J0 959 441 A
   Component: MF-Modul       0007 0001
   Coding: 0000002
   Shop #: WSC 77005 000 00000
   VCID: 312A3441A828A801FE-8064

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels:. 6J0-035-153.clb
   Part No SW: 6J1 035 153 G    HW: 6J1 035 153 G
   Component: Radio         H15 0204
   Revision: R0000000    Serial number: SEZAZ2M4042195
   Coding: 0001040002
   Shop #: WSC 04941 000 00000
   VCID: 291ADC2140F8D0C136-807C

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels:| 7P6-035-730.clb
   Part No SW: 7P6 035 730 F    HW: 7P6 035 730 F
   Component: TELEFON       H09 2730
   Revision: 1B001001    Serial number: 00007662181617
   Coding: 0E00000001010110
   Shop #: WSC 06402 785 00200
   ASAM Dataset: EV_UHVNA A01015
   ROD: UHVNA.rod
   VCID: 3522005194408421A2-8060

3 Faults Found:
13635840 - Supply voltage
          U1011 00 [000] - Voltage too Low
          [Klemme 30: unterer Grenzwert unterschritten]
          Intermittent - Not Confirmed - Tested Since Memory Clear

0022 - Radio
          U1066 00 [000] - No Communication
          [Steuergerät Radio (RNS): kein Signal/Kommunikation]
          Intermittent - Not Confirmed - Tested Since Memory Clear

13893632 - Function Restricted due to Insufficient Voltage
          U1400 00 [000] - -
          Intermittent - Not Confirmed - Tested Since Memory Clear

OLD CODING

[KamilPL]

Code: Select all

VIN: VSSZZZ6JZDR026882   License Plate:


Chassis Type: 6J-SE25 (6N0)
Scan: 01 03 04 08 09 15 17 19 25 2E 44 4B 56 77

VIN: VSSZZZ6JZDR026882   Mileage: 164820km-102414miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
4B-Multifunc. Module -- Status: OK 0000
56-Radio -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine
Cannot be reached

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 6R0-907-37x-ESP82.clb
   Part No SW: 6R0 907 379 BC    HW: 6R0 907 379 AF
   Component: ESP8.2i front H05 0002
   Revision: --------
   Coding: 110224DB216F00B8882D24EA84D300401100
   Shop #: WSC 00200 935 12345
   VCID: 004CA1859702F18941-8054

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6J0 820 043 D    HW: 6J0 820 043 D
   Component: Climatronic   H08 0707
   Revision: S0000000
   VCID: 2502D0112CE0F4A112-8070

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7H0-937-08x-09.clb
   Part No SW: 7H0 937 090     HW: 7H0 937 090
   Component: BCM PQ25 Max4 H72 0708
   Revision: B9072001    Serial number: 0531 063131236
   Coding: 7C8829F88861010001200EF06EEB9EC85FC067FE698D30C1200000030000
   Shop #: WSC 95400 259 24646
   VCID: 6B96E6298A8402D184-803E

   Subsystem 1 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 120315 05  54  0403
   Coding: 07302D

   Subsystem 2 - Part No SW: 6R0 959 801 AK    HW: 6R0 959 801 AK  Labels: 6R0-959-801.CLB
   Component: J386__TSG_FT  007 5110
   Serial number: --------------------
   Coding: 020000

   Subsystem 3 - Part No SW: 6R0 959 802 AR    HW: 6R0 959 802 AR  Labels: 6R0-959-802.CLB
   Component: J387__TSG_BT  007 5110
   Serial number: --------------------
   Coding: 020000

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 K    HW: 6R0 959 655 K
   Component: VW10AirbagA01 H10 0020
   Revision: --------    Serial number: 003GX016A6B0
   Coding: 003031
   Shop #: WSC 06401 785 00200
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250.rod
   VCID: 4AD843ADEDBEFBD9DF-801E

   Crash sensor for side airbag: driver side:
   Serial number: 3495RRB406316Q1G31E

   Front Passenger's Side Airbag Crash Sensor:
   Serial number: 3505RRB405117HSIJ13A

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 6J0 920 804 K    HW: 6J0 920 804 K
   Component: KOMBI         H03 0507
   Serial number: 00000000000000
   Coding: 110A00
   Shop #: WSC 12345 123 01234
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
   ROD: EV_Kombi_UDS_VDD_RM09_SK46.rod
   VCID: 32283B4D652E931987-8066

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
   Part No SW: 6N0 909 901     HW: 7H0 937 090
   Component: GW-K-CAN TP20 H72 0708
   Revision: B9072001
   Coding: 422000
   Shop #: WSC 95400 259 24646
   VCID: 70ACF145A3A2E109B1-8024

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H03 0507
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A98E32D8D7E1BD9FF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650)       Labels:. 5N0-035-342.lbl
   Part No SW: 6J0 035 342 E    HW: 6J0 035 342 E
   Component: SG EXT.PLAYER H13 0240
   Revision: A1001003    Serial number: 7662260740
   Coding: 020000
   Shop #: WSC 64564 324 38760
   VCID: 2600D71D51E6FFB91B-8072

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 6Q0-423-156.clb
   Part No: 6R0 423 156 B
   Component: LenkhilfeTRW        V277
   Coding: 11211
   Shop #: WSC 06402
   VCID: 2F2E3239EA1CBEF1E8-807A

No fault code found.

-------------------------------------------------------------------------------
Address 4B: Multifunc. Module        Labels: 6J0-959-441.clb
   Part No: 6J0 959 441 A
   Component: MF-Modul       0007 0001
   Coding: 0000002
   Shop #: WSC 77005 000 00000
   VCID: 312A3441A828A801FE-8064

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels:. 6J0-035-153.clb
   Part No SW: 6J1 035 153 G    HW: 6J1 035 153 G
   Component: Radio         H15 0204
   Revision: R0000000    Serial number: SEZAZ2M4042195
   Coding: 0001040002
   Shop #: WSC 04941 000 00000
   VCID: 291ADC2140F8D0C136-807C

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels:| 7P6-035-730.clb
   Part No SW: 7P6 035 730 F    HW: 7P6 035 730 F
   Component: TELEFON       H09 2730
   Revision: 1B001001    Serial number: 00007662181617
   Coding: 0E00000001010110
   Shop #: WSC 06402 785 00200
   ASAM Dataset: EV_UHVNA A01015
   ROD: UHVNA.rod
   VCID: 3522005194408421A2-8060

3 Faults Found:
13635840 - Supply voltage
          U1011 00 [000] - Voltage too Low
          [Klemme 30: unterer Grenzwert unterschritten]
          Intermittent - Not Confirmed - Tested Since Memory Clear

0022 - Radio
          U1066 00 [000] - No Communication
          [Steuergerät Radio (RNS): kein Signal/Kommunikation]
          Intermittent - Not Confirmed - Tested Since Memory Clear

13893632 - Function Restricted due to Insufficient Voltage
          U1400 00 [000] - -
          Intermittent - Not Confirmed - Tested Since Memory Clear


End----------(Elapsed Time: 01:29, VBatt start/end: 13.8V/13.9V)-----------

Cyclo your new coding :/

[ciclo]

... why does it have to be reverse and rear fog under bcm control?

It is because of how the BCM Max works, and because it is the original way, contemplated in diagrams, of a proper installation.
Otherwise, errors in diagnostic readings would be generated.

It almost looks like your parking light T10 light is connected to the PWM signal, since it's very dim with parking lights and full brightness with DRL.

Tomorrow I will throw in autoscan, but apparently no errors, any idea how to solve the problem with the DRL / parking lot?

It is possible, it will be necessary to try with other BCM codings.
I will take a look.

[KamilPL]

... why does it have to be reverse and rear fog under bcm control?

It is because of how the BCM Max works, and because it is the original way, contemplated in diagrams, of a proper installation.
Otherwise, errors in diagnostic readings would be generated.

Currently, the rear lights are not under the control of the bcm because the electrician says that they work properly and since there are no errors, you do not have to do it like this

[ciclo]

...

Cyclo your new coding :/

False, that is not the BCM coding that I provided you, my BCM coding here viewtopic.php?p=585587#p585587

I said it was better not to touch the coding ... I don't know why I was ignored in this regard.

It does not matter, I am very used to the fact that due to multiple circumstances people say things incorrectly ... nothing to worry about!


---


To find out what's going on with your DRLs and side/parking lights, try these new BCM codings:

1-
7C8829F88861010001200EF06EEB9EC85FC067FF608D20C1200000030000

2-
7C8829F88861010001200EF06EEB9EC85FC067FF608C20C1200000030000

and tell us the results to know what is the next step to take.


---


Regarding the reversing light and rear fog light:
Some diagnostics were already disabled in your BCM coding, which may be the reason why the Autoscan does not show any faults, but I would like to remind you that diagnostic failures arise when those lights are activated.
If there are no faults in your instrument cluster, or in the diagnosis, and you are happy that way, leave it as original, but you may lose the diagnosis of said lamps in case the bulbs fail.

Work properly: When everything works correctly.

[ciclo]

The diagrams you asked me through PM.

Diagram for 6P left halogen headlight.

There must be different models due to the information provided in the diagram, especially regarding the DRL and Side/Parking lights (Both LED or Bulb and/or combination of both).

The wire assignment for the right headlight T10 connector is the same in terms of pin numbering.

---
6J

[KamilPL]

...

Cyclo your new coding :/

False, that is not the BCM coding that I provided you, my BCM coding here viewtopic.php?p=585587#p585587

I said it was better not to touch the coding ... I don't know why I was ignored in this regard.

It does not matter, I am very used to the fact that due to multiple circumstances people say things incorrectly ... nothing to worry about!


---


To find out what's going on with your DRLs and side/parking lights, try these new BCM codings:

1-
7C8829F88861010001200EF06EEB9EC85FC067FF608D20C1200000030000

2-
7C8829F88861010001200EF06EEB9EC85FC067FF608C20C1200000030000

and tell us the results to know what is the next step to take.


---


Regarding the reversing light and rear fog light:
Some diagnostics were already disabled in your BCM coding, which may be the reason why the Autoscan does not show any faults, but I would like to remind you that diagnostic failures arise when those lights are activated.
If there are no faults in your instrument cluster, or in the diagnosis, and you are happy that way, leave it as original, but you may lose the diagnosis of said lamps in case the bulbs fail.

Work properly: When everything works correctly.

I am surprised where this autoscan coding came from I gave him what you gave earlier I will let you know immediately when I have info from an electrician about the problems
