VW Bettle 5C Automatic Lights
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
VW Bettle 5C Automatic Lights
Hi,
I have a VW Bettle 5C (2012) which I want to retrofit with automatic lights.
I've studing the post and electrical wiring schemes published on this document
https://drive.google.com/file/d/0B2nv91 ... sp=sharing
But I am not sure if that scheme applies to my car ..
I have a VW Bettle 5C (2012) which I want to retrofit with automatic lights.
I've studing the post and electrical wiring schemes published on this document
https://drive.google.com/file/d/0B2nv91 ... sp=sharing
But I am not sure if that scheme applies to my car ..
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights

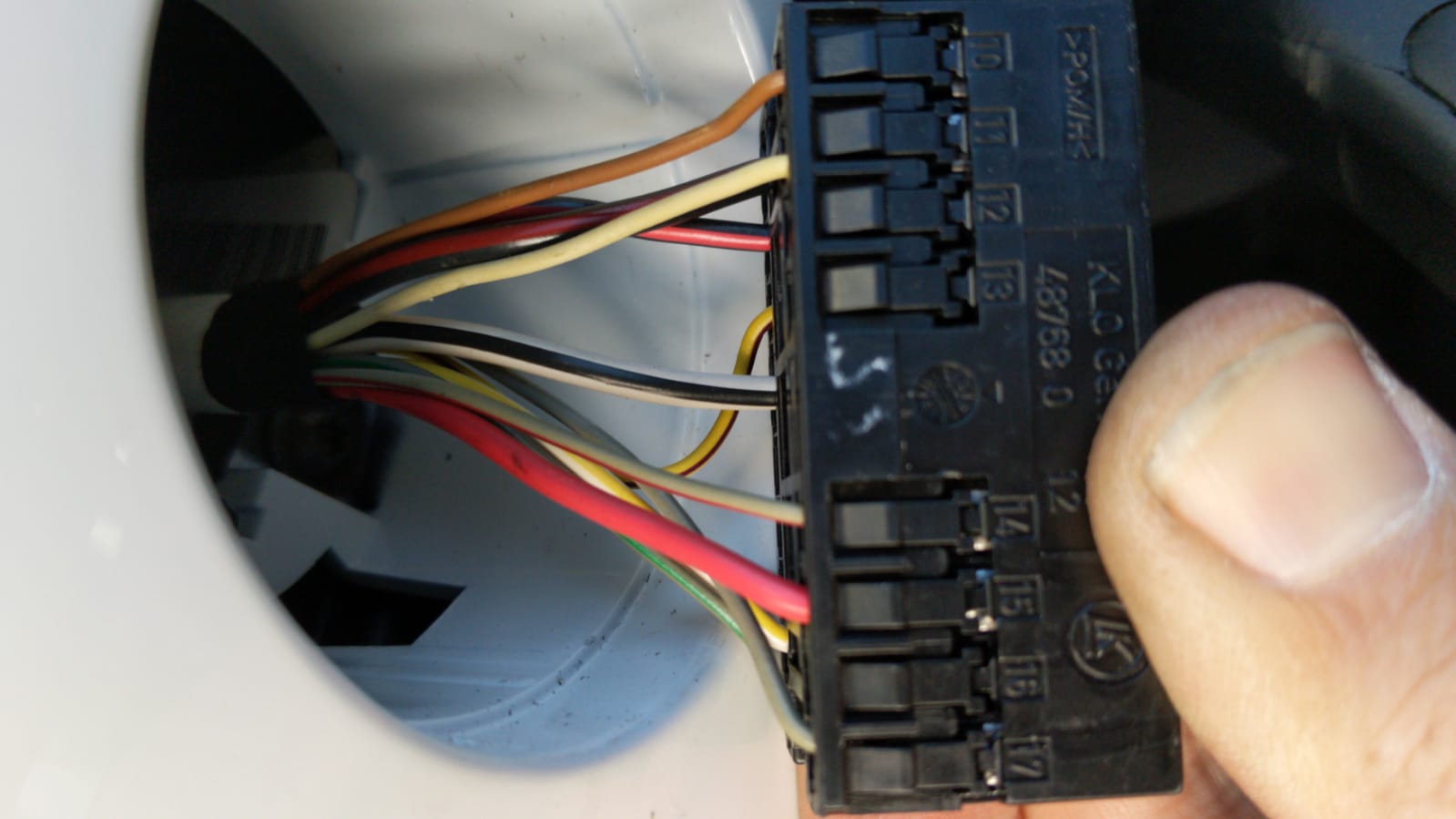

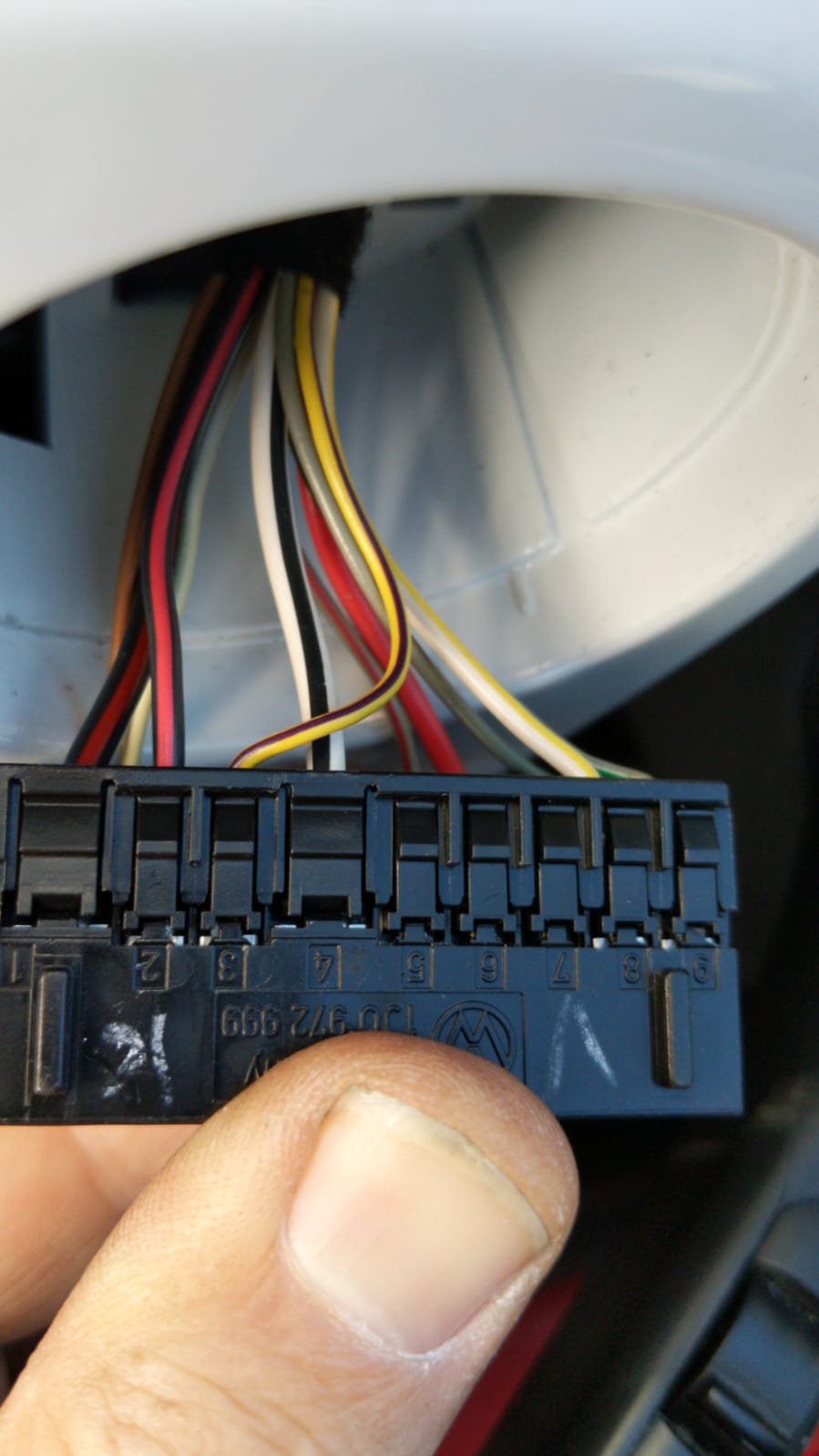

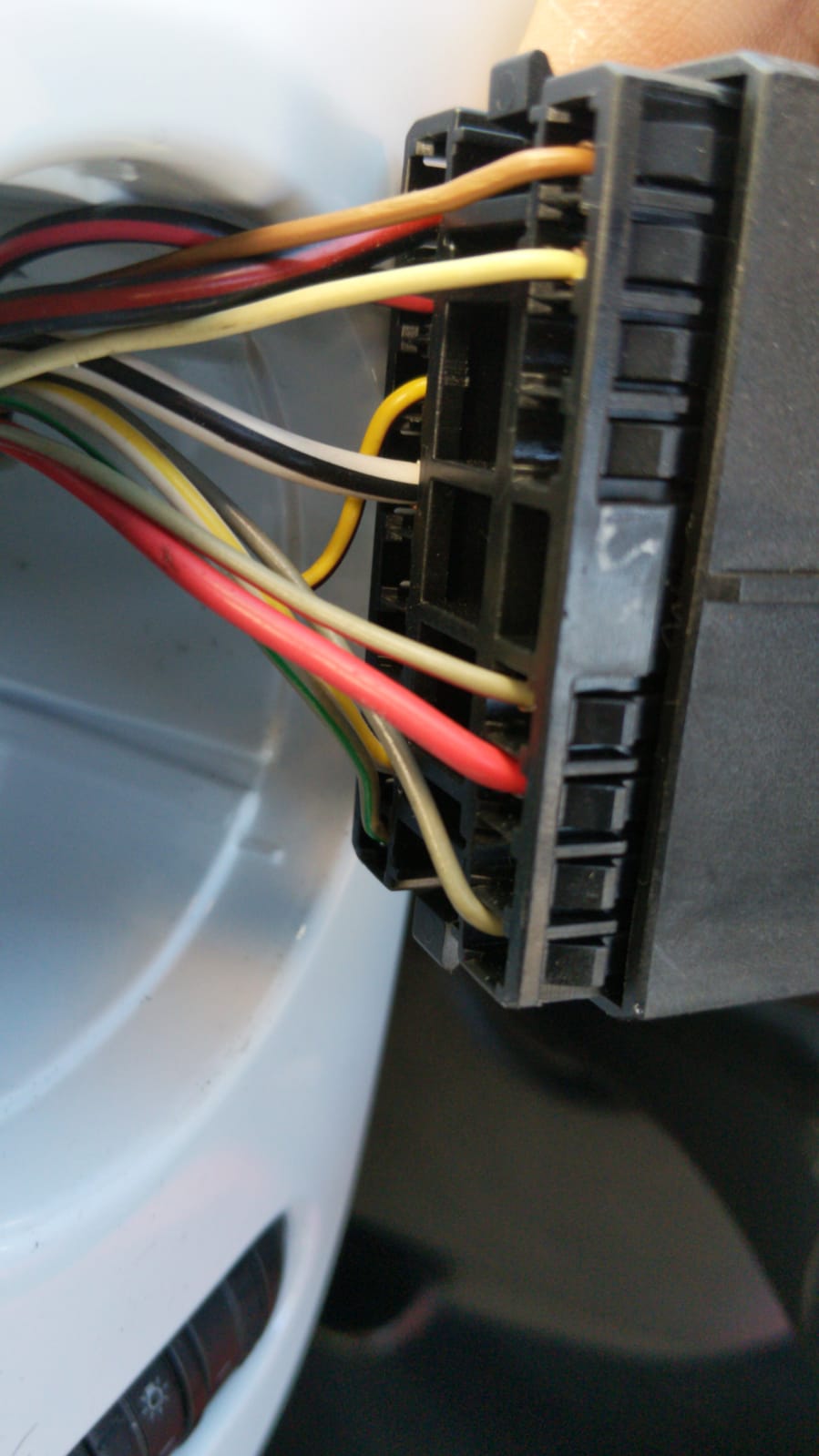

These are the wiring of the actual light switch
01.- Black/Red
02.- Black/Red
03.- Yellow/Violet
04.- Black/White
05.- Empty
06.- Empty
07.- Empty
08.- Yellow/White
09.- Grey/Green
10.- Brown
11.- White/Black
12.- Empty
13.- Empty
14.- grey/red
15.- Red
16.- Empty
17.- grey
01.- Black/Red
02.- Black/Red
03.- Yellow/Violet
04.- Black/White
05.- Empty
06.- Empty
07.- Empty
08.- Yellow/White
09.- Grey/Green
10.- Brown
11.- White/Black
12.- Empty
13.- Empty
14.- grey/red
15.- Red
16.- Empty
17.- grey
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights
I can't upload the autoscan we did before we retrofitted the OEM bixenon ...
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights
The reference of the BCM is 6R0 937 088 F, and its coding is 6CB8697808410C0093A809306E0B86C4ADC2610F60840C41B2A004000000
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights
I found this DIY in other web page
https://www.drive2.ru/l/8632361/
But the electrical diagram is very different from the one published in this forum by ciclo
https://www.drive2.ru/l/8632361/
But the electrical diagram is very different from the one published in this forum by ciclo
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: VW Bettle 5C Automatic Lights
Hello kantusjack, welcome.
I apologize you, I had not seen your post/thread.
Automatic lights are possible on your Beetle 5C as long as your Beetle has a light and rain sensor installed.
The diagram you have seen in my link is correct. It is applicable to your Beetle 5C with some minor modification due to the wire in T17/14 (= T17/16 ).
You just need to install the wiring for automatic lights, code the BCM correctly and maybe the rain sensor too.
If you want, post an Autoscan...
It is not necessary to disassemble the dashboard, as you have seen in the link to the firegrafik thread in the Russian forum. His electric installation is because he had to adapt a new BCM Max, and because the Russians do extraordinary things ...
I apologize you, I had not seen your post/thread.
Automatic lights are possible on your Beetle 5C as long as your Beetle has a light and rain sensor installed.
The diagram you have seen in my link is correct. It is applicable to your Beetle 5C with some minor modification due to the wire in T17/14 (= T17/16 ).
You just need to install the wiring for automatic lights, code the BCM correctly and maybe the rain sensor too.
If you want, post an Autoscan...
It is not necessary to disassemble the dashboard, as you have seen in the link to the firegrafik thread in the Russian forum. His electric installation is because he had to adapt a new BCM Max, and because the Russians do extraordinary things ...
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights
Hi ciclo
THX a lot ..
I tried to upload an Autoscan, but the system says "Forbidden. Data submitted too often. Contains contacts."
Any case, you can check it here (even with the modification on BCM to retroffit OEM Bixenon)
https://forums.ross-tech.com/showthread ... post190977
THX a lot ..
I tried to upload an Autoscan, but the system says "Forbidden. Data submitted too often. Contains contacts."
Any case, you can check it here (even with the modification on BCM to retroffit OEM Bixenon)
https://forums.ross-tech.com/showthread ... post190977
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights
If I name the following connectors as
Original Connector ... as .... T17
New Auto Headlight connector ... as ... T10
BCM T73A ... as .... T73A
Relay Headlight ... as ... RH
Relay Fog Lights ... as ... RFL
Please, can you confirm the next electrical connexions???
T17
ORIGINAL CONNECTOR..................Goes to …
1............................................T10-4
2............................................RFL-3
3............................................T10-9
4............................................RH-5
5............................................Empty
6............................................Empty
7............................................Empty
8............................................RFL-5
9............................................T10-7
10...........................................T10-6 and RFL-2 and RH-2
11...........................................T10-1
12...........................................Empty
13...........................................Empty
14...........................................T10-3
15...........................................RH-3 and T10-8
16...........................................Empty
17...........................................T10-10
T10
AUTO SWITCH
CONNECTOR ........................Goes to …
1......................................T17-11
2......................................T73A-37
3......................................T17-14
4......................................T17-1
5......................................RFL-1
6......................................T17-10
7......................................T17-9
8......................................T17-15
9......................................T17-3
10.....................................T17-17
T73A (black)
BCM
J519.............................. Goes to …
1...................................RH-1
37..................................T10-2
RELAY
HEADLIGHTS
RH.................................Goes to …
1...................................T73A-1
2...................................T17-10
3...................................T17-15
5...................................T17-4
RELAY
FOG LIGHTS
RFL ................................Goes to …
1...................................T10-5
2...................................T17-10
3...................................T17-2
5...................................T17-8
Original Connector ... as .... T17
New Auto Headlight connector ... as ... T10
BCM T73A ... as .... T73A
Relay Headlight ... as ... RH
Relay Fog Lights ... as ... RFL
Please, can you confirm the next electrical connexions???
T17
ORIGINAL CONNECTOR..................Goes to …
1............................................T10-4
2............................................RFL-3
3............................................T10-9
4............................................RH-5
5............................................Empty
6............................................Empty
7............................................Empty
8............................................RFL-5
9............................................T10-7
10...........................................T10-6 and RFL-2 and RH-2
11...........................................T10-1
12...........................................Empty
13...........................................Empty
14...........................................T10-3
15...........................................RH-3 and T10-8
16...........................................Empty
17...........................................T10-10
T10
AUTO SWITCH
CONNECTOR ........................Goes to …
1......................................T17-11
2......................................T73A-37
3......................................T17-14
4......................................T17-1
5......................................RFL-1
6......................................T17-10
7......................................T17-9
8......................................T17-15
9......................................T17-3
10.....................................T17-17
T73A (black)
BCM
J519.............................. Goes to …
1...................................RH-1
37..................................T10-2
RELAY
HEADLIGHTS
RH.................................Goes to …
1...................................T73A-1
2...................................T17-10
3...................................T17-15
5...................................T17-4
RELAY
FOG LIGHTS
RFL ................................Goes to …
1...................................T10-5
2...................................T17-10
3...................................T17-2
5...................................T17-8
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: VW Bettle 5C Automatic Lights
I think the forum's post system doesn't allow you to post Autoscans until you have 10 posts. (I don't know the reason for this)kantusjack wrote: ↑Wed Feb 12, 2020 9:38 am Hi ciclo
THX a lot ..
I tried to upload an Autoscan, but the system says "Forbidden. Data submitted too often. Contains contacts."
Any case, you can check it here (even with the modification on BCM to retroffit OEM Bixenon)
https://forums.ross-tech.com/showthread ... post190977
---
In relation to your retrofit OEM Bixenon this would be the perfect/new BCM coding for your Beetle 5C:
6CB8697808410C0093A809316E0B86C4F8C2670F60851841B2A004000000
If you have also installed OEM LED license plate lights, it would be this:
6CB8697808410C0093A809916E0B86C4F8C2670F60851841B2A004010000
---
Your final BCM coding posted in ross-tech is not correct.
Enter the new BCM coding, do not hesitate.
Check that there are no faults.
If the electrical installation was done correctly everything will work perfectly. OEM!
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: VW Bettle 5C Automatic Lights
Before this, for your Beetle 5C MY 'C' (2011-2012), and to be able to tell you with total precision, you have to tell me the exact month of manufacture of your Beetle 5C, although the ideal thing would be to take a couple of pictures of the wires that reach the T17 light switch connector, on both sides, so that I can verify the diagrams.kantusjack wrote: ↑Wed Feb 12, 2020 3:13 pm If I name the following connectors as
Original Connector ... as .... T17
New Auto Headlight connector ... as ... T10
BCM T73A ... as .... T73A
Relay Headlight ... as ... RH
Relay Fog Lights ... as ... RFL
Please, can you confirm the next electrical connexions???
T17
ORIGINAL CONNECTOR..................Goes to …
1............................................T10-4
2............................................RFL-3
3............................................T10-9
4............................................RH-5
5............................................Empty
6............................................Empty
7............................................Empty
8............................................RFL-5
9............................................T10-7
10...........................................T10-6 and RFL-2 and RH-2
11...........................................T10-1
12...........................................Empty
13...........................................Empty
14...........................................T10-3
15...........................................RH-3 and T10-8
16...........................................Empty
17...........................................T10-10
T10
AUTO SWITCH
CONNECTOR ........................Goes to …
1......................................T17-11
2......................................T73A-37
3......................................T17-14
4......................................T17-1
5......................................RFL-1
6......................................T17-10
7......................................T17-9
8......................................T17-15
9......................................T17-3
10.....................................T17-17
T73A (black)
BCM
J519.............................. Goes to …
1...................................RH-1
37..................................T10-2
RELAY
HEADLIGHTS
RH.................................Goes to …
1...................................T73A-1
2...................................T17-10
3...................................T17-15
5...................................T17-4
RELAY
FOG LIGHTS
RFL ................................Goes to …
1...................................T10-5
2...................................T17-10
3...................................T17-2
5...................................T17-8
Also from the wires that reach the T8 dimmer connector.
Then I will comment on the correspondence between connectors that you have written.
In your case, an additional installation/modification must be made for signal 58. (one wire)
---
Spanish: Para el mes de fabricación busca en la emisión de la tarjeta de inspección técnica, es la fecha más aproximada a la de fabricación.
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights
Hi
First of all ... thanks a lot for your help ....
The car was manufactured september 2011

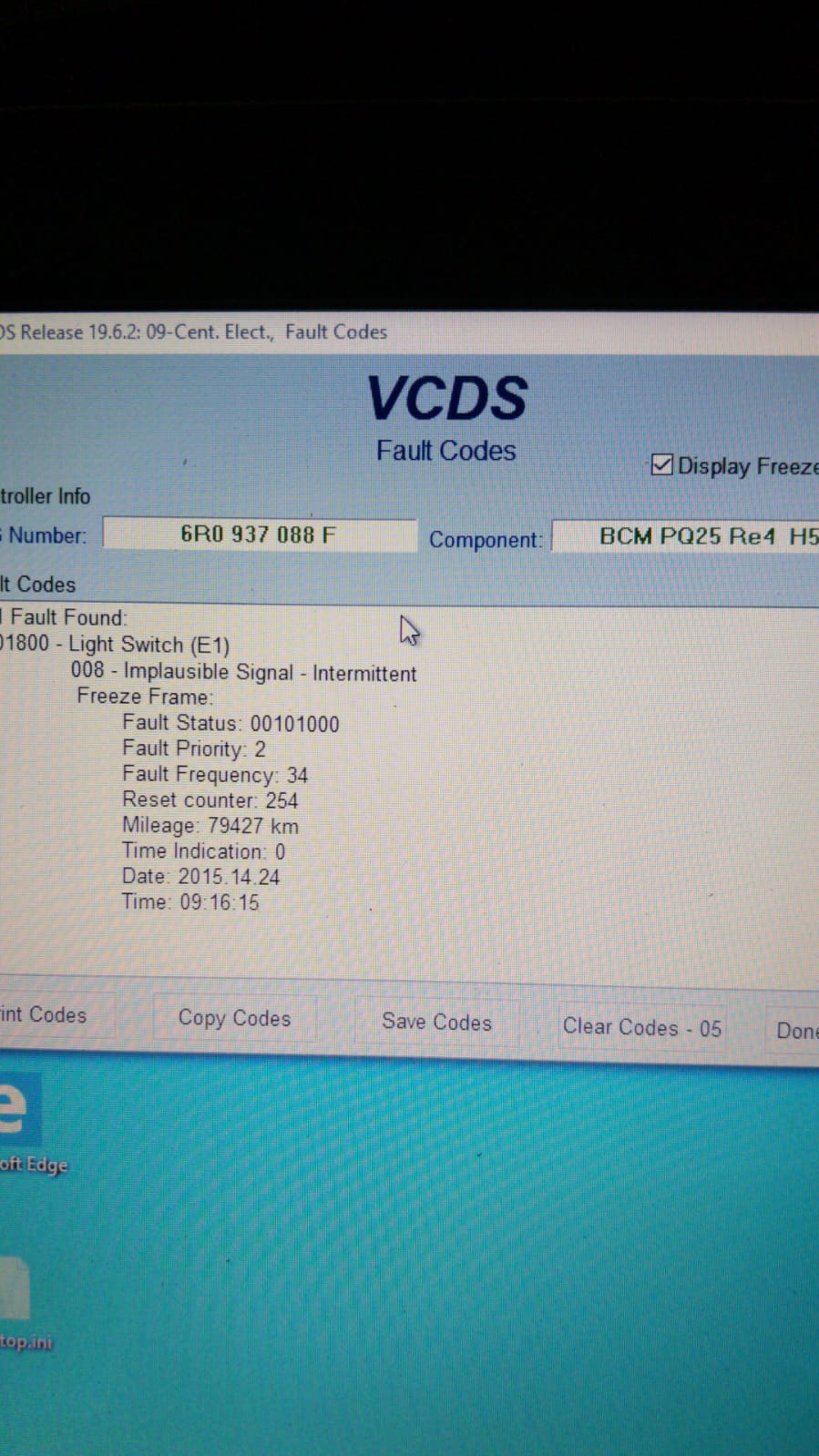

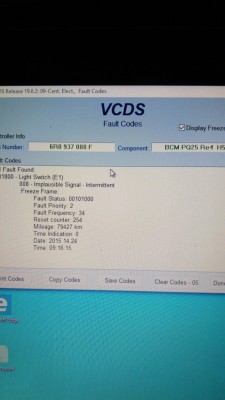

Today I'll try with the new coding, because we note there is an intermitent fault in the BCM ...
First of all ... thanks a lot for your help ....
The car was manufactured september 2011
Today I'll try with the new coding, because we note there is an intermitent fault in the BCM ...
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights

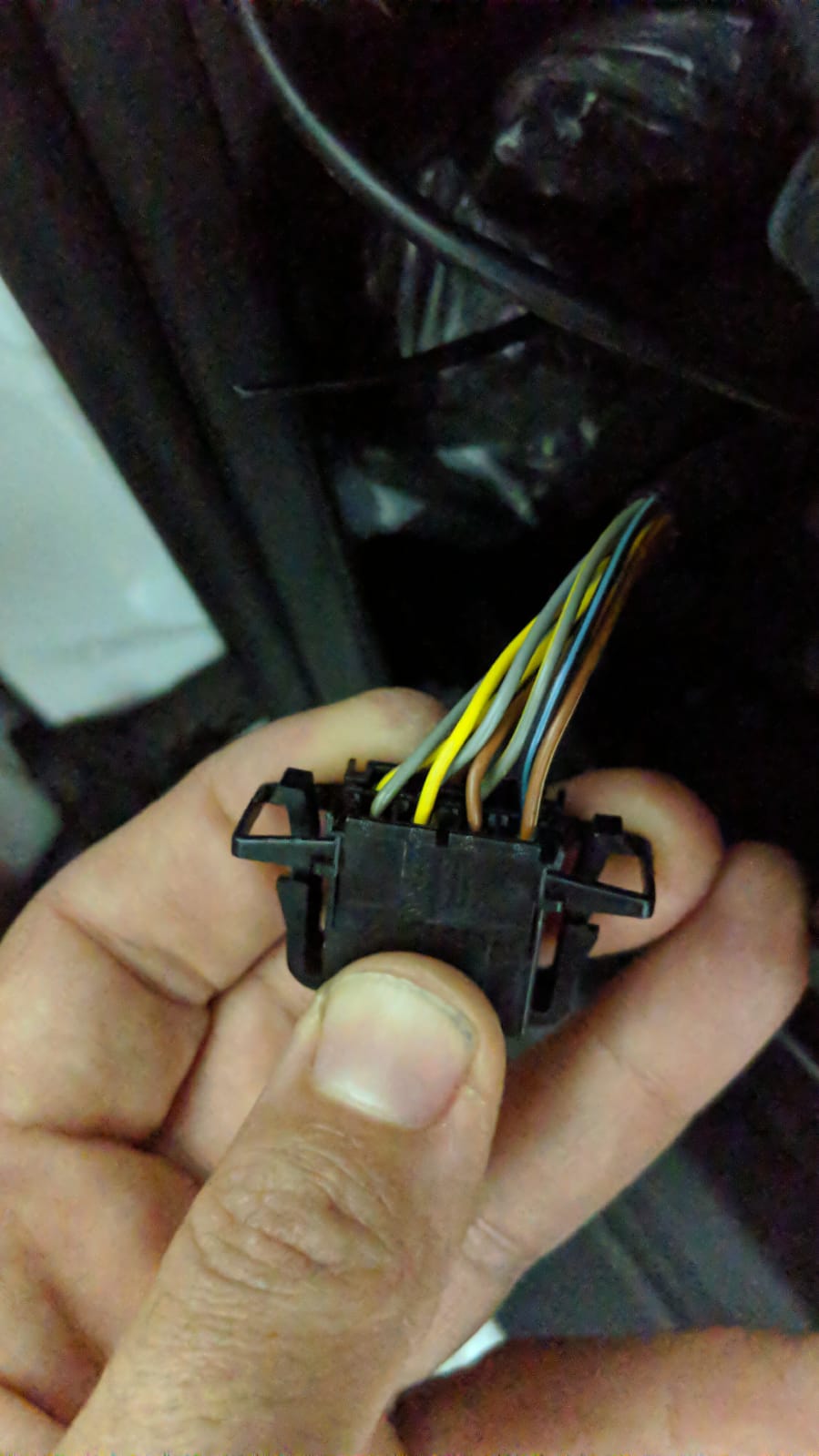

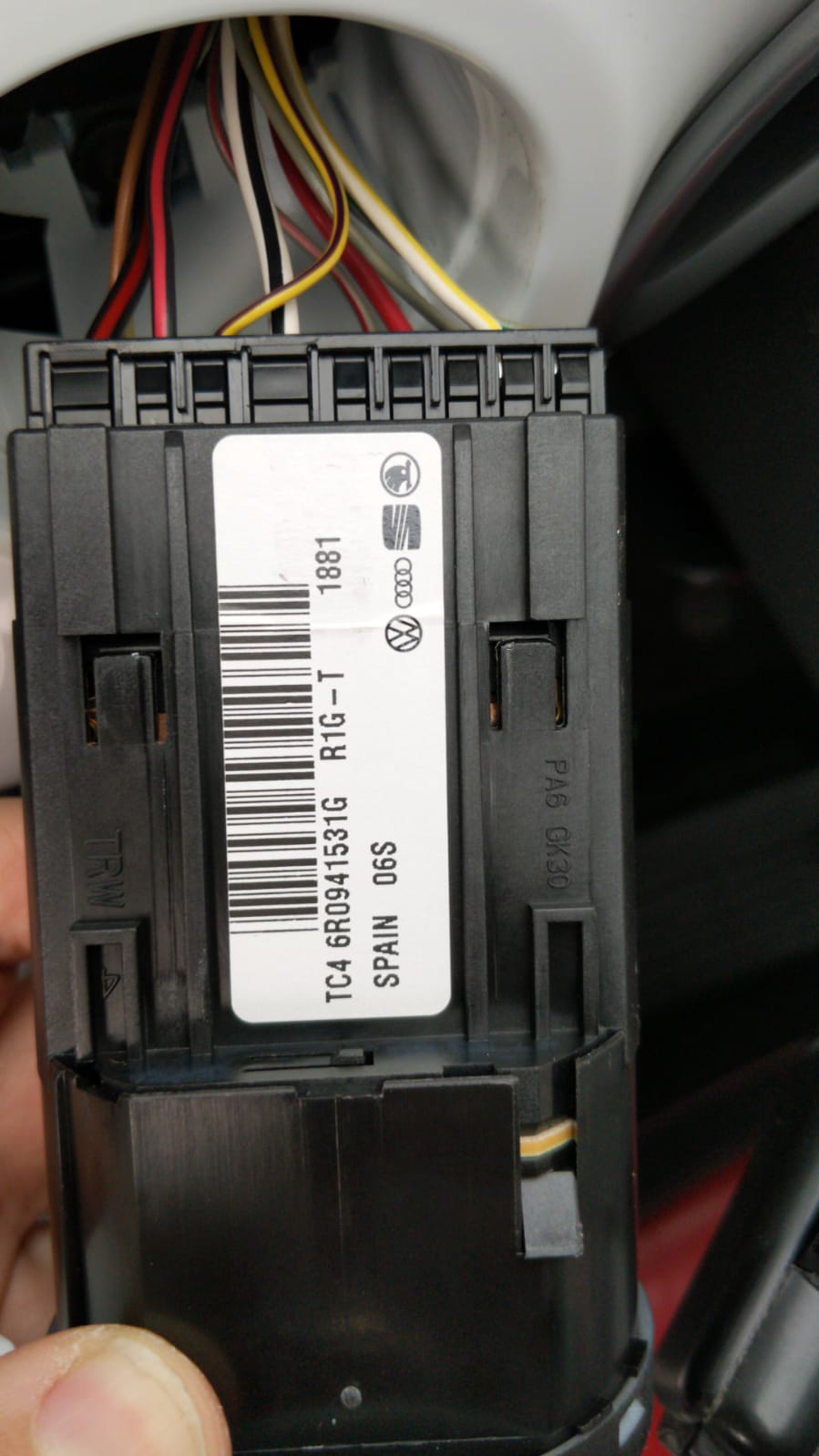

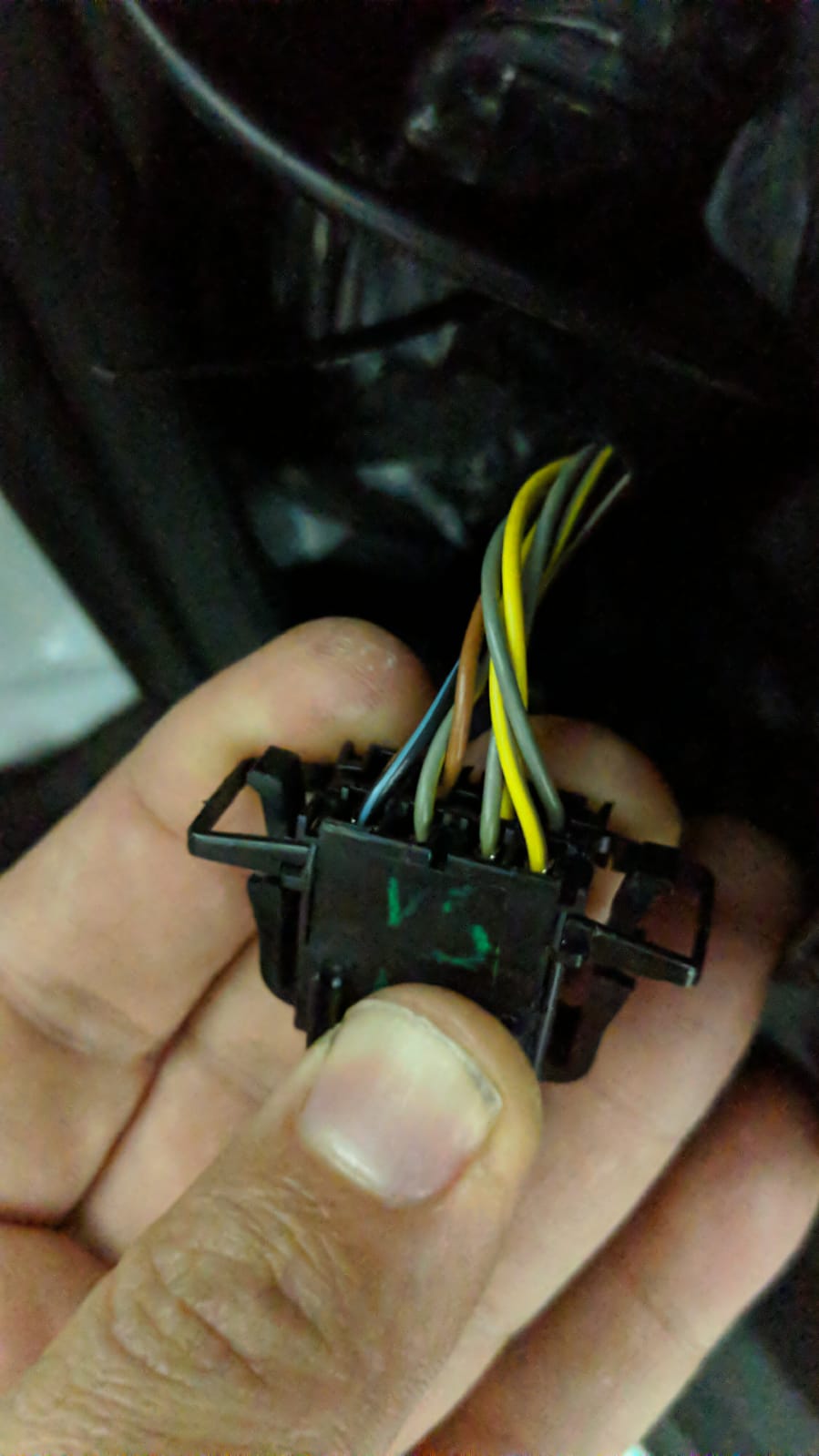

some pictures of what you asked ...
THX a lot in advance ...
THX a lot in advance ...
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: VW Bettle 5C Automatic Lights
Thanks for the pictures and information.
---
For the intermittent fault in the BCM:
Enter the new BCM coding that I provided you, once it is accepted, go to/click in Autoscan Button in main window, click on the Gateway installation list, ... wait the reading..., Clear all DTCs, ... wait the reading, verify that everything is OK when the installation list appears. Take a ride with the car, check the lights in all the light switch positions. Stop, connect the VCDS and check the installation list again.
---
Once I have researched the diagrams for your Beetle of September 2011:
There are three ways to request signal 58 from the BCM (088, 089, 090 models).
- From pin T73b / 1. (coding required)
- From pin T73b / 4. Your BCM 088 F does not have such a pin.
- From pin T73b / 7. This is your case and your original installation is perfectly correct to be able to install automatic lights on your Beetle with OEM Bixenon headlights.
Therefore, it is not necessary to add or modify any original wire related to signal 58.
This pin T73b / 7 is also used for license plate lights.
---
The correspondence of wires between the connectors you posted earlier is totally correct for your automatic lights.
I see you understood well about pin T17 / 14.
---
Once you check the intermittent fault and provide information about it, I will post here the new BCM coding for your automatic lights.
---
For the intermittent fault in the BCM:
Enter the new BCM coding that I provided you, once it is accepted, go to/click in Autoscan Button in main window, click on the Gateway installation list, ... wait the reading..., Clear all DTCs, ... wait the reading, verify that everything is OK when the installation list appears. Take a ride with the car, check the lights in all the light switch positions. Stop, connect the VCDS and check the installation list again.
---
Once I have researched the diagrams for your Beetle of September 2011:
There are three ways to request signal 58 from the BCM (088, 089, 090 models).
- From pin T73b / 1. (coding required)
- From pin T73b / 4. Your BCM 088 F does not have such a pin.
- From pin T73b / 7. This is your case and your original installation is perfectly correct to be able to install automatic lights on your Beetle with OEM Bixenon headlights.
Therefore, it is not necessary to add or modify any original wire related to signal 58.
This pin T73b / 7 is also used for license plate lights.
---
The correspondence of wires between the connectors you posted earlier is totally correct for your automatic lights.
I see you understood well about pin T17 / 14.
---
Once you check the intermittent fault and provide information about it, I will post here the new BCM coding for your automatic lights.
-
- New
- Posts: 14
- Joined: Thu Jan 30, 2020 11:21 am
- Drives: GTI 6R
- Location: España
Re: VW Bettle 5C Automatic Lights
Hello
After several days with the new coding ...
It works GREAT ...
No fault in the BCM
THX a lot ...
After several days with the new coding ...
It works GREAT ...
No fault in the BCM
THX a lot ...
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: VW Bettle 5C Automatic Lights
Hi Santos.
Thanks for the report.
So, is your Beetle with original LED License Plate Lights?
Thanks for the report.
So, is your Beetle with original LED License Plate Lights?
