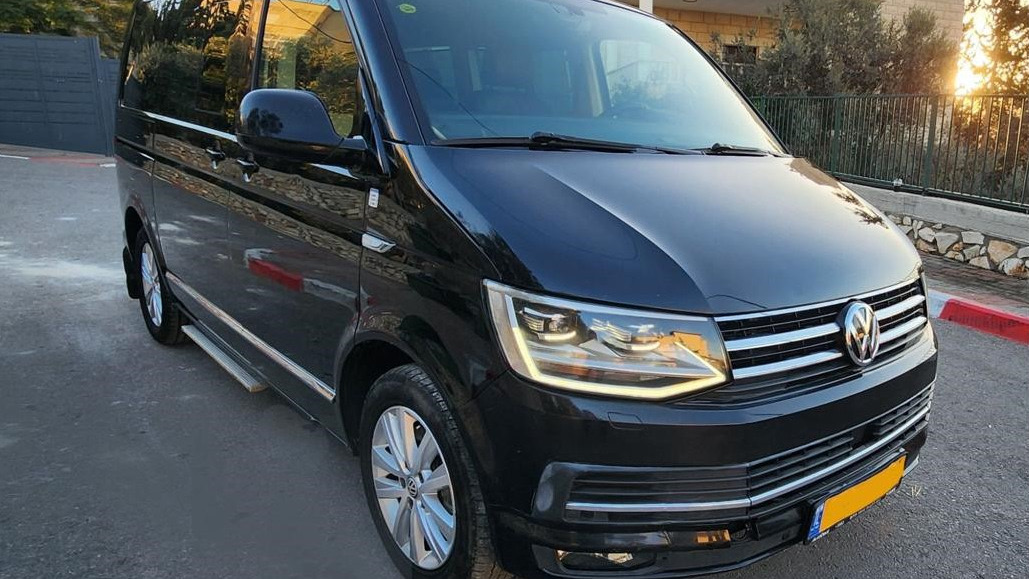

- IMG_4962.jpeg (221.59 KiB) Viewed 1512 times

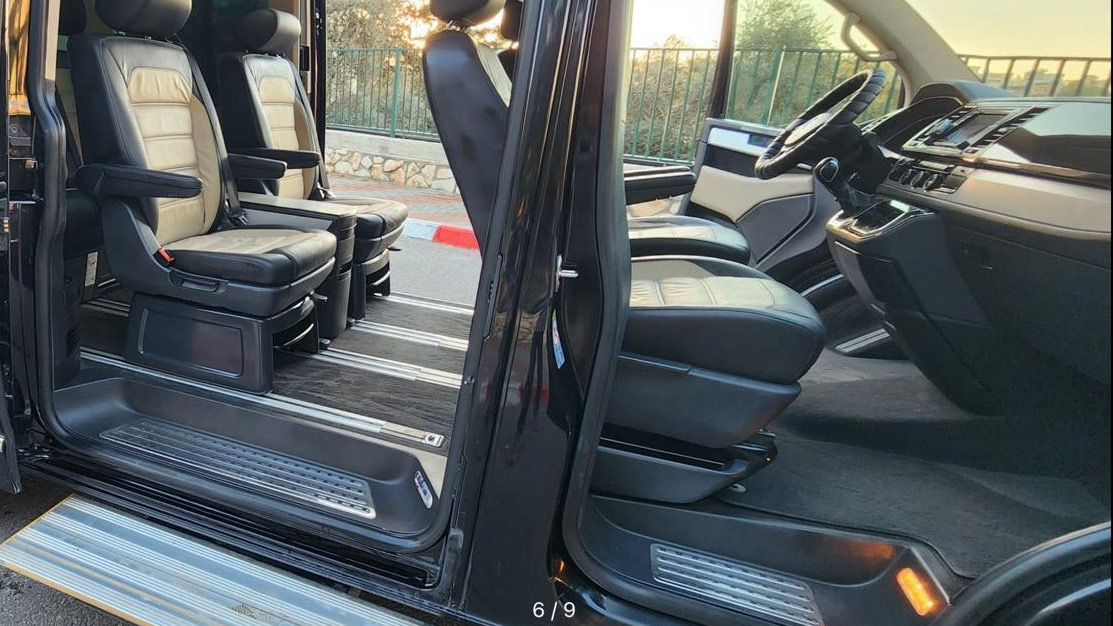

- IMG_4963.jpeg (253.56 KiB) Viewed 1512 times

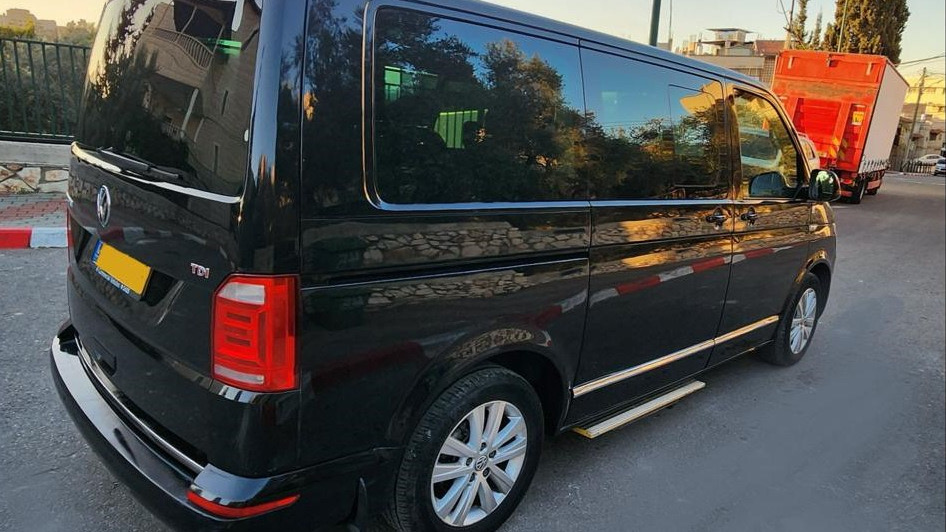

- IMG_4964.jpeg (187.05 KiB) Viewed 1512 times

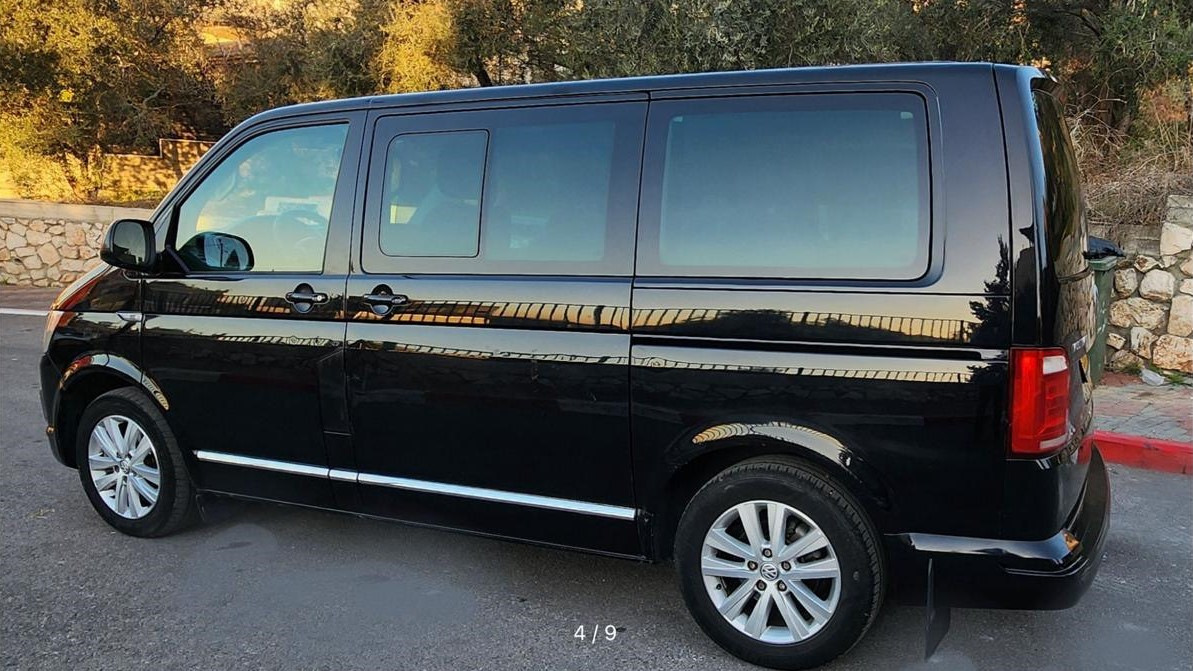

- IMG_4965.jpeg (284.71 KiB) Viewed 1512 times

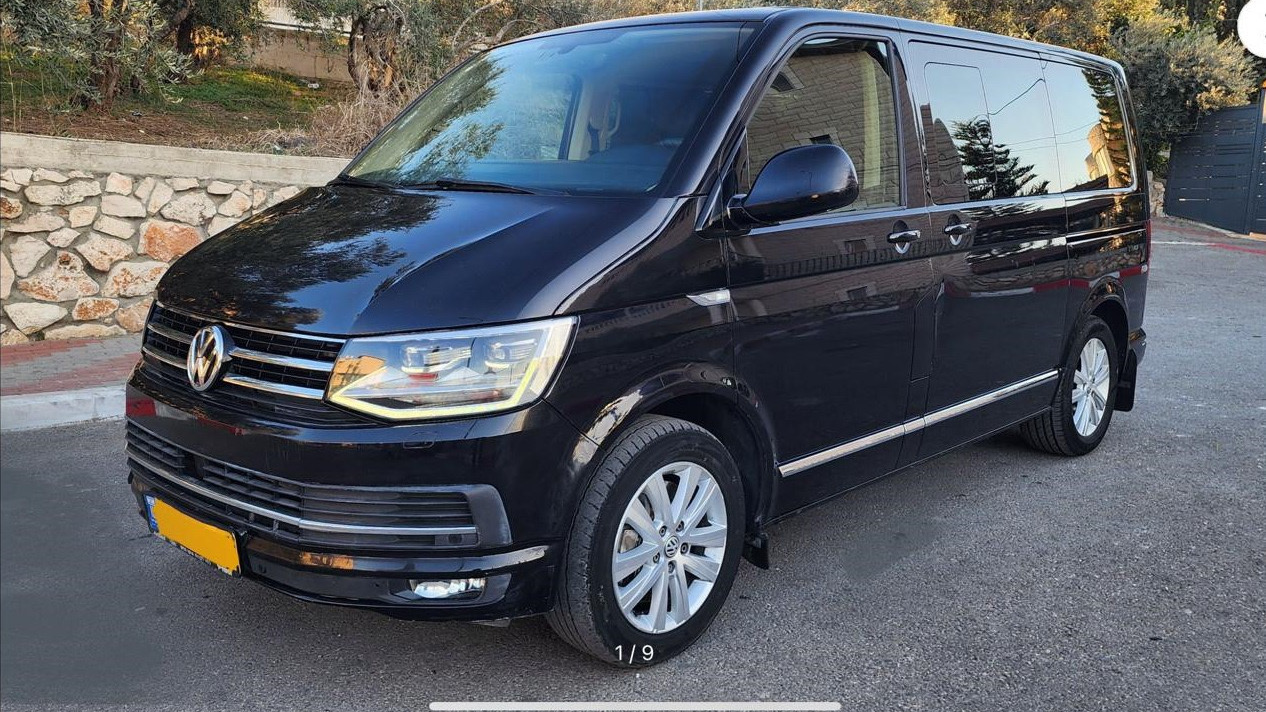

- IMG_4966.jpeg (410.32 KiB) Viewed 1512 times

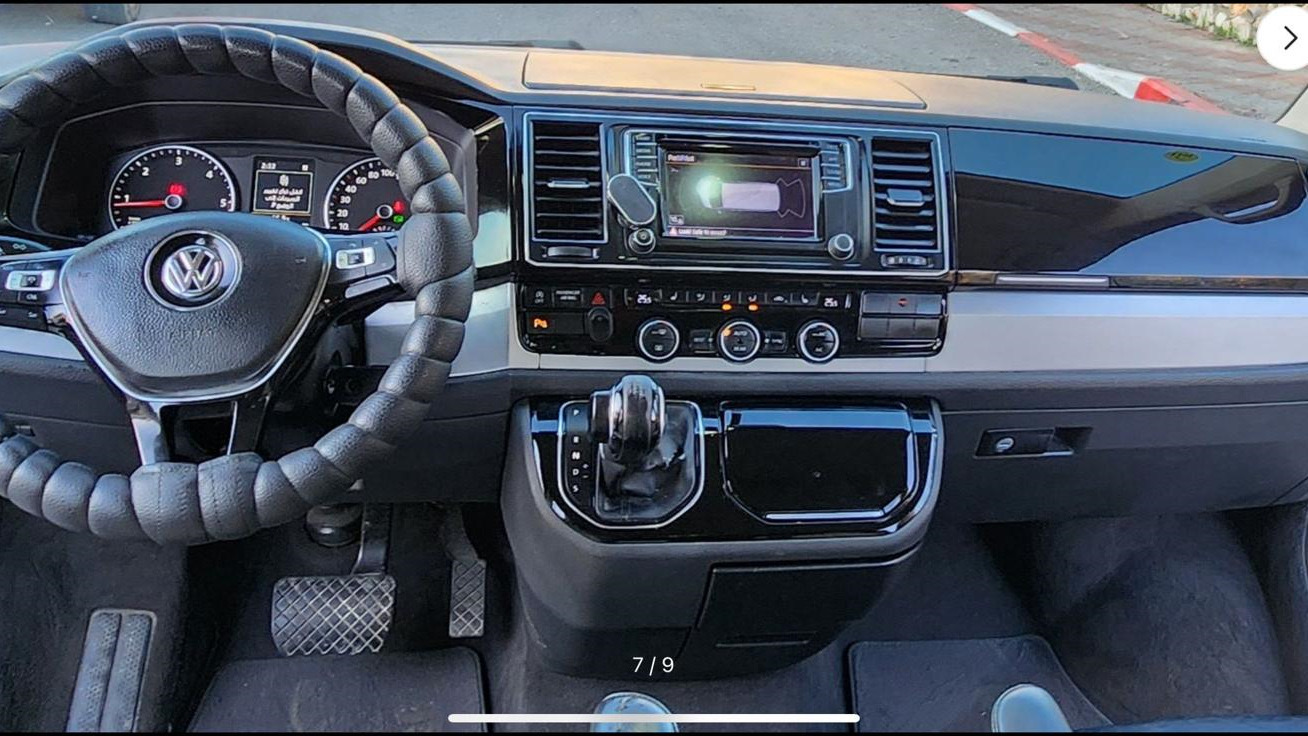

- IMG_4967.jpeg (292.26 KiB) Viewed 1512 times
Code: Select all
Thursday,26,December,2024,14:49:50:22797
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 24.7.1.0 (x64) HEX-NET2 CB: 0.4643.5
Data version: 20240919 DS356.3
www.Ross-Tech.com
VIN: WV2ZZZ7HZJH043735 License Plate:
Chassis Type: 7H-VN75 (7E0)
Scan: 01 02 03 04 08 09 10 13 15 17 19 25 3C 55 5F 61 0B
VIN: WV2ZZZ7HZJH043735 Mileage: 140370km-87221miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CXEB) Labels:. 04L-907-309-V2.clb
Part No SW: 04L 906 056 AE HW: 04L 907 445 A
Component: R4 2.0l BTD H03 6206
Revision: 23101001
Coding: 00254014436401080000
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_ECM20BTD03004L906056AE 004007
ROD: EV_ECM20BTD03004L906056AE.rod
VCID: F0B23DD7AA26035A2FB-80A4
VINID: 9E60AAAAA1D8A9A6001031C314F1BA4E51
No fault code found.
Readiness: N/A
-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb
Part No SW: 0BT 300 046 J HW: 0BH 927 711 G
Component: DSG DQ500-7F H11 5302
Revision: 00H11V01 CVN: DE654C7D
Coding: 0014
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDQ500021 001001
ROD: EV_TCMDQ500021_001_VW36.rod
VCID: BD2CD4E3ADF4BE32F4D-80E8
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 Q HW: 7E0 907 379 N
Component: ESC H06 0133
Revision: 00000000 Serial number: 62117000000811
Coding: 307E4098656684810C7C0279A68721D378F700
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: C0D2AD17DA06D3DA9FB-8094
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 16081713470786
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: FEAE13EFE072652AAD7-80AA
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 7E5-907-040.clb
Part No SW: 7E0 907 040 R HW: 7E0 907 040 R
Component: ClimatronicT5 H04 0613
Revision: 00001K04
Coding: 0004000503
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis_VN75.rod
VCID: B236F7DF64AA714A19F-80E6
Slave 1:
Subsystem 1 - Part No SW: 7E5 907 049 C HW: 7E5 907 049 C
Component: Heckbedienung H11 0303
Serial number: BHB-0012507170015099
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 228170266
Coding: 62F8793A0A21201301284F406CEB8FD4C084738960CD79603304003F0860
Shop #: WSC 02739 022 1914976
VCID: AB08EABB430020825A9-80FE
Subsystem 1 - Part No: 5K7 955 559 C Labels: 5K7-955-559.CLB
Component: RLS 140817 04 42 0106
Coding: 0228DD
Subsystem 2 - Part No SW: 7E0 959 801 N HW: 7E0 959 801 N Labels: 7E0-959-80X-V2.CLB
Component: J386__TSG_FT 003 0653
Serial number: KU0KU014081772263749
Coding: 0400A1
Subsystem 3 - Part No SW: 7E0 959 802 R HW: 7E0 959 802 R Labels: 7E0-959-80X-V2.CLB
Component: J387__TSG_BT 004 0653
Serial number: KU0KU011081772232469
Coding: 1400A1
Subsystem 4 - Part No SW: 7E0 959 442 A HW: 7E0 959 442 A Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 39170002129460057313
Coding: B4FFFF
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 AA HW: 7N0 919 475
Component: PARKHILFE 8K H06 0212
Revision: -------- Serial number: 28231720601691
Coding: 308109
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001012
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: F1B438D3A12C0A52205-80A4
No fault code found.
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 7N0-907-572.clb
Part No SW: 7N0 907 572 C HW: 7E0 907 572
Component: ACC Bosch PQx H03 0211
Serial number: 0607170439A87C Dataset Number: 7E0114v____ 0009
Coding: 00005000FE0779
Shop #: WSC 01383 790 50316
ASAM Dataset: EV_ACCBEGVW361 001006
ROD: EV_ACCBEGVW361.rod
VCID: B63ECBCF88C26D6A357-80E2
2 Faults Found:
1540 - Sensor for Automatic Distance Regulation; Incorrectly Positioned
C1103 00 [00001001] - -
[FAULT_MISALIGNMENT_HORIZONTAL]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Reset counter: 30
Mileage: 140363 km
Date: 2024.12.26.
Time: 00:17:57
Control Module temperature: 27 °C
Voltage terminal 15: 13.0 V
Vehicle speed: 0.00 m/s
Acceleration: 0.00 m/s²
1541 - Sensor for Automatic Distance Regulation; Incorrectly Positioned
C1103 00 [00001001] - -
[FAULT_MISALIGNMENT_VERTICAL]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Reset counter: 30
Mileage: 140363 km
Date: 2024.12.26.
Time: 00:17:57
Control Module temperature: 27 °C
Voltage terminal 15: 13.0 V
Vehicle speed: 0.00 m/s
Acceleration: 0.00 m/s²
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 H HW: 7E0 959 655 H
Component: VW10Airbag01V H08 0018
Revision: -------- Serial number: 003V4003DRHC Dataset Number: 7E0003V____ 0912
Coding: 000000000000000000000000000000003156
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: BB28DAFBB3E0B002CA9-80EE
Crash sensor for side airbag: driver side:
Serial number: 3495ZRB401G59OGCI0L5
Front Passenger's Side Airbag Crash Sensor:
Serial number: 3505ZRB400E599BKJ0EJ
Rear Side Airbag Crash Sensor (on driver's side):
Serial number: 3515ZRB400659GF2S9GP
Passenger side rear thorax airbag crash sensor:
Serial number: 3525ZRB400659GF2N8MQ
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 880 S HW: 7E0 920 880 S
Component: KOMBI H04 1109
Serial number: 00000000000000
Coding: 140F010300
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
VCID: BA26DFFFBCDA890AD1F-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 042205
Shop #: WSC 02739 022 1914976
VCID: E88255B79276CB9A77B-80BC
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 1109
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW23.rod
VCID: EA862FBF8CFAF98A61F-80BE
No fault code found.
-------------------------------------------------------------------------------
Address 3C: Lane Change (J769) Labels:| 5Q0-907-566.clb
Part No SW: 7E0 907 566 C HW: 4H0 907 566 F
Component: SWA Master H08 0030
Serial number: 0450411568
Coding: 030311
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_LaneChangAssis 001028
ROD: EV_LaneChangAssis_VN75.rod
VCID: B032FDD76AA6435A6FB-80E4
Lane change assistance control module 2:
Subsystem 1 - Part No SW: 7E0 907 568 C HW: 4H0 907 568 F
Component: SWA Slave H08 0030
Serial number: 0450495139
Coding: 030311
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: -------------- Dataset Number: V03600097E0 0001
Coding: 0FCA020001000000
Shop #: WSC 02757 790 50316
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: BA26DFFFBCDA890AD1F-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5K7 035 200 L HW: 5K7 035 200 L
Component: MU-S--ER H41 0449
Serial number: VWZAZ2T5332837 Dataset Number: V03935266VJ 0001
Coding: 06570000BE00000011110001000938001F0100D40020010002
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: AD0CE4A37D942EB244D-80F8
No fault code found.
-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7E0 907 534 HW: 7E0 937 090 C
Component: Batt.regelung H82 0752
Serial number: 4000 228170266
Coding: 030B1A73
Shop #: WSC 07422 003 1048576
VCID: E88255B79276CB9A77B-80BC
Subsystem 1 - Part No SW: 7E0 915 181 K HW: 7E0 915 181 K
Component: J367-BDMConti H03 1050
Serial number: 75885700001708100499
No fault code found.
End----------(Elapsed Time: 01:45, VBatt start/end: 12.5V/12.5V)-----------
