Where is the J906 J907 relay Polo 6C AUS

[Hamzau]

Hi guys,

Awesome thread! Helped me find the right fuse for the starter relays.

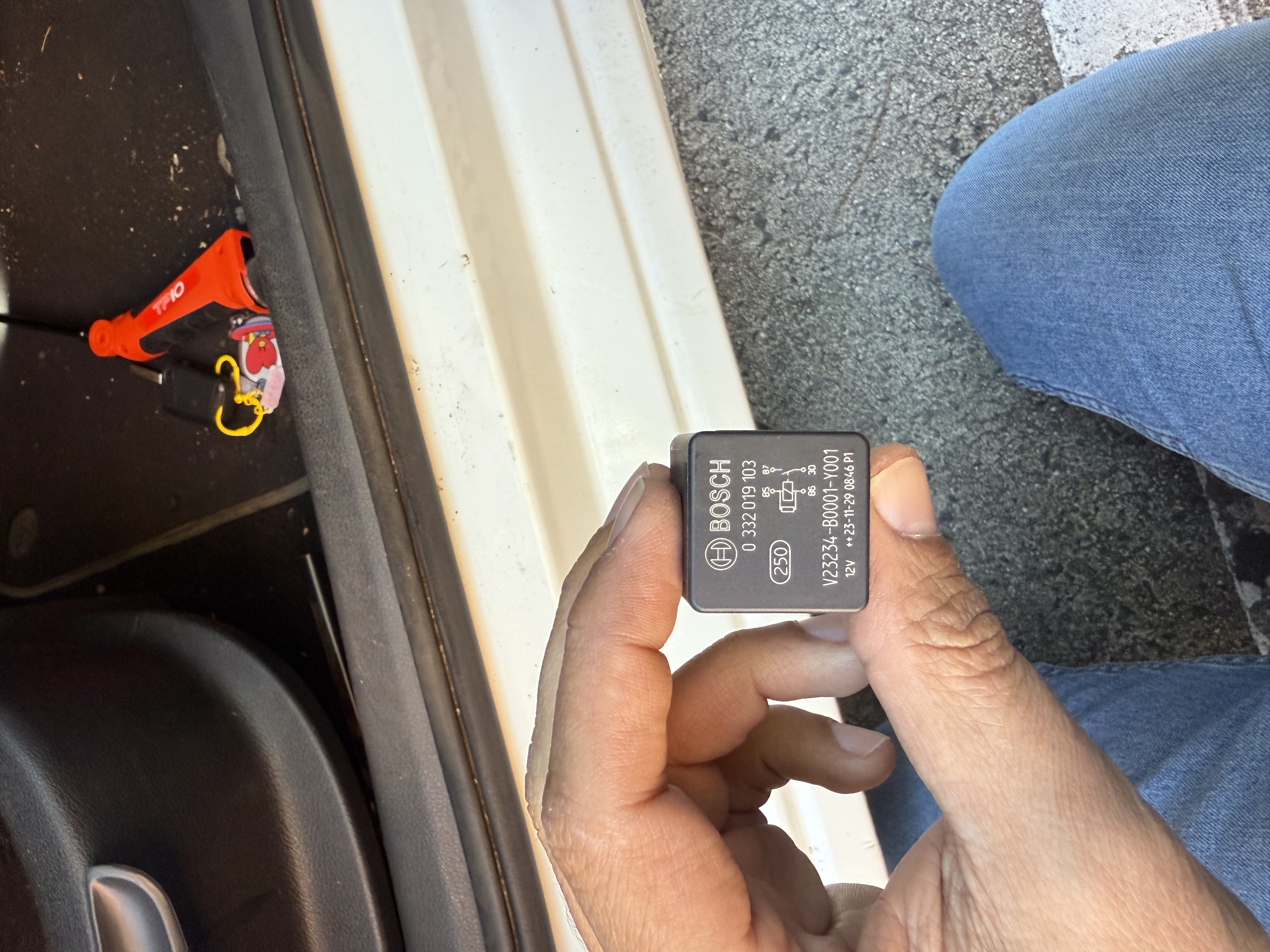

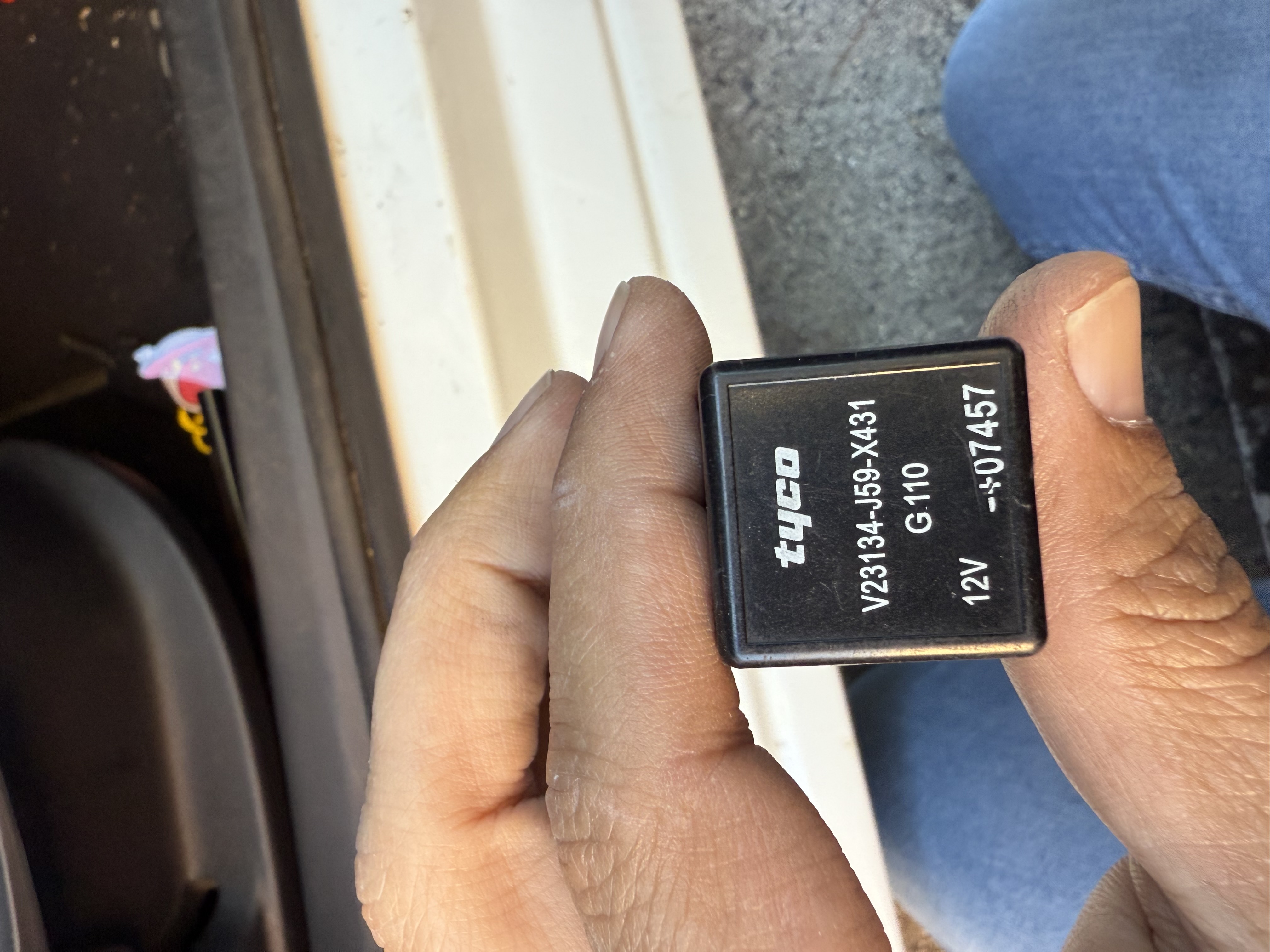

I am trying to isolate which starter relay is designated activation starter relay 2 but I cannot find any relay layout diagram. I did pull out 2 relay; one looks like an aftermarket Tyco and the other a Bosch.



The car is a RHD and the bosch was closer to the driver side door and the Tyco came out from the left side or closer to the centre of thr car. I realised if I leave the start/stop system activated with a 5 A fuse, it will blow after a few times and the EPC light comes on and if i turn the car off I cannot restart it till i put the fuse back in. I have put in a 10 A for the time being just incase I forget to turn the system off.



Wanted to know if the 2 starter relays are the same and if anyone can tell me the part numbers and a layout diagram that distinguishes between activation starter relay 2 and starter relay 1?


Am I right in assuming J906 is starter relay 1 and J907 is activation starter relay 2? I suspect the starter relay 2 is on its way out..

[Hamzau]

Hi guys,

An update; I bought access to erwin and in the relay documents it says that J906 and J907 are located in the engine compartment! Additonally there is a foot note saying these 2 are in the e-box?

Can anyone comment on this please?

Cheers

[iichel]

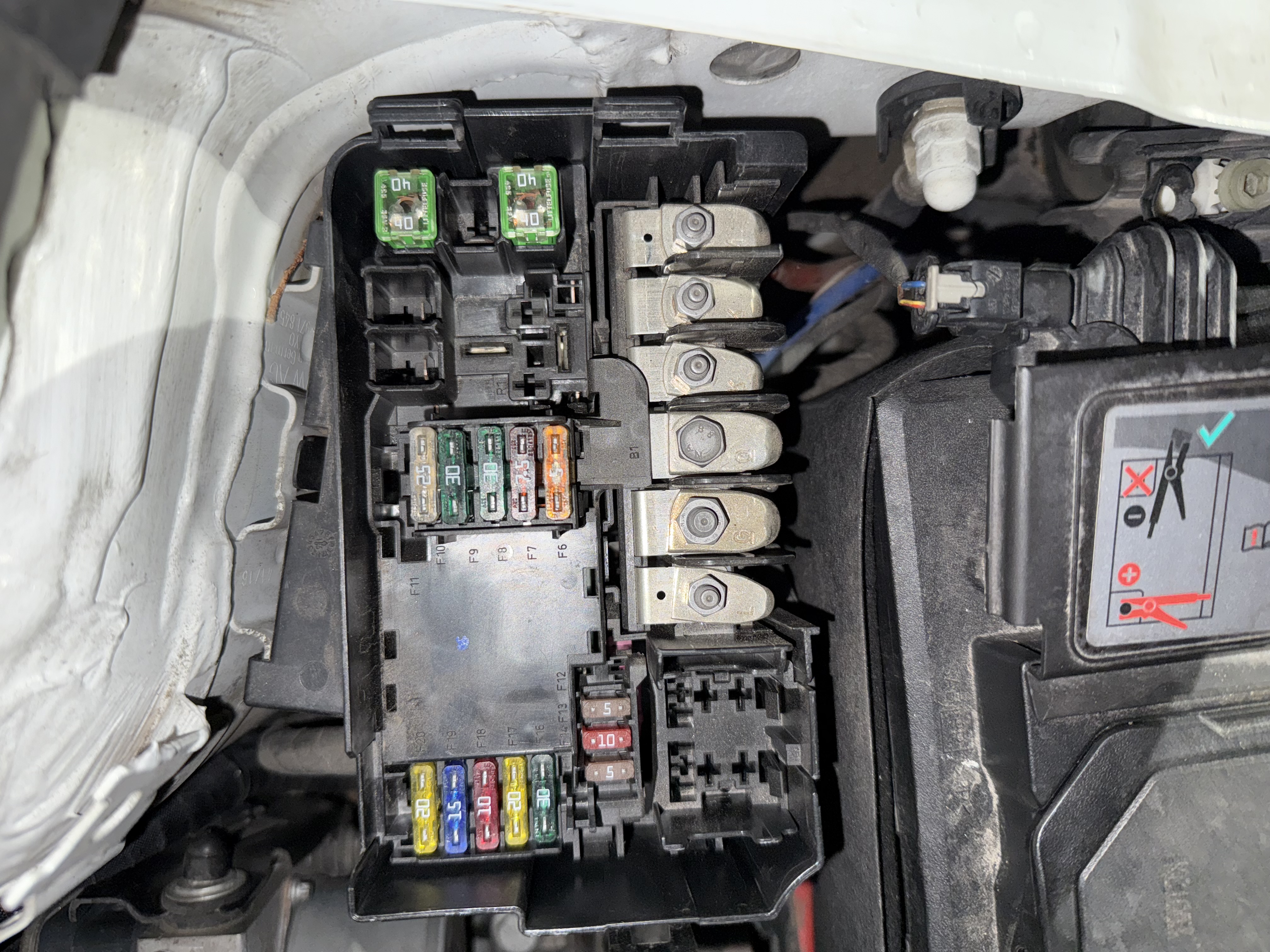

Well there is an E-Box in the engine compartment, so that is plausible.

[Hamzau]

Is e-box another name for the fuse box?


[Hamzau]

Yes an E-box holds both fuses and relays while a fuse box just holds fuses.

Thanks iichel.
Does this mean to replace the starter relays one needs a replacement e-box?

Cheers

[iichel]

No they are separate items but there don't seem to be any in your e-box.

[Hamzau]

Thanks iichel. Where would I find the 2 relays?

[Hamzau]

In an automatic is the relay J907 the activation relay 2 and would it be the neutral transmission switch?

[Hamzau]

*bump*


Still trying to figure this one out...can anyone help?

[iichel]

I split the topic but I dont know right now. Might help to tell what car we're talking about. I deduced it's a Polo 6C but more info could be helpful.

[Hamzau]

Thanks iichel!

The car is a 2017 Polo 1.2 TSi Bluemotion.

[Hamzau]

So a bit more detail:

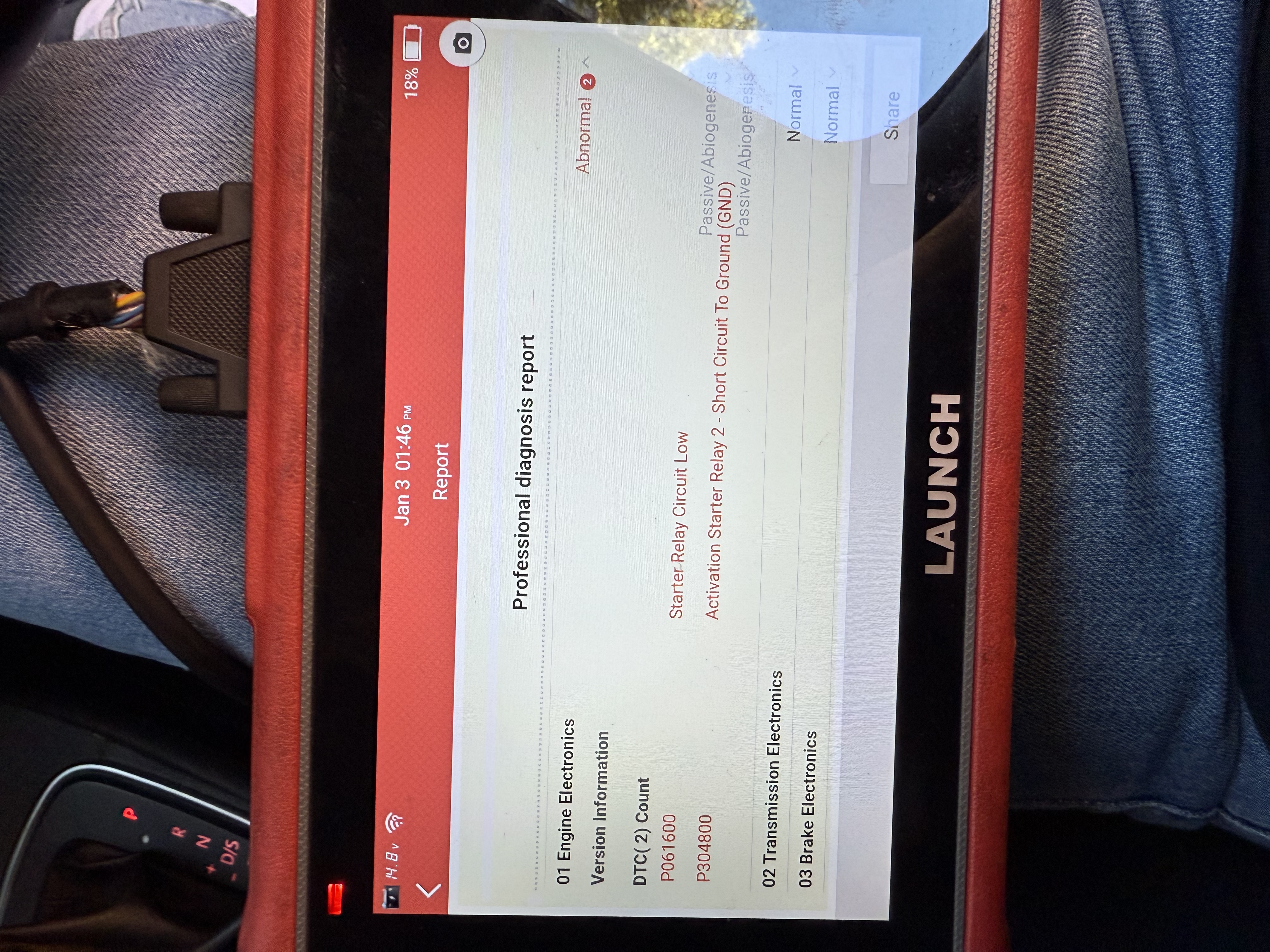

Fuse SC33 keeps blowing and the car gives the codes attached.

If I give direct 12V to the starter the car starts but not through the ignition. Based on the wiring diagram and the fuse layout for post Nov 2014: the fuse SC33 is for the clutch/ Neutral/ Parking transmission switch, the 2 starter relays J906 and J907.

I am thinking if the activation starter relay 2 is shorting to ground causing the fuse to blow its probably something in the coil side so the relay itself of the neutral switch is shorting to ground? I am not sure how the neutral sensor works but in older cars it would short to ground anyway so im leaning towards a relay failure?

Any advise would be welcome and appreciated!

[Hamzau]

Also noticed on the vehicle card that this is a 6R and not a 6C!! I thought 2014-2017 were 6C's.

Strange...


[cfmike]

No they are separate items but there don't seem to be any in your e-box.

Incorrect.

They’re not separate items in this instance, there are 3 relays mounted on a circuit board inside the E-Box.

R1, R2 and R3. The two starter relays and a main relay. Unless you’re a real electronics whiz, the only way to replace these relays is to replace the complete E-Box. They’re not particularly expensive though, just over £90+VAT from a dealer.

I know this thread is a few months old, so this may have already been sorted, but I think a lot of people would get caught out looking for these relays, which are completely hidden, so worth adding the correct info to this thread to help anyone searching.

[ciclo]

...I join in this help.





In this case, 'permanently installed' or simply 'included in position 21' is certainly something vague and open to interpretation... how about 'non-removable'.
VW produced the 6C very quickly...
Was it the first time that VW changed platforms on an Face Lift -PQ25 Flintstones car to PQ26 mini-pseudo MQB-?
They make me happy...
