Retrofit golf mk7 steering wheel on polo mk5

[ciclo]

except bi xenon and auto lights...

[firebulletz]

except bi xenon and auto lights...

I am buying the bcm attached. It is good for buttons illumination and for the rest of my car? And for my european key?

It is compatible with parking sensor and folding mirrors?

[ciclo]

Yes

[firebulletz]

Yes

Buyed [emoji16]

Inviato dal mio SM-G935F utilizzando Tapatalk

[ciclo]

Well done.

Please, don't send me private messages asking for help , I don't have time to answer them, I hope you understand it. Thank you.

Please, for all, open a personal topic dedicated to your 6R if you need help for various reasons, the help will be more effective and everyone can participate in this help.
The info must be shared, ...is the main reason for a forum with free services.

[firebulletz]

Well done.

Please, don't send me private messages asking for help [emoji38] , I don't have time to answer them, I hope you understand it. Thank you.

Please, for all, open a personal topic dedicated to your 6R if you need help for various reasons, the help will be more effective and everyone can participate in this help.
The info must be shared, ...is the main reason for a forum with free services.

Yes, i'm sorry

Inviato dal mio SM-G935F utilizzando Tapatalk

[ciclo]

[Games Goblin]

Hello all

Recently, I got a 2015 Polo 1.2 TSI DSG (Typ 6R/60 "IND")

Unfortunately, half it's steering controls are broken

I was searching around and have seen that used Golf Mk7 steering wheels with controls and paddle shifts can be had for around the same price of a new set of steering buttons.

Here is a picture of the existing steering in my car



This is the type of steering I have in mind:



Will the above steering and paddle shifts work in my car?

I notice that in Golf 7 steering, left side controls are almost exclusively for cruise control - my car does not have cruise control, but if I retrofit cruise later on, can I use these buttons instead of changing my left stalk?

Here is the current BCM in my car

Code: Select all

Address 09: Cent. Elect. (J519) Labels:. 6R0-937-08x-09.clb
Part No SW: 6RU 937 087 M HW: 6RU 937 087
Component: BCM IM H+4 H40 0432
Revision: BZ040001 Serial number: 0300 244150128
Coding: 3AB02BBF08A10000003800006C2B04900040414F608C0000200000000000
Shop #: WSC 57837 002 1048576
VCID: 6CDDFAEB8F113724D4-8038

Subsystem 1 - Part No SW: 6R0 959 802 D HW: 6R0 959 802 D Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 002 3424
Serial number: --------------------
Coding: 010000

Subsystem 2 - Part No SW: 6R0 959 801 AH HW: 6R0 959 801 AH Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 006 5260
Serial number: 13102579150409033008
Coding: 000000

Subsystem 3 - Part No SW: 6C0 959 442 HW: 6C0 959 442
Component: E221__MFL-TAT H04 0019
Serial number: 3031401041900134AB1B
Coding: 240000

Subsystem 4 - Part No SW: 6R0 959 811 L HW: 6R0 959 811 L
Component: ------------- 006 5550
Serial number: 13102580140423001653
Coding: 020000

Subsystem 5 - Part No SW: 6R0 959 812 L HW: 6R0 959 812 L
Component: ------------- 006 5550
Serial number: 13202581150707055742
Coding: 020000

Thanks for all your help

Cheers

[marcrae19]

Hey Spacewalker. How do i get in contact with you re this module? Apparently i cant private message you as i have just joined.

Cheers
Marc

[RidingVW]

Hello everyone ! (Sorry for my english)

Did someone found, how to have the light on the steering wheel ? Do I need to change my BMC ?
I have a polo 1.2 TSI R-Line 2012 105cv and I change the airbag wire (ref: 7EO971584C) because at first I lost the honk and the light and when i changed the wire the honk came back but still no light.

If someone have any advice. thanks

[ciclo]

In order for the multifunction buttons to light up on that steering wheel model, you must install a BCM PQ25 from 2015 onwards.

The easy way is to buy a BCM with the same specs.
VCDS, a very easy procedure. http://wiki.ross-tech.com/wiki/index.ph ... rol_Module

[shakjaq1]

In order for the multifunction buttons to light up on that steering wheel model, you must install a BCM PQ25 from 2015 onwards.

The easy way is to buy a BCM with the same specs.
VCDS, a very easy procedure. http://wiki.ross-tech.com/wiki/index.ph ... rol_Module

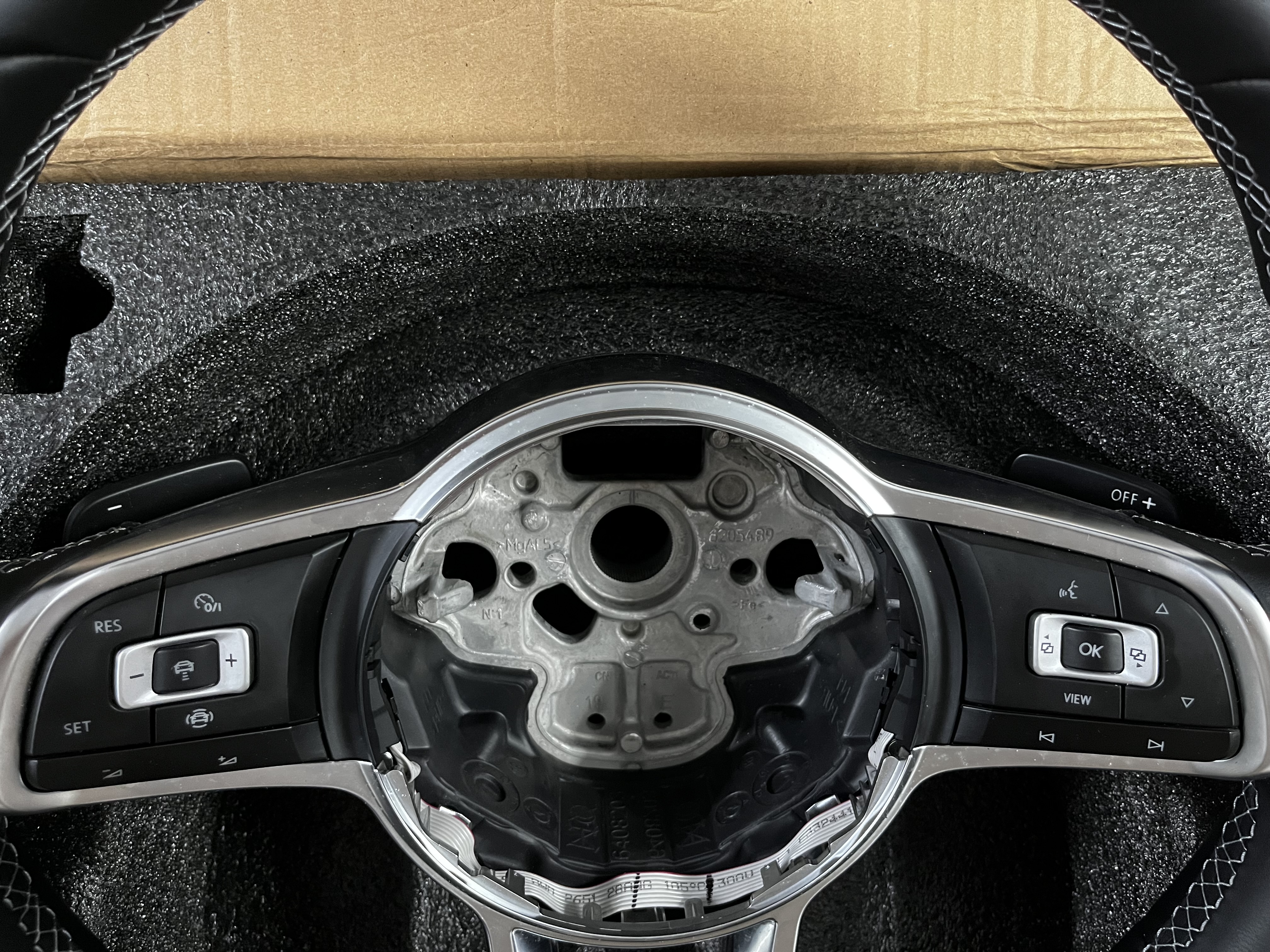

Hey ciclo! I recently bought a mk7 wheel from china with ACC buttons for my 2012 Polo sedan(Vento) 1.6 TDI. The current BCM in my car is 086D and my car did come with media control buttons on the steering from the factory. I know an MQB steering is a not a straight swap, but i expected the new steering to work "incorrectly" atleast(buttons not performing assigned function) but as it currently stands, the steering doesn't work at all except for the horn. I also tried switching to a 087F BCM to see if that would change anything but its the same, the buttons neither light up nor do they function. I do see an error in VCDS in the CAN gateway(19) saying "00470 - company comfort databus in single wire 011 - open circuit steering". I have attached photos of the steering and the wiring, let me know if you need any more info.

The before behaviour in this video is what i'm expecting:
https://www.facebook.com/thegermandna/v ... 070056531/

[ciclo]

Hello.

MFSW Coding:
A4FFFF manual gearbox.
A5FFFF automatic gearbox.

The airbag wiring is probably not correct. "00470 - company comfort databus in single wire 011 - open circuit steering"
Better images of all the airbag wiring connection points should be seen. (to the airbag)
As mentioned above for the button backlighting it is necessary to install a BCM from 2015 onwards.
The ACC buttons will not work, now... or ever. They could work as CCS if you install a module called Cruise Control 'Emulator' and a BCM that supports CCS.

Related:
- https://www.uk-polos.net/viewtopic.php?p=498666#p498666
- viewtopic.php?p=537303&sid=6bad3a3ee320 ... 81#p537303
- CCE viewtopic.php?p=607312#p607312

[shakjaq1]

Hello.

MFSW Coding:
A4FFFF manual gearbox.
A5FFFF automatic gearbox.

The airbag wiring is probably not correct. "00470 - company comfort databus in single wire 011 - open circuit steering"
Better images of all the airbag wiring connection points should be seen. (to the airbag)
As mentioned above for the button backlighting it is necessary to install a BCM from 2015 onwards.
The ACC buttons will not work, now... or ever. They could work as CCS if you install a module called Cruise Control 'Emulator' and a BCM that supports CCS.

Related:
- https://www.uk-polos.net/viewtopic.php?p=498666#p498666
- viewtopic.php?p=537303&sid=6bad3a3ee320 ... 81#p537303
- CCE viewtopic.php?p=607312#p607312

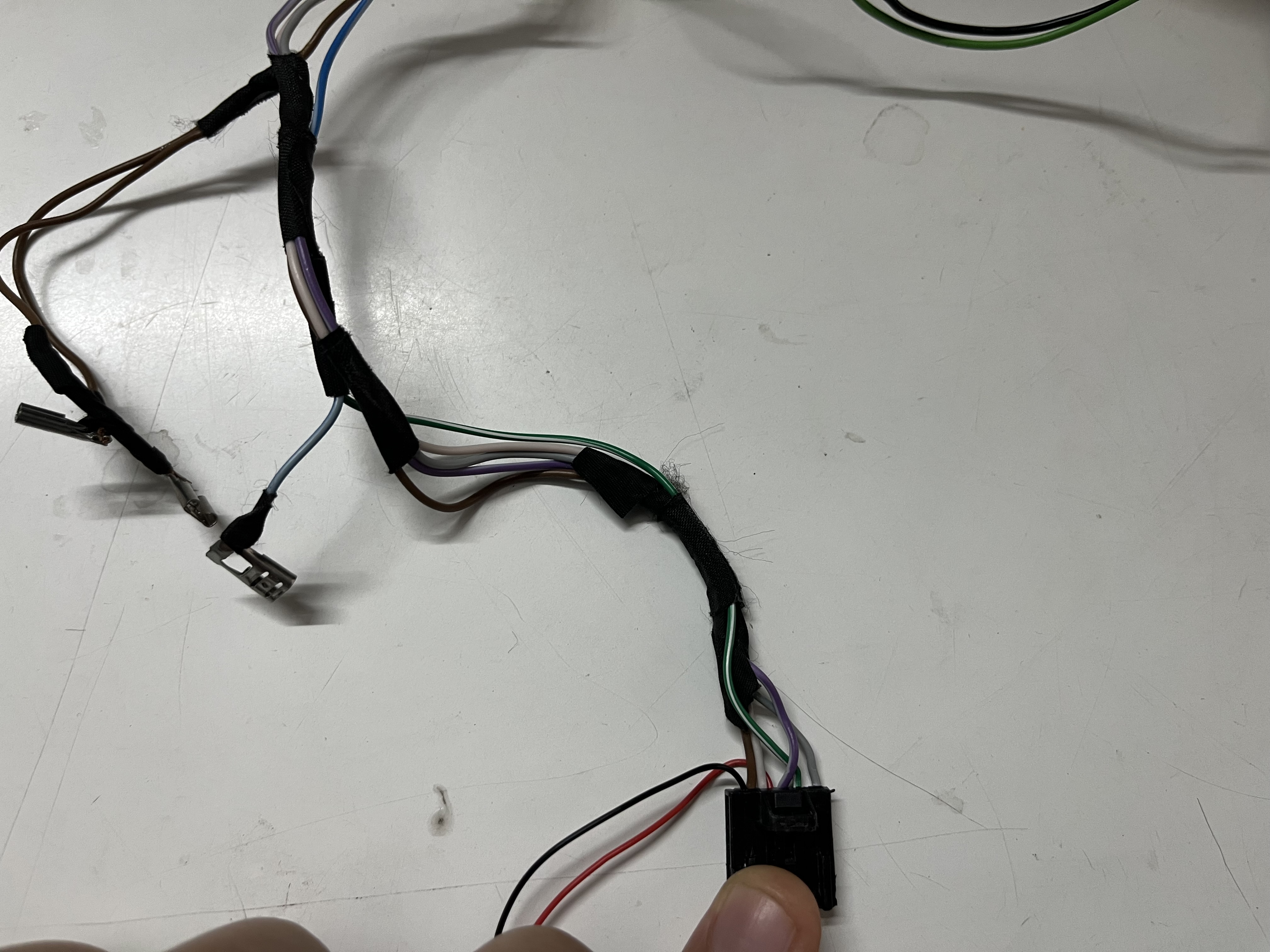

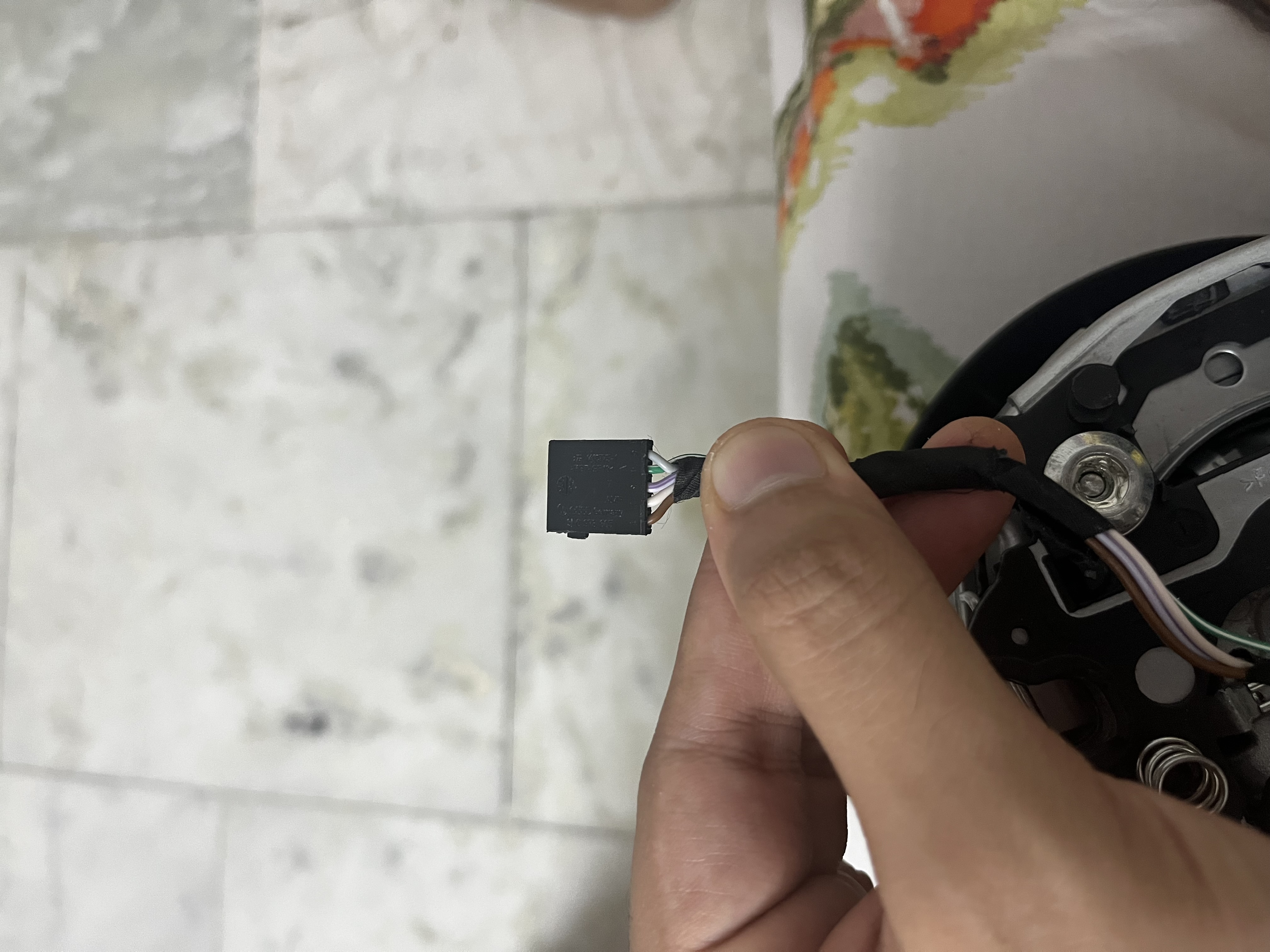

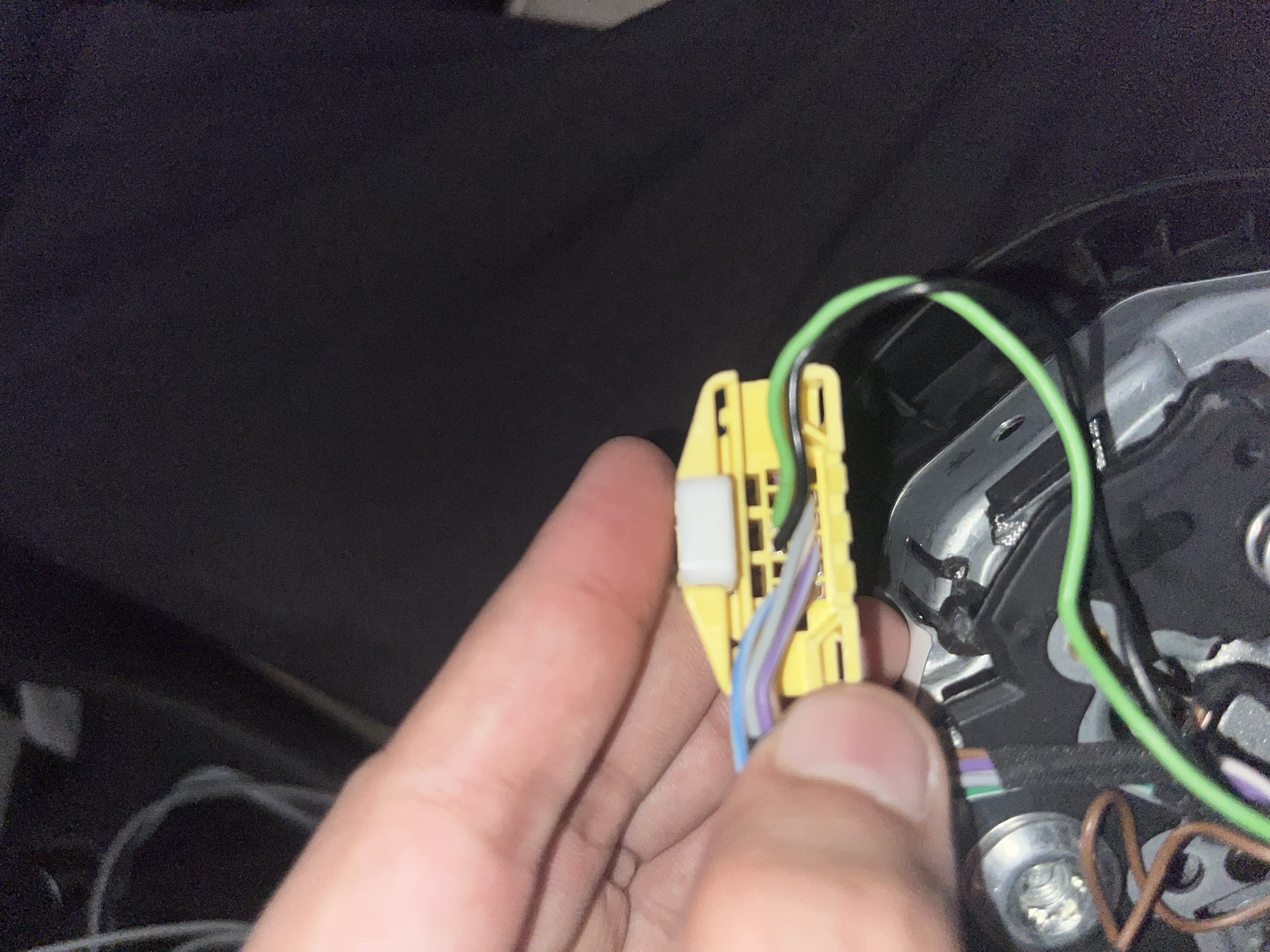

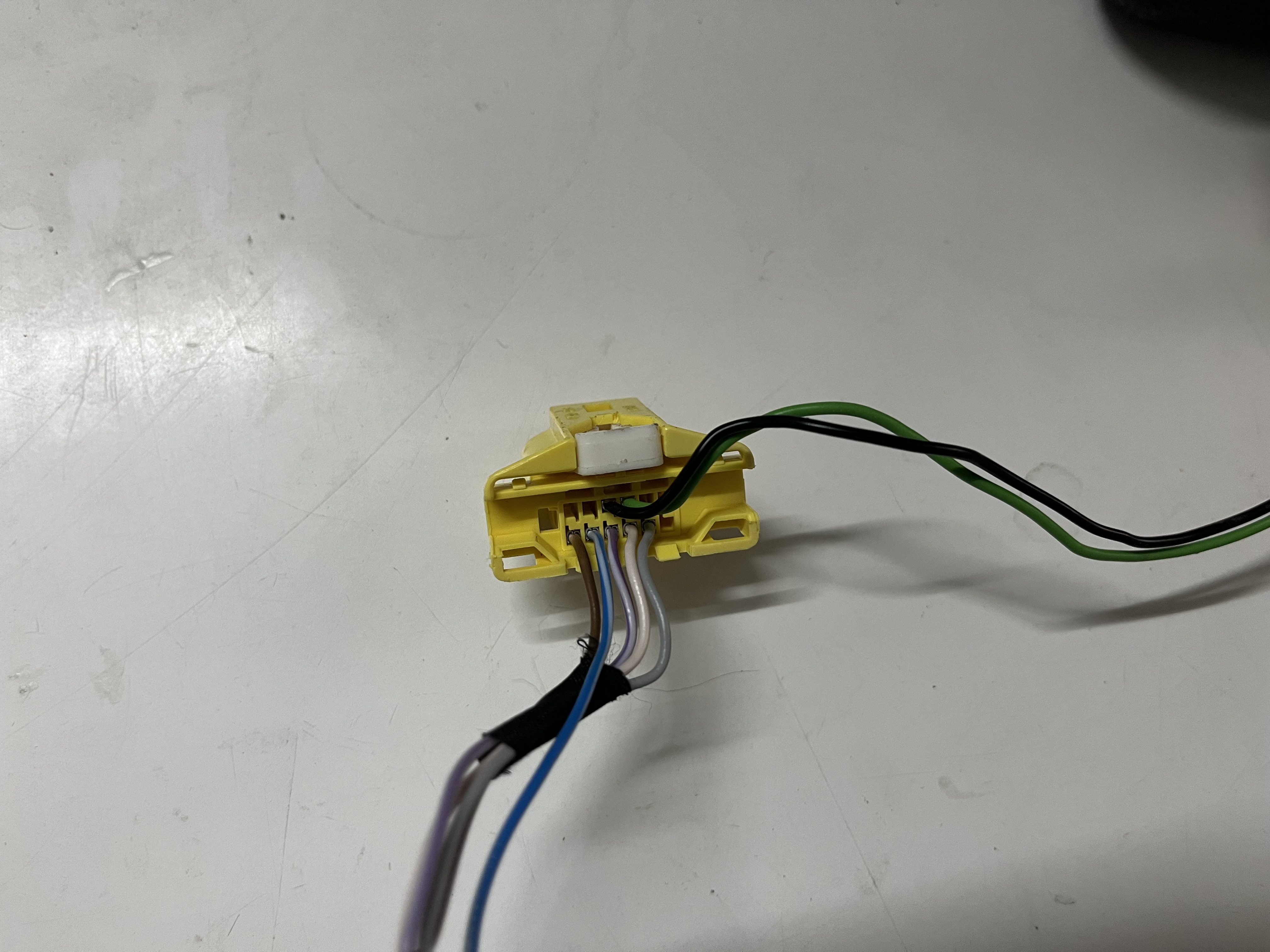

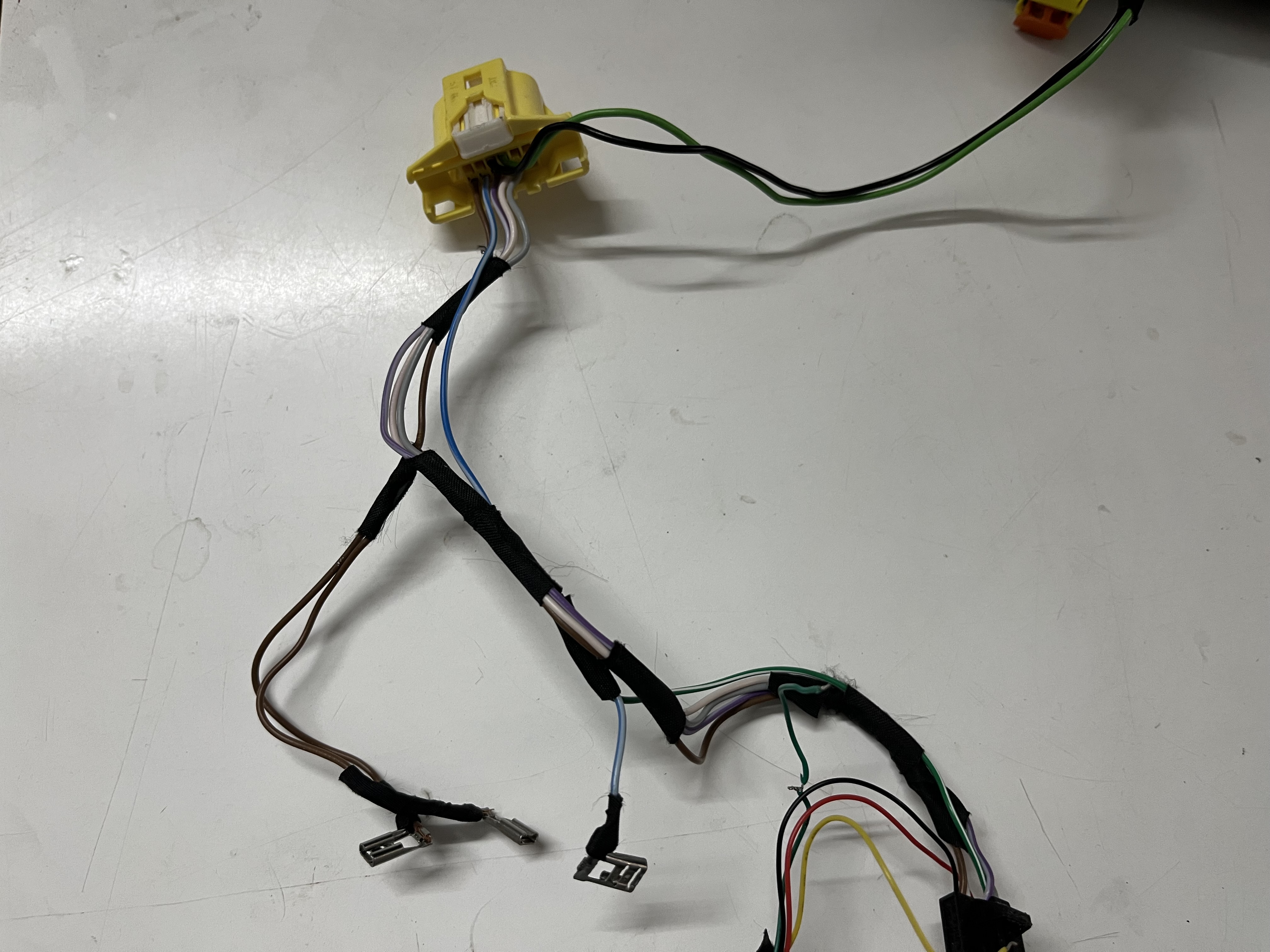

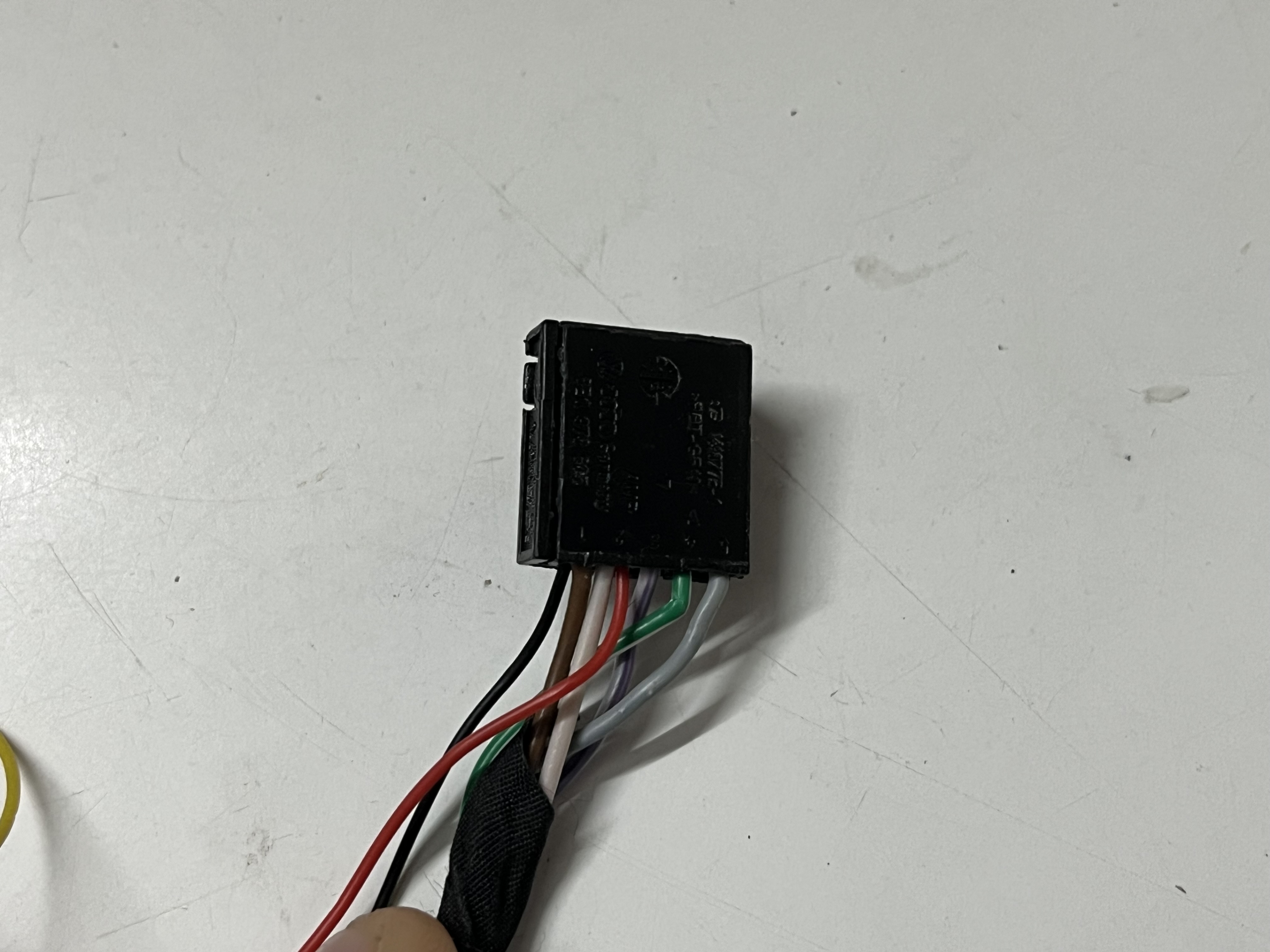

I dont see the MSFW in VCDS yet to code it. My current BCM is 087F, which theoretically should support button lighting. I have probably been through all of those forums you listed , couldn't figure out what's wrong with my airbag wiring. I do see an extra green wire in the 5 pin connector to buttons that is connected to the blue ground coming from the yellow 12 pin connector. I have noticed that when i connect my buttons to the wiring loom, the horn permanently stays on. I'm completely stumped right now, not sure how to diagnose it further. I'm aware the ACC buttons/cruise control buttons wont work without a cruise control emulator and even normal buttons will not work properly without atleast a chinese emulator. I'm attaching more photos of the airbag wiring loom, would appreciate some guidance(the small red and black wiring is for the aliexpress emulator, tapping positive and ground from there).

[ciclo]

Testing phase:

- Remove and isolate (do not cut) the blue/white T12/8 wire from the yellow connector.
- Temporarily remove the Chinese emulator...
- The white and "green" T5/4 wire is intriguing... , from the pictures it seems to be connected to the white and blue wire. Check if it is well spliced.

According to ETKA, 6R0 or 6RU937087F BCMs are older than 2015, so theoretically they should not support button illumination... Check it out.

Post a scan with the current BCM coding.
