UPGRADING BCM 6R
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: UPGRADING BCM 6R
Original bulbs for 6R Bixenon headlights
Xenon
Static Cornering Light
Blinker light
Xenon
Static Cornering Light
Blinker light
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
Good Morning to all of you,
iichel Sir one more needed from your side i had purchased diversity Antenna for my car.You had done that retrofit in your topic there is a guide for that but in other language.Sir can you please tell me its connection how to install it.
Thanks you.
iichel Sir one more needed from your side i had purchased diversity Antenna for my car.You had done that retrofit in your topic there is a guide for that but in other language.Sir can you please tell me its connection how to install it.
Thanks you.
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
ciclo wrote: ↑Sun Jun 17, 2018 10:43 am Yes, everything is fine.
A present for you: https://uk-polos.net/viewtopic.php?f=56 ... 50#p536420
https://i32.servimg.com/u/f32/18/94/39/39/dsc_0011.jpg
Good Afternoon Sir,
I had received gift that you had send to me.
Thank you.
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: UPGRADING BCM 6R
Thank you very much for informing me, I hope everything arrived in good condition.
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
GooD Evening Dears
Can anyone please tell me exact location OEM where to install AFS unit in polo 6R .In many topic i had seen that it will installed above the glove box (LHD) or behind the steering wheel (RHD).Please share pictures of it if possible.
Thank you.
Can anyone please tell me exact location OEM where to install AFS unit in polo 6R .In many topic i had seen that it will installed above the glove box (LHD) or behind the steering wheel (RHD).Please share pictures of it if possible.
Thank you.
-
SalilBabbar
- New
- Posts: 1
- Joined: Mon Jul 22, 2019 6:18 pm
Re: UPGRADING BCM 6R
Hi Forum members,ciclo wrote: ↑Thu Jan 25, 2018 2:19 pm
Subsystem 2 - Part No SW: 6R0 959 802 BH HW: 6R0 959 802 BH Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 003 8612
Serial number: KU0KU021021440523980
Coding: 1400B3
Subsystem 3 - Part No SW: 6R0 959 801 BC HW: 6R0 959 801 BC Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 003 8611
Serial number: KU0KU004101300011381
Coding: 0400B3
... and all the functions will work like a charm!... auto folding mirror function too.
This is my first post on this forum, I must say you guys are doing an exceptional work. I am quite interested in trying out auto-mirror folding. Therefore, I am attaching my auto-scan summary, please suggest this mod will work in my car and what coding I should use.
Sunday,22,July,2018,00:09:57:39744
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 18.2.1.2 (x64)
Data version: 20180518 DS287.1
www.Ross-Tech.com
VIN: TMBBDGNA4GG015898 License Plate: PB11CF3040
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: NA-SK25 (6RU)
Scan: 01 03 08 09 15 17 19 25 44 56
VIN: TMBBDGNA4GG015898
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine
Cannot be reached
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: Redir Fail!
Part No SW: 6R0 907 379 BP HW: 6R0 907 379 AQ
Component: ABS9.0 front H01 0003
Serial number: --------------
Coding: 80F52F74212404C5011CF472845920000000
Shop #: WSC 01234 785 00200
ASAM Dataset: EV_Brak1eABS90BOSCH 003017
ROD: N/A
VCID: 0D167276DCCA1E2C5C-8058
No ASAM data for: "EV_Brak1eABS90BOSCH" (SK25)
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: None
Part No SW: 5J5 907 044 C HW: 5J5 907 044 C
Component: Climatronic H10 0616
Revision: K0000000
VCID: 2F6AC8FE7E860C3C8E-807A
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 6R0-937-08x-09.clb
Part No SW: 6RU 937 086 M HW: 6RU 937 086
Component: BCM IM M+4 H40 0432
Revision: BY040001 Serial number: 0200 192160082
Coding: 3A904ABF08A10000013800002C0B069000C0414F60040000200000000000
Shop #: WSC 01234 785 00200
VCID: 6BD21CEE8A1EB01CE2-803E
Subsystem 1 - Part No: 5K7 955 559 B Labels: 5K7-955-559.CLB
Component: RLS 260416 03 37 0059
Coding: 0368DD
Subsystem 2 - Part No SW: 6R0 959 802 EF HW: 6R0 959 802 EF Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 023 2261
Serial number: 13102848160419013501
Coding: 000000
Subsystem 3 - Part No SW: 6R0 959 801 ED HW: 6R0 959 801 ED Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 023 2261
Serial number: 13102849160419223810
Coding: 000000
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
Hello Dear
For your Question regarding Auto fold mirror in your car if you able to find these WRMs then all coding is here in this topic and are plug and coding and play OEM way otherwise follow master's topic link viewtopic.php?f=56&t=58703&start=75#p472068 that is for LHD but will definitely get help from him.In present WRMs auto fold is not possible you have to change with following.
Subsystem 2 - Part No SW: 6R0 959 802 BH HW: 6R0 959 802 BH Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 003 8612
Serial number: KU0KU021021440523980
Coding: 1400B3
Subsystem 3 - Part No SW: 6R0 959 801 BC HW: 6R0 959 801 BC Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 003 8611
Serial number: KU0KU004101300011381
Coding: 0400B3
thank you.
For your Question regarding Auto fold mirror in your car if you able to find these WRMs then all coding is here in this topic and are plug and coding and play OEM way otherwise follow master's topic link viewtopic.php?f=56&t=58703&start=75#p472068 that is for LHD but will definitely get help from him.In present WRMs auto fold is not possible you have to change with following.
Subsystem 2 - Part No SW: 6R0 959 802 BH HW: 6R0 959 802 BH Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 003 8612
Serial number: KU0KU021021440523980
Coding: 1400B3
Subsystem 3 - Part No SW: 6R0 959 801 BC HW: 6R0 959 801 BC Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 003 8611
Serial number: KU0KU004101300011381
Coding: 0400B3
thank you.
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
Namaskaar Ciclo Sir
Everything is working well in my car thats why i am not active in forum but now i want to install ESP in my car can it feasible ? Please advice me can it works in my car properly .If yes then please tell me parts required for upgrading ABS9.0 to ESP 9.0.
Thank you.
Chassis Type: 60 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 20 25 44 55 56 65 0B
VIN: MEXD16603GT082427 Mileage: 9860km-6126miles
01-Engine -- Status: Malfunction 0000
03-ABS Brakes -- Status: Malfunction 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
65-Tire Pressure -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CJLA) Labels: None
Part No SW: 03E 906 019 AQ HW: 03E 906 019 AQ
Component: SIMOS11.2 H04 1968
Revision: --H04--- Serial number:
Coding: 00110016032400000000
Shop #: WSC 01234 785 00200
ASAM Dataset: EV_ECM12MPI02013E906019AQ 001001
ROD: N/A
VCID: 73E5B5AADA7402DAAD-8026
No ASAM data for: "EV_ECM12MPI02013E906019AQ" (VW25)
Readiness: 0010 0101
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: Redir Fail!
Part No SW: 6R0 907 379 BP HW: 6R0 907 379 AQ
Component: ABS9.0 front H01 0003
Serial number: --------------
Coding: 60DD2763212B18C20618E46B845818000000
Shop #: WSC 00000 000 08192
ASAM Dataset: EV_Brake1ABS9B0OSCH 003017
ROD: N/A
VCID: 0D11C352DC90742ADB-8058
No ASAM data for: "EV_Brake1ABS9B0OSCH" (VW25)
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels: 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H06 0060
Serial number: 090465LEA0003X
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3949EE1365FB2D2-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6R0-907-044.clb
Part No SW: 6R0 907 044 Q HW: 6R0 907 044 Q
Component: Climatronic H12 0615
Revision: V0000000
VCID: 41892F62D848E04AEF-8014
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: User\7E0-937-BCM-V1.lbl
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 352161207
Coding: 3AB02BBF48AB0080013807B17E8B9E905AC0676F600D70C0200400030800
Shop #: WSC 00046 123 12345
VCID: 2A5B68CE453E0312DE-807E
Subsystem 1 - Part No: 5K7 955 559 B Labels: USER\5K7-955-559.LBL
Component: RLS 311215 03 37 0059
Coding: 0728DD
Subsystem 2 - Part No SW: 6R0 959 802 BH HW: 6R0 959 802 BH Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 003 8612
Serial number: KU0KU021021440523980
Coding: 1400B3
Subsystem 3 - Part No SW: 6R0 959 801 BC HW: 6R0 959 801 BC Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 003 8612
Serial number: KU0KU021021440524152
Coding: 0400A3
Subsystem 4 - Part No SW: 6C0 959 442 HW: 6C0 959 442
Component: E221__MFL-TAT H06 0023
Serial number: 0111607164000748AB2B
Coding: 240000
Subsystem 5 - Part No SW: 6R0 959 811 S HW: 6R0 959 811 S
Component: J388__TSG_HL 019 1552
Serial number: 13102728160108150857
Coding: 000000
Subsystem 6 - Part No SW: 6R0 959 812 S HW: 6R0 959 812 S
Component: J389__TSG_HR 019 1552
Serial number: 13202729160111111032
Coding: 000000
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels: 7E0-919-475.clb
Part No SW: 7E0 919 475 K HW: 1Q0 919 475
Component: PARKHILFE 4K H03 0106
Revision: -------- Serial number: 35821404004439
Coding: 308001
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_VW75XParaKssis4K 001004
ROD: N/A
VCID: 3A7B588EBD9EB392AE-806E
No ASAM data for: "EV_VW75XParaKssis4K" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels: 5K0-959-655.clb
Part No SW: 6R0 959 655 J HW: 6R0 959 655 J
Component: VW10AirbagU06 H10 0020
Revision: -------- Serial number: 003GW013KE03
Coding: 003036
Shop #: WSC 00000 000 08192
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250_VW25.rod
VCID: 49993742E878280A37-801C
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: 5K0-920-xxx-17.clb
Part No SW: 6RD 920 870 A HW: 6RD 920 870 A
Component: KOMBI H03 0805
Serial number: 00000000000000
Coding: 140A00
Shop #: WSC 17218 938 12345
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04716
ROD: EV_Kombi_UDS_VDD_RM09_VW25.rod
VCID: 479D317AFE6CDE7A21-8012
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: User\7E0-909-901.lbl
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H81 0744
Revision: B9081001
Coding: 002305
Shop #: WSC 00046 123 12345
VCID: 68DFD2C69BB2F10208-803C
No fault code found.
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels: 8S0-857-511.clb
Part No SW: 7E0 857 511 G HW: 7E0 857 511 E
Component: FLA H10 0003
Revision: AA001001
Coding: 0404001C00000000000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_HighBeamAssiaSU316 001004
ROD: N/A
VCID: 2E5364DE71D66F3202-807A
No ASAM data for: "EV_HighBeamAssiaSU316" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels: 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H03 0805
Serial number: 00000000000000
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Imom_UDS_VDD_RM09 A03709
ROD: N/A
VCID: 6ADBA8CE8DBEC3121E-803E
No ASAM data for: "EV_Imom_UDS_VDD_RM09" (VW36 *)
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels: 1Sx-909-144-44.clb
Part No SW: 1S2 909 144 P HW: 1S2 909 144 P
Component: EPS_ECU H61 1702
Coding: 0001000001000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_SteerAssinSSK 014008
ROD: N/A
VCID: 41892F62D048E04AEF-8014
No ASAM data for: "EV_SteerAssinSSK" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels: User\6R0-907-357.lbl
Part No SW: 6R0 907 357 HW: 6R0 907 357
Component: LWR-ECU H02 0070
Revision: -------- Serial number: --------------
Coding: 0316000001000000
Shop #: WSC 00066 123 12345
ASAM Dataset: EV_HeadlRegulVWWLRPt 001004
ROD: N/A
VCID: 77FD81BACE0C6EFA91-8022
No ASAM data for: "EV_HeadlRegulVWWLRPt" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels: User\6RD-035-187.lbl
Part No SW: 6RD 035 187 A HW: 6RD 035 187 A
Component: MIB2-S-R-CN 025 0210
Revision: -----001 Serial number: 12765GD0082357
Coding: 00000441000000
Shop #: WSC 00081 790 00184
VCID: 45813B72CC60CC6AD3-8010
No fault code found.
-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502) Labels: 3AA-907-273.clb
Part No SW: 3AA 907 273 F HW: 5Q0 907 273
Component: RDKBERU30 H04 0011
Serial number: 30000000060895
ASAM Dataset: EV_RDKBERU30 005005
ROD: EV_RDKBERU30_VW36.rod
VCID: 377D41BA8E8CAEFA51-8062
No fault code found.
End-------------------------(Elapsed Time: 03:13)--------------------------
Everything is working well in my car thats why i am not active in forum but now i want to install ESP in my car can it feasible ? Please advice me can it works in my car properly .If yes then please tell me parts required for upgrading ABS9.0 to ESP 9.0.
Thank you.
Chassis Type: 60 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 20 25 44 55 56 65 0B
VIN: MEXD16603GT082427 Mileage: 9860km-6126miles
01-Engine -- Status: Malfunction 0000
03-ABS Brakes -- Status: Malfunction 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
65-Tire Pressure -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CJLA) Labels: None
Part No SW: 03E 906 019 AQ HW: 03E 906 019 AQ
Component: SIMOS11.2 H04 1968
Revision: --H04--- Serial number:
Coding: 00110016032400000000
Shop #: WSC 01234 785 00200
ASAM Dataset: EV_ECM12MPI02013E906019AQ 001001
ROD: N/A
VCID: 73E5B5AADA7402DAAD-8026
No ASAM data for: "EV_ECM12MPI02013E906019AQ" (VW25)
Readiness: 0010 0101
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: Redir Fail!
Part No SW: 6R0 907 379 BP HW: 6R0 907 379 AQ
Component: ABS9.0 front H01 0003
Serial number: --------------
Coding: 60DD2763212B18C20618E46B845818000000
Shop #: WSC 00000 000 08192
ASAM Dataset: EV_Brake1ABS9B0OSCH 003017
ROD: N/A
VCID: 0D11C352DC90742ADB-8058
No ASAM data for: "EV_Brake1ABS9B0OSCH" (VW25)
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels: 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H06 0060
Serial number: 090465LEA0003X
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3949EE1365FB2D2-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6R0-907-044.clb
Part No SW: 6R0 907 044 Q HW: 6R0 907 044 Q
Component: Climatronic H12 0615
Revision: V0000000
VCID: 41892F62D848E04AEF-8014
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: User\7E0-937-BCM-V1.lbl
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 352161207
Coding: 3AB02BBF48AB0080013807B17E8B9E905AC0676F600D70C0200400030800
Shop #: WSC 00046 123 12345
VCID: 2A5B68CE453E0312DE-807E
Subsystem 1 - Part No: 5K7 955 559 B Labels: USER\5K7-955-559.LBL
Component: RLS 311215 03 37 0059
Coding: 0728DD
Subsystem 2 - Part No SW: 6R0 959 802 BH HW: 6R0 959 802 BH Labels: 6R0-959-802.CLB
Component: J386__TSG_FT 003 8612
Serial number: KU0KU021021440523980
Coding: 1400B3
Subsystem 3 - Part No SW: 6R0 959 801 BC HW: 6R0 959 801 BC Labels: 6R0-959-801.CLB
Component: J387__TSG_BT 003 8612
Serial number: KU0KU021021440524152
Coding: 0400A3
Subsystem 4 - Part No SW: 6C0 959 442 HW: 6C0 959 442
Component: E221__MFL-TAT H06 0023
Serial number: 0111607164000748AB2B
Coding: 240000
Subsystem 5 - Part No SW: 6R0 959 811 S HW: 6R0 959 811 S
Component: J388__TSG_HL 019 1552
Serial number: 13102728160108150857
Coding: 000000
Subsystem 6 - Part No SW: 6R0 959 812 S HW: 6R0 959 812 S
Component: J389__TSG_HR 019 1552
Serial number: 13202729160111111032
Coding: 000000
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels: 7E0-919-475.clb
Part No SW: 7E0 919 475 K HW: 1Q0 919 475
Component: PARKHILFE 4K H03 0106
Revision: -------- Serial number: 35821404004439
Coding: 308001
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_VW75XParaKssis4K 001004
ROD: N/A
VCID: 3A7B588EBD9EB392AE-806E
No ASAM data for: "EV_VW75XParaKssis4K" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels: 5K0-959-655.clb
Part No SW: 6R0 959 655 J HW: 6R0 959 655 J
Component: VW10AirbagU06 H10 0020
Revision: -------- Serial number: 003GW013KE03
Coding: 003036
Shop #: WSC 00000 000 08192
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250_VW25.rod
VCID: 49993742E878280A37-801C
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: 5K0-920-xxx-17.clb
Part No SW: 6RD 920 870 A HW: 6RD 920 870 A
Component: KOMBI H03 0805
Serial number: 00000000000000
Coding: 140A00
Shop #: WSC 17218 938 12345
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04716
ROD: EV_Kombi_UDS_VDD_RM09_VW25.rod
VCID: 479D317AFE6CDE7A21-8012
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: User\7E0-909-901.lbl
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H81 0744
Revision: B9081001
Coding: 002305
Shop #: WSC 00046 123 12345
VCID: 68DFD2C69BB2F10208-803C
No fault code found.
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels: 8S0-857-511.clb
Part No SW: 7E0 857 511 G HW: 7E0 857 511 E
Component: FLA H10 0003
Revision: AA001001
Coding: 0404001C00000000000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_HighBeamAssiaSU316 001004
ROD: N/A
VCID: 2E5364DE71D66F3202-807A
No ASAM data for: "EV_HighBeamAssiaSU316" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels: 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H03 0805
Serial number: 00000000000000
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Imom_UDS_VDD_RM09 A03709
ROD: N/A
VCID: 6ADBA8CE8DBEC3121E-803E
No ASAM data for: "EV_Imom_UDS_VDD_RM09" (VW36 *)
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels: 1Sx-909-144-44.clb
Part No SW: 1S2 909 144 P HW: 1S2 909 144 P
Component: EPS_ECU H61 1702
Coding: 0001000001000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_SteerAssinSSK 014008
ROD: N/A
VCID: 41892F62D048E04AEF-8014
No ASAM data for: "EV_SteerAssinSSK" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels: User\6R0-907-357.lbl
Part No SW: 6R0 907 357 HW: 6R0 907 357
Component: LWR-ECU H02 0070
Revision: -------- Serial number: --------------
Coding: 0316000001000000
Shop #: WSC 00066 123 12345
ASAM Dataset: EV_HeadlRegulVWWLRPt 001004
ROD: N/A
VCID: 77FD81BACE0C6EFA91-8022
No ASAM data for: "EV_HeadlRegulVWWLRPt" (VW25)
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels: User\6RD-035-187.lbl
Part No SW: 6RD 035 187 A HW: 6RD 035 187 A
Component: MIB2-S-R-CN 025 0210
Revision: -----001 Serial number: 12765GD0082357
Coding: 00000441000000
Shop #: WSC 00081 790 00184
VCID: 45813B72CC60CC6AD3-8010
No fault code found.
-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502) Labels: 3AA-907-273.clb
Part No SW: 3AA 907 273 F HW: 5Q0 907 273
Component: RDKBERU30 H04 0011
Serial number: 30000000060895
ASAM Dataset: EV_RDKBERU30 005005
ROD: EV_RDKBERU30_VW36.rod
VCID: 377D41BA8E8CAEFA51-8062
No fault code found.
End-------------------------(Elapsed Time: 03:13)--------------------------
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: UPGRADING BCM 6R
I don't know govind, I can no longer make the appropriate checks in this regard (wiring and necessary parts), I hope that those who have already made this type of mod can help here (iichel, madwarlock, firegrafik). I recommend you read on drive2.ru
One thing that I know is possible in your ECU SIMOS11.2 is the GRA_High activation
, but I don't know with which tool your ECU can be read.Namaste
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
Thank you for reply sir tell me what to do for GRA high activation .I will try my friend has tool let us try if possible .May be something come out after experiment.For ESP i had contacted to Firegrafik sir he had cleared my doubts and i will contact him further for it and you also.
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: UPGRADING BCM 6R
Read the original ECU file with your friend's tool.
Send it to my email.
I modify and send it to you to write it in your ECU with your friend's tool.
Send it to my email.
I modify and send it to you to write it in your ECU with your friend's tool.
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
Ciclo Sir

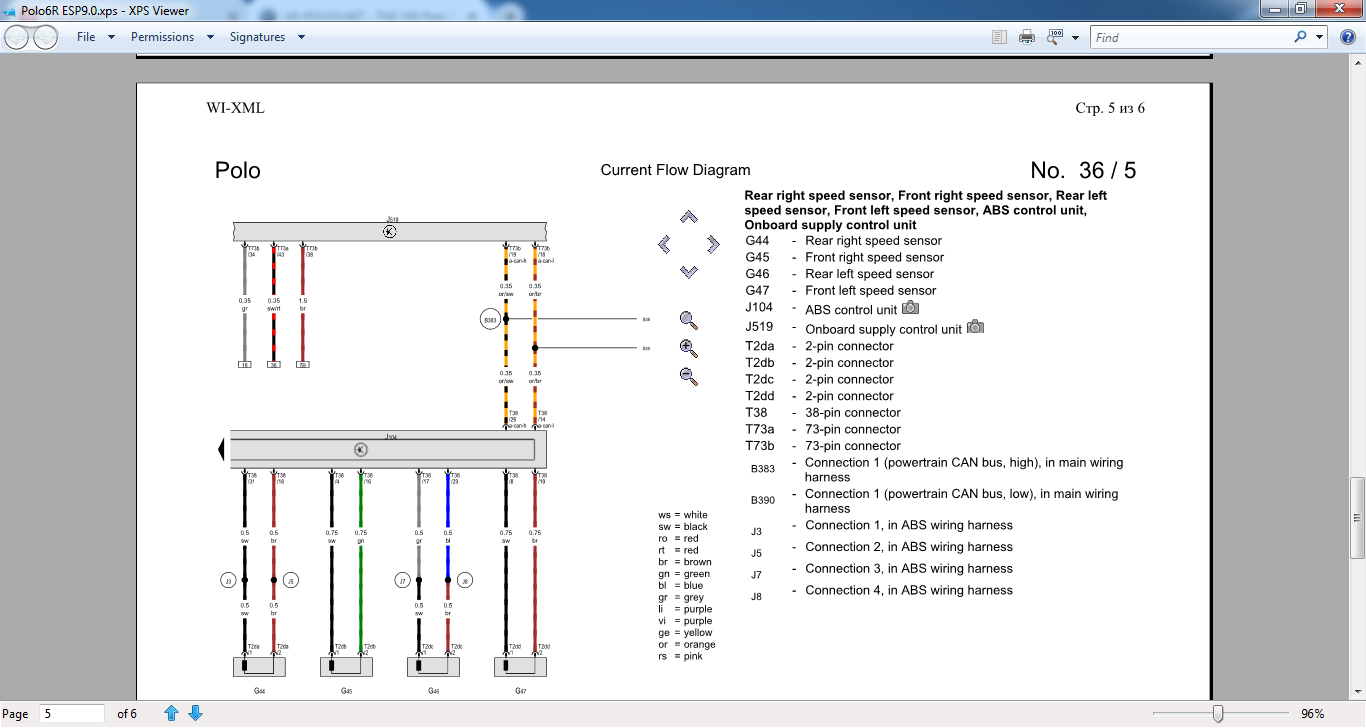

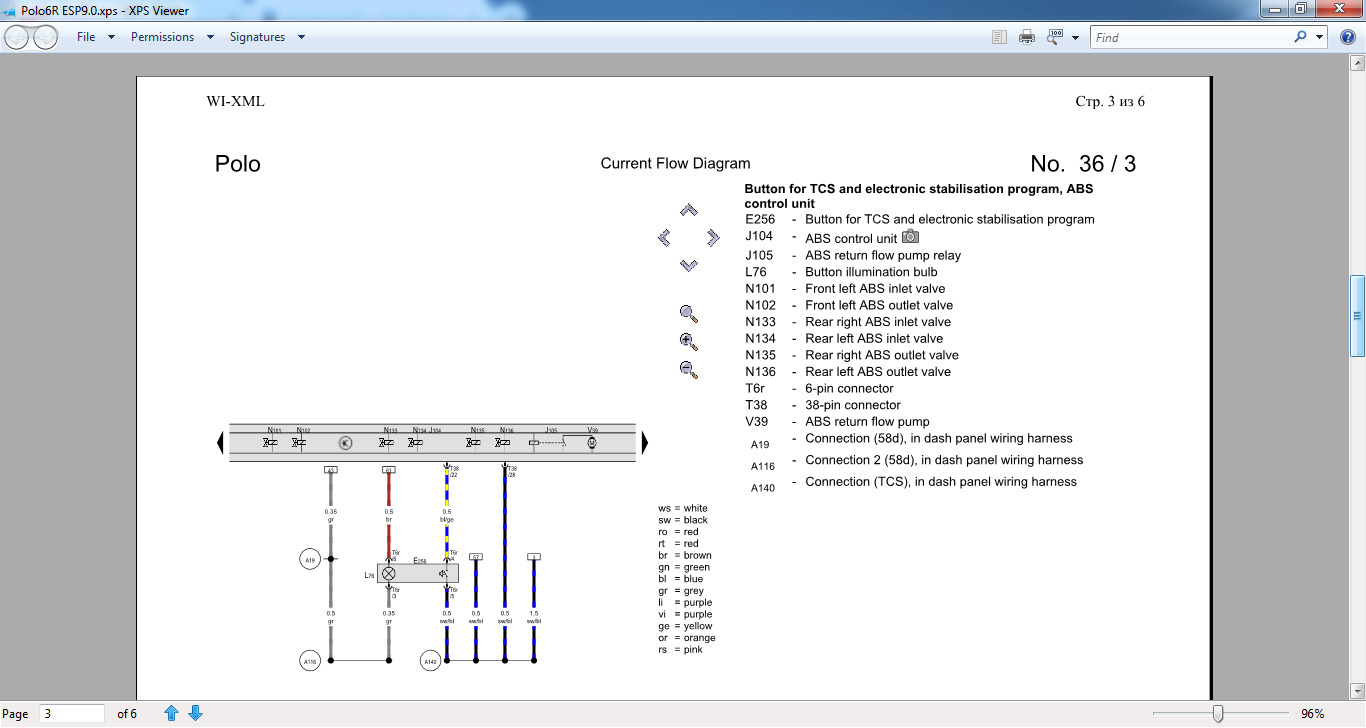

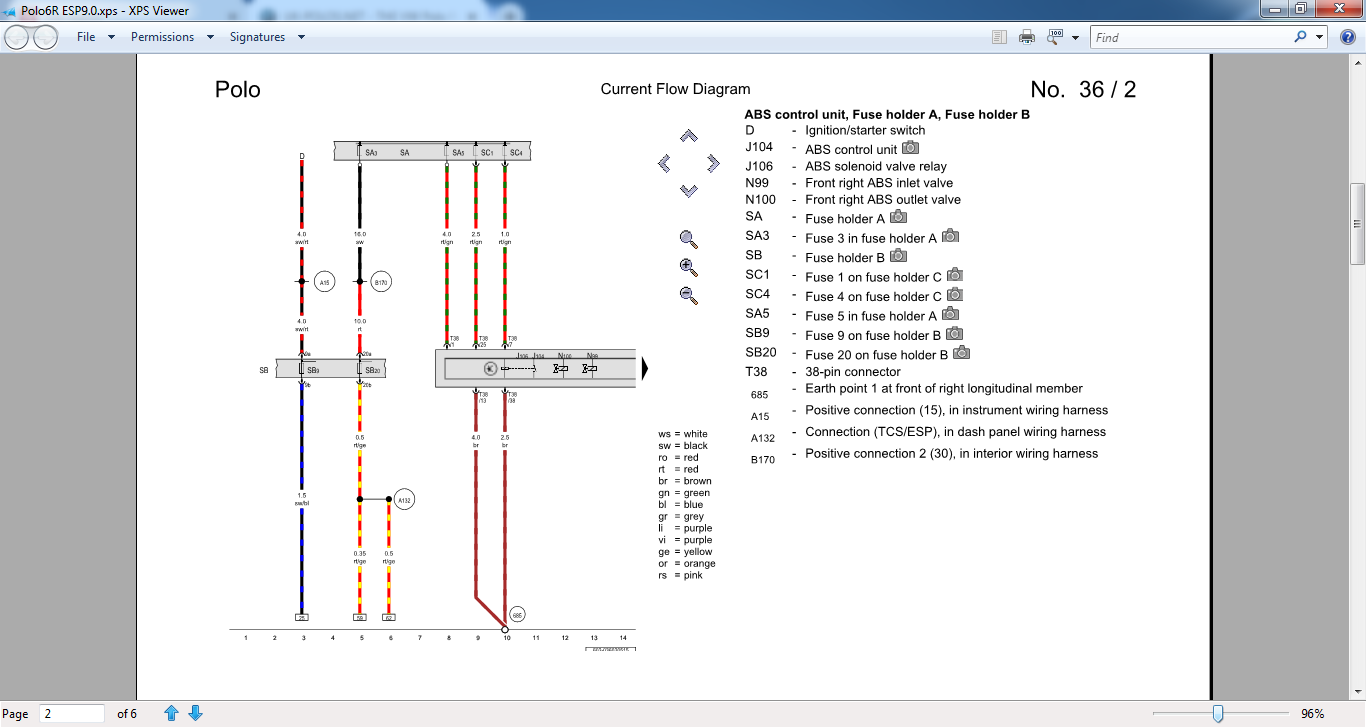

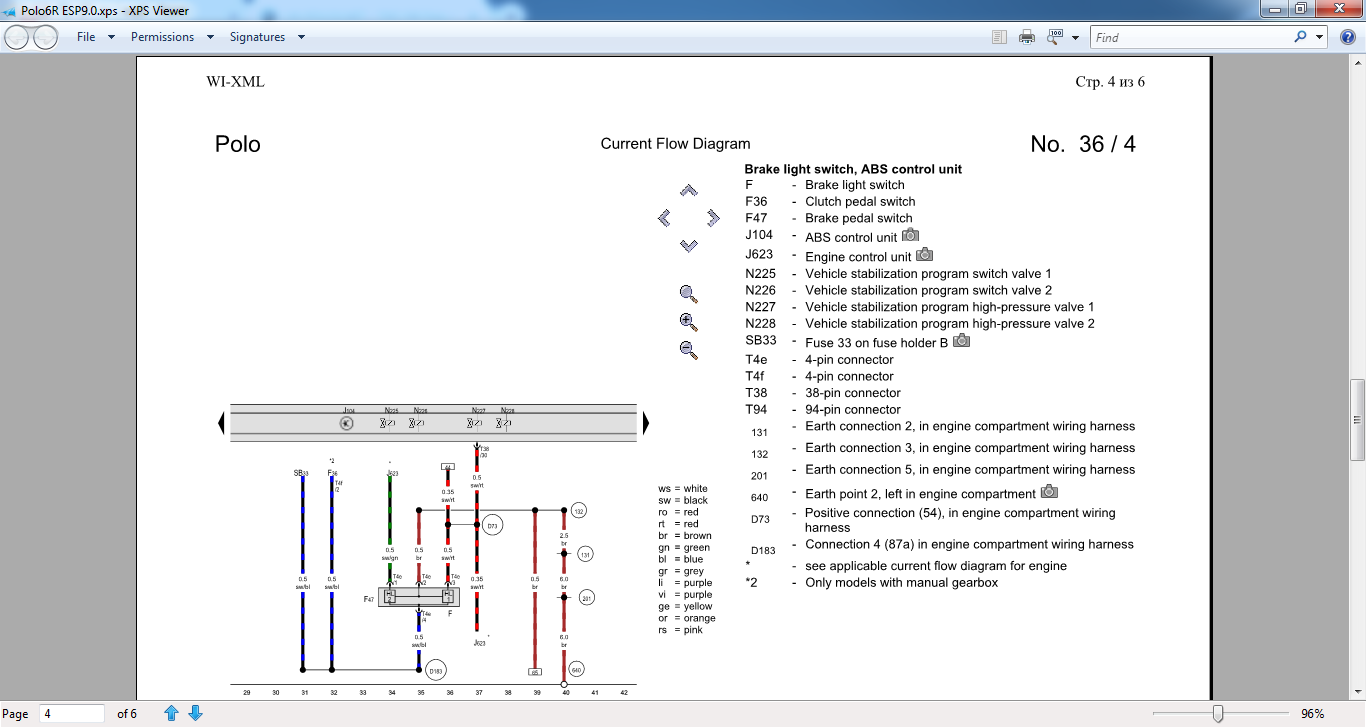

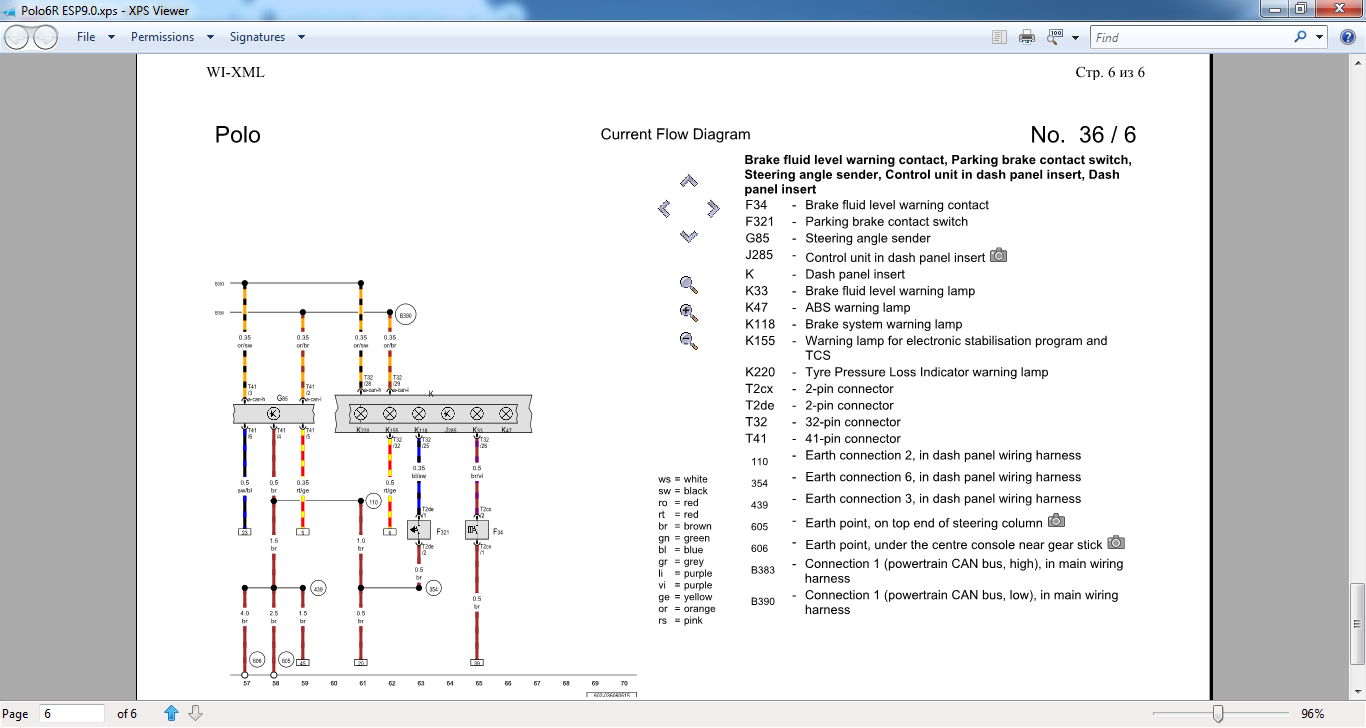

I had contacted to Firegrafik sir and he had given me following image of connection but it is very difficult to me to understand kindly check it and if possible extract wiring of ESP for me.
Thank you.
I had contacted to Firegrafik sir and he had given me following image of connection but it is very difficult to me to understand kindly check it and if possible extract wiring of ESP for me.
Thank you.
- Attachments
-
-
-
-
-
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: UPGRADING BCM 6R
It is very easy to understand, you just have to read what is indicated and it is written in the images.
It would be necessary to compare these images with the current electrical installation of your ABS system, but currently I don't have those diagrams.
It would be necessary to compare these images with the current electrical installation of your ABS system, but currently I don't have those diagrams.
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
Good evening all I had installed ESP with tpms today but matter is that coding is not available only 0000000000000000000000000 is there and I had try to code but always code rejected .If anyone will help it will be appreciated. My car is polo hatch with manual transmission and esp is BN.9.0 .
Thank you.
Sent from my SM-G960F using Tapatalk
Thank you.
Sent from my SM-G960F using Tapatalk
-
govindsharma
- Bronze Member
- Posts: 109
- Joined: Thu Mar 03, 2016 3:17 pm
- Drives: polo 1.2 petrol HighLine
- Location: india
Re: UPGRADING BCM 6R
Ciclo Sir ESP installed successfully video attached
.
Sir i had also installed shark fin antenna in my car but here one following error occurs in VCDS that is under please tell me how can i rectify it.
Thank you.
Address 56: Radio (J503) Labels: None
Part No SW: 6RD 035 187 A HW: 6RD 035 187 A
Component: MIB2-S-R-CN 025 0210
Revision: -----001 Serial number: 12765GD0082357
Coding: 00000441000000
Shop #: WSC 00081 790 00184
VCID: 45813B72CC60CC6AD3-8010
00856 - Radio Antenna
007 - Short to Ground
Freeze Frame:
Fault Status: 00101011
Fault Priority: 5
Fault Frequency: 1
Reset counter: 25
Mileage: 9991 km
Time Indication: 0
Date: 2019.09.03
Time: 19:10:24
.
Sir i had also installed shark fin antenna in my car but here one following error occurs in VCDS that is under please tell me how can i rectify it.
Thank you.
Address 56: Radio (J503) Labels: None
Part No SW: 6RD 035 187 A HW: 6RD 035 187 A
Component: MIB2-S-R-CN 025 0210
Revision: -----001 Serial number: 12765GD0082357
Coding: 00000441000000
Shop #: WSC 00081 790 00184
VCID: 45813B72CC60CC6AD3-8010
00856 - Radio Antenna
007 - Short to Ground
Freeze Frame:
Fault Status: 00101011
Fault Priority: 5
Fault Frequency: 1
Reset counter: 25
Mileage: 9991 km
Time Indication: 0
Date: 2019.09.03
Time: 19:10:24
