Polo 6r GTI - Bi-Xenon installation Issues

[Bakis]

Good Morning everyone!

I have 2011 VW Polo GTI (LHD) with halogen headlights.

The previous weekend I installed OEM LED Bi-Xenon headlights (Parts number: 6R1941031C 6R1941032C) with KUFATEC adaptor 10-14pin.
Also, I replaced old BCM module (6R0937087H), with new BCM module (7H0937090B).

Currently, I have the following issues:
1) Light switch 0 = LED's on but highbeam not working (just shutters without lights).
2) Light switch "parking lights" = LED's on but the highbeam not working as well.
3) Light switch "on" = Still LED's on, Xenon light turn on, highbeam work well with lights (Bi-Xenon)
4) The Driver and passenger Windows doesn't Work.
5) The MFSW doesn't work
6) The clusters light doesn't work when I turn on the lights switch (Xenon), also the flashlight on the cluster doesn't work.

Any suggestion?
Thank you for your time!

[iichel]

Can you show a full autoscan please?

How did you swap the BCM? Did you add any wires?

[Bakis]

Add only the wires from lights adaptor (Kufatec) to BCM module under supplier instruction.

[iichel]

OK well then I have an idea about what went wrong. You need to do a BCM Max wiring/adaptation:
- Wiring from light switch to BCM
- Wiring from fuse box to BCM
- Wiring from BCM to external lights via fuse box
- Adjust coding/adaptations accordingly

[Bakis]

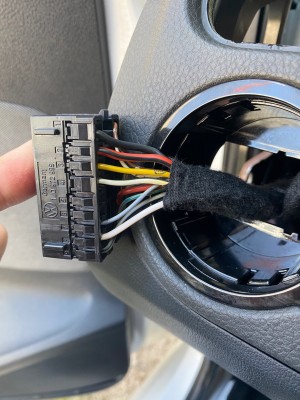

The following you may find the Light Swicht photo, fuse box imaze and ralay photo.

[Bakis]

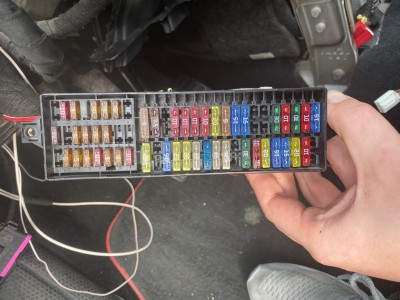

Fuse box imaze and relay image.

[Bakis]

.

[Bakis]

Sorry for the spam but i had not 10posts for the upload the Autoscan

Autoscan

Code: Select all

VCDS
Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: Release 18.1.0(x64) Data version: 20180122 DS285.1
www.Ross-Tech.com
Dealer/Shop Name:
Workshop Code: 000 00000 000000
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Mileage: 82540km-51287mi Repair Order:
Chassis Type: 6R-VW25 (6N0)
Scan: 01 02 03 04 08 09 15 17 19 25 37 44 56
VIN: WVWZZZ6RZBY186665 Mileage: 82540km-51287miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 1010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: Malfunction 0010
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: Malfunction 0010
44-Steering Assist -- Status: Malfunction 0010
56-Radio -- Status: Malfunction 0010
61-Battery Regul. -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAVE) Labels:. 03C-907-309-V1.clb
Part No SW: 03C 906 027 AR HW: 03C 906 027 AR
Component: 1.4l R4/4V TS H15 9970
Revision: L2H15--- Serial number:
Coding: 00250012002400000000
Shop #: WSC 46509 001 104857
ASAM Dataset: EV_ECM14TSI01103C906027AR 001013
ROD: EV_ECM14TSI01103C906027AR.rod
VCID: 71E38B16A0A91CCD4A-8024
No fault code found.
Readiness: 1110 0101
-------------------------------------------------------------------------------
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 2
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 050 K HW: 0AM 927 769 D
Component: GSG DSG AG7 431 9058
Revision: 00043014 Serial number: CU501405175927
Coding: 0000020
Shop #: WSC 04940 001 00001
VCID: 31634B16AB295CCD0A-513C
1 Fault Found:
006225 - Powertrain Data Bus
P1851 - 000 - Missing Message from ABS Controller - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 0
Fault Frequency: 1
Reset counter: 5
Mileage: 82501 km
Time Indication: 0
Date: 2020.04.28
Time: 00:00:19
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP82.clb
Part No SW: 6R0 907 379 AK HW: 6R0 907 379 AF
Component: ESP8.2i front H05 0001
Revision: --------
Coding: 210248E3417502B8842B12E882D640411700
Shop #: WSC 00788 648 00255
VCID: 0717C5CEB22D327DF4-8052
No fault code found.
-------------------------------------------------------------------------------
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 3
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Address 08: Auto HVAC (J255) Labels: 6R0-907-044.clb
Part No SW: 6R0 907 044 E HW: 6R0 907 044 E
Component: Climatronic H09 0609
Revision: V0000000
VCID: 356B7F069C4170ED56-8060
2 Faults Found:
01317 - Control Module in Instrument Cluster (J285)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 6
Fault Frequency: 13
Reset counter: 88
Time Indication: 0
01316 - ABS Control Module
013 - Check DTC Memory - Intermittent
Freeze Frame:
Fault Status: 00101101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 128
Time Indication: 0
-------------------------------------------------------------------------------
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 4
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 090 B HW: 7H0 937 090
Component: BCM PQ25 Max4 H74 0712
Revision: B9074001 Serial number: 0571 059140904
Coding: 3AB02BB808A30400003808113E2B0CD00AC0670F600930C1200000030000
Shop #: WSC 02756 790 12345
VCID: 2D5B57667411382D2E-8078
Subsystem 1 - Part No SW: 6R0 959 801 AB HW: 6R0 959 801 AB Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 007 1621
Serial number: KU0-KU029.11.1011809
Coding: 08BC30
Subsystem 2 - Part No SW: 6R0 959 802 AD HW: 6R0 959 802 AD Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 007 1621
Serial number: KU0-KU030.11.1014086
Coding: 02BC30
Subsystem 3 - Part No SW: 5K0 959 542 HW: 5K0 959 542 Labels: 3C8-959-537.CLB
Component: E221__MFL-TAS H06 0010
Serial number: 0071917
Coding: 830000
9 Faults Found:
03303 - Response Closing Status of Rear Left Door
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 2
Fault Frequency: 10
Reset counter: 88
Time Indication: 0
03304 - Response Closing Status of Rear Right Door
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 2
Fault Frequency: 10
Reset counter: 88
Time Indication: 0
01334 - Door Control Module; Rear Right (J389)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 83
Time Indication: 0
01333 - Door Control Module; Rear Left (J388)
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 5
VIN: WVWZZZ6RZBY186665 License Plate: 090B
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 83
Time Indication: 0
01044 - Control Module Incorrectly Coded
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Time Indication: 0
00978 - Lamp for Low Beam; Left (M29)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 83
Time Indication: 0
00979 - Lamp for Low Beam; Right (M31)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 83
Time Indication: 0
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 83
Time Indication: 0
03906 - Control Circuit for High Beam Relay
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 83
Time Indication: 0
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 6
VIN: WVWZZZ6RZBY186665 License Plate: 090B
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 M HW: 6R0 959 655 M
Component: VW10Airbag012 H09 0020
Revision: -------- Serial number: 003GZ0008K51
Coding: 003132
Shop #: WSC 00788 648 00255
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4C9D3AE2E7CB112519-8018
Crash sensor for side airbag: driver side:
Serial number: 3575HRB4069096J699E.
Crash sensor for side airbag: front passenger side:
Serial number: 3585HRB4067096J6D89Y
Crash sensor for side airbag: rear: driver side:
Serial number: 3515RRB405906OG6P93E
Crash sensor for side airbag: rear: passenger side:
Serial number: 3525RRB405J06OG2KPN9
2 Faults Found:
9437211 - Igniter for Driver's Airbag
B1000 1B [136] - Resistance Too High
MIL ON - Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 0 km
Date: 2000.00.00
Time: 00:00:00
9440027 - Driver's side; side-airbag igniter
B100B 1B [137] - Resistance Too High
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 82501 km
Date: 2020.04.29
Time: 00:19:12
-------------------------------------------------------------------------------
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 7
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 6R0 920 870 HW: 6R0 920 870
Component: KOMBI H20 0320
Serial number: 00000000000000
Coding: 140800
Shop #: WSC 00788 648 00255
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04086
ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
VCID: 72E1841AA5AF27D5B3-8026
2 Faults Found:
12664832 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 83
Mileage: 0 km
Date: 2000.00.00
Time: 00:00:00
13893888 - Function Restricted due to Exessive Voltage
U1401 00 [008] - -
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 3
Reset counter: 62
Mileage: 82501 km
Date: 2020.04.28
Time: 00:00:04
-------------------------------------------------------------------------------
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 8
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 090
Component: GW-K-CAN TP20 H74 0712
Revision: B9074001
Coding: 000000
Shop #: WSC 02756 790 12345
VCID: 70E58E12A3A315C545-8024
2 Faults Found:
01320 - Control Module for Climatronic (J255)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 123
Time Indication: 0
00381 - Databus Instrument Cluster
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 1
Fault Frequency: 22
Reset counter: 88
Time Indication: 0
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H20 0320
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03008
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6AD19C7A8D7FEF150B-803E
No fault code found.
-------------------------------------------------------------------------------
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 9
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Address 37: Navigation (J0506) Labels:. 1T0-035-680.clb
Part No SW: 1T0 035 680 D HW: 1T0 035 680 C
Component: RNS-MID H06 3810
Revision: AB001001 Serial number: VWZ6Z7L7400202
Coding: 04010000040000A0000F
Shop #: WSC 05314 123 12345
VCID: 2F674D6E7E1D4A3D1C-807A
1 Fault Found:
00862 - Antenna for GPS Navigation (R50/R52)
007 - Short to Ground - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 5
Fault Frequency: 3
Reset counter: 62
Mileage: 82501 km
Time Indication: 0
Date: 2020.04.28
Time: 01:22:51
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 6Q0-423-156.clb
Part No: 6R0 423 156 B
Component: LenkhilfeTRW V277
Coding: 11241
Shop #: WSC 00788
VCID: 2F674D6EEA1D4A3D1C-807A
1 Fault Found:
01288 - Terminal 30; Steering Assist
06-10 - Signal too High - Intermittent
-------------------------------------------------------------------------------
VCDS
Self-Diagnosis Log
Wednesday,29,April,2020,12:31:08:00006
Page 10
VIN: WVWZZZ6RZBY186665 License Plate: 090B
Address 56: Radio (J0506) Labels:. 1T0-035-680.clb
Part No SW: 1T0 035 680 D HW: 1T0 035 680 C
Component: RNS-MID H06 3810
Revision: AB001001 Serial number: VWZ6Z7L7400202
Coding: 04010000040000A0000F
Shop #: WSC 05314 123 12345
VCID: 2F674D6E7E1D4A3D1C-807A
1 Fault Found:
00862 - Antenna for GPS Navigation (R50/R52)
007 - Short to Ground - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 5
Fault Frequency: 3
Reset counter: 62
Mileage: 82501 km
Time Indication: 0
Date: 2020.04.28
Time: 01:22:51
End-------------------------(Elapsed Time: 02:34)--------------------------

[iichel]

Yes, you need to add wiring as I said

[Bakis]

Thank you very much for your time.

What wiring should be added?

Searching at the forum, I found that I might need ( T73b/57 to T32/29) and ( T73b/54 to T32/28)? It is correct?

The Coding is correct?

[iichel]

Thank you very much for your time.

What wiring should be added?

I don't know exactly. It requires extensive study of your wiring and the future needed wiring.

Searching at the forum, I found that I might need ( T73b/57 to T32/29) and ( T73b/54 to T32/28)? It is correct?

No these wires go to your instrument cluster but it's working fine so not needed.

The Coding is correct?

No it needs to be modified after the bcm max wiring is installed

[Bakis]

No these wires go to your instrument cluster but it's working fine so not needed.

no my cluster it is not working fine.
At night when turn on the light (Xenon) the cluster light doesn't work, also doesn't work the flash light (left and right arrows in cluster).

I don't know exactly. It requires extensive study of your wiring and the future needed wiring.

Is there anyone who can help me with this?

The following image is the installation guide of the xenon harness from supplier. Only these wires added to the BCM, the Light Switch and fuse box.

[Rapid]

Hello

I don't have a polo but a similar platform
For Retrofit bixenon headlights On Skoda rapid 2013 any big different instal t5 7H0937090B or T6 model?
My current bcm 6R0 937 087 P
Thanks

[iichel]

The most advanced PQ25 BCM Max will be the 7E0... BCM. The process of the BCM Max retrofit will be very similar. 7E0 can control high beams as well.

[Rapid]

Thank you
Some of the installer say 7HO better. And yes price up x2 for me
I didn’t need nothing from new options, only the full work of bixenon headlights.
but I simply cannot find examples of those who put one or the other on the Skoda Rapid, or car models do not matter so much?
