Retrofit park pilote 8K OPS for polo 6C 2015 [help]
- iichel
- Bling Bling Diamond Member
- Posts: 6387
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
not sure, perhaps it's the connector for the front sensors.
-
- New
- Posts: 32
- Joined: Thu May 07, 2020 6:10 pm
- Drives: Polo 6C 1.4 TDI BMT
- Location: Portugal
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]

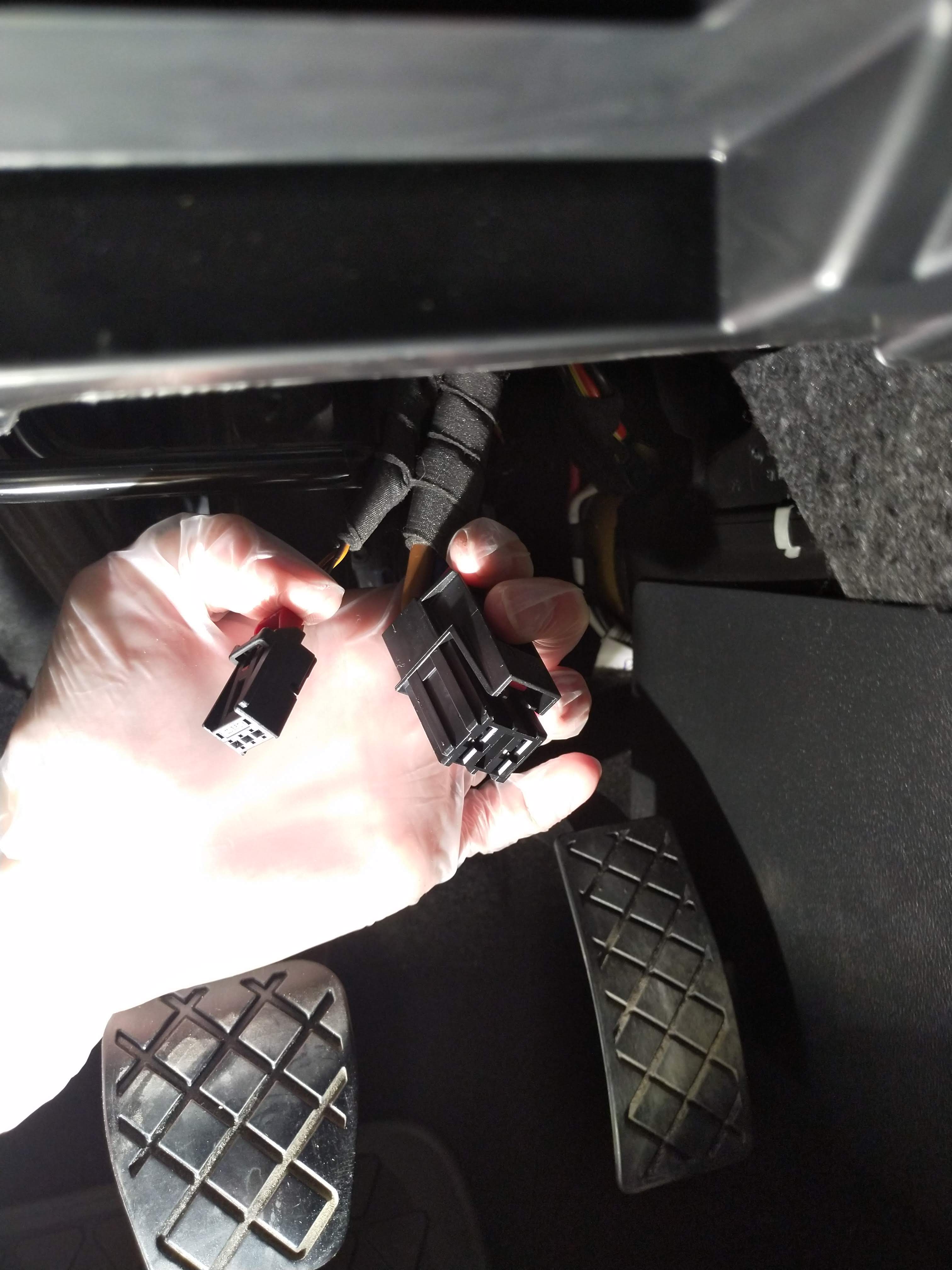

Connector A is the one with only 18 positions, that's the one you're missing. It only connects to the front sensors, everything else is in the 26-pin connector.
As for accessing the power steering module, you don't need to remove the steering wheel, just twist it 90 degrees so that the flat top aligns with the bolt that you're trying to remove. After removing the top and bottom trim pieces, try and locate the power steering connectors. You might want to remove the fuse box as well, as accessing these connectors with it in place is tricky. There are two connectors, one is for power, the other one has the CAN lines (1: CANL, 2: CANH, 3: Terminal 15).
As for accessing the power steering module, you don't need to remove the steering wheel, just twist it 90 degrees so that the flat top aligns with the bolt that you're trying to remove. After removing the top and bottom trim pieces, try and locate the power steering connectors. You might want to remove the fuse box as well, as accessing these connectors with it in place is tricky. There are two connectors, one is for power, the other one has the CAN lines (1: CANL, 2: CANH, 3: Terminal 15).
- Attachments
-
- IMG_20200627_105819_420.jpg (448.44 KiB) Viewed 1411 times
-

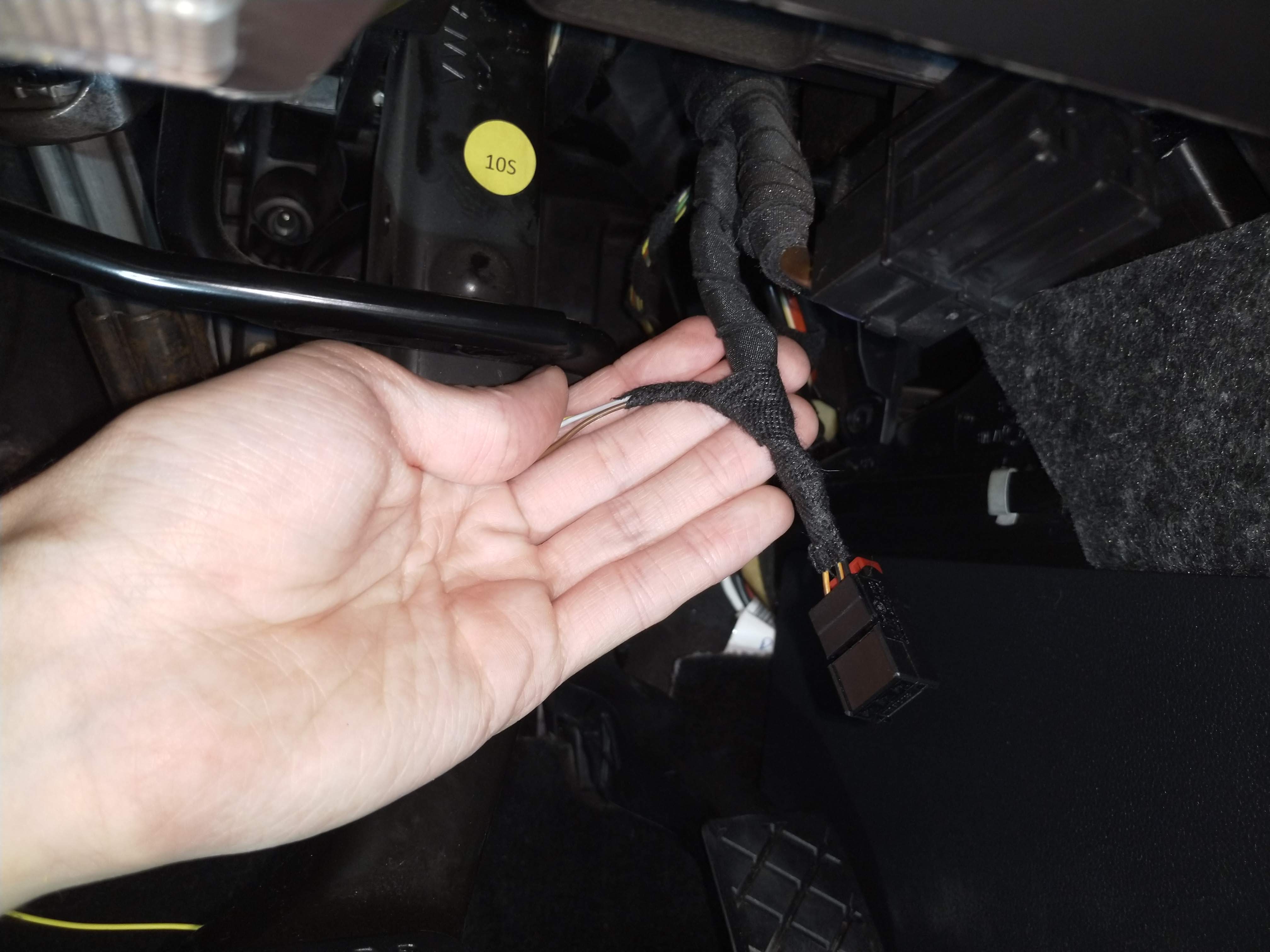

- IMG_20200627_115338_181.jpg (427.36 KiB) Viewed 1411 times
-
- Bling Bling Diamond Member
- Posts: 5898
- Joined: Sat Dec 30, 2006 9:12 pm
- Drives: B8 S4 & 6R/6C1 1.2TSI 110
- Location: Mid Lothian
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
Just one other thing, and to anyone that knows better than me, I'm sorry if I'm wrong so please correct me,but, any VW Group parking controller module I have seen that has only rear sensor functionality only has one arrow printed on to it, the ones I's seen with rear and front sensor functionality has always had 2 arrows printed onto them.
But, please correct me if I'm wrong someone as I'm only trying to help this poster!
But, please correct me if I'm wrong someone as I'm only trying to help this poster!
- iichel
- Bling Bling Diamond Member
- Posts: 6387
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
Nowadays the 4K version is a 8K module with 4 front sensors disabledRUM4MO wrote: ↑Wed Oct 27, 2021 9:50 am Just one other thing, and to anyone that knows better than me, I'm sorry if I'm wrong so please correct me,but, any VW Group parking controller module I have seen that has only rear sensor functionality only has one arrow printed on to it, the ones I's seen with rear and front sensor functionality has always had 2 arrows printed onto them.
But, please correct me if I'm wrong someone as I'm only trying to help this poster!
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
Hi, thanks for your full answerheftyshooly wrote: ↑Wed Oct 27, 2021 9:03 am Connector A is the one with only 18 positions, that's the one you're missing. It only connects to the front sensors, everything else is in the 26-pin connector.
As for accessing the power steering module, you don't need to remove the steering wheel, just twist it 90 degrees so that the flat top aligns with the bolt that you're trying to remove. After removing the top and bottom trim pieces, try and locate the power steering connectors. You might want to remove the fuse box as well, as accessing these connectors with it in place is tricky. There are two connectors, one is for power, the other one has the CAN lines (1: CANL, 2: CANH, 3: Terminal 15).
The missing connector, maybe, but i bought a 4k module, so i'm surprise, but if not needed it's ok for me.
For the steering wheel, yes ! true ! i can access now to the bolts.

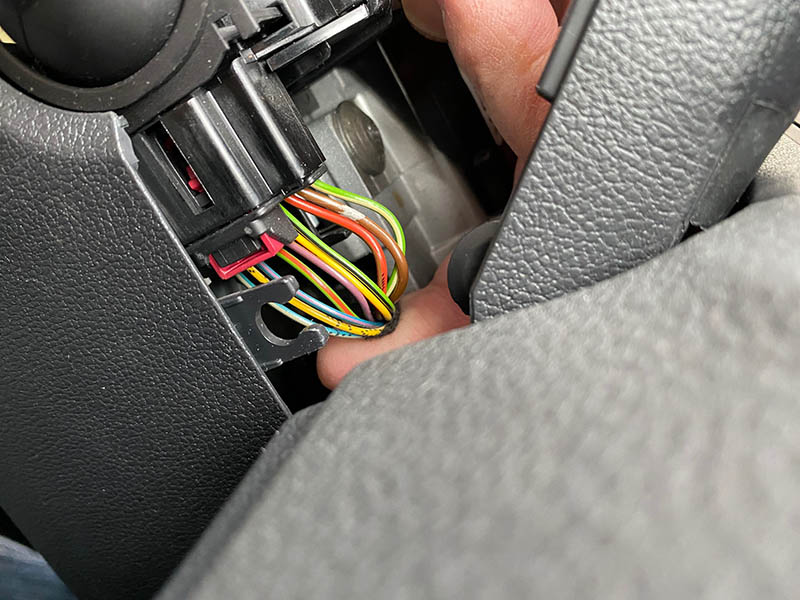

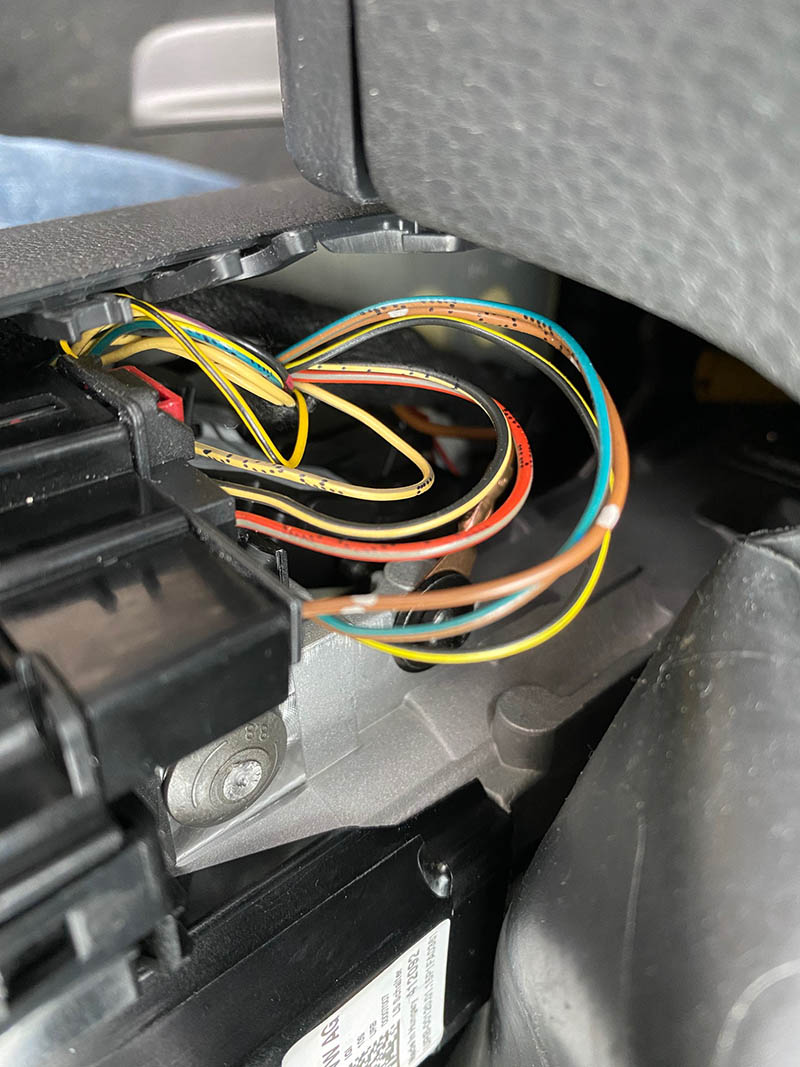

i'm going to have a look to this connector, i take picture from upper before removing bottom piece, can h/l are not present in theses connector right ?
For the color, it's orange/green and orange/brown ?
Thanks !
- Attachments
-

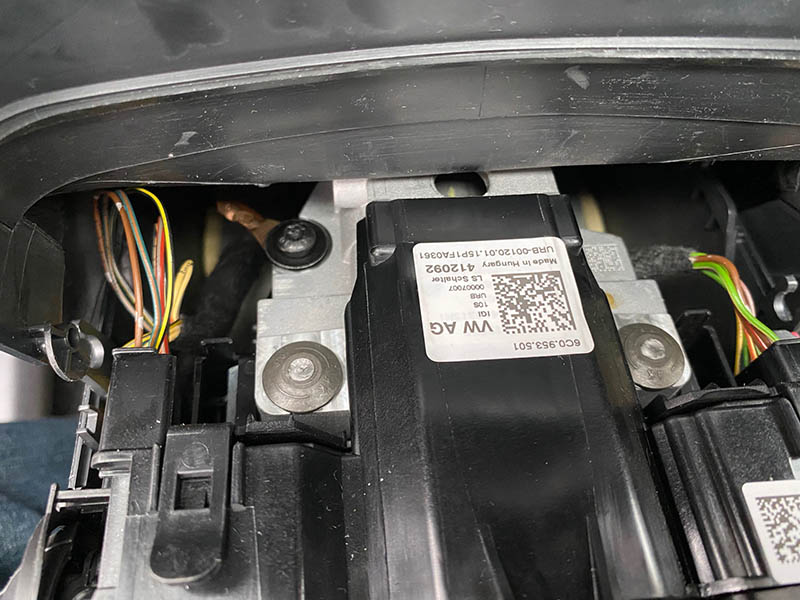

- up.jpg (108.05 KiB) Viewed 1386 times
-
- 2.jpg (116.52 KiB) Viewed 1386 times
-
- 1.jpg (149.66 KiB) Viewed 1386 times
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
heftyshooly wrote: ↑Wed Oct 27, 2021 9:03 am
......... the other one has the CAN lines (1: CANL, 2: CANH, 3: Terminal 15).

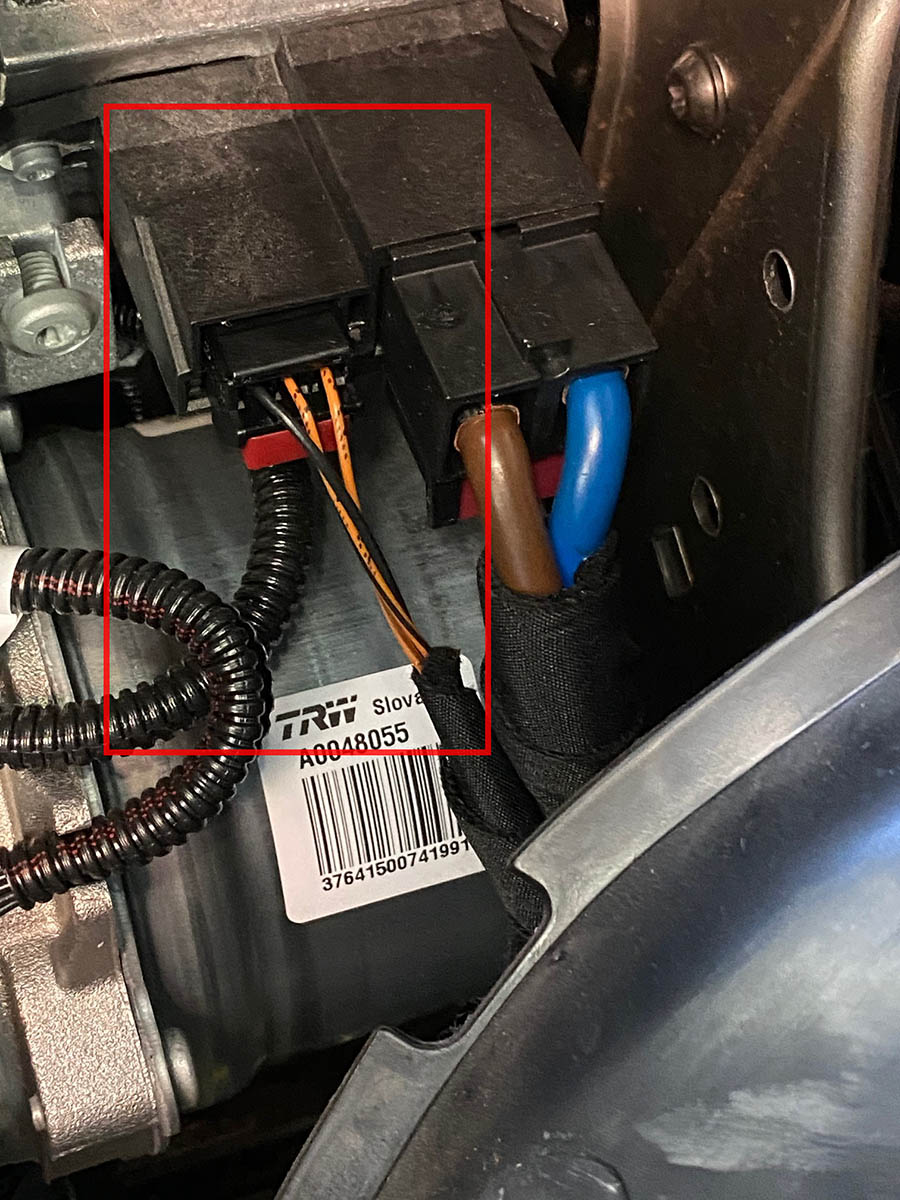

In my picture can you tell me where is can bus H and low under steering wheel .
Thanks !!!!!
- Attachments
-
- canbus.jpg (220.12 KiB) Viewed 1374 times
Last edited by Homer51 on Wed Oct 27, 2021 1:43 pm, edited 1 time in total.
- iichel
- Bling Bling Diamond Member
- Posts: 6387
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
you need to dig further towards the engine
- iichel
- Bling Bling Diamond Member
- Posts: 6387
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
orange/black is high
orange/brown is low
orange/brown is low
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
I change my wire can high & low, so now i've got park assist sound and detection Ok.

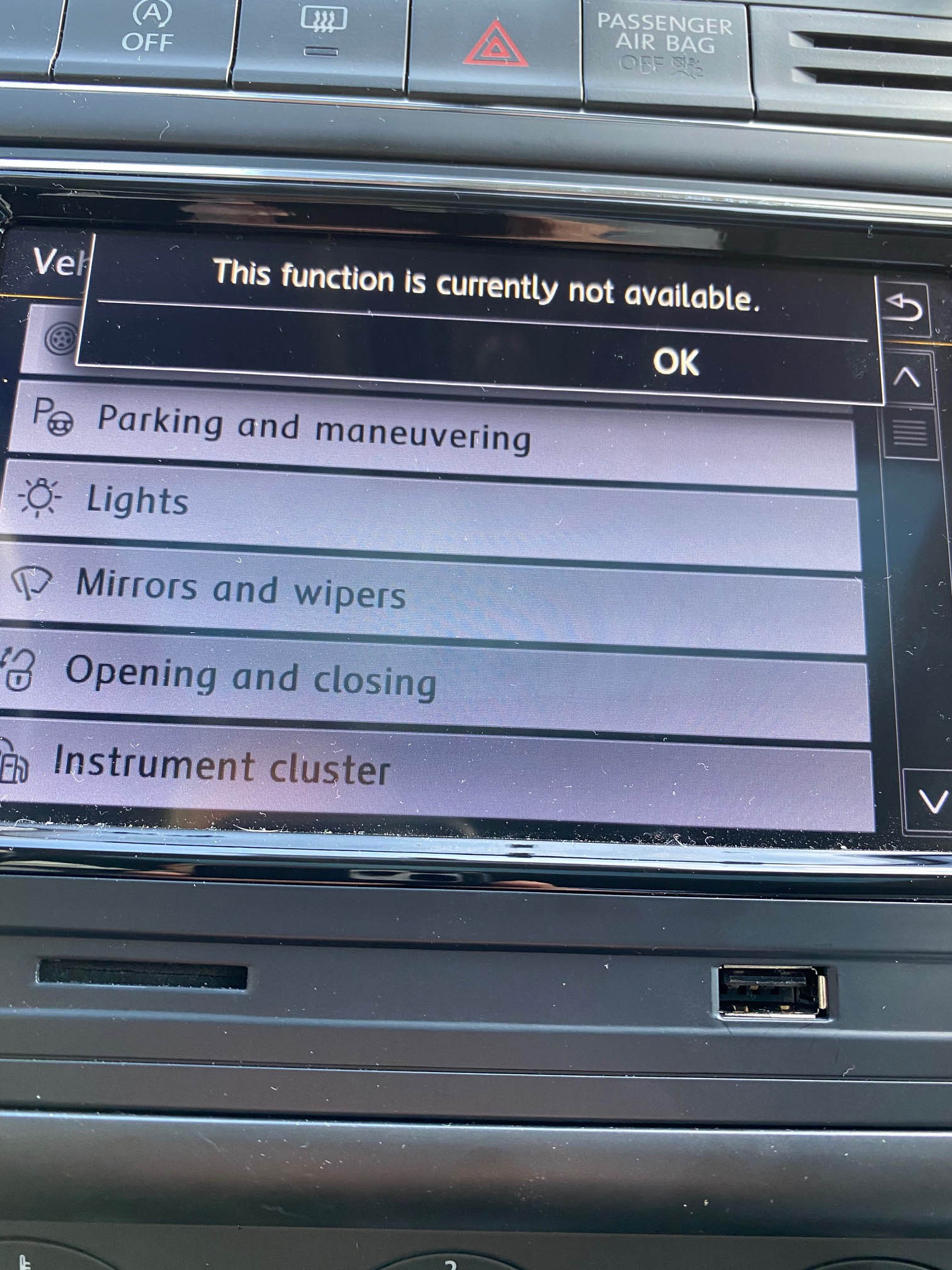

But no ops on my radio, the menu parking is always not available
In log with vcds i'ge got many errors,
I don't think i've got multiple mount, only 12v and ground are same for park module and rear camera (china reverse model)

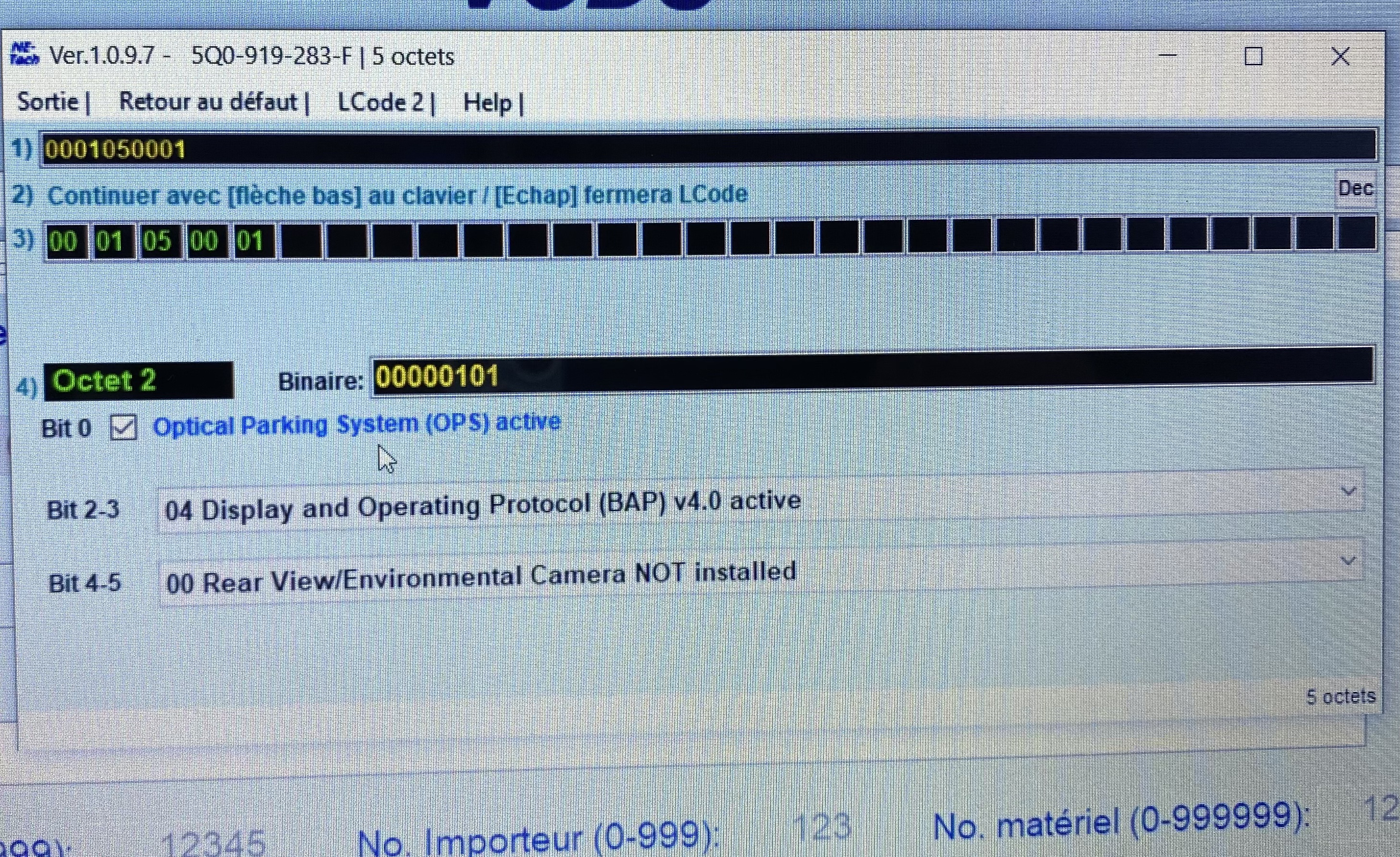

i remove all coding for park module, because doesn't work on my radio (china model special polo 6c) and crash my reverse logo camera (doesn't show anymore)
Any idea ? i really don't know where to search now
on Gateway 19 :
66304 - Bus de données
U1124 00 [009] - Montage multiple détecté
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 2
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:15:12
Tension d'alimentation borne 30: 12.3 V
Etat immo-Esclaves / Borne 15: OFF
7169 - Fonctionnement limité en raison de l'absence de message
U1111 00 [009] - -
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 6
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:14:18
BAP-BAP_Function_ID: 16
Tension borne 30: 12.1 V
5F
16777018 - Fonctionnement limité en raison d'un problème de communication
U1110 00 [009] - -
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 6
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:14:18
Adresse 17: Instruments Labels: 5G0-920-XXX-17.clb-SRI3
No. VAG du calculateur: 6C0 920 740 A Mat: 6C0 920 740 A
Pièce et/ou version: KOMBI 211 0290
Codage logiciel: 072509002180000800082A001000000000000000
Code atelier: WSC 00788 648 00255
Jeu de données ASAM: EV_DashBoardVDDMQBAB 009040 (VW26)
ROD: EV_DashBoardVDDMQBAB_009_VW26.rod
VCID: 204F55873BC3EA8632-8074
1 Code défaut trouvé:
16777018 - Fonctionnement limité en raison d'un problème de communication
U1110 00 [009] - -
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 6
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:14:18
But no ops on my radio, the menu parking is always not available
In log with vcds i'ge got many errors,
I don't think i've got multiple mount, only 12v and ground are same for park module and rear camera (china reverse model)
i remove all coding for park module, because doesn't work on my radio (china model special polo 6c) and crash my reverse logo camera (doesn't show anymore)
Any idea ? i really don't know where to search now
on Gateway 19 :
66304 - Bus de données
U1124 00 [009] - Montage multiple détecté
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 2
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:15:12
Tension d'alimentation borne 30: 12.3 V
Etat immo-Esclaves / Borne 15: OFF
7169 - Fonctionnement limité en raison de l'absence de message
U1111 00 [009] - -
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 6
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:14:18
BAP-BAP_Function_ID: 16
Tension borne 30: 12.1 V
5F
16777018 - Fonctionnement limité en raison d'un problème de communication
U1110 00 [009] - -
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 6
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:14:18
Adresse 17: Instruments Labels: 5G0-920-XXX-17.clb-SRI3
No. VAG du calculateur: 6C0 920 740 A Mat: 6C0 920 740 A
Pièce et/ou version: KOMBI 211 0290
Codage logiciel: 072509002180000800082A001000000000000000
Code atelier: WSC 00788 648 00255
Jeu de données ASAM: EV_DashBoardVDDMQBAB 009040 (VW26)
ROD: EV_DashBoardVDDMQBAB_009_VW26.rod
VCID: 204F55873BC3EA8632-8074
1 Code défaut trouvé:
16777018 - Fonctionnement limité en raison d'un problème de communication
U1110 00 [009] - -
[Nouveauté! Infos étendues pour DTCs UDS seulement avec nouvelle génération d'interfaces]
Confirmé - Testé depuis RàZ mémoire
Capture:
Etat du défaut: 00000001
Priorité du défaut: 6
Fréquence du défaut: 1
Compteur de RAZ: 43
Kilométrage: 59002 km
Date: 2021.10.27
Temps: 18:14:18
- Attachments
-
- A106BD32-7728-4A44-9DF2-CA68FBB2E320.jpeg (3.8 MiB) Viewed 1306 times
-

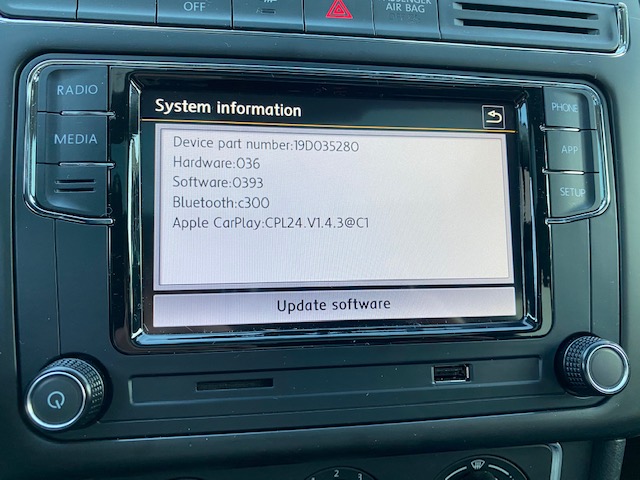

- IMG_1854.jpg (94.59 KiB) Viewed 1313 times
-
- 1.jpg (396.51 KiB) Viewed 1313 times
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]

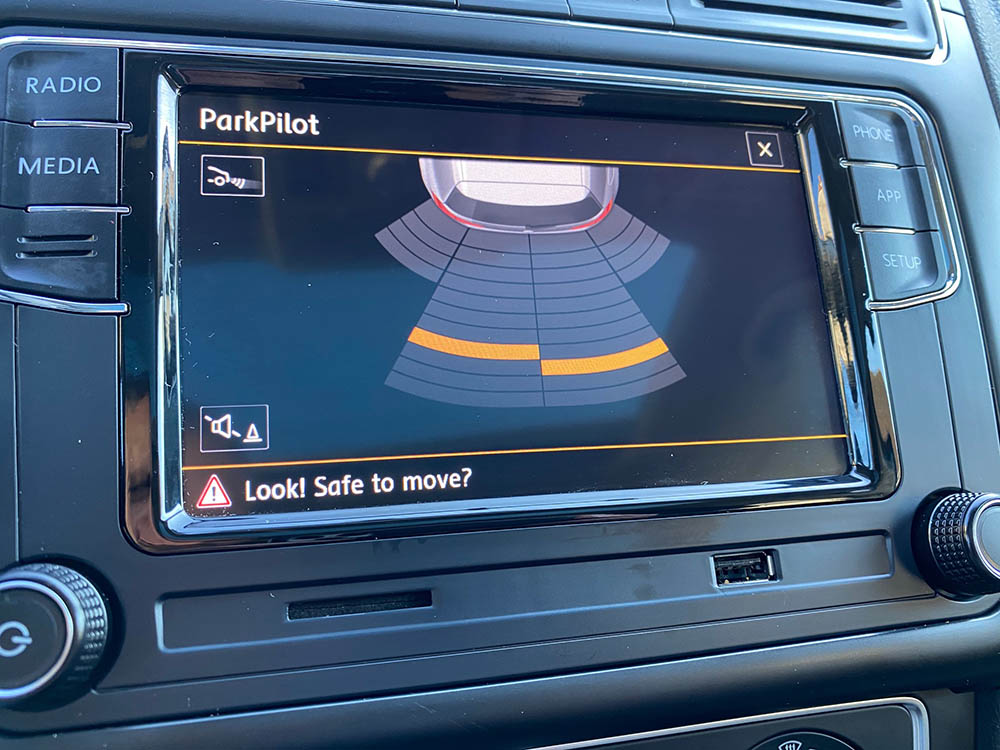

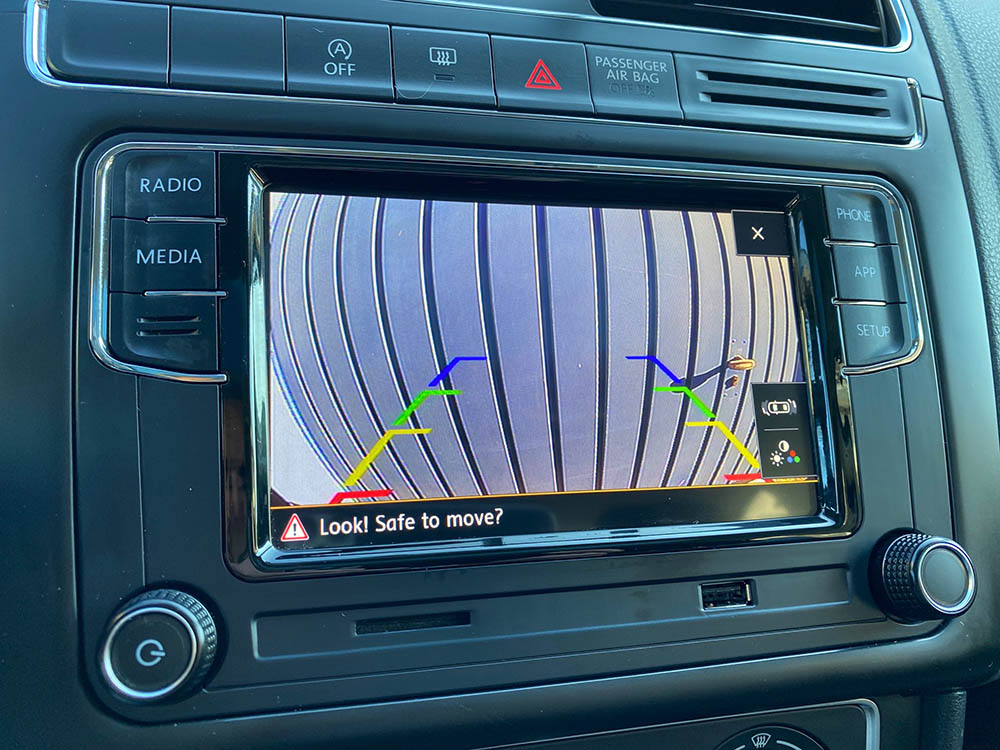

Finally it works ! I don't have in same time cam & park assist, it's impossible with my unit.
Thanks to all for your support !
I've got errors in log, but working like that.. So i don't touch anymore. Next step, changing language to French for this Ali 330 6C unit.
Thanks to all for your support !
I've got errors in log, but working like that.. So i don't touch anymore. Next step, changing language to French for this Ali 330 6C unit.
- Attachments
-
- cam.jpg (166.82 KiB) Viewed 1266 times
-
- park-1.jpg (147.94 KiB) Viewed 1266 times
-

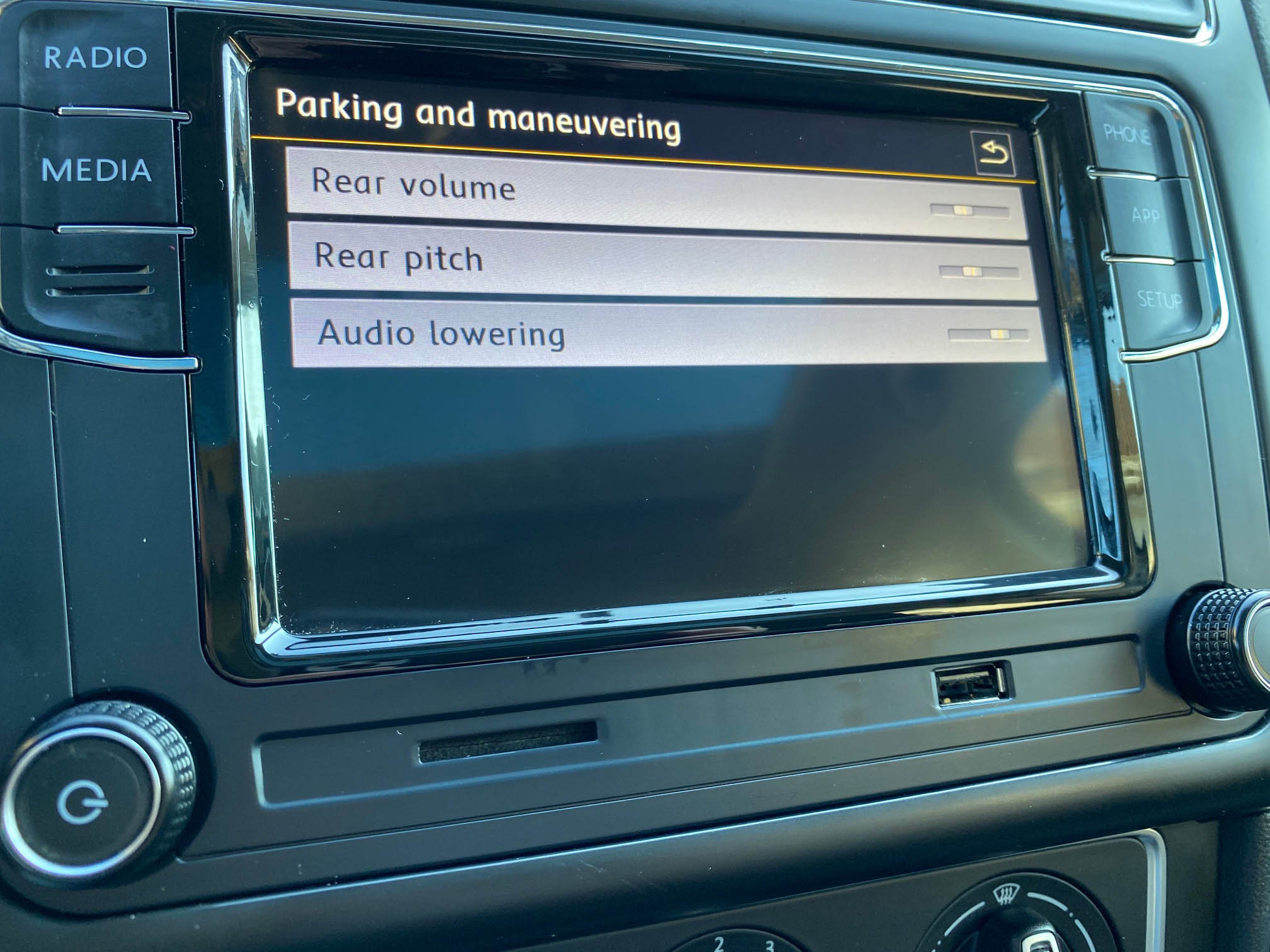

- volume.jpg (315.32 KiB) Viewed 1266 times
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
Bad surprise this morning, no battery
I think it comes from my wrong +12v after ignition (for park-assist and rear camera)
i found maybe a +12v after ignition on my photo, i'm good ? or i must connect on another place ?
Thanks !
I think it comes from my wrong +12v after ignition (for park-assist and rear camera)
i found maybe a +12v after ignition on my photo, i'm good ? or i must connect on another place ?
Thanks !
- Attachments
-

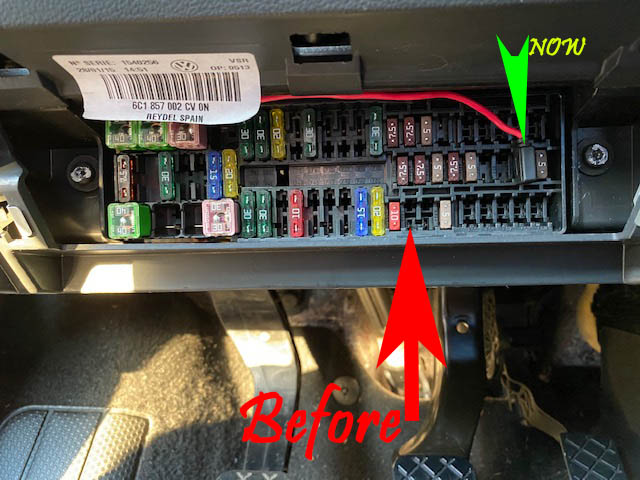

- battery.jpg (91.39 KiB) Viewed 1240 times
- iichel
- Bling Bling Diamond Member
- Posts: 6387
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
i suppose the easiest way to check this, is with a multimeter
Re: Retrofit park pilote 8K OPS for polo 6C 2015 [help]
i've got 0.0400 after ignition off, not 0v, could be ok ?
