Auto headlight retrofit. VW Transporter. T5 (2010-2015)

[ciclo]

I am sincerely sorry, but I will not repeat what I have already written, nothing can be done if you ignore the help already provided.
I encourage you to read my help posts with a little more interest, solving all those faults is really easy.

BCM coding does not come from old BCM, and a long etc...

Merry christmas! ...

[enkor]

Hello Ciclo the Lightbringer,
I recently bought Multivan T5 with manual light switch and it is a nightmare (I already run out of battery few times). I read this thread a few times and I think I know what to do. But please would you be so kind and help me with coding a bit ? My current situation is that I swapped BCM from 7H0937087D to 7E0937090 (donor car, I had trouble to find new for reasonable price), run new wires from main fuse box and CAN wires to instrument cluster. And before I continue with RLS and automatic headlight I want to be sure that the new BCM is coded properly.

Old BCM autoscan https://pastebin.com/3BpwdNn9

There are some known errors.
- J364 - webasto unit is working but control unit not responding. I know about it and it is ok for now. Although it is very strange behavior.
- J503, J401 - I removed the original radio but I did not uncheck it from installation list yet.
- Airbag - I have removed drivers seat
- Air quality - I'm waiting for new sensor
- Second error in HVAC - it seems that is related also to J364

New BCM scan https://pastebin.com/hM28BWxq
I coded CAN Gateway same as the old one. Also I unchecked unneeded records from installation list.
I tried to transfer all of the values from old BCM to new one to be same. But apparently there is something wrong.

This error is ok
- bulb for licence plate - I read how to solve it in this thread

Otherwise it looks ok, BUT there are some errors not presented in auto scan. Which is weird ?

Error from CAN gateway - Control Module Incorrectly Coded.

Code: Select all

                Address 19: CAN Gateway       Labels: None Control Module Part Number: 7E0 909 901     HW: 7E0 937 090
  Component and/or Version: GW-K-CAN TP20 X80 0733
           Software Coding: 042200
            Work Shop Code: WSC 00001 001 28888
                      VCID: 6889B8BD3270259AA73-803C
2 Faults Found

01044 - Control Module Incorrectly Coded
            000 - - - Intermittent
             Freeze Frame
                    Fault Status: 00100000
                    Fault Priority: 2
                    Fault Frequency: 9
                    Reset counter: 255
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2018.06.14
                    Time: 09:15:55

01207 - Control Module for Auxiliary Heater (J364)
            004 - No Signal/Communication
             Freeze Frame
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 198
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2018.06.14
                    Time: 09:12:45

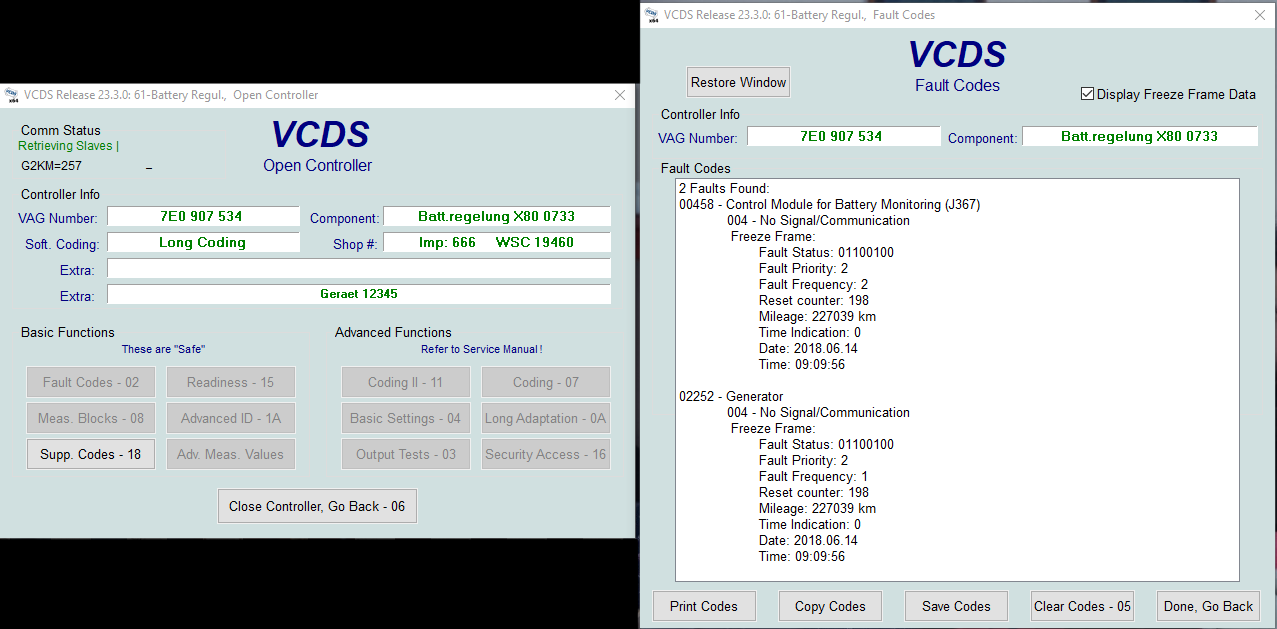

Error in module called Battery regulator. I did not have visible this module before and it cannot be unchecked in installation list. I tried to locate J367 control unit and I don't have it. It seems that this is related to start-stop system but I don't know how to disable it (I have unchecked everything related to start-stop in BCM long coding). Maybe this is also reason for the Control Module Incorrectly Coded in CAN gateway.






[iichel]

enable 61 in installation list, set the coding of the module to all 00, and then remove it again from gateway list. that will clear the errors for the BEM

[enkor]

enable 61 in installation list, set the coding of the module to all 00, and then remove it again from gateway list. that will clear the errors for the BEM

Thank you! It does the trick. I forgot to check the coding of this module. It does not allow me to set 00 everywhere, but there were combobox with option that I don't have installed the regulator and I also unchecked other start-stop related options. So CAN gateway no longer shows incorrect coding error and module 61 disappears from the list.

[enkor]

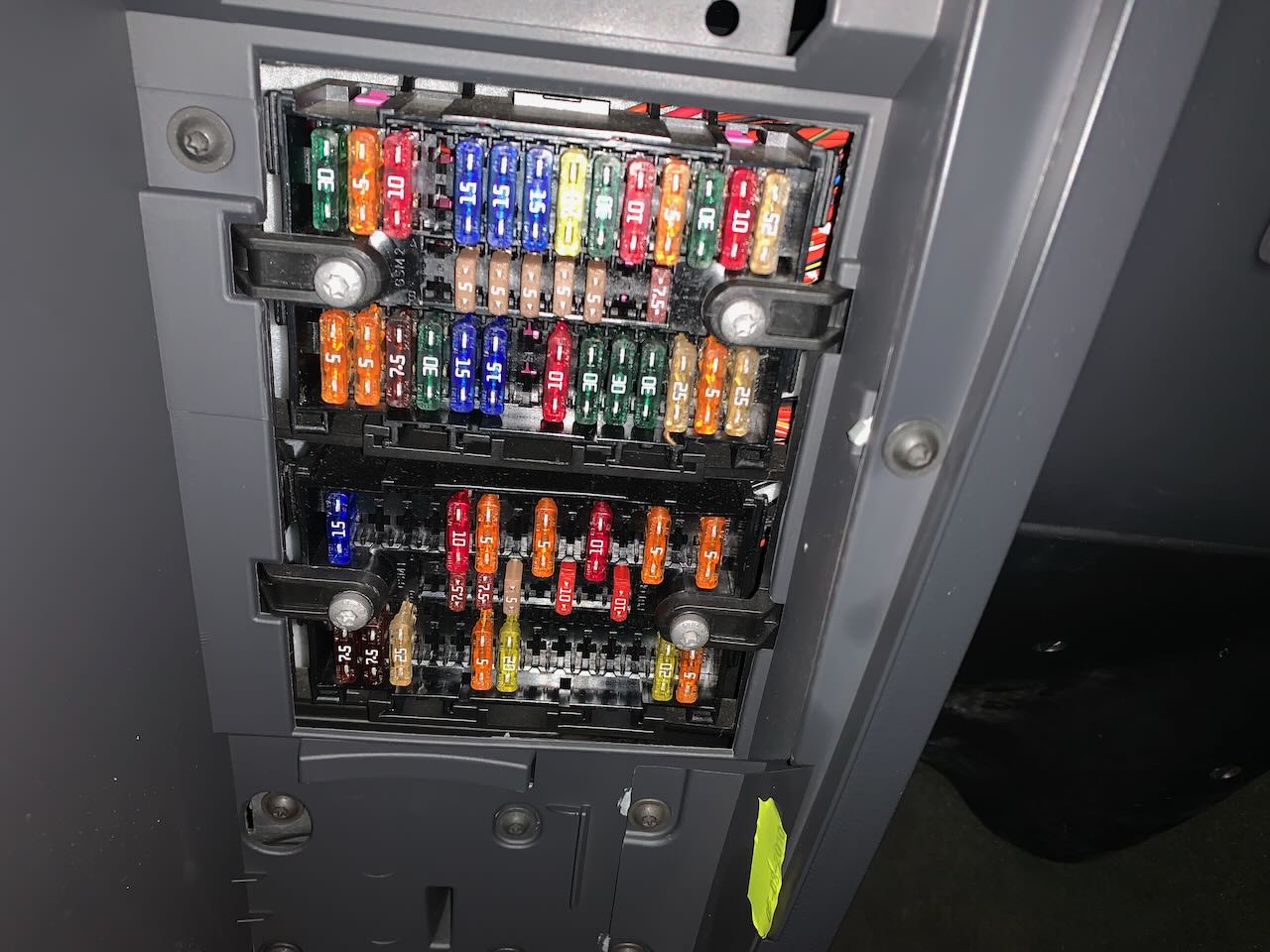

I made some progress with installation. I created all the wirings and plug it into bcm, fusebox, light switch, etc. I have double checked everything, but I'm stuck with this issue:

Code: Select all

Address 09: Cent. Elect. (J519)       Labels: None
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 X80 0733
   Revision: B9080001    Serial number: 0771 216140007
   Coding: 20F0F93A0A21301201288F007CEB8ED40F18410F20840940300400020000
   VCID: 6889B8BD3270259AA73-803C

   Subsystem 1 - Part No SW: 7E0 959 801     HW: 7E0 959 801
   Component: J386__TSG_FT  002 3311
   Serial number: --------------------
   Coding: 000000

   Subsystem 2 - Part No SW: 7E0 959 802     HW: 7E0 959 802
   Component: J387__TSG_BT  002 3311
   Serial number: --------------------
   Coding: 000000

1 Fault Found
02071 - Local Databus
            012 - Electrical Fault in Circuit
             Freeze Frame:
                    Fault Status: 01101100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 198
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2018.06.21
                    Time: 01:06:07

It seems that it is somehow related to RLS sensor. The sensor is not visible in subsytem of bcm (I have checked other scans on this thread and everybody has it). If I unplug the sensor than this error disappears and it will show new error - Light and Rain Recognition Sensor no signal/communication.

I don't know If my coding is correct or if there is a problem somewhere else. The sensor is connected to T73b/24.

Otherwise it seems that the lights are working, but I'm not able to fully check it with this error. I do have H7 with front fog lights.

This is my sensor:

[ciclo]

Check the wiring.


Although I am not sure that your RLS sensor can be recognized by your new BCM. (2005!, seems too old)

Alternatives that will surely work with your BCM 7E0:
RLS
- 1K0955559AH, square shape. (-->2014 - T5, 6R, etc)... take a test with this one.
- 5K7955559B or C, round shape. (2015--> - T6, etc)

RLHS
- 5K7955547 round shape. (e-UP)

BCM coding for the RLS is fine, the RLS must also be coded once recognized by BCM.

[ciclo]

[enkor]

I thought they are interchangeable. Every shop have them as compatible, but may be they are only backward compatible with older revisions not in opposite direction.

Wiring should be ok, I tested everything with multimeter and insulation tester. So I have ordered a new one with AH revision and I will hope for the best . Thank you for your help.

[ciclo]

I agree with you, there are many parts marked as compatible, but then... it is best to stick to what is established in the ETKA.

RLS software and possible functions have evolved quite a bit in the last 20 years, however, AH will work for the functions you want to achieve.

Hmm... installing a 2005 part on a 2011 VW with a retrofitted 2015 BCM is pushing the envelope a bit... right?
Without a doubt, humans are a successful species, there is always someone testing the least likely options, ... to infinity and beyond.

[enkor]

Yes, there are endless possibilities for errors

I have installed new RLS sensor at it works. Now I have done all the electric installation except reverse lights. And almost everything works except DRLS and high beam (but flash works).

AUTO switch - same as in 0 position. When I cover the sensor nothing happens.
Low beam turner by light switch - OK
High beam - NOK wont turn on, indicator does not shows up
High beam flash - OK with indicator
Parking lights - OK
Licence plate lights - OK
Front fog - OK
Rear fog - OK
Blinkers/Hazard - OK
Dimmer - seems OK (I don't know how should it work exactly)

I have double checked all the electric installation and I think that everything is correct. I will check it once more to be sure.

Maybe there is just problem with the coding ? I'm lost in this part a little bit. I just looked at the coding what have others and tried to replicate it for by bcm.

Here is latest full scan. No new errors shows up.

However I encountered a strange issue when module 19-J533 shows that module is incorrectly coded and module 6E - J702 shows something with can diagnostics. I have checked the wirings diagram and the diagnostic cables are connected to the bcm. But this error disappears after I cleaned it and sadly I didn't save it. Maybe it has something to do with the transition to bcm max. I will keep eye on it if it appears again.

Code: Select all

Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 18 19 25 2E 56 69 6E 0B

VIN: WV2ZZZ7HZBH021233   Mileage: 227030km-141069miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: Malfunction 0010
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: Cannot be reached 1100
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
69-Trailer -- Status: OK 0000
6E-Ctrl Head Roof -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (J623-CCHA)       Labels: None
   Part No SW: 03L 906 022 GH    HW: 03L 907 309 K
   Component: R4 2,0L EDC   H35 9127
   Revision: 26H35---    Serial number: 00000000000000 CVN: 0D30C313
   Coding: 0119401A231400080000
   Shop #: WSC 28886 141 102755
   ASAM Dataset: EV_ECM20TDI01103L906022GH 002012
   ROD: EV_ECM20TDI01103L906022CH_002.rod
   VCID: 71BFD5D9012AE452F0D-8024
   VINID: 9E60AAAAA1D8A926000810830CC4FAC322

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
   Part No SW: 7E0 907 379 G    HW: 7E0 907 379 E
   Component: ESP MK25A XT  H43 0105
   Revision: 00H43001
   Coding: 208764AD09A6049626A490746A6110
   Shop #: WSC 02756 790 49152
   VCID: 363526C52844836AE5F-8062

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels:| 7E5-907-040.clb
   Part No SW: 7E5 907 040 E    HW: 7E5 907 040 E
   Component: ClimatronicT5 H10 0101
   Revision: 00002001
   Coding: 0004000102
   Shop #: WSC 02757 790 50316
   ASAM Dataset: EV_ClimatronicT5 A01002
   ROD: EV_ClimaAutoT5Basis.rod
   VCID: 2A0D02B5EC7CD78A717-807E

   Slave 1:
   Subsystem 1 - Part No SW: 7E5 907 049 A    HW: 7E5 907 049 A
   Component: Heckbedienung  H10 0101
   Serial number: BHB-0012807100010019

2 Faults Found
13701440 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          [Steuergeršt fŁr Zusatzheizung - kein Signal/Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 198
                    Mileage: 227039 km
                    Date: 2024.01.30
                    Time: 11:29:03

9479189 - Signal Line for Air Quality Sensor
          B10A4 15 [009] - Open or Short to Plus
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 198
                    Mileage: 227039 km
                    Date: 2024.01.30
                    Time: 11:29:02


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: None
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 X80 0733
   Revision: B9080001    Serial number: 0771 216140007
   Coding: 20F0F93A4A21301201288F007CEB8ED40718410F20840940300400020000
   Shop #: WSC 00001 001 28888
   VCID: 6889B8BD3270259AA73-803C

   Subsystem 1 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 020112 05  54  0403
   Coding: 0730AD

   Subsystem 2 - Part No SW: 7E0 959 801     HW: 7E0 959 801   Labels: 7E0-959-80X-V1.CLB
   Component: J386__TSG_FT  002 3311
   Serial number: --------------------
   Coding: 000000

   Subsystem 3 - Part No SW: 7E0 959 802     HW: 7E0 959 802   Labels: 7E0-959-80X-V1.CLB
   Component: J387__TSG_BT  002 3311
   Serial number: --------------------
   Coding: 000000

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 A    HW: 7E0 919 475 A
   Component: PARKHILFE 8K  H10 0008
   Revision: --------    Serial number: 32741011907406
   Coding: 110001
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_VW75XParkAssis8K A01003
   ROD: EV_VW75XParkAssis8K_A01.rod
   VCID: 303910DDCAA0AD5ABF3-8064

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 C    HW: 7E0 959 655 C
   Component: VW10Airbag007 H05 0013
   Revision: --------    Serial number: 003HM0007VTN Dataset Number: 7E0003v____ 0489
   Coding: 000000000000000000000000000000003037
   Shop #: WSC 02754 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 363526C528C4836AE5F-8062

   Crash sensor for side airbag: driver side:
   Serial number: 3495ZRB405B6JIHQH0KM

   Front Passenger's Side Airbag Crash Sensor:
   Serial number: 3505ZRB40516JIHQG0M5

3 Faults Found
9440027 - Driver's side; side-airbag igniter
          B100B 1B [137] - Resistance Too High
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 227039 km
                    Date: 2024.01.30
                    Time: 11:29:07

9446677 - Redundant signal path for airbag shut-off; passenger side
          B1025 15 [137] - Open or Short to Plus
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 227039 km
                    Date: 2024.01.30
                    Time: 11:29:05

9445397 - Key switch for deactivation of passenger-side airbag
          B1020 15 [137] - Open or Short to Plus
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 227039 km
                    Date: 2024.01.30
                    Time: 11:29:05


-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:* None-SRI1
   Part No SW: 7E0 920 870 C    HW: 7E0 920 870 C
   Component: KOMBI         H04 0204
   Serial number: 00000000000000
   Coding: 160F00
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04086
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
   VCID: 290FFDB9E97ADC9278D-807C

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat
Cannot be reached

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 X80 0733
   Revision: B9080001
   Coding: 042200
   Shop #: WSC 00001 001 28888
   VCID: 6889B8BD3270259AA73-803C

1 Fault Found
01207 - Control Module for Auxiliary Heater (J364)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 198
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2018.06.22
                    Time: 11:29:05


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:* Redir Fail!
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0204
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03008
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A8DC2B52CFC178AB17-803E

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650)       Labels:. 5N0-035-342.lbl
   Part No SW: 5N0 035 342 C    HW: 5N0 035 342 C
   Component: SG EXT.PLAYER H13 0111
   Revision: A1001003    Serial number: 7668396825
   Coding: 010000
   Shop #: WSC 12345 123 12345
   VCID: 270BFB81FFEEEAE26E9-8072

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 F    HW: 1K0 907 383 F
   Component: Anhaenger     H07 0100
   Revision: 3A001001    Serial number: 00000132278626
   Coding: 410D000100000000
   Shop #: WSC 02756 790 00000
   VCID: 303910DDCA20AD5ABF3-8064

No fault code found.

-------------------------------------------------------------------------------
Address 6E: Ctrl Head Roof (J702)       Labels:. 7E5-919-037-L2.clb
   Part No SW: 7E5 919 037 F    HW: 7E5 919 037 F
   Component: Dachdisplay   H16 0175
   Revision: 11100009    Serial number: 167608
   Coding: 000205
   Shop #: WSC 02756 790 00000
   VCID: 34311CCD3E38917ADBB-8060

1 Fault Found
01207 - Control Module for Auxiliary Heater (J364)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 198
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2024.01.29
                    Time: 11:29:03


End----------(Elapsed Time: 01:29, VBatt start/end: 14.5V/14.5V)-----------

[ciclo]

I seem to remember that the Rain Closing function does not work with square-shaped sensors (AH), only with the newer round-shaped sensors and WRMs with software for folding mirrors (I don't remember exactly all the compatibilities, I wrote it here in the forum ), I got it working https://www.youtube.com/watch?v=cOOTwodRdTo but finally disabled it.
That is, in your case neither of the two possible circumstances are met for it to work.



Since I don't know the electrical installation you have done and there are two possible configurations of electrical installations, try the following BCM codings:

1-Electrical installation (-->2014, ...with relay for automatic lights)
20F0F93A4A21301201288E007CEB8ED40718610F60842941300400020000

2- Electrical installation (2015-->, ...with T73b/8 for HB)
20F0F93A4A21301201288E007CEB8ED40718610F60842940300400020800

[enkor]

You are a true master. After the coding everything works. I have done installation by your instructions at the beginning of the thread with light relay.

May I have a few more questions, please?

- I turned on lamp diagnostic for all of the bulbs. Is it really working even for classical bulbs ?

- I had strange problem with MFSW. I have aftermarket buttons (I think that they are crap) connected to +30 signal. And the buttons did not respond until I manually unplug and plug them when ignition is on. I tried to connect them to LIN 36 (with the new bcm) but it wont help. So I connect them to +15 signal and they are working stable now. Do you think that it is ok ? According to electrical diagram they should be connected to +30. I will try to find some original in future.

- I still have a problem with incorrect coding, but I dont know what can be wrong. The error is stable now, it appears everytime. Maybe it is because I removed original radio ? I tried to remove it from installation list but the error is still there. I didnt find what it really means.

Code: Select all

                Address 19: CAN Gateway       Labels: 7E0-909-901.clb
Control Module Part Number: 7E0 909 901     HW: 7E0 937 090
  Component and/or Version: GW-K-CAN TP20 X80 0733
           Software Coding: 042200
            Work Shop Code: WSC 00001 001 28888
                      VCID: 6889B8BD3270259AA73-803C
3 Faults Found

01044 - Control Module Incorrectly Coded
            000 - - - Intermittent
             Freeze Frame
                    Fault Status: 00100000
                    Fault Priority: 2
                    Fault Frequency: 15
                    Reset counter: 255
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2063.14.31
                    Time: 19:10:30

01304 - Radio
            004 - No Signal/Communication - Intermittent
             Freeze Frame
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 238
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2063.14.31
                    Time: 19:13:24

01207 - Control Module for Auxiliary Heater (J364)
            004 - No Signal/Communication
             Freeze Frame
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 198
                    Mileage: 227039 km
                    Time Indication: 0
                    Date: 2063.14.31
                    Time: 19:09:08

[ciclo]

Lamp diagnosis works for all types of light bulbs. It depends on the coding and the dataset (parametry) established at the factory for the lighting configuration of the vehicle where the BCM is going to be installed. The parameters of the BCM PQ25 can be modified with VCP.
You can check the operation of the diagnosis by removing the bulbs, taking into account that the coding must be appropriate.
There was confusion in the definition of the Bit for lamp diagnosis on the VCDS labels for BCM PQ25, try the opposite in case of doubt.

At first the multifunction steering wheel buttons were connected to +30 but later to +15.
It is not compatible to have MFSW + Stalk for the trip computer at the same time.

Regarding the radio, I don't know what's happening to you, once unchecked from the GW installation list it should no longer appear.
Maybe it's related to Address 10 ...

... or other control unit.

[kylelnsn]

And so... after reading 44 pages... I ask for help...

I believe our case is not detailed (put please correct me if I am wrong, or stupid, or both!)

We have a T5.1 2013 7EM Multivan/Caravelle (as called here in the UK) it is specifically a highline executive. Now in difference to most of this thread I wonder is we have from the factory the H7/H15 "Twin Head Light" or I have seen it referenced by Osram as "Double Head Lamps"

We have already in the vehicle 7H0937090B BCM PQ25. And from the factory the 10pin light switch connector. Good News or so I believed. It also has automatic wipers and rain sensor from the factory.

From this post: viewtopic.php?p=585539#p585539 I believed it was possibly an easy install, new cable from BCM T73/a Pin 37 to T10 Pin 2, code with VCDS and add the 3C8941431A switch. Which was all completed with ease. However the bad news... No Automatic Lights .

No fault codes in VCDS scan. Coding for BCM is currently B8F2793A0A612413932089706EAB9ED40780602F7E844841320003020000

Function on the vehicle is when the switch is turned to 'Auto', it illuminates orange but the lights do not come on automatically only the DRL comes on as if the lights are in the off position. The switch acts exactly as the "non auto" version IN THAT . Could you also advise all compatible switch numbers so we can isolate this as a switch issue potentially? However I doubt the switch is at fault. As I understand the switch is only a signal are we missing something else?

Or do we need to make a modification like iichel suggests here: viewtopic.php?p=593084#p593084

ciclo, iichel and others I need some help please?

[iichel]

BCM coding: B8F2793A0A61241393208F706EAB9ED40780602F7E846841320003020000
