VW T5.1 Caravelle BCM Upgrade and Cruise Control on Steering Wheel...SOLVED

[Limalex]

I already found one one problem.The White CNL wire was put in a wrong location. Now it sorted.

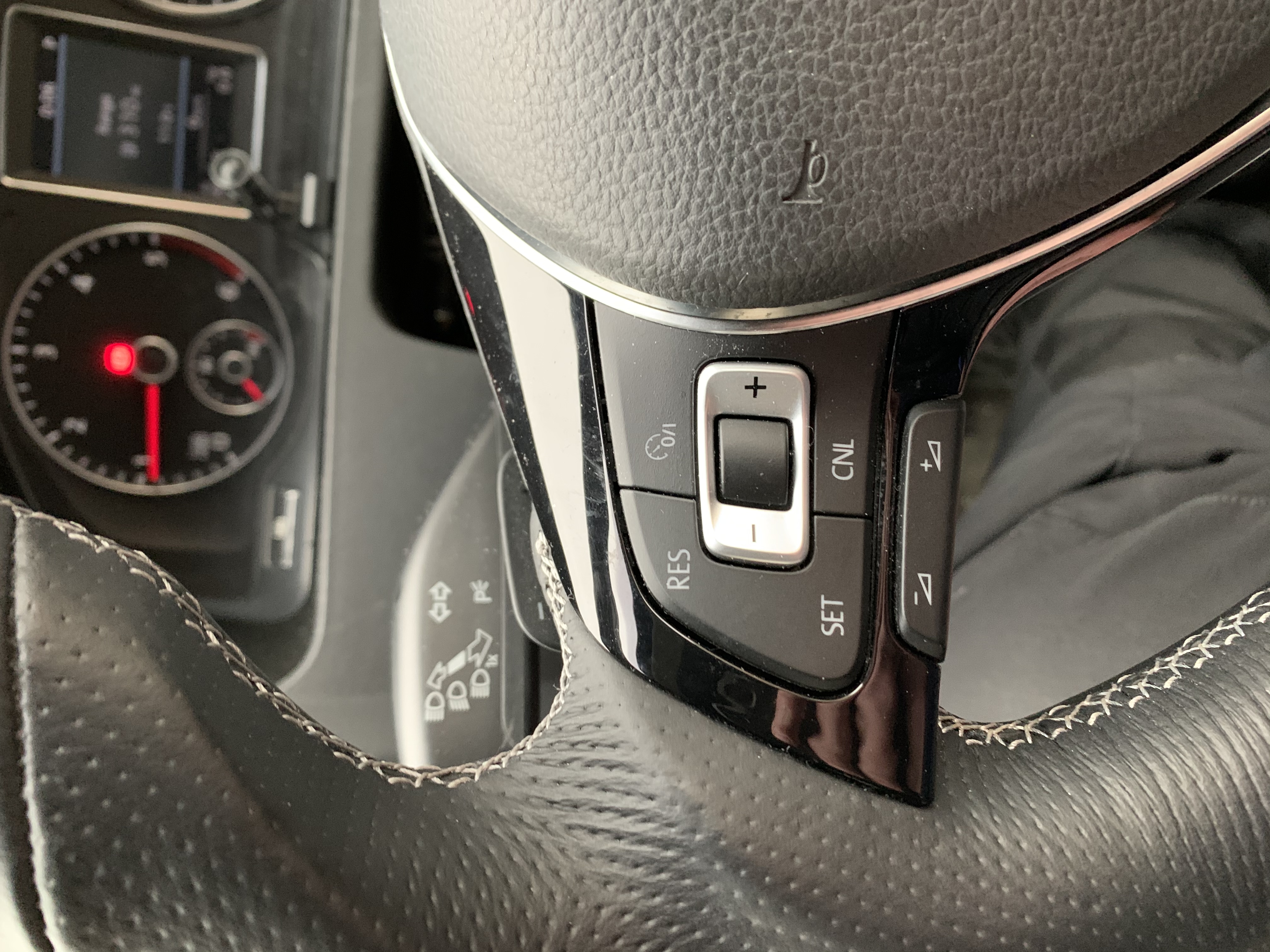

MFSW has all functions come back, emulator working.

0/1 button do not know what is the function but it operates the horn. Horn also works the original way too.
RES button increases the speed by 1
SET works as it should
-/+ works as it should
CNL works as it should

[ciclo]

0/I is to enable or disable CCS. ... OFF/ON, Alex please is the most popular symbol and button for all devices around the world, there are no new mysteries added to this button...

The CCE exactly copies the operation of the CCS in the stalk, transforming the electronic signals of the new CCS buttons on the steering wheel into electrical signals that your BCM and ECU can understand (identical signals to those that were sent from the CCS stalk).
If your CCE is identical to the one I have installed on my 6R (please ask Slavik) and you have installed the CCE wires correctly, there must be something in your original electrical installation or added parts that is causing it.

I should know exactly the part numbers of your:
- MFSW.
- Airbag.
- Airbag wiring.

I'm going to review the original diagrams for your T5 in case I find anything suspicious that is causing the horn to sound when you press 0/I ...

[Limalex]

I did not know the obvious then

Older vehicles with the CCs on the talk do not have that symbol nether the lorries I driving. I mean the symbol there without the 0/1. At least I learned something new agin

Regarding the parts Cannot tell the part numbers but steering wheel is come off a MK7 Golf so paddles are white
The airbag loom and the buttons I bought brand new and they for a T6 transporter. I will check tomorrow If they have the part number somewhere.

For the horn I keep thinking on that post on the T6 forum I linked in earlier. I believe all the T5 and T6 without the CCS on the steering wheel operates the horn via T42 pin 11

According the author of that post if the CCS buttons installed on the steering wheel the horn must be operated via LinBus and pin 11 need to be removed.

I could not figure out how can I tell the BCM that the horn must be operated via LinBus.
They using pin 36 on BCM but If pin 36 can operate horn I am sure pin 17 should be able to do the same.

[ciclo]

My 6R works with the LIN 17 and everything works fine. "OEMMMMM"
https://www.uk-polos.net/viewtopic.php?p=498666#p498666
viewtopic.php?p=537303#p537303
So we must find a way for your T5 to have the same electrical configuration, in terms of compatible wires and parts. It is the correct way.

Please take a picture of your current airbag as close to this:


The solution offered in the T6 forum through the LIN 36 will be for parts added and that are not compatible for the PQ25 (airbag, airbag wiring, etc),
'maybe' coming from other platforms "or specific T6 models" where messages are needed through a LIN for the horn work.

The horn on the PQ25 does not need any LIN to work, the airbag needs to have two ground points.

[ciclo]

Removing and isolating T73a/29 everything should work properly if the electrical installation is correct and the added parts are compatible with the PQ25.

Please check again, with the current status of your T5.

[Limalex]

You absolutely awesome Fernando

Everything works as it should. You are really the Master of Universe

This thread successfully solved. I do not know what I would have done without you. Really appreciate your involvement.

Would you share with us where this knowledge coming from?
I wish Seat and Audi forums would have a Ciclo too

[ciclo]

Thank you very much for your kind/warm words, but this adventure is thanks to you, we are all in your debt.

Alex, please, allow me a suggestion:
You must verify that the T41 connector is securely attached to the stalks structure with the connector locking mechanism.
- You must be 100% sure.
- It shouldn't move at all.
- This would be my number one priority.

If this is correct, it is perfect!

Please use your thread freely to connect with us at any time if you need to.
Thanks Alex.

[Limalex]

Hello Guys,

I wish you all a Happy New Year!

Sorry but I had to bump up this thread. I need to ask a question. My lovely Caravelle had to go and I am now planning to buy an old 2006-2007 T5. The plan is to do it up to the latest possible spec.

I know the earlier models completely different with the electric installation, but I got to try.

Would it be possible to update an early T5 to a latest possible BCM? May I expect some help If I starting the process?

[ciclo]

Hi,
I thought about installing a BCM PQ25 (6R, T5.1, T6) on our exPolo 9N3 'PQ24'... but I don't know what the hell I was thinking...

I wish you a very happy year 2024 for you and your loved ones!

[Limalex]

I am sad to hear this. I wish you would push yourself over the limit Now I left with the expensive option B

[liam0907]

Hi ciclo and limalex,

First time poster but long time lurking finding as much information as possible) I know this is quite an old thread but im looking for some advice and thought this was the best place to start. A friend of mine has a 2010 T5.1 that he wishes me to fit CC to but has baseline BCM (part no. 7H0 937 086 B) i know this isnt possible on this BCM. He has purchased a Secondhand BCM from ebay from a T5.1 (part no. 7H0 937 090 H72 0708) can you see any problems with this swap?

Im very competant with crimping new connecter and have an array of connectors ect, i also have VCDS. I know his current remote will need matching via channel 1 in the BCM adaptations. I have read through this thread try to find what steps are necessary to complete this task but as we are not retrofitting auto lights im not sure what is relevant to us.

At a guess we are required to add new CAN lines from BCM to Instrument cluster, add 2 new 30 amp supplies to BCM from E-box in the engine bay but would like to know if there are any other wiring modifications required. I have attached the first autoscan i done on his T5.1 with all faults listed rectified.

Any help from you would be grately appreciated
Thanks Liam

Friday,12,April,2024,13:09:19:46870
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 23.11.0.0 (x64) HEX-V2 CB: 0.4643.4
Data version: 20231027 DS351.0
www.Ross-Tech.com

Workshop Code: 321 54321 054321

VIN: WV1ZZZ7HZAH252673 License Plate: MA1O WGU



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN75 (6N0)
Scan: 01 03 04 08 09 15 17 19 25 56

VIN: WV1ZZZ7HZAH252673

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
56-Radio -- Status: Malfunction 1010
-------------------------------------------------------------------------------
Address 01: Engine
Cannot be reached

-------------------------------------------------------------------------------
Address 03: ABS Brakes
Cannot be reached

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 AA HW: 7E5 907 047 AA
Component: Climatic-T5 H10 0101
Revision: 00004001
Coding: 0000000002
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ClimaticT5 A01002
ROD: EV_ClimaT5Basis.rod
VCID: 6E85DDA8E01C741ACDF-803A

1 Fault Found:
9481200 - Refrigerant Pressure
B10AB F0 [00001000] - Too Low
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Reset counter: 137
Mileage: 216423 km
Date: 2127.14.31
Time: 14:03:36


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 086 B HW: 7H0 937 086 B
Component: BCM T5GP M++4 H46 0207
Revision: BM046001 Serial number: 0154 057100398
Coding: A0A0203A0E212021002000003C2B8C540000430F60060000300000000000
Shop #: WSC 02736 790 00000
VCID: 323D09D8342410FAE97-8066

Subsystem 1 - Part No SW: 7E0 959 801 B HW: 7E0 959 801 B Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3310
Serial number: --------------------
Coding: 010000

Subsystem 2 - Part No SW: 7E0 959 802 B HW: 7E0 959 802 B Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3310
Serial number: --------------------
Coding: 000000

7 Faults Found:
01758 - Bulbs for Brake Lamps
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 2
Reset counter: 150
Time Indication: 0

00063 - Back-Up Light Switch (F4)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 3
Reset counter: 162
Mileage: 216803 km
Time Indication: 0
Date: 2063.14.31
Time: 14:44:50

03301 - Response Closing Status of Drivers Door
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 11
Reset counter: 159
Mileage: 216802 km
Time Indication: 0
Date: 2063.14.31
Time: 16:56:35

03302 - Response Closing Status of Passenger's Door
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 150
Mileage: 218176 km
Time Indication: 0
Date: 2063.14.31
Time: 14:46:53

03303 - Response Closing Status of Rear Left Door
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 18
Reset counter: 153
Mileage: 216630 km
Time Indication: 0
Date: 2063.14.31
Time: 08:56:40

03442 - Return Message Closing Status of Rear Lid
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 150
Mileage: 218176 km
Time Indication: 0
Date: 2063.14.31
Time: 14:46:53

01331 - Door Control Module; Driver Side (J386)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 2
Reset counter: 159
Time Indication: 0


-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 A HW: 7E0 959 655 A
Component: VW10Airbag00Y H05 0011
Revision: -------- Serial number: 003E5001D7AA Dataset Number: 7E0003v____ 0403
Coding: 000000000000000000000000000000003059
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01001
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 34310FC0CEB01ECAFBB-8060

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments
Cannot be reached

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 086 B
Component: GW-K-CAN TP20 0207
Coding: 042300
Shop #: WSC 02736 790 00000
VCID: 70B9C3D0FAA862EADF3-8024

1 Fault Found:
01304 - Radio
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 230
Reset counter: 166
Mileage: 216423 km
Time Indication: 0
Date: 2063.14.31
Time: 10:11:13


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:. 5K0-920-xxx-25.clb
Part No SW: 7E0 920 960 A HW: 7E0 920 960 A
Component: IMMO H16 0111
Serial number:
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03004
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 270BE88C0F6665524E9-8072

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

End----------(Elapsed Time: 01:46, VBatt start/end: 14.1V/14.2V)-----------
