Re: BCM Max Transporter 2013

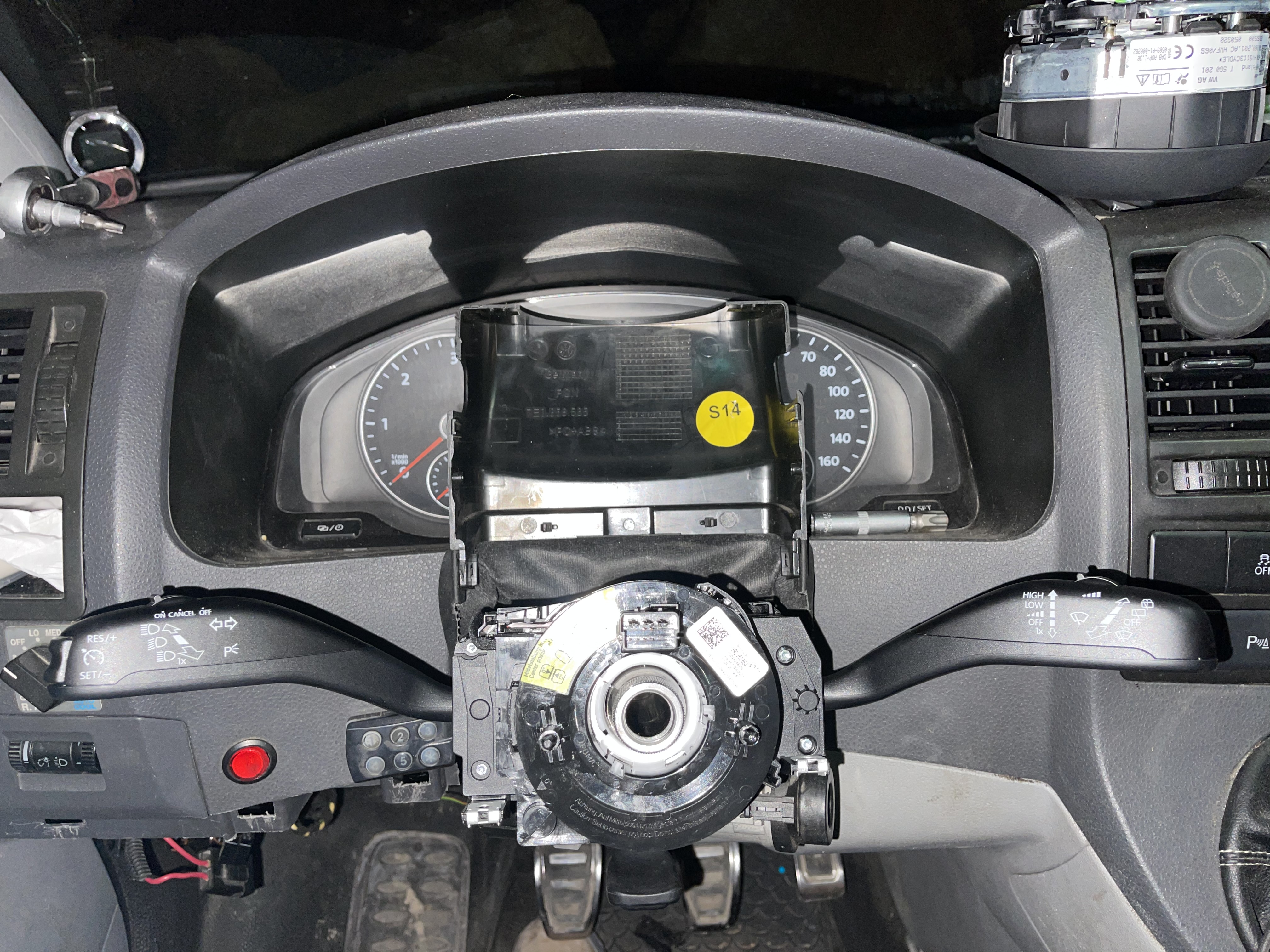

So finally I’ve got the new slip ring and the stalk
I have make all the additional wiring like Adams digram, no faults on vcds, but still no high beam, and the high beam light on the cluster is always on
I have make all the additional wiring like Adams digram, no faults on vcds, but still no high beam, and the high beam light on the cluster is always on
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
Please post the autoscan.
- Shadow109
- Bronze Member
- Posts: 118
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
Code: Select all
Wednesday,30,December,2020,08:47:16:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.1.0
Data version: 20200331 DS317.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZDH036544 License Plate:
Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 25 37 56 5F 77 0B
VIN: WV1ZZZ7HZDH036544 Mileage: 202860km-126051miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Not registered 0001
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
77-Telephone -- Status: Not registered 0001
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GF HW: 03L 907 309 M
Component: R4 2,0L EDC H44 3312
Revision: 26H44--- Serial number: 00000000000000
Coding: 01114012232400080000
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ECM20TDI01103L906019GF 003002
ROD: EV_ECM20TDI01103L906019FG_003.rod
VCID: 75E154D3D4C13F2E28-8020
No fault code found.
Readiness: 0 0 0 0 1
-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 7E0-907-37x-MK25AXT.clb
Part No SW: 7E0 907 379 K HW: 7E0 907 379 E
Component: ESP MK25A XT H43 0110
Revision: 00H43001
Coding: 508724AD89A70A9B24A79175696210
Shop #: WSC 02736 790 49152
VCID: 3A7B87EFB55F905605-806E
1 Fault Found:
00778 - Steering Angle Sensor (G85)
005 - No or Incorrect Basic Setting / Adaptation
Freeze Frame:
Fault Status: 01100101
Fault Priority: 2
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Time Indication: 0
Date: 2020.12.30
Time: 08:32:12
Freeze Frame:
Count: 16384
Count: 257
Count: 8215
Count: 766
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 10082013470288
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7679-802A
1 Fault Found:
1140738 - Steering angle sensor
B1168 54 [009] - Missing Calibration / Basic Setting
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Date: 2020.12.30
Time: 08:32:11
Voltage terminal 15: 12.00 V
Voltage terminal 30: 12.15 V
Terminal 15 status: On
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 BM HW: 7E5 907 047 BM
Component: Climatic-T5 H20 0505
Revision: 00001010
Coding: 0000000002
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 7BF542EBF2E5695E5E-802E
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 HW: 7E0 937 090
Component: BCM PQ25 Max4 H80 0736
Revision: B9080001 Serial number: 0771 351150194
Coding: A8A0393A0E212012002808102F2B8CD4F08043FF60040040320000000000
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
Subsystem 1 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 2 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
3 Faults Found:
00329 - Control Circuit for Unlocking Rear Lid
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 1
Reset counter: 50
Mileage: 202861 km
Time Indication: 0
Date: 2020.12.30
Time: 08:37:04
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Time Indication: 0
Date: 2020.12.30
Time: 08:32:14
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 50
Mileage: 202861 km
Time Indication: 0
Date: 2020.12.30
Time: 08:32:52
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 AA HW: 7N0 919 475
Component: PARKHILFE 8K H06 0212
Revision: -------- Serial number: 28261631000160
Coding: 308001
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001012
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 71E960C3A0A9130EF4-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 B HW: 7E0 959 655 B
Component: VW10Airbag003 H07 0013
Revision: -------- Serial number: 003HL00DDD0.
Coding: 000000000000000000000000000000003033
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 N HW: 7E0 920 970 N
Component: KOMBI H04 0805
Serial number: 00000000000000
Coding: 160A00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H80 0736
Revision: B9080001
Coding: 042200
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 202861 km
Time Indication: 0
Date: 2020.12.30
Time: 08:32:14
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0805
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6B5-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0478
Serial number: VWZAZ2U1668085
Coding: 06570001BE00000010110001000D08001F0100D401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: 2541449324E10FAE58-8070
6 Faults Found:
15360768 - Component Protection
U1101 00 [009] - Active
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Date: 2020.12.30
Time: 08:32:11
Voltage terminal 30: 12.0 V
2565 - GPS Antenna
B1054 13 [009] - Open Circuit
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Date: 2020.12.30
Time: 08:32:12
Voltage terminal 30: 12.0 V
7194 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Date: 2020.12.30
Time: 08:32:14
Voltage terminal 30: 12.0 V
BAP-BAP_Function_ID: 02
0001 - Antenna 1 for Radio
B1119 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Date: 2020.12.30
Time: 08:32:12
Voltage terminal 30: 12.0 V
Status of antenna 1 for radio-Antenna current: 0 mA
Status of antenna 1 for radio-Connection between radio and antenna amplifier: Open circuit
Status of antenna 1 for radio-Connection between antenna amplifier and antenna: Not available
Status of antenna 1 for radio-Reception level antenna 1: 0 dB�V
0003 - Antenna 2 for radio
B111A 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Date: 2020.12.30
Time: 08:32:12
Voltage terminal 30: 12.0 V
Status of antenna 2 for radio-Antenna current: 0 mA
Status of antenna 2 for radio-Connection between radio and antenna amplifier: Open circuit
Status of antenna 2 for radio-Connection between antenna amplifier and antenna: Not available
Status of antenna 2 for radio-Reception level antenna 2: 0 dB�V
1637 - Interface for External Media
U11B8 00 [009] - No Communications
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 10
Mileage: 202861 km
Date: 2020.12.30
Time: 08:32:12
Voltage terminal 30: 12.0 V
Interface for external media: status-Status: Open circuit
-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached
End-------------------------(Elapsed Time: 02:43)--------------------------
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
no faults on vcds?

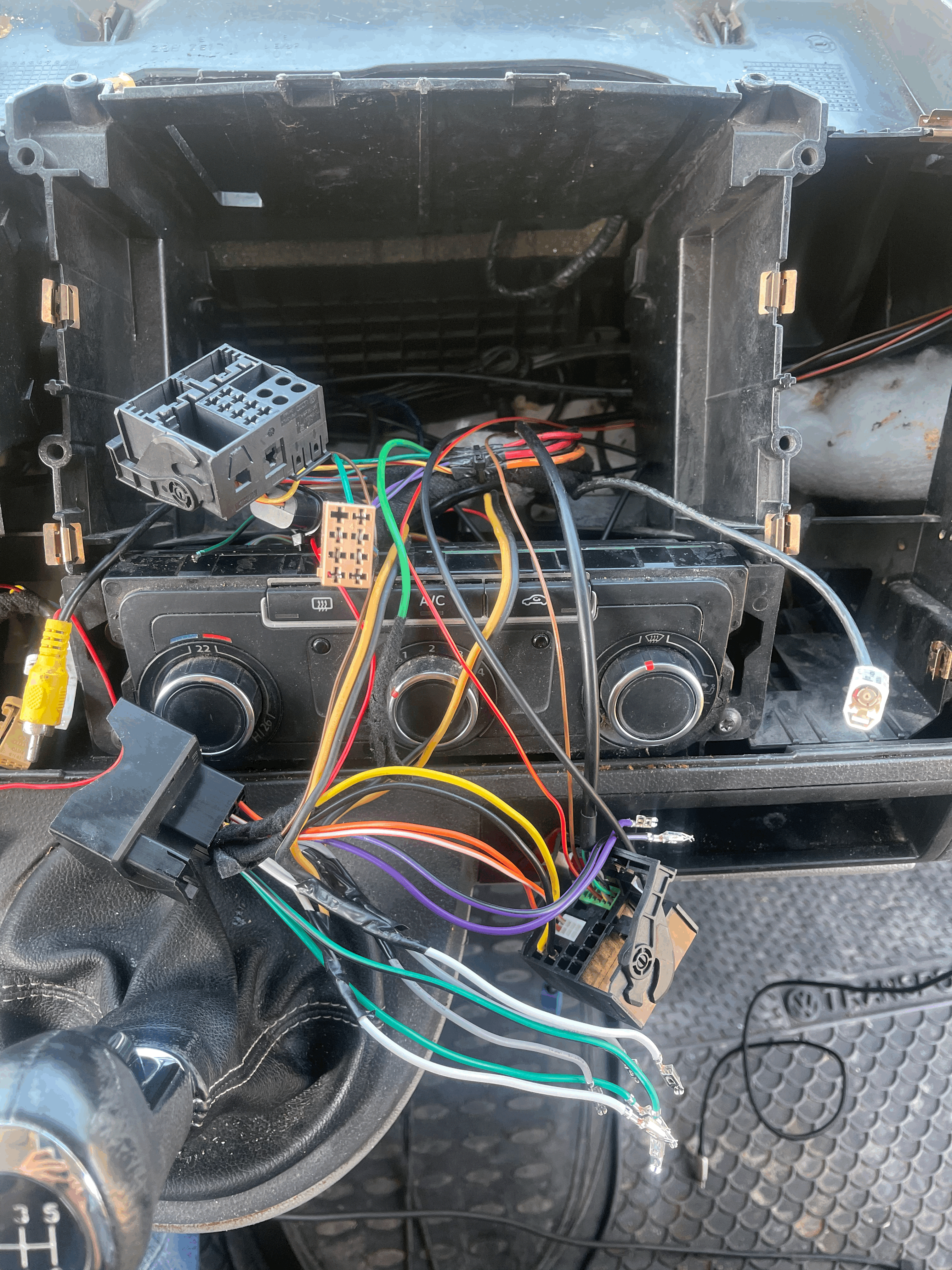

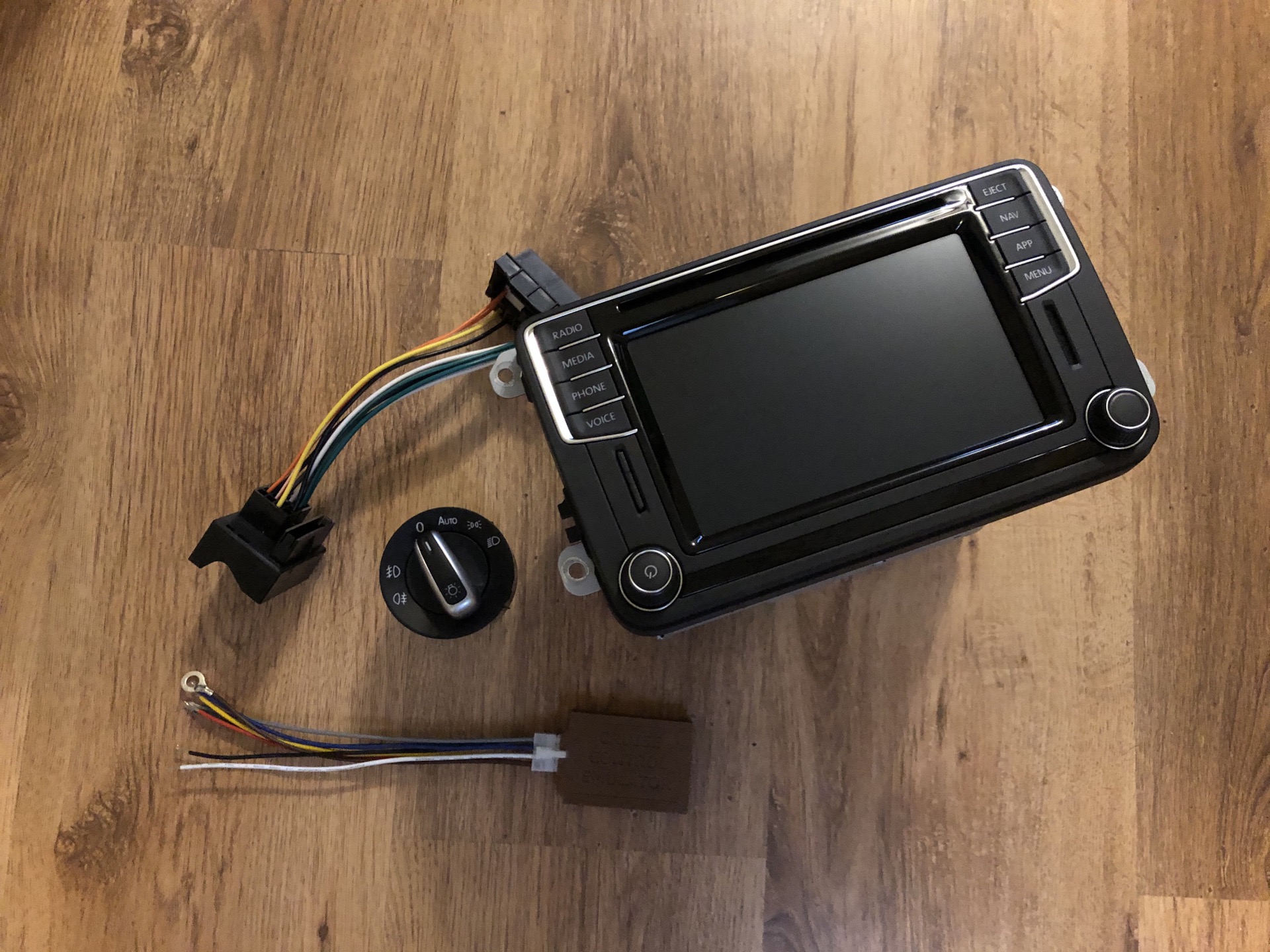

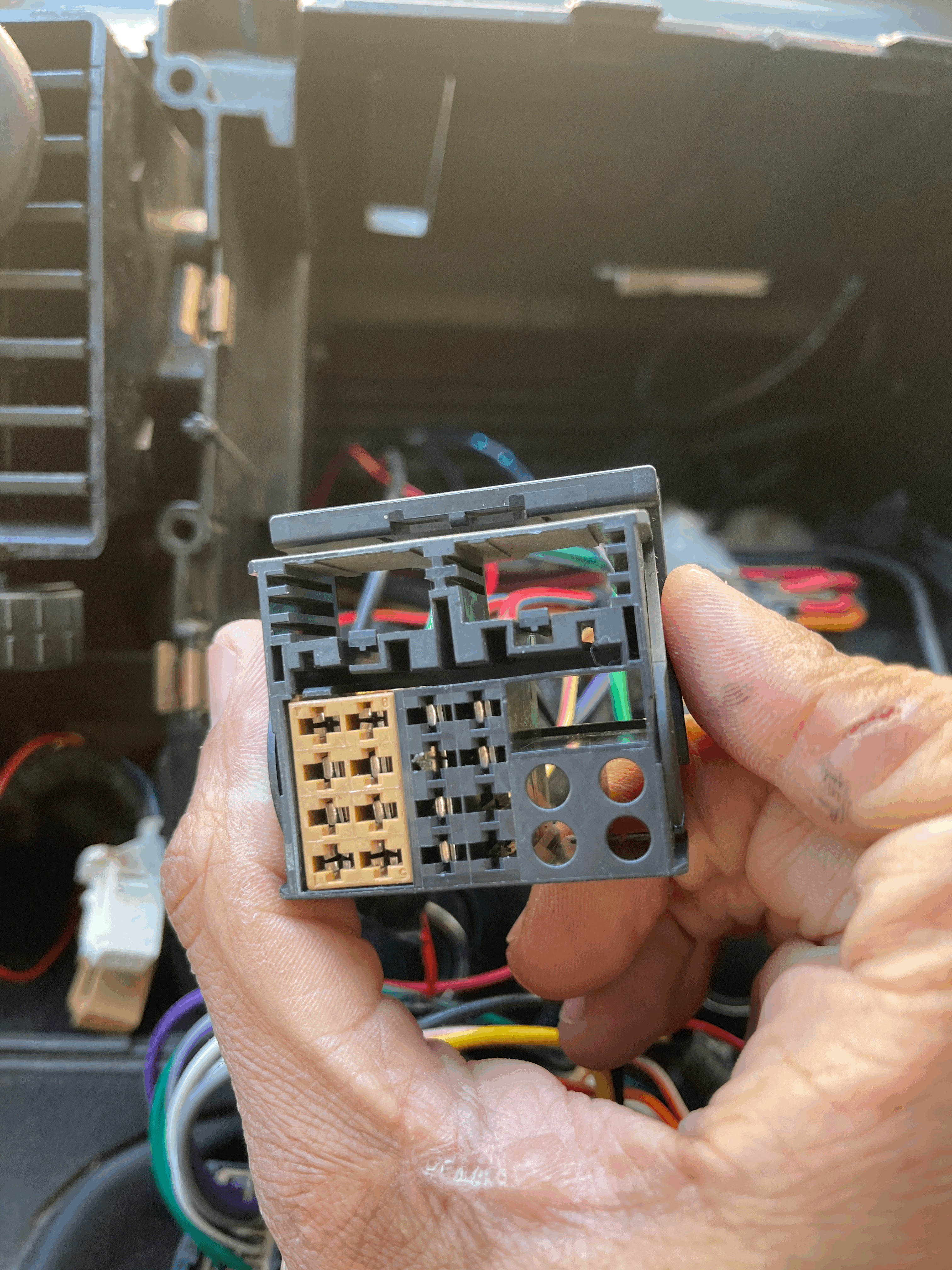

New navigation system!
---

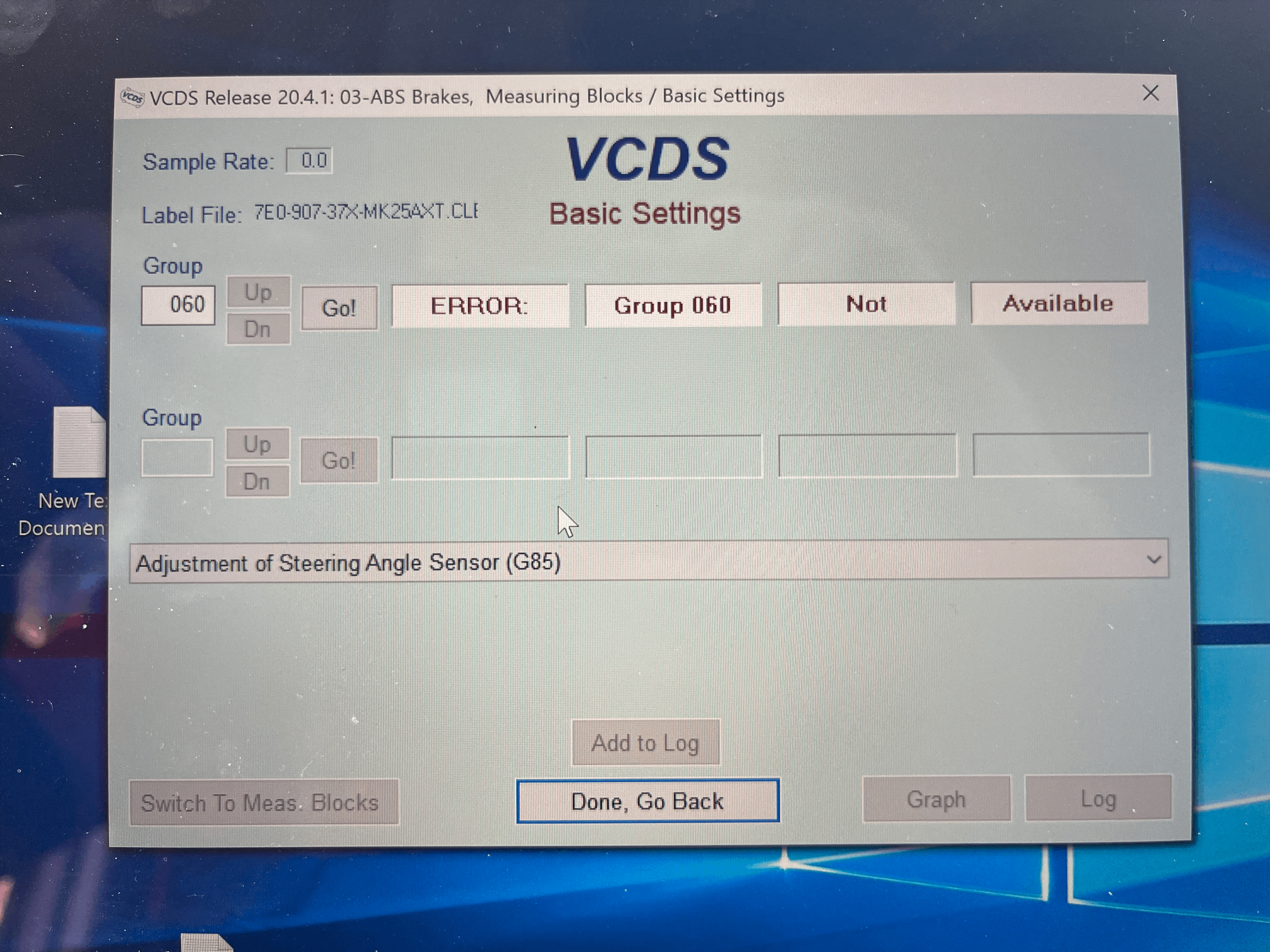

1- Make basic setting of the G85 sensor in Address 03 ABS. (priority)
2- New BCM coding:
A8A0393A0E212012002808902E2B8CD4F08043FF60040040320000020800
BCM adaptation --> Channel 54 ... from 0 to 1.
Notes:
- you have disabled the lamp diagnostics, ... for now we will leave it as is.
- if you have to re-enter the BCM coding, this new BCM coding will be your starting point. As future new BCM codings improve, they will be your new starting points in case you have to re-enter BCM coding.
3- Please show us a picture of the unlock mechanism for the rear lid of your T5.
Note: Maybe you encoded some Bit in BCM 087 that does not correspond to your tailgate opening.

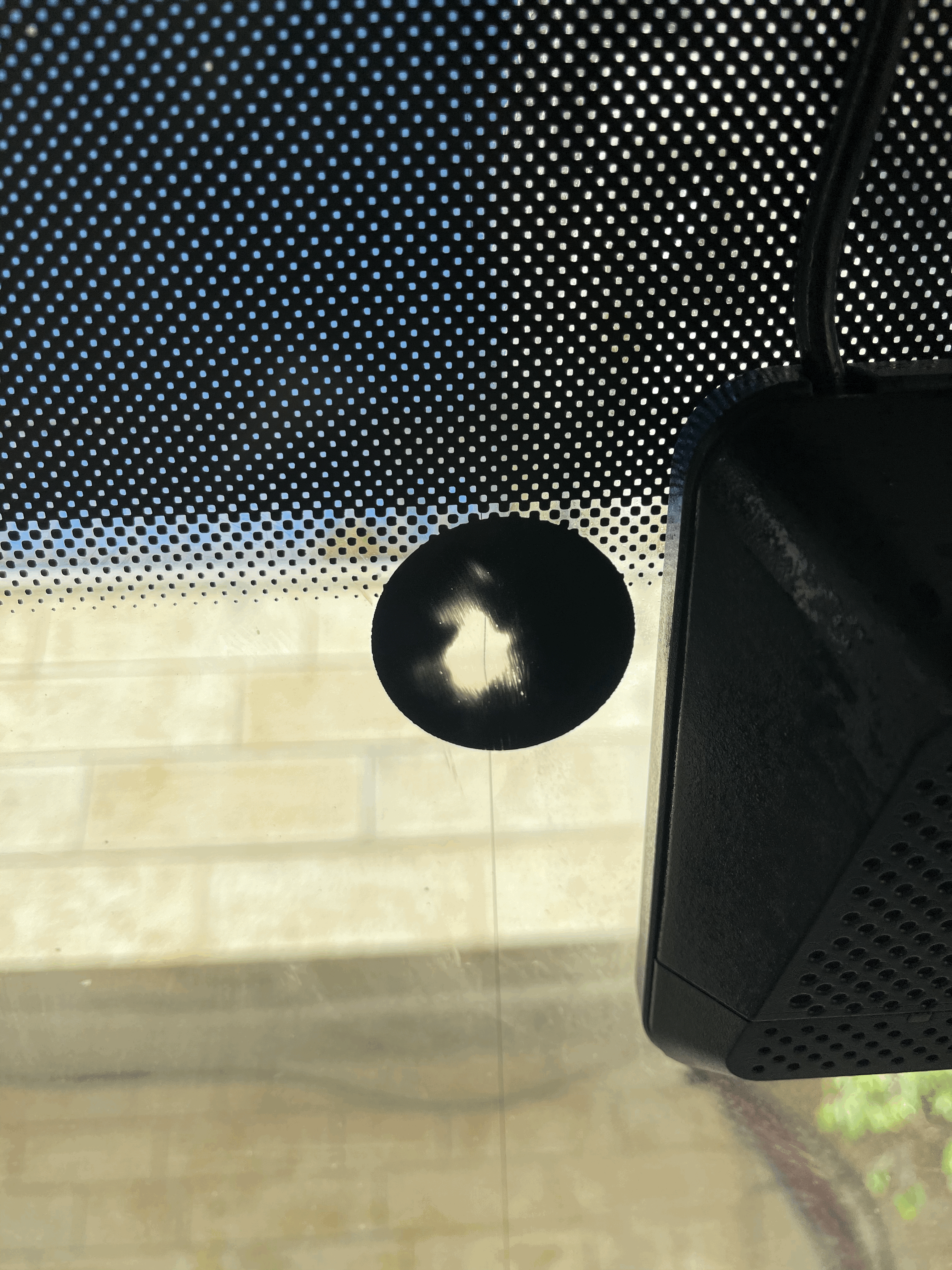

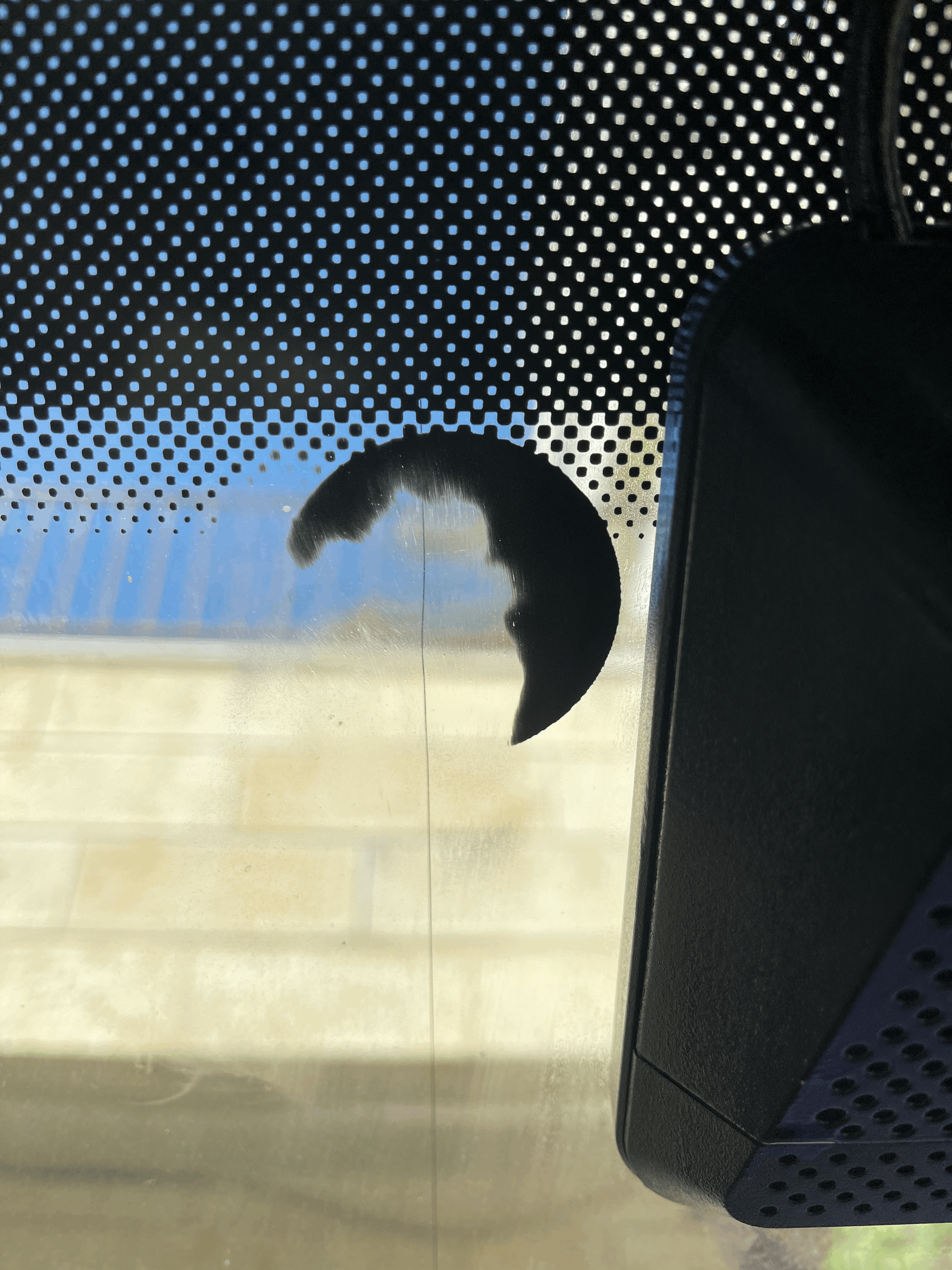

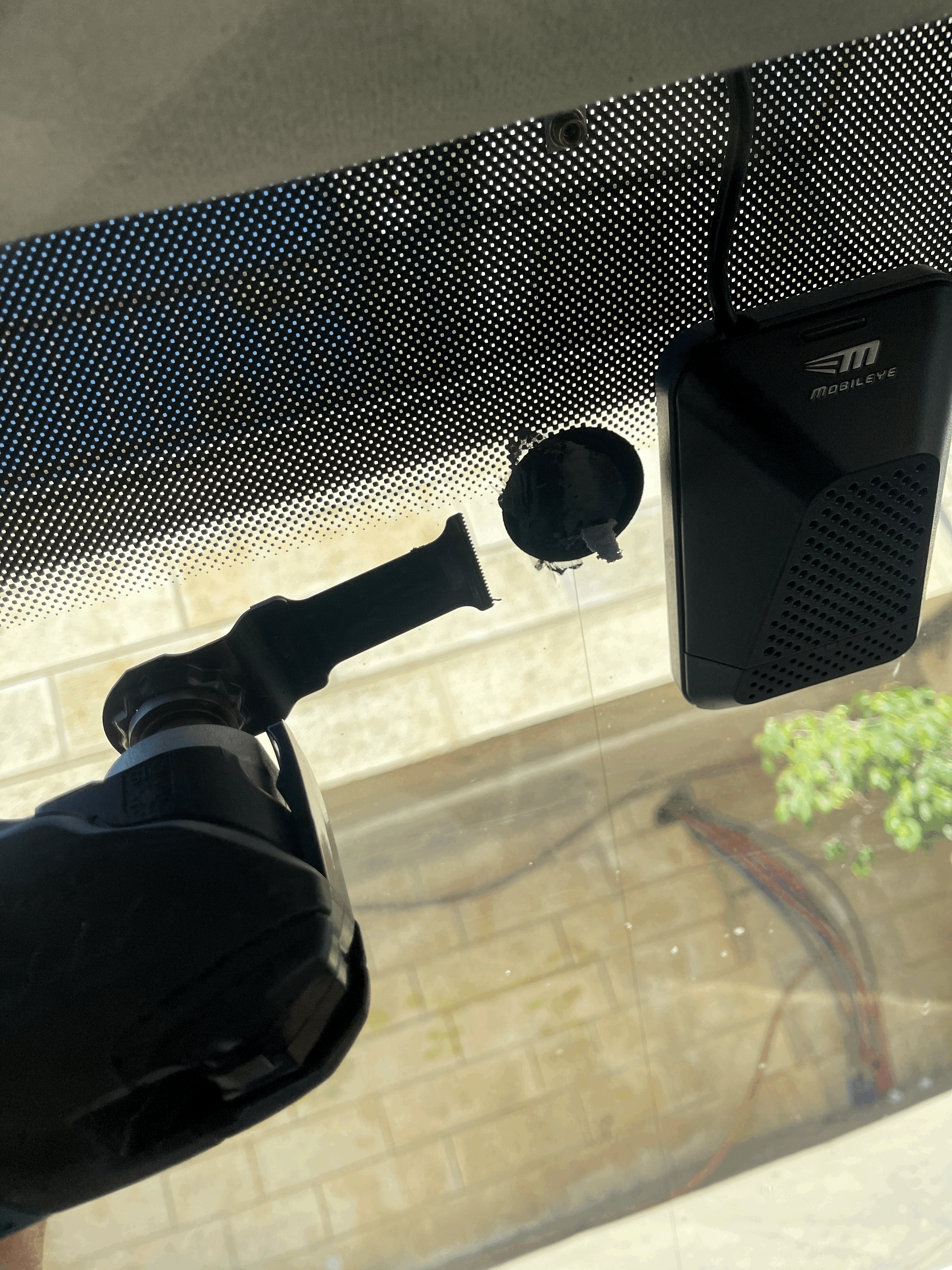

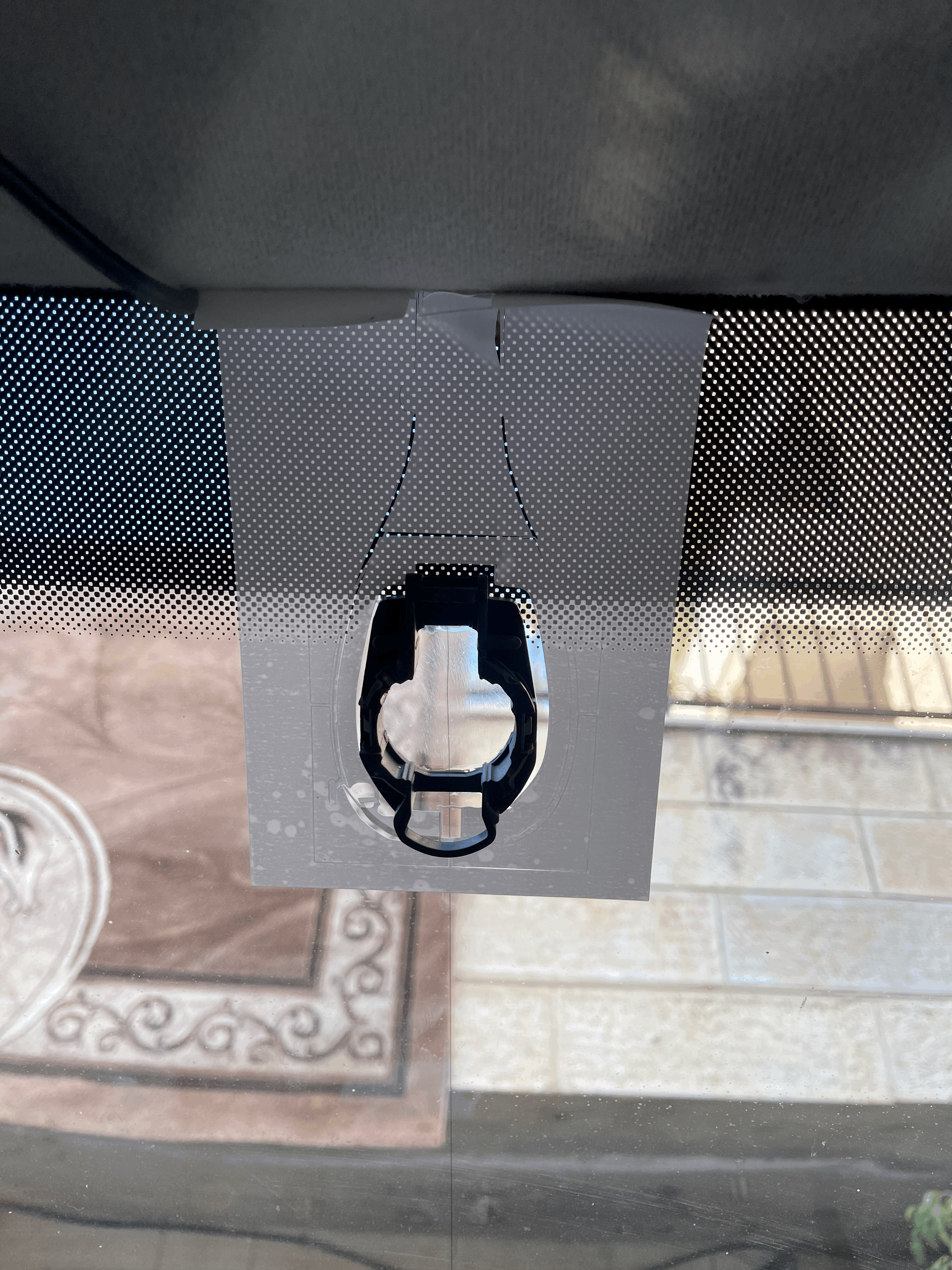

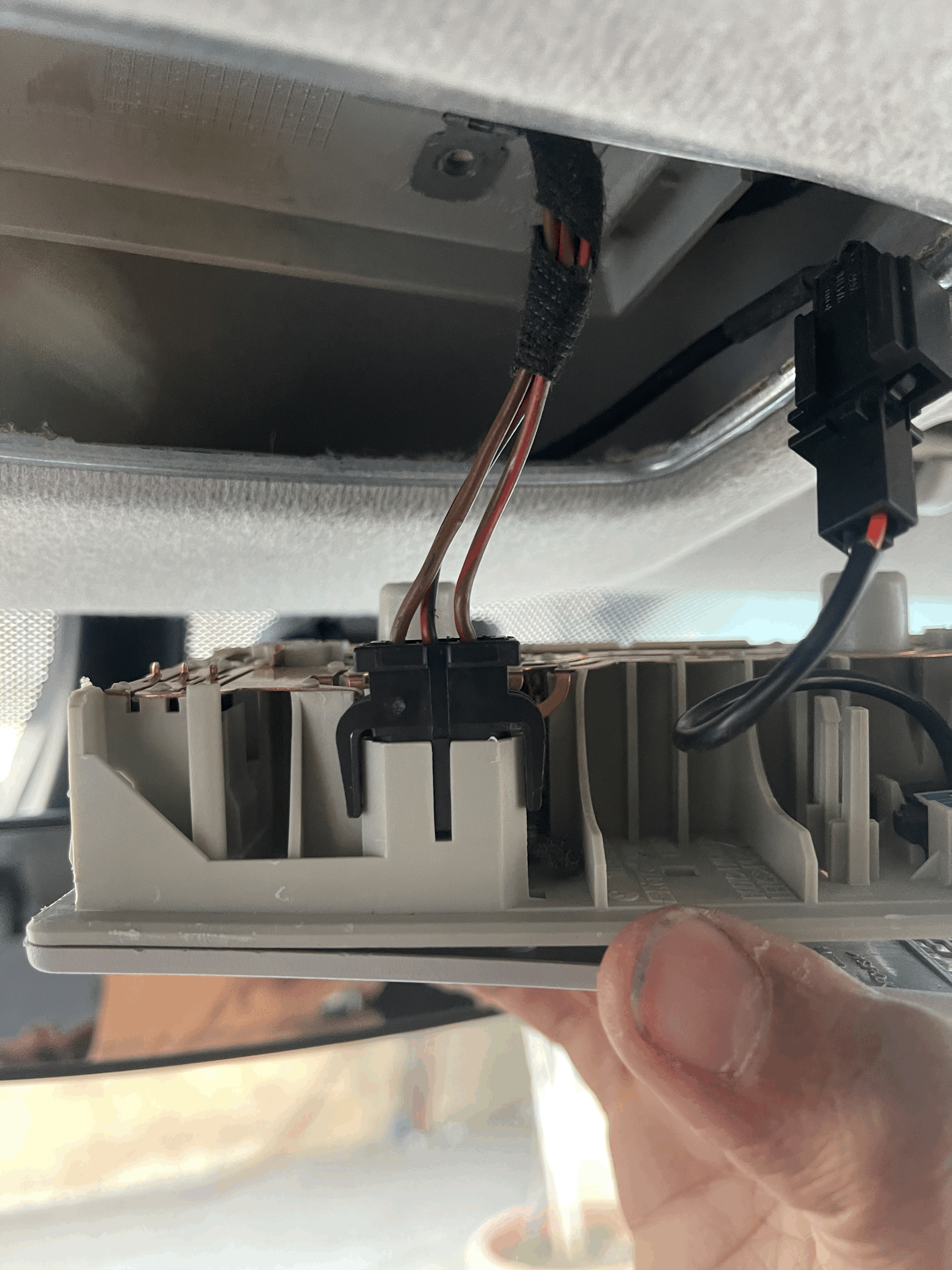

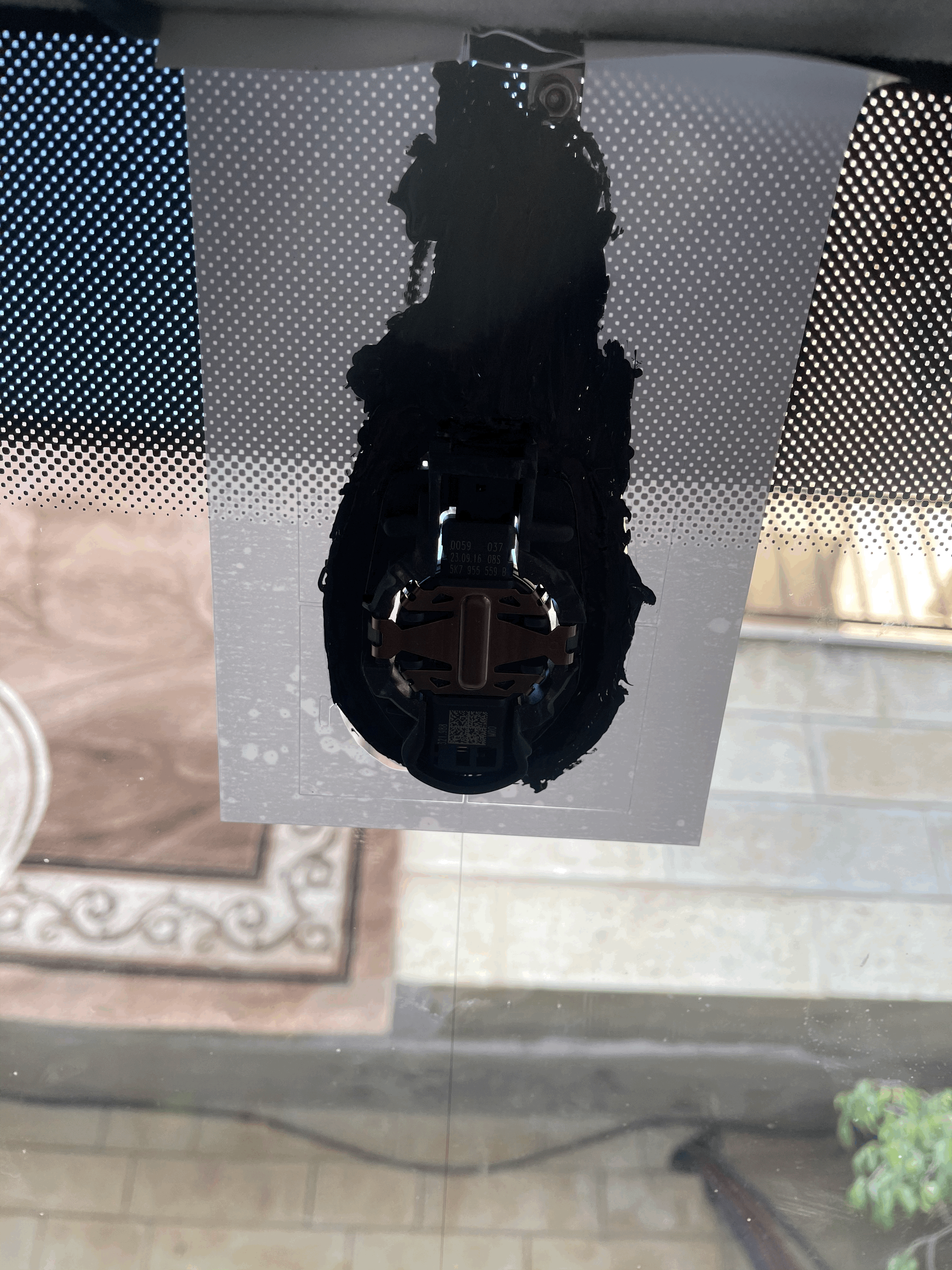

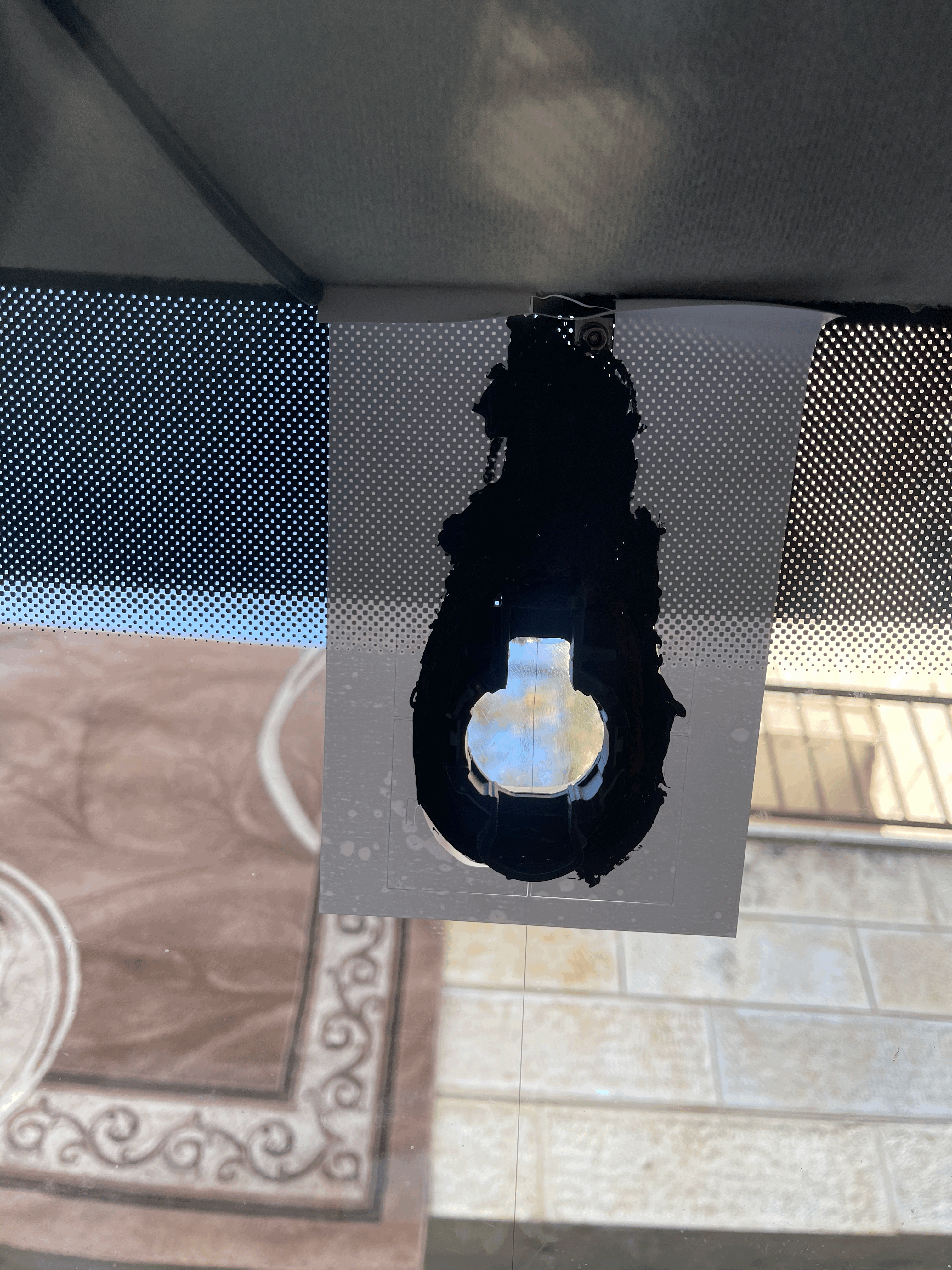

4- Install RLS + HBA mirror.
---
This post deserves a music video :
- Shadow109
- Bronze Member
- Posts: 118
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
I'v got some toys from Madwarlock
it shows me an error, (tried with ignition on)

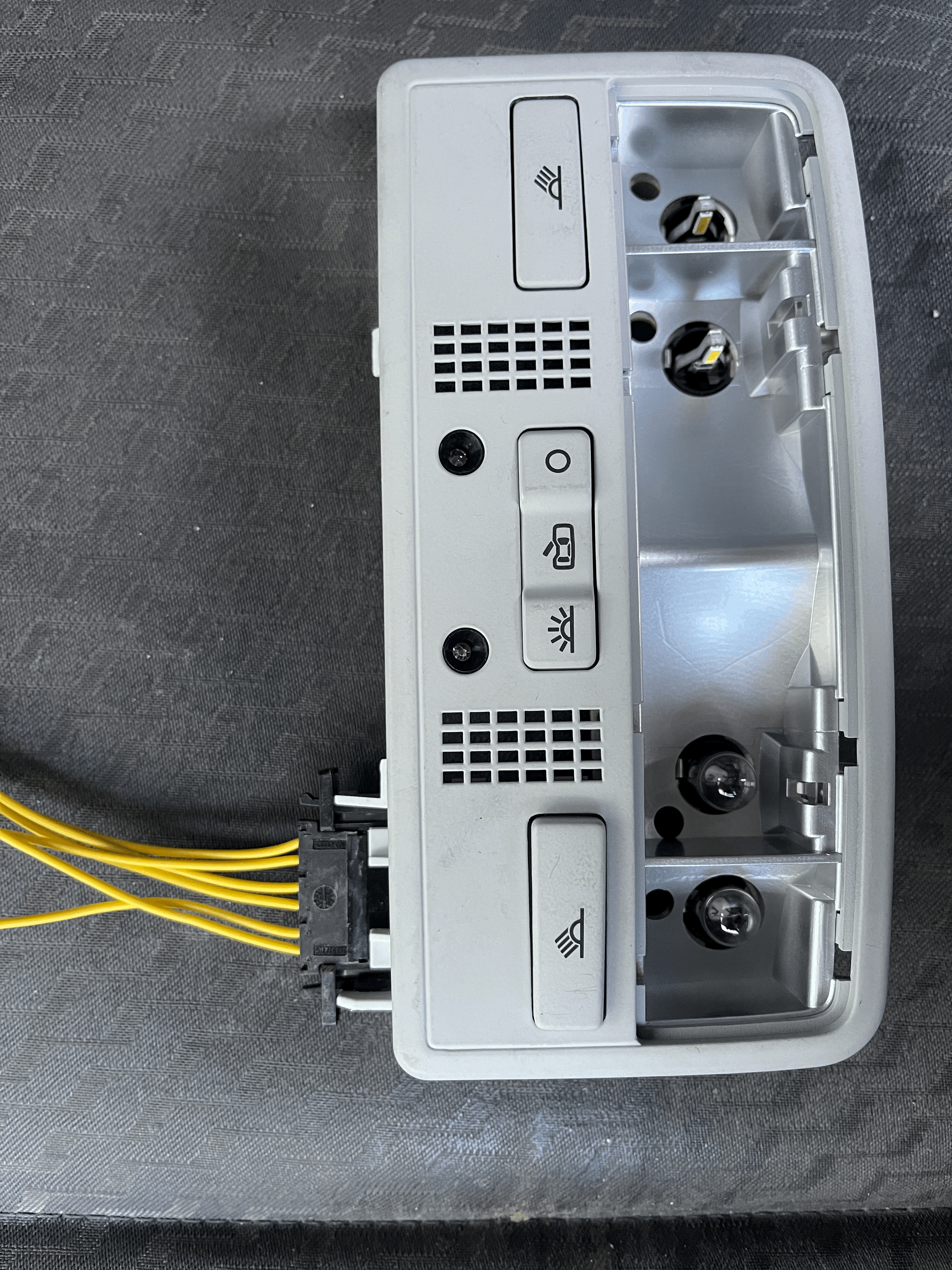

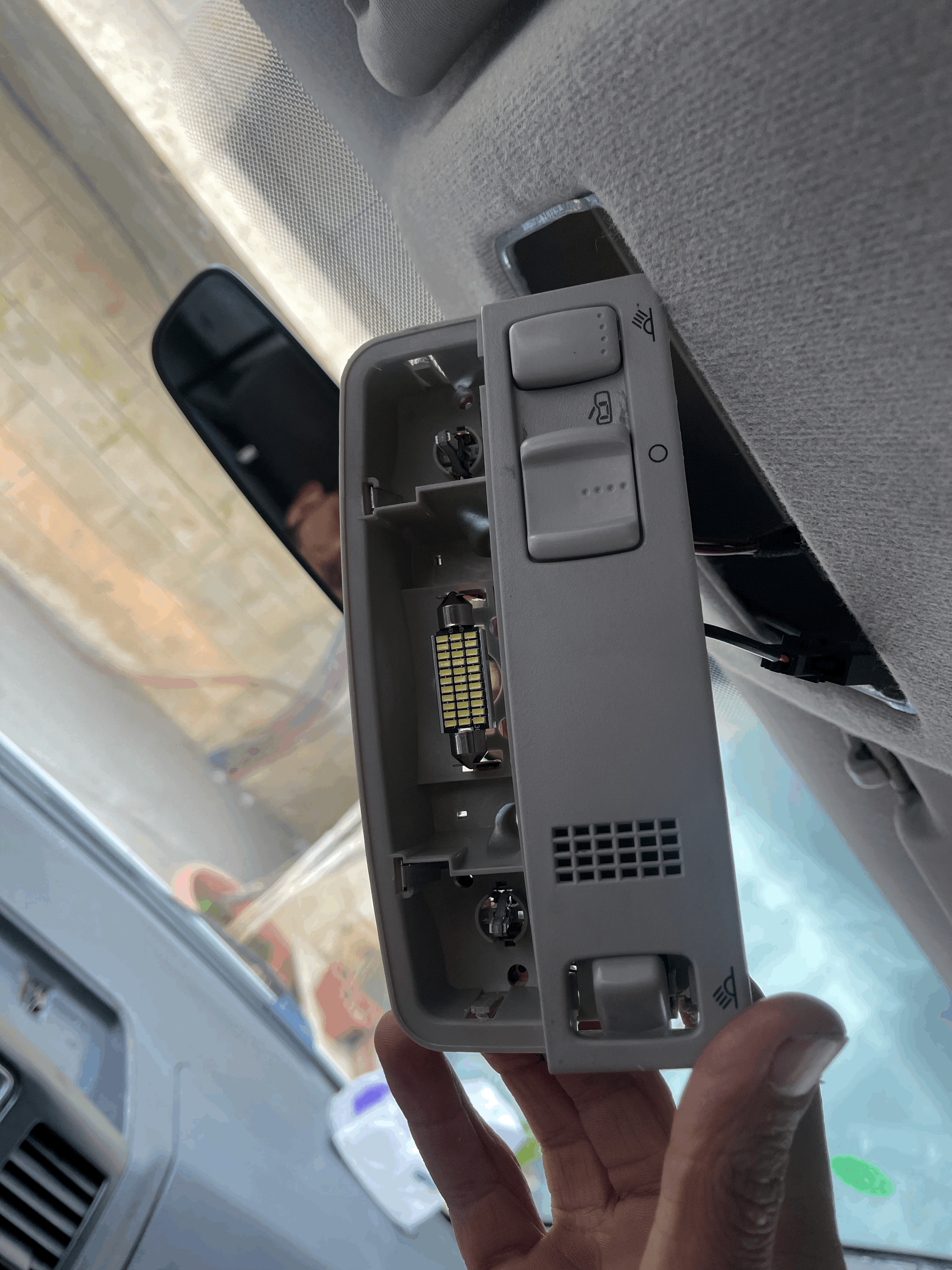

Done, Interior Illumination Is working now, High beam light still not working, but high beam icon on the cluster gos on and of with the stalk
maybe something wrong with the wiring ?!
I have retrofitted an electric rear tailgate, I will make some photos later
waiting for 2k adhesive
new scan :-
Code: Select all
Wednesday,30,December,2020,16:54:39:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.1.0
Data version: 20200331 DS317.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZDH036544 License Plate:
Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 25 37 56 5F 77
VIN: WV1ZZZ7HZDH036544 Mileage: 202880km-126063miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Not registered 0001
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
77-Telephone -- Status: Not registered 0001
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GF HW: 03L 907 309 M
Component: R4 2,0L EDC H44 3312
Revision: 26H44--- Serial number: 00000000000000
Coding: 01114012232400080000
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ECM20TDI01103L906019GF 003002
ROD: EV_ECM20TDI01103L906019FG_003.rod
VCID: 75E154D3D4C13F2E28-8020
No fault code found.
Readiness: 0 0 0 0 1
-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 7E0-907-37x-MK25AXT.clb
Part No SW: 7E0 907 379 K HW: 7E0 907 379 E
Component: ESP MK25A XT H43 0110
Revision: 00H43001
Coding: 508724AD89A70A9B24A79175696210
Shop #: WSC 02736 790 49152
VCID: 3A7B87EFB55F905605-806E
1 Fault Found:
00778 - Steering Angle Sensor (G85)
005 - No or Incorrect Basic Setting / Adaptation
Freeze Frame:
Fault Status: 01100101
Fault Priority: 2
Fault Frequency: 1
Reset counter: 12
Mileage: 202889 km
Time Indication: 0
Date: 2020.12.30
Time: 16:35:56
Freeze Frame:
Count: 16384
Count: 257
Count: 8215
Count: 766
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 10082013470288
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7679-802A
1 Fault Found:
1140738 - Steering angle sensor
B1168 54 [009] - Missing Calibration / Basic Setting
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 12
Mileage: 202889 km
Date: 2020.12.30
Time: 16:35:55
Voltage terminal 15: 12.30 V
Voltage terminal 30: 12.45 V
Terminal 15 status: On
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 BM HW: 7E5 907 047 BM
Component: Climatic-T5 H20 0505
Revision: 00001010
Coding: 0000000002
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 7BF542EBF2E5695E5E-802E
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 HW: 7E0 937 090
Component: BCM PQ25 Max4 H80 0736
Revision: B9080001 Serial number: 0771 351150194
Coding: A8A0393A0E212012002808D02E2B8CD4F08043FF60040040320000020800
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
Subsystem 1 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 2 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 AA HW: 7N0 919 475
Component: PARKHILFE 8K H06 0212
Revision: -------- Serial number: 28261631000160
Coding: 308001
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001012
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 71E960C3A0A9130EF4-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 B HW: 7E0 959 655 B
Component: VW10Airbag003 H07 0013
Revision: -------- Serial number: 003HL00DDD0.
Coding: 000000000000000000000000000000003033
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 N HW: 7E0 920 970 N
Component: KOMBI H04 0805
Serial number: 00000000000000
Coding: 160A00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H80 0736
Revision: B9080001
Coding: 042200
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 202889 km
Time Indication: 0
Date: 2020.12.30
Time: 16:35:55
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0805
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6B5-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0478
Serial number: VWZAZ2U1668085
Coding: 06450001BE00000010110001010D08001F0300D401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: 2541449324E10FAE58-8070
5 Faults Found:
15360768 - Component Protection
U1101 00 [009] - Active
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 12
Mileage: 202889 km
Date: 2020.12.30
Time: 16:35:55
Voltage terminal 30: 12.3 V
2565 - GPS Antenna
B1054 13 [009] - Open Circuit
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 12
Mileage: 202889 km
Date: 2020.12.30
Time: 16:35:56
Voltage terminal 30: 12.3 V
7194 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 12
Mileage: 202889 km
Date: 2020.12.30
Time: 16:35:58
Voltage terminal 30: 12.3 V
BAP-BAP_Function_ID: 02
0001 - Antenna 1 for Radio
B1119 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 12
Mileage: 202889 km
Date: 2020.12.30
Time: 16:35:56
Voltage terminal 30: 12.3 V
Status of antenna 1 for radio-Antenna current: 0 mA
Status of antenna 1 for radio-Connection between radio and antenna amplifier: Open circuit
Status of antenna 1 for radio-Connection between antenna amplifier and antenna: Not available
Status of antenna 1 for radio-Reception level antenna 1: 0 dB�V
1637 - Interface for External Media
U11B8 00 [009] - No Communications
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 12
Mileage: 202889 km
Date: 2020.12.30
Time: 16:35:56
Voltage terminal 30: 12.3 V
Interface for external media: status-Status: Open circuit
-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached
End-------------------------(Elapsed Time: 02:28)--------------------------
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
Nice Madwarlock toys. An excellent buy, you will get more than expected.
To be able to perform the basic setting of the G85 sensor you first have to enter the security access.
The process should look something like this:
http://wiki.ross-tech.com/wiki/index.ph ... ic_Setting
Regarding the BCM we have improved enormously.
Have you correctly connected the wires for the high beams of each headlight?
- From T73a/1 and T73b/1 to the input (A) of the fuses for the high beams.
In that case, try this new BCM coding:
A8A0393A0E212012002808D02E2B8CD4F08063FF60040040320000020800
To be able to perform the basic setting of the G85 sensor you first have to enter the security access.
The process should look something like this:
http://wiki.ross-tech.com/wiki/index.ph ... ic_Setting
Regarding the BCM we have improved enormously.
Have you correctly connected the wires for the high beams of each headlight?
- From T73a/1 and T73b/1 to the input (A) of the fuses for the high beams.
In that case, try this new BCM coding:
A8A0393A0E212012002808D02E2B8CD4F08063FF60040040320000020800
- Shadow109
- Bronze Member
- Posts: 118
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
Many thanks Fernando, Everything is working now except right high beam New scan :-
I made A little homework today :-
Code: Select all
Friday,01,January,2021,18:52:52:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.1.0
Data version: 20200331 DS317.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZDH036544 License Plate:
Mileage: 203160km-126237mi Repair Order:
Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 25 37 56 5F 77 0B
VIN: WV1ZZZ7HZDH036544 Mileage: 203160km-126237miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Not registered 0001
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
77-Telephone -- Status: Not registered 0001
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GF HW: 03L 907 309 M
Component: R4 2,0L EDC H44 3312
Revision: 26H44--- Serial number: 00000000000000
Coding: 01114012232400080000
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ECM20TDI01103L906019GF 003002
ROD: EV_ECM20TDI01103L906019FG_003.rod
VCID: 75E154D3D4C13F2E28-8020
No fault code found.
Readiness: 0 0 0 0 1
-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 7E0-907-37x-MK25AXT.clb
Part No SW: 7E0 907 379 K HW: 7E0 907 379 E
Component: ESP MK25A XT H43 0110
Revision: 00H43001
Coding: 508724AD89A70A9B24A79175696210
Shop #: WSC 02736 790 49152
VCID: 3A7B87EFB55F905605-806E
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 10082013470288
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7679-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 BM HW: 7E5 907 047 BM
Component: Climatic-T5 H20 0505
Revision: 00001010
Coding: 0000000002
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 7BF542EBF2E5695E5E-802E
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 HW: 7E0 937 090
Component: BCM PQ25 Max4 H80 0736
Revision: B9080001 Serial number: 0771 351150194
Coding: A8A0393A0E212012002808D02E2B8CD4F08063FF60040040320000020800
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
Subsystem 1 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 2 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 AA HW: 7N0 919 475
Component: PARKHILFE 8K H06 0212
Revision: -------- Serial number: 28261631000160
Coding: 308001
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001012
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 71E960C3A0A9130EF4-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 B HW: 7E0 959 655 B
Component: VW10Airbag003 H07 0013
Revision: -------- Serial number: 003HL00DDD0.
Coding: 000000000000000000000000000000003033
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 N HW: 7E0 920 970 N
Component: KOMBI H04 0805
Serial number: 00000000000000
Coding: 160A00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H80 0736
Revision: B9080001
Coding: 042200
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 203164 km
Time Indication: 0
Date: 2021.01.01
Time: 18:48:54
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0805
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6B5-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0478
Serial number: VWZAZ2U1668085
Coding: 06450001BE00000011110001010D08001F0303D401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: 2541449324E10FAE58-8070
4 Faults Found:
15360768 - Component Protection
U1101 00 [009] - Active
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 17
Mileage: 203164 km
Date: 2021.01.01
Time: 18:48:53
Voltage terminal 30: 11.8 V
1564 - Microphone 1
B129B 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 17
Mileage: 203164 km
Date: 2021.01.01
Time: 18:48:53
Voltage terminal 30: 11.8 V
7194 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 17
Mileage: 203164 km
Date: 2021.01.01
Time: 18:48:56
Voltage terminal 30: 11.8 V
BAP-BAP_Function_ID: 02
0001 - Antenna 1 for Radio
B1119 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 17
Mileage: 203164 km
Date: 2021.01.01
Time: 18:48:53
Voltage terminal 30: 11.8 V
Status of antenna 1 for radio-Antenna current: 0 mA
Status of antenna 1 for radio-Connection between radio and antenna amplifier: Open circuit
Status of antenna 1 for radio-Connection between antenna amplifier and antenna: Not available
Status of antenna 1 for radio-Reception level antenna 1: 0 dB�V
-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached
End-------------------------(Elapsed Time: 02:39)--------------------------
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
Perfect!!! we get better again, G85 sensor solved!
This last Autoscan means that you will not have any problems when installing the RLS and the HBA.
Regarding the high beam of the right headlight it is a fault in the wiring, fuse or bulb. Check them out.
Remember that this is the SB28 fuse, in which and according to the installation manual, you will have also added the wire that goes to the high beam warning lamp.
Therefore, ... T73a/1 -> (A) Fuse SB28 (B) -> right high beam wire + warning light wire.
The remaining faults in the autoscan are normal due to the installation of the 5F unit, you must code it according your equipments installed.

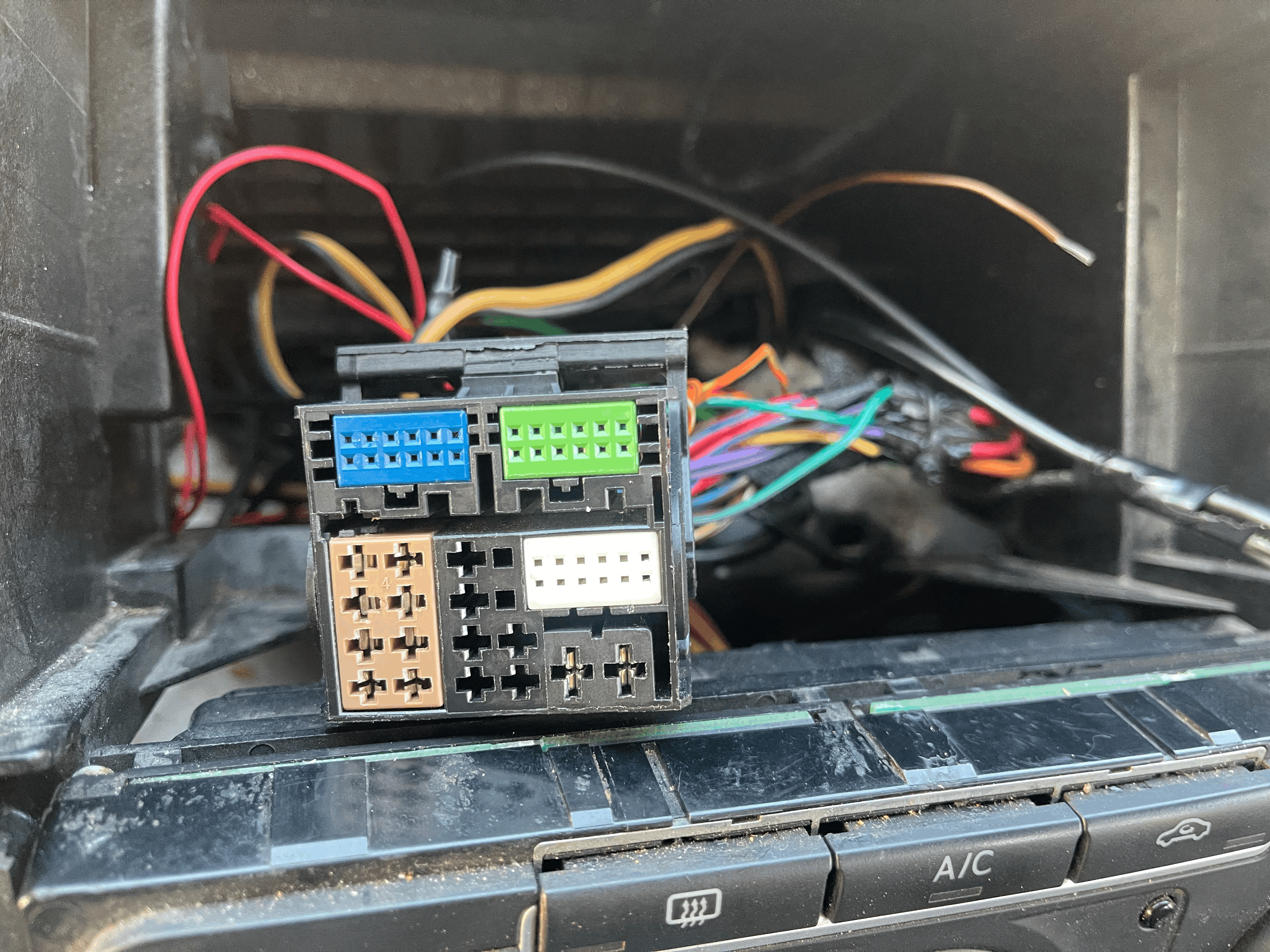

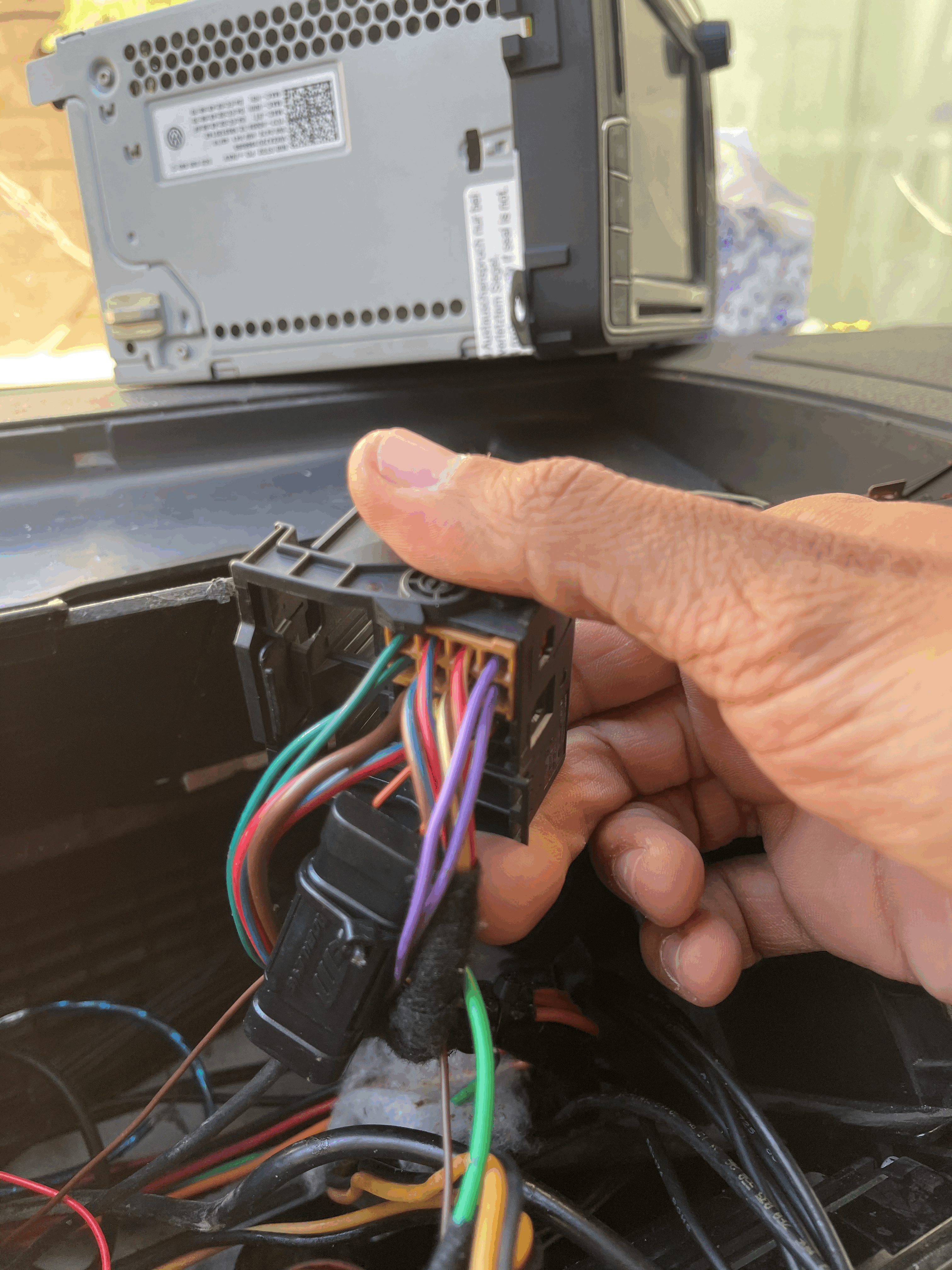

Thanks for the pictures of your progress with 5F.
This last Autoscan means that you will not have any problems when installing the RLS and the HBA.
Regarding the high beam of the right headlight it is a fault in the wiring, fuse or bulb. Check them out.
Remember that this is the SB28 fuse, in which and according to the installation manual, you will have also added the wire that goes to the high beam warning lamp.
Therefore, ... T73a/1 -> (A) Fuse SB28 (B) -> right high beam wire + warning light wire.
The remaining faults in the autoscan are normal due to the installation of the 5F unit, you must code it according your equipments installed.
Thanks for the pictures of your progress with 5F.
- Shadow109
- Bronze Member
- Posts: 118
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
hello again Ciclo, I have installed HBA & RLS today
wiring :-
Mirror T8 :-
3- T73b-54
8- T73b-57
6- middle lights (I didn't install it) (please explain to me where to install it)
1- SC32
2- GND
RLS T3 :-\
1- +30
2-GND
3- T73b-24
coding that I made :-
black 9 :-
byte 4 bit 6
byte 8 bit 0
byte 10 bit 1& 2
byte 13 bit 7
byte 14 bit 1
byte 22 bit 5
New Autoscan :-
Interior Light is not working
CH/LH not working
HBA not working
I wonder if all the issues is caused by the uninstalled wire
wiring :-
Mirror T8 :-
3- T73b-54
8- T73b-57
6- middle lights (I didn't install it) (please explain to me where to install it)
1- SC32
2- GND
RLS T3 :-\
1- +30
2-GND
3- T73b-24
coding that I made :-
black 9 :-
byte 4 bit 6
byte 8 bit 0
byte 10 bit 1& 2
byte 13 bit 7
byte 14 bit 1
byte 22 bit 5
New Autoscan :-
Code: Select all
Saturday,09,January,2021,22:22:08:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 20.4.1.0
Data version: 20200331 DS317.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZDH036544 License Plate:
Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 20 25 37 56 5F 77 0B
VIN: WV1ZZZ7HZDH036544 Mileage: 204110km-126828miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Not registered 0001
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
77-Telephone -- Status: Not registered 0001
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GF HW: 03L 907 309 M
Component: R4 2,0L EDC H44 3312
Revision: 26H44--- Serial number: 00000000000000
Coding: 01114012232400080000
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ECM20TDI01103L906019GF 003002
ROD: EV_ECM20TDI01103L906019FG_003.rod
VCID: 75E154D3D4C13F2E28-8020
No fault code found.
Readiness: 0 0 0 0 1
-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 7E0-907-37x-MK25AXT.clb
Part No SW: 7E0 907 379 K HW: 7E0 907 379 E
Component: ESP MK25A XT H43 0110
Revision: 00H43001
Coding: 508724AD89A70A9B24A79175696210
Shop #: WSC 02736 790 49152
VCID: 3A7B87EFB55F905605-806E
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 10082013470288
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7679-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 BM HW: 7E5 907 047 BM
Component: Climatic-T5 H20 0505
Revision: 00001010
Coding: 0000000002
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 7BF542EBF2E5695E5E-802E
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 HW: 7E0 937 090
Component: BCM PQ25 Max4 H80 0736
Revision: B9080001 Serial number: 0771 351150194
Coding: A8A0393A4E21201201280ED02EAB8ED4F08063FF60042040320000020800
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
Subsystem 1 - Part No: 5K7 955 559 B Labels: 5K7-955-559.CLB
Component: RLS 230916 03 37 0059
Coding: 028877
Subsystem 2 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 3 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
2 Faults Found:
03435 - Terminal 30 for Interior Light and Parking Light
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 39
Mileage: 204118 km
Time Indication: 0
Date: 2021.01.09
Time: 22:16:50
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 39
Mileage: 204118 km
Time Indication: 0
Date: 2021.01.09
Time: 22:16:50
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 AA HW: 7N0 919 475
Component: PARKHILFE 8K H06 0212
Revision: -------- Serial number: 28261631000160
Coding: 308001
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001012
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 71E960C3A0A9130EF4-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 B HW: 7E0 959 655 B
Component: VW10Airbag003 H07 0013
Revision: -------- Serial number: 003HL00DDD0.
Coding: 000000000000000000000000000000003033
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 N HW: 7E0 920 970 N
Component: KOMBI H04 0805
Serial number: 00000000000000
Coding: 160A00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H80 0736
Revision: B9080001
Coding: 042200
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 204118 km
Time Indication: 0
Date: 2021.01.09
Time: 22:16:50
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:| 8S0-857-511.clb
Part No SW: 7E0 857 511 F HW: 7E0 857 511 C
Component: FLA H10 0003
Revision: AA001001
Coding: 040400E200000100000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_HighBeamAssisAU316 001004
ROD: EV_HighBeamAssisAU316.rod
VCID: 2D51BCB37C1137EE90-8078
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0805
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6B5-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0478
Serial number: VWZAZ2U1668085
Coding: 0645000FBE00000011110001010D08001F0303D401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: 2541449324E10FAE58-8070
Data medium:
Subsystem 1 - Part No SW: 5NA 919 866 AL HW: -----------
Component: MRM1 2020/21 --- 1420
Serial number: --------------------
5 Faults Found:
15360768 - Component Protection
U1101 00 [009] - Active
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 39
Mileage: 204118 km
Date: 2021.01.09
Time: 22:16:49
Voltage terminal 30: 12.5 V
6720 - Rear View Camera
B1102 31 [009] - No Signal
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 39
Mileage: 204118 km
Date: 2021.01.09
Time: 22:20:02
Voltage terminal 30: 14.0 V
7194 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 39
Mileage: 204118 km
Date: 2021.01.09
Time: 22:16:51
Voltage terminal 30: 12.5 V
BAP-BAP_Function_ID: 02
0001 - Antenna 1 for Radio
B1119 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 39
Mileage: 204118 km
Date: 2021.01.09
Time: 22:16:49
Voltage terminal 30: 12.5 V
Status of antenna 1 for radio-Antenna current: 0 mA
Status of antenna 1 for radio-Connection between radio and antenna amplifier: Open circuit
Status of antenna 1 for radio-Connection between antenna amplifier and antenna: Not available
Status of antenna 1 for radio-Reception level antenna 1: 0 dBµV
1637 - Interface for External Media
U11B8 00 [009] - No Communications
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 39
Mileage: 204118 km
Date: 2021.01.09
Time: 22:16:50
Voltage terminal 30: 12.5 V
Interface for external media: status-Status: Open circuit
-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached
End-------------------------(Elapsed Time: 04:03)--------------------------
CH/LH not working
HBA not working
I wonder if all the issues is caused by the uninstalled wire
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
Regarding the mirror:
- The feed wire for the mirror is badly connected, the mirror needs a +15 signal (SC19) and you are using a +30 signal (SC32) ... (RLS and HBA wires OK).
- Have you connected the reverse 'signal' to the mirror? (it's just a question)
- Take a picture of the dome lights, buttons to turn on the dome lights and connector/s (T8?), ... there are different models of dome lights for T5 and it may not be possible to connect wire 6.
Regarding the BCM coding (block 09) that you have done:
1- In BCM adaptations you have to enable channel 53 - from 0 to 1 - for the HBA to work.
2- New RLS coding: 0228EE or 0228DD
3- Also enable Byte13 Bit6 to TEST that the CH/LH functions also work on the main headlights instead of the fog lights. You can then choose between the main headlights or the fog lights.
- The feed wire for the mirror is badly connected, the mirror needs a +15 signal (SC19) and you are using a +30 signal (SC32) ... (RLS and HBA wires OK).
- Have you connected the reverse 'signal' to the mirror? (it's just a question)
- Take a picture of the dome lights, buttons to turn on the dome lights and connector/s (T8?), ... there are different models of dome lights for T5 and it may not be possible to connect wire 6.
Regarding the BCM coding (block 09) that you have done:
1- In BCM adaptations you have to enable channel 53 - from 0 to 1 - for the HBA to work.
2- New RLS coding: 0228EE or 0228DD
3- Also enable Byte13 Bit6 to TEST that the CH/LH functions also work on the main headlights instead of the fog lights. You can then choose between the main headlights or the fog lights.
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
---
edit
Also check the condition of the SC17 fuse (7.5 A), it may have blown due to working in the area of the light dome.
- Shadow109
- Bronze Member
- Posts: 118
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
Done
speaking about the doom lights, I wanna replace it with this :-
No, to which pin ??
All doneciclo wrote: ↑Sun Jan 10, 2021 9:37 am Regarding the BCM coding (block 09) that you have done:
1- In BCM adaptations you have to enable channel 53 - from 0 to 1 - for the HBA to work.
2- New RLS coding: 0228EE or 0228DD
3- Also enable Byte13 Bit6 to TEST that the CH/LH functions also work on the main headlights instead of the fog lights. You can then choose between the main headlights or the fog lights.

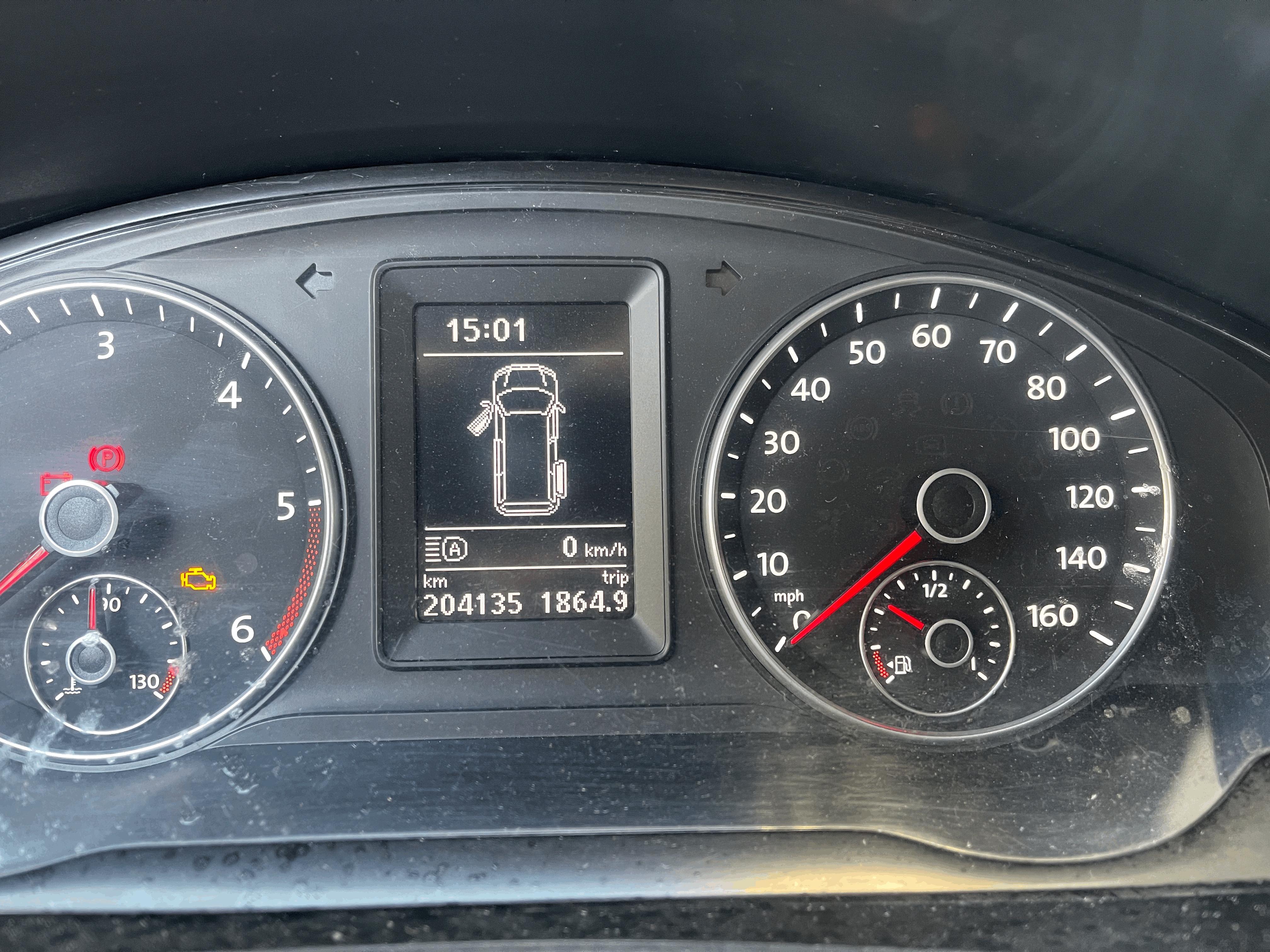

Yes indeed, I have replaced it
new Autoscan (before changing the fuse)
Code: Select all
Sunday,10,January,2021,15:07:37:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 20.4.1.0
Data version: 20200331 DS317.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZDH036544 License Plate:
Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 20 25 37 56 5F 77 0B
VIN: WV1ZZZ7HZDH036544 Mileage: 204130km-126840miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Not registered 0001
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
77-Telephone -- Status: Not registered 0001
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GF HW: 03L 907 309 M
Component: R4 2,0L EDC H44 3312
Revision: 26H44--- Serial number: 00000000000000
Coding: 01114012232400080000
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ECM20TDI01103L906019GF 003002
ROD: EV_ECM20TDI01103L906019FG_003.rod
VCID: 75E154D3D4C13F2E28-8020
No fault code found.
Readiness: 0 0 0 0 1
-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 7E0-907-37x-MK25AXT.clb
Part No SW: 7E0 907 379 K HW: 7E0 907 379 E
Component: ESP MK25A XT H43 0110
Revision: 00H43001
Coding: 508724AD89A70A9B24A79175696210
Shop #: WSC 02736 790 49152
VCID: 3A7B87EFB55F905605-806E
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 10082013470288
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7679-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 BM HW: 7E5 907 047 BM
Component: Climatic-T5 H20 0505
Revision: 00001010
Coding: 0000000002
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 7BF542EBF2E5695E5E-802E
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 HW: 7E0 937 090
Component: BCM PQ25 Max4 H80 0736
Revision: B9080001 Serial number: 0771 351150194
Coding: A8A0393A4E21201201280ED02EEB8ED4F08063FF60042040320000020800
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
Subsystem 1 - Part No: 5K7 955 559 B Labels: 5K7-955-559.CLB
Component: RLS 230916 03 37 0059
Coding: 0228EE
Subsystem 2 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 3 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
2 Faults Found:
03435 - Terminal 30 for Interior Light and Parking Light
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:02:32
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:02:32
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 AA HW: 7N0 919 475
Component: PARKHILFE 8K H06 0212
Revision: -------- Serial number: 28261631000160
Coding: 308001
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001012
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 71E960C3A0A9130EF4-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 B HW: 7E0 959 655 B
Component: VW10Airbag003 H07 0013
Revision: -------- Serial number: 003HL00DDD0.
Coding: 000000000000000000000000000000003033
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 N HW: 7E0 920 970 N
Component: KOMBI H04 0805
Serial number: 00000000000000
Coding: 160A00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H80 0736
Revision: B9080001
Coding: 042200
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:02:32
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:| 8S0-857-511.clb
Part No SW: 7E0 857 511 F HW: 7E0 857 511 C
Component: FLA H10 0003
Revision: AA001001
Coding: 040400E200000100000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_HighBeamAssisAU316 001004
ROD: EV_HighBeamAssisAU316.rod
VCID: 2D51BCB37C1137EE90-8078
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0805
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6B5-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0478
Serial number: VWZAZ2U1668085
Coding: 0645000FBE00000011110001010D08001F0303D401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: 2541449324E10FAE58-8070
Data medium:
Subsystem 1 - Part No SW: 5NA 919 866 AL HW: -----------
Component: MRM1 2020/21 --- 1420
Serial number: --------------------
4 Faults Found:
15360768 - Component Protection
U1101 00 [009] - Active
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:31
Voltage terminal 30: 11.8 V
7194 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:34
Voltage terminal 30: 11.9 V
BAP-BAP_Function_ID: 02
0001 - Antenna 1 for Radio
B1119 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:32
Voltage terminal 30: 11.9 V
Status of antenna 1 for radio-Antenna current: 0 mA
Status of antenna 1 for radio-Connection between radio and antenna amplifier: Open circuit
Status of antenna 1 for radio-Connection between antenna amplifier and antenna: Not available
Status of antenna 1 for radio-Reception level antenna 1: 0 dBµV
1637 - Interface for External Media
U11B8 00 [009] - No Communications
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:32
Voltage terminal 30: 11.9 V
Interface for external media: status-Status: Open circuit
-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached
End-------------------------(Elapsed Time: 03:58)--------------------------
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
Excellent. HBA !!! Congratulations.
Learn how to use it, it only works with the light switch in AUTO.
I was assuming there was something wrong with the SC17 fuse, the BCM detected faults should go away on your next autoscan.
It was a problem with the power of signal 58.
Your new mirror with HBA does not need the wire for the reverse signal, the non-dimming function when reversing goes through the new CAN lines.
Thank you very much for all the images of the dome lights.
To install the wire 6 on your new HBA anti-dazzle mirror, the best OEM option (great option ) is to install the Passat B5 (W8) dome lights as follows:
---
For those who want to know more about the Pin 6 of the dome lights with ambient lights (the two red LEDs) of the Passat B5 and other models where they were installed, I leave this diagram here:
I love the old VW diagrams.
Learn how to use it, it only works with the light switch in AUTO.
I was assuming there was something wrong with the SC17 fuse, the BCM detected faults should go away on your next autoscan.
It was a problem with the power of signal 58.
Your new mirror with HBA does not need the wire for the reverse signal, the non-dimming function when reversing goes through the new CAN lines.
Thank you very much for all the images of the dome lights.
To install the wire 6 on your new HBA anti-dazzle mirror, the best OEM option (great option ) is to install the Passat B5 (W8) dome lights as follows:
---
For those who want to know more about the Pin 6 of the dome lights with ambient lights (the two red LEDs) of the Passat B5 and other models where they were installed, I leave this diagram here:
I love the old VW diagrams.
- Shadow109
- Bronze Member
- Posts: 118
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
thanks a lot ciclo
I think I did something wrong with doom lights, when I connected it, the right light was on no matter what I did
After testing RLS & HBA :-
Auto lights works perfectly
CH & LH not working yet
HBA not working yet
Rain sensor not working yet
I have found a flat with RLS today
Edit: I noticed that the illumination of the mfsw buttons won't turn of after I turn the car off with auto lights on (only in the night)
I think I did something wrong with doom lights, when I connected it, the right light was on no matter what I did
After testing RLS & HBA :-
Auto lights works perfectly
CH & LH not working yet
HBA not working yet
Rain sensor not working yet
I have found a flat with RLS today
Code: Select all
Tuesday,12,January,2021,22:46:59:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 20.4.1.0
Data version: 20200331 DS317.0
www.Ross-Tech.com
Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 20 25 37 56 5F 77
VIN: WV1ZZZ7HZDH036544 Mileage: 204590km-127126miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Not registered 0001
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: Sporadic communication error 1000
56-Radio -- Status: Sporadic communication error 1000
5F-Information Electr. -- Status: Malfunction 1010
77-Telephone -- Status: Not registered 0001
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GF HW: 03L 907 309 M
Component: R4 2,0L EDC H44 3312
Revision: 26H44--- Serial number: 00000000000000
Coding: 01114012232400080000
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ECM20TDI01103L906019GF 003002
ROD: EV_ECM20TDI01103L906019FG_003.rod
VCID: 75E154D3D4C13F2E28-8020
No fault code found.
Readiness: 0 0 0 0 0
-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 7E0-907-37x-MK25AXT.clb
Part No SW: 7E0 907 379 K HW: 7E0 907 379 E
Component: ESP MK25A XT H43 0110
Revision: 00H43001
Coding: 508724AD89A70A9B24A79175696210
Shop #: WSC 02736 790 49152
VCID: 3A7B87EFB55F905605-806E
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 10082013470288
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7679-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 BM HW: 7E5 907 047 BM
Component: Climatic-T5 H20 0505
Revision: 00001010
Coding: 0000000002
Shop #: WSC 02736 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 7BF542EBF2E5695E5E-802E
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 HW: 7E0 937 090
Component: BCM PQ25 Max4 H80 0736
Revision: B9080001 Serial number: 0771 351150194
Coding: A8A0393A4E21201201280ED02EEB8ED4F08063FF60042040320000020800
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
Subsystem 1 - Part No: 5K7 955 559 B Labels: 5K7-955-559.CLB
Component: RLS 230916 03 37 0059
Coding: 0228EE
Subsystem 2 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 3 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
5 Faults Found:
03435 - Terminal 30 for Interior Light and Parking Light
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 3
Fault Frequency: 16
Reset counter: 83
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:02:32
00329 - Control Circuit for Unlocking Rear Lid
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 30
Reset counter: 84
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:08:33
01520 - Rain and Light Recognition Sensor (G397)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 19
Reset counter: 85
Mileage: 204148 km
Time Indication: 0
Date: 2021.01.10
Time: 17:07:11
01502 - Bulb for Rear Fog; Left (L46)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 45
Mileage: 204583 km
Time Indication: 0
Date: 2021.01.12
Time: 21:06:42
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 36
Reset counter: 45
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:02:32
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 AA HW: 7N0 919 475
Component: PARKHILFE 8K H06 0212
Revision: -------- Serial number: 28261631000160
Coding: 308001
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001012
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 71E960C3A0A9130EF4-8024
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 B HW: 7E0 959 655 B
Component: VW10Airbag003 H07 0013
Revision: -------- Serial number: 003HL00DDD0.
Coding: 000000000000000000000000000000003033
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 N HW: 7E0 920 970 N
Component: KOMBI H04 0805
Serial number: 00000000000000
Coding: 160A00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 356194D394417F2EE8-8060
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H80 0736
Revision: B9080001
Coding: 042200
Shop #: WSC 54707 002 104857
VCID: 68DF0DA79B73D2C6A3-803C
4 Faults Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:02:32
01304 - Radio
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 80
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:20:42
01300 - Control Module for Navigation with CD-Rom (J401)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 80
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:20:42
03158 - Control Module for Information Electronics 1 (J794)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 80
Mileage: 204135 km
Time Indication: 0
Date: 2021.01.10
Time: 15:20:41
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:| 8S0-857-511.clb
Part No SW: 7E0 857 511 F HW: 7E0 857 511 C
Component: FLA H10 0003
Revision: AA001001
Coding: 040400E200000100000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_HighBeamAssisAU316 001004
ROD: EV_HighBeamAssisAU316.rod
VCID: 2D51BCB37C1137EE90-8078
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0805
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6B5-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0478
Serial number: VWZAZ2U1668085
Coding: 0645000FBE00000011110001010D08001F0303D401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: 2541449324E10FAE58-8070
Data medium:
Subsystem 1 - Part No SW: 5NA 919 866 AL HW: -----------
Component: MRM1 2020/21 --- 1420
Serial number: --------------------
7 Faults Found:
1556 - Internal Control Module Memory Check Sum Error
B2000 87 [009] - Missing message
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:23:23
Voltage terminal 30: 11.8 V
System_Software_Error-SW_Status_Consistency: 04 01 01
System_Software_Error-SW_Status_Device: o
15360768 - Component Protection
U1101 00 [009] - Active
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:31
Voltage terminal 30: 11.8 V
2562 - Navigation System
B126C F0 [009] - Navigation Database Faulty
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:22:56
Voltage terminal 30: 11.8 V
6720 - Rear View Camera
B1102 31 [009] - No Signal
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 16:06:06
Voltage terminal 30: 13.9 V
7194 - Function Restricted due to Missing Message(s)
U1111 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:34
Voltage terminal 30: 11.9 V
BAP-BAP_Function_ID: 02
0001 - Antenna 1 for Radio
B1119 13 [009] - Open Circuit
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 40
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:32
Voltage terminal 30: 11.9 V
Status of antenna 1 for radio-Antenna current: 0 mA
Status of antenna 1 for radio-Connection between radio and antenna amplifier: Open circuit
Status of antenna 1 for radio-Connection between antenna amplifier and antenna: Not available
Status of antenna 1 for radio-Reception level antenna 1: 0 dBµV
1637 - Interface for External Media
U11B8 00 [008] - No Communications
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 81
Mileage: 204135 km
Date: 2021.01.10
Time: 15:02:32
Voltage terminal 30: 11.9 V
Interface for external media: status-Status: Open circuit
-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached
End-------------------------(Elapsed Time: 03:59)--------------------------
- ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: BCM Max Transporter 2013
Enable Byte3 Bit7 in your BCM coding, although I don't think it will have any effect on the detected faults...
- HBA should work, if it had a malfunction it would be indicated in the MFD+.
Codify Address 20 to: 010100E200000100000000 (for halogen headlights) although I don't think it will have any noticeable effect on the operation of the HBA.
- There is also something wrong with the RLS wiring, some wire is probably not securely connected. (AUTO yes, but not CH/LH... hmm)
Check the electrical installation, pins on connectors, etc ... +30, LIN, ground ...
This is interfering with the operation of the CH/LH and the automatic operation of the windshield wiper.
- There is clearly something wrong with the wiring you have installed for the dome lights (W8). This electrical installation is producing a short circuit at some point in the installation.
If you have installed LED bulbs be careful not to short-circuit the electrical system when installing them. Check the SC17 fuse again. (install a 10A fuse)
I have double checked all the BCM coding and it is correct.
This process is getting stuck in its final phase, my conclusion is that there are some wires that is not properly installed.
---
You are forced to also check the electrical installation you made for your new navigation system (due to the interior lights).
edit
MFSW feed = +15 ...
- HBA should work, if it had a malfunction it would be indicated in the MFD+.
Codify Address 20 to: 010100E200000100000000 (for halogen headlights) although I don't think it will have any noticeable effect on the operation of the HBA.
- There is also something wrong with the RLS wiring, some wire is probably not securely connected. (AUTO yes, but not CH/LH... hmm)
Check the electrical installation, pins on connectors, etc ... +30, LIN, ground ...
This is interfering with the operation of the CH/LH and the automatic operation of the windshield wiper.
- There is clearly something wrong with the wiring you have installed for the dome lights (W8). This electrical installation is producing a short circuit at some point in the installation.
If you have installed LED bulbs be careful not to short-circuit the electrical system when installing them. Check the SC17 fuse again. (install a 10A fuse)
I have double checked all the BCM coding and it is correct.
This process is getting stuck in its final phase, my conclusion is that there are some wires that is not properly installed.
---
You are forced to also check the electrical installation you made for your new navigation system (due to the interior lights).
edit
MFSW feed = +15 ...
