Amarok Oem Bixenon retrofit

[iichel]

You could try to set byte 12 bit 0 to off. This will turn off the tail lights and license plate lights. But it might effect your DRL.

[ciclo]

Thanks for your attention, and below the LOG if necessary.
I would love to understand the logic of BCM coding, is there a manual where I can learn it?

The LOG/SCAN was previously necessary (I'm not a fortune teller)... to know what electrical configuration a 2018's Amarok sold in 'Brazil' has from the factory.

With experience you can perfectly understand the operation of all the possible electrical configurations of the entire PQ25 VW platform that was sold all over the world. There is no manual for this, many years of work.

I leave you in the hands of the apprentices. Good luck.

---
Another thread in which I no longer participate.

[peter222]

Good day . I would like to ask for help. I want to install xenon on Amarok 2.0 bi turbo 4.2012. light switch 1K0 941 431 BD, I have lights 2H1 941 015 T, 2H1 941 016 T, BCM old 6R7 937 087 M, new 7H0937090B BCMPQ25, VIN: WV1ZZZ2HZCA056596. THANKS FOR HELP

[peter222]

Středa,06,Září,2023,19:38:05:00009
VCDS -- Windows VAG/VAS Emulator Běží na Windows 7 x64
VCDS verze: SVO 20.4.2.1
Verze dat: 20200331 DS317.0
www.vag-com.cz


VIN: WV1ZZZ2HZCA056596 Výrobní štítek:
Kilometry: 145500km Číslo zakázky::



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Model: 2H-VN81 (6N0)
Sken: 01 03 08 09 15 17 19 22 25 32 56 69

VIN: WV1ZZZ2HZCA056596 Kilometry: 145500km

01-Motor -- stav: OK 0000
03-ABS brzdy -- stav: OK 0000
04-Snímač úhlu řízení -- stav: OK 0000
08-Klima/topení -- stav: Nefunkční 0010
09-Centrální elektrika -- stav: OK 0000
15-Airbagy -- stav: OK 0000
17-Přístrojová deska -- stav: OK 0000
19-CAN Gateway -- stav: OK 0000
22-Pohon všech kol -- stav: OK 0000
25-Imobilizér -- stav: OK 0000
32-Uzávěr diferenciálu -- stav: OK 0000
56-Rádio -- stav: OK 0000
69-Funkce přívěsu -- stav: OK 0000

-------------------------------------------------------------------------------
Adresa 01: Motor (J623-CDCA) Labely:. SVO\03L-906-022-CAA.clb
Řídící jednotka SW: 03L 906 019 FA HW: 03L 907 309 K
Díl: R4 2,0L EDC H43 9745
Revize: 26H43--- Seriové číslo: 00000000000000
Kódování: 01194012232600080000
Dílna #: WSC 01286 386 08256
ASAM Dataset: EV_ECM20BTD01103L906019FA 002005
ROD: EV_ECM20BTD01103L906019FA_002.rod
VCID: 6FED66BBB69D05FEFB-803A

Nenalezena žádná chyba.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Adresa 03: ABS brzdy (-----) Labely: User\2H0-907-379.clb
Řídící jednotka SW: 2H0 907 379 J HW: 2H0 907 379 D
Díl: ESP MK25A XT H44 0109
Revize: 00H44001
Kódování: C07324B69199039B24A789AC6F5690
Dílna #: WSC 07456 790 49164
VCID: 377D9EDB864D8D3EE3-8062

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 08: Klima/topení (J255) Labely:| SVO\7E5-907-040.clb
Řídící jednotka SW: 2H0 907 040 D HW: 2H0 907 040 D
Díl: ClimatronicT5 H11 0304
Revize: 00001003
Kódování: 0000000002
Dílna #: WSC 07456 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis.rod
VCID: 224B5F8F35CFF89624-8076

1 nalezena chyba:
9481988 - Snímac kvality vzduchu
B10AF 04 [008] - Vnitrni chyba systemu
Sporadická - Potvrzeno - Testováno od smazání paměti
info o závadě:
Stav závad: 00000001
Priorita závad: 3
Frekvence závad: 18
Počítadlo resetů: 25
Kilometry: 145287 km
Datum: 2023.09.06
Čas: 17:28:24


-------------------------------------------------------------------------------
Adresa 09: Centrální elektrika (J519) Labely:. SVO\6R0-937-08x-09.clb
Řídící jednotka SW: 6R7 937 087 K HW: 6R7 937 087 K
Díl: PQ25 BCM H27 0532
Revize: -1------ Seriové číslo: 1009009900
Kódování: 3C0002380C010000003008102C4B84D40080410E60000000300000000000
Dílna #: WSC 51297 005 1048576
VCID: 4C97D137EFCB1EE6BE-8018

Subsystém 1 - Řídící jednotka SW: 6R0 959 801 M HW: 6R0 959 801 M Labely: SVO\6R0-959-801.CLB
Díl: J386__TSG_FT 002 3321
Seriové číslo: --------------------
Kódování: 100000

Subsystém 2 - Řídící jednotka SW: 6R0 959 802 P HW: 6R0 959 802 P Labely: SVO\6R0-959-802.CLB
Díl: J387__TSG_BT 002 3321
Seriové číslo: --------------------
Kódování: 100000

Subsystém 3 - Řídící jednotka SW: 6R0 959 811 D HW: 6R0 959 811 D
Díl: J388__TSG_HL 002 3321
Seriové číslo: --------------------
Kódování: 100000

Subsystém 4 - Řídící jednotka SW: 6R0 959 812 D HW: 6R0 959 812 D
Díl: J389__TSG_HR 002 3321
Seriové číslo: --------------------
Kódování: 100000

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 15: Airbagy (J234) Labely:| SVO\5K0-959-655.clb
Řídící jednotka SW: 2H0 959 655 B HW: 2H0 959 655 B
Díl: VW10Airbag00B H06 0013
Revize: -------- Seriové číslo: 003HN006UJP.
Kódování: 000000000000000000000000000000003042
Dílna #: WSC 07446 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3365AACB9A35611EDF-8066

Snímač nárazu bočního airbagu: strana řidiče:
Seriové číslo: 3495RRB40610TGJKB0T6

Snímač nárazu bočního airbagu: strana spolujezdce:
Seriové číslo: 3505RRB40610TGJKCGH3

Snímač nárazu čelního airbagu: strana řidiče:
Seriové číslo: 3555YRB40650P4N040VK

Snímač nárazu čelního airbagu: strana spolujezdce:
Seriové číslo: 3565YRB405R0UT987H4G

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 17: Přístrojová deska (J285) Labely:| SVO\5K0-920-xxx-17.clb-SRI1
Řídící jednotka SW: 2H0 920 863 B HW: 2H0 920 863 B
Díl: KOMBI H02 0505
Seriové číslo: 00000000000000
Kódování: 150800
Dílna #: WSC 07456 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_004_VW41.rod
VCID: 285F4DA753F312C67A-807C

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 19: CAN Gateway (J533) Labely:. SVO\6N0-909-901-6R.clb
Řídící jednotka SW: 6N0 909 901 HW: 6R7 937 087 K
Díl: GW-K-CAN TP20 H27 0532
Revize: -1------
Kódování: 742200
Dílna #: WSC 07462 790 50316
VCID: 70EF65C7A3A31A06E2-8024

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 22: Pohon všech kol Labely: nevybrány
Řídící jednotka SW: 2H0 927 755 B HW: 2H0 927 755 B
Díl: SG offroad VTG 0153
Revize: 00H06000 Seriové číslo: T1IYC36211RNKZ
Kódování: 0000013
Dílna #: WSC 131071 1023 2097151
VCID: 2F6DA6BBBE1D45FEBB-807A

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 25: Imobilizér (J334) Labely:| SVO\5K0-920-xxx-25.clb
Řídící jednotka SW: 5K0 953 234 HW: 5K0 953 234
Díl: IMMO H02 0505
Seriové číslo:
Kódování: 000000
Dílna #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADB77AF8D7FE0D6AC-803E

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 32: Uzávěr diferenciálu (J647) Labely:* SVO\2H0-927-771.clb
Řídící jednotka SW: 2H0 927 771 A HW: 2H0 927 771
Díl: Quersperre H04 0017
Revize: 11001001 Seriové číslo: 4DG 21.07.11 00
Kódování: 000001
Dílna #: WSC 00000 000 00000
ASAM Dataset: EV_QuersUDSAAMVN817 A01606
ROD: EV_QuersUDSAAMVN817.rod
VCID: 2C57B1B7470B3EE69E-8078

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 56: Rádio (J503) Labely:. SVO\5M0-035-1xx-56.clb
Řídící jednotka SW: 1K0 035 186 AN HW: 1K0 035 186 AN
Díl: RCD310 EU H03 5004
Revize: -----04S Seriové číslo: VWZ4Z2M1135004
Kódování: 00000400020016
Dílna #: WSC 07456 790 50316
VCID: 72EB6FCFADAF281614-8026

Nenalezena žádná chyba.

-------------------------------------------------------------------------------
Adresa 69: Funkce přívěsu (J345) Labely:. SVO\1K0-907-383-V2.clb
Řídící jednotka SW: 1K0 907 383 F HW: 1K0 907 383 F
Díl: Anhaenger H09 0100
Revize: 3A001001 Seriové číslo: 00008030114049
Kódování: 0100000100000000
Dílna #: WSC 00000 000 00000
VCID: 306FA5C763235A06A2-8064

Nenalezena žádná chyba.

Konec------------------------(Uplynulý čas: 02:07)-------------------------

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Adresa 08: chyby smazány

[peter222]





[ciclo]

@peter222, thanks for the effort of posting the information about your Amarok. It will be useful.
I can only help you if you already have made the electrical installation for the BCM adaptation.

Currently I cannot help with the correct installation of the wiring looms, you will have to study the VW diagrams and know how to manufacture and install them correctly.
I think it is very easy for those who know how to read the diagrams.
https://drive.google.com/drive/folders/ ... drive_link

Read this post exclusively, then study the diagrams. viewtopic.php?p=530329#p530329

Note: if you do not know how to interpret the original diagrams to manufacture your wiring looms for BCM Max adaptation, I recommend that you give up this installation.

[peter222]

Good day. Thank you. I wanted to know if it would be possible to implement it with the components I wrote. I would also like automatic lighting, which switch should I use? well thank you . I am already working on the electrical installation.

[ciclo]

Good day.
Yes, it is possible with the components you wrote, otherwise I would have already mentioned it to you.

For automatic lights you need to install the RLS (rain/light sensor) along with a new interior mirror (automatic dimming mirror). In this case, you need to approach the 7H0 BCM MAX adaptation in another way, 'similar' to this (example viewtopic.php?p=528735#p528735 viewtopic.php?p=528864#p528864) but based on your Amarok, therefore, in addition to the BCM adaptation, you also need to make the wiring for automatic lights based on the T10 connector of the new AUTO light switch (3C8 941 431A XSH or 5ND 941 431B XSH).

The T.5 bi-xenon headlights have 14-pin connectors and the Amarok bi-xenon has 10-pin connectors, this doesn't matter, it's just the manufacturing design of the headlights.

---

Use the forum search engine, with 'Amarok', most topics are related, but you should always keep in mind that there are even manufacturing differences between the same PQ25 models, that is why you should base your study on the original equipment of your Amarok.
In your case, for 7H0 BCM Max, you must use the diagrams until 2015, ... for the 7E0 BCM Max (from 2015) the BCM 'Max' adaptation would be somewhat different and recommended, although they can also be adapted as 7H0 BCM Max.

Useful link: http://wiki.ross-tech.com/wiki/index.ph ... eplacement

[peter222]

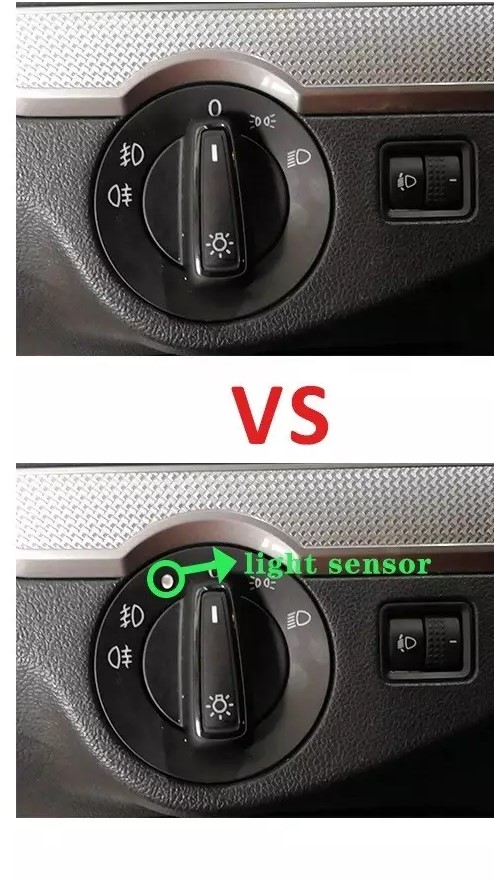

well thank you . I will then try to use this switch


[ciclo]

If you use that light switch with that aftermarket light sensor, you will have diagnostic failures or malfunctions with the lights.
In this case, first install the BCM Max and the bi-xenon headlights so that everything works correctly (a fault-free scan).

Then and only then, you can install that light switch to verify its operation.
From what we have learned on the forum, those light switches are designed to work with non-Max BCMs, they could hardly work correctly with BCM Max.

[peter222]

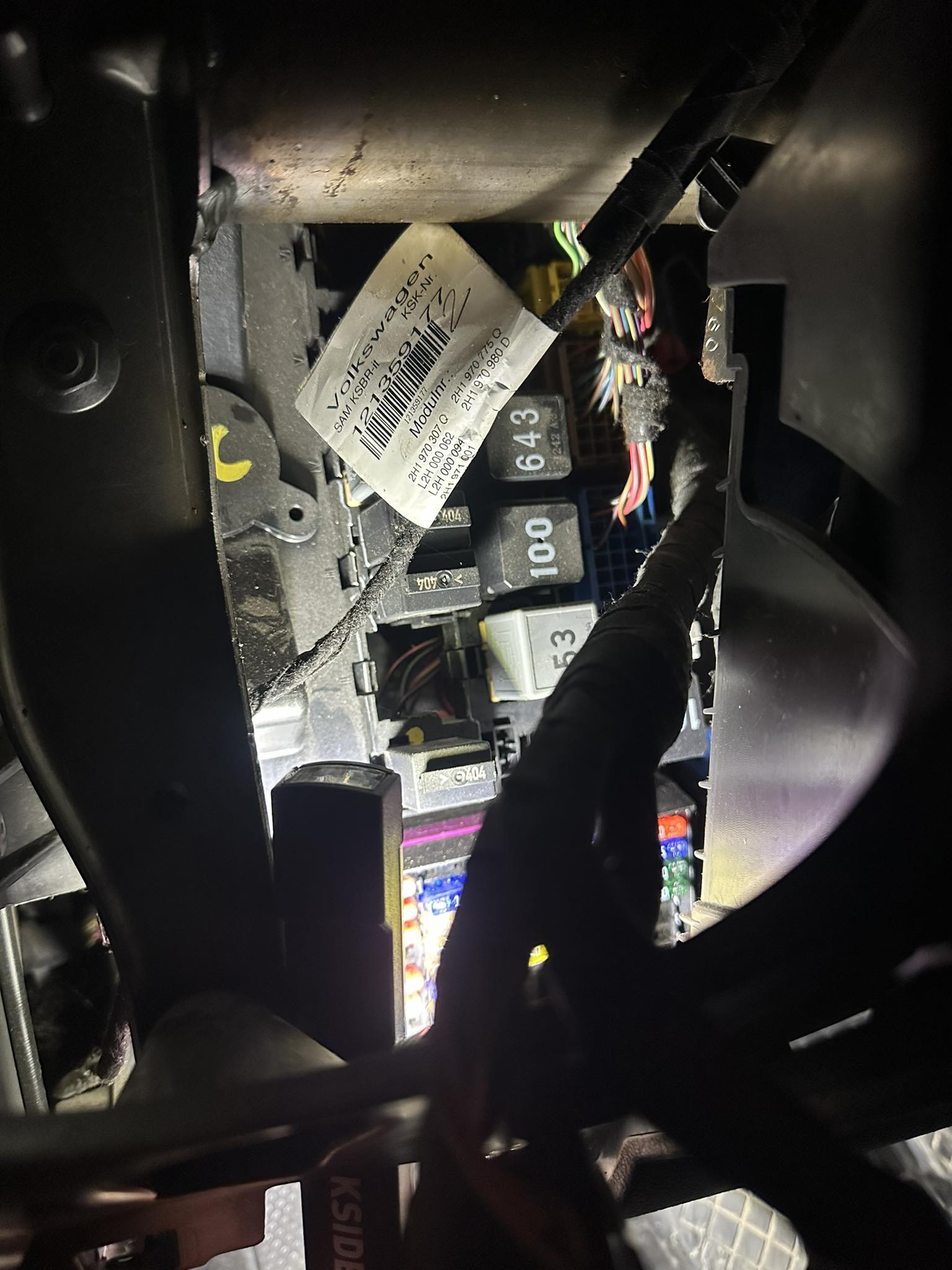

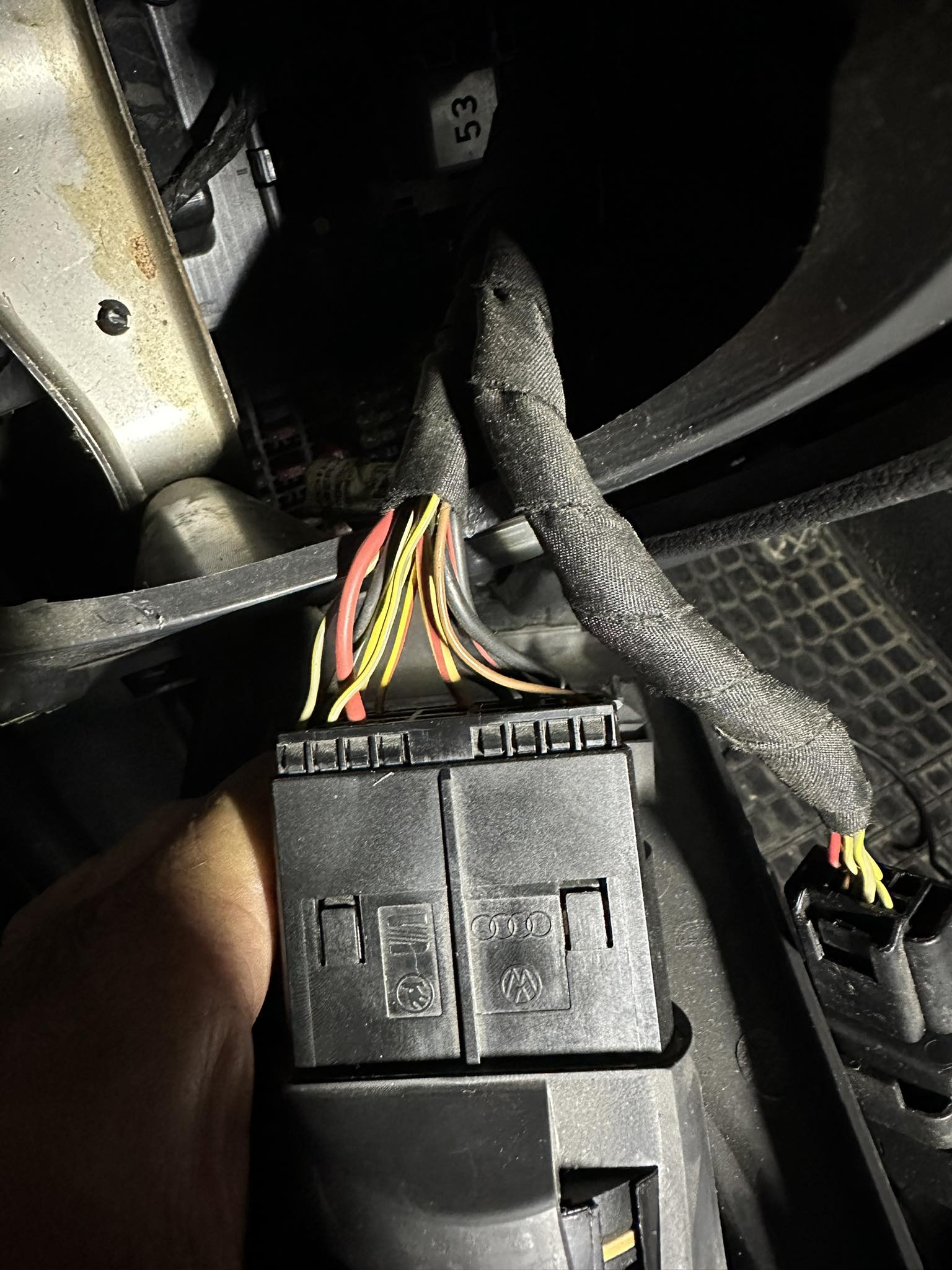

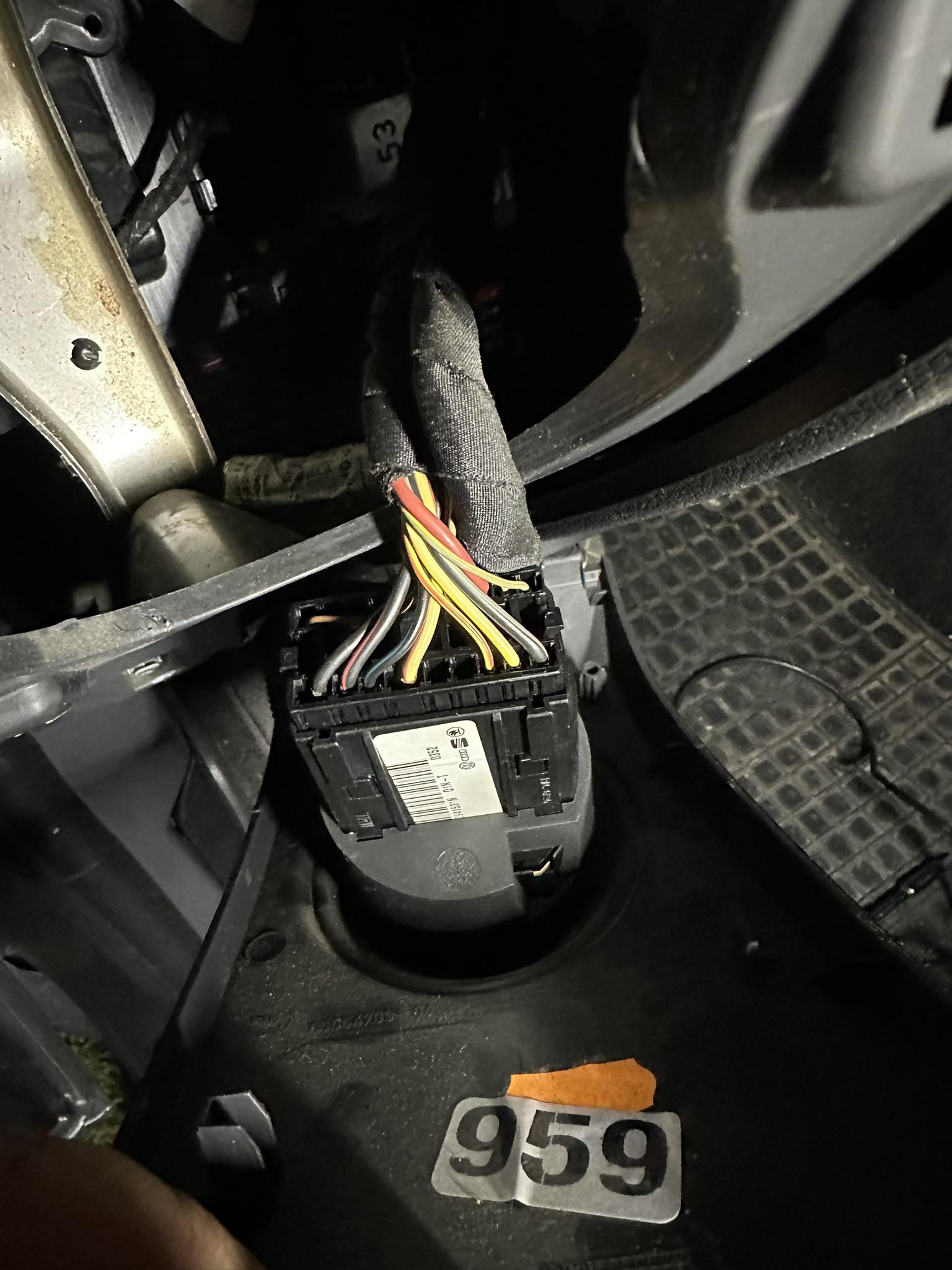

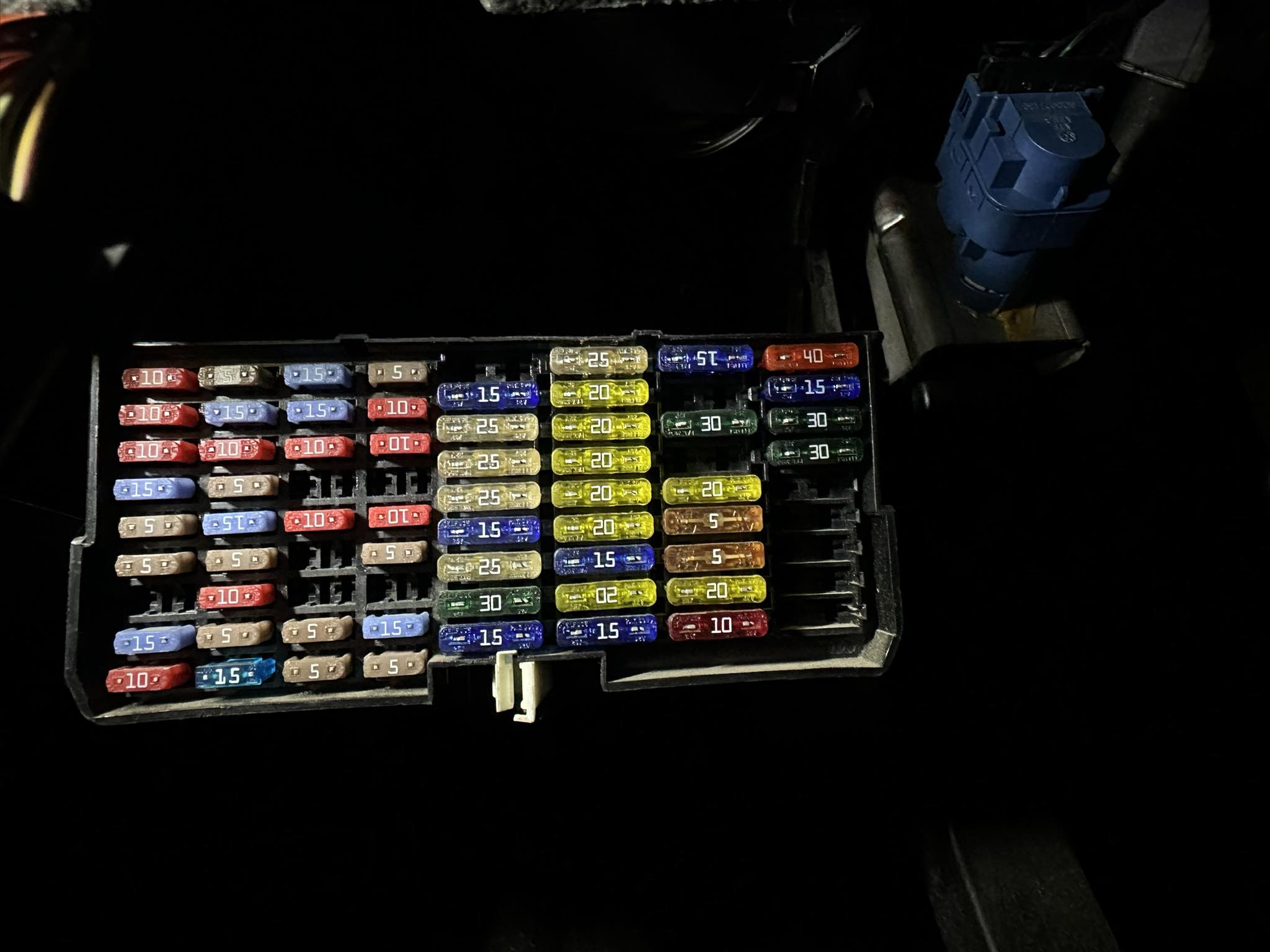

good day. connection according to the forum. dipped beam lights do not work. I do not get 12 V on fuse 55 and 29. only direction lights work, daytime led lights, parking lights, please code them. thank you

Chassis Type: 2H-VN81 (6N0)
Scan: 01 03 04 08 09 15 17 19 22 25 32 56 61 69

VIN: WV1ZZZ2HZCA056596 Mileage: 145500km-90409miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
32-Differential Locks -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CDCA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 FA HW: 03L 907 309 K
Component: R4 2,0L EDC H43 9745
Revision: 26H43--- Serial number: 00000000000000 CVN: C615361C
Coding: 01194012232600080000
Shop #: WSC 01286 386 08256
ASAM Dataset: EV_ECM20BTD01103L906019FA 002005
ROD: EV_ECM20BTD01103L906019FA_002.rod
VCID: 6FED66BBB69D05F1A8-803A
VINID: 9E606AAAA098A9344014614918770CDBE1

2 Faults Found:
4481 - Cruise Control Switch (E45)
P0568 00 [039] - Implausible Signal
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 145509 km
Date: 2023.09.18
Time: 03:53:18

Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 76 °C
Intake air temperature: 34 °C
Ambient air pressure: 940 mbar
Voltage terminal 30: 12.400 V
Unlearning counter according OBD: 40
Cruise Control System (CCS): switch position-Bits 0-7: 11000000
Cruise Control System (CCS): status-Bits 0-7: 11001000
Cruise control switch-off: irreversible-Bits 0-7: 11111111
Cruise control switch-off: reversible-Bits 0-7: 11111111
Cruise Control System: specified speed: 0.00 km/h
Engine control module reset status-Bits 0-7: 00000000
Engine control module reset status-Bits 0-7: 00000010
Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 00000000

4482 - Function Restriction due to Implausible Message(s)
U1112 00 [039] - -
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 145509 km
Date: 2023.09.18
Time: 03:53:18

Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 76 °C
Intake air temperature: 34 °C
Ambient air pressure: 940 mbar
Voltage terminal 30: 12.400 V
Unlearning counter according OBD: 40
Cruise Control System (CCS): switch position-Bits 0-7: 11000000
Cruise Control System (CCS): status-Bits 0-7: 11001000
Cruise control switch-off: irreversible-Bits 0-7: 11111111
Cruise control switch-off: reversible-Bits 0-7: 11111111
Cruise Control System: specified speed: 0.00 km/h
Engine control module reset status-Bits 0-7: 00000000
Engine control module reset status-Bits 0-7: 00000010
Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 00000000

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 2H0-907-37x-ESP.clb
Part No SW: 2H0 907 379 J HW: 2H0 907 379 D
Component: ESP MK25A XT H44 0109
Revision: 00H44001
Coding: C07324B69199039B24A789AC6F5690
Shop #: WSC 07456 790 49164
VCID: 377D9EDB864D8D31B0-8062

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 7E5-907-040.clb
Part No SW: 2H0 907 040 D HW: 2H0 907 040 D
Component: ClimatronicT5 H11 0304
Revision: 00001003
Coding: 0000000002
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis.rod
VCID: 224B5F8F35CFF89977-8076

1 Fault Found:
9481988 - Air Quality Sensor
B10AF 04 [008] - Internal System Fault
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Date: 2023.09.18
Time: 03:39:42


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 090 B HW: 7H0 937 090
Component: BCM PQ25 Max4 H74 0712
Revision: B9074001 Serial number: 0571 150133718
Coding: 740000380C21000000300E016C4B84D01000662E60023041300000020000
Shop #: WSC 00001 001 00001
VCID: 2D51BCB3741137E1DA-8078

Subsystem 1 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 2 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 3 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 4 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3321
Serial number: --------------------
Coding: 100000

5 Faults Found:
03429 - Activation of Right Adaptive Light
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:17

02830 - CAN-Extended Separator for Driver Assistance Systems
006 - Short to Plus
Freeze Frame:
Fault Status: 01100110
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:53:52

02745 - Bulb for Daytime Running Light; Left
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 4
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:51

02746 - Bulb for Daytime Running Light; Right
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 4
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:51

01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:46


-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 2H0 959 655 B HW: 2H0 959 655 B
Component: VW10Airbag00B H06 0013
Revision: -------- Serial number: 003HN006UJP.
Coding: 000000000000000000000000000000003042
Shop #: WSC 07446 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3365AACB9A3561118C-8066

Crash sensor for side airbag: driver side:
Serial number: 3495RRB40610TGJKB0T6

Front Passenger's Side Airbag Crash Sensor:
Serial number: 3505RRB40610TGJKCGH3

Crash sensor for front airbag: driver side:
Serial number: 3555YRB40650P4N040VK

Crash sensor for front airbag: front passenger side:
Serial number: 3565YRB405R0UT987H4G

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 2H0 920 863 B HW: 2H0 920 863 B
Component: KOMBI H02 0505
Serial number: 00000000000000
Coding: 150800
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
VCID: 285F4DA753F312C929-807C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 090
Component: GW-K-CAN TP20 H74 0712
Revision: B9074001
Coding: 702300
Shop #: WSC 00001 001 00001
VCID: 70EF65C7A3A31A09B1-8024

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD Labels: None
Part No SW: 2H0 927 755 B HW: 2H0 927 755 B
Component: SG offroad VTG 0153
Revision: 00H06000 Serial number: T1IYC36211RNKZ
Coding: 0000013
Shop #: WSC 131071 1023 2097151
VCID: 2F6DA6BBBE1D45F1E8-807A

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H02 0505
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADB77AF8D7FE0D9FF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 32: Differential Locks (J647) Labels:* 2H0-927-771.clb
Part No SW: 2H0 927 771 A HW: 2H0 927 771
Component: Quersperre H04 0017
Revision: 11001001 Serial number: 4DG 21.07.11 00
Coding: 000001
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_QuersUDSAAMVN817 A01606
ROD: EV_QuersUDSAAMVN817.rod
VCID: 2C57B1B7470B3EE9CD-8078

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 1K0 035 186 AN HW: 1K0 035 186 AN
Component: RCD310 EU H03 5004
Revision: -----04S Serial number: VWZ4Z2M1135004
Coding: 00000400020016
Shop #: WSC 07456 790 50316
VCID: 72EB6FCFADAF281947-8026

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7H0 907 534 HW: 7H0 937 090
Component: Batt.regelung H74 0712
Serial number: 0571 150133718
Coding: 00030A5A
Shop #: WSC 73430 790 00114
VCID: 6BD572AB8A85F9D184-803E

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 F HW: 1K0 907 383 F
Component: Anhaenger H09 0100
Revision: 3A001001 Serial number: 00008030114049
Coding: 0100000100000000
Shop #: WSC 00000 000 00000
VCID: 306FA5C763235A09F1-8064

[ciclo]

Good day, first you need to copy and paste your original coding from original 087 BCM (09) and GW (19). viewtopic.php?p=599903#p599903

PQ25 BCM replacement: http://wiki.ross-tech.com/wiki/index.ph ... eplacement

... this way we will know exactly what the real faults are after the new electrical installation for BCM Max.

Please post a new Autoscan with the BCM Max and the original coding so we can code it in the best way possible.

[peter222]

VIN: WV1ZZZ2HZCA056596 License Plate: TERAS
Mileage: 145500km-90409mi Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 2H-VN81 (6N0)
Scan: 01 03 04 08 09 15 17 19 22 25 32 56 61 69

VIN: WV1ZZZ2HZCA056596 Mileage: 145500km-90409miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
32-Differential Locks -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: Malfunction 0010

-------------------------------------------------------------------------------
Address 01: Engine (J623-CDCA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 FA HW: 03L 907 309 K
Component: R4 2,0L EDC H43 9745
Revision: 26H43--- Serial number: 00000000000000 CVN: C615361C
Coding: 01194012232600080000
Shop #: WSC 01286 386 08256
ASAM Dataset: EV_ECM20BTD01103L906019FA 002005
ROD: EV_ECM20BTD01103L906019FA_002.rod
VCID: 6FED66BBB69D05F1A8-803A
VINID: 9E606AAAA098A9344014614918770CDBE1

2 Faults Found:
4481 - Cruise Control Switch (E45)
P0568 00 [039] - Implausible Signal
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 145509 km
Date: 2023.09.18
Time: 03:53:18

Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 76 °C
Intake air temperature: 34 °C
Ambient air pressure: 940 mbar
Voltage terminal 30: 12.400 V
Unlearning counter according OBD: 40
Cruise Control System (CCS): switch position-Bits 0-7: 11000000
Cruise Control System (CCS): status-Bits 0-7: 11001000
Cruise control switch-off: irreversible-Bits 0-7: 11111111
Cruise control switch-off: reversible-Bits 0-7: 11111111
Cruise Control System: specified speed: 0.00 km/h
Engine control module reset status-Bits 0-7: 00000000
Engine control module reset status-Bits 0-7: 00000010
Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 00000000

4482 - Function Restriction due to Implausible Message(s)
U1112 00 [039] - -
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 5
Mileage: 145509 km
Date: 2023.09.18
Time: 03:53:18

Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 76 °C
Intake air temperature: 34 °C
Ambient air pressure: 940 mbar
Voltage terminal 30: 12.400 V
Unlearning counter according OBD: 40
Cruise Control System (CCS): switch position-Bits 0-7: 11000000
Cruise Control System (CCS): status-Bits 0-7: 11001000
Cruise control switch-off: irreversible-Bits 0-7: 11111111
Cruise control switch-off: reversible-Bits 0-7: 11111111
Cruise Control System: specified speed: 0.00 km/h
Engine control module reset status-Bits 0-7: 00000000
Engine control module reset status-Bits 0-7: 00000010
Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 00000000

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 2H0-907-37x-ESP.clb
Part No SW: 2H0 907 379 J HW: 2H0 907 379 D
Component: ESP MK25A XT H44 0109
Revision: 00H44001
Coding: C07324B69199039B24A789AC6F5690
Shop #: WSC 07456 790 49164
VCID: 377D9EDB864D8D31B0-8062

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 7E5-907-040.clb
Part No SW: 2H0 907 040 D HW: 2H0 907 040 D
Component: ClimatronicT5 H11 0304
Revision: 00001003
Coding: 0000000002
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis.rod
VCID: 224B5F8F35CFF89977-8076

2 Faults Found:
13701936 - Function Restriction due to Faults in Other Modules
U1113 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Date: 2023.09.18
Time: 06:22:38

9481988 - Air Quality Sensor
B10AF 04 [009] - Internal System Fault
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 9
Reset counter: 7
Mileage: 145509 km
Date: 2023.09.18
Time: 03:39:42


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 090 B HW: 7H0 937 090
Component: BCM PQ25 Max4 H74 0712
Revision: B9074001 Serial number: 0571 150133718
Coding: 3C0002380C010000003008102C4B84D40080410E60000000300000000000
Shop #: WSC 00001 001 00001
VCID: 2D51BCB3741137E1DA-8078

Subsystem 1 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 2 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 3 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 4 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3321
Serial number: --------------------
Coding: 100000

15 Faults Found:
03429 - Activation of Right Adaptive Light
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 3
Fault Frequency: 10
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:17

03431 - Activation of Left Parking Light
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:06:33

03432 - Activation of Right Parking Light
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:06:33

03433 - Terminal 30 for Backup Lights and Adaptive Lights
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 6
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:03:22

03435 - Terminal 30 for Interior Light and Parking Light
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:06:32

03396 - Supply voltage terminal 30 for central locking
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 2
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:06:32

00920 - Heated Outside Mirrors; Driver Side (Z4) / Passenger Side (Z5)
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:06:35

03591 - Control Circuit for Horn
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:06:33

01516 - Terminal 30; Left
011 - Open Circuit - Intermittent
Freeze Frame:
Fault Status: 00101011
Fault Priority: 3
Fault Frequency: 2
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:06:32

02830 - CAN-Extended Separator for Driver Assistance Systems
006 - Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00100110
Fault Priority: 3
Fault Frequency: 3
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:53:52

02745 - Bulb for Daytime Running Light; Left
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 3
Fault Frequency: 16
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:51

02746 - Bulb for Daytime Running Light; Right
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 3
Fault Frequency: 16
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:51

00979 - Lamp for Low Beam; Right (M31)
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:23:52

01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:46

02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 4
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 06:22:21


-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 2H0 959 655 B HW: 2H0 959 655 B
Component: VW10Airbag00B H06 0013
Revision: -------- Serial number: 003HN006UJP.
Coding: 000000000000000000000000000000003042
Shop #: WSC 07446 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3365AACB9A3561118C-8066

Crash sensor for side airbag: driver side:
Serial number: 3495RRB40610TGJKB0T6

Front Passenger's Side Airbag Crash Sensor:
Serial number: 3505RRB40610TGJKCGH3

Crash sensor for front airbag: driver side:
Serial number: 3555YRB40650P4N040VK

Crash sensor for front airbag: front passenger side:
Serial number: 3565YRB405R0UT987H4G

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 2H0 920 863 B HW: 2H0 920 863 B
Component: KOMBI H02 0505
Serial number: 00000000000000
Coding: 150800
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
VCID: 285F4DA753F312C929-807C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 090
Component: GW-K-CAN TP20 H74 0712
Revision: B9074001
Coding: 702300
Shop #: WSC 00001 001 00001
VCID: 70EF65C7A3A31A09B1-8024

1 Fault Found:
03406 - Control Module for Battery Monitoring
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 5
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:04:21


-------------------------------------------------------------------------------
Address 22: AWD Labels: None
Part No SW: 2H0 927 755 B HW: 2H0 927 755 B
Component: SG offroad VTG 0153
Revision: 00H06000 Serial number: T1IYC36211RNKZ
Coding: 0000013
Shop #: WSC 131071 1023 2097151
VCID: 2F6DA6BBBE1D45F1E8-807A

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H02 0505
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADB77AF8D7FE0D9FF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 32: Differential Locks (J647) Labels:* 2H0-927-771.clb
Part No SW: 2H0 927 771 A HW: 2H0 927 771
Component: Quersperre H04 0017
Revision: 11001001 Serial number: 4DG 21.07.11 00
Coding: 000001
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_QuersUDSAAMVN817 A01606
ROD: EV_QuersUDSAAMVN817.rod
VCID: 2C57B1B7470B3EE9CD-8078

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 1K0 035 186 AN HW: 1K0 035 186 AN
Component: RCD310 EU H03 5004
Revision: -----04S Serial number: VWZ4Z2M1135004
Coding: 00000400020016
Shop #: WSC 07456 790 50316
VCID: 72EB6FCFADAF281947-8026

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7H0 907 534 HW: 7H0 937 090
Component: Batt.regelung H74 0712
Serial number: 0571 150133718
Coding: 00030A5A
Shop #: WSC 73430 790 00114
VCID: 6BD572AB8A85F9D184-803E

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 F HW: 1K0 907 383 F
Component: Anhaenger H09 0100
Revision: 3A001001 Serial number: 00008030114049
Coding: 0100000100000000
Shop #: WSC 00000 000 00000
VCID: 306FA5C763235A09F1-8064

2 Faults Found:
00576 - Terminal 15
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 47
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:19:26

00526 - Brake Light Switch (F)
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 04:19:29


End-------------------------(Elapsed Time: 02:52)--------------------------

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 2H-VN81 (6N0)
Scan: 01 03 04 08 09 15 17 19 22 25 32 56 61 69 0B

VIN: WV1ZZZ2HZCA056596 Mileage: 145500km-90409miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
32-Differential Locks -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CDCA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 FA HW: 03L 907 309 K
Component: R4 2,0L EDC H43 9745
Revision: 26H43--- Serial number: 00000000000000 CVN: C615361C
Coding: 01194012232600080000
Shop #: WSC 01286 386 08256
ASAM Dataset: EV_ECM20BTD01103L906019FA 002005
ROD: EV_ECM20BTD01103L906019FA_002.rod
VCID: 6FED66BBB69D05F1A8-803A
VINID: 9E606AAAA098A9344014614918770CDBE1

1 Fault Found:
4481 - Cruise Control Switch (E45)
P0568 00 [039] - Implausible Signal
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 145509 km
Date: 2023.09.18
Time: 06:26:39

Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 35 °C
Intake air temperature: 24 °C
Ambient air pressure: 930 mbar
Voltage terminal 30: 12.000 V
Unlearning counter according OBD: 40
Cruise Control System (CCS): switch position-Bits 0-7: 11000001
Cruise Control System (CCS): status-Bits 0-7: 11101000
Cruise control switch-off: irreversible-Bits 0-7: 11111111
Cruise control switch-off: reversible-Bits 0-7: 11111111
Cruise Control System: specified speed: 0.00 km/h
Engine control module reset status-Bits 0-7: 00000000
Engine control module reset status-Bits 0-7: 00000000
Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 00000000

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 2H0-907-37x-ESP.clb
Part No SW: 2H0 907 379 J HW: 2H0 907 379 D
Component: ESP MK25A XT H44 0109
Revision: 00H44001
Coding: C07324B69199039B24A789AC6F5690
Shop #: WSC 07456 790 49164
VCID: 377D9EDB864D8D31B0-8062

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 7E5-907-040.clb
Part No SW: 2H0 907 040 D HW: 2H0 907 040 D
Component: ClimatronicT5 H11 0304
Revision: 00001003
Coding: 0000000002
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis.rod
VCID: 224B5F8F35CFF89977-8076

2 Faults Found:
13701936 - Function Restriction due to Faults in Other Modules
U1113 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 2
Reset counter: 7
Mileage: 145509 km
Date: 2023.09.18
Time: 06:26:39

9481988 - Air Quality Sensor
B10AF 04 [009] - Internal System Fault
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Date: 2023.09.18
Time: 06:26:39


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 090 B HW: 7H0 937 090
Component: BCM PQ25 Max4 H74 0712
Revision: B9074001 Serial number: 0571 150133718
Coding: 3C0002380C010000003008102C4B84D40080410E60000000300000000000
Shop #: WSC 00001 001 00001
VCID: 2D51BCB3741137E1DA-8078

Subsystem 1 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 2 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 3 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 4 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3321
Serial number: --------------------
Coding: 100000

2 Faults Found:
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 06:26:41

02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 3
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 06:26:41


-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 2H0 959 655 B HW: 2H0 959 655 B
Component: VW10Airbag00B H06 0013
Revision: -------- Serial number: 003HN006UJP.
Coding: 000000000000000000000000000000003042
Shop #: WSC 07446 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3365AACB9A3561118C-8066

Crash sensor for side airbag: driver side:
Serial number: 3495RRB40610TGJKB0T6

Front Passenger's Side Airbag Crash Sensor:
Serial number: 3505RRB40610TGJKCGH3

Crash sensor for front airbag: driver side:
Serial number: 3555YRB40650P4N040VK

Crash sensor for front airbag: front passenger side:
Serial number: 3565YRB405R0UT987H4G

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 2H0 920 863 B HW: 2H0 920 863 B
Component: KOMBI H02 0505
Serial number: 00000000000000
Coding: 150800
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
VCID: 285F4DA753F312C929-807C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 090
Component: GW-K-CAN TP20 H74 0712
Revision: B9074001
Coding: 702300
Shop #: WSC 00001 001 00001
VCID: 70EF65C7A3A31A09B1-8024

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD Labels: None
Part No SW: 2H0 927 755 B HW: 2H0 927 755 B
Component: SG offroad VTG 0153
Revision: 00H06000 Serial number: T1IYC36211RNKZ
Coding: 0000013
Shop #: WSC 131071 1023 2097151
VCID: 2F6DA6BBBE1D45F1E8-807A

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H02 0505
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADB77AF8D7FE0D9FF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 32: Differential Locks (J647) Labels:* 2H0-927-771.clb
Part No SW: 2H0 927 771 A HW: 2H0 927 771
Component: Quersperre H04 0017
Revision: 11001001 Serial number: 4DG 21.07.11 00
Coding: 000001
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_QuersUDSAAMVN817 A01606
ROD: EV_QuersUDSAAMVN817.rod
VCID: 2C57B1B7470B3EE9CD-8078

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 1K0 035 186 AN HW: 1K0 035 186 AN
Component: RCD310 EU H03 5004
Revision: -----04S Serial number: VWZ4Z2M1135004
Coding: 00000400020016
Shop #: WSC 07456 790 50316
VCID: 72EB6FCFADAF281947-8026

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7H0 907 534 HW: 7H0 937 090
Component: Batt.regelung H74 0712
Serial number: 0571 150133718
Coding: 00030A5A
Shop #: WSC 73430 790 00114
VCID: 6BD572AB8A85F9D184-803E

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 F HW: 1K0 907 383 F
Component: Anhaenger H09 0100
Revision: 3A001001 Serial number: 00008030114049
Coding: 0100000100000000
Shop #: WSC 00000 000 00000
VCID: 306FA5C763235A09F1-8064

No fault code found.

End-------------------------(Elapsed Time: 02:51)--------------------------

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Address 09,7H0 937 090 B,recoded (Long Coding),from,3C0002380C010000003008102C4B84D40080410E60000000300000000000,to,3C0002380C010000003008102C4B84D40080410E60000000300000000000,(00001/001/00001),

and after deleting and reloading

01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 03:48:46

02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 4
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 06:22:21

[peter222]

now there are no headlights in the front. I can only hear the shutter click when the high beams are on.

VIN: WV1ZZZ2HZCA056596 License Plate: JJ
Mileage: 145500km-90409mi Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 2H-VN81 (6N0)
Scan: 01 03 04 08 09 15 17 19 22 25 32 56 61 69

VIN: WV1ZZZ2HZCA056596 Mileage: 145500km-90409miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
32-Differential Locks -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CDCA) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 FA HW: 03L 907 309 K
Component: R4 2,0L EDC H43 9745
Revision: 26H43--- Serial number: 00000000000000 CVN: C615361C
Coding: 01194012232600080000
Shop #: WSC 01286 386 08256
ASAM Dataset: EV_ECM20BTD01103L906019FA 002005
ROD: EV_ECM20BTD01103L906019FA_002.rod
VCID: 6FED66BBB69D05F1A8-803A
VINID: 9E606AAAA098A9344014614918770CDBE1

1 Fault Found:
4481 - Cruise Control Switch (E45)
P0568 00 [036] - Implausible Signal
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 145509 km
Date: 2023.09.18
Time: 06:26:39

Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 35 °C
Intake air temperature: 24 °C
Ambient air pressure: 930 mbar
Voltage terminal 30: 12.000 V
Unlearning counter according OBD: 40
Cruise Control System (CCS): switch position-Bits 0-7: 11000001
Cruise Control System (CCS): status-Bits 0-7: 11101000
Cruise control switch-off: irreversible-Bits 0-7: 11111111
Cruise control switch-off: reversible-Bits 0-7: 11111111
Cruise Control System: specified speed: 0.00 km/h
Engine control module reset status-Bits 0-7: 00000000
Engine control module reset status-Bits 0-7: 00000000
Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 00000000

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----) Labels: 2H0-907-37x-ESP.clb
Part No SW: 2H0 907 379 J HW: 2H0 907 379 D
Component: ESP MK25A XT H44 0109
Revision: 00H44001
Coding: C07324B69199039B24A789AC6F5690
Shop #: WSC 07456 790 49164
VCID: 377D9EDB864D8D31B0-8062

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 7E5-907-040.clb
Part No SW: 2H0 907 040 D HW: 2H0 907 040 D
Component: ClimatronicT5 H11 0304
Revision: 00001003
Coding: 0000000002
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis.rod
VCID: 224B5F8F35CFF89977-8076

2 Faults Found:
13701936 - Function Restriction due to Faults in Other Modules
U1113 00 [009] - -
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 7
Reset counter: 7
Mileage: 145509 km
Date: 2023.09.18
Time: 06:26:39

9481988 - Air Quality Sensor
B10AF 04 [009] - Internal System Fault
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 3
Reset counter: 7
Mileage: 145509 km
Date: 2023.09.18
Time: 06:26:39


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7H0-937-08x-09.clb
Part No SW: 7H0 937 090 B HW: 7H0 937 090
Component: BCM PQ25 Max4 H74 0712
Revision: B9074001 Serial number: 0571 150133718
Coding: 3C0002380C010000003008102C4B84D40080410E60000000300000000000
Shop #: WSC 00001 001 00001
VCID: 2D51BCB3741137E1DA-8078

Subsystem 1 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 2 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 3 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3321
Serial number: --------------------
Coding: 100000

Subsystem 4 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3321
Serial number: --------------------
Coding: 100000

2 Faults Found:
01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 06:26:41

02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 13
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 06:26:41


-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 2H0 959 655 B HW: 2H0 959 655 B
Component: VW10Airbag00B H06 0013
Revision: -------- Serial number: 003HN006UJP.
Coding: 000000000000000000000000000000003042
Shop #: WSC 07446 790 50316
ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3365AACB9A3561118C-8066

Crash sensor for side airbag: driver side:
Serial number: 3495RRB40610TGJKB0T6

Front Passenger's Side Airbag Crash Sensor:
Serial number: 3505RRB40610TGJKCGH3

Crash sensor for front airbag: driver side:
Serial number: 3555YRB40650P4N040VK

Crash sensor for front airbag: front passenger side:
Serial number: 3565YRB405R0UT987H4G

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 2H0 920 863 B HW: 2H0 920 863 B
Component: KOMBI H02 0505
Serial number: 00000000000000
Coding: 150800
Shop #: WSC 07456 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
VCID: 285F4DA753F312C929-807C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 7H0 937 090
Component: GW-K-CAN TP20 H74 0712
Revision: B9074001
Coding: 742200
Shop #: WSC 00001 001 00001
VCID: 70EF65C7A3A31A09B1-8024

1 Fault Found:
03406 - Control Module for Battery Monitoring
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 7
Mileage: 145509 km
Time Indication: 0
Date: 2018.02.08
Time: 06:56:41


-------------------------------------------------------------------------------
Address 22: AWD Labels: None
Part No SW: 2H0 927 755 B HW: 2H0 927 755 B
Component: SG offroad VTG 0153
Revision: 00H06000 Serial number: T1IYC36211RNKZ
Coding: 0000013
Shop #: WSC 131071 1023 2097151
VCID: 2F6DA6BBBE1D45F1E8-807A

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H02 0505
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADB77AF8D7FE0D9FF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 32: Differential Locks (J647) Labels:* 2H0-927-771.clb
Part No SW: 2H0 927 771 A HW: 2H0 927 771
Component: Quersperre H04 0017
Revision: 11001001 Serial number: 4DG 21.07.11 00
Coding: 000001
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_QuersUDSAAMVN817 A01606
ROD: EV_QuersUDSAAMVN817.rod
VCID: 2C57B1B7470B3EE9CD-8078

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 1K0 035 186 AN HW: 1K0 035 186 AN
Component: RCD310 EU H03 5004
Revision: -----04S Serial number: VWZ4Z2M1135004
Coding: 00000400020016
Shop #: WSC 07456 790 50316
VCID: 72EB6FCFADAF281947-8026

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7H0 907 534 HW: 7H0 937 090
Component: Batt.regelung H74 0712
Serial number: 0571 150133718
Coding: 00030A5A
Shop #: WSC 73430 790 00114
VCID: 6BD572AB8A85F9D184-803E

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 F HW: 1K0 907 383 F
Component: Anhaenger H09 0100
Revision: 3A001001 Serial number: 00008030114049
Coding: 0100000100000000
Shop #: WSC 00000 000 00000
VCID: 306FA5C763235A09F1-8064

No fault code found.

End-------------------------(Elapsed Time: 02:49)--------------------------

[ciclo]

Please do the following:

1
Control Module for Battery Monitoring.

The way to get rid of address 61 from the GW installation list:

- Enable address 61 in Gateway installation list.
- Go to address 61 and code all Bytes to 00.
- Return to GW installation list and disable the address 61.
- Go to Autoscan and Click on Gateway installation list button.
- Click on Clear All DTCs.

The address 61 should no longer be present in the Autoscan.

2
New BCM coding:
(BCM Max + Bixenon-Amarok, without Auto lights)
3C0002380C01000000300C912C4B84D41080654E60003040300000020000

This new BCM coding does not have to be definitive, faults may arise for various reasons (compatibility of parts, electrical installation, etc.).
Check the operation of all the lights, including the reversing light, rear fog light, license plate lights and interior lights.


Whatever the results, please report the results you get and a new Autoscan with the faults... to try to solve them.
