Polo 6r GTI - Bi-Xenon installation Issues

[Rapid]

One of the headlight drl stoping working after i use turn signal on this side. That not happen with other side drl. What could it be?

[Rapid]

Hello Polos

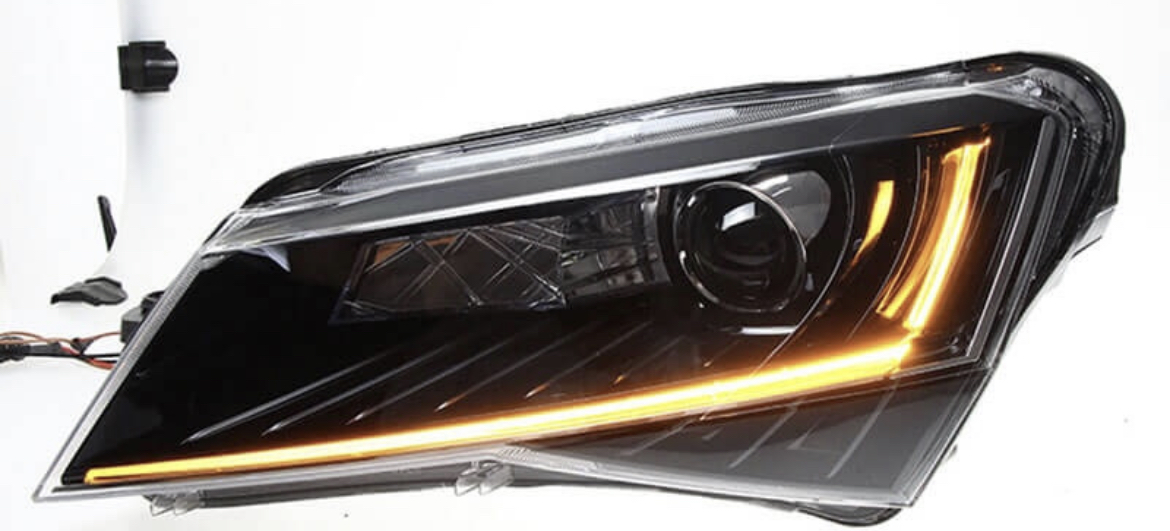

Has anyone know how to change drl lights from white to yellow?
I met alot of skoda superb in this serup

[Jym11]

Hola! Soy nuevo en el foro, y escribo desde España, espero obtener ayuda porque no puedo conectar los faros bi-xenón que he comprado nuevos para mi Volkswagen Polo 1.2 TSI del año 2013.
Me gustaría saber si a alguien del foro le ha pasado lo mismo, porque no cuando lo conecto, se enciendo la luz DRL, pero al poner la luz normal se enciende la luz larga constantemente sin haber sido activada por mi antes, y ademas, cuando activo los intermitentes se quedan fijos encendidos, y no sé cual puede ser el problema.
Espero vuestra respuesta, muchas gracias de antemano

[ciclo]

Welcome.
Please communicate in English, it is the only vehicular language in this forum, most of us don't speak Spanish. Thank you!!!
NOTE(lies):
- If you write in Spanish again, I will have to delete your post.

You must properly code the BCM (MAX) for the Bi-xenon headlights to work properly... as long as you've wired them correctly.

[Jym11]

Sorry!!
I'm going to write on English but sometimes I will use the translater jejeje.
Ok!
I think the wired is okey because the are 8 pins on the headlights plug as the same as the car's plug.
So, do you think the only thing I have to do is code the BCM?

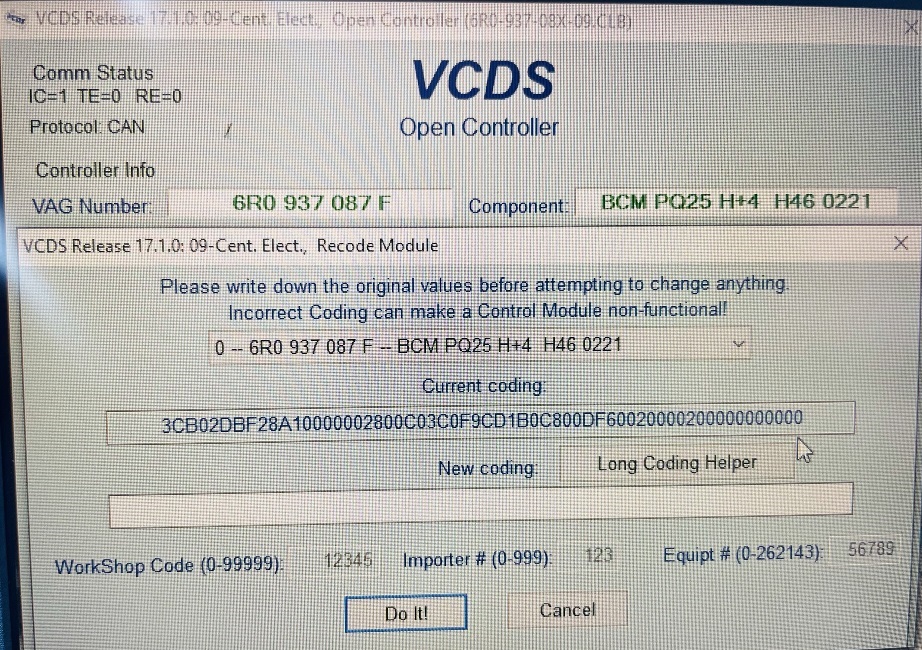

And, how can I do that? With a diagnostic equipment?
Than you so much for your help!

[ciclo]

Well, if you bought non-original bi-xenon headlights, ask the store that sold them to you, they'll know what's going on (or not).
Clue:
- You should consider whether your Europedan 6R has original H4 or H7 headlights, the electrical installation is not the same.

[Jym11]

I bought it in Autodoc so I think they aren't original, and in my car I always have H7.
The original headlights are H4?
When i bought it, they included all the bulbs but I don't know if they are H4 or H7.
The problem is that the connector plug in good but when I put on the lights also the high lights are swuitch on too and when I play the indicators they always stay on without flashing.
Do you think that it is a problema on the wired? Or only on the BCM?
Thank you for you help, I don't have idea about this electrical problems.

[ciclo]

Could you post a link to the headlights you purchased? Thanks.

I find it very strange that 'AUTODOC' sells headlights that aren't fully electrically compatible with your 2013 6R 1.2 TSI with H7,
even if they're tuning headlights.

[Jym11]

I bought this one.
https://m.autodoc.es/hd-karosserieteile/22807709
I think there are the correct one for my car but now when I see the number of the article on Autodoc, there isn't the same number, I bought the article "2206788" but at the momento, Autodoc change this number to another different headlights from a different car.
But I found the number article of the headlights I bought (2206788) on the official page of DIEDERICHS and effectively, there are the headlights that I bought.
Here is the link of the real headlights I bought.
https://shop.diederichs.com/es/i142045/ ... ng/2206788

[ciclo]

The Headlight Set 'HD Tuning' you purchased should work correctly if they are properly manufactured...

Since these are tuning products, we don't know what modifications they have, so you should contact the store/manufacturer and ask them to provide you with an installation guide with the connector pinouts (which should be identical to the original).

If they don't provide you with the info, RETURN THOSE HEADLIGHTS AS SOON AS POSSIBLE!!!

[amer6R]

did the come with some kind of manual?

[lvu89]

OK well then I have an idea about what went wrong. You need to do a BCM Max wiring/adaptation:
- Wiring from light switch to BCM
- Wiring from fuse box to BCM
- Wiring from BCM to external lights via fuse box
- Adjust coding/adaptations accordingly

Hello. I'll start by apologizing for my English. I've been searching and following the problems for this retrofit all over the internet and I haven't been able to solve my problem. I found here almost the same situation as mine. Just like my colleague Bakis, I have almost the same problem after the retrofit with KAUFTEC ADAPTOR 10-14. I have two situations and I don't understand anything anymore.

In the first situation (present) with BCM OEM 6R0937087F:
*Additional wire no.0

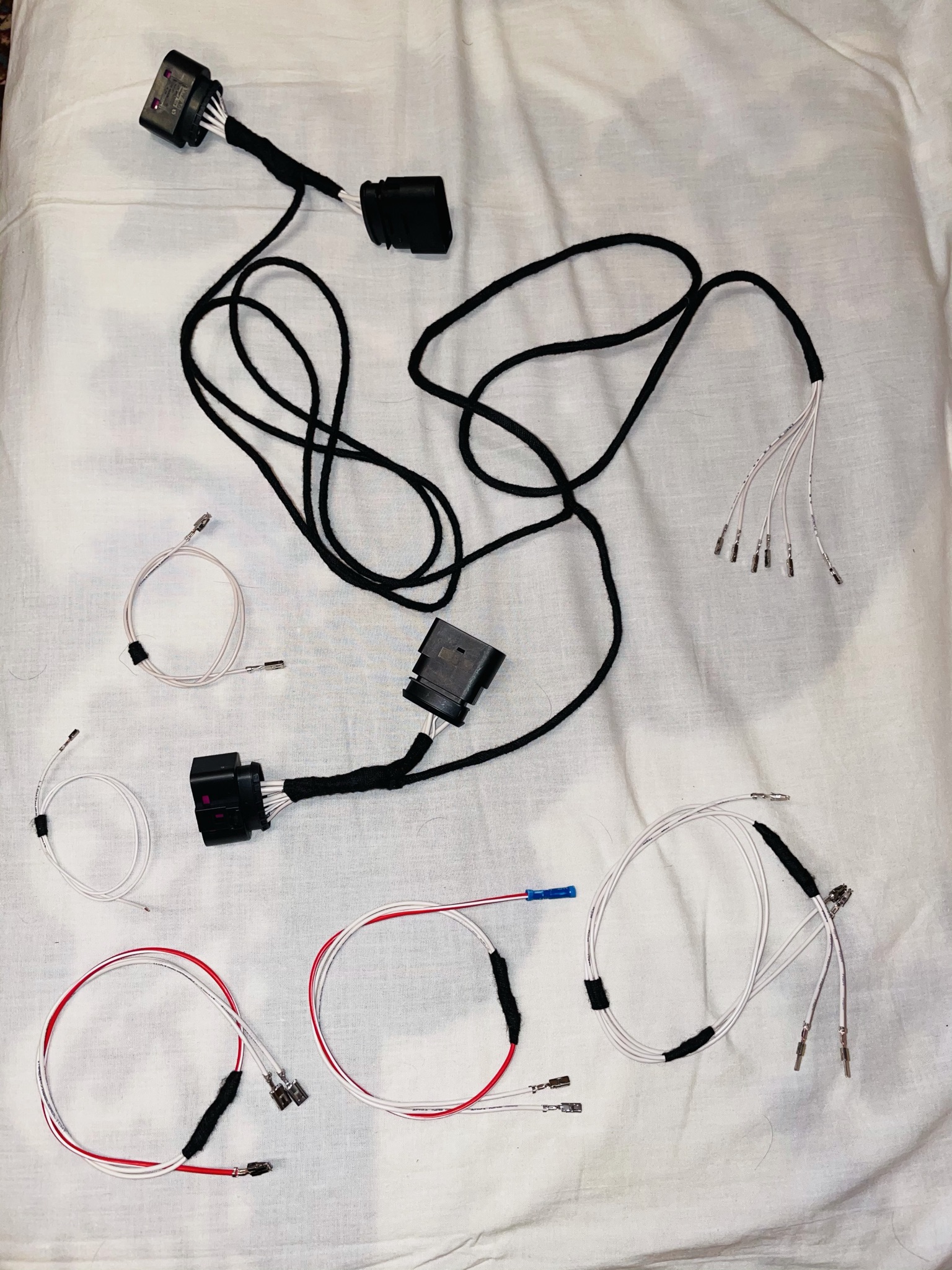

the KAUFTEC wiring kit, namely the 6 cables (73B<-PIN3,5,6,9,10 and 73A<-PIN5) = I connected them;

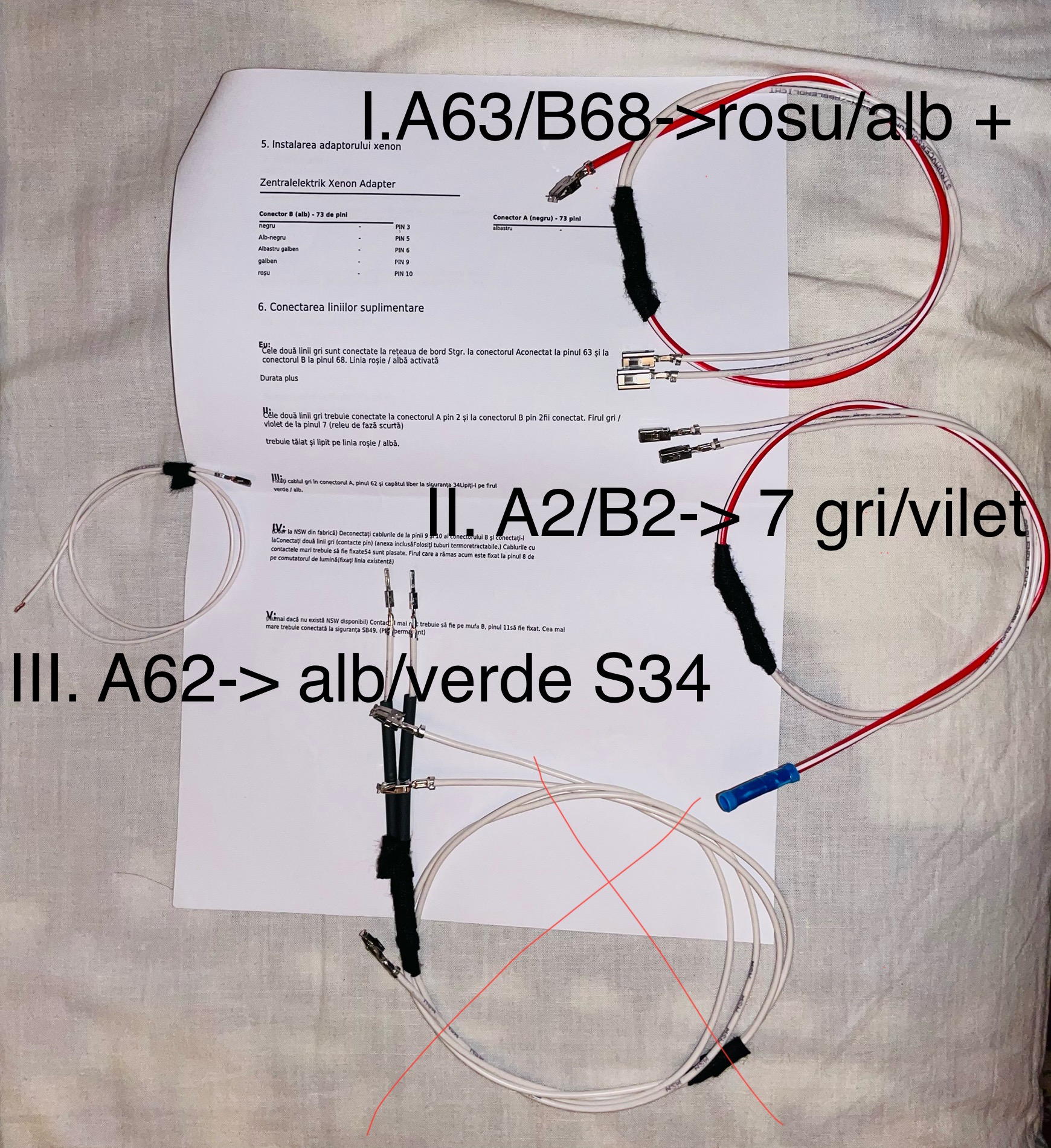

*Additional wire no.1
A63+B68 -> permanent plus = I didn't connect them;

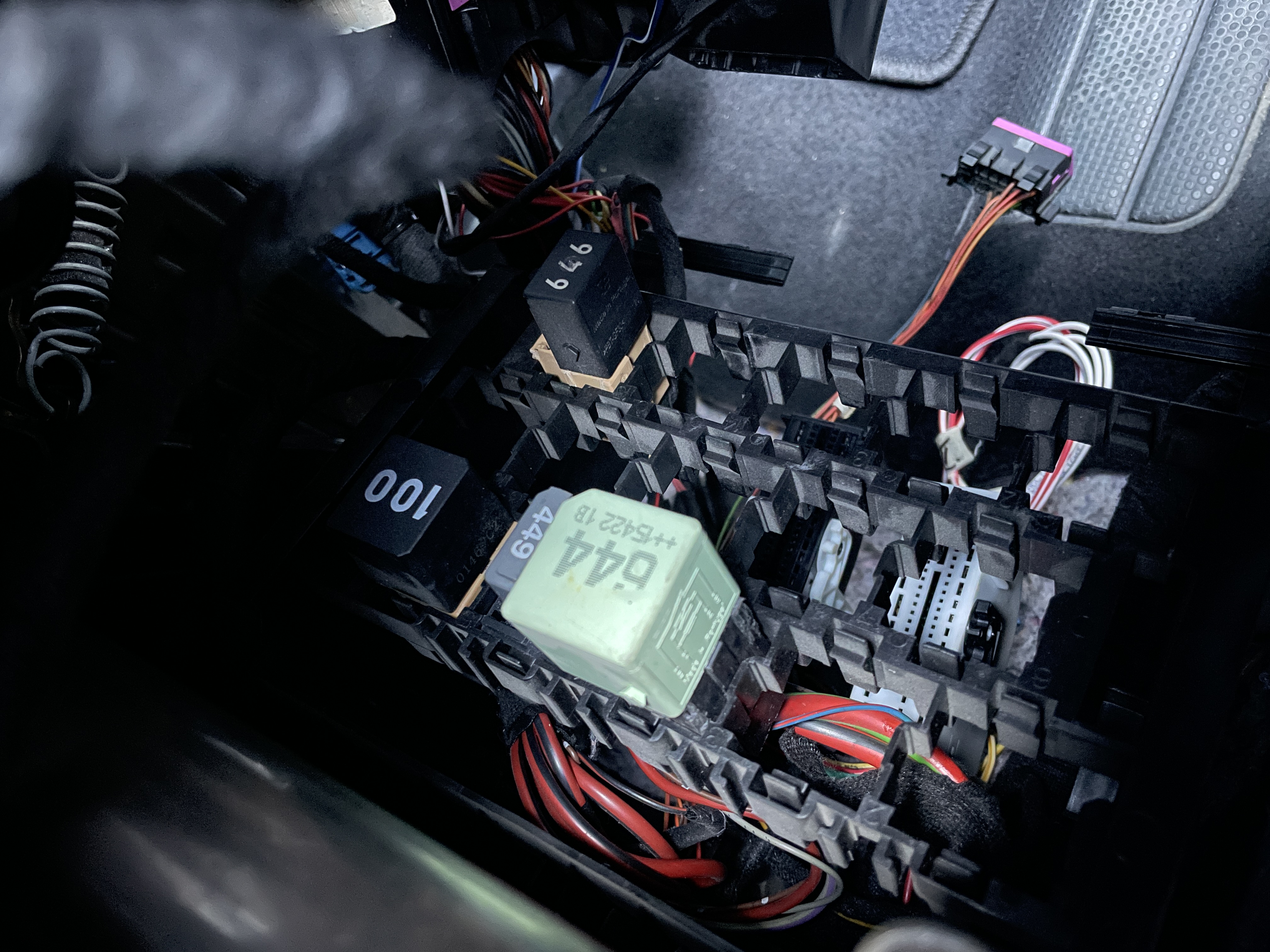

*Additional wire no. 2
A2+B2 -> PIN7 relay for lower beam head lamp (cut the wire PIN7) = I did not connect them;

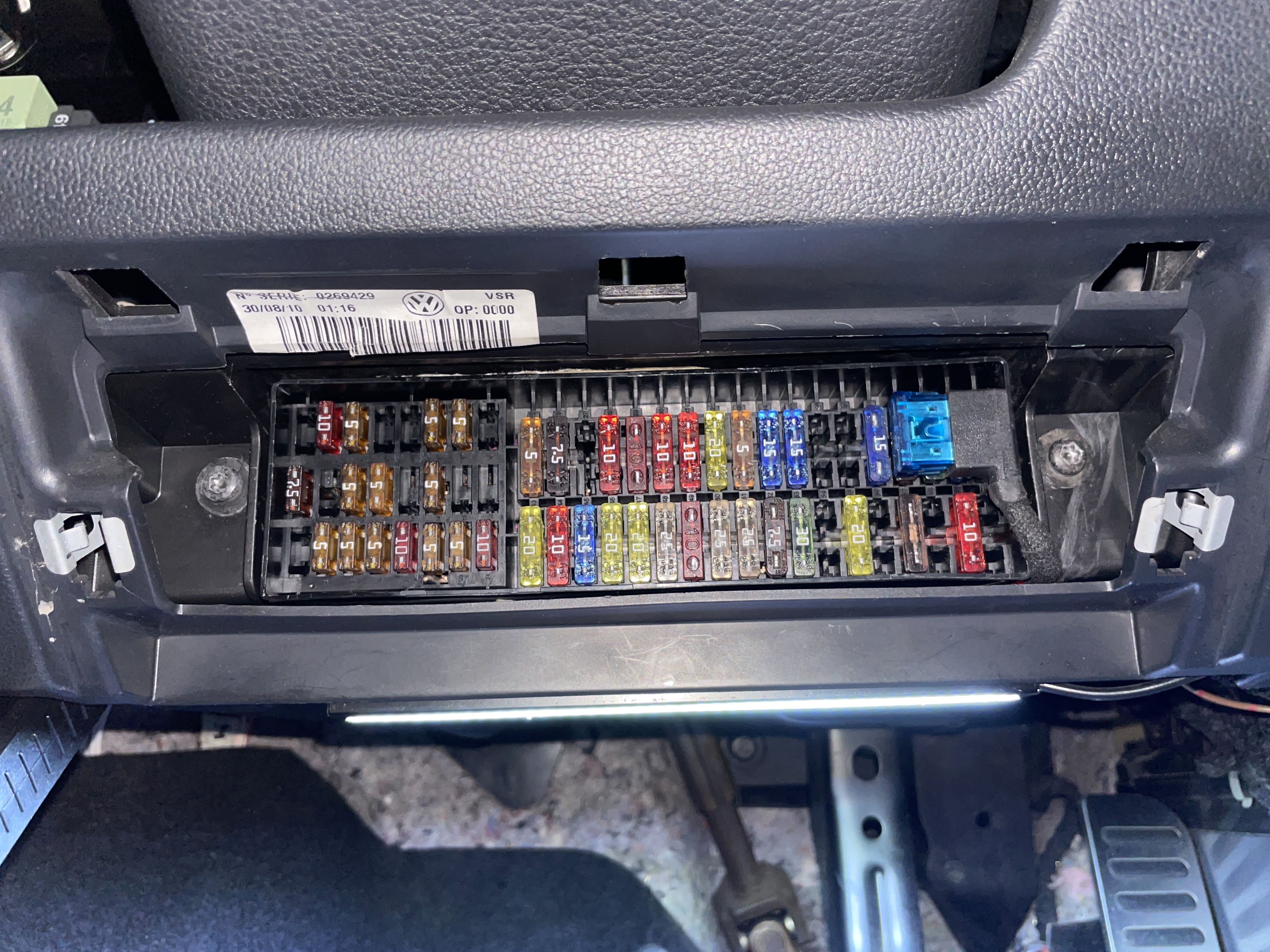

*Additional wire no. 3
A62 -> fuse 34 (braze on-white/green) = I connected it;
*Additional wire no. 4
old B9+B10 -> fuse 54 -> PIN8 on T17 = I did not connect them;

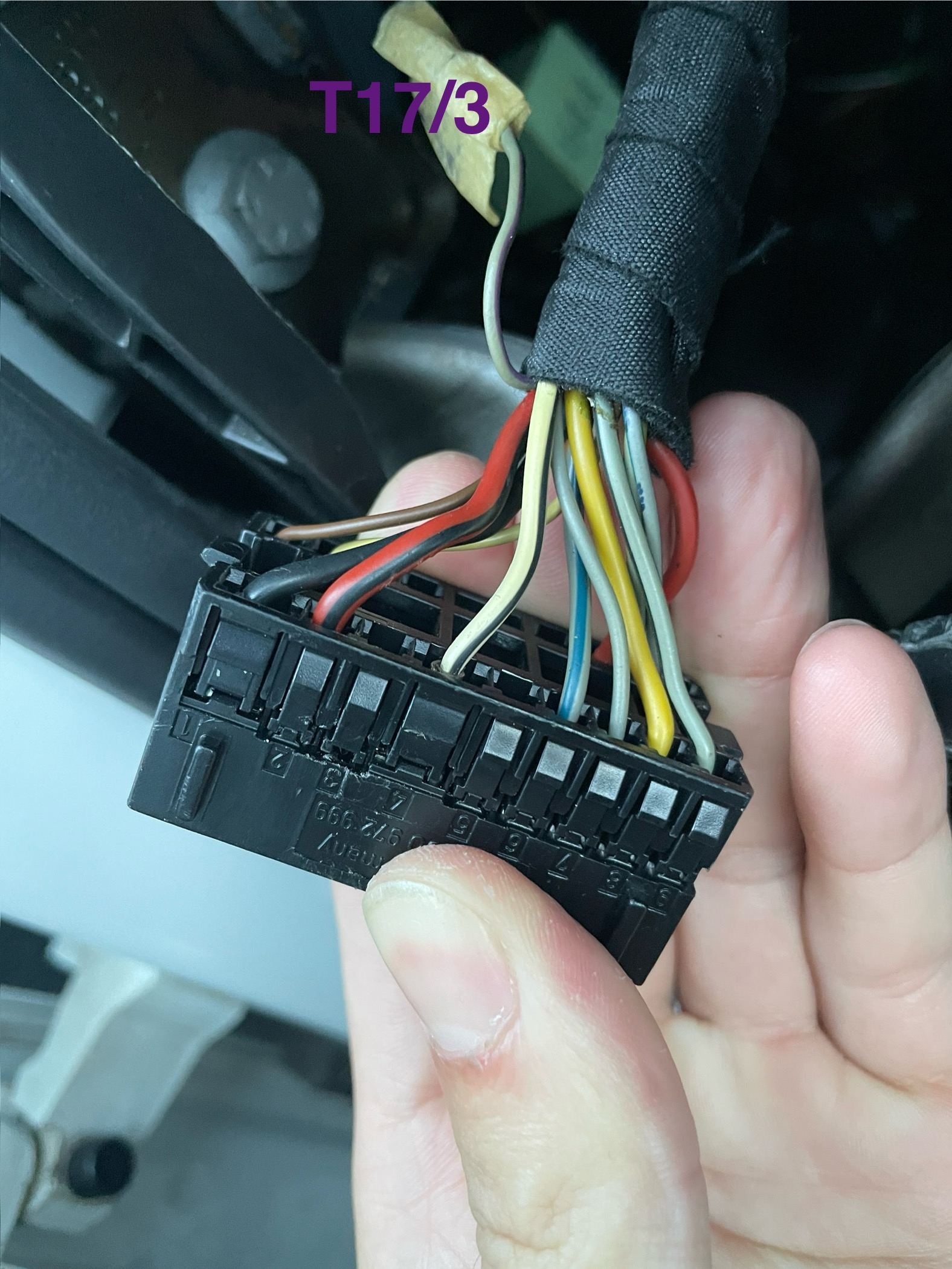

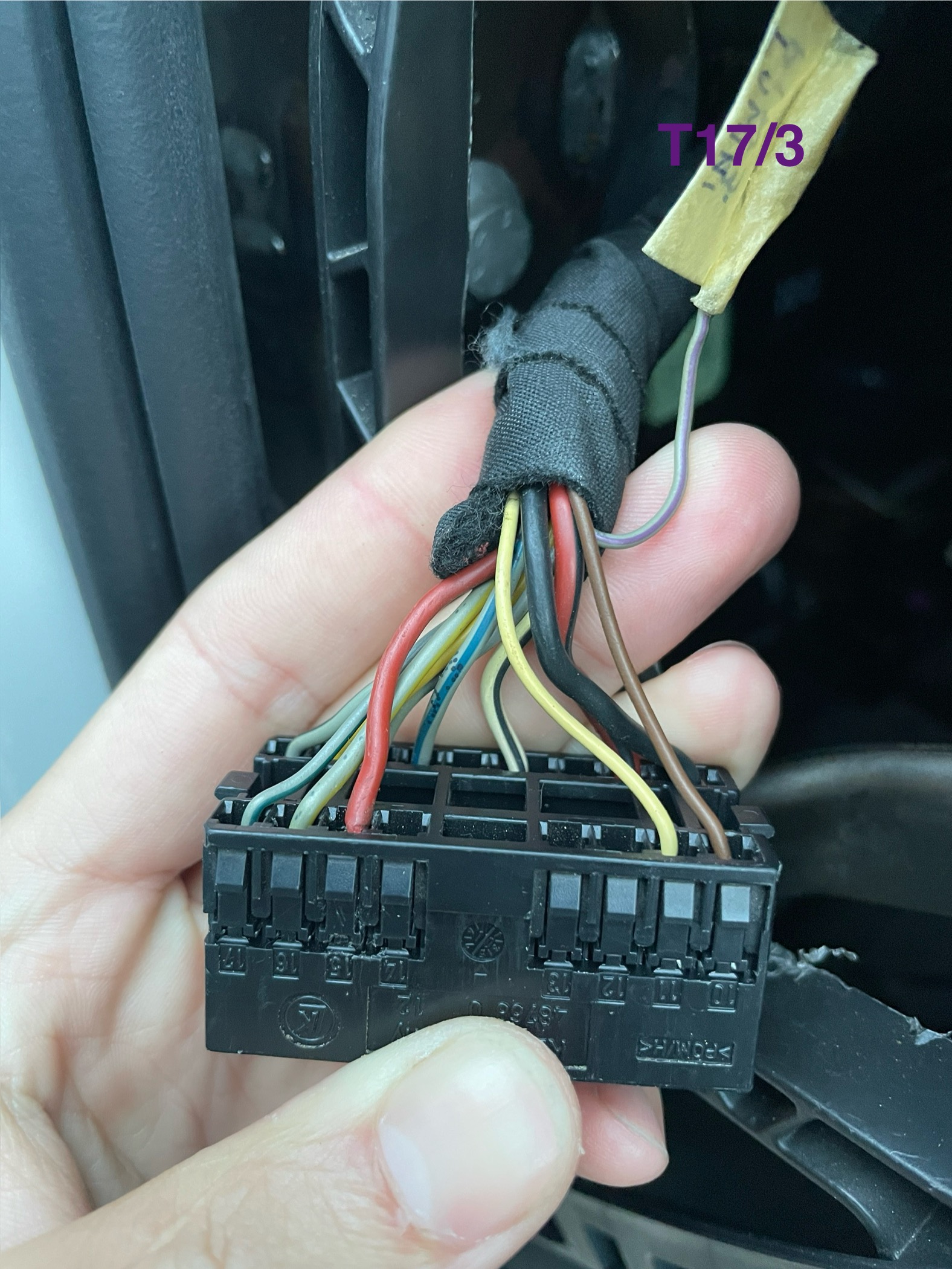

*OEM wire from T17/3 = I disconnected it
The result for the above configuration:
1) Light switch 0 = LED's and high beam not working (just shutters without lights).
2) Light switch "parking lights" = LED's and the high beam not working as well.
3) Light switch "on" = Still LED's off, Xenon light turn on, highbeam work well with lights (Bi-Xenon), and fog cornering work if I signal.
4) Light switch "fog lamps" = Still LED's off, fog light turn on, highbeam work well with lights (Bi-Xenon).

In the second situation with BCM MAX 7E0937090C:
*Additional wire no.0
KAUFTEC wiring kit, respectively the 6 cables (73B<-PIN3,5,6,9,10 and 73A<-PIN5) = I connected them;
*Additional wire no.1
A63+B68 -> plus permanent = I connected them;
*Additional wire no.2
A2+B2 -> PIN7 relay for lower beam head lamp(cut the wire PIN7) = I connected them;
*Additional wire no.3
A62 -> fuse 34 (braze on-white/green) = I connected them;
*Additional wire no. 4
old B9+B10 -> fuse 54 -> PIN8 on T17 = I did not connect them;
*OEM wire from T17/3 = I disconnected it;
*ADD new CAN LINES IC28->73A/54, IC29->73A/57 = I connected them;
For the configuration above it happens like this:
1) Light switch 0 = LED's and high beam not working (just shutters without lights).
2) Light switch "parking lights" = LED's and the high beam not working as well.
3) Light switch "on" = Still LED's off, Xenon light turn on, high beam work well with lights (Bi-Xenon), and fog cornering NOT work.
4) Light switch "fog lamps" = Still LED's off, fog light turn OFF, high beam work well with lights (Bi-Xenon).

#ciclo Where am I wrong?

[ciclo]

... from here to the weekend I will take a look carefully, ... as soon as possible.

[lvu89]

... from here to the weekend I will take a look carefully, ... as soon as possible.

I'm waiting with interest. I'm also attaching a scan for the first situation (present - with BCM OEM 6R0937087F) it might help you. If necessary I can reconnect the new BCM MAX and the cables related to the second situation to do a new scan. Thanks in advance!

Wednesday,28,May,2025,08:17:25:53651
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 17.1.0.0
Data version: 20170106 DS267.0

VIN: WVWBS51K5DK000019 License Plate:
Mileage: 200500km-124584mi Repair Order:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 1K (6N0)
Scan: 01 02 03 04 08 09 15 17 19 25 37 44 56 77

VIN: WVWBS51K5DK000019 Mileage: 200500km-124584miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000
77-Telephone -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (CCZ) Labels: 06J-907-115-CCZ.clb
Part No SW: 5K7 907 115 HW: 1K0 907 115 AA
Component: 2.0l R4/4V TFSI 0010
Revision: AAH18--- Serial number:
Coding: 041B000C1C070160
Shop #: WSC 00040 040 00001
VCID: 6ED3A89D794696312D-803A

No fault code found.
Readiness: 0010 0001

-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 02E-927-770.clb
Part No SW: 02E 300 053 N HW: 02E 927 770 AL
Component: GSG DSG AG6 512 2207
Revision: 05551213 Serial number: 00001112050015
Coding: 0000020
Shop #: WSC 04940 001 00001
VCID: 204F86A5F3127041EF-8074

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 6R0-907-37x-ESP82.clb
Part No SW: 6R0 907 379 AJ HW: 6R0 907 379 AF
Component: ESP8.2i front H05 0001
Revision: --------
Coding: 210228E3417400B4842C14EA82D100401100
Shop #: WSC 12345 123 56789
VCID: 0603F03DB5F6BE71F5-8052

2 Faults Found:
01315 - Transmission Control Module
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 0
Fault Frequency: 5
Reset counter: 207
Mileage: 200309 km
Time Indication: 0
Date: 2019.10.19
Time: 07:32:25

Freeze Frame:
Hex Value: 0x4000
Hex Value: 0x0002
Hex Value: 0x329C
Hex Value: 0x1399
Hex Value: 0x007F
Hex Value: 0x7F80
Hex Value: 0x7E21

01314 - Engine Control Module
013 - Check DTC Memory - Intermittent
Freeze Frame:
Fault Status: 00101101
Fault Priority: 0
Fault Frequency: 16
Reset counter: 207
Mileage: 200369 km
Time Indication: 0
Date: 2019.10.19
Time: 07:34:01

Freeze Frame:
Hex Value: 0x4000
Hex Value: 0x8000
Hex Value: 0x3267
Hex Value: 0x13B6
Hex Value: 0x317F
Hex Value: 0x7F7F
Hex Value: 0x7E01


-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels: 6R0-820-045-9AP.clb
Part No SW: 6R0 820 045 J HW: 6R0 820 045 J
Component: Climatic 25 0660
Revision: 00 11 25
VCID: 356147F19C90E5E92C-8060

1 Fault Found:
00819 - High Pressure Sensor (G65)
002 - Lower Limit Exceeded
Freeze Frame:
Fault Status: 01100010
Fault Priority: 2
Fault Frequency: 1
Reset counter: 168
Mileage: 200505 km
Time Indication: 0
Date: 2019.10.19
Time: 08:09:45


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: 6R0-937-08x-09.clb
Part No SW: 6R0 937 087 F HW: 6R0 937 087
Component: BCM PQ25 H+4 H46 0221
Revision: BF046001 Serial number: 0345 208101807
Coding: 3CB02DBF28A10000002800C07C0F9CD1FFC800F060860040200000000000
Shop #: WSC 12345 123 56789
VCID: 408F2625D35250418F-8014

Subsystem 1 - Part No SW: 6R0 959 801 R HW: 6R0 959 801 R Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 006 0912
Serial number: KU0-KU026.07.1013309
Coding: 08BC30

Subsystem 2 - Part No SW: 6R0 959 802 T HW: 6R0 959 802 T Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 006 0912
Serial number: KU0-KU027.07.1013069
Coding: 08BC30

Subsystem 3 - Part No SW: KU 0-K U02 7. HW: KU0 -KU 027 .0
7.10
Serial number: KU0-KU027.07.10130
Coding: 333036

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels: 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10Airbag004 H09 0020
Revision: -------- Serial number: 003GX005PUP8
Coding: 003034
Shop #: WSC 00788 648 00255
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: N/A
VCID: 4A9B040DED6E9A1151-801E

Subsystem 1 - Serial number: 357

Subsystem 2 - Serial number: 3582SRB40000C7909A9F

Subsystem 3 - Serial number: 3515RRB405R6T8MIHG2I

Subsystem 4 - Serial number: 3525RRB40616T8MIF0AR

No ASAM data for: "EV_AirbaVW10BPAVW250" (VW36)
No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: 5K0-920-xxx-17.clb
Part No SW: 6R0 920 860 F HW: 6R0 920 860 F
Component: KOMBI H04 0304
Serial number: 00000000000000
Coding: 140800
Shop #: WSC 00788 648 00255
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04086
ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
VCID: 377D4DF98E9C17F93E-8062

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 6R0 937 087
Component: GW-K-CAN TP20 0221
Coding: 002000
Shop #: WSC 12345 123 56789
VCID: 70EFB6E5A37280C13F-8024

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels: 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0304
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03008
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADBA48D8DAE7A1171-803E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J0506) Labels: 1T0-035-680.clb
Part No SW: 1T0 035 680 L HW: 1T0 035 680 B
Component: RNS-MID H11 5238
Revision: AB001001 Serial number: VWZ6Z7J9045036
Coding: 04000400040000A10020
Shop #: WSC 05314 123 12345
VCID: 377D4DF9869C17F93E-8062

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 6Q0-423-156.clb
Part No: 6R0 423 156 B
Component: LenkhilfeTRW V277
Coding: 11250
Shop #: WSC 00788
VCID: 2F6D7599EACCDF3966-807A

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506) Labels: 1T0-035-680.clb
Part No SW: 1T0 035 680 L HW: 1T0 035 680 B
Component: RNS-MID H11 5238
Revision: AB001001 Serial number: VWZ6Z7J9045036
Coding: 04000400040000A10020
Shop #: WSC 05314 123 12345
VCID: 377D4DF9869C17F93E-8062

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412) Labels: 7P6-035-730.clb
Part No SW: 7P6 035 730 L HW: 7P6 035 730 L
Component: TELEFON H15 3200
Revision: 1B001001 Serial number: 00007664892951
Coding: 0010000100010110
Shop #: WSC 00788 648 00255
ASAM Dataset: EV_UHVNA 002720
ROD: EV_UHVNA_002.rod
VCID: 3B7551C9B2B43399DA-806E

No fault code found.

End-------------------------(Elapsed Time: 02:27)--------------------------

[iichel]

I don't think your BCM is capable of powering the LED for the bixenon headlights. You'll need 7H0 937 089 minimum (best is 7E0 090)
