MFSW steer swap

[cypress]

Goodday everyone,

I would like to change my steering wheel to one with steering wheel controls and paddles.

Now I have one in view of a Golf 6 GTI.
However, I am not sure if it will work without upgrading the BCM.

I know I have to put the 2 wires to make the buttons work

And I have some more questions.
When I have built in the steering wheel.

what do I have to do to get the paddles working?

Can someone tell me if the Polo 6r airbag fits in a Golf 6 gti steering wheel?

I would like to hear from you

My polo is a 6r 1.2TSI DSG from 2010

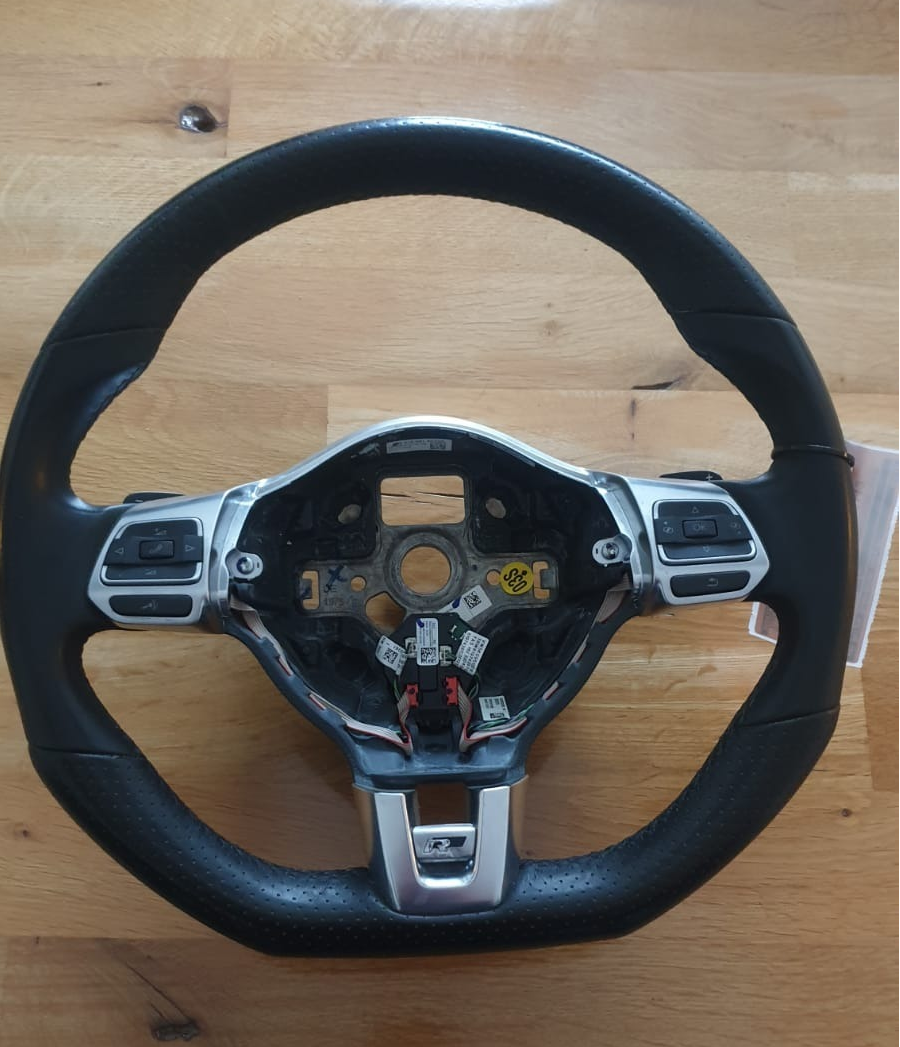

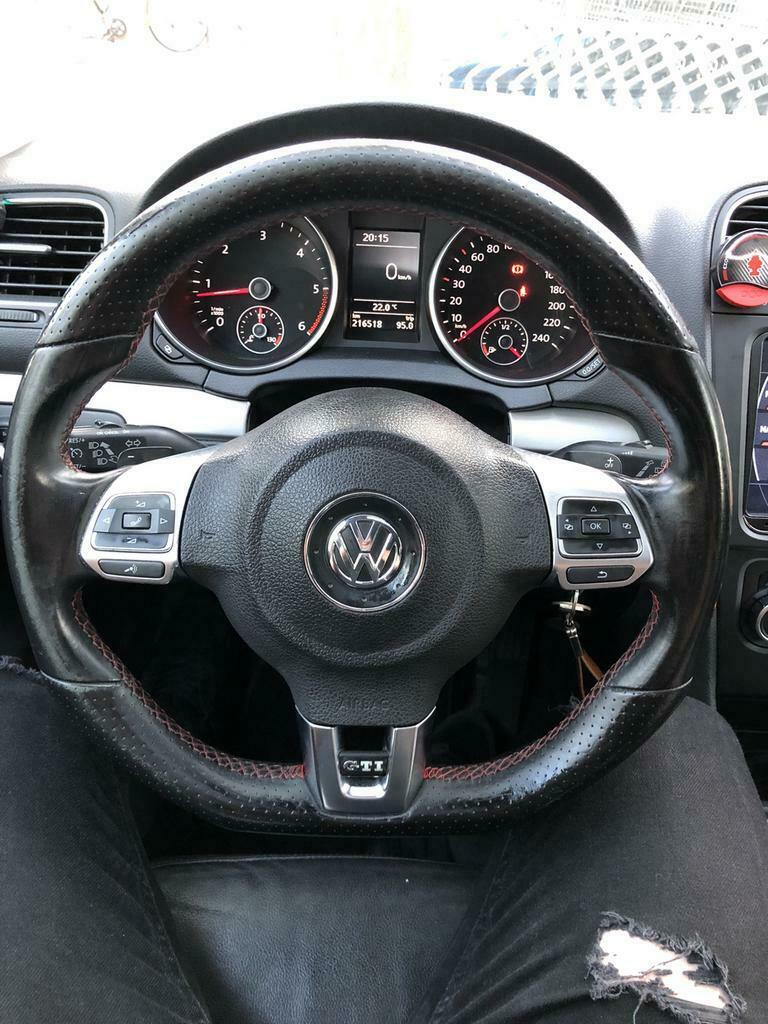

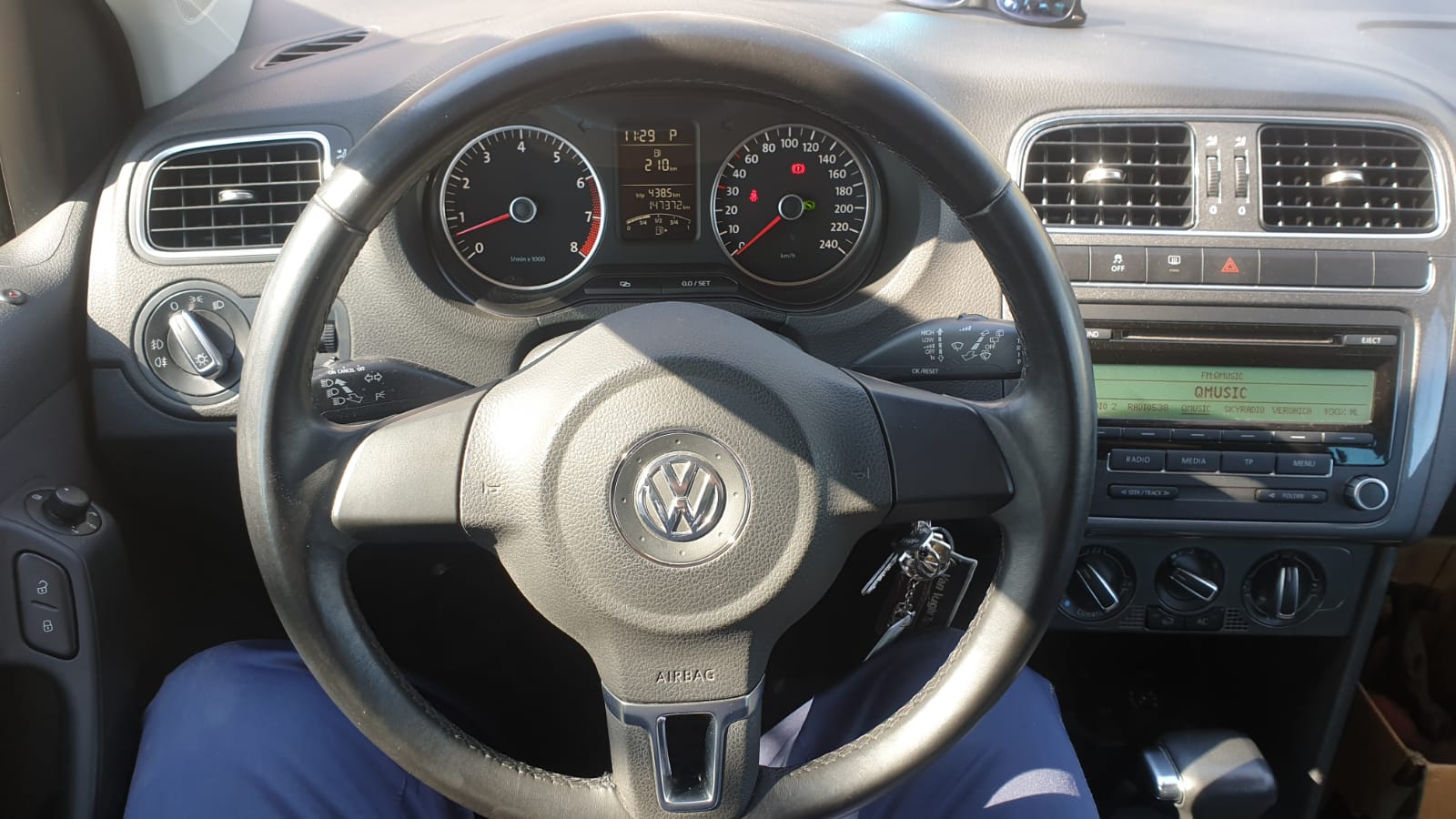

I also added 2 photos. 1 from my steering wheel and one from the seller

[iichel]

Yes, you need to change the airbag

[cypress]

Yes, you need to change the airbag

Mmm too bad but not a problem :O

Still curiuos if it wil work.

[iichel]

Well if you can tell us what bcm you have, that would be helpful

[cypress]

Well if you can tell us what bcm you have, that would be helpful

Do you prefer an actual picture of it.
Of is an screenshot of VCDS enough?
But it the first thing im going to do after work xD

[iichel]

Vcds autoscan is goed

[cypress]

Vcds autoscan is goed

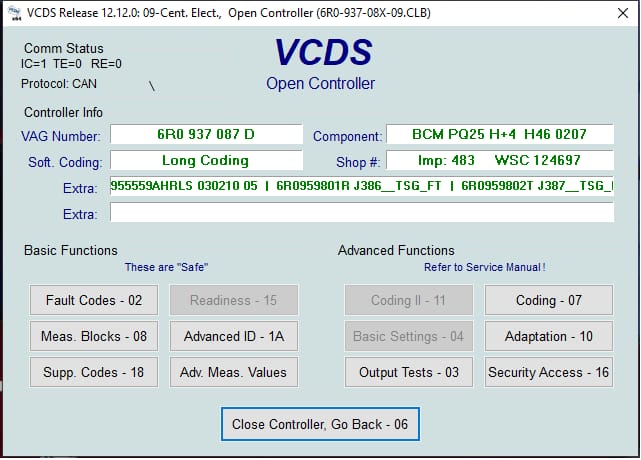

BCM polo 6r 1.2tsi 2010

Here by an picture of the BCM
I hope its enough/usefull

Just in case
Vag number: 6R0 937 087 D
Component: BCM PQ25 H+4 H46 0207

Edit,
If i use the"long coding helper" im able to enable MFSW.
I dont know if the right one for an Golf 6 GTI steering wheel

[iichel]

It's all the same, Polo 6R wheel, Golf 6 wheel. Doesn't really matter, it should work. And get yourself a recent VCDS please, 12.12 is 8 years old.

[cypress]

It's all the same, Polo 6R wheel, Golf 6 wheel. Doesn't really matter, it should work. And get yourself a recent VCDS please, 12.12 is 8 years old.

it is probably better to buy a new VCDS.
However, it will probably become one of aliexpress.

The wheel of the golf 6 gti is unfortunately sold. Was in contact with the seller. was busy making a date to pick it up.

Now I have found a kind of similar steering wheel from a 2011 Passat on Onderdelenlijn.nl.
I suspect it will be the same as the Golf.
So I contacted the company and am now waiting for response.

[cypress]

Sorry for the double post.

But! picked up a steering wheel today.
One of a 2011 VW Passat (r-line).

just need to get the cable to the airbag.

hope that the airbag of the polo fits.

can anyone tell me if there is a tutorial to activate the DSG flippers?

[iichel]

Should be activated with the activation of the MFSW. No extra action needed.

[cypress]

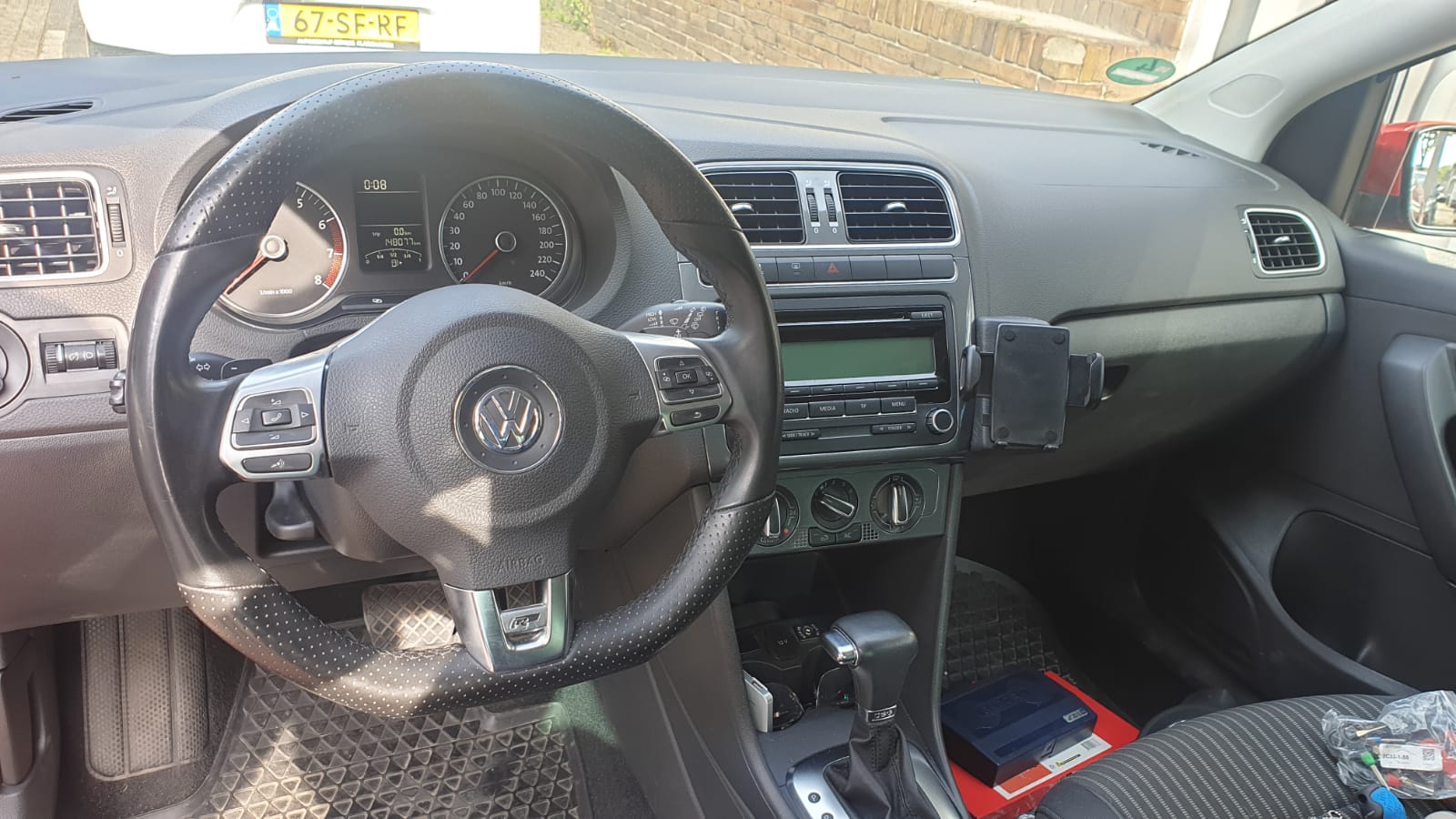

It took a while, but the steering wheel is in it! and works perfectly!
Super thanks !

Now the next project is a rear view camera in the VW emblem.
I had already made a post on facebook, and I was nicely helped there. but it got quite difficult and I couldn't get it anymore because of it.

I feel like that person doesn't like me anymore. :O

[iichel]

Good job, looks nice

[Pipefoto]

I love how it looks and I will follow your steps with the rear camera.

[cypress]

I love how it looks and I will follow your steps with the rear camera.

I am still very happy with the wheel!

THE reversing camera will probably become one of Aliexpress.
This is due to the DPS I have. Otherwise I cannot create 5.1 sound with an OEM radio.
So I take an Alpine radio for the sound quality
