BCM Max Transporter 2013

Chat about your 6R/6C model Polos here!
User avatar
iichel
Bling Bling Diamond Member
Posts: 6489
Joined: Fri Nov 14, 2014 2:14 pm
Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
Location: http://mypassat.nl/

Re: BCM Max Transporter 2013

Post by iichel »

post a vcds autoscan please to see what's happening
LaurentiuL
New
Posts: 1
Joined: Fri Dec 09, 2022 10:57 am
Drives: Amarok
Location: Romania

Re: BCM Max Transporter 2013

Post by LaurentiuL »

Hello, cilco how can i get in touch with you, i want to ask you something and i cannot send you a pm. Thx.
User avatar
ciclo
Bling Bling Diamond Member
Posts: 8038
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: BCM Max Transporter 2013

Post by ciclo »

Hi welcome.
Start here...
User avatar
Shadow109
Bronze Member
Posts: 138
Joined: Sun Aug 16, 2020 2:59 pm
Drives: Vw t5.1 2013
Location: Israel

Re: BCM Max Transporter 2013

Post by Shadow109 »

So I have finally completed my EPB retrofit

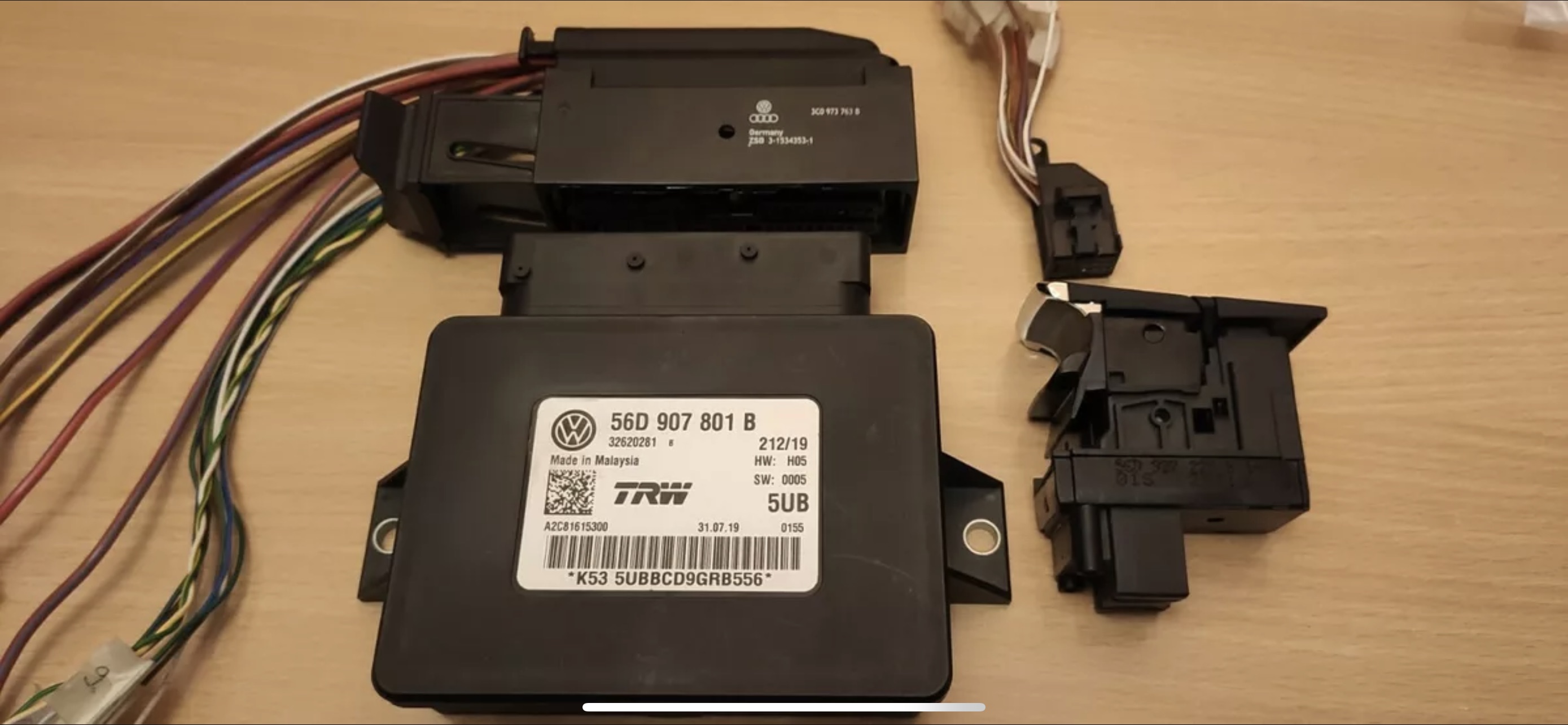

I had this kit from e-bay that have nearly everything I want

Attached the new button:-

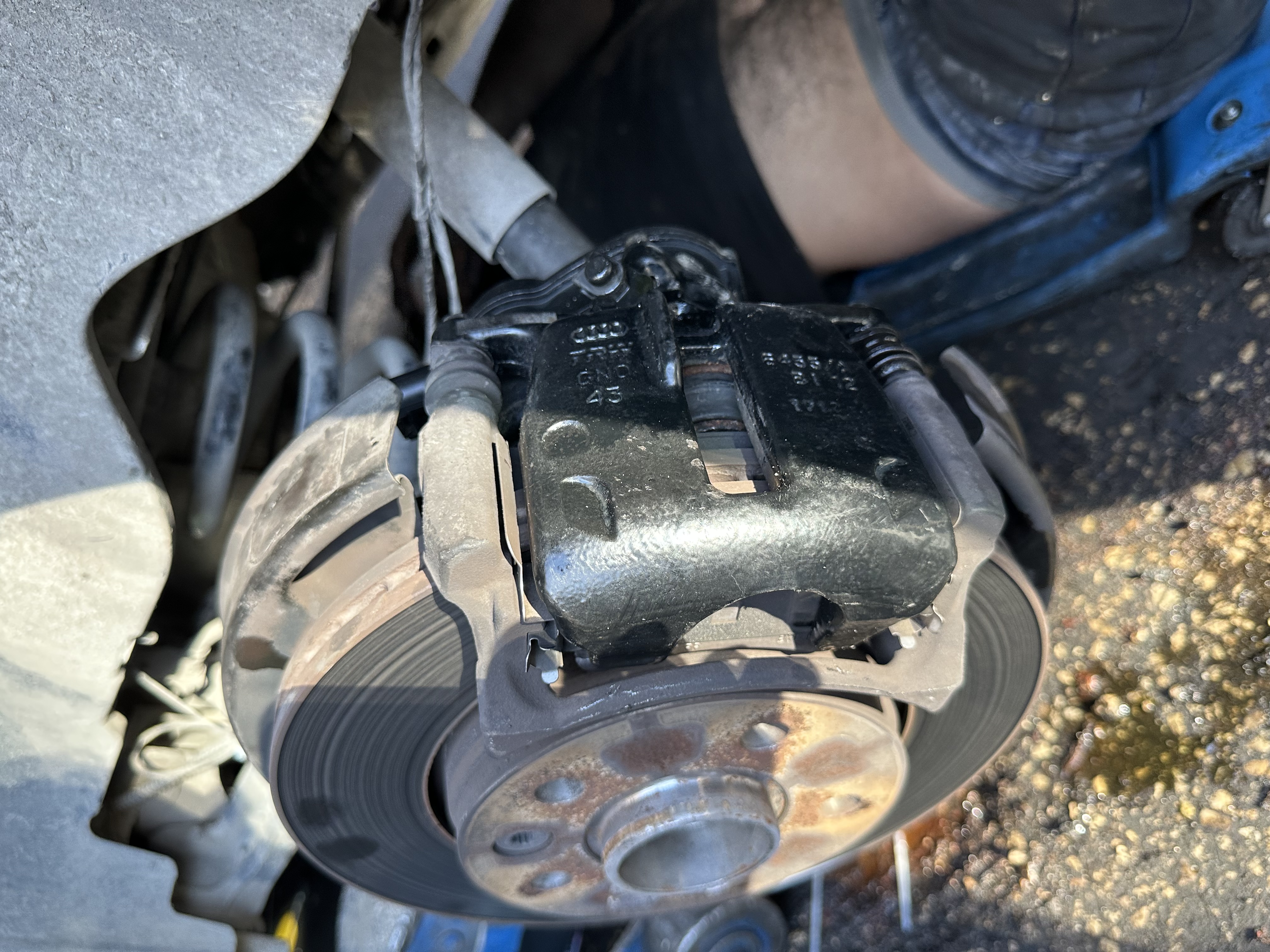

Replaced the calipers:-
Everything works as expected

Part Two was dealing with parking signal to cluster

First I have modified my secondary cluster
After that I have edited epprom with VDO editor

But after testing the signal is reversed
So I have P light on when parking break is not engaged
When I have a free time I will try to sort it out
User avatar
Shadow109
Bronze Member
Posts: 138
Joined: Sun Aug 16, 2020 2:59 pm
Drives: Vw t5.1 2013
Location: Israel

Re: BCM Max Transporter 2013

Post by Shadow109 »

No progress on retrofitting the 2Q0 radars,
But I had succeeded to add cool feature to my 5Q0 radars
Rear traffic alert warning on Cluster :-

[youtube]https://youtu.be/2JTT2LMBan4[/youtube]
prtvrk
New
Posts: 19
Joined: Wed Jun 01, 2022 8:52 pm
Drives: 6C
Location: Estonia

Re: BCM Max Transporter 2013

Post by prtvrk »

Shadow109 wrote: Tue Jan 31, 2023 7:10 am No progress on retrofitting the 2Q0 radars,
But I had succeeded to add cool feature to my 5Q0 radars
Rear traffic alert warning on Cluster :-

[youtube]https://youtu.be/2JTT2LMBan4[/youtube]
How? I'm missing that
User avatar
Shadow109
Bronze Member
Posts: 138
Joined: Sun Aug 16, 2020 2:59 pm
Drives: Vw t5.1 2013
Location: Israel

Re: BCM Max Transporter 2013

Post by Shadow109 »

I don’t really know yet, send me your coding to check it
prtvrk
New
Posts: 19
Joined: Wed Jun 01, 2022 8:52 pm
Drives: 6C
Location: Estonia

Re: BCM Max Transporter 2013

Post by prtvrk »

Shadow109 wrote: Tue Jan 31, 2023 7:31 pm I don’t really know yet, send me your coding to check it
Cluster, parking assist and blind spot?
User avatar
Shadow109
Bronze Member
Posts: 138
Joined: Sun Aug 16, 2020 2:59 pm
Drives: Vw t5.1 2013
Location: Israel

Re: BCM Max Transporter 2013

Post by Shadow109 »

parking assist and blind spot
prtvrk
New
Posts: 19
Joined: Wed Jun 01, 2022 8:52 pm
Drives: 6C
Location: Estonia

Re: BCM Max Transporter 2013

Post by prtvrk »

Shadow109 wrote: Wed Feb 01, 2023 6:42 am parking assist and blind spot
Parking assist:
1K8919475D
LC: 00 31 16 72 51

Blind Spot
2Q0907686B
LC: 52 94 A4 20
prtvrk
New
Posts: 19
Joined: Wed Jun 01, 2022 8:52 pm
Drives: 6C
Location: Estonia

Re: BCM Max Transporter 2013

Post by prtvrk »

@shadow109, i can't reply to your PM as a new user. Can I send you an email?
User avatar
Shadow109
Bronze Member
Posts: 138
Joined: Sun Aug 16, 2020 2:59 pm
Drives: Vw t5.1 2013
Location: Israel

Re: BCM Max Transporter 2013

Post by Shadow109 »

this is a small present for everyone in this forum, the data in this file was collected VCDS (German), and from this furom

https://www.dropbox.com/s/2jfabdoz2u1ir ... 1.clb?dl=0
User avatar
ciclo
Bling Bling Diamond Member
Posts: 8038
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: BCM Max Transporter 2013

Post by ciclo »

8)

Byte29 Bit5 is active when LED headlight "modules" (PQ25) are installed. (in case someone wants to correct that label👍)
User avatar
Shadow109
Bronze Member
Posts: 138
Joined: Sun Aug 16, 2020 2:59 pm
Drives: Vw t5.1 2013
Location: Israel

Re: BCM Max Transporter 2013

Post by Shadow109 »

Sure, I will correct it, big thanks 🙏
User avatar
Shadow109
Bronze Member
Posts: 138
Joined: Sun Aug 16, 2020 2:59 pm
Drives: Vw t5.1 2013
Location: Israel

Re: BCM Max Transporter 2013

Post by Shadow109 »

New project on the way :-

The cluster, key, and elv is form the same, this will make it possible to adapt elv through vvdi2


I am not starting this project until finishing DCC

after trying to bought used shock absorbers, I have discovered that my country rules had forbidden buying used shock absorbers, so I had to change the plane and buy new ones

After checking etka I found out I can use t6.1 rear shock absorbers which is cool
