Re: BCM Max Transporter 2013
EPS is the same, A5 camera is the same. So the question is gateway or dashboard? Or both of them at all? We'll find out soon =)
-
Shadow109
- Bronze Member
- Posts: 152
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013

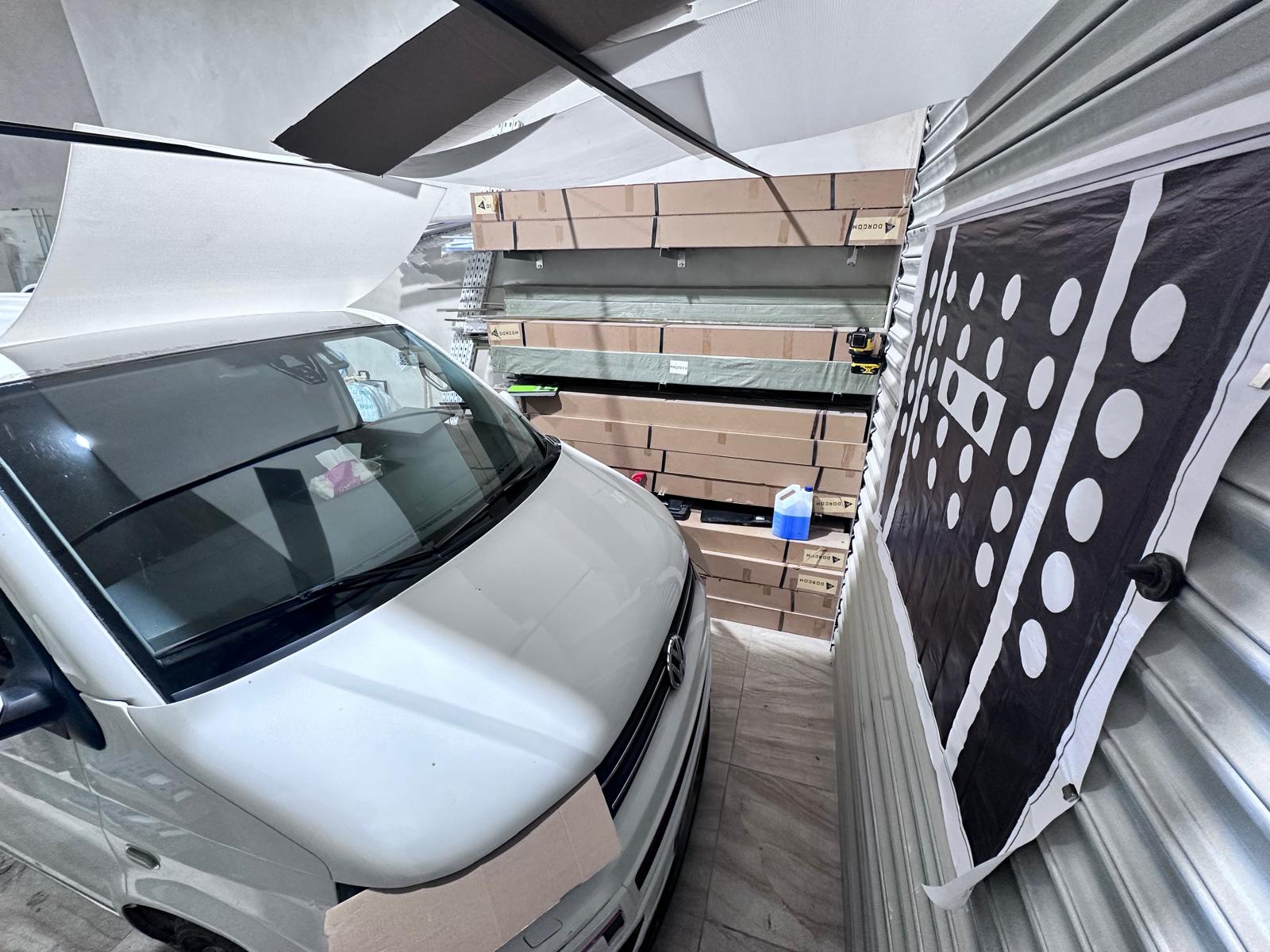

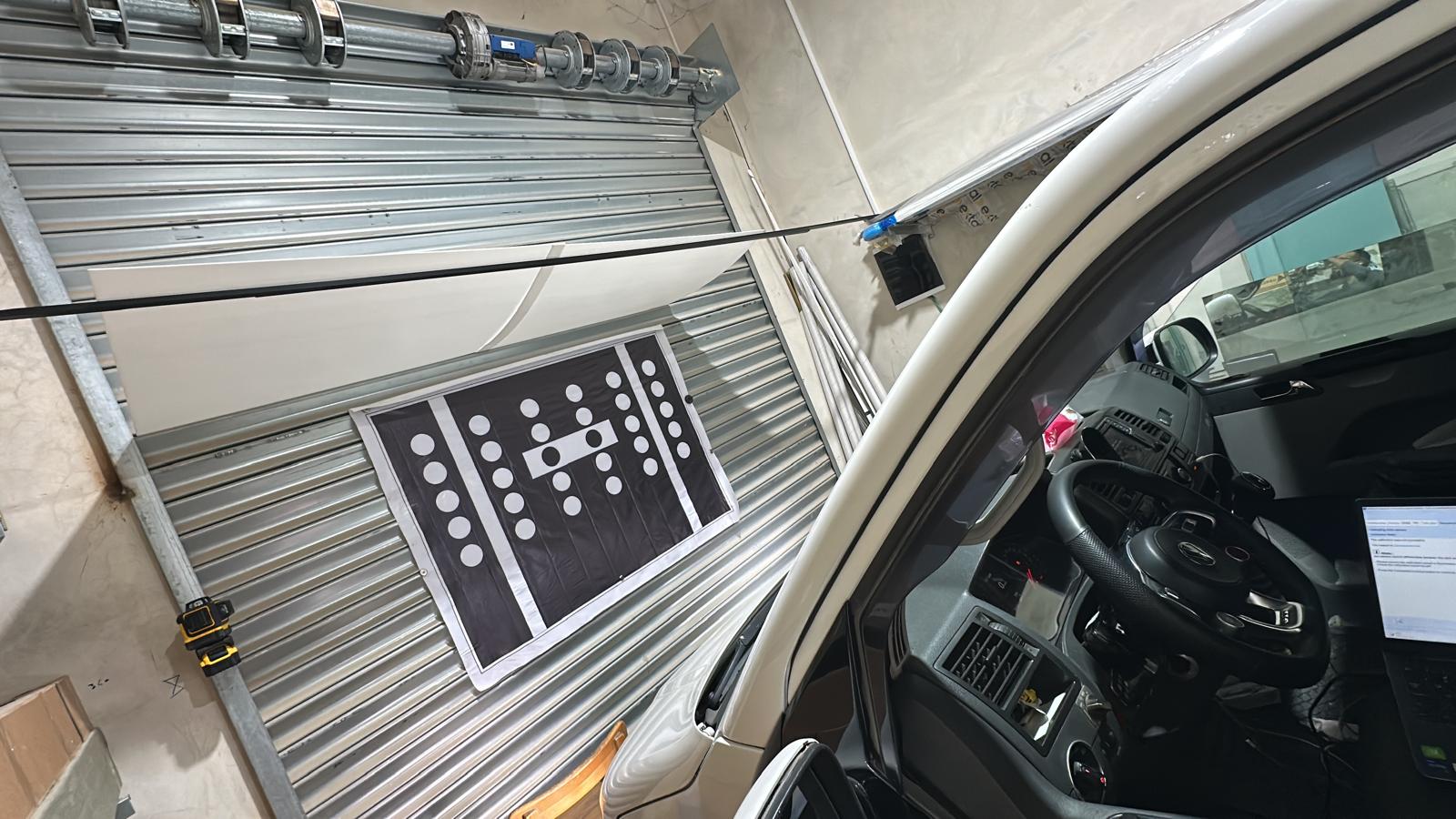

Hello all, yesterday I have a free time, so have started to try to calibrate A5, the light in my work shop was too bright so I had to dim it
After a couple of try's I got this faul :-
when I saw it I double checked the glass transparency in front of the camera

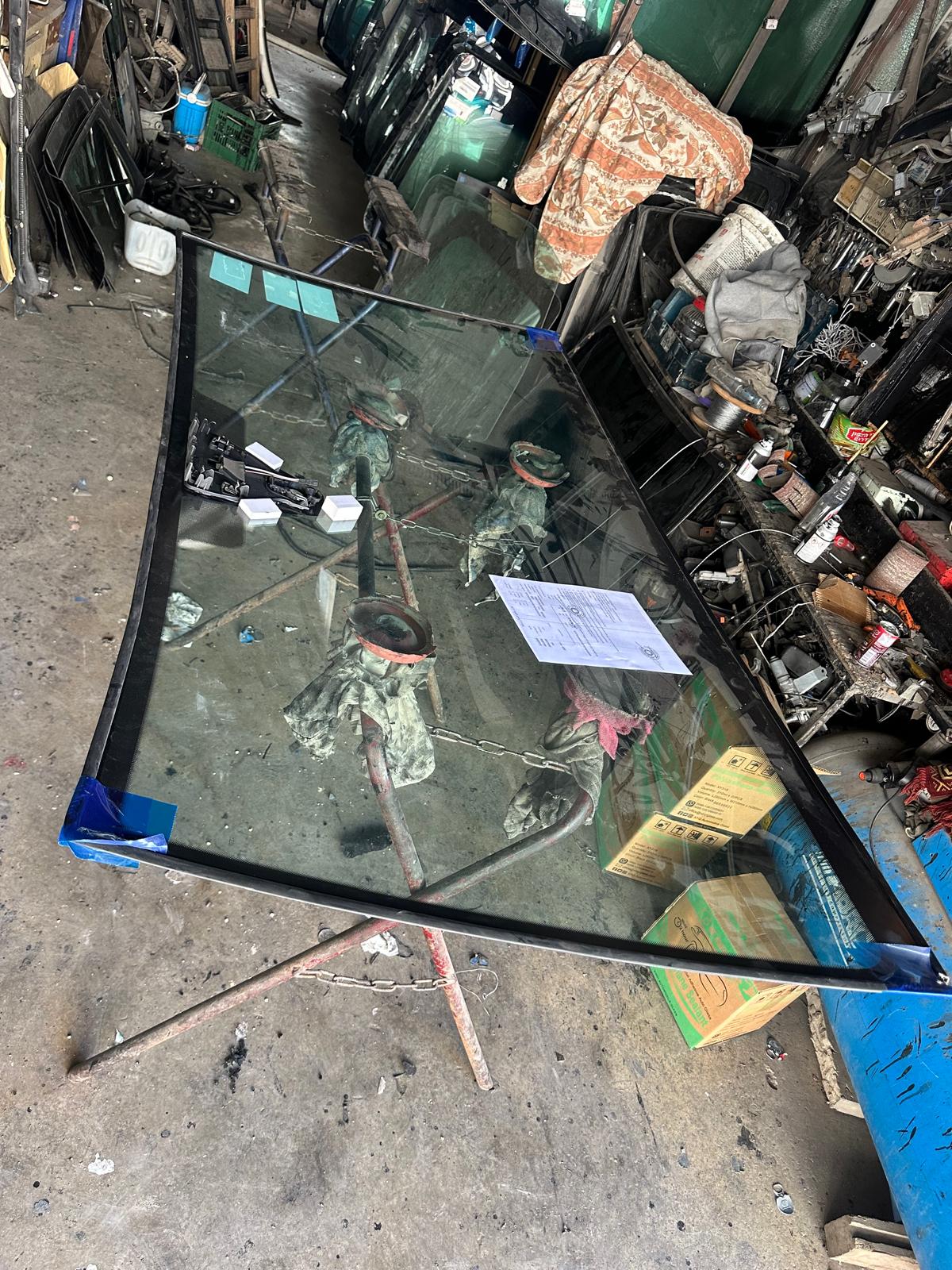

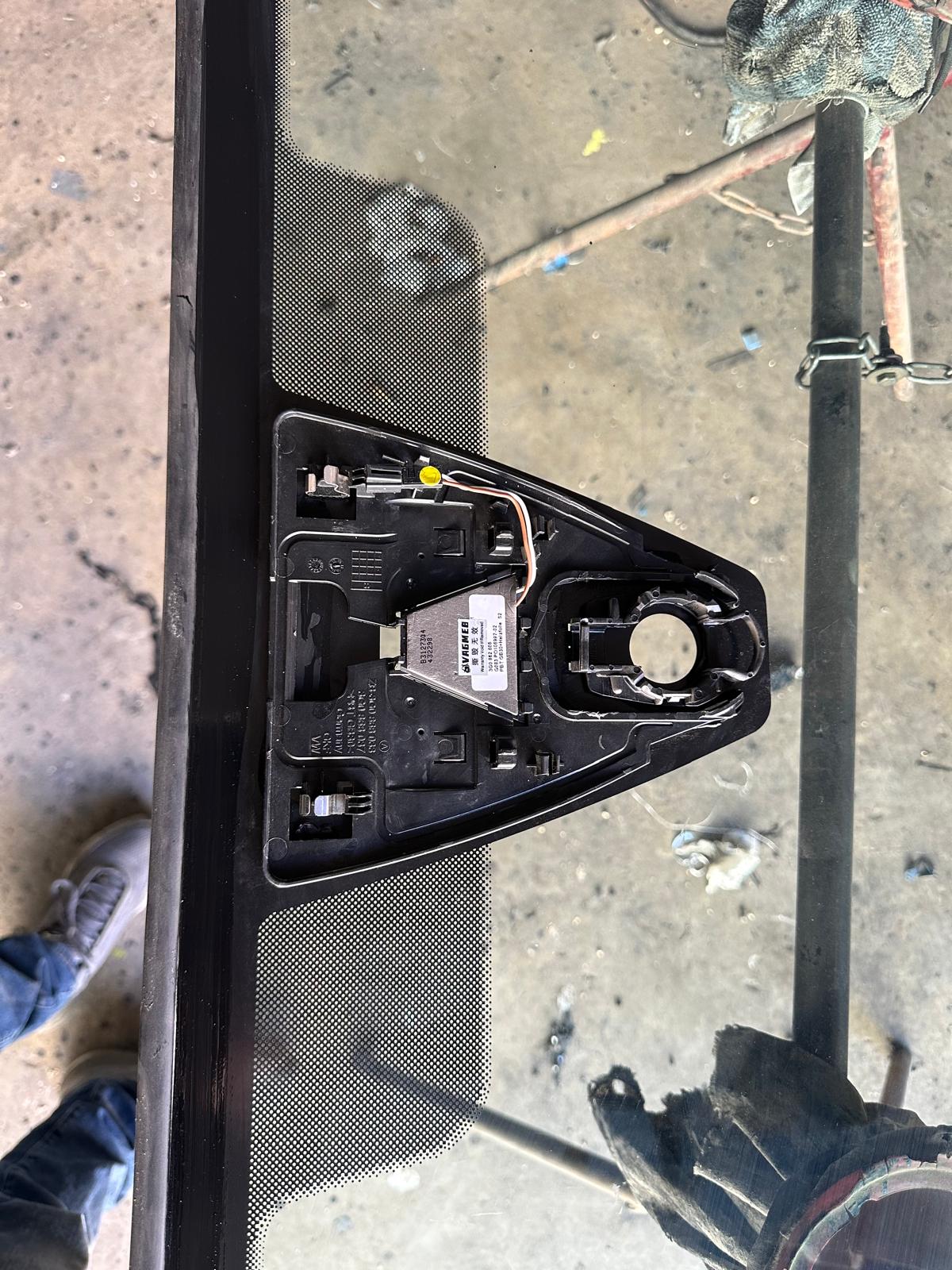

I could say its not 100% clear, Saw I have decided to change my front windshield to T6.1 with Camera bracket, then modify the bracket to fit 3Q0 Camera
This will take some time
- IMG-20241025-WA0009.jpg (236.25 KiB) Viewed 5369 times
- IMG-20241025-WA0007.jpg (216.34 KiB) Viewed 5369 times

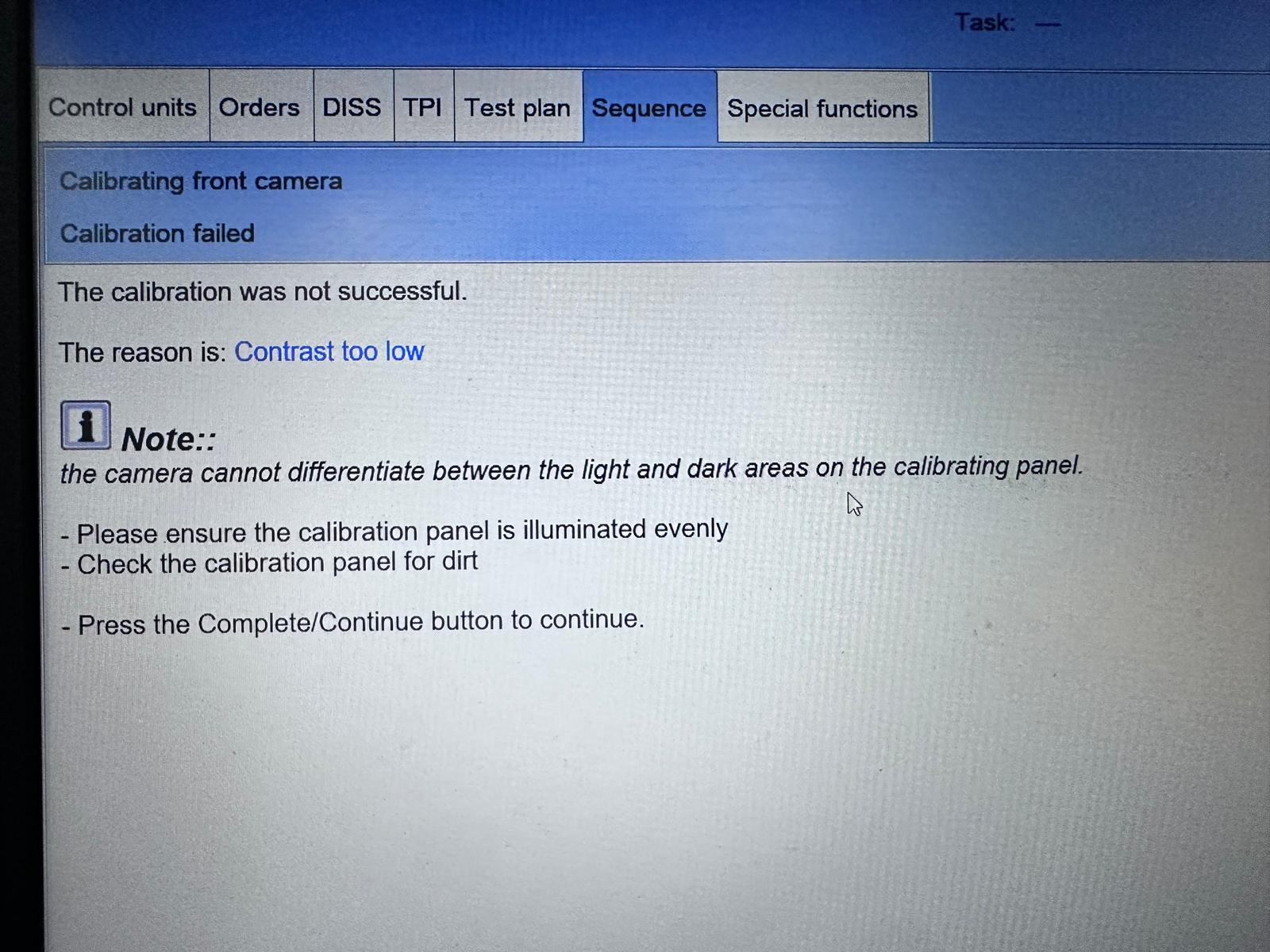

After a couple of try's I got this faul :-
- IMG-20241025-WA0004.jpg (225.74 KiB) Viewed 5369 times

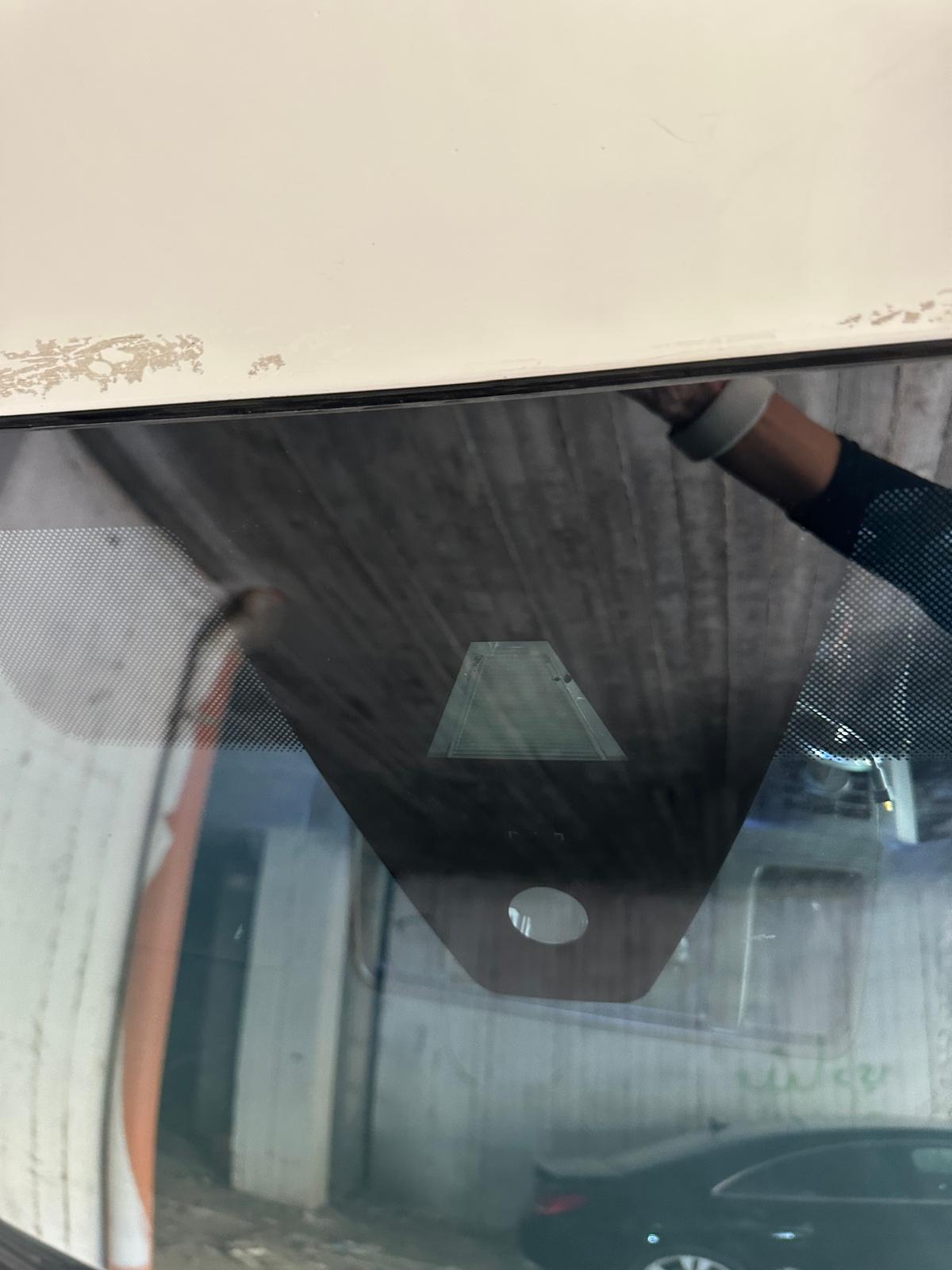

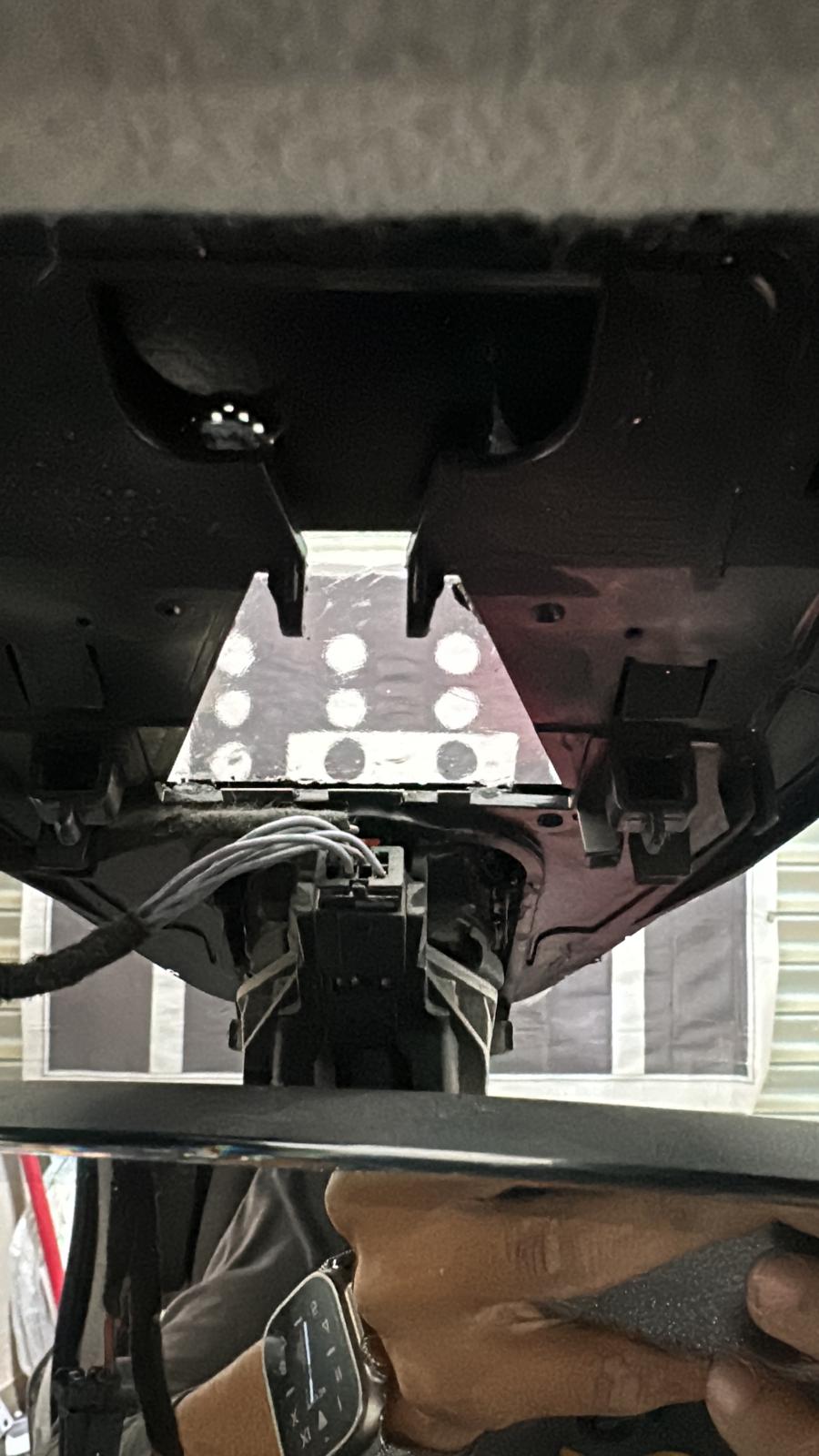

when I saw it I double checked the glass transparency in front of the camera
- IMG-20241025-WA0006.jpg (133.78 KiB) Viewed 5369 times
I could say its not 100% clear, Saw I have decided to change my front windshield to T6.1 with Camera bracket, then modify the bracket to fit 3Q0 Camera
This will take some time
-
Shadow109
- Bronze Member
- Posts: 152
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
Regrading Adapting 1S0 BCM :-
this is a scan after coding and adapting key to the new BCM :-
this First two things that I had immediately noticed that the MFSW is not working at all, According to egor LC 29,06 needed to be checked in coding for mfsw to work
after some try's it seems impossible to activate it
the second thing kessy had a fualt with kessy wake-up line (short to ground)
the only thing that maybe a good sign was the fault the can getaway, it seems that this BCM had a totally different Eeprom

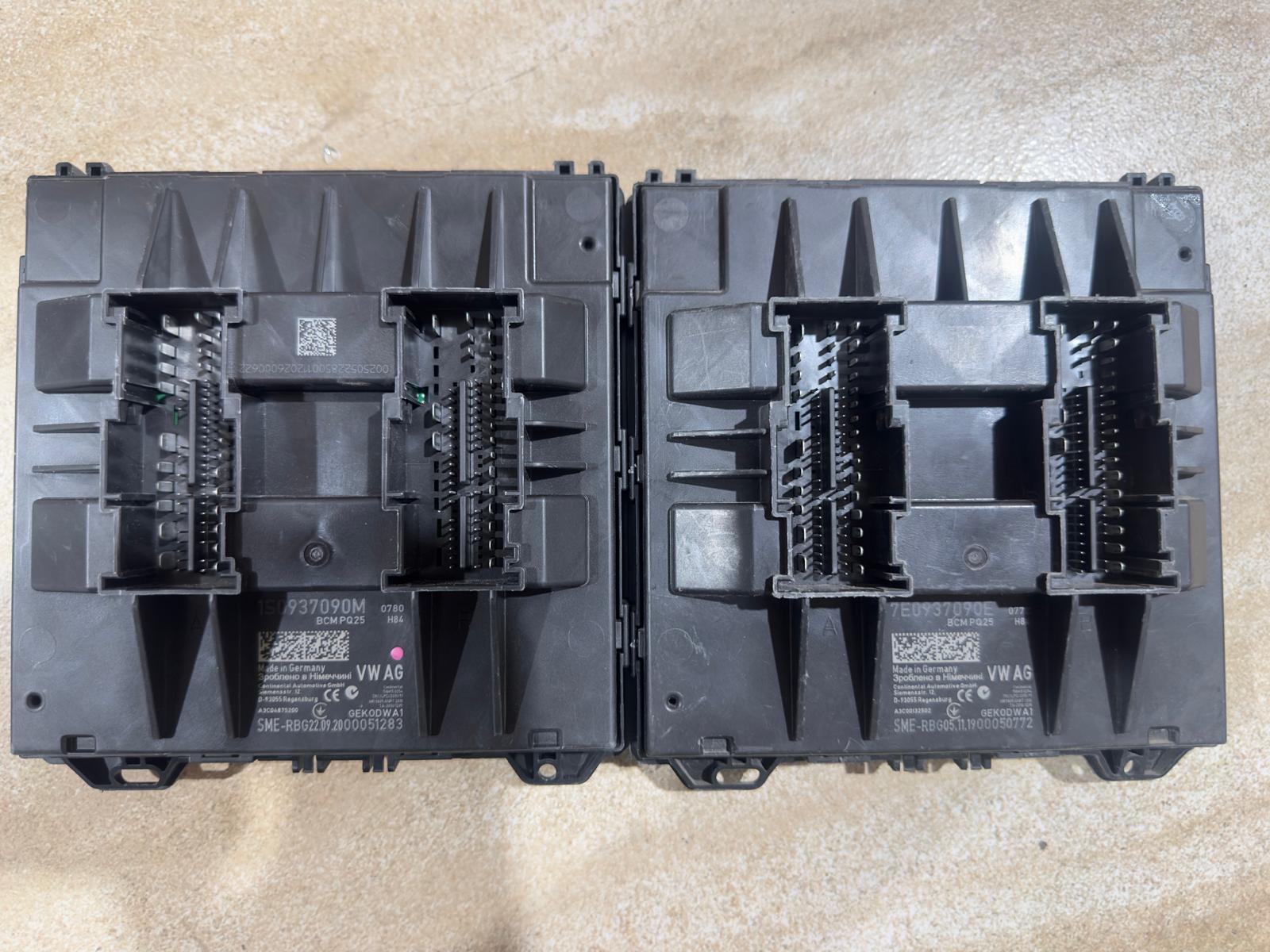

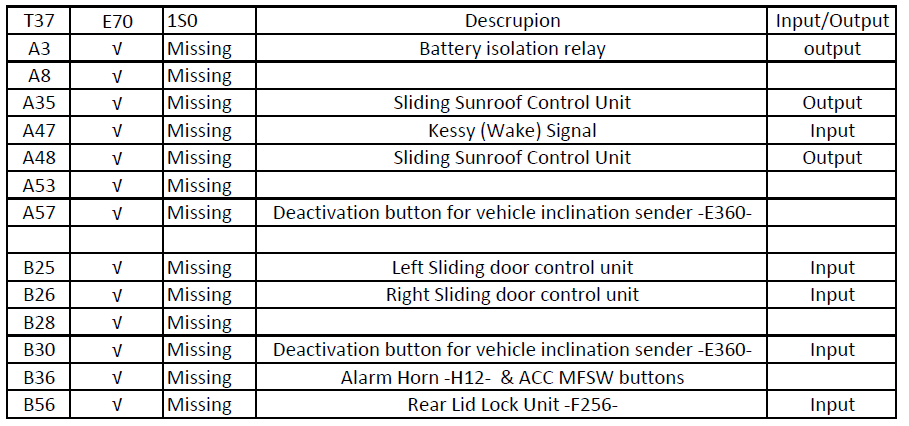

at this moment I decided to Compare the Pins On both 7E0..H84 and 1S0..H84
I was chocked
A lot of missing pins..
I think this is a dead end for this BCM, 7E0 is way alot better to stick with
this is a scan after coding and adapting key to the new BCM :-
Code: Select all
Thursday,24,October,2024,21:59:31:22797
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 24.7.1.0 (x64) HEX-NET2 CB: 0.4643.5
Data version: 20240919 DS356.3
www.Ross-Tech.com
VIN: WV1ZZZ7HZDH036544 License Plate:
Chassis Type: 7H-VN75 (1S0)
Scan: 01 03 05 08 09 10 13 14 15 17 19 20 25 2B 37 3C 44 47 55 56
5F 61 65 6C 77 A5
VIN: WV1ZZZ7HZDH036544 Mileage: 349330km-217063miles
01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: Malfunction 0010
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: Malfunction 0010
13-Auto Dist. Reg -- Status: OK 0000
14-Susp. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
37-Navigation -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
47-Sound System -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
77-Telephone -- Status: OK 0000
A5-Frt Sens. Drv. Assist -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAC) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GQ HW: 03L 907 309 L
Component: R4 2.0l TDI H34 9977
Revision: 22H34--- Serial number: 00000000000000 CVN: 714DC616
Coding: 01114012234401080000
Shop #: WSC 43690 085 12345
ASAM Dataset: EV_ECM20TDI01103L906019GQ 004006
ROD: EV_ECM20TDI01103L906019FH_003.rod
VCID: 80526D179A8613DADFB-80D4
VINID: 9E606AAAA1D8A946000C6144105E5FB8A3
4 Faults Found:
7144 - Please Check DTC Memory in CAN Gateway (J533)
U1008 00 [00100111] - -
[Diagnostic interface for data busRead out DTC]
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:47:13
Engine RPM: 858.00 /min
Normed load value: 54.1 %
Vehicle speed: 0 km/h
Coolant temperature: 70 C
Intake air temperature: 31 C
Ambient air pressure: 930 mbar
Voltage terminal 30: 14.040 V
Unlearning counter according OBD: 40
ACC specified acceleration: 0.000 m/s
ACC control module: received status-Bits 0-7: 7
Active brake system error status-Bits 0-7: 0
Status of ACC/CCS acceleration interface-Bits 0-7: 3
Acceleration: 0.000 m/s
Engine status: COENG_RUNNING
Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 3
16703 - Gear Reconition Sensor
P181C 00 [00100111] - Implausbile Signal
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:39
Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 95 C
Intake air temperature: 36 C
Ambient air pressure: 930 mbar
Voltage terminal 30: 12.200 V
Unlearning counter according OBD: 40
Neutral position sensor: current transmission angle: 20.00
Neutral position sensor: adapted transmission angle: 0.00
Adaptation status of neutral position sensor-Bits 0-7: 4
Transmission neutral position sensor voltage: 0 mV
Neutral position sensor: upper adaptation value: 0 mV
Neutral position sensor: lower adaptation value: 0 mV
4483 - Function Restriction due to Faults in Other Modules
U1113 00 [00100111] - -
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:38
Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 95 C
Intake air temperature: 36 C
Ambient air pressure: 930 mbar
Voltage terminal 30: 12.200 V
Unlearning counter according OBD: 40
Cruise Control System (CCS): switch position-Bits 0-7: 64
Cruise Control System (CCS): status-Bits 0-7: 208
Cruise control switch-off: irreversible-Bits 0-7: 255
Cruise control switch-off: reversible-Bits 0-7: 255
Cruise Control System: specified speed: 0.00 km/h
Engine control module reset status-Bits 0-7: 0
Engine control module reset status-Bits 0-7: 2
Cruise control switch-off: irreversible w. brake intervention-Bits 0-7: 0
10092 - Neutral Gear Sensor
P15A0 00 [00100111] - Electrical Malfunction
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:39
Engine RPM: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 95 C
Intake air temperature: 36 C
Ambient air pressure: 930 mbar
Voltage terminal 30: 12.200 V
Unlearning counter according OBD: 40
Neutral position sensor: current transmission angle: 20.00
Neutral position sensor: adapted transmission angle: 0.00
Adaptation status of neutral position sensor-Bits 0-7: 4
Transmission neutral position sensor voltage: 0 mV
Neutral position sensor: upper adaptation value: 0 mV
Neutral position sensor: lower adaptation value: 0 mV
Readiness: 0 0 0 0 0
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 Q HW: 7E0 907 379 N
Component: ESC H06 0133
Revision: 00000000 Serial number: 62787000000113
Coding: 307E4098256586840C7A027AA486612F38F555
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: C0D2AD17DA06D3DA9FB-8094
No fault code found.
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518) Labels:. 5K0-959-434.clb
Part No SW: 5K0 959 434 H HW: 5K0 959 434
Component: VWKESSYPQ35GP 093 1305
Revision: 00093000 Serial number: 0467921560
Coding: 032C1C
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_KESSYPQ35G A02720
ROD: N/A
VCID: BA26DFFFBCDA890AD1F-80EE
No ASAM data for: "EV_KESSYPQ35G" (VN75)
1 Fault Found:
1069319 - ROD - Unknown Error Code
- 00 [00001001]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:01:34
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 AK HW: 7E5 907 047 AK
Component: Climatic-T5 H11 0203
Revision: 00001005
Coding: 0000000002
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis_VN75.rod
VCID: F8A205F7C2565B1AE7B-80AC
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 1S0-937-09x-V2.clb
Part No SW: 1S0 937 090 M HW: 1S0 937 090 M
Component: BCM PQ25 1MX4 H84 0780
Revision: BW084001 Serial number: 5200 260200622
Coding: 22B03D3E4EFF201001280F816EEB9FDDFF86660F608D79C03304503F0801
Shop #: WSC 31414 133 00001
VCID: BD2CD4E3AD74BE32F4D-80E8
Subsystem 1 - Part No: 5K7 955 559 B Labels: 5K7-955-559.CLB
Component: RLS 230916 03 37 0059
Coding: 0228EE
Subsystem 2 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 3 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
1 Fault Found:
01326 - Control Module for Multi-Function Steering Wheel (J453)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Time Indication: 0
Date: 2024.10.24.
Time: 04:00:39
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 5Q0-919-294.clb
Part No SW: 1K8 919 472 C HW: 5Q0 919 294 A
Component: PARKHILFE 8K H03 0480
Revision: -------- Serial number: 39331817601496
Coding: 0041155041
Shop #: WSC 21890 003 104857
ASAM Dataset: EV_EPHVA18VW364GP00 001007
ROD: EV_EPHVA18VW364GP00_VW32.rod
VCID: B720C6CB8FC894622E1-80E2
1 Fault Found:
12718592 - Databus
U1121 00 [00001000] - Missing Message
[Steuerger t f r Lenks ulenelektronik-J527/BCM - mZAS_1 - kein Signal/keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:37
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 7N0-907-572.clb
Part No SW: 7N0 907 572 C HW: 7E0 907 572
Component: ACC Bosch PQx H03 0211
Serial number: 1909180453A6EF Dataset Number: ACC_MRRevo1 0001
Coding: 00004000FE0779
Shop #: WSC 01383 790 50316
ASAM Dataset: EV_ACCBEGVW361 001006
ROD: EV_ACCBEGVW361.rod
VCID: B63ECBCF88C26D6A357-80E2
4 Faults Found:
0101 - Steering Column Control Module
B105D F0 [00001001] - Incorrectly Coded
[FAULT_CIS_GRA_CODE]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:37
Control Module temperature: 30 C
Voltage terminal 15: 12.1 V
Vehicle speed: 0.00 m/s
Acceleration: 0.00 m/s
0100 - Steering Column Control Module
B105D 00 [00001001] - -
[FAULT_CIS_GRA_TYPE]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:37
Control Module temperature: 30 C
Voltage terminal 15: 12.1 V
Vehicle speed: 0.00 m/s
Acceleration: 0.00 m/s
1090 - Databus
U1123 00 [00001001] - Received Error Message
[FAULT_CIS_OP_FAIL]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:39
Control Module temperature: 30 C
Voltage terminal 15: 12.1 V
Vehicle speed: 0.00 m/s
Acceleration: 0.00 m/s
1043 - Automatic Distance Control
B10E7 F0 [00001001] - Disconnected
[FAULT_CIS_TSK_IRREV_FAIL]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:37
Control Module temperature: 30 C
Voltage terminal 15: 12.1 V
Vehicle speed: 0.00 m/s
Acceleration: 0.00 m/s
-------------------------------------------------------------------------------
Address 14: Susp. Elect. (J250) Labels:. 3C0-907-376.clb
Part No SW: 3C0 907 376 A HW: 3C0 907 376
Component: DAEMPFUNGS-SG H07 0071
Revision: 00000000 Serial number: 12030906320002
Coding: 030180
Shop #: WSC 00046 000 00000
VCID: A700168B5FE804E2BE1-80F2
3 Faults Found:
01319 - Control Module for Distance Control (J428)
013 - Check DTC Memory
Freeze Frame:
Fault Status: 01101101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Time Indication: 0
Date: 2024.10.24.
Time: 04:00:34
Freeze Frame:
Bin. Bits: 00000000 00000001
03262 - Comfort Restriction
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Time Indication: 0
Date: 2024.10.24.
Time: 04:00:35
Freeze Frame:
Error Code: 2
Bin. Bits: 00000000
01769 - Sensor for Vehicle Leveling; Front Right (G289)
010 - Open or Short to Plus
Freeze Frame:
Fault Status: 01101010
Fault Priority: 2
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Time Indication: 0
Date: 2024.10.24.
Time: 04:00:34
Freeze Frame:
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 D HW: 7E0 959 655 D
Component: VW10Airbag00G 008 0016
Revision: -------- Serial number: 003PH0013MB$ Dataset Number: 7E0003V____ 0735
Coding: 000000000000000000000000000000003047
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: B720C6CB8FC894622E1-80E2
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 980 S HW: 7E0 920 980 S
Component: KOMBI H04 1109
Serial number: 00000000000000
Coding: 140E230B00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
VCID: BB28DAFBB3E0B002CA9-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 1S0 909 901 HW: 1S0 937 090 M
Component: GW-K-CAN TP20 H84 0780
Revision: BW084001
Coding: 04220F
Shop #: WSC 31414 133 00001
VCID: F0B23DD7AAA6035A2FB-80A4
1 Fault Found:
03389 - Data Set Implausible
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Time Indication: 0
Date: 2024.10.24.
Time: 04:05:23
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:| 8S0-857-511.clb
Part No SW: 7E0 857 511 G HW: 7E0 857 511 E
Component: FLA H10 0003
Revision: AA001001
Coding: 010100E200000100000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_HighBeamAssisAU316 001004
ROD: EV_HighBeamAssisAU316_VW32.rod
VCID: AE0EE3AF709255AA7D7-80FA
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 1109
Serial number:
Coding: 000007
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW23.rod
VCID: EA862FBF8CFAF98A61F-80BE
No fault code found.
-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764) Labels:* 5K0-905-861.clb
Part No SW: 5K0 905 861 C HW: 5K0 905 861 C
Component: ELV-PQ35 H21 0240
Revision: 00000000 Serial number: 14000305204001
Coding: 4100000000000000
Shop #: WSC 00066 790 50316
ASAM Dataset: EV_ELVMarquMPVW36X A01001
ROD: EV_ELVMarquMPVW36X_VW32.rod
VCID: B032FDD76AA6435A6FB-80E4
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached
-------------------------------------------------------------------------------
Address 3C: Lane Change (J1086) Labels: Redir Fail!
Part No SW: 2Q0 907 686 B HW: 2Q0 907 686 B
Component: HRE3_Kl15_Mst H06 0150
Serial number: 14520003983159 Dataset Number: V03935303MB 0001
Coding: 529524A0
ASAM Dataset: EV_HREntryHellaGen3Kl15 002001
ROD: N/A
VCID: B924C0F3B9DC8212D85-80EC
Subsystem 1 - Part No SW: 2Q0 907 685 B HW: 2Q0 907 685 B
Component: HRE3_Kl15_Slv H06 0150
Serial number: 14520003959660
No ASAM data for: "EV_HREntryHellaGen3Kl15" (VN75)
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J792) Labels:| 2Qx-909-144-V2.clb
Part No SW: 2Q1 909 144 T HW: 2Q1 909 144 F
Component: TRW_G4L_MQBA0 611 6213
Serial number: 01478032CP3L073
Coding: 000000000100000000000200010001000000010001
ASAM Dataset: EV_SteerAssisZFGen1PQ12PA 002002
ROD: EV_SteerAssisZFGen1PQ12PA.rod
VCID: C3D8A21BCB10C8C2829-8096
No fault code found.
-------------------------------------------------------------------------------
Address 47: Sound System (R184) Labels: 5K0-035-456.clb
Part No SW: 3AA 035 466 HW: 3AA 035 466
Component: KonzernAmp12K H03 6904
Revision: -------- Serial number: A1108A00007925 Dataset Number: 360050v____ 0004
ASAM Dataset: EV_AudioVerst12KanalSTT1 001001
ROD: EV_AudioVerst12KanalSTT1_VW36.rod
VCID: ED8C24A3BD14EEB204D-80B8
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: -------------- Dataset Number: V03600097E0 0001
Coding: 0FC6020001000000
Shop #: WSC 02748 790 50316
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: BA26DFFFBCDA890AD1F-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0480
Serial number: VWZAZ2U1668085 Dataset Number: V00000000VW 0001
Coding: 0645000FBE00000011110006010D08001F0103C401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: A51C1C83256416F28CD-80F0
Data carrier:
Subsystem 1 - Part No SW: V03 959 820 DC HW: -----------
Component: MRM DL2 23/24 --- 2010
Serial number: --------------------
5 Faults Found:
1553 - Function Restriction
B200D F0 [00001001] - due to Internal Communcations Error
[Function restriction due to internal communication error: optical drive (fitted)]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:29:43
Voltage terminal 30: 12.4 V
1555 - Check Software Version Management
B201A 00 [00001001] - -
[Check software version management]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:36
Voltage terminal 30: 12.1 V
Status_Software_Version_Management-module_name:
1556 - Internal Control Module Memory Check Sum Error
B2000 87 [00001001] - Missing Message
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:45:31
Voltage terminal 30: 12.1 V
System_Software_Error-SW_Status_Consistency: 04 01 01
System_Software_Error-SW_Status_Device: o
15360768 - Component Protection
U1101 00 [00001001] - Active
[Anti-theft protection - component protection active (0xEA6300)]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:00:36
Voltage terminal 30: 12.1 V
2562 - Navigation System
B126C F0 [00001001] - Navigation Database Faulty
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:29:40
Voltage terminal 30: 12.4 V
-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 1S0 907 534 HW: 1S0 937 090 M
Component: Batt.regelung H84 0780
Serial number: 5200 260200622
Coding: 17820873
Shop #: WSC 31414 790 00001
VCID: F0B23DD7AAA6035A2FB-80A4
Subsystem 1 - Part No SW: 7E0 915 181 G HW: 7E0 915 181 G
Component: J367-BDM H08 0223
Serial number: 62309D31111261021812
No fault code found.
-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502) Labels: 3AA-907-273.clb
Part No SW: 3AA 907 273 F HW: 5Q0 907 273
Component: RDKBERU30 H04 0011
Serial number: 30000000047437
ASAM Dataset: EV_RDKBERU30 005005
ROD: EV_RDKBERU30_005.rod
VCID: B720C6CB8FC894622E1-80E2
No fault code found.
-------------------------------------------------------------------------------
Address 6C: Back-up Cam. (J772) Labels:| 5Q0-980-556.clb
Part No SW: 5Q0 980 556 B HW: 5Q0 980 556 B
Component: RVC Compact H18 0231
Dataset Number: V03935257YE 0001
Coding: 047300010600041F000040
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_CamSysRVRVCPANAMQBAB 006009
ROD: EV_CamSysRVRVCPANAMQBAB_006_VW37.rod
VCID: B924C0F3B9DC8212D85-80EC
1 Fault Found:
10489856 - No Basic Setting
B2010 00 [00001001] - -
[RearView system not calibrated]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 5
Fault Frequency: 1
Reset counter: 250
Mileage: 150182 km
Date: 2024.01.14
Time: 14:07:40
passive
-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached
-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist (R242) Labels:| 3Q0-980-65X-A5.clb
Part No SW: 3Q0 980 654 P HW: 3Q0 980 654 A
Component: MQB_B_MFK H14 0821
Serial number: 04112012P13717 Dataset Number: V03935308DF 0001
Coding: 01020706020004010002105481D6840084000E01002000
Shop #: WSC 31414 137 00001
ASAM Dataset: EV_MFKBoschMQBB 002041
ROD: EV_MFKBoschMQBB_002.rod
VCID: C4DAA107CE1ECFFABB3-8090
2 Faults Found:
0663 - Control Module For Camera
C110A 76 [00001001] - Incorrect Mounting Position
[Initial_calibration_out_of_range]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 2
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:10:32
Control Module temperature: 37 C
Outside temperature: 19.0 C
Vehicle speed: 0.00 km/h
System run time: 974.8 s
Voltage terminal 15: 12.1 V
mid: 00 1C
Status of camera: System malfunction
Engine_Running_Info: 0
Software_Info_4: 1
Software_Info_3: 2
Software_Info_2: 8
Software_Info_1: 0
0660 - No Basic Setting
B2010 00 [00001001] - -
[Initial_calibration_missing]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 2
Reset counter: 190
Mileage: 349323 km
Date: 2024.10.24.
Time: 04:10:32
Control Module temperature: 37 C
Outside temperature: 19.0 C
Vehicle speed: 0.00 km/h
System run time: 974.8 s
Voltage terminal 15: 12.1 V
mid: 00 1E
Status of camera: System malfunction
Engine_Running_Info: 0
Software_Info_4: 1
Software_Info_3: 2
Software_Info_2: 8
Software_Info_1: 0
End----------(Elapsed Time: 02:02, VBatt start/end: 12.7V/12.7V)-----------
after some try's it seems impossible to activate it
the second thing kessy had a fualt with kessy wake-up line (short to ground)
the only thing that maybe a good sign was the fault the can getaway, it seems that this BCM had a totally different Eeprom
at this moment I decided to Compare the Pins On both 7E0..H84 and 1S0..H84
I was chocked
- WhatsApp Image 2024-10-25 at 09.49.16_9e498843.jpg (242.37 KiB) Viewed 5364 times
- Screenshot 2024-10-25 084251.png (62.04 KiB) Viewed 5365 times
I think this is a dead end for this BCM, 7E0 is way alot better to stick with
-
Shadow109
- Bronze Member
- Posts: 152
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013

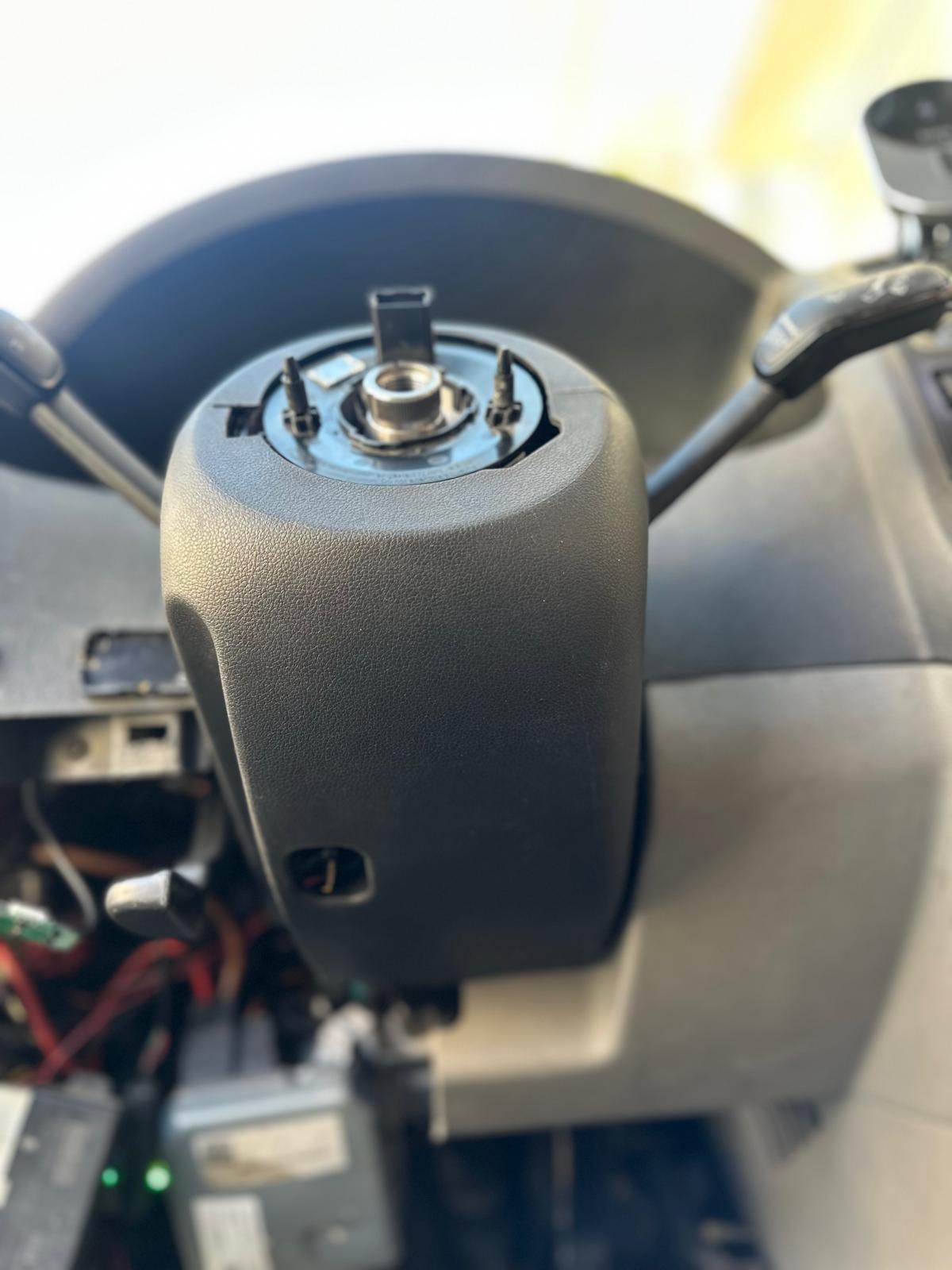

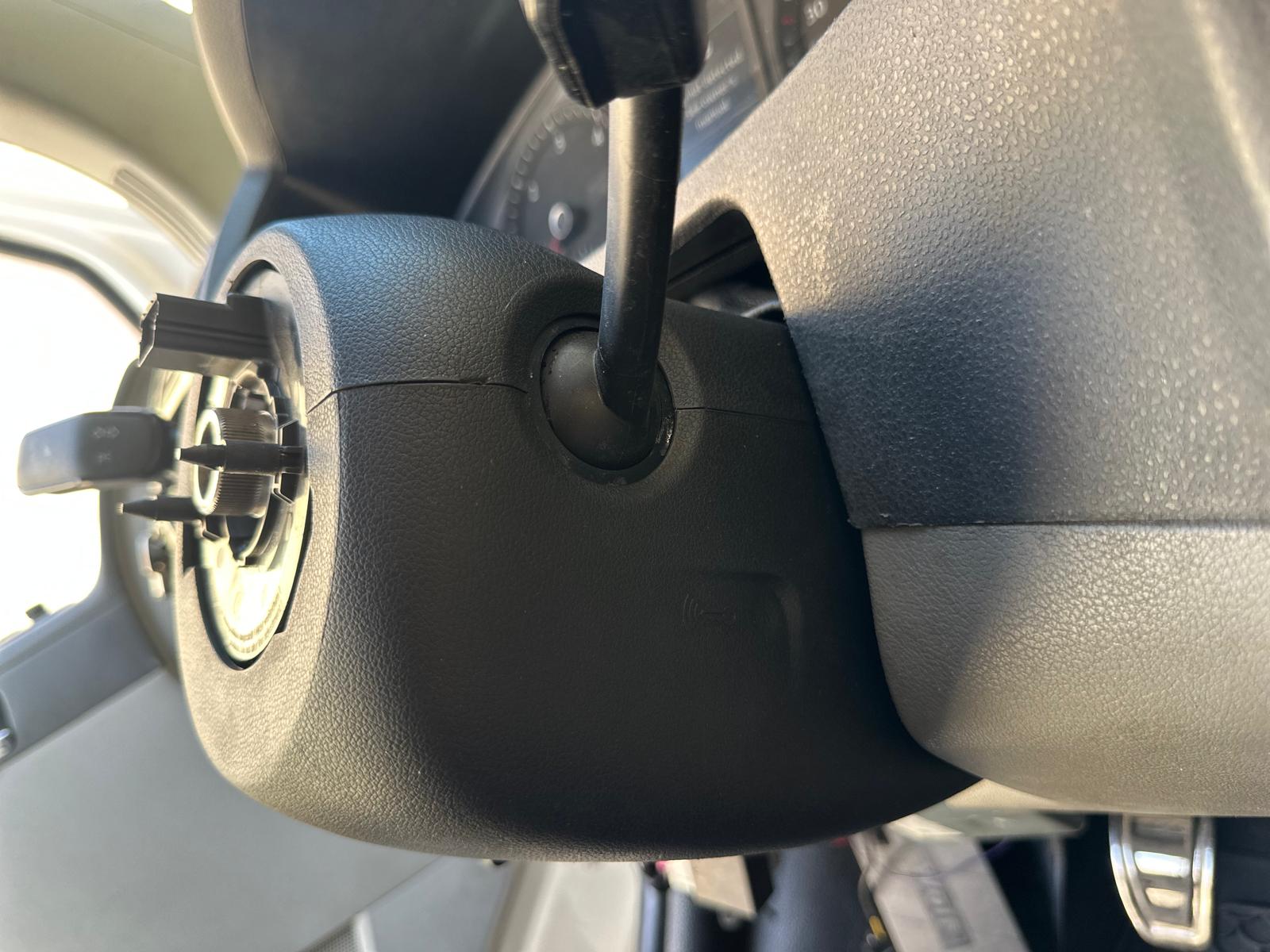

A new Trim for steering column :-
this trim is from VW Ateron PR: 3G0858559D
the reason why I choose this trim is because it had palce for the adjustment handle (similar to T5) as the handle in my current steeing column will disturb the dash lower cover
I hope is will fit perfectly or I will have to make my own handle
- IMG-20241030-WA0036.jpg (121.22 KiB) Viewed 4644 times
- IMG-20241030-WA0037.jpg (203.5 KiB) Viewed 4644 times

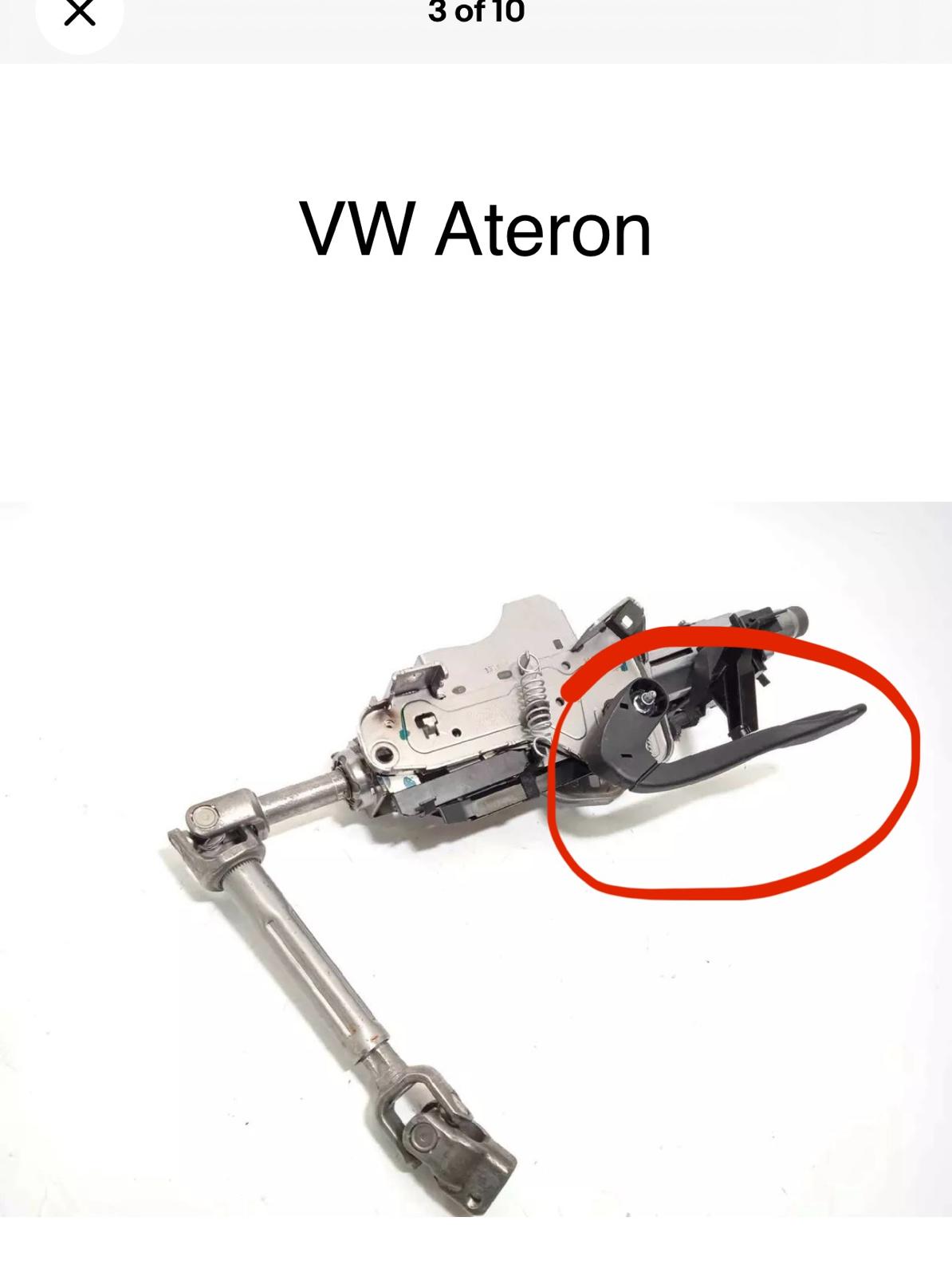

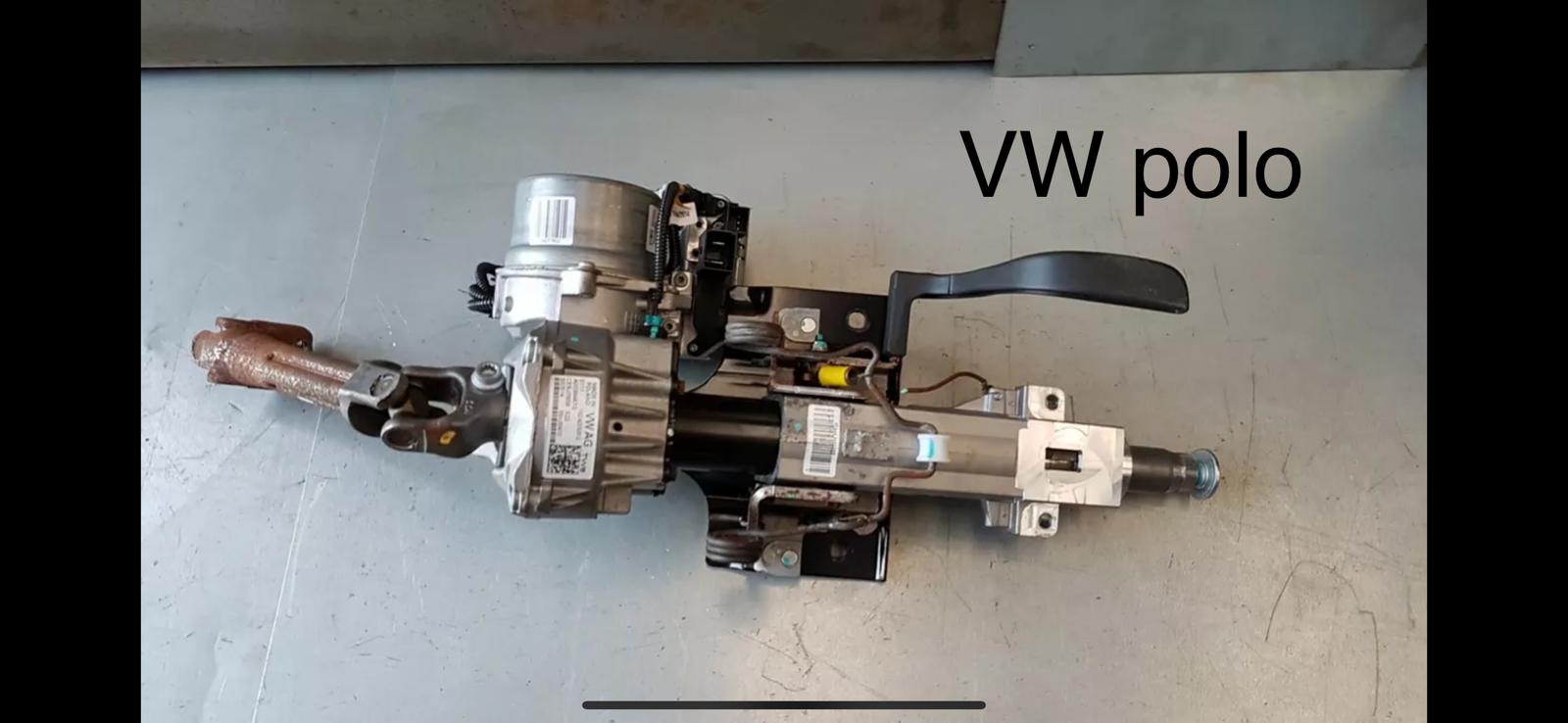

this trim is from VW Ateron PR: 3G0858559D
the reason why I choose this trim is because it had palce for the adjustment handle (similar to T5) as the handle in my current steeing column will disturb the dash lower cover
- WhatsApp Image 2024-10-30 at 21.06.21_fe1ba9f4.jpg (67.91 KiB) Viewed 4644 times
- WhatsApp Image 2024-10-30 at 21.06.21_ca398729.jpg (80.57 KiB) Viewed 4644 times
-
Shadow109
- Bronze Member
- Posts: 152
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
Sine MFSW via Lin horn had worked with Egor after he flashed 7E0 BCM to 1S0, this means that the flash itself is not missing the data only the physical pins, So I am thinking maybe we should try flashing 7E0 with 1S0 SW then copying EEPROM from the original 1S0 BCM to the new one..
Anyone had experience with reading full EEPROM from a PQ25 BCM??
I know VCP or odis-E could help
This video explains how to read EEPROM from pq35 bcm, unfortunately it doesn’t work for pq25 :-
https://youtu.be/rYAKHxwtZVM?si=4lCKRwdyBDHribtC
Anyone had experience with reading full EEPROM from a PQ25 BCM??
I know VCP or odis-E could help
This video explains how to read EEPROM from pq35 bcm, unfortunately it doesn’t work for pq25 :-
https://youtu.be/rYAKHxwtZVM?si=4lCKRwdyBDHribtC
-
til3tsio
- Getting There!
- Posts: 89
- Joined: Thu Feb 11, 2021 10:53 pm
- Drives: Seat Toledo KG
- Location: Greece
Re: BCM Max Transporter 2013
I have original vcp.
It has a PQ25 parameters editor.
But I dont have access to 1S0...M bcm to see the parameters
It has a PQ25 parameters editor.
But I dont have access to 1S0...M bcm to see the parameters
-
Shadow109
- Bronze Member
- Posts: 152
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
replacing the front windshield :-
after replacing the windshield I had modified the camera parameters in adaptions, the basic settings fault had disappeared
the Suprise was that the lana assist started to work on the dashboard CAnbus, but sadly there is no notification on the dashboard about lane assist at all
https://youtube.com/shorts/gFeS2VHeYW8? ... aRnIIXqqBl
still need more digging to try to display it on the dashboard
- WhatsApp Image 2024-11-17 at 09.19.20_ecadbd6e.jpg (410.84 KiB) Viewed 4354 times
- WhatsApp Image 2024-11-17 at 09.19.20_fe6ebcef.jpg (309.55 KiB) Viewed 4354 times
- WhatsApp Image 2024-11-17 at 09.19.20_19906f7f.jpg (111.98 KiB) Viewed 4354 times
the Suprise was that the lana assist started to work on the dashboard CAnbus, but sadly there is no notification on the dashboard about lane assist at all
https://youtube.com/shorts/gFeS2VHeYW8? ... aRnIIXqqBl
still need more digging to try to display it on the dashboard
-
til3tsio
- Getting There!
- Posts: 89
- Joined: Thu Feb 11, 2021 10:53 pm
- Drives: Seat Toledo KG
- Location: Greece
Re: BCM Max Transporter 2013
That's great !
Can you clarify :
1. with what bcm / software combination did you manage to succeed
2. How do you control the assistant, I suppose you wired a button to act as the assistant button on UP!
3. Do you have the appropriate indicators soldered in your cluster ? Is your eeprom activated for the assistant as on pq35 ?
Can you clarify :
1. with what bcm / software combination did you manage to succeed
2. How do you control the assistant, I suppose you wired a button to act as the assistant button on UP!
3. Do you have the appropriate indicators soldered in your cluster ? Is your eeprom activated for the assistant as on pq35 ?
-
Shadow109
- Bronze Member
- Posts: 152
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
1. I have used my usual BCM without Any changes
BCM : 7E0937090E H84 0772
Cluster: 7E0920980S H04 1109
2. I didn't installed the button yet
3. I have modified the eeprom for lane assist as pq35 but still no lane assist or sign assist menu, and sadly the T6 hadn't lane assist indicators in its dashboard
I have no fault for missing indicators, I don't get a worning on the dash when I remove my hands from the steering wheel
you can say that the cluster doesn't communicate with A5 at all
here is my last scan :-
BCM : 7E0937090E H84 0772
Cluster: 7E0920980S H04 1109
2. I didn't installed the button yet
3. I have modified the eeprom for lane assist as pq35 but still no lane assist or sign assist menu, and sadly the T6 hadn't lane assist indicators in its dashboard
I have no fault for missing indicators, I don't get a worning on the dash when I remove my hands from the steering wheel
you can say that the cluster doesn't communicate with A5 at all
here is my last scan :-
Code: Select all
Sunday,17,November,2024,17:02:58:22797
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 24.7.1.0 (x64) HEX-NET2 CB: 0.4643.5
Data version: 20240919 DS356.3
www.Ross-Tech.com
VIN: WV1ZZZ7HZDH036544 License Plate:
Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 05 08 09 10 13 14 15 17 19 20 25 2B 3C 44 47 55 5F
61 65 6C 6D A5 0B
VIN: WV1ZZZ7HZDH036544 Mileage: 352290km-218902miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
13-Auto Dist. Reg -- Status: OK 0000
14-Susp. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
47-Sound System -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
A5-Frt Sens. Drv. Assist -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAC) Labels:. 03L-906-022-CAA.clb
Part No SW: 03L 906 019 GQ HW: 03L 907 309 L
Component: R4 2.0l TDI H34 9977
Revision: 22H34--- Serial number: 00000000000000 CVN: 29387363
Coding: 01114012234401080000
Shop #: WSC 43690 085 00000
ASAM Dataset: EV_ECM20TDI01103L906019GQ 004006
ROD: EV_ECM20TDI01103L906019FH_003.rod
VCID: 80526D179A8613DADFB-80D4
VINID: 9E606AAAA1D8A946000C6144105E5FB8A3
No fault code found.
Readiness: 0 0 0 0 1
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 Q HW: 7E0 907 379 N
Component: ESC H06 0133
Revision: 00000000 Serial number: 62787000000113
Coding: 307E4098256586840C7A027AA486612F38F555
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: C0D2AD17DA06D3DA9FB-8094
No fault code found.
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518) Labels:. User\5K0-959-434.clb
Part No SW: 5K0 959 434 H HW: 5K0 959 434
Component: VWKESSYPQ35GP 093 1305
Revision: 00093000 Serial number: 0467921560
Coding: 032C1C
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_KESSYPQ35G A02720
ROD: N/A
VCID: BA26DFFFBCDA890AD1F-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 AK HW: 7E5 907 047 AK
Component: Climatic-T5 H11 0203
Revision: 00001005
Coding: 0000000002
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis_VN75.rod
VCID: F8A205F7C2565B1AE7B-80AC
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 E HW: 7E0 937 090 E
Component: BCM PQ25 Max4 H84 0772
Revision: B9084001 Serial number: 2502 306190145
Coding: 22B03D3E4EFF201281280F817EEB9FDDFF86660F608D79C073E4503F0860
Shop #: WSC 12345 123 61029
VCID: AD0CE4A37D142EB244D-80F8
Subsystem 1 - Part No: 5K7 955 559 B Labels: 5K7-955-559.CLB
Component: RLS 230916 03 37 0059
Coding: 0228EE
Subsystem 2 - Part No SW: 7E0 959 801 HW: 7E0 959 801 Labels: 7E0-959-80X-V1.CLB
Component: J386__TSG_FT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 3 - Part No SW: 7E0 959 802 HW: 7E0 959 802 Labels: 7E0-959-80X-V1.CLB
Component: J387__TSG_BT 002 3313
Serial number: --------------------
Coding: 000000
Subsystem 4 - Part No: 1K0 951 605 C
Component: LIN BACKUP HO H05 1501
Coding: 000000
Subsystem 5 - Part No SW: 7E0 959 442 A HW: 7E0 959 442 A
Component: E221__MFL-DC1 H02 0103
Serial number: 39180000000570018056
Coding: B4FFFF
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 5Q0-919-294.clb
Part No SW: 1K8 919 472 C HW: 5Q0 919 294 A
Component: PARKHILFE 8K H03 0480
Revision: -------- Serial number: 39331817601496
Coding: 0041155041
Shop #: WSC 21890 003 104857
ASAM Dataset: EV_EPHVA18VW364GP00 001007
ROD: EV_EPHVA18VW364GP00_VW32.rod
VCID: B720C6CB8FC894622E1-80E2
1 Fault Found:
12718592 - Databus
U1121 00 [00001001] - Missing Message
[Steuerger t f r Lenks ulenelektronik-J527/BCM - mZAS_1 - kein Signal/keine Kommunikation]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 229
Mileage: 352297 km
Date: 2024.11.17.
Time: 03:14:58
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 7N0-907-572.clb
Part No SW: 7N0 907 572 C HW: 7E0 907 572
Component: ACC Bosch PQx H03 0211
Serial number: 1909180453A6EF Dataset Number: ACC_MRRevo1 0001
Coding: 00004000FE0779
Shop #: WSC 01383 790 50316
ASAM Dataset: EV_ACCBEGVW361 001006
ROD: EV_ACCBEGVW361.rod
VCID: B63ECBCF88C26D6A357-80E2
No fault code found.
-------------------------------------------------------------------------------
Address 14: Susp. Elect. (J250) Labels:. 3C0-907-376.clb
Part No SW: 3C0 907 376 A HW: 3C0 907 376
Component: DAEMPFUNGS-SG H07 0071
Revision: 00000000 Serial number: 12030906320002
Coding: 030180
Shop #: WSC 00046 000 00000
VCID: A700168B5FE804E2BE1-80F2
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 D HW: 7E0 959 655 D
Component: VW10Airbag00G 008 0016
Revision: -------- Serial number: 003PH0013MB$ Dataset Number: 7E0003V____ 0735
Coding: 000000000000000000000000000000003047
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: B720C6CB8FC894622E1-80E2
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 980 S HW: 7E0 920 980 S
Component: KOMBI H04 1109
Serial number: 00000000000000
Coding: 140E230B00
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
VCID: BB28DAFBB3E0B002CA9-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 E
Component: GW-K-CAN TP20 H84 0772
Revision: B9084001
Coding: 04220F
Shop #: WSC 12345 123 61029
VCID: E88255B79276CB9A77B-80BC
No fault code found.
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:| 8S0-857-511.clb
Part No SW: 7E0 857 511 G HW: 7E0 857 511 E
Component: FLA H10 0003
Revision: AA001001
Coding: 010100E200000100000000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_HighBeamAssisAU316 001004
ROD: EV_HighBeamAssisAU316_VW32.rod
VCID: AE0EE3AF709255AA7D7-80FA
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 1109
Serial number:
Coding: 000007
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW23.rod
VCID: EA862FBF8CFAF98A61F-80BE
No fault code found.
-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764) Labels:* 5K0-905-861.clb
Part No SW: 5K0 905 861 C HW: 5K0 905 861 C
Component: ELV-PQ35 H21 0240
Revision: 00000000 Serial number: 14000305204001
Coding: 4100000000000000
Shop #: WSC 00066 790 50316
ASAM Dataset: EV_ELVMarquMPVW36X A01001
ROD: EV_ELVMarquMPVW36X_VW32.rod
VCID: B032FDD76AA6435A6FB-80E4
No fault code found.
-------------------------------------------------------------------------------
Address 3C: Lane Change (J1086) Labels: Redir Fail!
Part No SW: 2Q0 907 686 B HW: 2Q0 907 686 B
Component: HRE3_Kl15_Mst H06 0150
Serial number: 14520003983159 Dataset Number: V03935303MB 0001
Coding: 529524A0
ASAM Dataset: EV_HREntryHellaGen3Kl15 002001
ROD: N/A
VCID: B924C0F3B9DC8212D85-80EC
Subsystem 1 - Part No SW: 2Q0 907 685 B HW: 2Q0 907 685 B
Component: HRE3_Kl15_Slv H06 0150
Serial number: 14520003959660
No ASAM data for: "EV_HREntryHellaGen3Kl15" (VN75)
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J792) Labels:| 2Qx-909-144-V2.clb
Part No SW: 2Q1 909 144 T HW: 2Q1 909 144 F
Component: TRW_G4L_MQBA0 611 6213
Serial number: 01478032CP3L073
Coding: 000000000100000000000200010001000100010001
ASAM Dataset: EV_SteerAssisZFGen1PQ12PA 002002
ROD: EV_SteerAssisZFGen1PQ12PA.rod
VCID: C3D8A21BCB10C8C2829-8096
No fault code found.
-------------------------------------------------------------------------------
Address 47: Sound System (R184) Labels: 5K0-035-456.clb
Part No SW: 3AA 035 466 HW: 3AA 035 466
Component: KonzernAmp12K H03 6904
Revision: -------- Serial number: A1108A00007925 Dataset Number: 360050v____ 0004
ASAM Dataset: EV_AudioVerst12KanalSTT1 001001
ROD: EV_AudioVerst12KanalSTT1_VW36.rod
VCID: ED8C24A3BD14EEB204D-80B8
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: -------------- Dataset Number: V03600097E0 0001
Coding: 0FC6020001000000
Shop #: WSC 02748 790 50316
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: BA26DFFFBCDA890AD1F-80EE
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0480
Serial number: VWZAZ2U1668085 Dataset Number: V00000000VW 0001
Coding: 0645000FBE00000011110006010D08001F0103C401200100CE
Shop #: WSC 00046 123 12345
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: A51C1C83256416F28CD-80F0
Data carrier:
Subsystem 1 - Part No SW: V03 959 820 DC HW: -----------
Component: MRM DL2 23/24 --- 2010
Serial number: --------------------
2 Faults Found:
1555 - Check Software Version Management
B201A 00 [00001001] - -
[Check software version management]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 229
Mileage: 352297 km
Date: 2024.11.17.
Time: 03:14:58
Voltage terminal 30: 12.1 V
Status_Software_Version_Management-module_name:
15360768 - Component Protection
U1101 00 [00001001] - Active
[Anti-theft protection - component protection active (0xEA6300)]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 1
Reset counter: 229
Mileage: 352297 km
Date: 2024.11.17.
Time: 03:14:58
Voltage terminal 30: 12.1 V
-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7E0 907 534 HW: 7E0 937 090 E
Component: Batt.regelung H84 0772
Serial number: 2502 306190145
Coding: 330B1A73
Shop #: WSC 12345 123 12345
VCID: E88255B79276CB9A77B-80BC
Subsystem 1 - Part No SW: 7E0 915 181 G HW: 7E0 915 181 G
Component: J367-BDM H08 0223
Serial number: 62309D31111261021812
No fault code found.
-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502) Labels: 3AA-907-273.clb
Part No SW: 3AA 907 273 F HW: 5Q0 907 273
Component: RDKBERU30 H04 0011
Serial number: 30000000047437
ASAM Dataset: EV_RDKBERU30 005005
ROD: EV_RDKBERU30_005.rod
VCID: B720C6CB8FC894622E1-80E2
No fault code found.
-------------------------------------------------------------------------------
Address 6C: Back-up Cam. (J772) Labels:| 5Q0-980-556.clb
Part No SW: 5Q0 980 556 B HW: 5Q0 980 556 B
Component: RVC Compact H18 0231
Dataset Number: V03935257YE 0001
Coding: 047300010600041F000040
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_CamSysRVRVCPANAMQBAB 006009
ROD: EV_CamSysRVRVCPANAMQBAB_006_VW37.rod
VCID: B924C0F3B9DC8212D85-80EC
1 Fault Found:
10489856 - No Basic Setting
B2010 00 [00001001] - -
[RearView system not calibrated]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 5
Fault Frequency: 1
Reset counter: 250
Mileage: 150182 km
Date: 2024.01.14
Time: 14:07:40
passive
-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist (R242) Labels:| 3Q0-980-65X-A5.clb
Part No SW: 3Q0 980 654 P HW: 3Q0 980 654 A
Component: MQB_B_MFK H14 0821
Serial number: 04112012P13717 Dataset Number: V03935308DF 0001
Coding: 01020706020004010002105481D6850087000E01002000
Shop #: WSC 31414 137 00001
ASAM Dataset: EV_MFKBoschMQBB 002041
ROD: EV_MFKBoschMQBB_002.rod
VCID: C4DAA107CE1ECFFABB3-8090
No fault code found.
End----------(Elapsed Time: 01:58, VBatt start/end: 12.1V/12.1V)-----------
-
til3tsio
- Getting There!
- Posts: 89
- Joined: Thu Feb 11, 2021 10:53 pm
- Drives: Seat Toledo KG
- Location: Greece
Re: BCM Max Transporter 2013
Thanks for the details,
I see that you have an HBA mirror, do you know if it is possible to use HBA from the A5 camera instead of the mirror?
I am asking because I am exploring mounting possibilities for the A5 camera in my Toledo,
unfortunately, there is no windscreen for my car with a camera mount and I do not know if something else fits, so I will I have to improvise.
I got a "universal" mount from Ali that I can stick lower than the mirror but, in this way, my HBA’s mirror camera view would be blocked and I would have to replace it with a non-HBA one.
I see that you have an HBA mirror, do you know if it is possible to use HBA from the A5 camera instead of the mirror?
I am asking because I am exploring mounting possibilities for the A5 camera in my Toledo,
unfortunately, there is no windscreen for my car with a camera mount and I do not know if something else fits, so I will I have to improvise.
I got a "universal" mount from Ali that I can stick lower than the mirror but, in this way, my HBA’s mirror camera view would be blocked and I would have to replace it with a non-HBA one.
Last edited by til3tsio on Fri Jan 10, 2025 3:51 pm, edited 1 time in total.
Re: BCM Max Transporter 2013
You could consider extracting the camera lens module out if the whole assembly and extending the ribbon tape.
Example below.
https://mqb.pl/en/tutorial-retrofiting- ... 5q0980653/
Example below.
https://mqb.pl/en/tutorial-retrofiting- ... 5q0980653/
-
til3tsio
- Getting There!
- Posts: 89
- Joined: Thu Feb 11, 2021 10:53 pm
- Drives: Seat Toledo KG
- Location: Greece
Re: BCM Max Transporter 2013
I have seen this solution but when I asked some "experts" the answer that I got was that this trick does not work on the 3q0 cameras because of the long ribbon so I haven't tried it.RobertVW wrote: Fri Jan 10, 2025 10:35 am You could consider extracting the camera lens module out if the whole assembly and extending the ribbon tape.
Example below.
https://mqb.pl/en/tutorial-retrofiting- ... 5q0980653/
do you know any working examples ?
Re: BCM Max Transporter 2013
Shadow 109Shadow109 wrote: Tue Dec 29, 2020 5:42 pm So finally I’ve got the new slip ring and the stalk
I have make all the additional wiring like Adams digram, no faults on vcds, but still no high beam, and the high beam light on the cluster is always on
Can I ask you about the wiring of the control buttons on this steering wheel?
I also installed the same steering wheel as yours on my 2014 T5 Caravelle.
The difference is that mine is a DSG gearbox. Can you help me set it up?
Last edited by zzm202000 on Tue Feb 11, 2025 12:37 am, edited 1 time in total.
Re: BCM Max Transporter 2013
Shadow 109Shadow109 wrote: Tue Dec 29, 2020 5:42 pm So finally I’ve got the new slip ring and the stalk
I have make all the additional wiring like Adams digram, no faults on vcds, but still no high beam, and the high beam light on the cluster is always on
Can I ask you about the wiring of the control buttons on this steering wheel?
I also installed the same steering wheel as yours on my 2014 T5 Caravelle.
The difference is that mine is a DSG gearbox. Can you help me set it up?
-
Shadow109
- Bronze Member
- Posts: 152
- Joined: Sun Aug 16, 2020 2:59 pm
- Drives: Vw t5.1 2013
- Location: Israel
Re: BCM Max Transporter 2013
Did you had an oem mfsw before?
An autoscan will help
An autoscan will help
